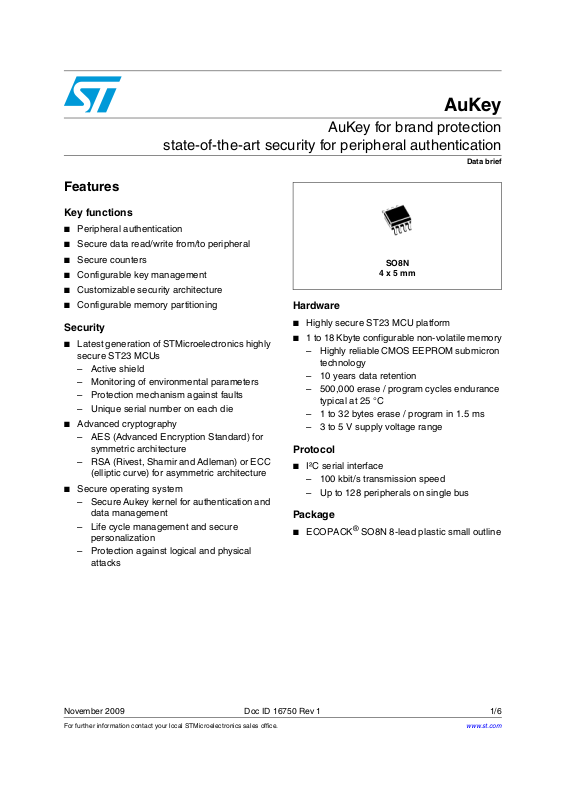

Page 1
state-of-the-art security for peripheral authentication
SO8N
4 x 5 mm
Features
Key functions
■ Peripheral authentication
■ Secure data read/write from/to peripheral
■ Secure counters
■ Configurable key management
■ Customizable security architecture
■ Configurable memory partitioning
AuKey
AuKey for brand protection
Data brief
Hardware
Security
■ Latest generation of STMicroelectronics highly
secure ST23 MCUs
– Active shield
– Monitoring of environmental parameters
– Protection mechanism against faults
– Unique serial number on each die
■ Advanced cryptography
– AES (Advanced Encryption Standard) for
symmetric architecture
– RSA (Rivest, Shamir and Adleman) or ECC
(elliptic curve) for asymmetric architecture
■ Secure operating system
– Secure Aukey kernel for authentication and
data management
– Life cycle management and secure
personalization
– Protection against logical and physical
attacks
■ Highly secure ST23 MCU platform
■ 1 to 18 Kbyte configurable non-volatile memory
– Highly reliable CMOS EEPROM submicron
technology
– 10 years data retention
– 500,000 erase / program cycles endurance
typical at 25 °C
– 1 to 32 bytes erase / program in 1.5 ms
– 3 to 5 V supply voltage range
Protocol
■ I²C serial interface
– 100 kbit/s transmission speed
– Up to 128 peripherals on single bus
Package
■ ECOPACK
®
SO8N 8-lead plastic small outline
November 2009 Doc ID 16750 Rev 1 1/6
For further information contact your local STMicroelectronics sales office.
www.st.com
6
Page 2
Description AuKey
!PPLICATION
PROCESSOR
!U+EY
COMPANION
CHIP
(OST
!U+EY
PERIPHERAL
CHIP
0ERIPHERAL
)£#"US
6
##
3
$!
3
#,
0ERIPHERAL
0AIRING
!UTHENTICATIONSEC UREREADWRITE
!U+EY
PERIPHERAL
CHIP
AI
1 Description
1.1 Architecture
AuKey is a highly advanced flexible security architecture supporting symmetric and
asymmetric cryptography. It is implemented as a secure operating system running on the
latest generation secure microcontrollers and providing authentication and secure data
management services to the host application processor.
Symmetric cryptographic architecture
Figure 1. AuKey symmetric cryptographic architecture
The symmetric architecture (Figure 1) uses one AuKey secure microcontroller per
peripheral, and an AuKey secure microcontroller on the host main board. Symmetric
cryptography (AES) allows to authenticate and authorize access to AuKey peripheral chips.
It is also used for the secure channel between the host application processor and the AuKey
companion chip (optional pairing), and for an optional secure channel between the
equipment manufacturer remote server and the AuKey companion chip. This optional
channel may be used for application processor firmware upgrade.
The symmetric cryptographic architecture supports the following features:
● Authentication
Authentication serves to provide proof to a device application processor that a certain
peripheral is genuine. This allows an equipment manufacturer to ensure that only
authentic peripherals, accessories or consumables can be used in conjunction with the
original equipment. The application processor authenticates the AuKey peripheral chip
2/6 Doc ID 16750 Rev 1
Page 3
AuKey Description
with the help of the companion chip through a challenge-response protocol based on
AES.
● Secure read/write
Secure write operations allow the application processor to write usage or traceability
data to one of its peripherals so that it cannot be tampered with by unauthorized users.
Secure read operations allow the application processor to authenticate the data read
from the AuKey peripheral chip with the help of the AuKey companion chip. This
ensures that a peripheral or an accessory is used only as intended and within the
limitations defined by the equipment manufacturer.
● Secure one-way counters
Secure one-way counters limit the usage of a certain accessories or consumable to a
value preset by the manufacturer. A secure one-way counter can only be decremented.
● Early pairing to application processor (optional)
Pairing during the production process between the AuKey cryptographic chip and the
application processor on the equipment main board enables the application processor
to authenticate the cryptographic chip.
● Firmware upgrade and equipment authentication (optional)
When the host is connected to a remote server, the AuKey companion chip provides
the host manufacturer the capability to secure the upgrade of the application processor
firmware or parameters. This contributes to ensure the integrity of the host, and to
prevent unauthorized downloading of software. By using the AuKey companion chip for
decryption, the remote download can also be encrypted by the remote server. The
equipment manufacturer's server can also perform the remote authentication of the
host using the AuKey companion chip.
Doc ID 16750 Rev 1 3/6
Page 4
Description AuKey
!PPLICATION
0ROCESSOR
(OST
!U+EY
0ERIPHERAL
CHIP
0ERIPHERAL
)£#"53
6
##
3
$!
3
#,
0ERIPHERAL
!UTHENTICATION
!U+EY
0ERIPHERAL
CHIP
AI
Asymmetric cryptographic architecture

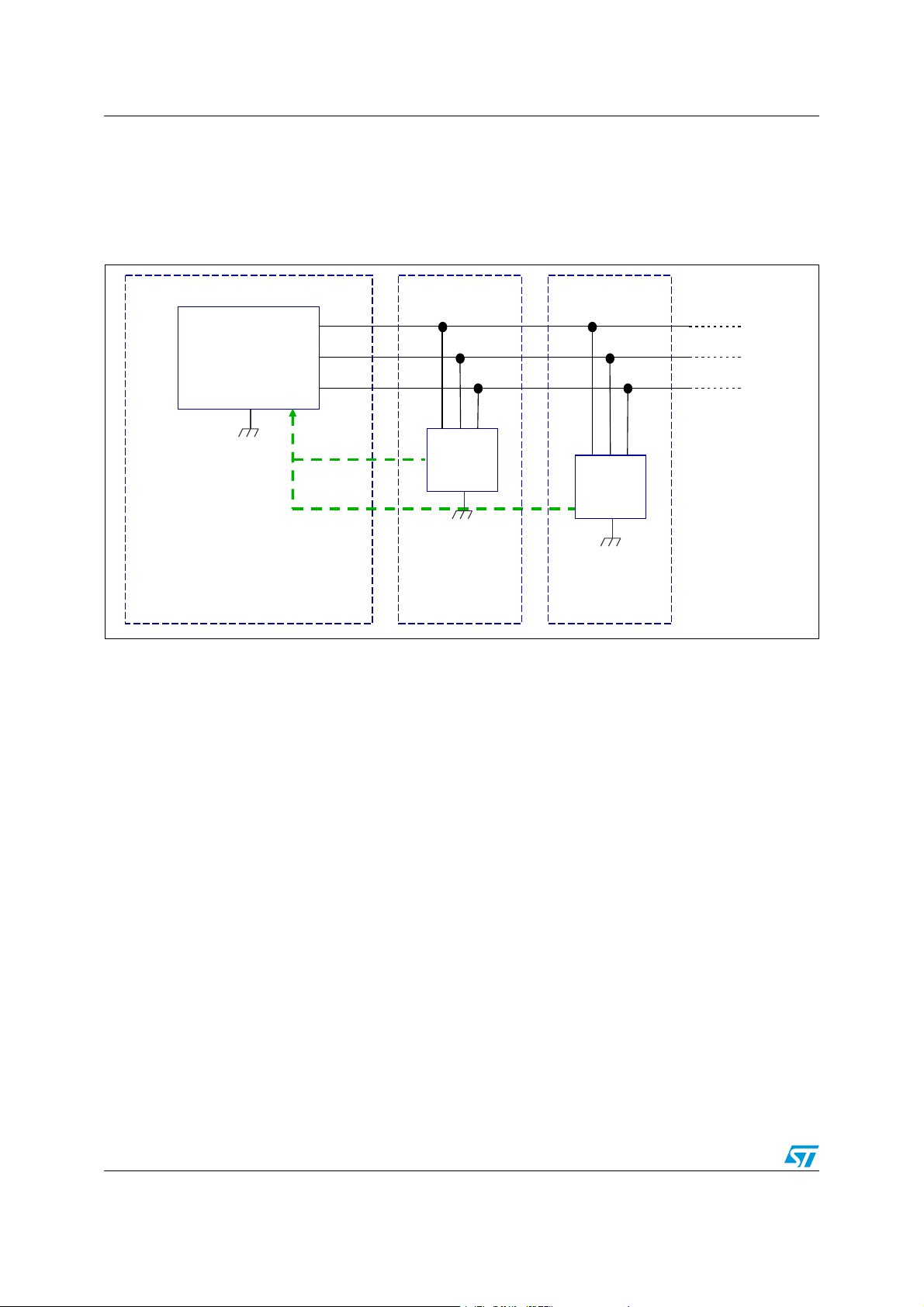

The asymmetric architecture (Figure 2) uses one AuKey secure microcontroller per
peripheral and does not require any companion chip on the host main board. Asymmetric
cryptography (RSA or ECC) allows to authenticate AuKey peripheral chips.
Figure 2. AuKey asymmetric cryptographic architecture
The asymmetric cryptographic architecture supports the following features:
● Authentication
Authentication serves to provide proof to a device application processor that a certain
peripheral is genuine. This allows an equipment manufacturer to ensure that only
authentic peripherals, accessories or consumables can be used in conjunction with the
original equipment. The application processor requests the AuKey peripheral chip to
generate a signature over a challenge using asymmetric cryptography.
● Secure one-way counters
Secure counters limit the usage of a certain accessory or consumables to a value
preset by the manufacturer. Secure one-way counters can only be decremented.
Delivery form
AuKey chips come in a small form factor SO8N package.
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
4/6 Doc ID 16750 Rev 1
Page 5
AuKey Revision history
Tools and services
Leveraging on its wide expertise in secure solutions for banking, government and consumer
segments, ST offers a wide range of tools and services to assist the manufacturer.
ST cryptographic experts can advise manufacturers about the definition of optimal security
configurations based on the AuKey flexible security and key management architecture. ST
can also propose a custom security solution that serves the particular needs of any
environment.
AuKey chips are delivered by ST manufacturing plant securely pre-personalized. ST also
offers hardware and software tools to support large-scale personalization of AuKey chips at
the manufacturer or subcontractor premises. These tools allow to securely generate
cryptographic keys and public key certificates, and to load them onto the AuKey chips during
the manufacturing process.
2 Revision history
Table 1. Document revision history
Date Revision Changes
10-Nov-2009 1 Initial release.
Doc ID 16750 Rev 1 5/6
