Page 1

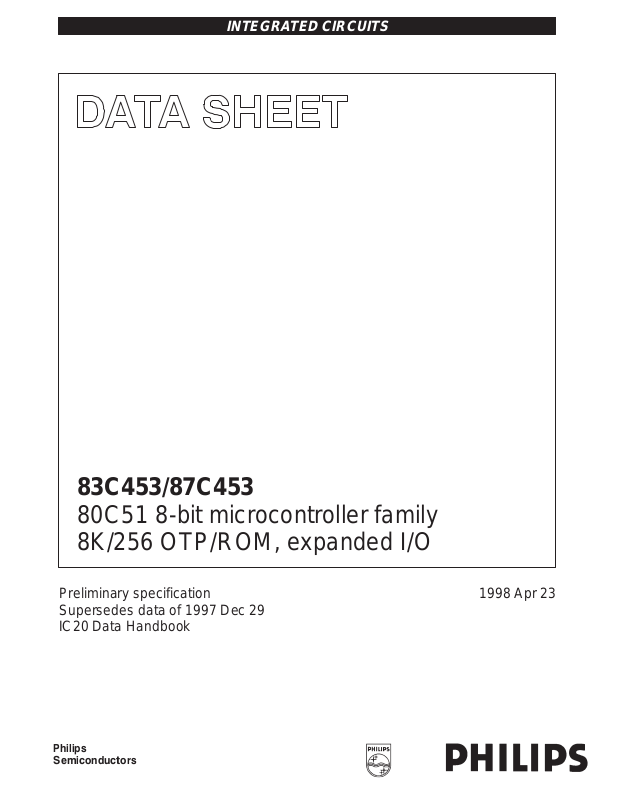

INTEGRATED CIRCUITS

83C453/87C453

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

Preliminary specification Supersedes data of 1997 Dec 29 IC20 Data Handbook

 

1998 Apr 23

Page 2

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

DESCRIPTION

The Philips 8XC453 is an I/O expanded single-chip microcontroller fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes latch-up sensitivity.

The 8XC453 is a functional extension of the 87C51 microcontroller with three additional I/O ports and four I/O control lines. The 8XC453 is available in 68-pin LCC packages. Four control lines associated with port 6 facilitate high-speed asynchronous I/O functions.

The 87C453 includes an 8k × 8 EPROM, a 256 × 8 RAM, 56 I/O lines, two 16-bit timer/counters, a seven source, two priority level, nested interrupt structure, a serial I/O port for either a full duplex UART, I/O expansion, or multi-processor communications, and on-chip oscillator and clock circuits.

The 87C453 has two software selectable modes of reduced activity for further power reduction; idle mode and power-down mode. Idle mode freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning. Power-down mode freezes the oscillator, causing all other chip functions to be inoperative while maintaining the RAM contents.

83C453/87C453

FEA TURES

•80C51 based architecture

•Seven 8-bit I/O ports

•Port 6 features:

– Eight data pins – Four control pins – Direct MPU bus interface – ISA Bus Interface – Parallel printer interface – IBF and OBF – A flag latch on host write

•On the microcontroller:

– 8k × 8 EPROM

Quick pulse programming algorithm Two-level program security system

– 256 × 8 RAM – Two 16-bit counter/timers – Two external interrupts

•External memory addressing capability

– 64k ROM and 64k RAM

•Low power consumption:

– Normal operation: less than 24mA at 5V , 16MHz – Idle mode – Power-down mode

•Reduced EMI

•Full-duplex enhanced UART

– Framing error detection – Automatic address recognition

interrupts

ORDERING INFORMATION

EPROM

P87C453EBAA OTP P83C453EBAA 68–Pin Plastic Leaded Chip Carrier, 0 to +70 3.5 to 16 SOT188-3

NOTE:

1. OTP = One-Time Programmable EPROM.

1998 Apr 23

ROM TEMPERATURE °C AND PACKAGE

FREQ.

(MHz)

PKG. DWG

Page 3

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

BLOCK DIAGRAM

P0.0–P0.7

PORT 0

DRIVERS

RAM ADDR REGISTER

256 BYTES

RAM

ACC

TMP2

PORT 0

LATCH

P2.0–P2.7

PORT 2

DRIVERS

PORT 2

LATCH

TMP1

P4.0–P4.7

PORT 4

DRIVERS

PORT 4

LATCH

P5.0–5.7

PORT 5

DRIVERS

PORT 5

LATCH

STACK

POINTER

83C453/87C453

8K x 8

EPROM

PROGRAM

ADDRESS

PSEN

ALE/PROG

EAV

RST

TIMING

AND

CONTROL

OSCILLATOR

XTAL1 XTAL2

INSTRUCTION

PORT 1

LATCH

PORT 1

DRIVERS

P1.0–P1.7

PSW

ALU

PORT 6

LATCH

PORT 6

DRIVERS

P6.0–P6.7

PCON SCON TMOD TCON

TH0 TL0 TH1

PSW

TL1

DPH DPL AUXR

SBUF IE IP

CSR

INTERRUPT, SERIAL

PORT AND TIMER BLOCKS

PORT 6

CONTROL/STATUS

IDS ODS

AFLAG

BFLAG

PORT 3

LATCH

PORT 3

DRIVERS

P3.0–P3.7

BUFFER

INCRE-

MENTER

PROGRAM COUNTER

DPTR

SU00158

1998 Apr 23

Page 4

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

LOGIC SYMBOL

XTAL1

ADDRESS AND

PORT 0

XTAL2

RST /V

RxD

TxD INT0 INT1

T0 T1

SECONDARY FUNCTIONS

PORT 6 CONTROL

PSEN

ALE/PROG

PORT 3

PORT 6

ODS

IDS BFLAG AFLAG

PORT 1PORT 2

ADDRESS BUS

PORT 4

PORT 5

DATA BUS

SU00085

LCC PIN FUNCTIONS

27 43

Pin Function

1EA

2 P2.0/A8 3 P2.1/A9 4 P2.2/A10 5 P2.3/A11 6 P2.4/A12 7 P2.5/A13 8 P2.6/A14

9 P2.7/A15 10 P0.7/AD7 11 P0.6/AD6 12 P0.5/AD5 13 P0.4/AD4 14 P0.3/AD3 15 P0.2/AD2 16 P0.1/AD1 17 P0.0/AD0 18 V

19 P4.7 20 P4.6 21 P4.5 22 P4.4 23 P4.3

Pin Function

24 P4.2 25 P4.1 26 P4.0 27 P1.0 28 P1.1 29 P1.2 30 P1.3 31 P1.4 32 P1.5 33 P1.6 34 P1.7 35 RST 36 P3.0/RxD 37 P3.1/TxD 38 P3.2/INTO 39 P3.3/INT1 40 P3.4/T0 41 P3.5/T1 42 P3.6/WR 43 P3.7/RD 44 P5.0 45 P5.1 46 P5.2

83C453/87C453

9161

LCC

Pin Function

47 P5.3 48 P5.4 49 P5.5 50 P5.6 51 P5.7 52 XTAL2 53 XTAL1 54 V

55 ODS 56 IDS 57 BFLAG 58 AFLAG 59 P6.0 60 P6.1 61 P6.2 62 P6.3 63 P6.4 64 P6.5 65 P6.6 66 P6.7 67 PSEN 68 ALE/PROG

SU00157

1998 Apr 23

Page 5

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

PIN DESCRIPTION

MNEMONIC

P0.0–0.7 17-10 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 is also the multiplexed data and low-order

P1.0–P1.7 27-34 I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. Port 1 receives the low-order address

P2.0–P2.7 2-9 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 emits the high-order address

P3.0–P3.7 36-43 I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 can sink/source three LS TTL

P4.0–P4.3 P4.0–P4.7 26-19

P5.0–P5.7 44-51 I/O Port 5: Port 5 is an 8-bit bidirectional I/O port with internal pull-ups. Port 5 can sink/source three LS TTL

P6.0–P6.7 59-66 I/O Port 6: Port 6 is a specialized 8-bit bidirectional I/O port with internal pull-ups. This special port can

ODS 55 I ODS: Output data strobe IDS 56 I IDS: Input data strobe BFLAG 57 I/O BFLAG: Bidirectional I/O pin with internal pull-ups AFLAG 58 I/O AFLAG: Bidirectional I/O pin with internal pull-ups RST 35 I Reset: A high on this pin for two machine cycles while the oscillator is running, resets the device. An

ALE/PROG 68 I/O Address Latch Enable/Program Pulse: Output pulse for latching the low byte of the address during an

PSEN 67 O Program Store Enable: The read strobe to external program memory. PSEN is activated twice each

EA/V

XTAL1 53 I Crystal 1: Input to the inverting oscillator amplifier that forms the oscillator. This input receives the external

XTAL2 52 O Crystal 2: An output of the inverting amplifier that forms the oscillator. This pin should be floated when an

PIN NO.

TYPE NAME AND FUNCTION

54 I Ground: 0V reference. 18 I Power Supply: This is the power supply voltage for normal, idle, and power-down operation.

address bus during accesses to external memory. External pull-ups are required during program verification. Port 0 can sink/source eight LS TTL inputs.

bytes during program memory verification. Port 1 can sink/source three LS TTL inputs, and drive CMOS inputs without external pull-ups.

bytes during access to external memory and receives the high-order address bits and control signals during program verification. Port 2 can sink/source three LS TTL inputs, and drive CMOS inputs without external pull-ups.

inputs, and drive CMOS inputs without external pull-ups. Port 3 also serves the special functions listed

below: 36 I RxD (P3.0): Serial input port 37 O TxD (P3.1): Serial output port 38 I INT0 (P3.2): External interrupt 39 I INT1 (P3.3): External interrupt 40 I T0 (P3.4): Timer 0 external input 41 I T1 (P3.5): Timer 1 external input 42 O WR (P3.6): External data memory write strobe 43 O RD (P3.7): External data memory read strobe

I/O

Port 4: Port 4 is an 8-bit bidirectional I/O port with internal pull-ups. Port 4 can sink/source three LS TTL

I/O

inputs and drive CMOS inputs without external pull-ups.

sink/source three LS TTL inputs and drive CMOS inputs without external pull-ups. Port 6 can be used in a

strobed or non-strobed mode of operation. Port 6 works in conjunction with four control pins that serve the

functions listed below:

internal pull-down resistor permits a power-on reset using only an external capacitor connected to VCC.

access to external memory. ALE is activated at a constant rate of 1/6 the oscillator frequency except during

an external data memory access, at which time one ALE is skipped. ALE can sink/source three LS TTL

inputs and drive CMOS inputs without external pull-ups. This pin is also the program pulse during EPROM

programming.

machine cycle during fetches from external program memory. However, when executing out of external

program memory, two activations of PSEN

PSEN

is not activated during fetches from internal program memory. PSEN can sink/source eight LS TTL

inputs and drive CMOS inputs without an external pull-up. This pin should be tied low during programming.

1 I Instruction Execution Control/Programming Supply Voltage: When EA is held high, the CPU executes

out of internal program memory, unless the program counter exceeds 1FFFH. When EA is held low, the

CPU executes out of external program memory. EA

the 12.75V programming supply voltage (V

oscillator when an external oscillator is used.

external oscillator is used.

are skipped during each access to external program memory.

must never be allowed to float. This pin also receives

) during EPROM programming.

1998 Apr 23

Page 6

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

Table 1. 87C453 Special Function Registers

SYMBOL DESCRIPTION

ACC* Accumulator E0H E7 E6 E5 E4 E3 E2 E1 E0 00H B* B register F0H F7 F6 F5 F4 F3 F2 F1 F0 00H

CSR*# Port 6 command/status E8H MB1 MB0 MA1 MA0 OBFC IDSM OBF IBF FCH DPTR Data pointer (2 bytes)

DPH Data pointer high 83H 00H DPL Data pointer low 82H 00H

IP* Interrupt priority B8H – POB PIB PS PT1 PX1 PT0 PX0 x0000000B

AUXR# Auxiliary register 8EH – – – – – – AF AO x0000000B

IE* Interrupt enable A8H EA IOB IIB ES ET1 EX1 ET0 EX0 00000000B P0* Port 0 80H 87 B6 85 84 83 82 81 80 FFH

P1* Port 1 90H 97 96 95 94 93 92 91 90 FFH P2* Port 2 A0H A7 A6 A5 A4 A3 A2 A1 A0 FFH P3* Port 3 B0H B7 B6 B5 B4 B3 B2 B1 B0 FFH P4*# Port 4 C0H C7 C6 C5 C4 C3 C2 C1 C0 FFH P5*# Port 5 C8H CF CE CD CC CB CA C9 C8 FFH P6*# Port 6 D8H DF DE DD DC DB DA D9 D8 FFH

DIRECT

ADDRESS

BIT NAMES AND ADDRESSES MSB LSB

EF EE ED EC EB EA E9 E8

BF BE BD BC BB BA B9 B8

AF AE AD AC AB AA A9 A8

RESET VALUE

PCON Power control 87H SMOD1 SMOD0 – POF1GF1 GF0 PD IDL 00xx0000B

D7 D6 D5 D4 D3 D2 D1 D0

PSW* Program status word D0H CY AC F0 RS1 RS0 OV – P 00H SADDR# Slave Address A9H 00H SADEN# Slave Address Mask B9H 00H

SBUF Serial data buffer 99H xxxxxxxxB

9F 9E 9D 9C 9B 9A 99 98 SCON* Serial port control 98H SM0 SM1 SM2 REN TB8 RB8 TI RI 00H SP Stack pointer 81H 07H

8F 8E 8D 8C 8B 8A 89 88 TCON* Timer/counter control 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H

TMOD Timer/counter mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00H TH0 Timer 0 high byte 8CH 00H

TH1 Timer 1 high byte 8DH 00H TL0 Timer 0 low byte 8AH 00H TL1 Timer 1 low byte 8BH 00H

NOTES:

* SFRs are bit addressable. # SFRs are modified from or added to the 80C51 SFRs.

1. REset value depends on reset source.

1998 Apr 23

Page 7

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

IE REGISTER IP REGISTER

INT0

TF0

INT1

TF1

IT0

IT1

IE.0

IE.1

IE.2

IE.3

IE.4

83C453/87C453

HIGH PRIORITY

INTERRUPT

POLLING

SEQUENCE

IBF

OBF

IE.5

IE.6

INDIVIDUAL

ENABLES

GLOBAL

DISABLE

Figure 1. 8XC453 Interrupt Control System

LSBMSB

ET0EX1ET1ESIIBIOBEA

EX0

BIT SYMBOL FUNCTION

IE.7 EA Disables all interrupts. If EA=0, no interrupt will be acknowledged. If EA=1, each interrupt

source is individually enabled or disabled by setting or clearing its enable bit.

IE.6 IOB Enables or disables the Output Buffer Full (OBF) interrupt. If IOB=0, the interrupt is disabled,

If IOB=1, an interrupt will occur if EA is set and data has been read from the output buffer register through Port 6 by the external host pulsing ODS low.

IE.5 IIB Enables or disables the Input Buffer Full (IBF) interrupt. If IIB=0, the interrupt is disabled. If

IIB=1, an interrupt will occur if EA is set and data has been written into the Port 6 Input Data Buffer by the host strobing IDS low .

IE.4 ES Enables or disables the Serial Port Interrupt. If ES=0, the Serial Port Interrupt. If ES=0, the

Serial Port interrupt is disabled. IE.3 ET1 Enables or disables the Timer 1 Overflow interrupt. If ET1=0, the Timer 1 interrupt is disabled. IE.2 EX1 Enables or disables External Interrupt 1. If EX1=0, External Interrupt 1 is disabled. IE.1 ET0 Enables or disables the Timer 0 Overflow interrupt. If ET0=0, the Timer 0 interrupt is disabled. IE.0 EX0 Enables or disables External Interrupt 0. If EX0=0, external Interrupt 0 is disabled.

Figure 2. 8XC453 Interrupt Enable (IE) Register

SU00563

LOW PRIORITY

INTERRUPT

SU00562

1998 Apr 23

Page 8

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

LSBMSB

PT0PX1PT1PSPIBPOB—

BIT SYMBOL FUNCTION

IP.7 — Reserved. IP.6 POB Defines the Output Buffer Full interrupt (IOB) priority level. POB=1 programs it to the higher priority level. IP.5 PIB Defines the Input Buffer Full interrupt (IIB) priority level. PIB=1 programs it to the higher priority level. IP.4 PS Defines the Serial Port interrupt priority level. PS=1 programs it to the higher priority level. IP.3 PT1 Defines the Timer 1 interrupt priority level. PT1=1 programs it to the higher priority level. IP.2 PX1 Defines the External Interrupt 1 priority level. PX1=1 programs it to the higher priority level. IP.1 PT0 Enables or disables the Timer 0 interrupt priority level. PT0=1 programs it to the higher priority level. IP.0 PX0 Defines the External Interrupt 0 priority level. PX0=1 programs it to the higher priority level.

Figure 3. 8XC453 Interrupt Priority (IP) Register

PDGF0GF1POF—SMOD2SMOD1

PX0

01234567

IDLPCON (87H)

SU00564

BIT SYMBOL FUNCTION

PCON.7 SMOD1 Double Baud rate bit. When set to a 1 and Timer 1 is used to generate baud rate, and the Serial Port

PCON.6 SMOD0 If set to 1, SCON.7 will be the Framing Error bit (FE). If PCON.6 is cleared, SCON.7 will be SM0. PCON.5 — Reserved. PCON.4 POF Power Off Flag is set during power on of V

PCON.3 GF1 General-purpose flag bit. PCON.2 GF0 General-purpose flag bit. PCON.1 PD Power-Down bit. Setting this bit activates power-down mode. It can only be set if input EW is high. PCON.0 IDL Idle mode bit. Setting this bit activates the idle mode.

If logic 1s are written to PD and IDL at the same time, PD takes precedence.

is used in modes 1, 2, or 3.

if a warm start has occurred.

Figure 4. Power Control Register (PCON)

Table 2. Interrupt Table

POLLING

PRIORITY

1 INTO IE0 03H highest priority 2 Timer0 TF0 0BH 3 INT1 IE1 13H 4 Timer1 TF1 1BH 5 Port 6 OBF 33H 6 Serial I/O RI,TI 23H 7 Port 6 IBF 2BH lowest priority

SOURCE

REQUEST

BITS/FLAG

VECTOR

ADDRESS

. If then cleared by software, it can be used to determine

SU00565

1998 Apr 23

Page 9

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

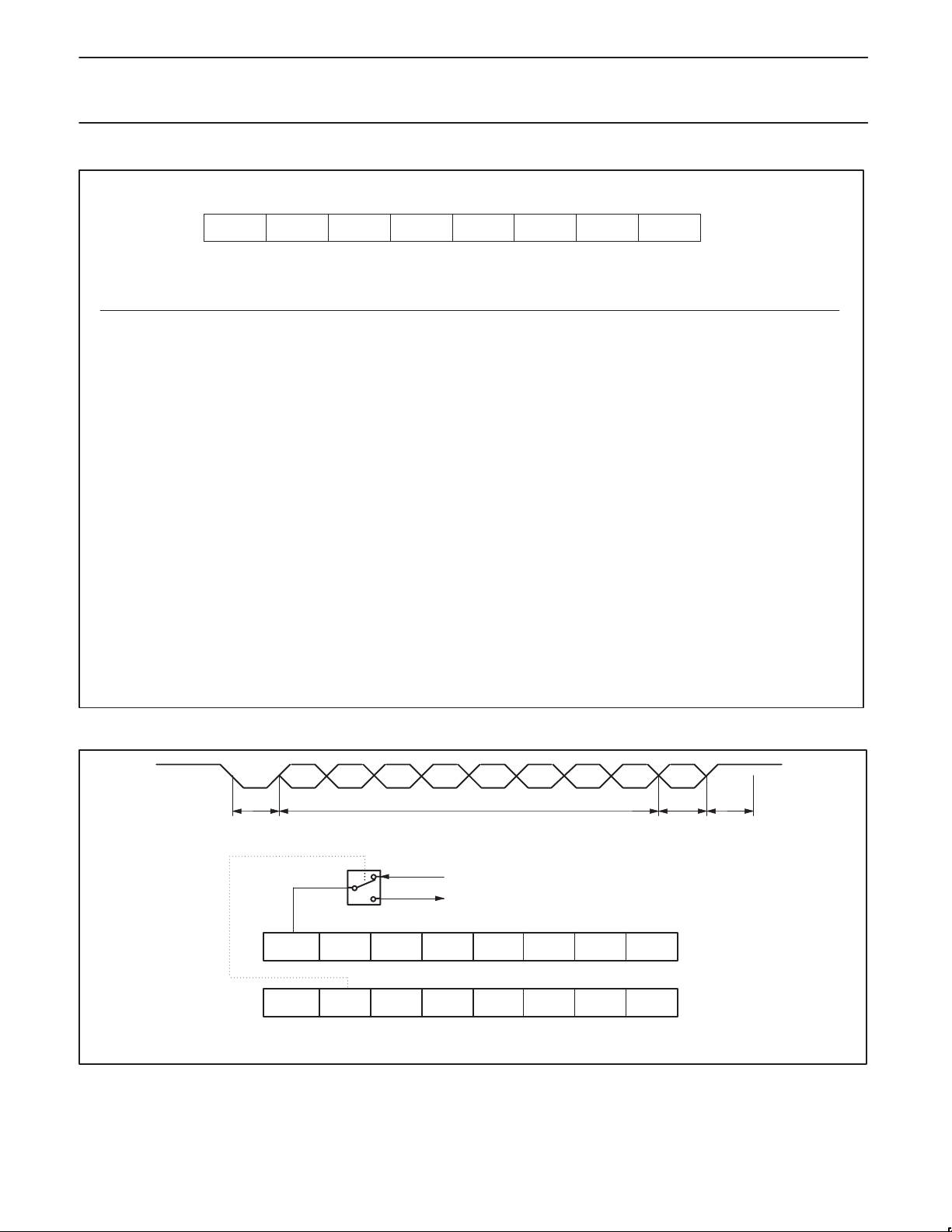

SCON Address = 98H

Bit Addressable

SM0/FE SM1 SM2 REN TB8 RB8 Tl Rl

Bit: 76543210

(SMOD0 = 0/1)*

Symbol Function FE Framing Error bit. This bit is set by the receiver when an invalid stop bit is detected. The FE bit is not cleared by valid

frames but should be cleared by software. The SMOD0 bit must be set to enable access to the FE bit.

SM0 Serial Port Mode Bit 0, (SMOD0 must = 0 to access bit SM0) SM1 Serial Port Mode Bit 1

SM0 SM1 Mode Description Baud Rate**

0 0 0 shift register f

OSC

/12 0 1 1 8-bit UART variable 1 0 2 9-bit UART f

OSC

/64 or f

OSC

/32

1 1 3 9-bit UART variable

SM2 Enables the Automatic Address Recognition feature in Modes 2 or 3. If SM2 = 1 then Rl will not be set unless the

received 9th data bit (RB8) is 1, indicating an address, and the received byte is a Given or Broadcast Address. In Mode 1, if SM2 = 1 then Rl will not be activated unless a valid stop bit was received, and the received byte is a Given or Broadcast Address. In Mode 0, SM2 should be 0.

REN Enables serial reception. Set by software to enable reception. Clear by software to disable reception. TB8 The 9th data bit that will be transmitted in Modes 2 and 3. Set or clear by software as desired. RB8 In modes 2 and 3, the 9th data bit that was received. In Mode 1, if SM2 = 0, RB8 is the stop bit that was received.

In Mode 0, RB8 is not used.

Tl Transmit interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or at the beginning of the stop bit in the

other modes, in any serial transmission. Must be cleared by software.

Rl Receive interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or halfway through the stop bit time in

the other modes, in any serial reception (except see SM2). Must be cleared by software.

NOTE:

*SMOD0 is located at PCON6. **f

= oscillator frequency

OSC

Figure 5. Serial Port Control Register (SCON)

Reset Value = 0000 0000B

SU00043

1998 Apr 23

D0 D1 D2 D3 D4 D5 D6 D7 D8

START

BIT

SM0 / FE SM1 SM2 REN TB8 RB8 TI RI

SMOD1 SMOD0 – POF LVF GF0 GF1 IDL

0 : SCON.7 = SM0 1 : SCON.7 = FE

DATA BYTE

SET FE BIT IF STOP BIT IS 0 (FRAMING ERROR)

SM0 TO UART MODE CONTROL

Figure 6. UART Framing Error Detection

ONLY IN

MODE 2, 3

SCON

(98H)

PCON

(87H)

STOP

BIT

SU00044

Page 10

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

D0 D1 D2 D3 D4 D5 D6 D7 D8

SM0 SM1 SM2 REN TB8 RB8 TI RI

1 1

RECEIVED ADDRESS D0 TO D7

PROGRAMMED ADDRESS

IN UART MODE 2 OR MODE 3 AND SM2 = 1: INTERRUPT IF REN=1, RB8=1 AND “RECEIVED ADDRESS” = “PROGRAMMED ADDRESS” – WHEN OWN ADDRESS RECEIVED, CLEAR SM2 TO RECEIVE DATA BYTES – WHEN ALL DATA BYTES HAVE BEEN RECEIVED: SET SM2 TO WAIT FOR NEXT ADDRESS.

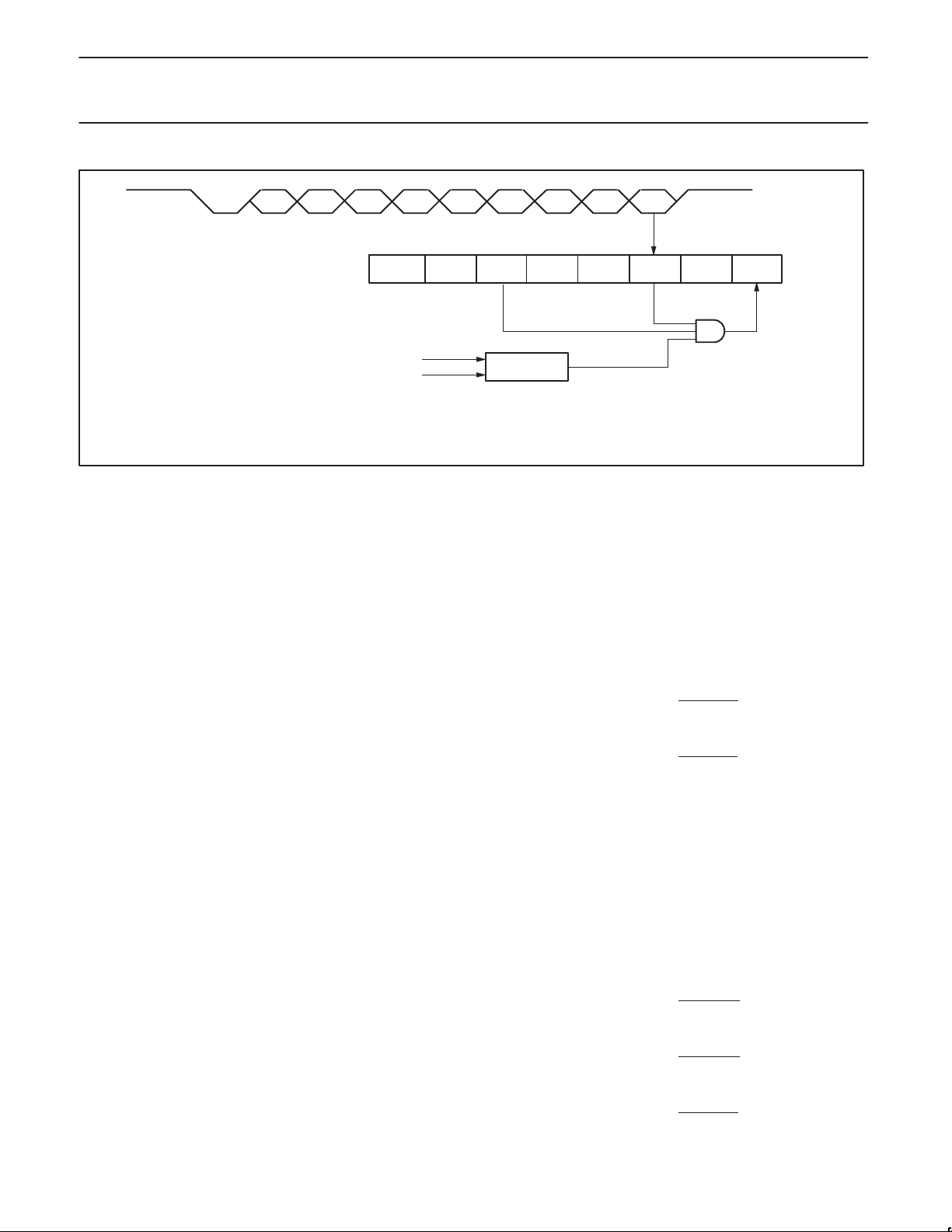

Figure 7. UART Multiprocessor Communication, Automatic Address Recognition

SPECIAL FUNCTION REGISTER ADDRESSES

Special function register addresses for the device are identical to those of the 80C51, except for the additional registers listed in Table 3.

Enhanced UART

The UART operates in all of the usual modes that are described in the first section of this book for the 80C51. In addition the UART can perform framing error detect by looking for missing stop bits, and automatic address recognition. The 87C453 UART also fully supports multiprocessor communication as does the standard 80C51 UART.

When used for framing error detect the UART looks for missing stop bits in the communication. A missing bit will set the FE bit in the SCON register. The FE bit shares the SCON.7 bit with SM0 and the function of SCON.7 is determined by PCON.6 (SMOD0) (see Figure 5). If SMOD0 is set then SCON.7 functions as FE. SCON.7 functions as SM0 when SMOD0 is cleared. When used as FE SCON.7 can only be cleared by software. Refer to Figure 6.

Automatic Address Recognition

Automatic Address Recognition is a feature which allows the UART to recognize certain addresses in the serial bit stream by using hardware to make the comparisons. This feature saves a great deal of software overhead by eliminating the need for the software to examine every serial address which passes by the serial port. This feature is enabled by setting the SM2 bit in SCON. In the 9 bit UART modes, mode 2 and mode 3, the Receive Interrupt flag (RI) will be automatically set when the received byte contains either the “Given” address or the “Broadcast” address. The 9 bit mode requires that the 9th information bit is a 1 to indicate that the received information is an address and not data. Automatic address recognition is shown in Figure 7.

The 8 bit mode is called Mode 1. In this mode the RI flag will be set if SM2 is enabled and the information received has a valid stop bit following the 8 address bits and the information is either a Given or Broadcast address.

Mode 0 is the Shift Register mode and SM2 is ignored. Using the Automatic Address Recognition feature allows a master to

selectively communicate with one or more slaves by invoking the

83C453/87C453

1 0

11 X

COMPARATOR

Given slave address or addresses. All of the slaves may be contacted by using the Broadcast address. Two special Function Registers are used to define the slave’s address, SADDR, and the address mask, SADEN. SADEN is used to define which bits in the SADDR are to b used and which bits are “don’t care”. The SADEN mask can be logically ANDed with the SADDR to create the “Given” address which the master will use for addressing each of the slaves. Use of the Given address allows multiple slaves to be recognized while excluding others. The following examples will help to show the versatility of this scheme:

Slave 0 SADDR = 1100 0000

SADEN = 1111 1101 Given = 1100 00X0

Slave 1 SADDR = 1100 0000

SADEN = 1111 1110 Given = 1100 000X

In the above example SADDR is the same and the SADEN data is used to differentiate between the two slaves. Slave 0 requires a 0 in bit 0 and it ignores bit 1. Slave 1 requires a 0 in bit 1 and bit 0 is ignored. A unique address for Slave 0 would be 1100 0010 since slave 1 requires a 0 in bit 1. A unique address for slave 1 would be 1100 0001 since a 1 in bit 0 will exclude slave 0. Both slaves can be selected at the same time by an address which has bit 0 = 0 (for slave 0) and bit 1 = 0 (for slave 1). Thus, both could be addressed with 1100 0000.

In a more complex system the following could be used to select slaves 1 and 2 while excluding slave 0:

Slave 0 SADDR = 1100 0000

SADEN = 1111 1001 Given = 1100 0XX0

Slave 1 SADDR = 11 10 0000

SADEN = 1111 1010 Given = 1110 0X0X

Slave 2 SADDR = 11 10 0000

SADEN = 1111 1100 Given = 1110 00XX

SCON

(98H)

SU00045

1998 Apr 23

Page 11

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

In the above example the differentiation among the 3 slaves is in the lower 3 address bits. Slave 0 requires that bit 0 = 0 and it can be uniquely addressed by 1110 01 10. Slave 1 requires that bit 1 = 0 and it can be uniquely addressed by 1110 and 0101. Slave 2 requires that bit 2 = 0 and its unique address is 1110 0011. To select Slaves 0 and 1 and exclude Slave 2 use address 1110 0100, since it is necessary t make bit 2 = 1 to exclude slave 2.

The Broadcast Address for each slave is created by taking the logical OR of SADDR and SADEN. Zeros in this result are teated as don’t-cares. In most cases, interpreting the don’t-cares as ones, the broadcast address will be FF hexadecimal.

Upon reset SADDR (SFR address 0A9H) and SADEN (SFR address 0B9H) are leaded with 0s. This produces a given address of all “don’t cares” as well as a Broadcast address of all “don’t cares”. this effectively disables the Automatic Addressing mode and allows the microcontroller to use standard 80C51 type UART drivers which do not make use of this feature.

The 87C453 UART has all of the capabilities of the standard 80C51 UART plus Framing Error Detection and Automatic Address Recognition. As in the 80C51, all four modes of operation are supported as well as the 9th bit in modes 2 and 3 that can be used to facilitate multiprocessor communication.

OSCILLA T OR CHARACTERISTICS

XTAL1 and XTAL2 are the input and output, respectively , of an inverting amplifier . The pins can be configured for use as an on-chip oscillator.

To drive the device from an external clock source, XTAL1 should be driven while XTAL2 is left unconnected. There are no requirements on the duty cycle of the external clock signal, because the input to the internal clock circuitry is through a divide-by-two flip-flop. However, minimum and maximum high and low times specified in the data sheet must be observed.

Reset

A reset is accomplished by holding the RST pin high for at least two machine cycles (24 oscillator periods), while the oscillator is running. To insure a good power-on reset, the RST pin must be high long enough to allow the oscillator time to start up (normally a few milliseconds) plus two machine cycles. At power-on, the voltage on

and RST must come up at the same time for a proper start-up.

Idle Mode

In the idle mode, the CPU puts itself to sleep while all of the on-chip peripherals stay active. The instruction to invoke the idle mode is the last instruction executed in the normal operating mode before the idle mode is activated. The CPU contents, the on-chip RAM, and all of the special function registers remain intact during this mode. The idle mode can be terminated either by any enabled interrupt (at which time the process is picked up at the interrupt service routine and continued), or by a hardware reset which starts the processor in the same manner as a power-on reset.

Power-Down Mode

To save even more power, a Power Down mode can be invoked by software. In this mode, the oscillator is stopped and the instruction that invoked Power Down is the last instruction executed. The on-chip RAM and Special Function Registers retain their values until the Power Down mode is terminated.

On the 87C453 either a hardware reset or external interrupt can cause an exit from Power Down. Reset redefines all the SFRs but

83C453/87C453

does not change the on-chip RAM. An external interrupt allows both the SFRs and the on-chip RAM to retain their values.

To properly terminate Power Down the reset or external interrupt should not be executed before V operating level and must be held active long enough for the oscillator to restart and stabilize (normally less than 10ms).

With an external interrupt, INT0 and INT1 must be enabled and configured as level-sensitive. Holding the pin low restarts the oscillator but bringing the pin back high completes the exit. Once the interrupt is serviced, the next instruction to be executed after RETI will be the one following the instruction that put the device into Power Down.

Power Off Flag

The Power Off Flag (POF) in PCON is set by on-chip circuitry when the V

level on the 87C453 rises from 0 to 5V. The POF bit can be

set or cleared by software allowing a user to determine if the reset is the result of a power-on or a warm start after powerdown. The V level must remain above 3V for the POF to remain unaffected by the

level.

Design Consideration

•When the idle mode is terminated by a hardware reset, the device

normally resumes program execution, from where it left off, up to two machine cycles before the internal rest algorithm takes control. On-chip hardware inhibits access to internal RAM in this event, but access to the port pins is not inhibited. To eliminate the possibility of an unexpected write when Idle is terminated by reset, the instruction following the one that invokes Idle should not be one that writes to a port pin or to external memory.

ONCE Mode

The ONCE (“On-Circuit Emulation”) Mode facilitates testing and debugging of systems using the 87C453 without having to remove the IC from the circuit. The ONCE Mode is invoked by:

1. Pull ALE low while the device is in reset and PSEN

2. Hold ALE low as RST is deactivated. While the device is in ONCE Mode, the Port 0 pins go into a float

state, and the other port pins and ALE and PSEN are weakly pulled high. The oscillator circuit remains active. While the 87C453 is in this mode, an emulator or test CPU can be used to drive the circuit. Normal operation is restored when a normal reset is applied.

PORTS 4 AND 5

Ports 4 and 5 are bidirectional I/O ports with internal pull-ups. Port 4 is an 8-bit port. Port 4 and port 5 pins with ones written to them, are pulled high by the internal pull-ups, and in that state can be used as inputs. Ports 4 and 5 are addressed at the special function register addresses shown in Table 3.

PORT 6

Port 6 is a special 8-bit bidirectional I/O port with internal pull-ups (see Figure 8). This port can be used as a standard I/O port, or in strobed modes of operation in conjunction with four special control lines: ODS controlled by the port 6 control status register (CSR). Port 6 and the CSR are addressed at the special function register addresses shown in Table 3. The following four control pins are used in conjunction with port 6:

ODS

control the port 6 output drivers and the output buffer full flag (OBF), or to clear only the OBF flag bit in the CSR (output-always mode).

, IDS, AFLAG, and BFLAG. Port 6 operating modes are

– Output data strobe for port 6. ODS can be programmed to

is restored to its normal

is high;

1998 Apr 23

Page 12

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

is active low for output driver control. The OBF flag can be

ODS programmed to be cleared on the negative or positive edge of ODS Can produce an IOB interrupt (see Figure 2).

IDS

– Input data strobe for port 6. IDS is used to control the port 6 input latch and input buffer full flag (IBF) bit in the CSR. The input data latch can be programmed to be transparent when IDS is low and latched on the positive transition of IDS positive transition of IDS negative or positive transition of IDS (see Figure 2).

AFLAG – AFLAG is a bidirectional I/O pin which can be programmed to be an output set high or low under program control, or to output the state of the output buffer full flag. AFLAG can also be programmed to be an input which selects whether the contents of the output buffer, or the contents of the port 6 control status register will output on port 6. This feature grants complete port 6 status to external devices.

BFLAG – BFLAG is a bidirectional I/O pin which can be programmed to be an output, set high or low under program control, or to output the state of the input buffer full flag. BFLAG can also be programmed to input an enable signal for port 6. When BFLAG is used as an enable input, port 6 output drivers are in the high-impedance state, and the input latch does not respond to the IDS

strobe when BFLAG is high. Both features are enabled when BFLAG is low. This feature facilitates the use of the 87C453 in bused multiprocessor systems.

. Correspondingly , the IBF flag is set on the

CONTROL STATUS REGISTER

The control status register (CSR) establishes the mode of operation for port 6 and indicates the current status of port 6 I/O registers. All control status register bits can be read and written by the CPU, except bits 0 and 1, which are read only. Reset writes ones to bits 2 through 7, and writes zeros to bits 0 and 1 (see Table 4).

CSR.0 Input Buffer Full Flag (IBF) (Read Only) – The IBF bit is set to a logic 1 when port 6 data is loaded into the input buffer under control of IDS IDS

, as determined by CSR.2. When IBF is set, the Interrupt Enable Register bit IIB (IE.5) is set. The Interrupt Service Routine vector address for this interrupt is 002BH. IBF is cleared when the CPU reads the input buffer register.

CSR.1 Output Buffer Full Flag (OBF) (Read Only) – The OBF flag is set to a logic 1 when the CPU writes to the port 6 output data buffer . OBF is cleared by the positive or negative edge of ODS determined by CSR.3. When OBF is cleared, the Interrupt Enable Register bit IOB (IE.6) is set. The Interrupt Service Routine vector address for this interrupt is 0033H.

CSR.2 IDS Mode Select (IDSM) – When CSR.2 = 0, a low-to-high transition on the IDS loaded on the IDS transition on the IDS transparent when IDS

. This can occur on the negative or positive edge of

pin sets the IBF flag. The Port 6 input buffer is

positive edge. When CSR.2 = 1, a high-to-low

pin sets the IBF flag. Port 6 input buffer is

is low, and latched when IDS is high.

, or to latch only on the

. Can produce an IIB interrupt

, as

83C453/87C453

CSR.3 Output Buffer Full Flag Clear Mode (OBFC) – When CSR.3 = 1, the positive edge of the ODS

When CSR.3 = 0, the negative edge of the ODS OBF flag.

CSR.4, CSR.5 AFLAG Mode Select (MA0, MA1) – Bits 4 and 5 select the mode of operation for the AFLAG pin as follows:

MA1 MA0 AFLAG Function 0 0 Logic 0 output

0 1 Logic 1 output 1 0 OBF flag output (CSR.1) 1 1 Select (SEL) input mode

The select (SEL) input mode is used to determine whether the port 6 data register or the control status register is output on port 6. When the select feature is enabled, the AFLAG input controls the source of port 6 output data. A logic 0 on AFLAG input selects the port 6 data register, and a logic 1 on AFLAG input selects the control status register.

The value of the AFLAG input is latched into the Auxiliary Register (AUXR) bit 1 (AUXR.1). Checking this bit (AF) will allow the 87C453’s program to determine if Port 6 was loaded with data or a UPI command.

CSR.6, CSR.7 BFLAG Mode Select (MB0, MB1) – Bits 6 and 7 select the mode operation as follows:

MB1 MB0 BFLAG Function

0 0 Logic 0 output 0 1 Logic 1 output 1 0 IBF flag output (CSR.0) 1 1 Port enable (PE

In the port enable mode, IDS and ODS inputs are disabled when BFLAG input is high. When the BFLAG input is low, the port is enabled for I/O.

Reduced EMI Mode – The on–chip clock distribution drivers have been identified as the cause of most of the EMI emissions from the 80C51 family . By tailoring the clock drivers properly, a compromise between maximum operating speed and minimal EMI emissions can be achieved. Typically, an order in magnitude of reduction is possible over previous designs. This feature has been implemented on this chip along with the additional capability of turning off the ALE output. Setting the AO bit (AUXR.0) in the AUXR special function register will disable the ALE output. Reset forces a 0 into AUXR.0 to enable normal 80C51 type operation.

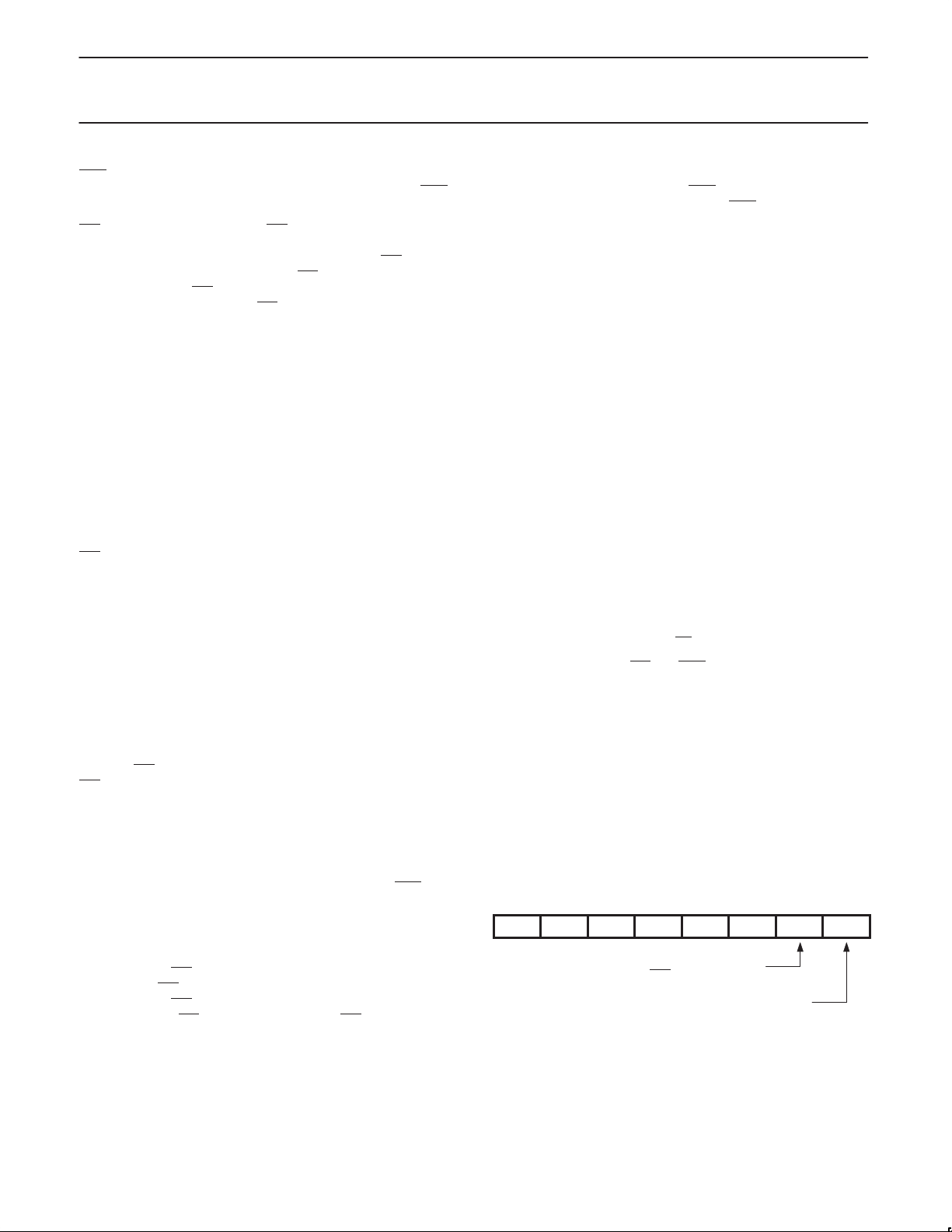

Auxiliary Register (AUXR)

76543210 –

– – – – – AF AO

Latched value of AFLAG when Port 6 inputs data from IDS

input clears the OBF flag.

input clears the

)

strobe

0 = ALE enabled 1 = ALE disabled

1998 Apr 23

Page 13

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

ODSBFLAGAFLAG

BFLAG/ODS

MODE

(CSR.6/.7)

INPUT BUFFER

AFLAG

MODE

(CSR.4/.5)

OUTPUT BUFFER FULL (CSR.1)

FULL (CSR.0)

CONTROL/STATUS

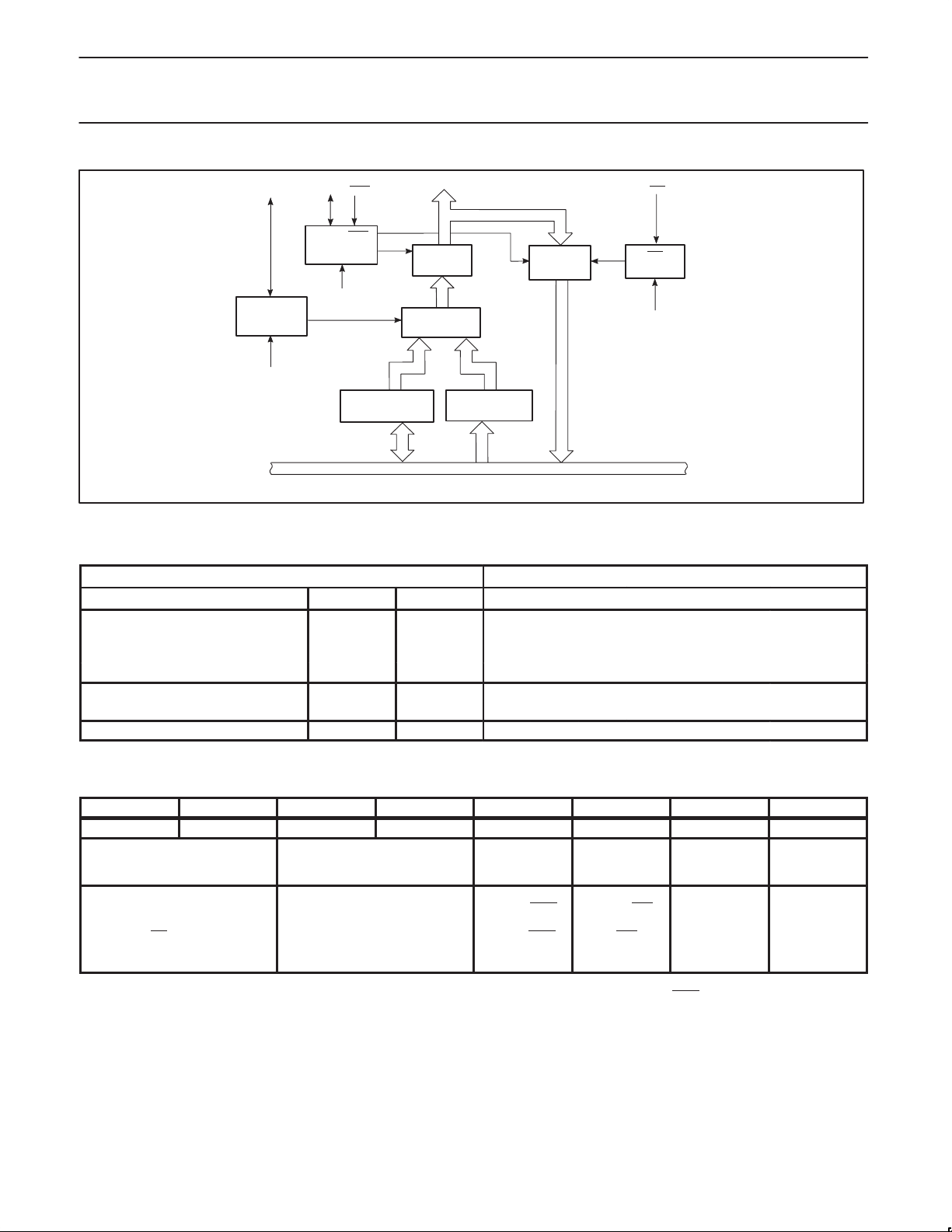

Figure 8. Port 6 Block Diagram

PORT 6

OUTPUT

DRIVERS

MUX

OUTPUT BUFFER

(P6 WRITE)

INTERNAL BUS

INPUT

BUFFER

(P6 READ)

IDS

MODE

EDGE/LEVEL

SELECT (CSR.2)

SU00087

83C453/87C453

Table 3. Special Function Register Addresses

Name Symbol Address MSB LSB

Port 4 P4 C0 C7 C6 C5 C4 C3 C2 C1 C0 Port 5 P5 C8 CF CE CD CC CB CA C9 C8 Port 6 data P6 D8 DF DE DD DC DB DA D9 D8 Port 6 control status CSR E8 EF EE ED EC EB EA E9 E8

Slave address SADDR A9 Slave address mask SADEN B9

Auxiliary Register AUXR 8E

Table 4. Control Status Register (CSR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

MB1 MB0 MA1 MA0 OBFC IDSM OBF IBF

BFLAG Mode Select AFLAG Mode Select Output Buffer

Flag Clear

Mode

0/0 = Logic 0 output*

0/1 = Logic 1 output* 1/0 = IBF output 1/1 = PE

input

(0 = Select)

(1 = Disable I/O)

0/0 = Logic 0 output* 0/1 = Logic 1 output* 1/0 = OBF output

1/1 = SEL input

(0 = Select)

(1 = Control/status)

0 = Negative

edge of ODS

1 = Positive

edge o ODS

NOTE:

* Output-always mode: MB1 = 0, MA1 = 1, and MA0 = 0. In this mode, port 6 is always enabled for output. ODS

Input Data

Strobe Mode

0 = Positive edge of IDS

1 = Low level

of IDS

Output Buffer

Input Buffer

Flag Full

0 = Output data buffer

empty

0 = Input data

buffer empty

1 = Input data

1 = Output

data buffer full

only clears the OBF flag.

Flag Full

buffer full

1998 Apr 23

Page 14

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

ABSOLUTE MAXIMUM RATINGS

Operating temperature under bias Storage temperature range –65 to +150 °C Voltage on any other pin to V

Power dissipation (based on package heat transfer limitations, not device power consumption) 1.5 W

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. Voltages are with respect to V

DC ELECTRICAL CHARACTERISTICS

= 0°C to +70°C, VCC = 5V ±10%, VSS = 0V

amb

SYMBOL PARAMETER CONDITIONS MIN TYP

IL1

IH1

OL1

OH1

RST

NOTES:

1. Typical ratings are based on a limited number of samples from early manufacturing lots, and not guaranteed. Values are room temp., 5V.

2. Capacitive loading on ports 0 and 2 may cause spurious noise to be superimposed on the V to external bus capacitance discharging into the port 0 and port 2 pins when these pins make 1-to-0 transitions during bus operations. In the worst cases (capacitive loading > 100pF), the noise pulse on the ALE pin may exceed 0.8V . In such cases, it may be desirable to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input..

3. Capacitive loading on ports 0 and 2 may cause the V address bits are stabilizing.

4. Pins of ports 1, 2, 3, 4, 5 and 6 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its maximum value when VIN is approximately 2V .

5. ICCMAX at other frequencies is given by:

where FREQ is the external oscillator frequency in MHz. ICCMAX is given in mA. See Figure 20.

6. See Figures 21 through 24 for I

7. CIO applies to ports 1 through 6, IDS, ODS, AFLAG, BFLAG, XTAL1, XTAL2.

Input low voltage; ports 0, 1, 2, 3, 4, 5, 6, IDS, ODS, AFLAG, BFLAG; except EA

Input low voltage to EA 0 0.2VCC–0.3 V Input high voltage; except XTAL1, RST 0.2VCC+0.9 VCC+0.5 V Input high voltage; XTAL1, RST 0.7V Output low voltage; ports 1, 2, 3, 4, 5, 6, AFLAG,

BFLAG Output low voltage; port 0, ALE, PSEN IOL = 3.2mA Output high voltage; ports 1, 2, 3, 4, 5, 6, AFLAG,

BFLAG

Output high voltage (port 0 in external bus mode, ALE,

PSEN)

Logical 0 input current,; ports 1, 2, 3, 4, 5, 6 VIN = 0.45V –50 µA Logical 1-to-0 transition current; ports 1, 2, 3, 4, 5, 6 See note 4 –650 µA Input leakage current; port 0 VIN = VIL or V Power supply current:

Active mode @ 16MHz Idle mode @ 16MHz Power down mode

Internal reset pull-down resistor 50 300 kΩ Pin capacitance7 – PLCC package 10 pF

Active mode: I Idle mode: ICCMAX = 0.14 X FREQ +2.31

MAX = 0.94 X FREQ + 13.71

1, 2, 3

PARAMETER

test conditions.

RATING UNIT

0 to +70 °C

–0.5 to +6.5 V

unless otherwise noted.

TEST LIMITS

MAX UNIT

–0.5 0.2VCC–0.1 V

VCC+0.5 V

0.45 V

±10 µA

IOL = 1.6mA

IOH = –60µA,

IOH = –25µA I

= –10µA

IOH = –800µA,

IOH = –300µA

= –80µA

2.4

0.75V

0.9V

2.4

0.75V

0.9V

See note 6

11.5

1.3 3

s of ALE and the other ports. The noise is due

on ALE and PSEN to momentarily fall below the 0.9VCC specification when the

V V V

mA mA

µA

1998 Apr 23

Page 15

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

AC ELECTRICAL CHARACTERISTICS

= 0°C to +70°C, VCC = 5V ±10%, VSS = 0V

amb

16MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t

CLCL

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWX

WHQX

RLAZ

WHLH

10, 11 RD pulse width 275 6t 10, 11 WR pulse width 275 6t 10, 11 RD low to valid data in 147 5t 10, 11 Data hold after RD 0 0 ns 10, 11 Data float after RD 65 2t 10, 11 ALE low to valid data in 350 8t 10, 11 Address to valid data in 397 9t 10, 11 ALE low to RD or WR low 137 239 3t 10, 11 Address valid to WR low or RD low 122 4t 10, 11 Data valid to WR transition 13 t 10, 11 Data hold after WR 13 t 10, 11 RD low to address float 0 0 ns 10, 11 RD or WR high to ALE high 23 103 t

Shift Register

XLXL

QVXH

XHQX

XHDX

XHDV

12 Serial port clock cycle time 750 12t 12 Output data setup to clock rising edge 492 10t 12 Output data hold after clock rising edge 8 2t 12 Input data hold after clock rising edge 0 0 ns 12 Clock rising edge to input data valid 492 10t

Port 6 input (input rise and fall times = 5ns)

FLFH

ILIH

DVIH

IHDZ

IVFV

15 PE width 209 3t 15 IDS width 209 3t 15 Data setup to IDS high or PE high 0 0 ns 15 Data hold after IDS high or PE high 30 30 ns 16 IDS to BFLAG (IBF) delay 130 130 ns

Oscillator frequency 3.5 16 MHz 9 ALE pulse width 85 2t 9 Address valid to ALE low 22 t 9 Address hold after ALE low 32 t 9 ALE low to valid instruction in 150 4t 9 ALE low to PSEN low 32 t 9 PSEN pulse width 142 3t 9 PSEN low to valid instruction in 82 3t

–40 ns

CLCL

–40 ns

CLCL

–30 ns

CLCL

–100 ns

CLCL

–30 ns

CLCL

–45 ns

CLCL

–105 ns

CLCL

9 Input instruction hold after PSEN 0 0 ns 9 Input instruction float after PSEN 37 t 9 Address to valid instruction in 207 5t

–25 ns

CLCL

–105 ns

CLCL

9 PSEN low to address float 10 10 ns

–100 ns

CLCL

–100 ns

CLCL

–165 ns

CLCL

–60 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

–50 3t

CLCL

–130 ns

CLCL

–50 ns

CLCL

–50 ns

CLCL

–40 t

CLCL

–133 ns

CLCL

–117 ns

CLCL

+20 ns

CLCL

+20 ns

CLCL

+50 ns

CLCL

+40 ns

CLCL

–133 ns

CLCL

1998 Apr 23

Page 16

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

AC ELECTRICAL CHARACTERISTICS (Continued)

16MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

Port 6 output

OLOH

FVDV

OLDV

OHDZ

OVFV

FLDV

OHFH

External Clock

CHCX

CLCX

CLCH

CHCL

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

13 ODS width 209 3t 14 SEL to data out delay 85 85 ns 13 ODS to data out delay 80 80 ns 13 ODS to data float delay 35 35 ns 13 ODS to AFLAG (OBF) delay 100 100 ns 13 PE to data out delay 120 120 ns 14 ODS to AFLAG (SEL) delay 100 100 ns

17 High time 20 20 ns 17 Low time 20 20 ns 17 Rise time 20 20 ns 17 Fall time 20 20 ns

= 100pF, load capacitance for all other outputs = 80pF.

+20 ns

CLCL

1998 Apr 23

Page 17

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

EXPLANATION OF THE AC SYMBOLS

Each timing symbol has five characters. The first character is always ‘t’ (= time). The other characters, depending on their positions, indicate the name of a signal or the logical status of that signal. The designations are: A – Address C – Clock D – Input data H – Logic level high I – Instruction (program memory contents) L – Logic level low, or ALE

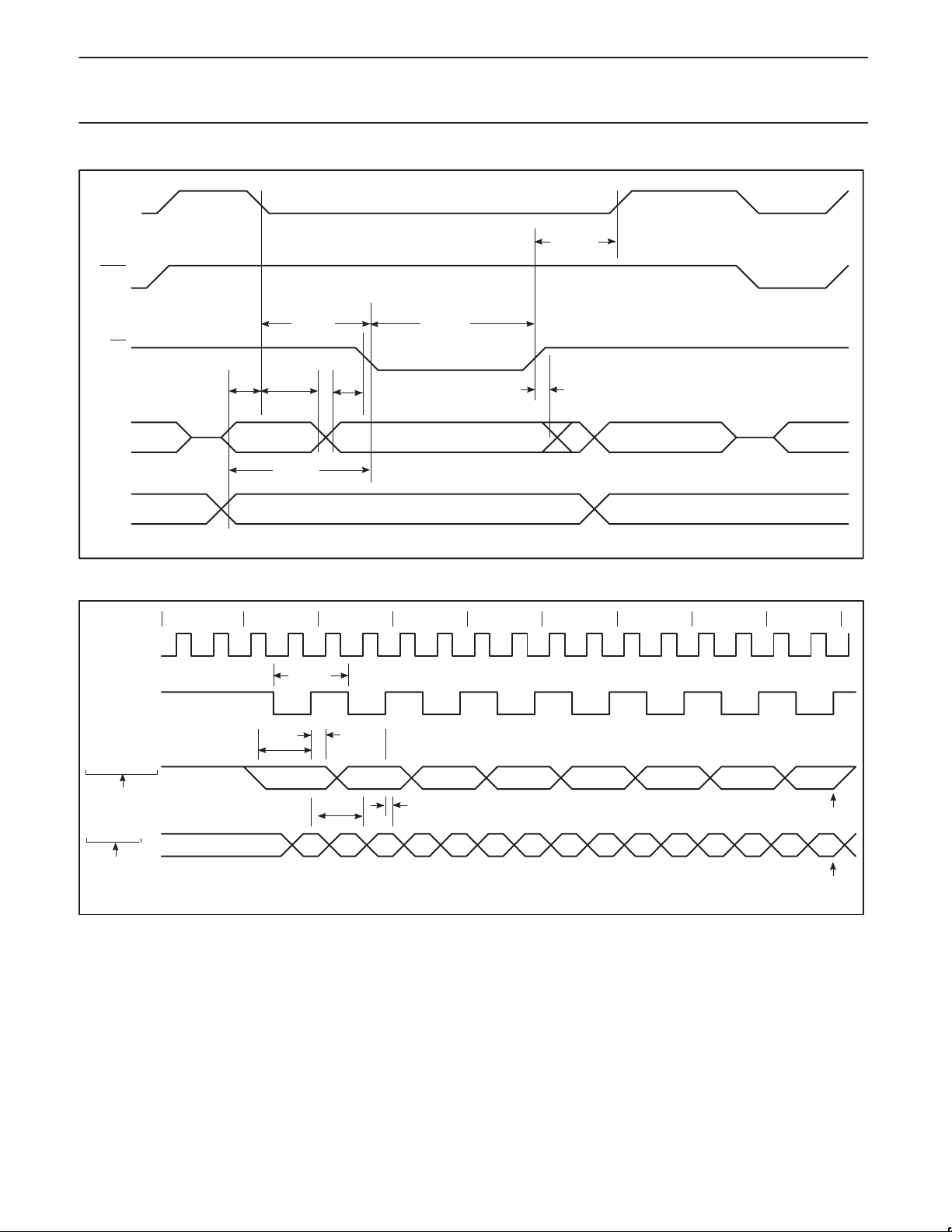

ALE

PSEN

PORT 0

LHLL

AVLL

LLPL

LLIV

PLPH

PLAZ

LLAX

A0–A7 A0–A7

PLIV

PXIXt

P – PSEN Q – Output data R–RD

signal t – Time V – V alid W– WR

signal X – No longer a valid logic level Z – Float

INSTR IN

Examples: t

PXIZ

= Time for address valid to ALE low.

AVLL

= Time for ALE low to PSEN low.

LLPL

83C453/87C453

ALE

PSEN

PORT 0

PORT 2

AVLL

LLAX

A0–A7

FROM RI OR DPL

AVWL

AVIV

A0–A15 A8–A15

Figure 9. External Program Memory Read Cycle

WHLH

LLDV

LLWL

RLAZ

AVDV

P2.0–P2.7 OR A8–A15 FROM DPH A0–A15 FROM PCH

RLDV

RLRH

RHDZ

RHDX

DATA IN A0–A7 FROM PCL INSTR IN

SU00056

1998 Apr 23

SU00007

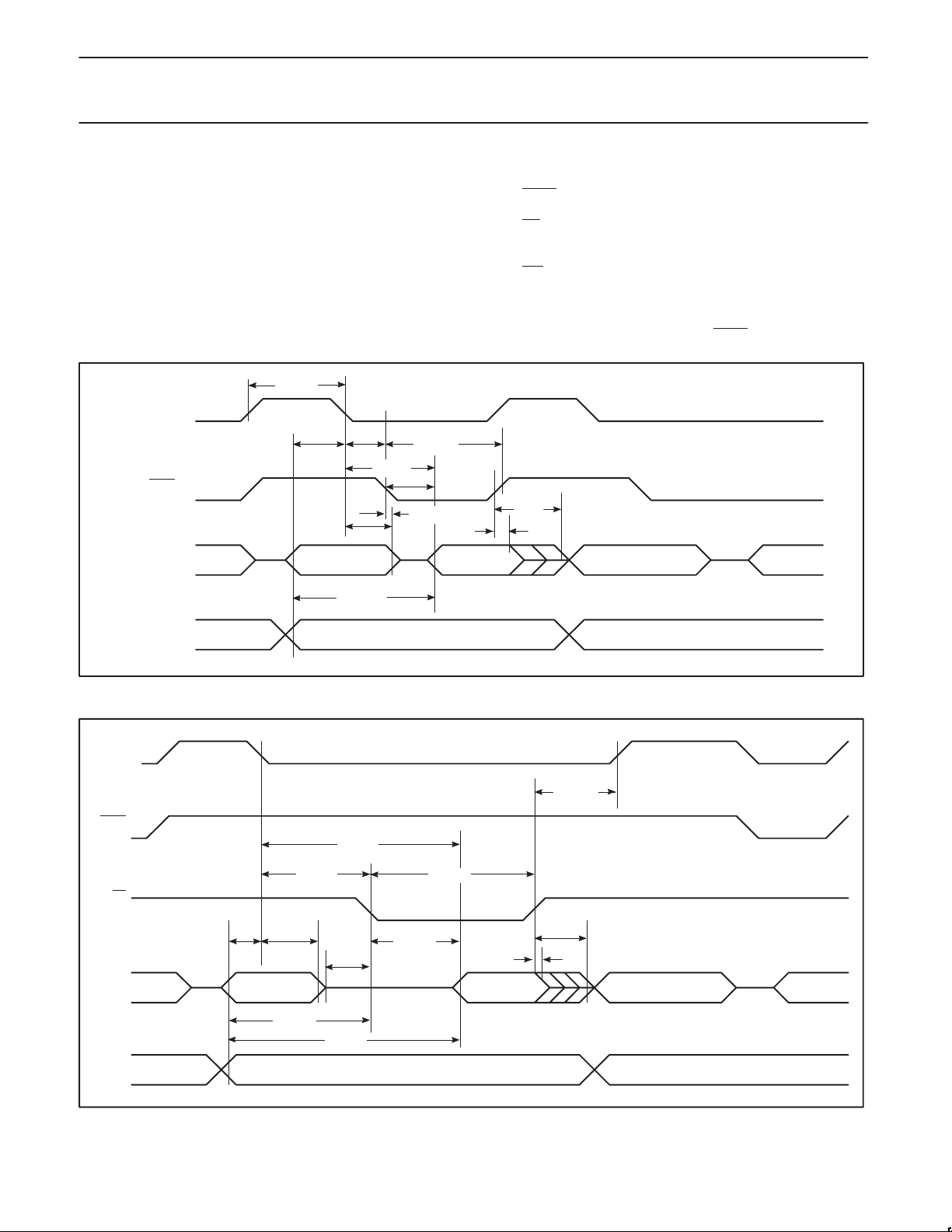

Figure 10. External Data Memory Read Cycle

Page 18

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

ALE

PSEN

LLWL

LLAX

A0–A7

FROM RI OR DPL

AVWL

QVWX

P2.0–P2.7 OR A8–A15 FROM DPH A0–A15 FROM PCH

PORT 0

PORT 2

AVLL

83C453/87C453

WHLH

WLWH

WHQX

DATA OUT A0–A7 FROM PCL INSTR IN

INSTRUCTION

ALE

CLOCK

OUTPUT DATA

WRITE TO SBUF

INPUT DATA

CLEAR RI

SU00008

Figure 11. External Data Memory W rite Cycle

012345678

XLXL

QVXH

XHDV

VALID VALID VALID VALID VALID VALID VALID VALID

XHQX

1230 4567

XHDX

SET TI

SET RI

SU00027

Figure 12. Shift Register Mode Timing

1998 Apr 23

Page 19

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

OBF (AFLAG)

(BFLAG)

ODS

PORT 6

ODS

OLDV

FLDV

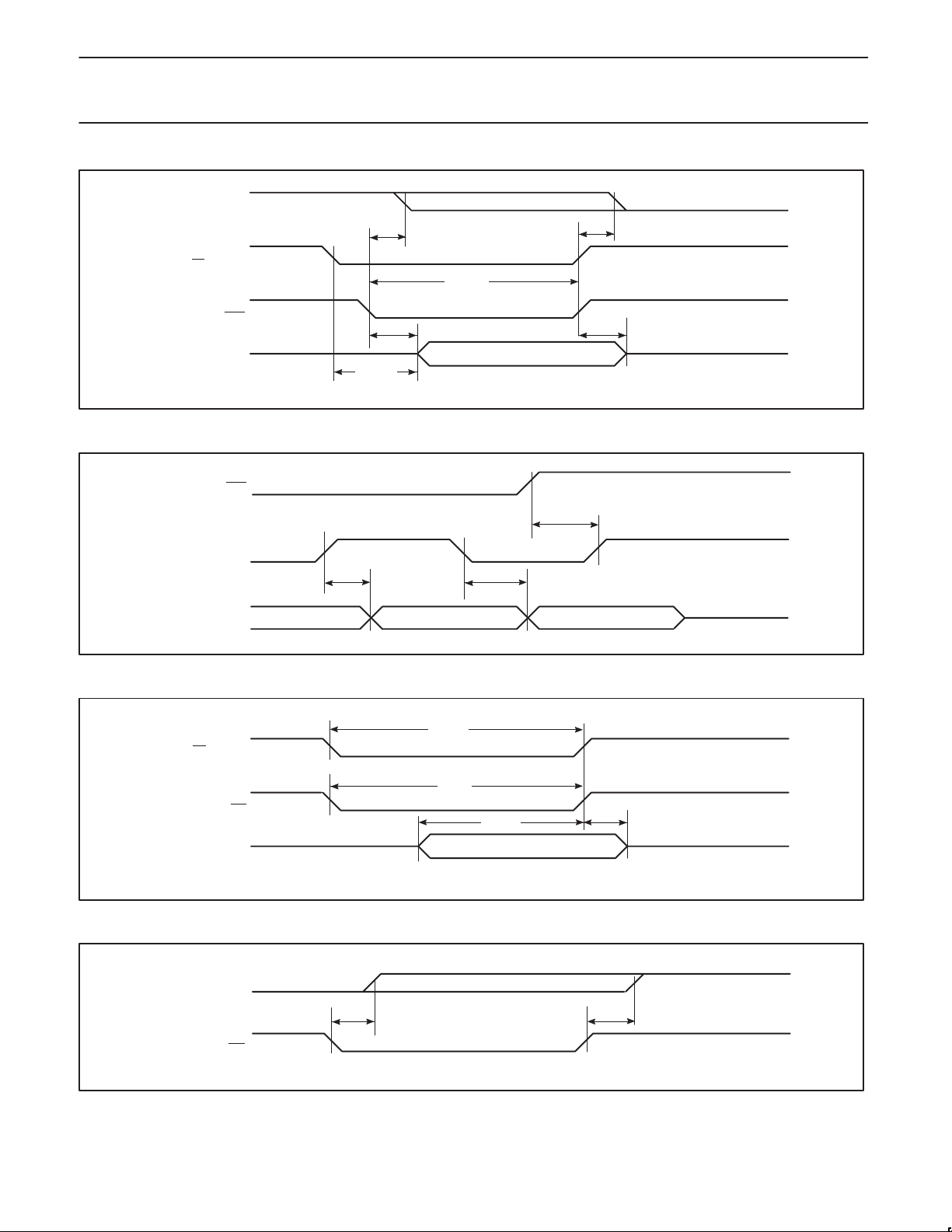

Figure 13. Port 6 Output

OVFV

OLOH

OHFH

OHDZ

OVFV

83C453/87C453

SU00088

SEL (AFLAG)

PORT 6

PE (BFLAG)

IDS

PORT 6

IBF (BFLAG)

FVDV

DATA DATACSR

Figure 14. Port 6 Select Mode

FLFH

ILIH

Figure 15. Port 6 Input

FVDV

DVIH

IHDZ

SU00089

SU00090

1998 Apr 23

IDS

IVFV

Figure 16. IBF Flag Output

IVFV

SU00091A

Page 20

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

VCC–0.5

0.45V

VCC–0.5

0.45V

NOTE: AC inputs during testing are driven at VCC –0.5 for a logic ‘1’ and 0.45V for a logic ‘0’. Timing measurements are made at VIH min for a logic ‘1’ and VIL max for a logic ‘0’.

0.2V

CC CC

+0.9

–0.1

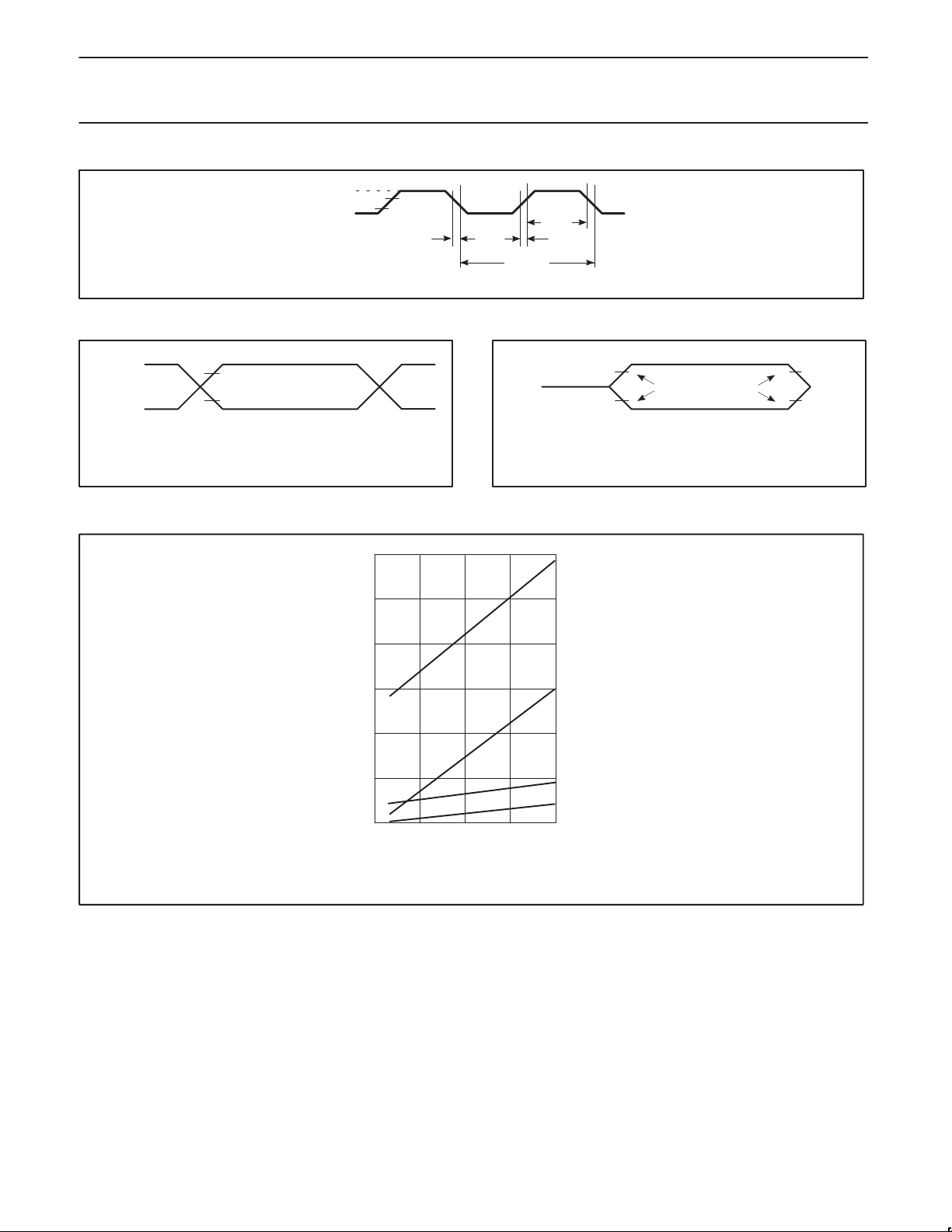

Figure 18. AC Testing Input/Output

0.7V

0.2VCC–0.1

CHCL

Figure 17. External Clock Drive

SU00717

83C453/87C453

CHCX

CLCX

CLCH

CLCL

SU00009

+0.1V

NOTE: For timing purposes, a port is no longer floating when a 100mV change from load voltage occurs, and begins to float when a 100mV change from the loaded V

OH/VOL

LOAD

–0.1V

LOAD

level occurs. IOH/IOL ≥ ±20mA.

TIMING

REFERENCE

POINTS

Figure 19. Float Waveform

SU00718

–0.1V

+0.1V

ICC mA

VALID ONLY WITHIN FREQUENCY SPECIFICATIONS OF THE DEVICE UNDER TEST.

4MHz 8MHz 12MHz 16MHz

FREQ AT XTAL1

MAX ACTIVE MODE

TYP ACTIVE MODE

MAX IDLE MODE

TYP IDLE MODE

SU00092

Figure 20. ICC vs. FREQ

1998 Apr 23

Page 21

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

RST

(NC)

CLOCK SIGNAL

XTAL2

XTAL1

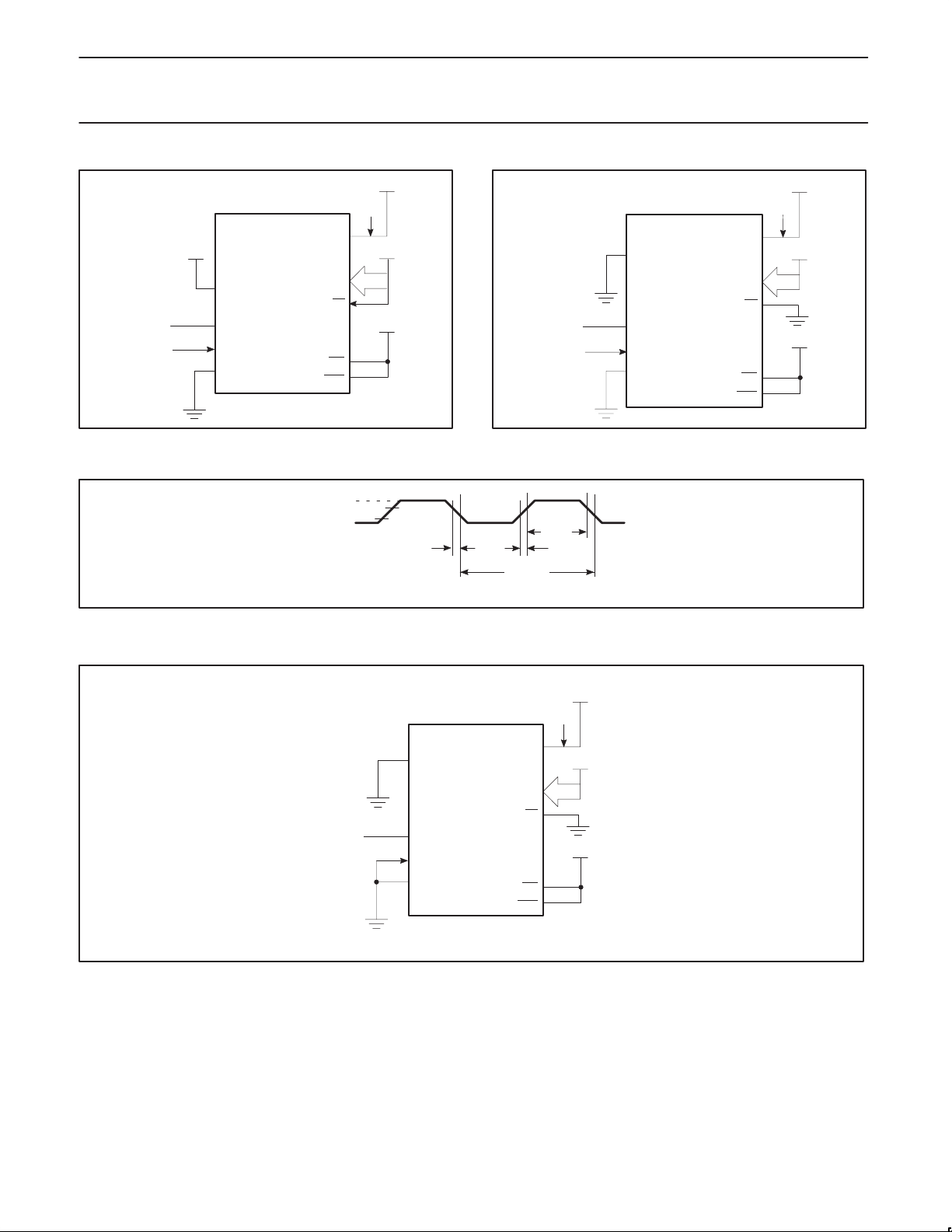

Figure 21. ICC Test Condition, Active Mode

All other pins are disconnected

Figure 23. Clock Signal Waveform for ICC Tests in Active and Idle Modes

IDS

ODS

VCC–0.5

0.45V

SU00093

0.2VCC–0.1

CHCL

0.7V

CLCH

= t

CLCX

CHCL

CLOCK SIGNAL

CLCL

= 5ns

83C453/87C453

RST

(NC)

XTAL2

XTAL1

Figure 22. ICC Test Condition, Idle Mode

All other pins are disconnected

CHCX

CLCH

SU00009

P0 EA

IDS

ODS

SU00094

IDS

ODS

SU00095

(NC)

RST

XTAL2

XTAL1

Figure 24. ICC Test Condition, Power Down Mode

All other pins are disconnected. V

= 2V to 5.5V

1998 Apr 23

Page 22

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

EPROM CHARACTERISTICS

The 87C453 is programmed by using a modified Quick-Pulse Programming algorithm. It differs from older methods in the value used for V number of the ALE/PROG

The 87C453 contains two signature bytes that can be read and used by an EPROM programming system to identify the device. The signature bytes identify the device as an 87C453 manufactured by Philips Semiconductors.

Table 5 shows the logic levels for reading the signature byte, and for programming the program memory, the encryption table, and the lock bits. The circuit configuration and waveforms for quick-pulse programming are shown in Figures 25 and 26. Figure 27 shows the circuit configuration for normal program memory verification.

Quick-Pulse Programming

The setup for microcontroller quick-pulse programming is shown in Figure 26. Note that the 87C453 is running with a 4 to 6MHz oscillator. The reason the oscillator needs to be running is that the device is executing internal address and program data transfers.

The address of the EPROM location to be programmed is applied to ports 1 and 2, as shown in Figure 25. The code byte to be programmed into that location is applied to port 0. RST, PSEN pins of ports 2 and 3 specified in Table 5 are held at the ‘Program Code Data’ levels indicated in Table 5. The ALE/PROG low 15 to 25 times, as shown in Figure 26.

To program the encryption table, repeat the 15 to 25 pulse programming sequence for addresses 0 through 1FH, using the ‘Pgm Encryption Table’ levels. Do not forget that after the encryption table is programmed, verification cycles will produce only encrypted data.

To program the lock bits, repeat the 15 to 25 pulse programming sequence using the ‘Pgm Lock Bit’ levels. After one lock bit is programmed, further programming of the code memory and encryption table is disabled. However, the other lock bit can still be programmed.

Note that the EA maximum specified V glitch above that voltage can cause permanent damage to the device. The V and overshoot.

(programming supply voltage) and in the width and

/VPP pin must not be allowed to go above the

source should be well regulated and free of glitches

pulses.

is pulsed

level for any amount of time. Even a narrow

and

83C453/87C453

Program Verification

If lock bit 2 has not been programmed, the on-chip program memory can be read out for program verification. The address of the program memory locations to be read is applied to ports 1 and 2 as shown in Figure 27. The other pins are held at the ‘Verify Code Data’ levels indicated in Table 5. The contents of the address location will be emitted on port 0. External pull-ups are required on port 0 for this operation.

If the encryption table has been programmed, the data presented at port 0 will be the exclusive NOR of the program byte with one of the encryption bytes. The user will have to know the encryption table contents in order to correctly decode the verification data. The encryption table itself cannot be read out.

Reading the Signature Bytes

The signature bytes are read by the same procedure as a normal verification of locations 030H and 031H, except that P3.6 and P3.7 need to be pulled to a logic low. The values are: (030H) = 15H indicates manufactured by Philips (031H) = B9H indicates 87C453

Program/Verify Algorithms

Any algorithm in agreement with the conditions listed in Table 5, and which satisfies the timing specifications, is suitable.

Erasure Characteristics

Erasure of the EPROM begins to occur when the chip is exposed to light with wavelengths shorter than approximately 4,000 angstroms. Since sunlight and fluorescent lighting have wavelengths in this range, exposure to these light sources over an extended time (about 1 week in sunlight, or 3 years in room level fluorescent lighting) could cause inadvertent erasure. For this and secondary effects,

it is recommended that an opaque label be placed over the window. For elevated temperature or environments where solvents

are being used, apply Kapton tape Fluorglas part number 2345–5, or equivalent.

The recommended erasure procedure is exposure to ultraviolet light (at 2537 angstroms) to an integrated dose of at least 15W-sec/cm Exposing the EPROM to an ultraviolet lamp of 12,000µW/cm for 20 to 39 minutes, at a distance of about 1 inch, should be sufficient.

Erasure leaves the array in an all 1s state.

rating

Table 5. EPROM Programming Modes

MODE RST PSEN ALE/PROG EA/V

Read signature 1 0 1 1 0 0 0 0 Program code data 1 0 0* V Verify code data 1 0 1 1 0 0 1 1 Pgm encryption table 1 0 0* V Pgm lock bit 1 1 0 0* V Pgm lock bit 2 1 0 0* V

NOTES:

1. ‘0’ = Valid low for that pin, ‘1’ = valid high for that pin. = 12.75V ±0.25V.

2. V

= 5V ±10% during programming and verification.

3. V

* ALE/PROG

for a minimum of 10µs.

Trademark phrase of Intel Corporation.

1998 Apr 23

receives 15 to 25 programming pulses while VPP is held at 12.75V . Each programming pulse is low for 100 µs (±10µs) and high

PP PP PP

P2.7 P2.6 P3.7 P3.6

1 0 1 1

1 0 1 0 1 1 1 1 1 1 0 0

Page 23

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

A0–A7

1 1 1

4–6MHz

RST P3.6

P3.7 XTAL2

XTAL1

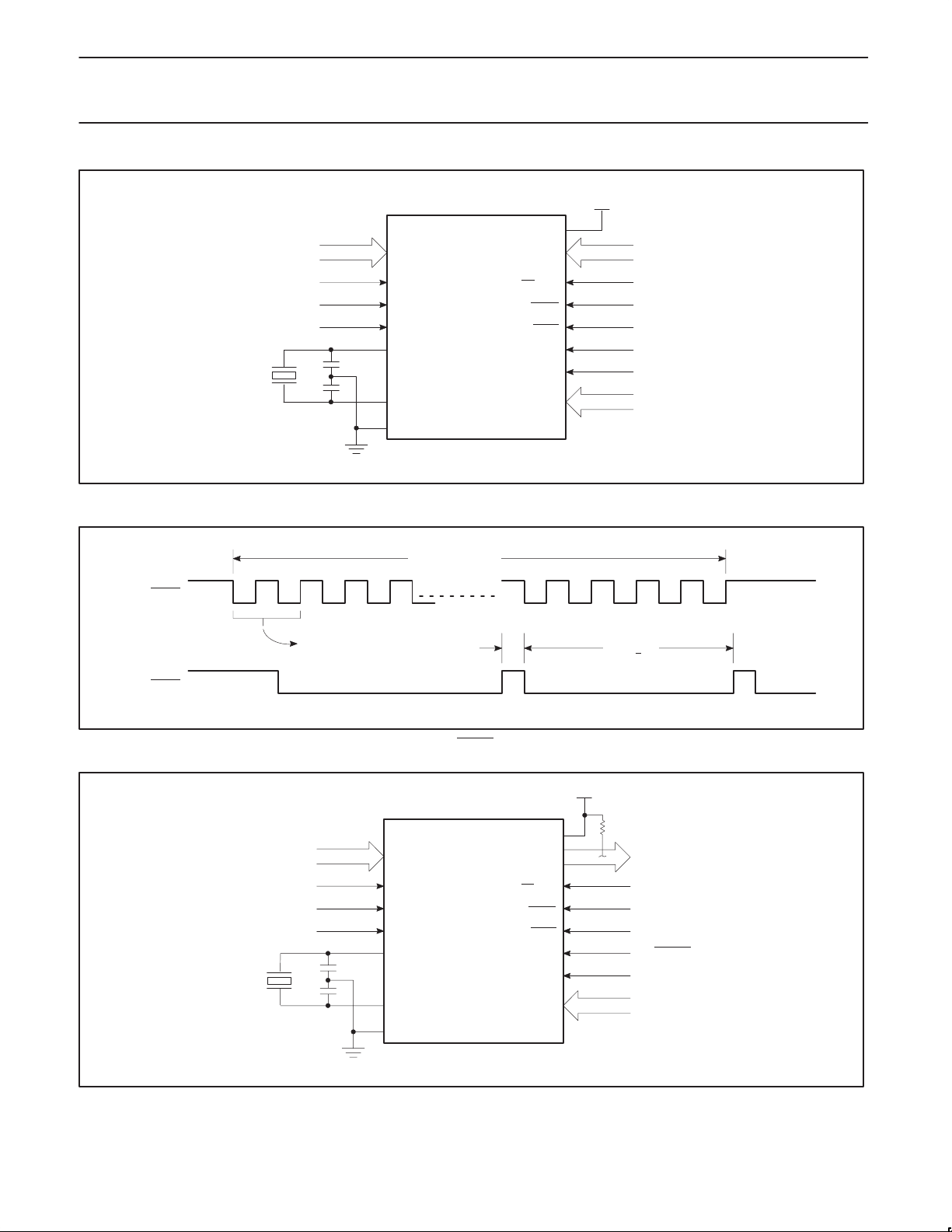

Figure 25. Programming Configuration

87C453

ALE/PROG

PSEN

P2.7

P2.6

P2.0–P2.4

83C453/87C453

+5V

PGM DATA

+12.75V 15 TO 25 100µs PULSES TO GROUND 0 1

A8–A12

SU00159

ALE/PROG:

1 0

4–6MHz

1 0

A0–A7

15 TO 25 PULSES

100µs+1010µs MIN

SU00160

Figure 26. PROG Waveform

+5V

ALE/PROG

PSEN

P2.7

P2.6

P2.0–P2.4

1 1 1

RST P3.6

P3.7 XTAL2

XTAL1

87C453

PGM DATA

1 1 0 0 ENABLE

A8–A12

1998 Apr 23

Figure 27. Program Verification

SU00161

Page 24

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

EPROM PROGRAMMING AND VERIFICATION CHARACTERISTICS

= 21°C to +27°C, VCC = 5V±10%, VSS = 0V (See Figure 28)

amb

SYMBOL

1/t

CLCL

AVGL

GHAX

DVGL

GHDX

EHSH

SHGL

GHSL

GLGH

AVQV

ELQZ

EHQZ

GHGL

Programming supply voltage 12.5 13.0 V Programming supply current 50 mA Oscillator frequency 4 6 MHz Address setup to PROG low 48t Address hold after PROG 48t Data setup to PROG low 48t Data hold after PROG 48t P2.7 (ENABLE) high to V VPP setup to PROG low 10 µs VPP hold after PROG 10 µs PROG width 90 110 µs Address to data valid 48t ENABLE low to data valid 48t Data float after ENABLE 0 48t PROG high to PROG low 10 µs

PARAMETER MIN MAX UNIT

48t

83C453/87C453

CLCL CLCL CLCL CLCL CLCL

CLCL CLCL CLCL

P1.0–P1.7 P2.0–P2.4

PORT 0

DVGL

ALE/PROG

EA/V

P2.7 ENABLE

AVGL

EHSH

GLGH

SHGL

NOTE:

FOR PROGRAMMING VERIFICATION SEE FIGURE 25.

FOR VERIFICATION CONDITIONS SEE FIGURE 27.

PROGRAMMING* VERIFICATION*

ADDRESS ADDRESS

AVQV

DATA IN DATA OUT

GHDX

GHAX

GHGL

LOGIC 0

GHSL

LOGIC 1 LOGIC 1

ELQV

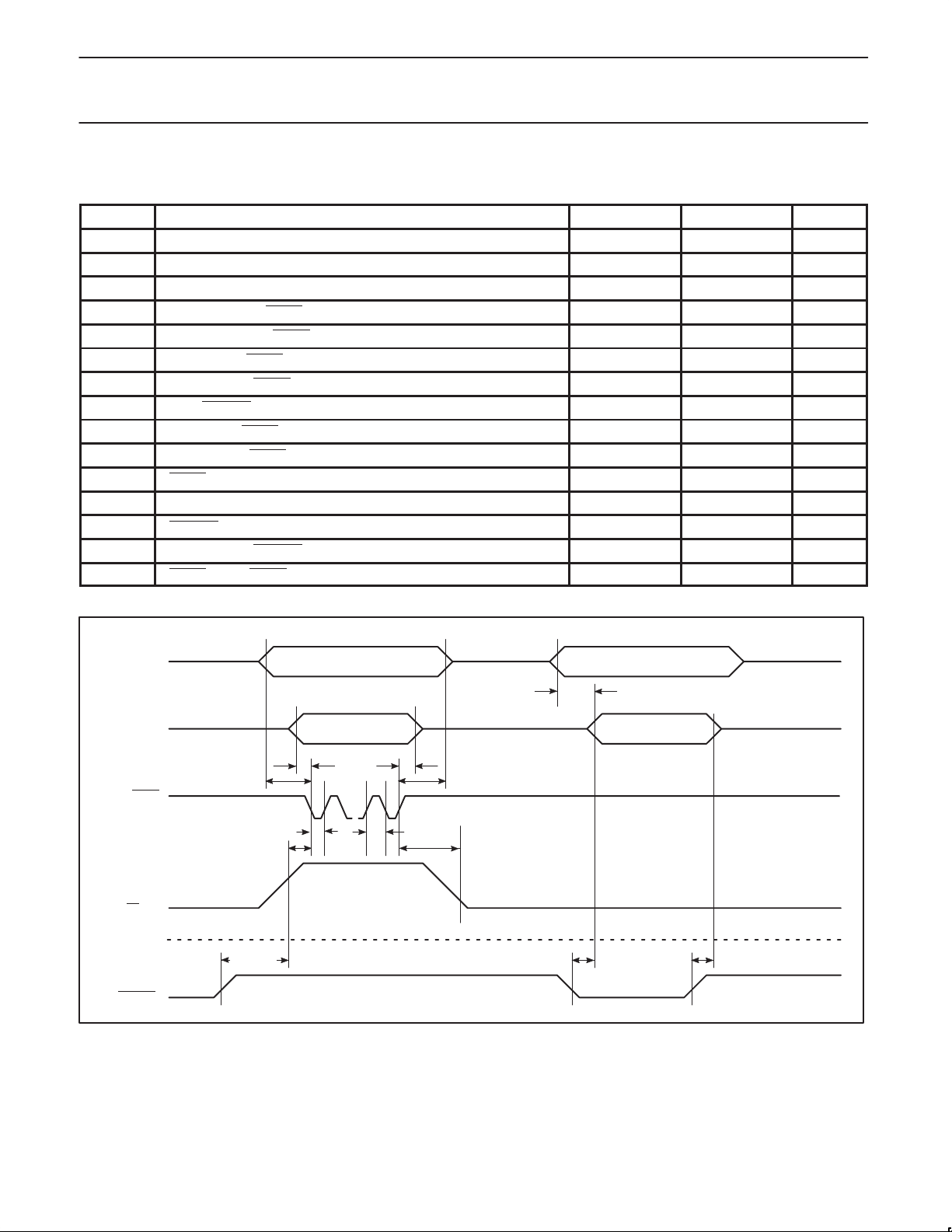

Figure 28. EPROM Programming and Verification

EHQZ

SU00020

1998 Apr 23

Page 25

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family

83C453/87C453

8K/256 OTP/ROM, expanded I/O

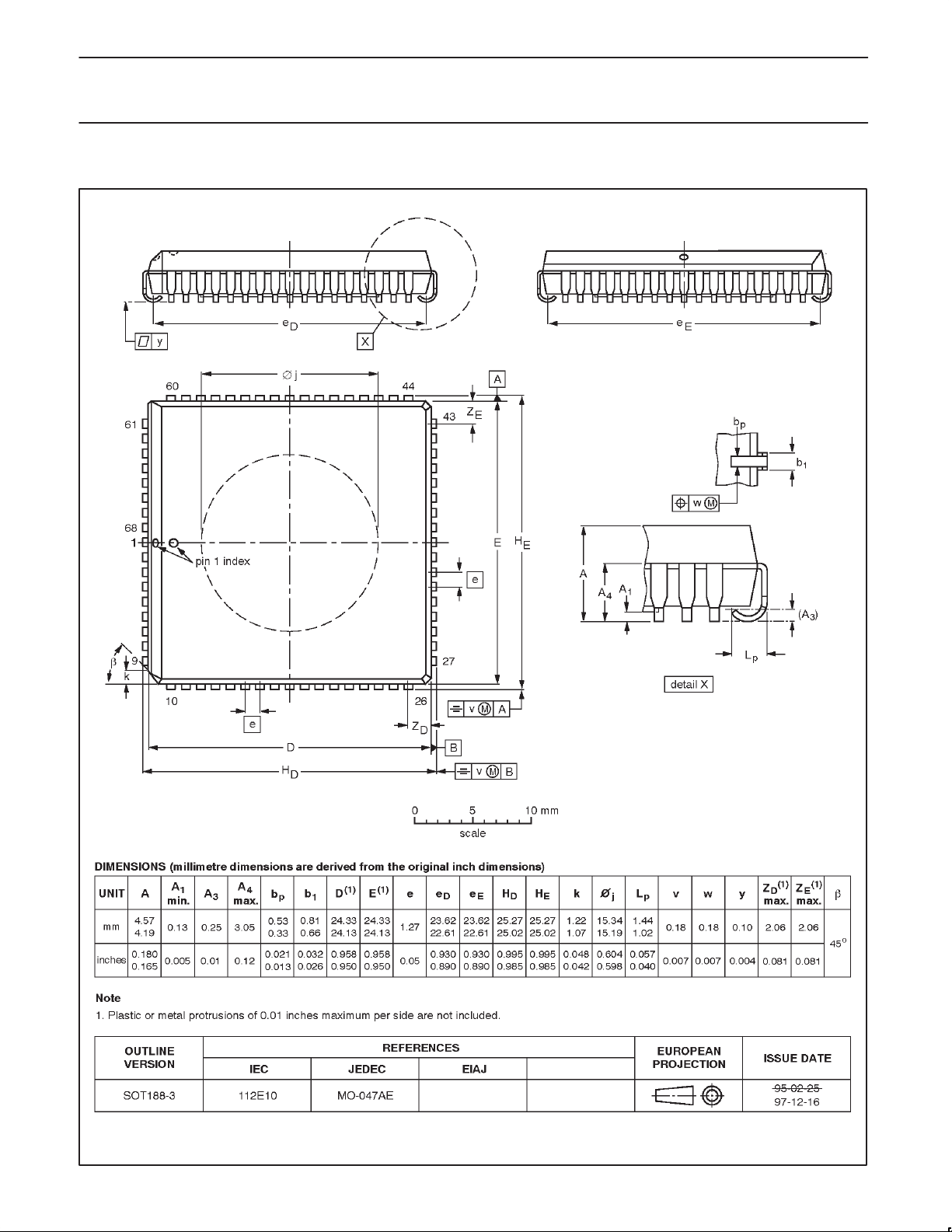

PLCC68: plastic leaded chip carrier; 68 leads; pedestal SOT188-3

1998 Apr 23

Page 26

Philips Semiconductors Preliminary specification

80C51 8-bit microcontroller family 8K/256 OTP/ROM, expanded I/O

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make chages at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

83C453/87C453

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

 Copyright Philips Electronics North America Corporation 1998

Date of release: 05-98

Document order number: 9397 750 03886

 

1998 Apr 23
