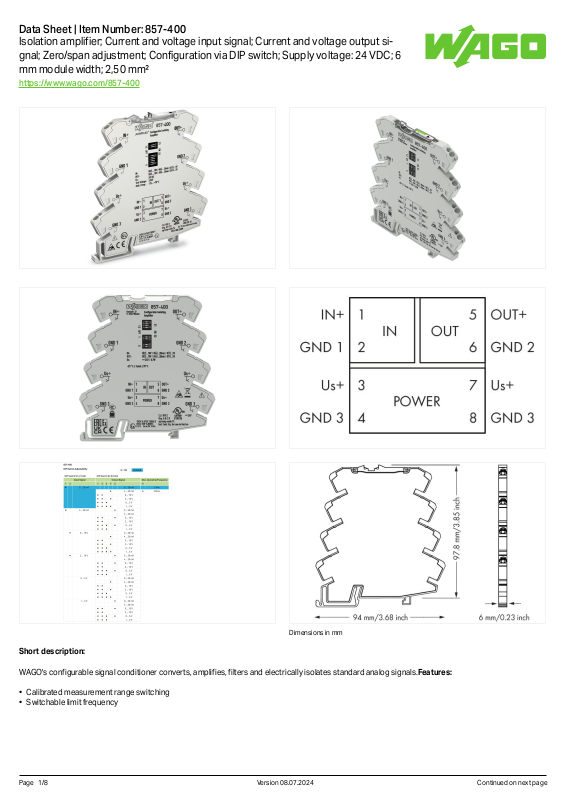

Datasheet 857-400 Specification

Data Sheet | Item Number: 857-400

Isolation amplifier; Current and voltage input signal; Current and voltage output si
gnal; Zero/span adjustment; Configuration via DIP switch; Supply voltage: 24 VDC; 6
mm module width; 2,50 mm²

https://www.wago.com/857-400

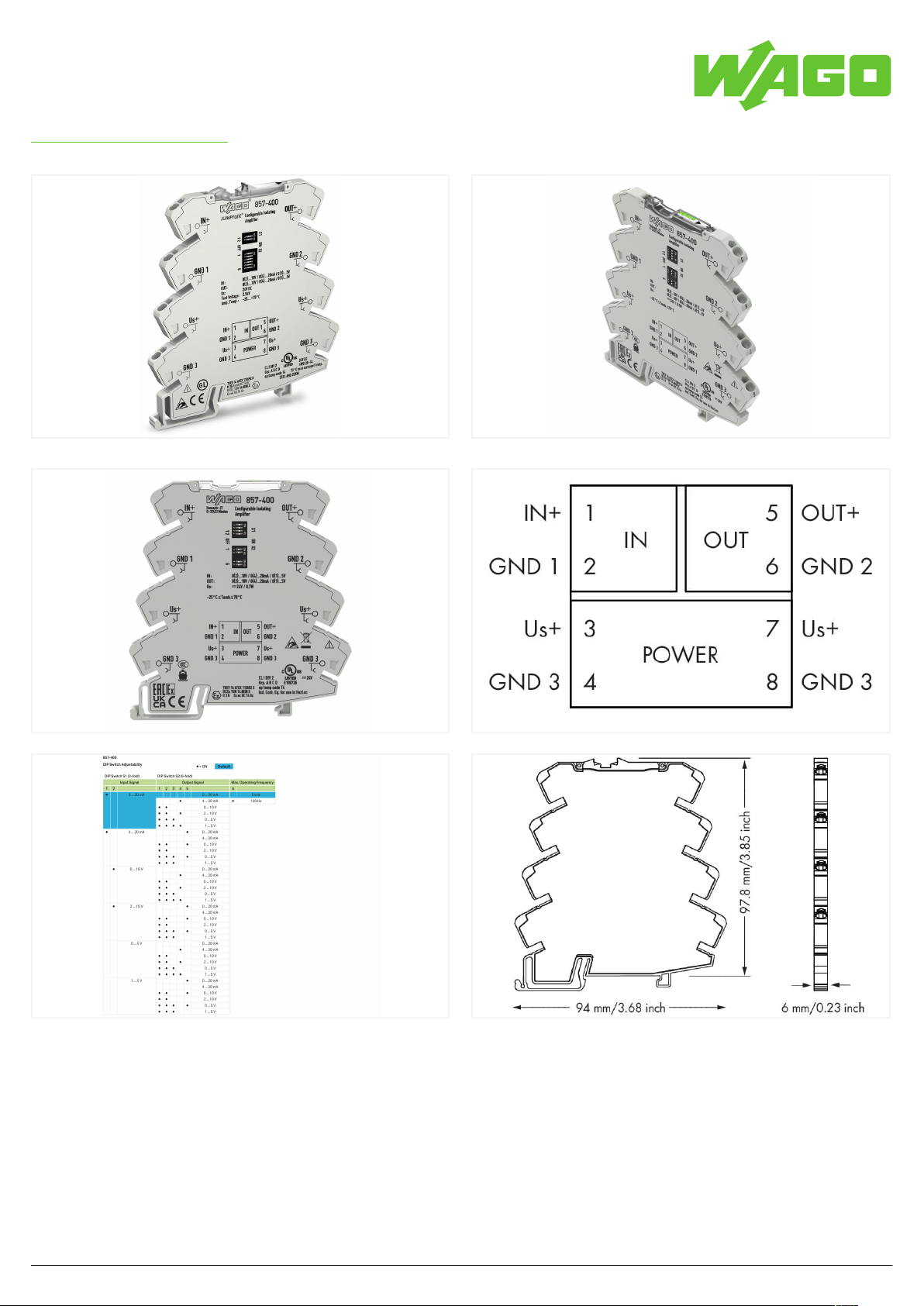

Dimensions in mm

Short description:

WAGO's configurable signal conditioner converts, amplifies, filters and electrically isolates standard analog signals.Features:

•

Calibrated measurement range switching

•

Switchable limit frequency

Continued on next page Version 08.07.2024 Page1/8

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

Notes

Safety informationInput and output must be safely isolated from any hazardous live parts!

NoteThe 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.

.

T echnical data

Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)

Use shielded signal lines!

Only use shielded signal lines for analog input and output signals.
Only then can you ensure that the accuracy and interference immunity specified for the
device can be achieved, even in the presence of interference acting on the signal cable.

Configuration

Configuration optionsDIP switch

Potentiometer

.

Output (analog)

Output signal typeCurrent

Voltage

Output signal (voltage)0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (cali

brated (default setting), switching)

Output signal (current)0 … 20 mA; 4 … 20 mA; 0 … 10 mA; 2 …

10 mA (calibrated (default setting), swit
ching)

Load impedance (voltage output)≥ 2 kΩ

Load impedance (current output)≤ 600 Ω

.

Input

Input signal typeVoltage

Current

Input signal (voltage)0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (cali

brated, switching)

Input signal (current)0 … 20 mA; 4 … 20 mA (calibrated, swit

ching)

Input resistance (current input)≤ 50 Ω

Input resistance (voltage input)≥ 100 kΩ

Input current (max.)50 mA

Input voltage (max.)30 V

Zero/span adjustment± 3% of upper-range value

.

Signal processing

Limit frequency100 Hz / 5 kHz (configurable via DIP

switch)

Step response (typ.)3.5 ms (100 Hz); 100 µs (5 kHz)

.

Measurement error

Transmission error (typ.)≤ 0.1 % of upper-range value

Transmission error (max.)≤ 0.2 % of upper-range value

Transmission error (under interference)≤ 15 % of upper-range value

T emperature coefficient≤ 0.01 %/K

.

Safety and protection

Rated voltage 300 V

Protection typeIP20

.

Insulation coordination

Overvoltage categoryII

Pollution degree2

Insulation type (input/analog output/sup
ply)

Insulation type (adjacent devices)Reinforced insulation (safe isolation)

.

Functional insulation

Power supply

Power supply type24 VDC (SEL V)

Nominal supply voltage U

S

DC 24 V

Supply voltage range±30 %

Current consumption (default)≤ 30 mA

Current consumption (max.)≤ 40 mA (I

600 Ω; Us: 16,8 V)

.

T est voltage

T est voltage (input/output/supply)AC 3 kV; 50 Hz; 1 min

.

20 mA; Load impedance:

out

Page2/8

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

Connection data

Connection technologyPush-in CAGE CLAMP®

Solid conductor0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor0.34 … 2.5 mm² / 22 … 14 AWG

Strip length9 … 10 mm / 0.35 … 0.39 inches

.

Physical data

Width6 mm / 0.236 inches

Height94 mm / 3.701 inches

Depth from upper-edge of DIN-rail97.8 mm / 3.85 inches

.

Mechanical data

Mounting typeDIN-35 rail

.

Material data

Insulation materialPolyamide (P A66)

Flammability class per UL94V0

Fire load0.363 MJ

Weight43 g

.

Environmental requirements

Ambient temperature (operation)-25 … +70 °C

Ambient temperature (storage)-40 … +85 °C

Processing temperature-25 … +50 °C

T emperature range of connection cable≥ (T

+ 25 K)

ambient

Relative humidity5 … 95 % (no condensation permissible)

Operating altitude (max.)2000 m

.

Standards and specifications

Conformity markingCE

EMC immunity to interferenceEN 61000-6-2

EMC emission of interferenceEN 61000-6-4

Standards/specificationsEN 61010-1

.

Commercial data

Product Group6 (INTERFACE ELECTRONIC)

eCl@ss 10.027-21-01-20

eCl@ss 9.027-21-01-20

ETIM 8.0EC002653

ETIM 7.0EC002653

PU (SPU)1 pcs

Packaging typeBag

Country of originDE

GTIN4045454471293

Customs tariff number85437090300

.

Page3/8

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

Environmental Product Compliance

CAS-No.1303-86-2

REACH Candidate List SubstanceDiboron trioxide

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption7(a)

SCIP notification number (Austria)61dc3753-5e53-4bb5-9a50-f5aa17855efd

SCIP notification number (Belgium)c0cac427-821b-4fee-853d-e625623f7640

SCIP notification number (Bulgaria)b870ee7e-96a6-4693-a71e-ca604ee0becd

SCIP notification number (Czech Republic)e7e38323-7816-4bca-823d-3b7279f03a44

SCIP notification number (Denmark)6601305f-f71c-49d0-b0a8-1bb00e9b10a9

SCIP notification number (Finland)f0f87a08-b417-4804-bef3-c3544e6ec13a

SCIP notification number (France)7fece020-0230-4fff-8cee-bf52a792d4d6

SCIP notification number (Germany)197024b5-9ab4-47ce-ad91-4e9856e8eff0

SCIP notification number (Hungary)32b8cc06-78ff-4b21-86dd-dbc709b88954

SCIP notification number (Italy)1a3b35dc-ce7d-420c-9c23-318120ddc4e0

SCIP notification number (Netherlands)b772c60e-9cbe-49e9-8f7d-522704ecfa81

SCIP notification number (Poland)dd653e15-62aa-4136-bfb4-6c245822ff06

SCIP notification number (Romania)7347c6f8-21e0-4fd4-ab8f-e32d7983d5cc

SCIP notification number (Sweden)dd90bd68-e44b-432d-98d3-fe7c80da2930

.

1317-36-8
7439-92-1
75980-60-8

Lead
Lead monoxide
Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-

7(c)-I

Approvals / Certificates

General approvals

ApprovalStandardCertificate Name

EAC
GZO Almaty Standart

UL
Underwriters Laboratories
Inc. (ORDINARY L OCA TI
ONS)

.

TP TC 020/2011EAC CoC 03081

UL 508E175199 Sec.4

Approvals for marine applications

ApprovalStandardCertificate Name

BV
Bureau Veritas S.A.

DNV
DNV Germany GmbH

PRS
Polski Rejestr Statków

.

Rules for class. of Steel
Ships

DNV-CG-0339,Aug.2021TAA00001D1

-TE/1098/880590/23

Declarations of conformity and manufacturer's declarations

ApprovalStandardCertificate Name

EU-Declaration of Confor
mity
WAGO GmbH & Co. KG

.

--

Approvals for hazardous areas

ApprovalStandardCertificate Name

40179_B0

ATEX
TUEV Nord Cert GmbH

CCC
CNEX

IECEx
TUEV Nord Cert GmbH

UKEx
WAGO GmbH & Co. KG

UL
Underwriters Laboratories
Inc. (HAZARDOUS LOCA
TIONS)

EN 60079-0TUEV14ATEX112692X (II

3G Ex ec IIC T4 Gc)

CNCA-C23-012020312310000210 (Ex

ec IIC T4 Gc)

-IECEX TUN14.0030X

EN 60079-0WAGO22UKEX004X

ANSI/ISA 12.12.01E198726

Page4/8

.

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

Downloads

Environmental Product Compliance

Compliance Search

Environmental Product
Compliance 857-400

.

Documentation

Manual

WAGO Isolating Ampli
fiers

Bid T ext

857-400

18.07.2019

6.10 KB

xml

.

Instruction Leaflet

CCC Ex (Additional in
formation)26.04.2023

Messumformer und
Trennverstärker

.

CAD/CAE-Data

CAD data

2D/3D Models 857-400

.

857-400

18.07.2019

857-400

18.07.2019

.

docx

19.31 KB

pdf

75.55 KB

pdf

140.99 KB

V 2.0.0

16.08.2022

pdf

2246.01 KB

CAE data

EPLAN Data Portal
857-400

WSCAD Universe
857-400

ZUKEN Portal 857-400

1 Compatible Products

1.1 Optional Accessories

1.1.1 Installation

1.1.1.1 Mounting accessories

Item No.: 249-117

Screwless end stop; 10 mm wide; for DIN­rail 35 x 15 and 35 x 7.5; gray

.

Page5/8

Item No.: 249-197

Screwless end stop; 14 mm wide; for DIN­rail 35 x 15 and 35 x 7.5; gray

.

Item No.: 249-116

Screwless end stop; 6 mm wide; for DIN­rail 35 x 15 and 35 x 7.5; gray

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

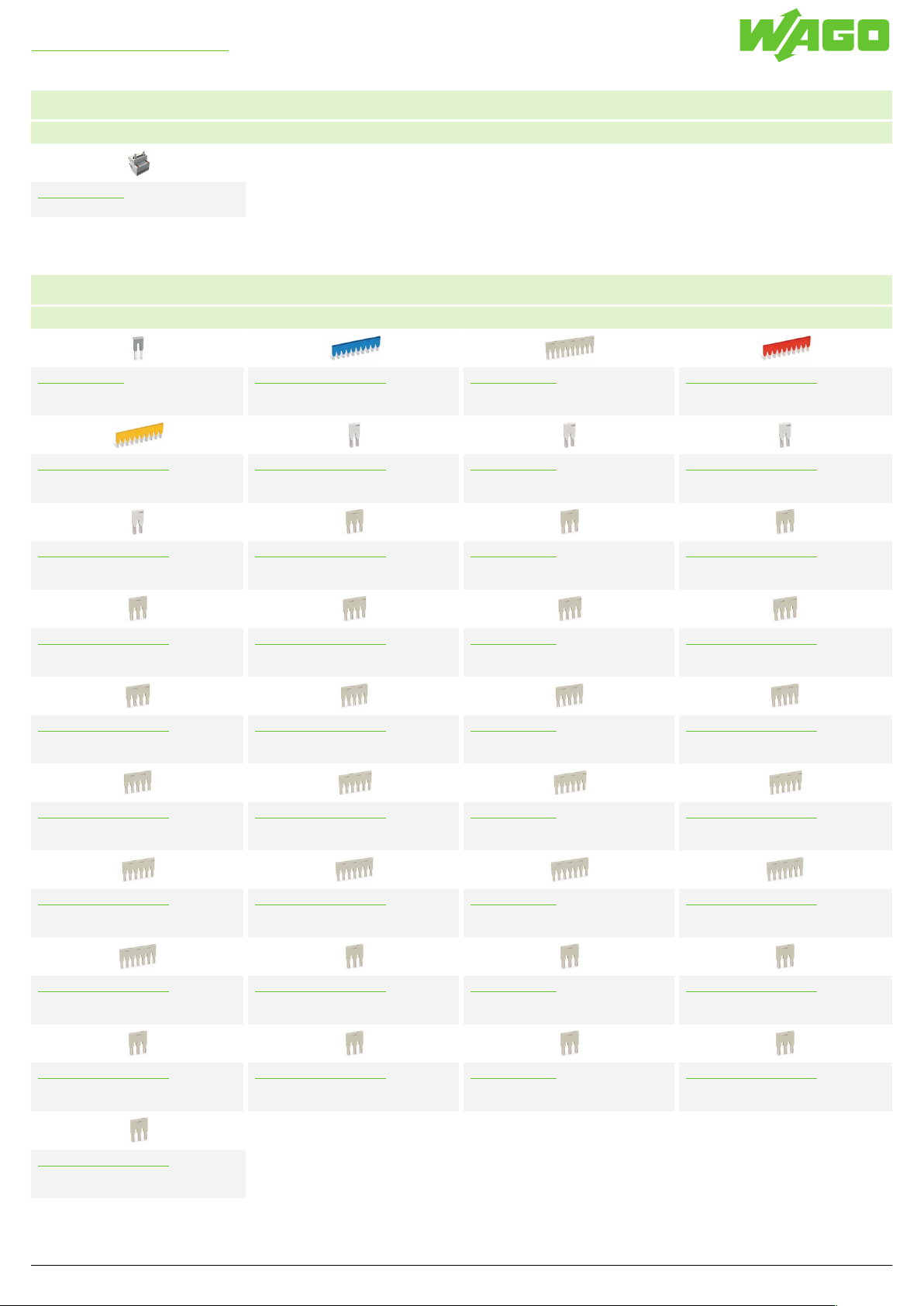

1.1.2 Interface module

1.1.2.1 Interface adapters

Item No.: 857-980

Interface adapter; 16-pole; analog

.

1.1.3 Jumper

1.1.3.1 Jumper

Item No.: 281-482

Jumper; 2-way; insulated; gray

Item No.: 859-410/000-029

Jumper; for jumper slot; 10-way; insula
ted; yellow

Item No.: 859-402/000-029

Jumper; for jumper slot; 2-way; insulated;
yellow

Item No.: 859-403/000-029

Jumper; for jumper slot; 3-way; insulated;
yellow

Item No.: 859-404/000-029

Jumper; for jumper slot; 4-way; insulated;
yellow

Item No.: 859-405/000-029

Jumper; for jumper slot; 5-way; insulated;
yellow

Item No.: 859-410/000-006

Jumper; for jumper slot; 10-way; insula
ted; blue

Item No.: 859-402/000-006

Jumper; for jumper slot; 2-way; insulated;
blue

Item No.: 859-403/000-006

Jumper; for jumper slot; 3-way; insulated;
blue

Item No.: 859-404/000-006

Jumper; for jumper slot; 4-way; insulated;
blue

Item No.: 859-405/000-006

Jumper; for jumper slot; 5-way; insulated;
blue

Item No.: 859-406/000-006

Jumper; for jumper slot; 6-way; insulated;
blue

Item No.: 859-410

Jumper; for jumper slot; 10-way; insula
ted; light gray

Item No.: 859-402

Jumper; for jumper slot; 2-way; insulated;
light gray

Item No.: 859-403

Jumper; for jumper slot; 3-way; insulated;
light gray

Item No.: 859-404

Jumper; for jumper slot; 4-way; insulated;
light gray

Item No.: 859-405

Jumper; for jumper slot; 5-way; insulated;
light gray

Item No.: 859-406

Jumper; for jumper slot; 6-way; insulated;
light gray

Item No.: 859-410/000-005

Jumper; for jumper slot; 10-way; insula
ted; red

Item No.: 859-402/000-005

Jumper; for jumper slot; 2-way; insulated;
red

Item No.: 859-403/000-005

Jumper; for jumper slot; 3-way; insulated;
red

Item No.: 859-404/000-005

Jumper; for jumper slot; 4-way; insulated;
red

Item No.: 859-405/000-005

Jumper; for jumper slot; 5-way; insulated;
red

Item No.: 859-406/000-005

Jumper; for jumper slot; 6-way; insulated;
red

Item No.: 859-406/000-029

Jumper; for jumper slot; 6-way; insulated;
signal yellow

Item No.: 859-407/000-029

Jumper; for jumper slot; 7-way; insulated;
yellow

Item No.: 859-408/000-029

Jumper; for jumper slot; 8-way; insulated;
yellow

Item No.: 859-409/000-029

Jumper; for jumper slot; 9-way; insulated;
yellow

.

Page6/8

Item No.: 859-407/000-006

Jumper; for jumper slot; 7-way; insulated;
blue

Item No.: 859-408/000-006

Jumper; for jumper slot; 8-way; insulated;
blue

Item No.: 859-409/000-006

Jumper; for jumper slot; 9-way; insulated;
blue

Item No.: 859-407

Jumper; for jumper slot; 7-way; insulated;
light gray

Item No.: 859-408

Jumper; for jumper slot; 8-way; insulated;
light gray

Item No.: 859-409

Jumper; for jumper slot; 9-way; insulated;
light gray

Item No.: 859-407/000-005

Jumper; for jumper slot; 7-way; insulated;
red

Item No.: 859-408/000-005

Jumper; for jumper slot; 8-way; insulated;
red

Item No.: 859-409/000-005

Jumper; for jumper slot; 9-way; insulated;
red

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

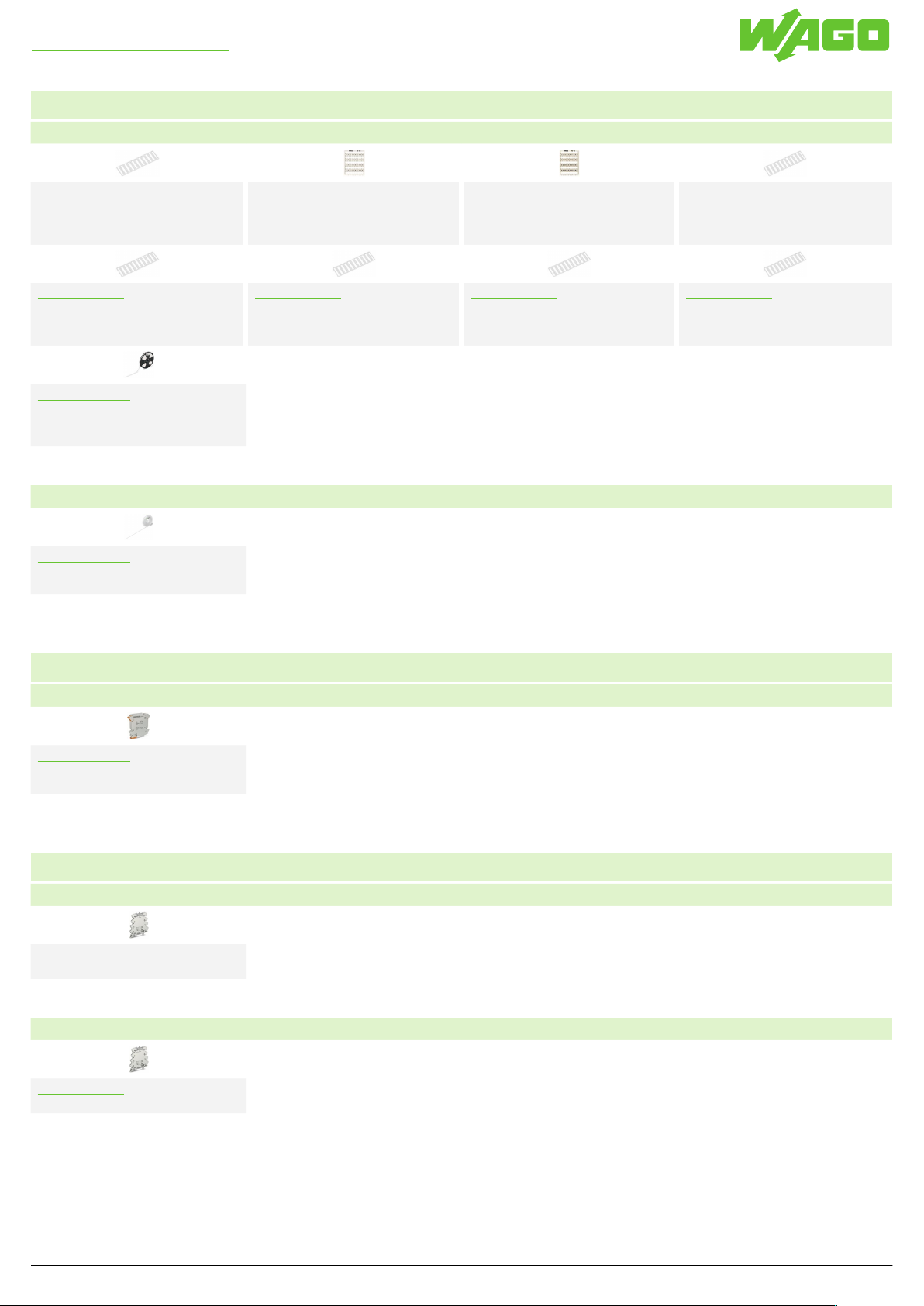

1.1.4 Marking

1.1.4.1 Marker

Item No.: 793-5501

WMB marking card; as card; for terminal
block width 5 - 17.5 mm; stretchable 5 -

5.2 mm; plain; snap-on type; white

Item No.: 793-504

WMB marking card; as card; MARKED;
21 ... 30 (10x); not stretchable; Horizontal
marking; snap-on type; white

Item No.: 2009-115

WMB-Inline; for Smart Printer; 1500 pieces
on roll; stretchable 5 - 5.2 mm; plain; snap­on type; white

.

1.1.4.2 Marking strip

Item No.: 2009-110

Marking strips; for Smart Printer; on reel;
not stretchable; plain; snap-on type; white

.

Item No.: 793-502

WMB marking card; as card; MARKED; 1 ...
10 (10x); not stretchable; Horizontal mar
king; snap-on type; white

Item No.: 793-505

WMB marking card; as card; MARKED;
31 ... 40 (10x); not stretchable; Horizontal
marking; snap-on type; white

Item No.: 793-566

WMB marking card; as card; MARKED; 1 ...
50 (2x); not stretchable; Horizontal mar
king; snap-on type; white

Item No.: 793-506

WMB marking card; as card; MARKED;
41 ... 50 (10x); not stretchable; Horizontal
marking; snap-on type; white

Item No.: 793-503

WMB marking card; as card; MARKED;
11 ... 20 (10x); not stretchable; Horizontal
marking; snap-on type; white

Item No.: 793-501

WMB marking card; as card; not stretcha
ble; plain; snap-on type; white

1.1.5 Power supply

1.1.5.1 Power supply unit

Item No.: 787-2852

Switched-mode power supply; 1-phase;
24 VDC output voltage; 1 A output current

.

1.1.6 T erminal blocks

1.1.6.1 Supply module

Item No.: 857-979

Supply and through module

.

1.1.6.2 Through terminal block

Item No.: 857-979

Supply and through module

.

Page7/8

Continued on next page Version 08.07.2024

Data Sheet | Item Number: 857-400

https://www.wago.com/857-400

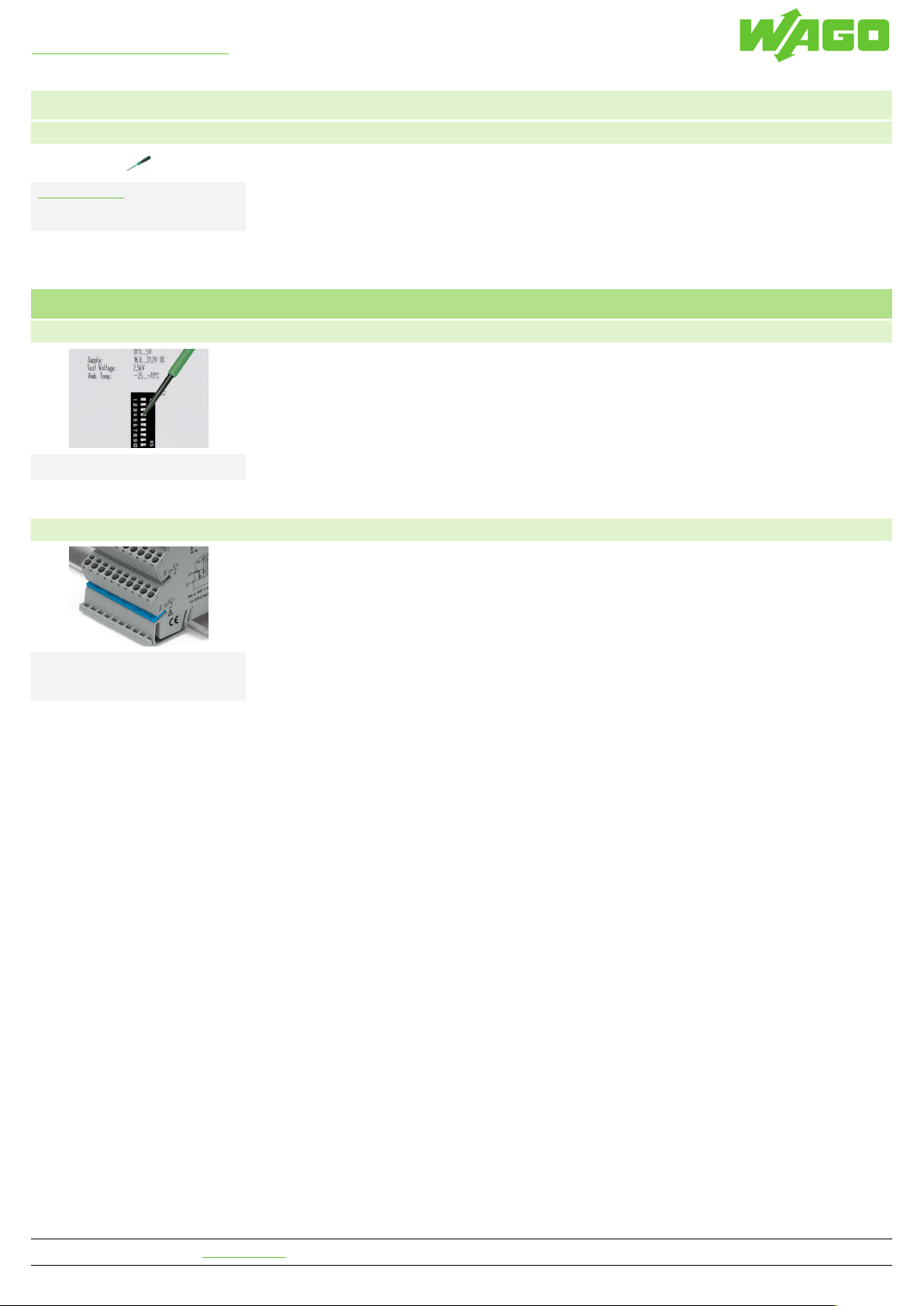

1.1.7 T ool

1.1.7.1 Operating tool

Item No.: 210-720

Operating tool; Blade: 3.5 x 0.5 mm; with a
partially insulated shaft; multicoloured

.

Installation Notes

Configuring

Configuration via DIP switch

.

Commoning

Commoning, not discrete wiring – Same
outline allows use of a single in-line, push­in jumper.

.

Subject to changes. Please also observe the further product documentation!

Current addresses can be found at:: www.wago. com

Page8/8

Version 08.07.2024
