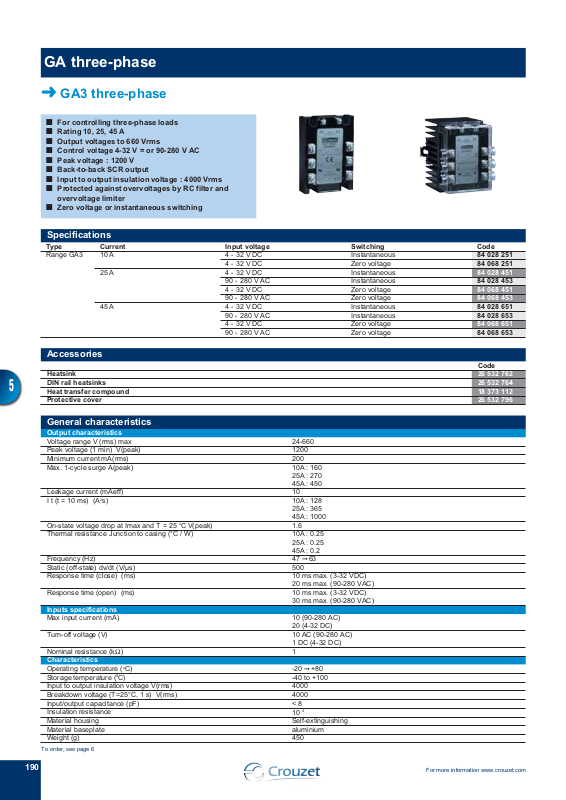

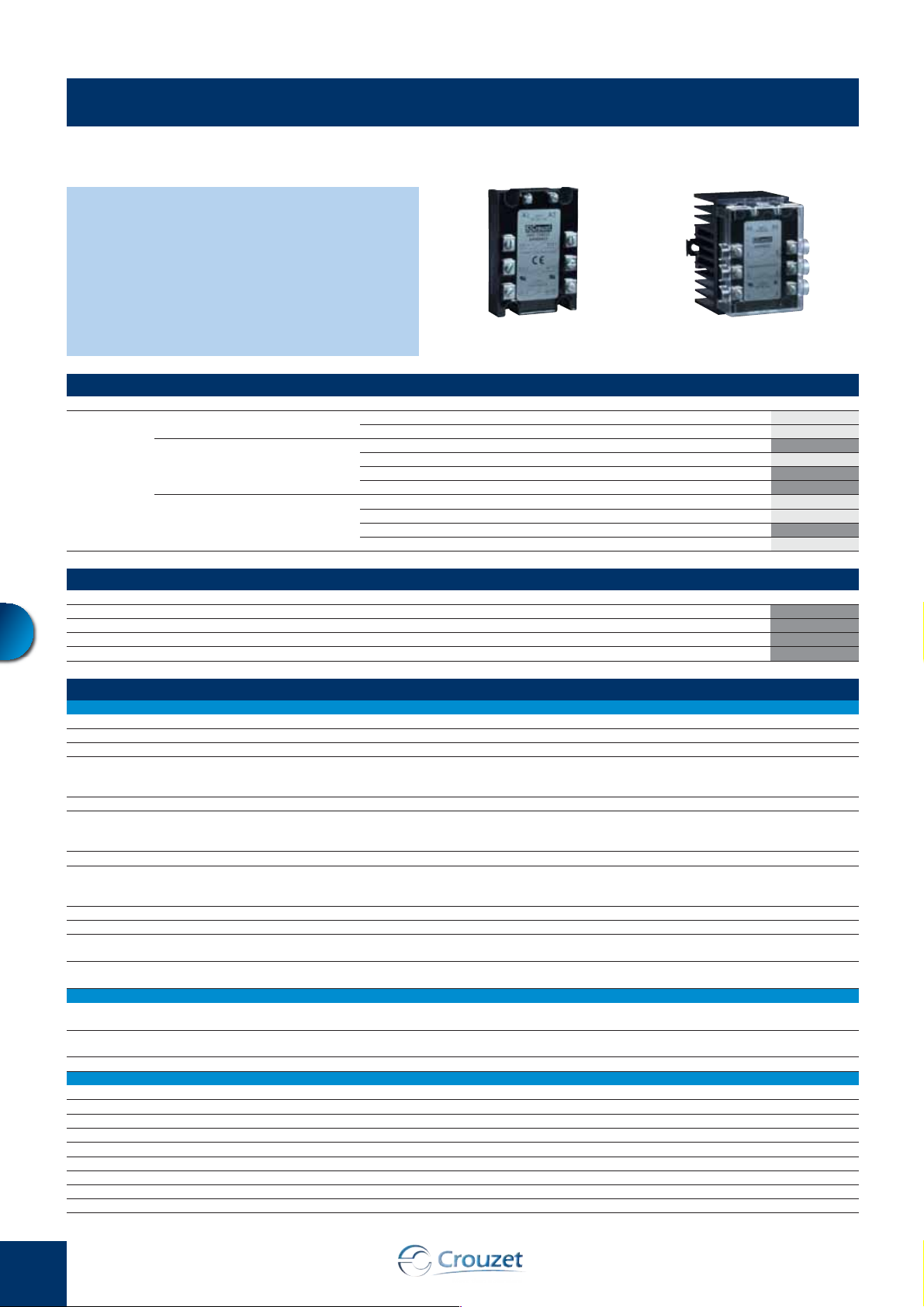

Datasheet 84068651 Specification

GA three-phase

➜ GA3 three-phase

■ For controlling three-phase loads

■ Rating 10, 25, 45 A

■ Output voltages to 660 Vrms

■ Control voltage 4-32 V = or 90-280 V AC

■ Peak voltage : 1200 V

■ Back-to-back SCR output

■ Input to output insulation voltage : 4000 Vrms

■ Protected against overvoltages by RC filter and

overvoltage limiter

■ Zero voltage or instantaneous switching

Specifications

Type Current Input voltage Switching Code

Range GA3 10 A 4 - 32 V DC Instantaneous 84 028 251

25 A 4 - 32 V DC Instantaneous 84 028 451

45 A 4 - 32 V DC Instantaneous

4 - 32 V DC Zero voltage

90 - 280 V AC Instantaneous
4 - 32 V DC Zero voltage 84 068 451
90 - 280 V AC Zero voltage 84 068 453

90 - 280 V AC Instantaneous 84 028 653
4 - 32 V DC Zero voltage 84 068 651
90 - 280 V AC Zero voltage 84 068 653

84 068 251

84 028 453

84 028 651

5

Accessories

Heatsink 26 532 762
DIN rail heatsinks 26 532 764
Heat transfer compound 18 373 112
Protective cover 26 532 796

Code

General characteristics

Output characteristics

Voltage range V (rms) max 24-660
Peak voltage (1 min) V(peak) 1200
Minimum current mA(rms) 200
Max. 1-cycle surge A(peak) 10A : 160

Leakage current (mAeff) 10
I t (t = 10 ms) (A2s)

On-state voltage drop at Imax and T = 25 oC V(peak)
Thermal resistance Junction to casing (°C / W) 10A : 0.25

Frequency (Hz) 47 ➞ 63
Static (off-state) dv/dt (V/µs) 500
Response time (close) (ms) 10 ms max. (3-32 VDC)

Response time (open) (ms) 10 ms max. (3-32 VDC)

Inputs specifications

Max input current (mA) 10 (90-280 AC)

Turn-off voltage (V) 10 AC (90-280 AC)

Nominal resistance (kΩ) 1

Characteristics

Operating temperature (oC)
Storage temperature (0C)
Input to output insulation voltage V(rms) 4000
Breakdown voltage (T=25°C, 1 s) V(rms) 4000
Input/output capacitance (pF) < 8
Insulation resistance
Material housing Self-extinguishing
Material baseplate aluminium
Weight (g) 450

To order, see page 6

25A : 270
45A : 450

10A : 128
25A : 365
45A : 1000

1.6

25A : 0.25
45A : 0.2

20 ms max. (90-280 VAC)

30 ms max. (90-280 VAC)

20 (4-32 DC)

1 DC (4-32 DC)

-20 ➞ +80

-40 to +100

4

10

190

For more information www.crouzet.com

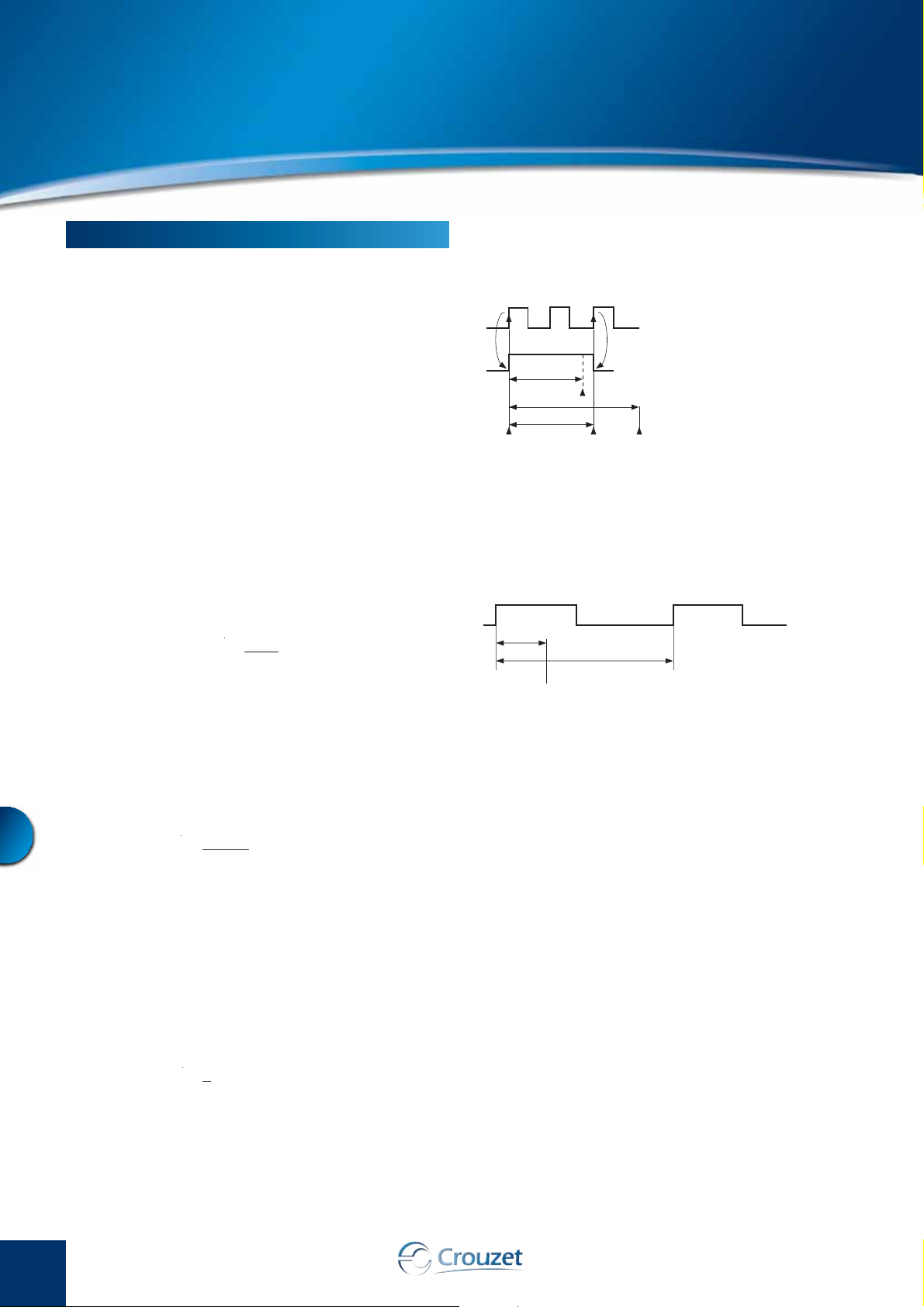

Basic principles of tachometers

General

Tachometers can be used to measure speeds (of linear or rotary move­ment), rates (per minute or per hour), or rates of flow (volumetric, etc.).

Pulses are fed to the tachometer at the frequency to be measured. A
scale factor is applied to produce readings of the desired type (linear
speeds, flow rates, etc.).

Crouzet/Syrelec tachometers operate on 2 different principles :

1 - The fixed time base principle, and

2 - The reciprocal principle

1 - Principle of the fixed time base tachometer

The tachometer totals the number of pulses received during a fixed per­iod of time known as the time base. At the end of this period, a value for
the frequency measured is shown on the display.

The time base can be set at the time of installation. It is calculated from
the formula shown below, where :

B : is the time base being calculated,

: is the number of pulses per revolution,

N

d

: is the number of revolutions per minute, and

N

t

V : is the value that will appear on the display.

The time base is given by :

Vx60

B=

Nt x Nd

The parameters which govern this tachometer are the following :

■ the sampling time (T

■ the time limit for measurement (T

TR

TL

T

Measure­ment
begins

Measure­ment
ends

)

r

Pulses e

Time limit for
measurement

)

L

itted by the sensor

m

Measurement ends at the rising edge of the first pulse after Tr. If no
pulse is received after T, the system waits until the time limit T
shows zero on the display.

and then

L

If the frequency of the signal is low, conditions are as shown below :

Tr

T

8

Once the time base has been calculated, it is set by means of DIP
switches (or changeover switches) situated on the unit.

As an example:

Assume a sensor emits 8 pulses per revolution. What you want to see
on the display is a speed in revs per minute.The maximum this speed
can be is 2000 rpm.

= 8

N

d

N

= 2000

t

V = N

(since what you want displayed is a speed in rpm).

t

2000 x60

B=

2000x8

= 7,5 secondes

Fixed time base tachometers are useful for high speeds but, if the accu­racy obtained is to be good, it is essential for the number of pulses per
revolution to be high.

To overcome this drawback, Crouzet Automation can supply reciprocal
tachometers. These need only a single pulse per revolution and are able
to measure both high and low speeds.

2 - Principle of the reciprocal tachometer

This tachometer measures the intervals between n count pulses
(the period) and then performs the calculation

1

f=

T

to obtain a frequency.

Enables end of measurement

The interval between 2 rising edges is very much longer than Tr.

The tachometer displays 0 until time T, at which it displays the new value.

230

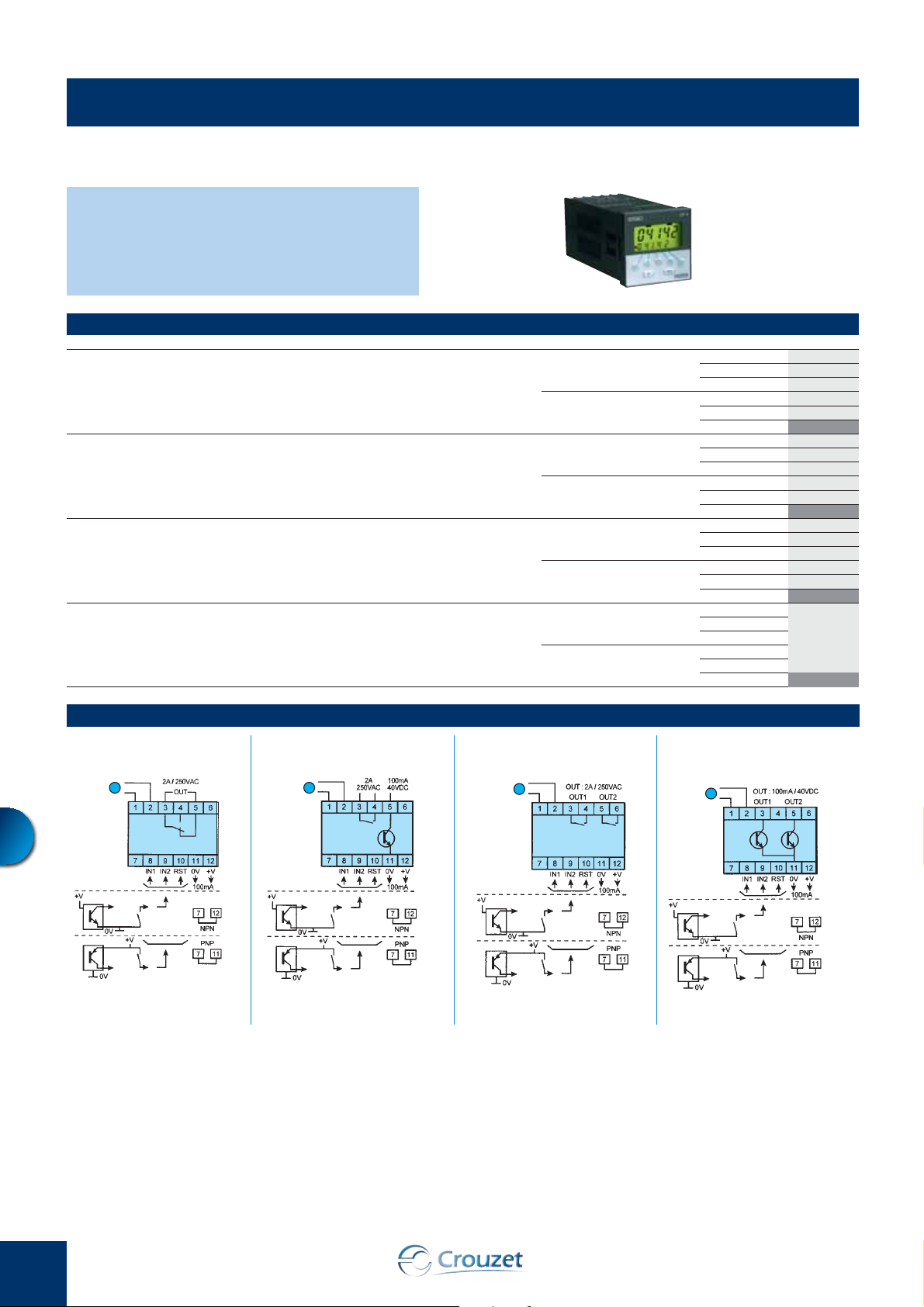

Preselection and multifunction up/down counters 48x48

➜ CP4 : back-lit LCD display
➜ CP4 Red illuminated display

Physical details and protection

Immunity from micro power cuts Version 10 to 30 V DC : 10 ms

Version 20 to 55 V AC : 10 ms
Version 80 to 260 V AC : 10 ms

Relative humidity (no

95 %

condensation)
Altitude 0 - 2000 m
Insulation (IEC 664-1) 2.5 kΩ
Standards Conforming to IEC 1000.4.2 : Level 3

Conforming to IEC 1000.4.3 : Level 3
Conforming to IEC 1000.4.4 : Level 3
Conforming to IEC 1000.4.6 : Level 3
Conforming to EN 55022/11 group 1 :
Class A

Vibration resistance in 3 axes acc.

10 - 55 Hz / 0.35 mm

to IEC 68-2-6
Material Self-extinguishing
Connection by screw terminals
Tightening capacity
Mounting Front panel, by clip

●

2 x 1.5 mm

●

2

Front panel protection IP 54
Front panel watertight seal

●

Temperatures limits use (°C) 0 ➞ +55
Temperature limits stored (°C) -25 ➞ +70
Weight (g) 200

Outputs solid state characteristics

Type NPN open collector

●

Maximum current 100 mA
Maximum voltage 40 V DC
Voltage drop < 1.5 V
Response time < 250 µs

Outputs Relay characteristics

Current rating 2 A
Maximum voltage 250 V AC
Max contact rating (resistive) -

500 VA

AC1
Rated current 10 mA
Response time < 10 ms
Mechanical life (operations)
Permitted number of operations at

3 x 10
1 x 10

6

5

2 A AC1
Output modes : maintained or
pulsed

Single shot or repetitive

t = 0.1 s to 9.9 s for types 4192 and
4392
t = 500 ms for other types

●

(immediate auto reset)
Supply (min/max values) 10 ➞ 30 V DC

➞ 55 V AC

20

➞ 260 V AC

80

Maximum consumption - Version DC4 W

Maximum consumption - Version AC10 VA

Inputs specifications

2 counting inputs IN1, IN2
Input modes
UP, DN, CUMUL, DIR, IND PHASE,
PHASE x 2
PHASE x 4
Input by contact, voltage or solid

●

4142 - 4341
4142 - 4342
4144 - 4344
4192 - 4392

●

state device for 3-wire and 2-wire
detection using external resistor
(NPN or PNP if present)
Low level 0 ➞ 1 V DC
High level 4 ➞ 30 V DC
Impedance 10 KΩ

Counting speed

Counter 5 kHz or 30 Hz

2.5 kHz PH4

Counting speed - Multifunction

Counter UP, DOWN, DIR 7.5 kHz
Counter non simultaneous IND,

7.5 kHz

CUMUL (IN1 & IN2 non
simultaneous)
Counter IND, CUMUL (IN1 & IN2

4.0 kHz

simultaneous)
Counter / Tachometer PH, PH2 5.0 kHz
Counter /Tachometer PH, PH2

4.0 kHz

(except in Batch mode)
Counter PH4 2.5 kHz
Tachometer UP, DOWN, DIR 9.0 kHz
Tachometer IND, CUMUL (IN1 IN2

9.0 kHz

non simultaneous)
Tachometer IND, CUMUL (IN1 IN2

5.0 kHz

simultaneous)
Tachometer PH4 4.0 kHz

Reset

Reset to zero or to preset From front panel : if not protected in

programming phase
Electrical : by contact, voltage or solid
state device (NPN or PNP if present)

Minimum pulse time 5 ms
Low level 0 ➞ 1 V DC
High level 4 ➞ 30 V DC
Impedance 10 KΩ
Option to protect against reset

●

from front panel
Scale factor (each input pulse is

00.001 ➞ 99.999

multiplied by this figure)
Decimal point selectable for ease

xxxxx, xxxx.x, xxx.xx, xx.xxx,

of reading
Sensor supply Version AC 12 V DC / 100 mA
Sensor supply Version DC Un - 2 V / 100 mA
Programming and current value

●

backed up via EEPROM memory

8

Operating characteristics

Functions Preselection up/down counter

Multifunction : counters, "Batch"
counters, tachometers and
chronometers

Number of presets 1 or 2
Back-lit LCD or red illuminated
display

Current value : 5 digits
Preset : 5 digits

Height of digits Current value : 8 mm

Preset : 4 mm

Display details -9999 - + 99 999
Simultaneous readout of count

●

value and preset

For more information www.crouzet.com

231

Preselection and multifunction up/down counters 48x48

➜ CP4 : back-lit LCD display

■ Presets and scale factor easy to alter

■ Large back-lit LCD display or red illuminated display

■ Simultaneous display of current value and preset

■ Safeguarded : good resistance to interference

■ Backed up on EEPROM memory

■ Slide-out electronics for easy maintenance

Specifications

Type Time base Counting input modes Designation Output Voltages Code

4141-1 preset - UP, DN, PH Up/down counter 1 contact and 1 solid state 10 to 30 VDC 87 618 012

1 changeover relay 10 to 30 VDC 87 618 042

4142-2 preset - UP, DN, PH Up/down counters 2 solid states 10 to 30 V

2 contacts 10 to 30 VDC 87 618 022

4144-2 preset - DIR, IND, CUMUL, PH Up/down counters 2 solid states 10 to 30 VDC 87 618 072

2 contacts 10 to 30 VDC 87 618 032

4192-2 preset

99h59min - 99min59s

- 99.99s -24h

UP, DN, IND, CUMUL, DIR,
PH, PH2, PH4

Multifunctions :
Counters - "Batch"
counters ­tachometers and
chronometers

NO, 2 solid states 10 to 30 VDC

NO, 2 contacts 10 to 30 VDC

20 to 55 VAC
80 to 260 VAC 87 618 018

20 to 55 VAC 87 618 044
80 to 260 VAC 87 618 048

20 to 55 VAC 87 618 064
80 to 260 VAC

20 to 55 VAC 87 618 024
80 to 260 VAC 87 618 028

20 to 55 VAC
80 to 260 VAC 87 618 078

20 to 55 VAC
80 to 260 VAC 87 618 038

20 to 55 VDC 87 618 264
80 to 260 VDC 87 618 268

20 to 55 VDC 87 618 224
80 to 60 VDC 87 618 228

87 618 014

87 618 062

87 618 068

87 618 074

87 618 034

87 618 262

87 618 222

8

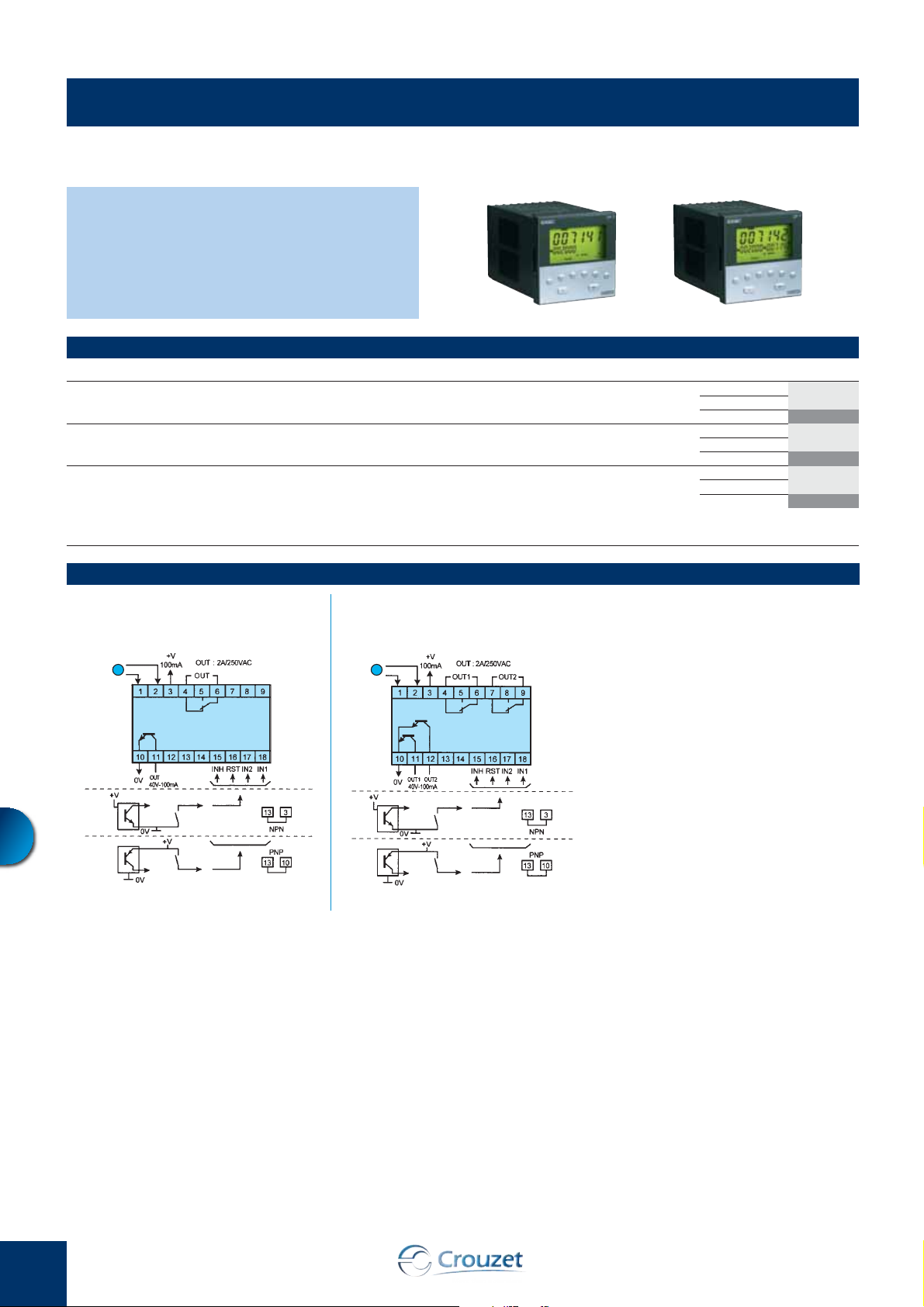

Connections

87 618 042
87 618 044
87 618 048

1

Supply

B

87 618 142
87 618 144
87 618 148

87 618 012
87 618 014
87 618 018

Supply

B

87 618 112
87 618 114
87 618 118

1

87 618 022
87 618 024
87 618 028

Supply

B

87 618 122
87 618 124
87 618 128

1

87 618 062
87 618 064
87 618 068

1

Supply

B

87 618 162
87 618 164
87 618 168

To order, see page 6. Curves : see page 238

232

For more information www.crouzet.com

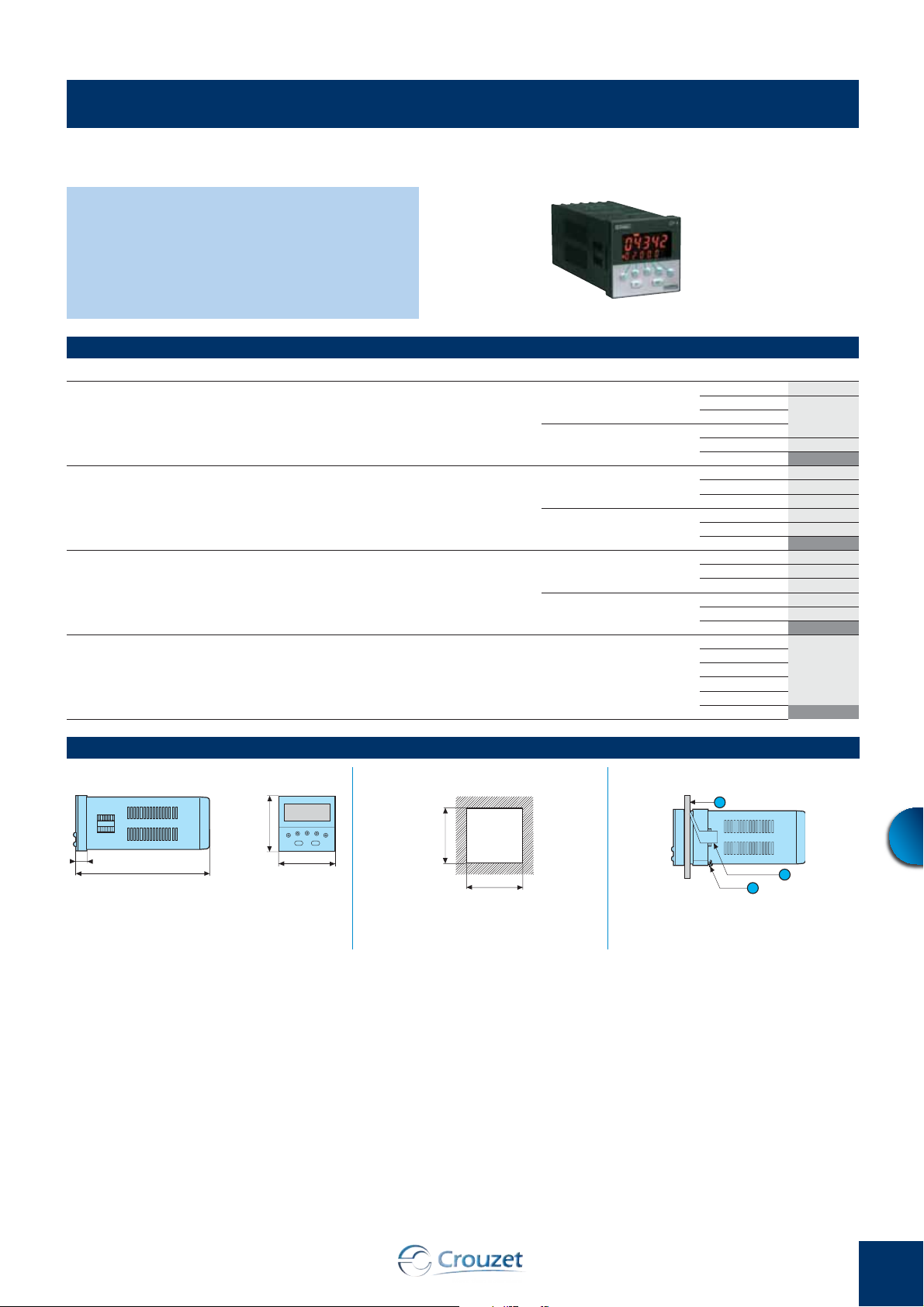

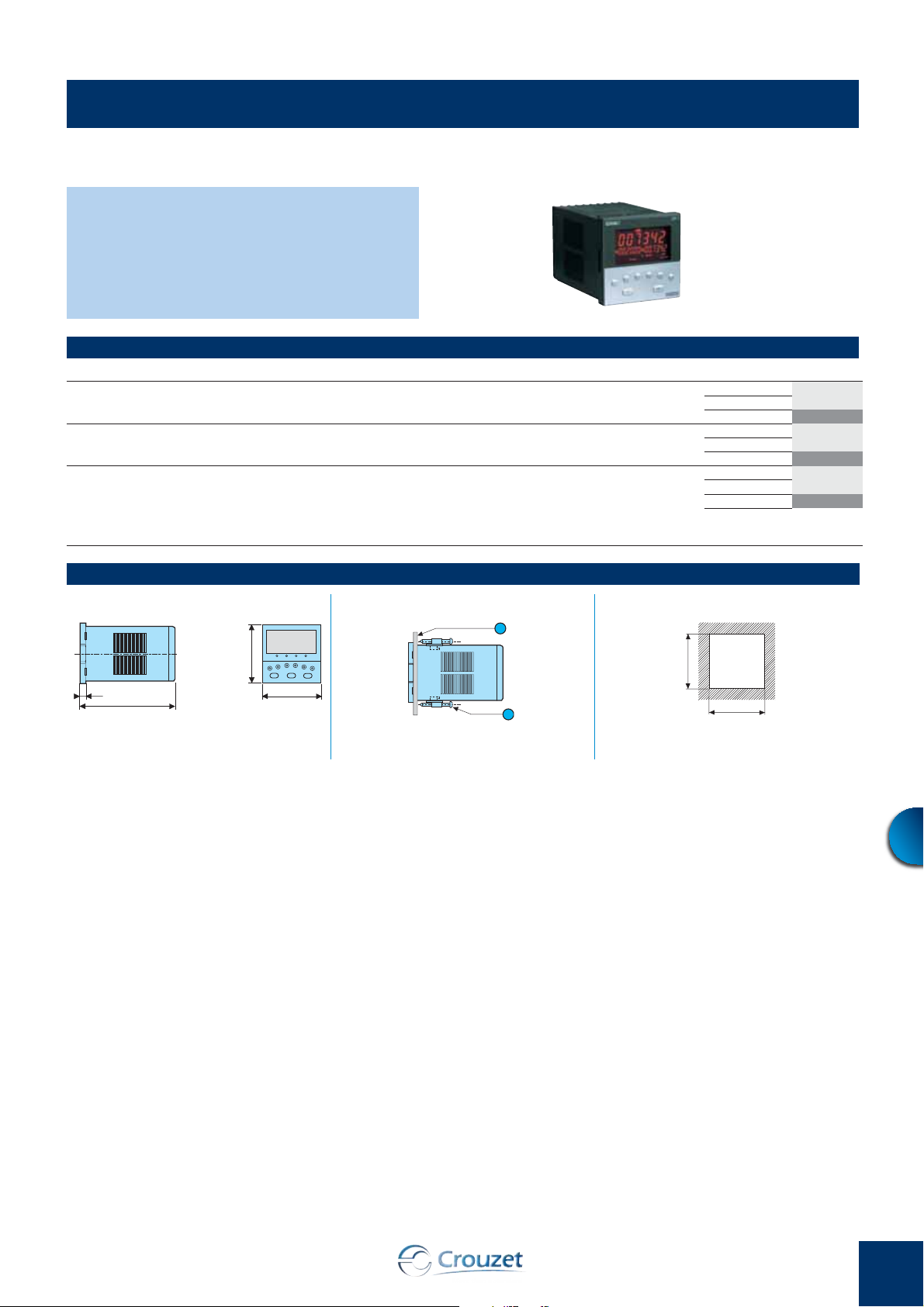

Preselection and multifunction up/down counters 48x48

➜ CP4 Red illuminated display

■ Presets and scale factor easy to alter

■ Large back-lit LCD display or red illuminated display

■ Simultaneous display of current value and preset

■ Safeguarded : good resistance to interference

■ Backed up on EEPROM memory

■ Slide-out electronics for easy maintenance

Specifications

Type Time base Counting input modes Designation Output Voltages Code

4341-1 preset - UP, DN, PH Up/down counter NO, 1 contact and

4342-2 preset - UP, DN, PH Up/down counters NO, 2 solid states 10 to 30 VDC 87 618 162

4344-2 preset - DIR, IND, CUMUL, PH Up/down counters NO, 2 solid states 10 to 30 VDC

4392-2 preset 99h59min - 99min59s

- 99.99s - 24h

UP , DN , IND , CUMUL , DIR
, PH , PH2 , PH4

Multifunctions :
Counters - "Batch"
counters ­Totalizers ­Tachometers ­Chronometers

1 solid state

1 changeover relay 10 to 30 VDC 87 618 142

NO, 2 contacts 10 to 30 VDC 87 618 122

NO, 2 contacts 10 to 30 VDC 87 618 132

NO, 2 solid states 10 to 30 VDC 87 618 362

10 to 30 VDC 87 618 112
20 to 55 VAC 87 618 114
80 to 260 VAC

20 to 55 VAC 87 618 144
80 to 260 VAC 87 618 148

20 to 55 VAC
80 to 260 VAC 87 618 168

20 to 55 VAC 87 618 124
80 to 260 VAC 87 618 128

20 to 55 VAC 87 618 174
80 to 260 VAC

20 to 55 VAC 87 618 134
80 to 260 VAC 87 618 138

20 to 55 VAC
80 to 260 VAC 87 618 368
10 to 30 VDC 87 618 322
20 to 55 VAC
80 to 260 VAC 87 618 328

87 618 118

87 618 164

87 618 172

87 618 178

87 618 364

87 618 324

Dimensions

CP4 Panel cut-out

48

P

11

114

RST

48

1

+0.6

0

45

+0.6
0

45

Panel thickness 1 to 10 mm

B

Fixing clip

C

Positioning screw

D

2

3

8

To order, see page 6. Curves : see page 238

For more information www.crouzet.com

233

Preselection and Multifunction up/down counters 72x72

➜ CP7 : Back lit display
➜ CP7 : red illuminated display

Physical details and protection

Immunity from micro power cuts Version 10 to 30 V DC : 10 ms

Version 20 to 55 V AC : 10 ms
Version 80 to 260 V AC : 10 ms

Relative humidity (no

95 %

condensation)
Altitude 0 - 2000 m
Insulation (IEC-664-1) 2.5 kV
Standards

Conforming to IEC 1000.4.2 : Level 3
Conforming to IEC 1000.4.3 : Level 3
Conforming to IEC 1000.4.4 : Level 3
Conforming to IEC 1000.4.6 : Level 3
Conforming to EN 55022/11 group 1 :
Class A

Vibration resistance in 3 axes acc.

10 - 55 Hz / 0.35 mm

to IEC 68-2-6
Material Self-extinguishing
Connection by screw terminals
Terminal capacity
Mounting Front panel, by clip

●

2 x 1.5 mm

●

2

Front panel protection IP 54
Front panel watertight seal

●

Temperatures limits use (°C) 0 ➞ +55
Temperature limits stored (°C) -25 ➞ +70
Weight (g) 290

Outputs solid state characteristics

Type NPN open collector

●

Maximum current 100 mA
Maximum voltage 40 V DC
Voltage drop < 1.5 V
Response time < 250 µs

Relay output characteristics

1 or 2 changeover relays

●

Current rating 2 A
Maximum voltage 250 V AC
Max contact rating (resistive) -

500 VA

AC1
Rated current 100 mA
Response time < 10 ms
Mechanical life (operations)
Electrical life under I max.

3 x 10
1 x 10

7

5

resistive AC 1
Output modes : maintened or
pulsed (fixed pulse duration)
Single shot or repetitive

t = 0.9 s to 9.9 s for types 7192 and
7392 t = 500 ms for other types

●

(immediate auto reset)
Supply (min/max values) 10 ➞ 30 V DC

➞ 55 V AC

20
80

➞ 260 V AC

Maximum consumption - Version DC< 5 W

Maximum consumption - Version AC< 13 VA

Operating characteristics

Functions Preselection up/down counter

Multifunction : counters, "Batch"
counters, tachometers and
chronometers

Number of presets 1 or 2
Back-lit LCD or red illuminated
display

Current value : 6 digits
Preset : 6 digits

Inputs specifications

2 counting inputs IN1, IN2
1 inhibit input
Input modes

●

●

●

UP, DN, CUMUL, DIR, IND PHASE,
PHASE x 2
PHASE x 4
Contact, voltage or solid state

●

(NPN/PNP by changeover switch)
Low level 0 ➞ 1 V DC
High level 4 ➞ 30 V DC
Impedance 10 kΩ

Counting speed

Counter 5 kHz (2.5 kHz in phase 4)

30 Hz in debounce mode

Counting speed - Multifunction

Counter UP, DOWN, DIR 7.5 kHz
Counter non simultaneous IND,

7.5 kHz

CUMUL (IN1 & IN2 non
simultaneous)
Counter IND, CUMUL (IN1 & IN2

4.0 kHz

simultaneous)
Counter / Tachometer PH, PH2 5.0 kHz
Counter /Tachometer PH, PH2

4.0 kHz

(except in Batch mode)
Counter PH4 2.5 kHz
Tachometer UP, DOWN, DIR 9.0 kHz
Tachometer IND, CUMUL (IN1 IN2

9.0 kHz

non simultaneous)
Tachometer IND, CUMUL (IN1 IN2

5.0 kHz

simultaneous)
Tachometer PH4 4.0 kHz
Totalizer UP, DOWN, DIR 6.0 kHz
Totalizer IND, CUMUL (IN1 & IN2

6.0 kHz

non simultaneous)
Totalizer IND, CUMUL (IN1 & IN2

3.0 kHz

simultaneous)
Totalizer PH, PH2 3.5 kHz
Totalizer PH4 1.5 kHz

Reset

Reset to zero or to preset From front panel : if not protected in

programming phase
Electrical : by contact, voltage or
solid state device (NPN or PNP if
present)

Minimum pulse time 5 ms
Low level 0 ➞ 1 V DC
High level 4 ➞ 30 V DC
Impedance 10 kΩ
Option to protect against reset

●

from front panel
Scale factor (each input pulse is

00.0001 ➞ 99.9999

multiplied by this figure)
Decimal point selectable for ease
of reading

xxxxxx, xxxxx.x, xxxx.xx, xxx.xxx,
xx.xxxx

Sensor supply Version AC 12 V DC / 100 mA
Sensor supply Version DC Un - 2V / 100 mA
Programming and current value

●

backed up via EEPROM memory

8

Height of digits Current value : 10 mm

Preset : 6 mm

Display details -9999 - + 99 999

For more information www.crouzet.com

235

Preselection and Multifunction up/down counters 72x72

➜ CP7 : Back lit display

■ Presets and scale factor easy to alter

■ Large back-lit LCD display or red illuminated display

■ Simultaneous display of current value and preset

■ Safeguarded : good resistance to interference

■ Backed up on EEPROM memory

■ Slide-out electronics for easy maintenance

Specifications

Type Time base Counting input modes Designation Output Voltages Code

7141- 1 preset - UP, DN, IND, CUMUL, DIR,

7142-2 preset - UP, DN, IND, CUMUL, DIR,

7192-2 preset 99h59min - 99min59s - 99.99s

- 24h - 999.99h - 999.99min

PH, PH2, PH4

PH, PH2, PH4

UP, DN, IND, CUMUL, DIR,
PH, PH2, PH4

Up/down counters 1 changeover realy

Up/down counters 2 changeover relays

Multifunctions :
Counters - "Batch"
counters ­Tachometers and
chronometers ­Totalizers

+ 1 solid state relay

+ 2 solid states

2 changeover relays
+ 2 solid states

10 to 30 VDC 87 619 012
20 to 55 VAC 87 619 014
80 to 260 VAC 87 619 018
10 to 30 VDC 87 619 022
20 to 55 VAC 87 619 024
80 to 260 VAC 87 619 028
10 to 30 VDC 87 619 222
20 to 55 VAC
80 to 260 VAC 87 619 228

87 619 224

8

Connections

87 619 012
87 619 014
87 619 018

1

Supply

B

87 619 112
87 619 114
87 619 118

87 619 022
87 619 024
87 619 028

1

Supply

B

87 619 122
87 619 124
87 619 128

To order, see page 6. Curves : see page 238

236

For more information www.crouzet.com

Preselection and Multifunction up/down counters 72x72

➜ CP7 : red illuminated display

■ Presets and scale factor easy to alter

■ Large back-lit LCD display or red illuminated display

■ Simultaneous display of current value and preset

■ Safeguarded : good resistance to interference

■ Backed up on EEPROM memory

■ Slide-out electronics for easy maintenance

Specifications

Type Time base Counting input modes Designation Output Voltages Code

7341-1 preset - UP, DN, IND, CUMUL, DIR,

PH, PH2, PH4

7342-2 preset - UP, DN, IND, CUMUL, DIR,

PH, PH2, PH4

7392-2 preset 99h59min - 99min59s - 99.99s

- 24h - 999.99h - 999.99 min

UP, DN, IND, CUMUL, DIR,
PH, PH2, PH4

Up/down counter 1 changeover relay +

1 solid state

Up/down counter 2 changeover relays

+ 2 solid states

Multifunctions :
Counters - "Batch"

2 changeover relays

+ 2 solid states
counters ­Totalizers ­Tachometers ­Chronometers

10 to 30 VDC 87 619 112
20 to 55 VAC 87 619 114
80 to 260 VAC 87 619 118
10 to 30 VDC 87 619 122
20 to 55 VAC 87 619 124
80 to 55 VAC 87 619 128
10 to 30 VDC 87 619 322
20 to 55 VAC

87 619 324

80 to 260 VAC 87 619 328

Dimensions

CP7 Panel cut-out

1

72

P1 OUT1 P2 OUT2

P1

P2

RST

10

112

72

2

Panel thickness

B

Screw

C

+0.6

0

68

+0.6
0

68

8

To order, see page 6. Curves : see page 238

For more information www.crouzet.com

237
