Bulletin PD-20041 rev. B 09/01

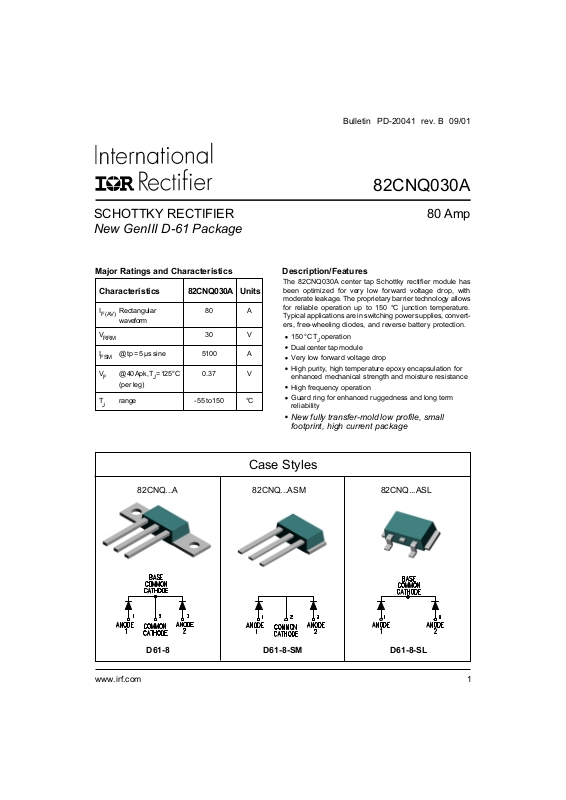

82CNQ030A
SCHOTTKY RECTIFIER
New GenIII D-61 Package
Major Ratings and Characteristics
Characteristics 82CNQ030A Units
I
Rectangular 80 A
F(AV)
waveform
V
RRM
I
@ tp = 5 µs sine 5100 A
FSM
VF@ 40 Apk, TJ = 125°C 0.37 V
(per leg)
TJrange - 55 to 15 0 °C
82CNQ...A 82CNQ...ASM 82CNQ...ASL
30 V
80 Amp
Description/Features
The 82CNQ030A center tap Schottky rectifier module has
been optimized for very low forward voltage drop, with
moderate leakage. The proprietary barrier technology allows
for reliable operation up to 150 °C junction temperature.
Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
150 °C TJ operation
Dual center tap module
Very low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
New fully transfer-mold low profile, small
footprint, high current package
Case Styles
D61-8
D61-8-SM D61-8-SL
www.irf.com 1
Page 2
82CNQ030A
Bulletin PD-20041 rev. B 09/01
Voltage Ratings
Part number 82CNQ030A
VRMax. DC Reverse Voltage (V)
V
Max. Working Peak Reverse Voltage (V)
RWM
30
Absolute Maximum Ratings
Parameters 82CNQ Units Conditions
I
Max. Average Forward Current 80 A 50% duty cycle @ TC = 119 °C, rectangular wave form
F(AV)
* See Fig. 5
I
Max. Peak One Cycle Non-Repetitive 5100 5µs Sine or 3µs Rect. pulse
FSM
Surge Current (Per Leg) * See Fig. 7 880 10ms Sine or 6ms Rect. pulse
EASNon-Repetitive Avalanche Energy 36 mJ T
(Per Leg)
A
= 25 °C, I
J
= 8 Amps, L = 1.12 mH
AS
IARRepetitive Avalanche Current 8 A Current decaying linearly to zero in 1 µsec
(Per Leg) Frequency limited by TJ max. VA = 1.5 x VR typical
Following any rated
load condition and with
rated V
RRM
applied
Electrical Specifications
Parameters 82CNQ Units Conditions
VFMMax. Forward Voltage Drop 0.47 V @ 40A
(Per Leg) * See Fig. 1 (1) 0.55 V @ 80A
0.37 V @ 40A
0.47 V @ 80A
IRMMax. Reverse Leakage Current 5 mA TJ = 25 °C
(Per Leg) * See Fig. 2 (1) 280 mA TJ = 125 °C
CTMax. Junction Capacitance (Per Leg) 3700 pF VR = 5VDC, (test signal range 100Khz to 1Mhz) 25°C
LSTypical Series Inductance (Per Leg) 5.5 nH Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change 10,000 V/ µs
(Rated VR)
TJ = 25 °C
TJ = 125 °C
VR = rated V
(1) Pulse Width < 300µs, Duty Cycle <2%
R
Thermal-Mechanical Specifications
Parameters 82CNQ Units Conditions
TJMax. Junction Temperature Range -55 to 150 °C
T
Max. Storage Temperature Range -55 to 150 °C
stg
R
Max. Thermal Resistance Junction 0.85 °C/W DC operation * See Fig. 4
thJC
to Case (Per Leg)
R
Max. Thermal Resistance Junction 0.42 °C/W DC operation
thJC
to Case (Per Package)
R
Typical Thermal Resistance, Case 0.30 °C/W Mounting surface , smooth and greased
thCS
to Heatsink (D61-8 Only) Device flatness < 5 mils
wt Approximate Weight 7.8 (0.28) g (oz.)
T Mounting Torque Min. 40 (35)
(D61-8 Only) Max. 58 (50)
Kg-cm
(Ibf-in)
2
www.irf.com
Page 3
82CNQ030A
0.01
0.1
1
0.00001 0.0001 0.001 0.01 0.1 1 10 100
Single Pulse
(Thermal Resistance)
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
Notes:
1. Duty factor D = t1/ t2
2. Peak Tj = Pdm x ZthJC + Tc
2
t
1
t
P
DM
Bulletin PD-20041 rev. B 09/01
1000
100
(A)
F
10
Instantaneous Forward Current - I
1
T = 150˚C
J
T = 125˚C
J
T = 25˚C
J
1000
Tj = 150˚C
(mA)
R
100
10
125˚C
100˚C
75˚C
1
50˚C
0.1
Reverse Current - I
0.01
0 5 10 15 20 25 30
25˚C
Reverse Voltage - VR (V)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
10000
(p F)
T
T = 25˚C
J
0.1
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
Forward Voltage Drop - VFM (V)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
(°C/W)
thJC
Thermal Impedance - Z
t 1 , Rectangular Pulse Duration (Seconds)
www.irf.com
Fig. 4 - Max. Thermal Impedance Z
Junction Capacitance - C
1000
0 5 10 15 20 25 30 35
Characteristics (Per Leg)
thJC
Reverse Voltage - VR (V)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
3
Page 4
82CNQ030A
C
M
Bulletin PD-20041 rev. B 09/01
150
RthJC (DC) = 0.85 ˚C/W
145
140
135
DC
130
Allowable Case Temperature (°C)
125
0 102030405060
Average Forward Current - I

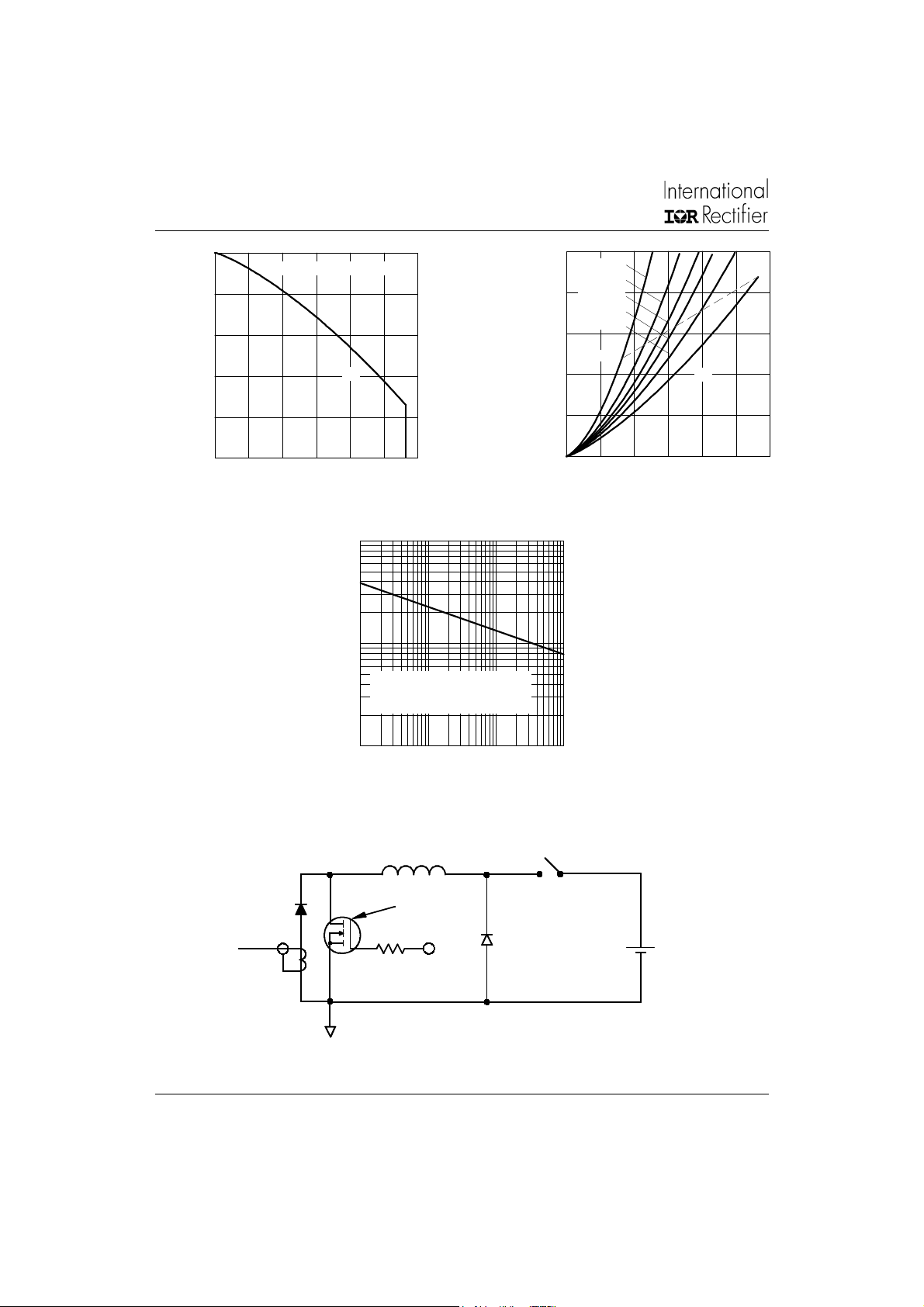

Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
10000
(A)
FSM
1000
Non-Repetitive Surge Current - I
100
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
25
20
15
10
5
Average Power Loss (Watts)
0
0 102030405060
(A)
F(AV)
Fig. 6 - Forward Power Loss Characteristics
At Any Rated Load Condition
And With Rated Vrrm Applied
Following Surge
10 100 1000 10000
Square Wave Pulse Duration - tp (microsec)
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
RMS Limit
Average Forward Current - I
(Per Leg)
DC
F(AV)
(A)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
+
Vd = 25 Volt
URRENT
ONITOR
DUT
IRFP460
Rg = 25 ohm
Fig. 8 - Unclamped Inductive Test Circuit
4
www.irf.com
Page 5
Outline Table
82CNQ030A
Bulletin PD-20041 rev. B 09/01
Dimensions are in millimeters and (inches)

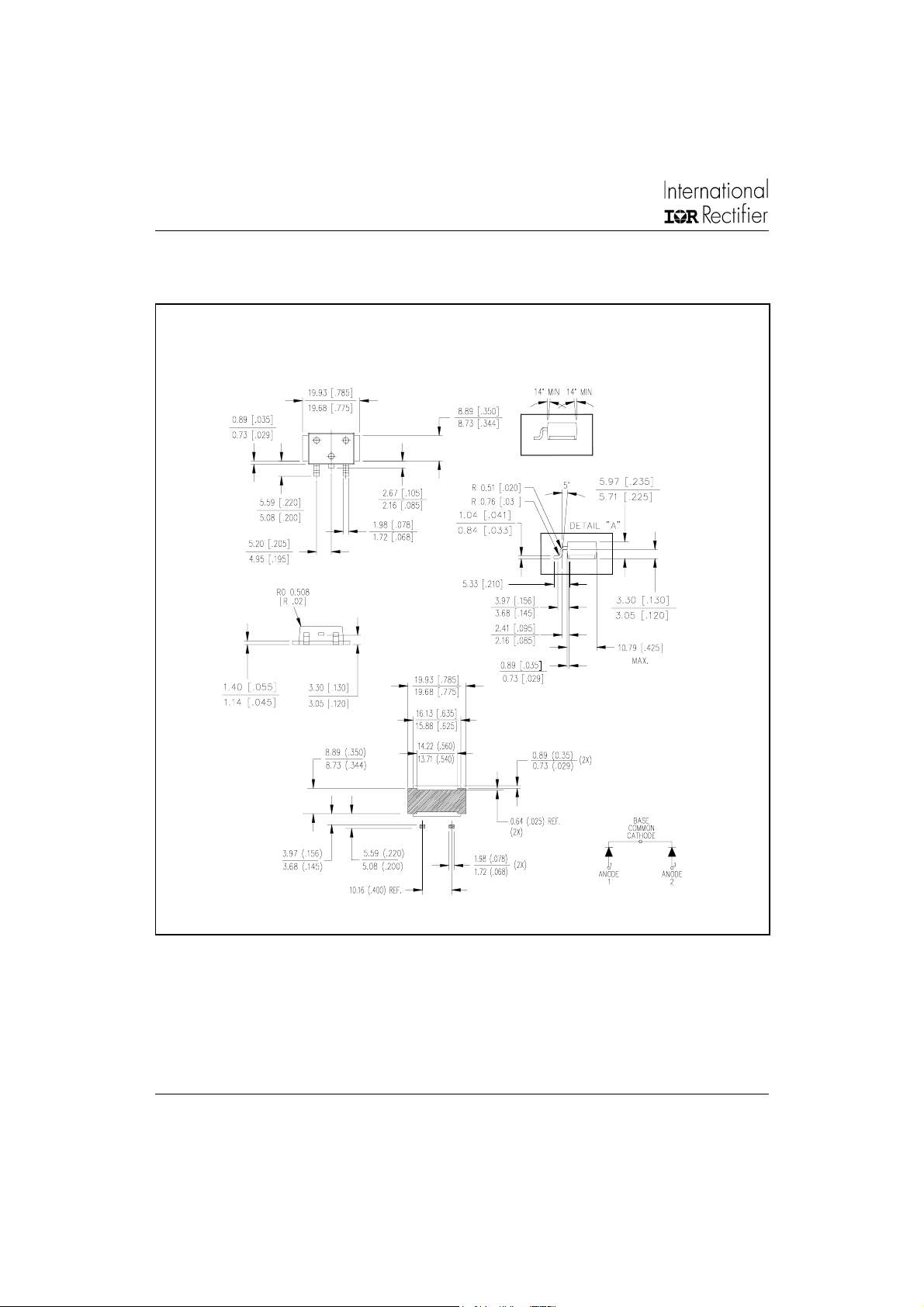

Outline D61-8-SM
Dimensions are in millimeters and (inches)

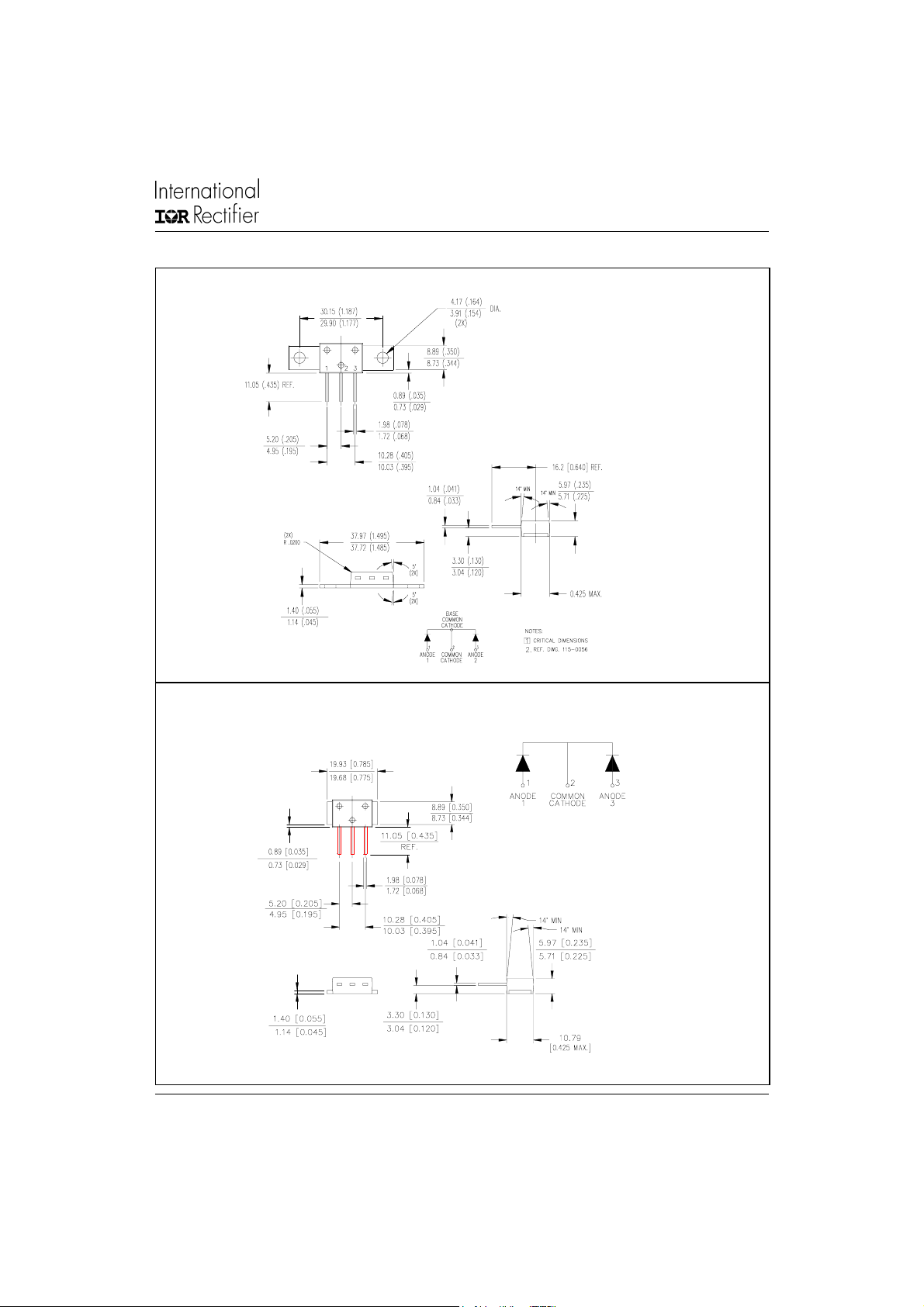

Outline D61-8
www.irf.com
5
Page 6
82CNQ030A
Bulletin PD-20041 rev. B 09/01
Outline Table
Dimensions are in millimeters and (inches)
Outline D61-8-SL
6
www.irf.com
Page 7

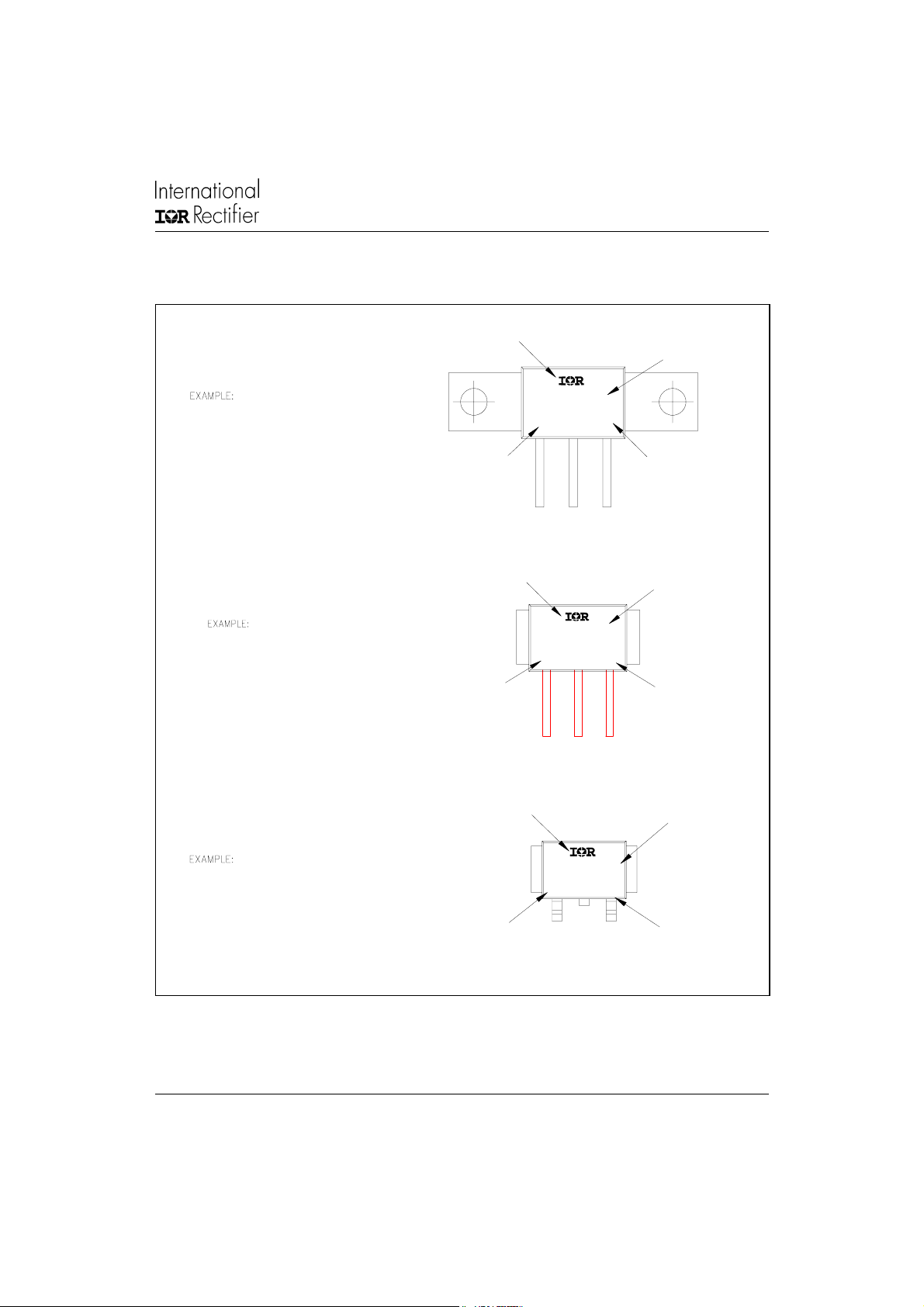

Part Marking Information
INTERNATIONAL
RECTIFIER
LOGO
82CNQ030A
Bulletin PD-20041 rev. B 09/01
PART NUMBER
THIS IS A 82CNQ030A WITH
LOT CODE 89 09
ASSEMBLED ON WW 45, 2000
IN THE ASSEMBLY LINE "A"
D61-8
THIS IS A 82CNQ030ASM WITH
LOT CODE 89 09
ASSEMBLED ON WW 45, 2000
IN THE ASSEMBLY LINE "A"
D61-8-SM
ASSEMBLY
LOT CODE
INTERNATIONAL
RECTIFIER
LOGO
ASSEMBLY
LOT CODE
INTERNATIONAL
RECTIFIER
LOGO
82CNQ030A
89 09 045A
DATE CODE
YEAR 0 = 2000
WEEK 45
LINE A
PART NUMBER
82CNQ030ASM
89 09 045A
DATE CODE
YEAR 0 = 2000
WEEK 45
LINE A
PART NUMBER
www.irf.com
THIS IS A 82CNQ030ASL WITH
LOT CODE 89 09
ASSEMBLED ON WW 45, 2000
IN THE ASSEMBLY LINE "A"
D61-8-SL
ASSEMBLY
LOT CODE
82CNQ030ASL
89 09 045A
DATE CODE
YEAR 0 = 2000
WEEK 45
LINE A
7
Page 8
82CNQ030A
Bulletin PD-20041 rev. B 09/01
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 09/01
8
www.irf.com
