INTEGRATED CIRCUITS

80C851/83C851

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

Product specification Supersedes data of 1992 Nov 25 IC20 Data Handbook

 

1998 Jul 03

Page 2

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

DESCRIPTION

The Philips 80C851/83C851 is a high-performance microcontroller fabricated with Philips high-density CMOS technology. The 80C851/83C851 has the same instruction set as the 80C51. The Philips CMOS technology combines the high speed and density characteristics of HMOS with the low power attributes of CMOS. The Philips epitaxial substrate minimizes latch-up sensitivity.

The 80C851/83C851 contains a 4k with mask-programmable ROM code protection, a 128 EEPROM, 32 I/O lines, two 16-bit counter/timers, a seven-source, five vector, two-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and on-chip oscillator and clock circuits.

In addition, the 80C851/83C851 has two software selectable modes of power reduction — idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning. The power-down mode saves the RAM and EEPROM contents but freezes the oscillator, causing all other chip functions to be inoperative.

× 8 RAM, 256 × 8

× 8 ROM

FEATURES

•80C51 based architecture

– 4k

× 8 ROM

× 8 RAM

– 128 – Two 16-bit counter/timers – Full duplex serial channel – Boolean processor

•Non-volatile 256 × 8-bit EEPROM

(electrically erasable programmable read only memory)

– On-chip voltage multiplier for erase/write – 10,000 erase/write cycles per byte – 10 years non-volatile data retention – Infinite number of read cycles – User selectable security mode – Block erase capability

•Mask-programmable ROM code protection

•Memory addressing capability

– 64k ROM and 64k RAM

•Power control modes:

– Idle mode – Power-down mode

•CMOS and TTL compatible

•1.2 to 16MHz or 3.5 to 24MHz

•Three package styles

•Three temperature ranges

•ROM code protection

80C851/83C851

ORDERING INFORMATION

PHILIPS

PART ORDER NUMBER

PART MARKING

ROMless

Version

P80C851 FBP P83C851 FBP S80C851-4N40 S83C851-4N40 0 to +70, Plastic Dual In-line Package 1.2 to 16 SOT129-1 P80C851 IBP P83C851 IBP 0 to +70, Plastic Dual In-line Package 3.5 to 24 SOT129-1 P80C851 FBA P83C851 FBA S80C851-4A44 S83C851-4A44 0 to +70, Plastic Leaded Chip Carrier 1.2 to 16 SOT187-1 P80C851 IBA P83C851 IBA 0 to +70, Plastic Leaded Chip Carrier 3.5 to 24 SOT187-1 P80C851 FBB P83C851 FBB S80C851-4B44 S83C851-4B44 0 to +70, Plastic Quad Flat Pack 1.2 to 16 SOT307-2 P80C851 IBB P83C851 IBB 0 to +70, Plastic Quad Flat Pack 3.5 to 24 SOT307-2 P80C851 FFP P83C851 FFP S80C851-5N40 S83C851-5N40 –40 to +85, Plastic Dual In-line Package 1.2 to 16 SOT129-1 P80C851 FFA P83C851 FFA S80C851-5A44 S83C851-5A44 –40 to +85, Plastic Leaded Chip Carrier 1.2 to 16 SOT187-1 P80C851 FFB P83C851 FFB S80C851-5B44 S83C851-5B44 –40 to +85, Plastic Quad Flat Pack 1.2 to 16 SOT307-2 P80C851 FHP P83C851 FHP S80C851-6N40 S83C851-6N40 –40 to +125, Plastic Dual In-line Package 1.2 to 16 SOT129-1 P80C851 FHA P83C851 FHA S80C851-6A44 S83C851-6A44 –40 to +125, Plastic Leaded Chip Carrier 1.2 to 16 SOT187-1 P80C851 FHB P83C851 FHB S80C851-6B44 S83C851-6B44 –40 to +125, Plastic Quad Flat Pack 1.2 to 16 SOT307-2

1998 Jul 03

ROM Version ROMless

NORTH AMERICA PHILIPS

PART ORDER NUMBER

ROM Version

Version

TEMPERATURE RANGE °C

AND PACKAGE

FREQ.

(MHz)

DRAWING

NUMBER

Page 3

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

BLOCK DIAGRAM

FREQUENCY REFERENCE

XTAL2 XTAL1

OSCILLATOR

AND

TIMING

CPU

INTERNAL

INTERRUPTS

PROGRAM

MEMORY

(4K x 8 ROM)

DATA

MEMORY

(128 x 8 RAM)

COUNTERS

T0 T1

TWO 16-BIT

TIMER/EVENT

COUNTERS

80C851/83C851

EEPROM

(256 x 8)

INT0

EXTERNAL

INTERRUPTS

LOGIC SYMBOL

INT1

RxD TxD

INT0 INT1

T0 T1

SECONDARY FUNCTIONS

XTAL1

XTAL2

RST

PSEN

ALE

PORT 3

64K BYTE BUS

EXPANSION

CONTRTOL

CONTROL

PROGRAMMABLE I/O

PARALLEL PORTS,

ADDRESS/DATA BUS

AND I/O PINS

ADDRESS AND

PORT 0

PORT 1PORT 2

DATA BUS

ADDRESS BUS

PROG SERIAL PORT FULL DUPLEX UART

SYNCHRONOUS SHIFT

SERIAL IN SERIAL OUT

SHARED WITH

PORT 3

1998 Jul 03

Page 4

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

PIN CONFIGURATIONS

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

RST

9 RxD/P3.0 TxD/P3.1

INT0/P3.2

/P3.3

INT1

T0/P3.4 T1/P3.5

/P3.6 /P3.7

XTAL2 XTAL1

DUAL

IN-LINE

PACKAGE

11 12 13

14 15 16 17 18 19 20

6140

PLASTIC

LEADED

CHIP

CARRIER

39 38 37 36 35 34 33 32 31

30 29 28 27 26

25 24 23 22

P0.0/AD0 P0.1/AD1 P0.2/AD2 P0.3/AD3 P0.4/AD4 P0.5/AD5 P0.6/AD6 P0.7/AD7

ALE PSEN P2.7/A15 P2.6/A14 P2.5/A13

P2.4/A12 P2.3/A11 P2.2/A10 P2.1/A9 P2.0/A8

PLASTIC LEADED CHIP CARRIER PIN FUNCTIONS

Pin Function Pin Function

1 NC* 23 NC* 2 P1.0 24 P2.0/A8 3 P1.1 25 P2.1/A9 4 P1.2 26 P2.2/A10 5 P1.3 27 P2.3/A11 6 P1.4 28 P2.4/A12 7 P1.5 29 P2.5/A13 8 P1.6 30 P2.6/A14

9 P1.7 31 P2.7/A15 10 RST 32 PSEN 11 P3.0/RxD 33 ALE 12 NC* 34 NC* 13 P3.1/TxD 35 EA 14 P3.2/INT0 36 P0.7/AD7 15 P3.3/INT1 37 P0.6/AD6 16 P3.4/T0 38 P0.5/AD5 17 P3.5/T1 39 P0.4/AD4 18 P3.6/WR 40 P0.3/AD3 19 P3.7/RD 41 P0.2/AD2 20 XTAL2 42 P0.1/AD1 21 XTAL1 43 P0.0/AD0 22 V

* NO INTERNAL CONNECTION

6140

PLCC

18 28

44 V

80C851/83C851

PLASTIC QUAD FLAT PACK PIN FUNCTIONS

44 34

PQFP

12 22

Pin Function Pin Function

1 P1.5 23 P2.5/A13 2 P1.6 24 P2.6/A14 3 P1.7 25 P2.7/A15 4 RST 26 PSEN 5 P3.0/RxD 27 ALE 6 NC* 28 NC* 7 P3.1/TxD 29 EA 8 P3.2/INT0 30 P0.7/AD7

9 P3.3/INT1 31 P0.6/AD6 10 P3.4/T0 32 P0.5/AD5 11 P3.5/T1 33 P0.4/AD4 12 P3.6/WR 34 P0.3/AD3 13 P3.7RD 35 P0.2/AD2 14 XTAL2 36 P0.1/AD1 15 XTAL1 37 P0.0/AD0 16 V

17 NC* 39 V 18 P2.0/A8 40 P1.0 19 P2.1/A9 41 P1.1 20 P2.2/A10 42 P1.2 21 P2.3/A11 43 P1.3 22 P2.4/A12 44 P1.4

* NO INTERNAL CONNECTION

38 V

DD SS

1998 Jul 03

18 28

PLASTIC

QUAD

FLAT PACK

12 22

Page 5

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

PIN DESCRIPTION

PIN NO.

MNEMONIC DIP LCC QFP TYPE NAME AND FUNCTION

P0.0–0.7 39–32 43–36 37–30 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written to

P1.0–P1.7 1–8 2–9 40–44,

P2.0–P2.7 21–28 24–31 18–25 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that have

P3.0–P3.7 10–17 11,

RST 9 10 4 I Reset: A high on this pin for two machine cycles while the oscillator is running, resets the

ALE 30 33 27 I/O Address Latch Enable: Output pulse for latching the low byte of the address during an

PSEN 29 32 26 O Program Store Enable: The read strobe to external program memory. When the device

EA 31 35 29 I External Access Enable: If during a RESET, EA is held at TTL, level HIGH, the CPU

XTAL1 19 21 15 I Crystal 1: Input to the inverting oscillator amplifier and input to the internal clock

XTAL2 18 20 14 O Crystal 2: Output from the inverting oscillator amplifier.

20 22 16, 39 I Ground: 0V reference. 40 44 38 I Power Supply: This is the power supply voltage for normal, idle, and power-down

1–3

13–195,7–13

10 11 5 I RxD (P3.0): Serial input port 11 13 7 O TxD (P3.1): Serial output port 12 14 8 I INT0 (P3.2): External interrupt 13 15 9 I INT1 (P3.3): External interrupt 14 16 10 I T0 (P3.4): Timer 0 external input 15 17 11 I T1 (P3.5): Timer 1 external input 16 18 12 O WR (P3.6): External data memory write strobe 17 19 13 O RD (P3.7): External data memory read strobe

operation.

them float and can be used as high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external program and data memory. In this application, it uses strong internal pull-ups when emitting 1s.

I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. Port 1 pins that have

1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 1 pins that are externally pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I

1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 2 pins that are externally being pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I address byte during fetches from external program memory and during accesses to external data memory that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses (MOV @Ri), port 2 emits the contents of the P2 special function register.

I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that have

1s written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 3 pins that are externally being pulled low will source current because of the pull-ups. (See DC Electrical Characteristics: I of the SC80C51 family, as listed below:

device. An internal diffused resistor to VSS permits a power-on reset using only an external capacitor to V

access to external memory. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency , and can be used for external timing or clocking. Note that one ALE pulse is skipped during each access to external data memory.

is executing code from the external program memory, PSEN is activated twice each machine cycle, except that two PSEN external data memory. PSEN memory.

executes out of the internal program memory ROM provided the Program Counter is less than 4096. If during a RESET, EA external program memory. EA

generator circuits.

activations are skipped during each access to

is not activated during fetches from internal program

is held a TTL LOW level, the CPU executes out of

is not allowed to float.

). Port 3 also serves the special features

80C851/83C851

). Port 2 emits the high-order

1998 Jul 03

Page 6

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

Table 1. 8XC851 Special Function Registers

SYMBOL DESCRIPTION

ACC* Accumulator E0H E7 E6 E5 E4 E3 E2 E1 E0 00H B* B register F0H F7 F6 F5 F4 F3 F2 F1 F0 00H

DPTR:

DPH DPL

EADRH# EEPROM addr

EADRL# EEPROM addr

ECNTRL# EEPROM control reg F6H IFE EEINT EWP – ECNTRL3ECNTRL2ECNTRL1ECNTRL000H

EDAT# EEPROM data

ETIM# EEPROM timer

IP* Interrupt priority B8H – – – PS PT1 PX1 PT0 PX0 xxx00000B

Data pointer (2 bytes):

High byte Low byte

reg-high

reg-low

DIRECT

ADDRESS

83H 82H

F3H 80H

F2H 00H

F4H xxH

F5H 08H

BIT ADDRESS, SYMBOL, OR ALTERNATIVE PORT FUNCTION MSB LSB

EF EE ED EC EB EA E9 E8

BF BE BD BC BB BA B9 B8

80C851/83C851

RESET VALUE

00H 00H

AF AE AD AC AB AA A9 A8 IE* Interrupt enable A8H EA – – ES ET1 EX1 ET0 EX0 0xx00000B P0* Port 0 80H 87 86 85 84 83 82 81 80 FFH P1* Port 1 90H 97 96 95 94 93 92 91 90 FFH P2* Port 2 A0H A7 A6 A5 A4 A3 A2 A1 A0 FFH P3* Port 3 B0H B7 B6 B5 B4 B3 B2 B1 B0 FFH PCON Power control 87H SMOD – – – GF1 GF0 PD IDL 0xxx0000B

D7 D6 D5 D4 D3 D2 D1 D0 PSW* Program status word D0H CY AC F0 RS1 RS0 OV – P 00H SBUF Serial data buffer 99H xxxxxxxxB

9F 9E 9D 9C 9B 9A 99 98 SCON* Serial port control 98H SM0 SM1 SM2 REN TB8 RB8 TI RI 00H SP Stack pointer 81H 07H

8F 8E 8D 8C 8B 8A 89 88 00H TCON* Timer/counter con-

trol

TMOD Timer/counter mode 89H GATE C/T M1 M0 GATE C/T M1 M0 00H TH0 Timer 0 high byte 8CH 00H TH1 Timer 1 high byte 8DH 00H TL0 Timer 0 low byte 8AH 00H TL1 Timer 1 low byte 8BH 00H

* SFRs are bit addressable. # SFRs are modified from or added to the 80C51 SFRs.

88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H

1998 Jul 03

Page 7

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

EEPROM

Communications between the CPU and the EEPROM is accomplished via 5 special function registers; 2 address registers (high and low byte), 1 data register for read and write operations, 1 control register, and 1 timer register to adapt the erase/write time to the clock frequency. All registers can be read and written. Figure 1 shows a block diagram of the CPU, the EEPROM and the interface.

Register and Functional Description

Address Register (EADRH, EADRL)

The lower byte contains the address of one of the 256 bytes. The higher byte (EADRH) is for future extensions and for addressing the security bits (see Security Facilities). The

Table 2. Values for the Timer Register (ETIM)

XTAL1

1.0MHz – – 08 8

2.0MHz 02 2 13 19

3.0MHz 04 4 1D 29

4.0MHz 06 6 28 40

5.0MHz 08 8 32 50

6.0MHz 0A 10 3C 60

7.0MHz 0C 12 47 71

8.0MHz 0E 14 51 81

9.0MHz 10 16 5C 92

10.0MHz 12 18 66 102

11.0MHz 14 20 71 113

12.0MHz 16 22 7B 123

13.0MHz 18 24

14.0MHz 1A 26

15.0MHz 1C 28

16.0MHz 1E 30

. .

24.0MHz 2C 4745

2ms WRITE TIME 10ms WRITE TIME

HEX DEC HEX DEC

EADRH register address is F3H. The EADRL register address is F2H.

Data Register (EDAT)

This register is required for read and write operations and also for row/block erase. In write mode, its contents are written to the addressed byte (for “row erase” and “block erase” the contents are don’t care). The write pulse starts all operations, except read. In read mode, EDAT contains the data of the addressed byte. The EDAT register address is F4H.

Timer Register (ETIM)

The timer register is required to adapt the erase/write time to the oscillator frequency. The user has to ensure that the erase or write (program) time is neither too short or too long.

VALUES FOR ETIM

80C851/83C851

The ETIM register address is F5H. Table 2 contains the values which must be written to the ETIM register by software for various oscillator frequencies (the default value is 08H after RESET).

The general formula is:

2ms Write time:

Value (decimal, to be rounded up)



10ms Write time:

Value (decimal)



Control Register (ECNTRL)

See Figure 2 for a description of this register. The ECNTRL register address is F6H.

XTAL1

512

[kHz]

 2

1998 Jul 03

CPU

INTERRUPT

POWER-DOWN IDLE

RESET

CLK

SEQUENCER

ECNTRL

CLOCK

GENERATOR

ETIM

INTERNAL BUS

Figure 1. EEPROM Interface Block Diagram

CONTROL

LOGIC

EEPROM

COLUMN

DECODER

EDATA EADRH EADRL

MATRIX

ROW

DECODER

Page 8

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

76543210

EEINTIFE

Bit Symbol Function

ECNTRL.7 IFE Active high EEPROM interrupt flag: set by the sequencer or by software;

ECNTRL.6 EEINT EEPROM interrupt enable: set and reset by software (active high). ECNTRL.5 EWP Erase/write in progress flag: set and reset by the sequencer (active high).

ECNTRL.4 Reserved. ECCTRL.3– See table below. ECNTRL.0

Operation ECNTRL.3 ECNTRL.2 ECNTRL.1 ECNTRL.0

Byte mode Row erase Page write* Page erase/write* block erase

*Future products.

Byte mode: Normal EEPROM mode, default mode after reset. In this mode, data can be read and

Read mode: This is the default mode when byte mode is selected. This means that the contents of the

Write mode: This mode is activated by writing to the data register. The address register must be loaded

Row erase: In this mode, the addressed row is cleared. The three LSBs of EADRL are not significant,

Page write: For future products. Page erase/write: For future products. Block erase: In this mode all 256 bytes are cleared. The byte containing the security bits is also cleared.

reset by software. When set and enabled, this flag forces an interrupt to the same vector as the serial port interrupt (see Interrupt section).

When EWP is set, access to the EEPROM is not possible. EWP cannot be set or reset by software.

written to one byte at a time.

addressed byte are available in the data register.

first. Since the old contents are read first (by default), this allows the sequencer to decide whether an erase/write or write cycle only (data = 00H) is required.

i.e. the 8 bytes addressed by EADRL are cleared in the same time normally needed to clear one byte (t erase/write cycle is required. For example, using the row erase mode, programming 8 bytes takes t

BLOCKERASE

ROWERASE

TOTOAL

– –EWP

0 1 – – 1

= tE + 8 × tW compared to t

= tE. The contents of EADRH, EADRL and EDAT are insignificant.

0 1 – – 0

= tE = tW). For the following write modes, only the write and not the

ECNTRL1ECNTRL2ECNTRL3

0 0 – – 1

= 8 × tE + 8 × tW (tE = t

TOTAL

80C851/83C851

ECNTRL0

0 0 – – 0

ERASE

⋅ tW = t

WRITE

1998 Jul 03

Program Sequences and Register Contents after Reset

The contents of the EEPROM registers after a Reset are the default values: EADRH = 1xxxxxxxB (security bit address) EADRL = 00H (security bit address) ETIM = 08H (minimum erase time with the lowest permissible oscillator frequency) ECNTRL = 00H (Byte mode, read) EDAT = xxH (security bit)

Initialize: MOV ETIM, ..

MOV EADRH, ..

Read: MOV EADRL, ..

MOV .., EDAT

Write: MOV EADRL, ..

MOV EDAT, ..

Erase row: MOV EADRL, .. Row address. 3LSBs don’t care

MOV ECNTRL, #0CH Erase row mode MOV EDAT, .. (EDAT) don’t care

Erase block: MOV ECNTRL, 0AH Erase block mode

MOV EDAT, .. (EDAT) don’t care If the security bit is to be altered, the program generally starts as follows: MOV EADRH, #80H

MOV EADRL, #00H

Figure 2. Control Register (ECNTRL)

Page 9

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

the EA

Security Facilities

EEPROM Protection

The EEPROM is protected using four security bits which are contained in an extra EEPROM byte at address 8000H (EADRH/EADRL). They can be set or cleared by software. To activate the EEPROM protection, the program sequence in byte mode must be as follows:

MOV EADRH, #80H MOV EADRL, #00H MOV EDAT, #FFH

If two or more of these bits are reset, SB = 0, the security mode is disabled and the EEPROM is not protected. If three or four bits are set, SB = 1 and the EA the internal access mode.

In this case, access to the EEPROM is only possible in one mode regardless of how the external access mode is reached (by pulling

mode differs from

pin low or by passing the 4K boundary). For SB = 1 and “external access” only, the “block erase” mode is enabled. The program sequence has to be as follows:

MOV EADRH, #80H (security byte address) MOV EADRL, #00H (security byte address) MOV ECNTRL, #0AH (block erase mode) MOV EDAT, #xxH (start block erase)

All 256 data bytes, the security bits, and SB will be cleared after completing this mode (EWP = 0). SB will also be affected in byte mode when writing to the security byte (not for SB = 1 and “external access”). Figure 3 illustrates the access to SB.

ROM Code Protection

Since the external access mode can only be selected by pulling the EA reset, it is not possible to read the internal program memory using the MOVC instruction while executing external program memory. Furthermore, it is not possible to change this

pin low during

80C851/83C851

mode to internal access within the MOVC cycle.

Additionally , a mask-programmable ROM code protection facility is available. When the program memory passes the 4K boundary using both the internal and external ROMs, it is not possible to access the internal ROM from the external program memory if the mask-programmable ROM security bit is set. An access to the lower 4K bytes of program memory using the MOVC instruction is only possible while executing internal program memory.

Also the verification mode (test-mode which writes the ROM contents to a port for comparison with a reference code) is not implemented for security reasons. A different test-mode is implemented for test purposes. This mode allows every bit to be tested. However, the internal code cannot be accessed via a port.

RESET RESET

REGISTERS EADRH AND

EADRL CONTAIN THE

ADDRESS OF THE

SECURITY BYTE

RESET

SECURITY BYTE ADDRESS

AND BLOCK ERASE FINISHED

SECURITY BYTE ADDRESS

AND BYTE MODE FINISHED

EADRH EADRL

EEPROM

EDATA

EXTERNAL

ACCESS

INHIBIT ‘READ DATA REGISTER’

SB = 1

RESET

EAQ

YES

1998 Jul 03

INHIBIT ‘WRITE DATA REGISTER’

EXCEPT (ECNTRL) = BLOCK ERASE

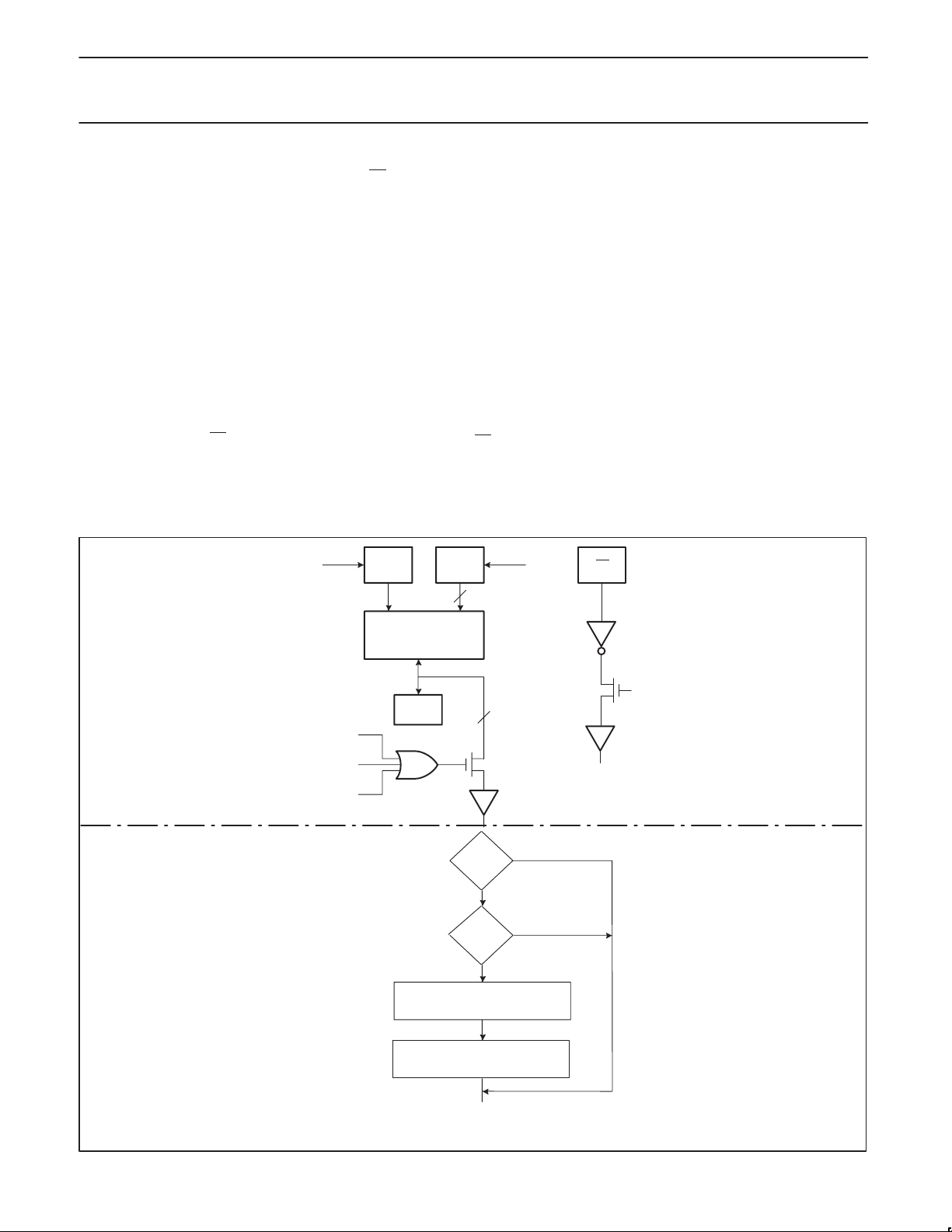

Figure 3. EEPROM Protection (Functional and Flowchart)

Page 10

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

OSCILLATOR CHARACTERISTICS

XTAL1 and XTAL2 are the input and output, respectively, of an inverting amplifier. The pins can be configured for use as an on-chip oscillator, as shown in the logic symbol, page 3.

To drive the device from an external clock source, XTAL1 should be driven while XTAL2 is left unconnected. There are no requirements on the duty cycle of the external clock signal, because the input to the internal clock circuitry is through a divide-by-two flip-flop. However, minimum and maximum high and low times specified in the data sheet must be observed.

RESET

A reset is accomplished by holding the RST pin high for at least two machine cycles (24 oscillator periods), while the oscillator is running. To insure a good power-up reset, the RST pin must be high long enough to allow the oscillator time to start up (normally a few milliseconds) plus two machine cycles. At power-up, the voltage on V come up at the same time for a proper start-up.

Note: Before entering the idle or power-down modes, the user has to ensure that there is no EEPROM erase/write cycle in progress

and RST must

Table 3. External Pin Status During Idle and Power-Down Modes

MODE PROGRAM MEMORY ALE PSEN PORT 0 PORT 1 PORT 2 PORT 3

Idle Internal 1 1 Data Data Data Data Idle External 1 1 Float Data Address Data Power-down Internal 0 0 Data Data Data Data Power-down External 0 0 Float Data Data Data

(i.e., the EWP bit has to be reset before activating the idle or power-down modes; otherwise EEPROM accesses will be aborted).

IDLE MODE

In idle mode, the CPU puts itself to sleep while all of the on-chip peripherals stay active. The instruction to invoke the idle mode is the last instruction executed in the normal operating mode before the idle mode is activated. The CPU contents, the on-chip RAM, and all of the special function registers remain intact during this mode. The idle mode can be terminated either by any enabled interrupt (at which time the process is picked up at the interrupt service routine and continued), or by a hardware reset which starts the processor in the same manner as a power-on reset.

POWER-DOWN MODE

In the power-down mode, the oscillator is stopped and the instruction to invoke power-down is the last instruction executed. Only the contents of the on-chip RAM and EEPROM are preserved. A hardware reset is the only way to terminate the power-down mode. The control bits for the reduced power modes are in the special function register PCON. Table 3 shows the state of the I/O ports during low current operating modes.

INTERRUPT SYSTEM

External events and the real-time-driven on-chip peripherals require service by the CPU asynchronous to the execution of any particular section of code. To tie the asynchronous activities of these functions to normal program execution, a multiple-source, two-priority-level, nested interrupt system is provided. Interrupt response latency is from

µs to 7µs when using a 12MHz crystal. The

S83C851 acknowledges interrupt requests from 7 sources as follows: – INT0

13, respectively,

– Timer 0 and timer 1: from the two internal

counters,

– Serial port: from the internal serial I/O port

or EEPROM (1 vector).

Each interrupt vectors to a separate location in program memory for its service program. Each source can be individually enabled (the EEPROM interrupt can only be enabled when the serial port interrupt is enabled) or disabled and can be programmed to a high or low priority level. All enabled sources can also be globally disabled or enabled. Both external interrupts can be programmed to be level-activated and are active low to allow “wire-ORing” of several interrupt sources to one input pin.

Note: The serial port and EEPROM interrupt flags must be cleared by software; all other flags are cleared by hardware.

80C851/83C851

and INT1: externally via pins 12 and

ABSOLUTE MAXIMUM RATINGS

Storage temperature range –65 to +150 Voltage on any other pin to V Input or output DC current on any single I/O pin Power dissipation (based on package heat transfer limitations, not device power consumption) 1.0 W

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V noted.

1998 Jul 03

1, 2, 3

PARAMETER RATING UNIT

–0.5 to +6.5 V

±5

unless otherwise

°C

Page 11

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

DC ELECTRICAL CHARACTERISTICS

= 0°C to +70°C (VDD = 5V ±10%), –40°C to +85°C (VDD = 5V ±10%), or –40°C to +125°C (VDD = 5V ±10%), VSS = 0V

amb

PART TEST LIMITS

SYMBOL PARAMETER TYPE CONDITIONS MIN MAX UNIT

IL1

IH1

OL1

OH1

RST

NOTES:

1. The operating supply current is measured with all output pins disconnected; XT AL1 driven with t V

2. The idle mode supply current is measured with all output pins disconnected; XT AL1 driven with t V

3. The power-down current is measured with all output pins disconnected; XT AL2 not connected; EA

4. Capacitive loading on Port 0 and Port 2 may cause spurious noise pulses to be superimposed on the LOW level output voltage of ALE, Port 1 and Port 3. The noise is due to external bus capacitance discharging into the Port 0 and Port 2 pins when these pins make a 1-to-0 transition during bus operations. In the worst cases (capacitive loading > 100pF), the noise pulse on the ALE line may exceed 0.8V. In such cases it may be desirable to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input.

5. Capacitive loading on Port 0 and Port 2 may cause the HIGH level output voltage on ALE and PSEN specification when the address bits are stabilizing.

6. Under steady state (non-transient) conditions, I

If I test conditions.

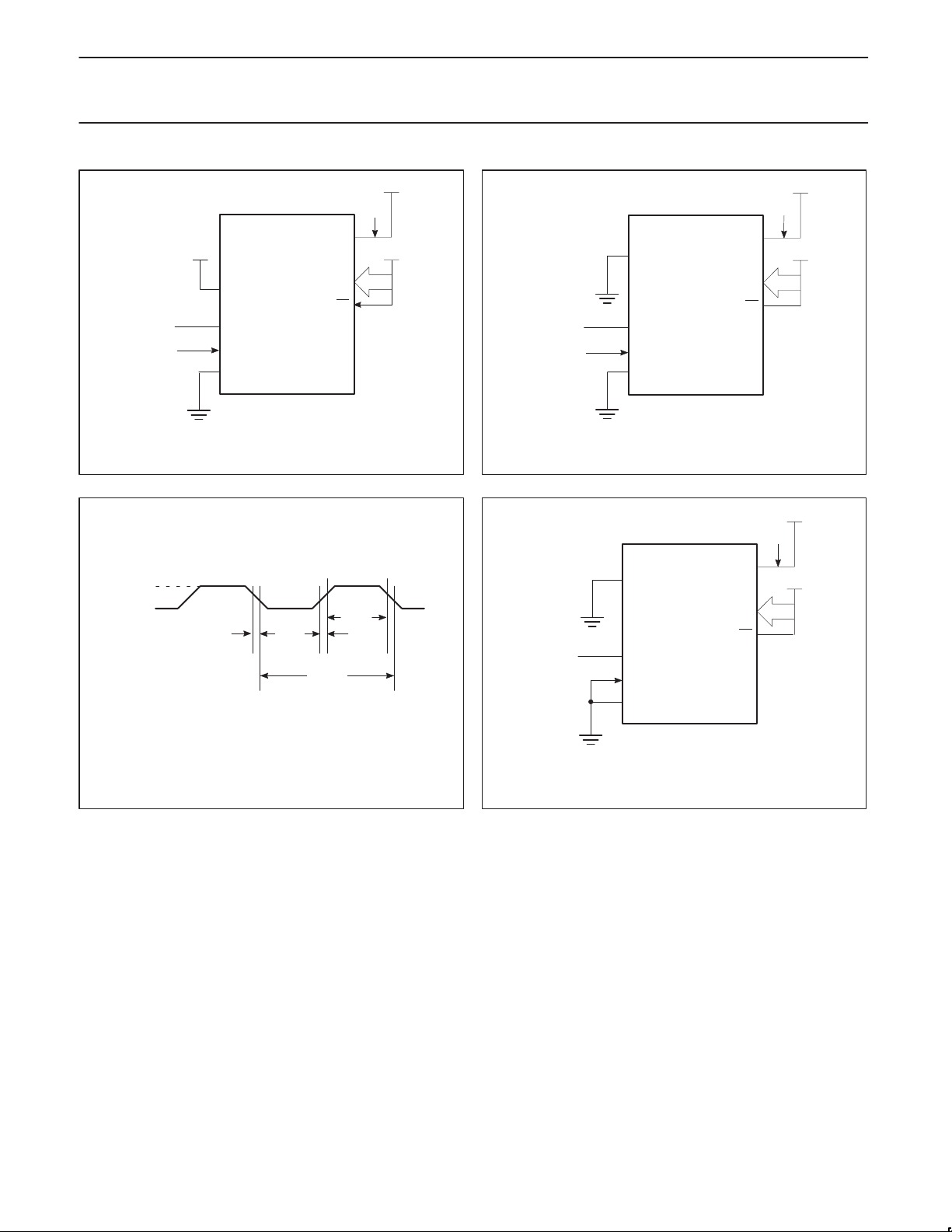

7. See Figures 1 1 through 14 for I

Input low voltage, except EA 0 to +70°C

–40 to +85°C

–40 to +125°C

Input low voltage to EA 0 to +70°C

–40 to +85°C

–40 to +125°C

Input high voltage, except XTAL1, RST 0 to +70°C

–40 to +85°C

–40 to +125°C

0.2VDD+0.9

0.2VDD+1.0

0.2V

Input high voltage, XTAL1, RST 0 to +70°C

Output low voltage, ports 1, 2, 3

Output low voltage, port 0, ALE, PSEN

–40 to +85°C

–40 to +125°C

IOL = 1.6mA

IOL = 3.2mA

0.7VDD+0.1

0.7V

4 4

Output high voltage, ports 1, 2, 3, ALE, PSEN IOH = –60µA,

Output high voltage, port 0 in external bus

mode

Logical 0 input current, ports 1, 2, 3 0 to +70°C

IOH = –25µA,

= –10µA

IOH = –800µA, IOH = –300µA,

= –80µA

VIN = 0.45V –50

0.75V

–40 to +85°C

–40 to +125°C

Logical 1-to-0 transition current, ports 1, 2, 3 0 to +70°C

VIN = 2.0V –650

–40 to +85°C

–40 to +125°C

Input leakage current, port 0, EA 0.45V<Vi<V Power supply current:

Active mode @ 16MHz Active mode @ 24MHz Idle mode @ 16MHz Idle mode @ 24MHz Power down mode

1 2 2

See note 7

Internal reset pull-down resistor 50 150 kΩ Pin capacitance f = 1MHz 10 pF

= tf = 5ns; VIL = VSS +0.5V;

= VDD – 0.5V; XTAL2 not connected; EA = RST = Port 0 = VDD. = VDD – 0.5V; XTAL2 not connected; EA = Port 0 = VDD; RST = VSS.

= tf = 5ns; VIL = VSS +0.5V;

= Port 0 = VDD; RST = XTAL1 = VSS.

to momentarily fall below the 0.9V

must be externally limited as follows: Maximum I Maximum I

per Port pin: 10mA

per 8-bit port –

Port 0: 26mA

Ports 1, 2, and 3: 15mA

Maximum total I

exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed

for all output pins: 71mA.

test conditions.

80C851/83C851

–0.5 –0.5 –0.5

0.7V

2.4

0.9V

2.4

0.9V

+1.0

+0.1

0.2VDD–0.1

0.2VDD–0.15

0.2V

0.2VDD–0.3

0.2V

0.2V VDD+0.5

VDD+0.5 V

VDD+0.5 VDD+0.5 V

–750 –750

–0.25

–0.35

–0.45

+0.5

0.45 V

–75 –75

±10

19 29

3.7

5.6 50

mA mA mA mA

V V V

µA µA µA

µA

1998 Jul 03

Page 12

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

AC ELECTRICAL CHARACTERISTICS

16 MHz Version

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t

CLCL

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWH

QVWX

WHQX

RLAZ

WHLH

External Clock

CHCX

CLCX

CLCH

CHCL

Erase/write timer constant

E/W

NE/W Erase/write cycles

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

3. The power-off fall-time of V spurious parasitic writing to EEPROM cells. If the V to prevent this condition from occurring.

4. Test condition: T

5. Number of erase/write cycles for each EEPROM byte.

4 Oscillator frequency 1.2 16 MHz 4 ALE pulse width 85 2t 4 Address valid to ALE low 8 t 4 Address hold after ALE low 28 t 4 ALE low to valid instruction in 150 4t 4 ALE low to PSEN low 23 t 4 PSEN pulse width 143 3t 4 PSEN low to valid instruction in 83 3t 4 Input instruction hold after PSEN 0 0 ns 4 Input instruction float after PSEN 38 t 4 Address to valid instruction in 208 5t 4 PSEN low to address float 10 10 ns

5 RD pulse width 275 6t 5 WR pulse width 275 6t 5 RD low to valid data in 148 5t 5 Data hold after RD 0 0 ns 5 Data float after RD 55 2t 5 ALE low to valid data in 350 8t

5 Address to valid data in 398 9t 5, 6 ALE low to RD or WR low 138 238 3t 5, 6 Address valid to RD or WR low 120 4t

6 Data setup time before WR 288 7t

6 Data valid to WR transition 3 t

6 Data hold after WR 13 t

5 RD low to address float 0 0 ns 5, 6 RD or WR high to ALE high 23 103 t

8 High time 20 20 ns

8 Low time 20 20 ns

8 Rise time 20 20 ns

8 Fall time 20 20 ns

Erase/write cycle time 4 20 4 20 ms Erase time 2 10 2 10 ms Write time 2 10 2 10 ms Data retention time

must be less than 1ms to prevent an overwrite pulse from being generated in the EEPROM which can cause

= +55°C.

amb

1, 2

16MHz CLOCK VARIABLE CLOCK

10 10 years

10,000 10,000 cycles

= 100pF, load capacitance for all other outputs = 80pF.

power-off full-time is greater than 1ms, a power-off reset signal should be generated

80C851/83C851

–40 ns

CLCL

–55 ns

CLCL

–35 ns

CLCL

–100 ns

CLCL

–40 ns

CLCL

–45 ns

CLCL

–105 ns

CLCL

–25 ns

CLCL

–105 ns

CLCL

–100 ns

CLCL

–100 ns

CLCL

–165 ns

CLCL

–70 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

–50 3t

CLCL

–130 ns

CLCL

–150 ns

CLCL

–60 ns

CLCL

–50 ns

CLCL

–40 t

CLCL

+50 ns

CLCL

+40 ns

CLCL

1998 Jul 03

Page 13

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

AC ELECTRICAL CHARACTERISTICS

24 MHz Version

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t

CLCL

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWH

QVWX

WHQX

RLAZ

WHLH

External Clock

CHCX

CLCX

CLCH

CHCL

Erase/write timer constant

E/W

NE/W Erase/write cycles

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

3. The power-off fall-time of V spurious parasitic writing to EEPROM cells. If the V to prevent this condition from occurring.

4. Test condition: T

5. Number of erase/write cycles for each EEPROM byte.

4 Oscillator frequency 3.5 24 MHz 4 ALE pulse width 43 2t 4 Address valid to ALE low 17 t 4 Address hold after ALE low 17 t 4 ALE low to valid instruction in 102 4t 4 ALE low to PSEN low 17 t 4 PSEN pulse width 80 3t 4 PSEN low to valid instruction in 65 3t 4 Input instruction hold after PSEN 0 0 ns 4 Input instruction float after PSEN 17 t 4 Address to valid instruction in 128 5t 4 PSEN low to address float 10 10 ns

5 RD pulse width 150 6t 5 WR pulse width 150 6t 5 RD low to valid data in 118 5t 5 Data hold after RD 0 0 ns 5 Data float after RD 55 2t 5 ALE low to valid data in 183 8t

5 Address to valid data in 210 9t 5, 6 ALE low to RD or WR low 75 175 3t 5, 6 Address valid to RD or WR low 92 4t

6 Data setup time before WR 162 7t

6 Data valid to WR transition 12 t

6 Data hold after WR 17 t

5 RD low to address float 0 0 ns 5, 6 RD or WR high to ALE high 17 67 t

8 High time 17 17 ns

8 Low time 17 17 ns

8 Rise time 5 20 ns

8 Fall time 5 20 ns

Erase/write cycle time 4 20 4 20 ms Erase time 2 10 2 10 ms Write time 2 10 2 10 ms Data retention time

must be less than 1ms to prevent an overwrite pulse from being generated in the EEPROM which can cause

= +55°C.

amb

1, 2

24MHz CLOCK VARIABLE CLOCK

10 10 years

10,000 10,000 cycles

= 100pF, load capacitance for all other outputs = 80pF.

power-off full-time is greater than 1ms, a power-off reset signal should be generated

80C851/83C851

–40 ns

CLCL

–25 ns

CLCL

–25 ns

CLCL

–65 ns

CLCL

–25 ns

CLCL

–45 ns

CLCL

–60 ns

CLCL

–25 ns

CLCL

–80 ns

CLCL

–100 ns

CLCL

–100 ns

CLCL

–90 ns

CLCL

–28 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

–50 3t

CLCL

–75 ns

CLCL

–130 ns

CLCL

–30 ns

CLCL

–25 ns

CLCL

–25 t

CLCL

+50 ns

CLCL

+25 ns

CLCL

1998 Jul 03

Page 14

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

EXPLANATION OF THE AC SYMBOLS

Each timing symbol has five characters. The first character is always ‘t’ (= time). The other characters, depending on their positions, indicate the name of a signal or the logical status of that signal. The designations are: A – Address C – Clock D – Input data H – Logic level high I – Instruction (program memory contents)

ALE

PSEN

PORT 0

LHLL

L – Logic level low, or ALE P – PSEN Q – Output data R– RD

signal t – Time V – Valid W– WR

signal X – No longer a valid logic level Z – Float

Examples: t

AVLL

LLPL

LLAX

A0–A7 A0–A7

LLIV

PLIV

AVLL

LLPL

PLPH

PLAZ

= Time for address valid to

ALE low.

= Time for ALE low to

low.

PSEN

PXIZ

PXIX

INSTR IN

80C851/83C851

ALE

PSEN

PORT 0

PORT 2

AVLL

LLAX

A0–A7

FROM RI OR DPL

AVWL

AVIV

A8–A15 A8–A15

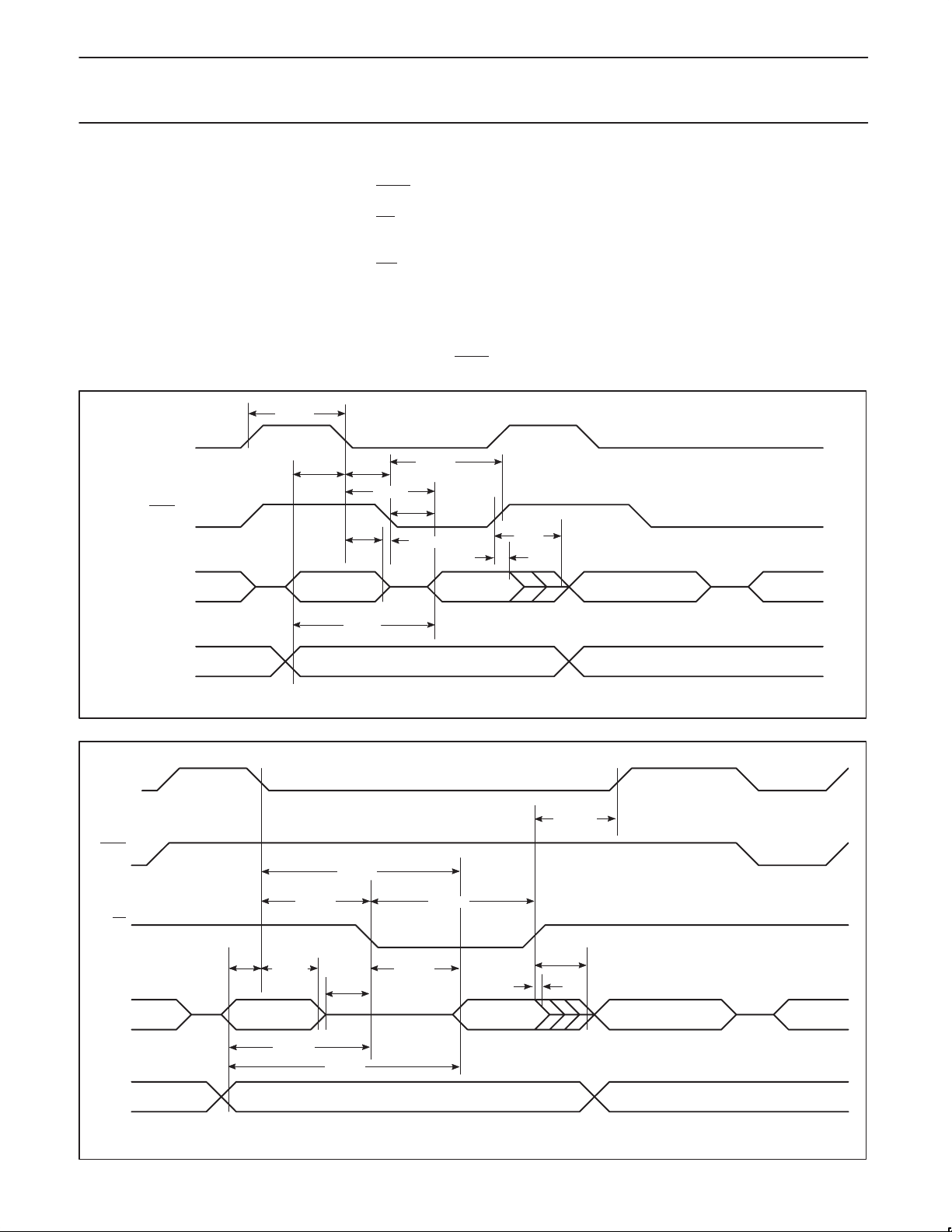

Figure 4. External Program Memory Read Cycle

WHLH

LLDV

LLWL

RLAZ

AVDV

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

RLDV

RLRH

RHDZ

RHDX

DATA IN A0–A7 FROM PCL INSTR IN

1998 Jul 03

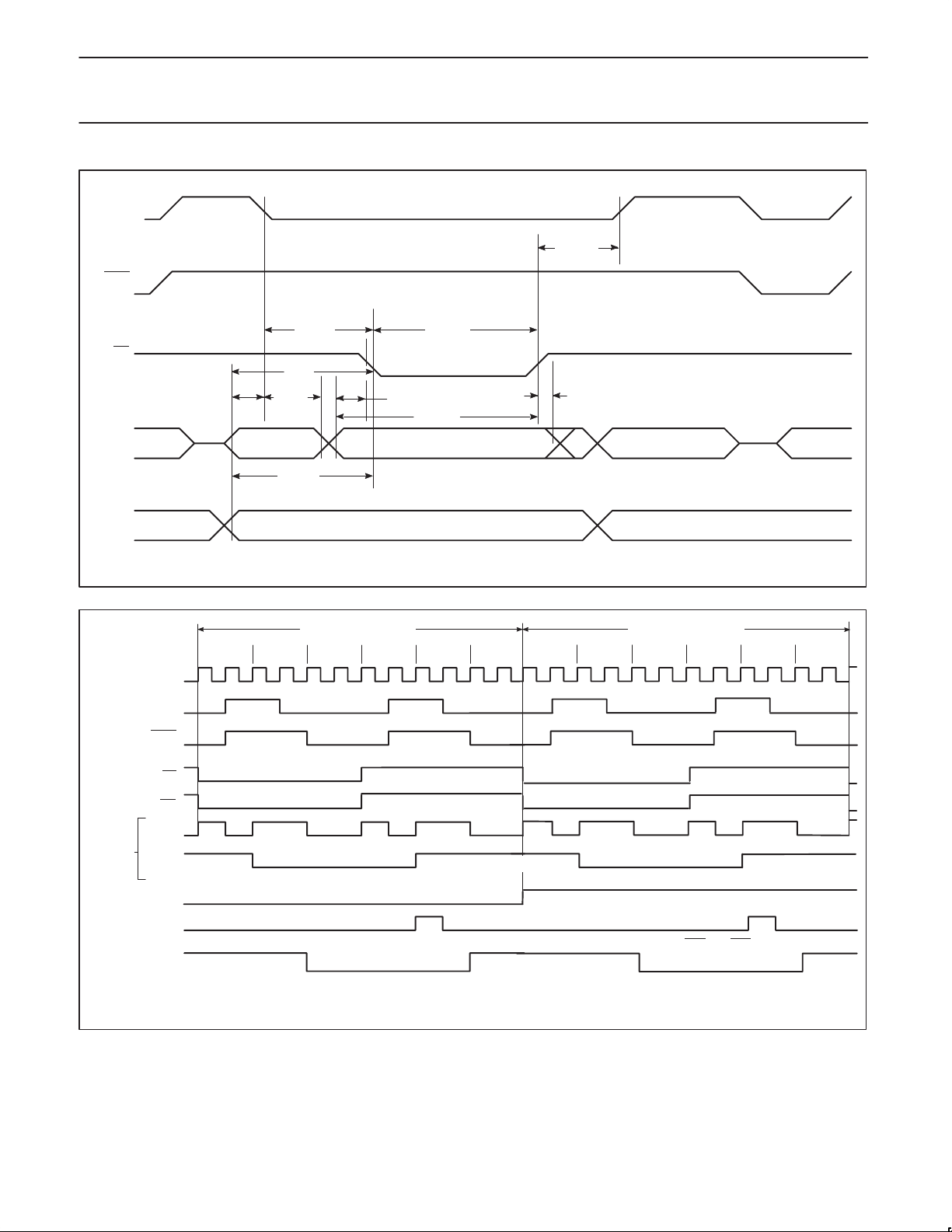

Figure 5. External Data Memory Read Cycle

Page 15

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

ALE

PSEN

WLWH

QVWX

QVWH

DATA OUT A0–A7 FROM PCL INSTR IN

PORT 0

PORT 2

AVLL

LLWL

LLAX

A0–A7

FROM RI OR DPL

AVWL

P2.0–P2.7 OR A8–A15 FROM DPH A8–A15 FROM PCH

WHLH

80C851/83C851

WHQX

EXTERNAL

PROGRAM

MEMORY

FETCH

(SHIFT CLOCK)

XTAL1 INPUT

ALE

PSEN

BUS

PORT 0

PORT 2

(EXTERNAL)

PORT

OUTPUT

PORT

INPUT

SERIAL

PORT

Figure 6. External Data Memory Write Cycle

S1 S2 S3 S4 S5 S6

P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 P1 P2

DATA

FLOAT

ADDRESS

ONE MACHINE CYCLE ONE MACHINE CYCLE

FLOAT FLOAT FLOAT FLOAT

DATA

OLD DATA

ADDRESS

FLOAT

ADDRESS TRANSITIONS

SAMPLING TIME OF I/O PORT PINS DURING INPUT (INCLUDING INT0 AND INT1)

Figure 7. Instruction Timing

S1 S2 S3 S4 S5 S6

P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 P1 P2

DATA

FLOAT

ADDRESS

NEW DATA

DATA

FLOAT

ADDRESS

1998 Jul 03

Page 16

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

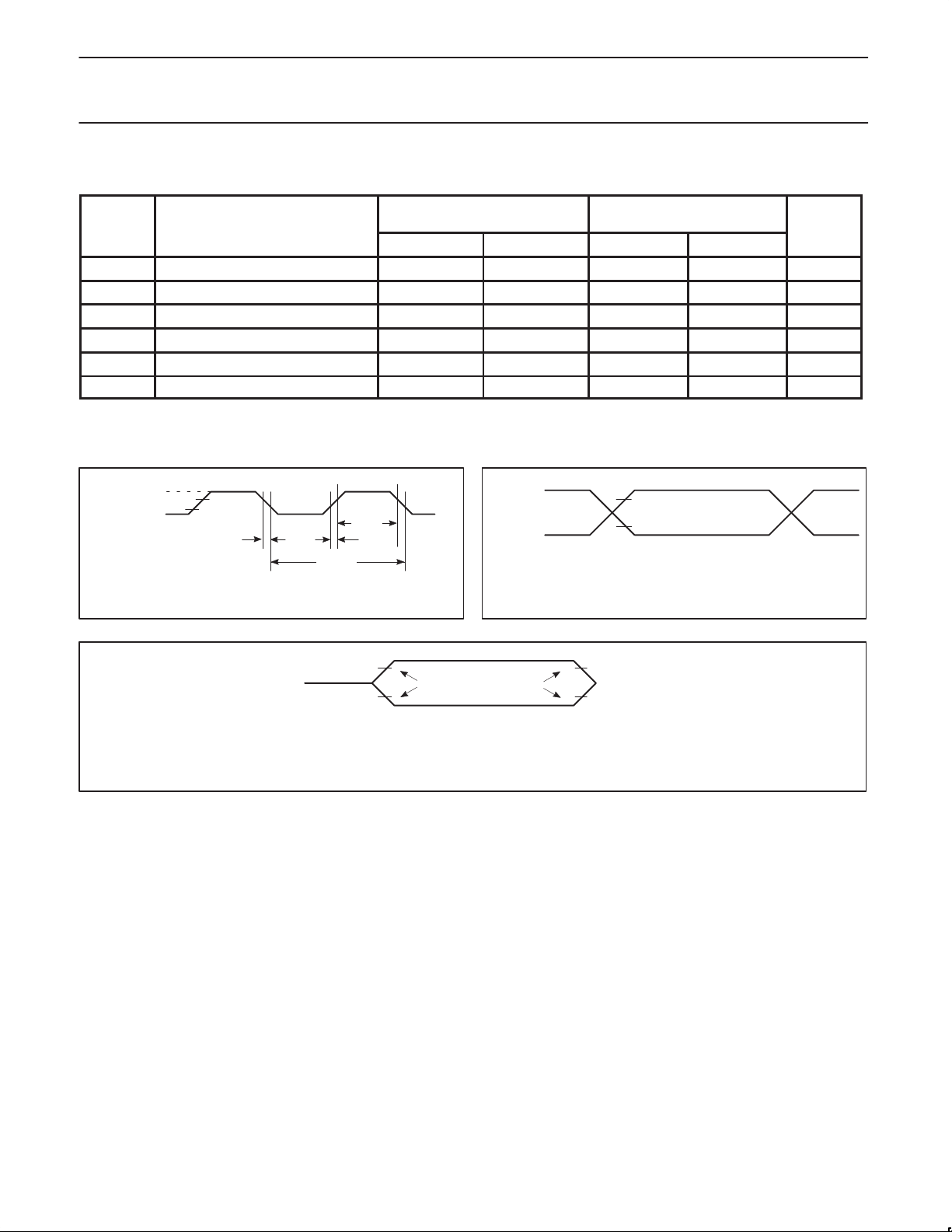

Table 4. External Clock Drive XTAL1

VARIABLE CLOCK

f = 1.2 – 16MHz

SYMBOL PARAMETER MIN MAX MIN MAX UNIT

CLCL

HIGH

LOW

Oscillator clock period 63 833 42 286 ns HIGH time 20 t LOW time 20 t

CLCL

– t – t

LOW HIGH

Rise time – 20 – 5 ns Fall time – 20 – 5 ns Cycle time

0.75 10 0.5 3.43

NOTE:

1. t

= 12 t

VDD–0.5

0.45V

CLCL

0.7V

0.2VDD–0.1

CHCL

CLCX

CLCL

CHCX

CLCH

2.4V

0.45V

NOTE:

AC inputs during testing are driven at 2.4V for a logic ‘1’ and 0.45V for a logic ‘0’. Timing measurements are made at 2.0V min for a logic ‘1’ and 0.8V for a logic ‘0’.

VARIABLE CLOCK

f = 3.5 – 24MHz

17 t 17 t

2.0V

0.8V

80C851/83C851

– t

CLCL

LOW

– t

CLCL

HIGH

ns ns

s

Figure 8. External Clock Drive

+0.1V

LOAD

level occurs. IOH/I

LOAD

–0.1V

≥± 20mA.

NOTE:

For timing purposes, a port is no longer floating when a 100mV change from load voltage occurs, and begins to float when a 100mV change from the loaded V

OH/VOL

TIMING

REFERENCE

POINTS

Figure 9. AC Testing Input/Output

–0.1V

+0.1V

Figure 10. Float Waveform

1998 Jul 03

Page 17

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

RST

(NC)

CLOCK SIGNAL

XTAL2

XTAL1

Figure 11. IDD Test Condition, Active Mode

All other pins are disconnected

P0 EA

80C851/83C851

RST

(NC)

CLOCK SIGNAL

Figure 12. IDD Test Condition, Idle Mode

All other pins are disconnected

XTAL2

XTAL1

VDD–0.5

0.5V

CHCL

CLCX

CLCL

CHCX

CLCH

Figure 13. Clock Signal Waveform for IDD Tests

in Active and Idle Modes

= t

CHCL

= 5ns

CLCH

(NC)

RST

XTAL2

XTAL1

Figure 14. IDD Test Condition, Power Down Mode

All other pins are disconnected.

= 2V to 5.5V

1998 Jul 03

Page 18

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

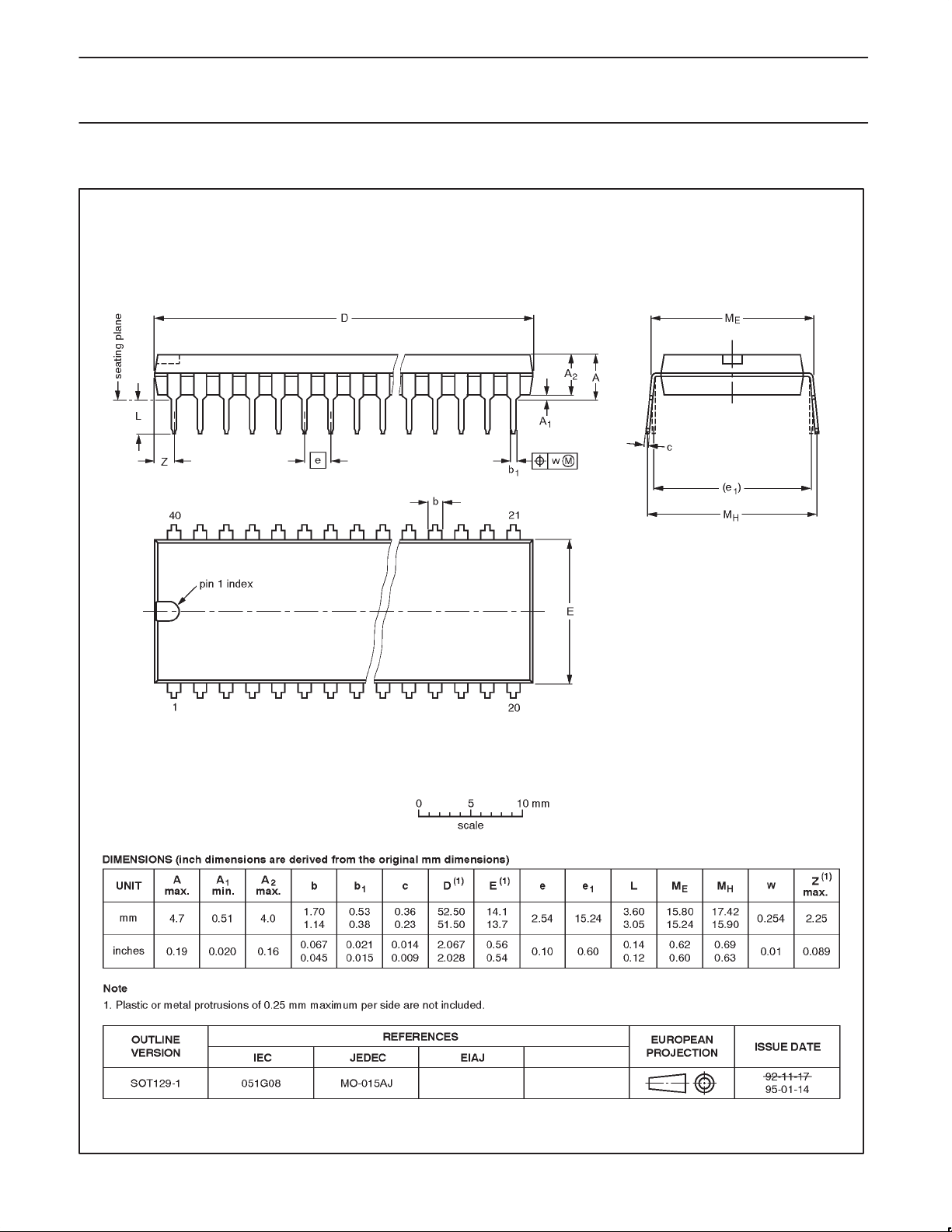

DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1

80C851/83C851

1998 Jul 03

Page 19

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

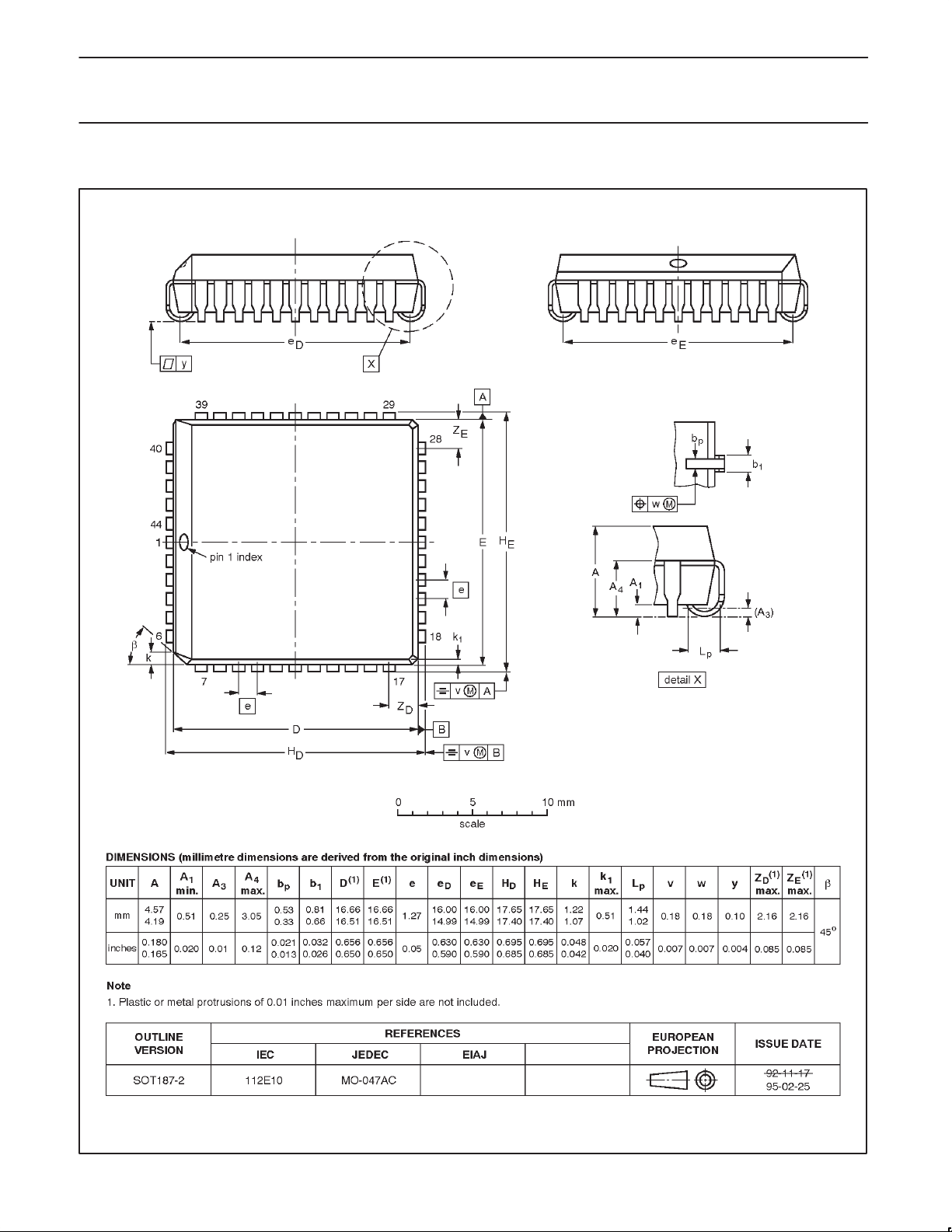

PLCC44: plastic leaded chip carrier; 44 leads SOT187-2

80C851/83C851

1998 Jul 03

Page 20

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

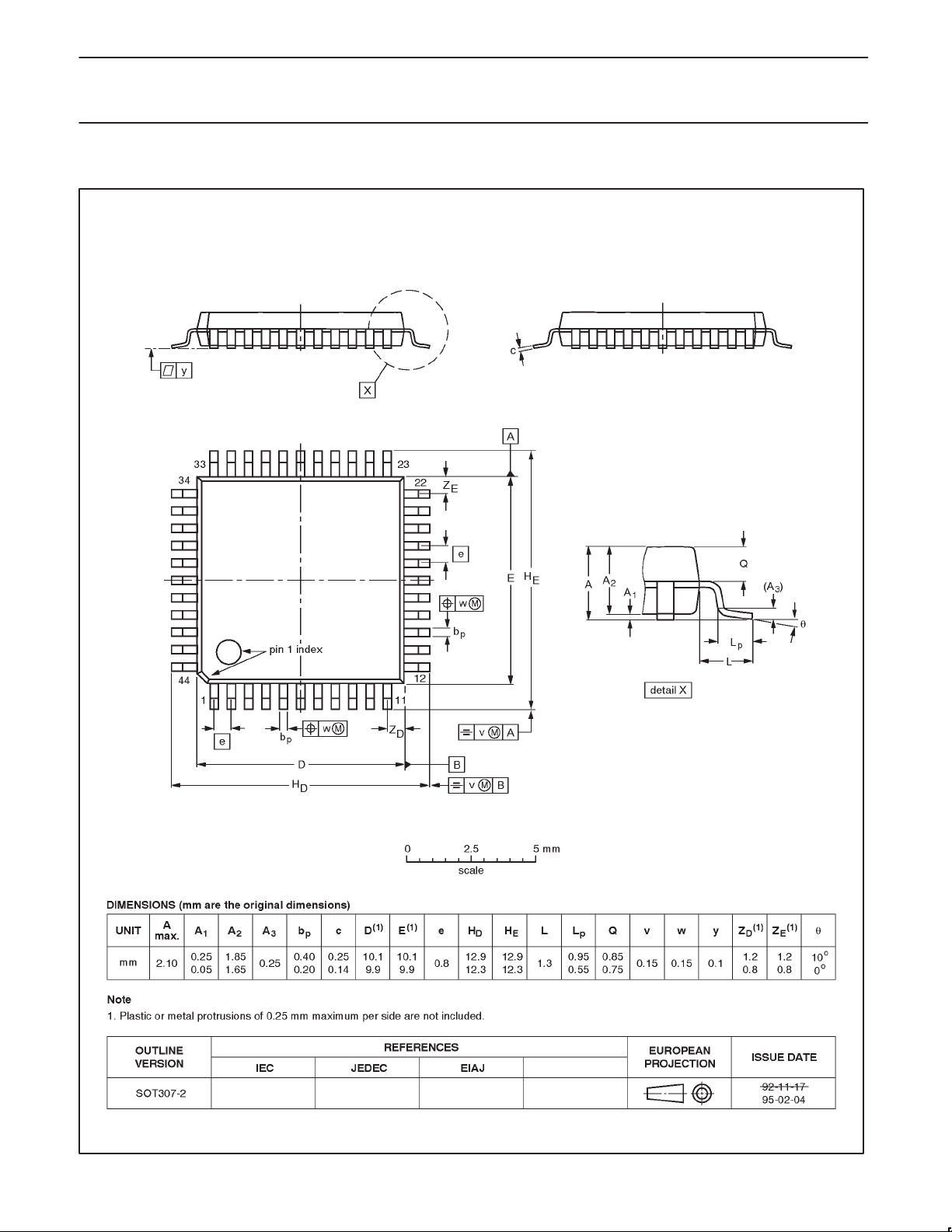

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm SOT307-2

80C851/83C851

1998 Jul 03

Page 21

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

NOTES

80C851/83C851

1998 Jul 03

Page 22

Philips Semiconductors Product specification

CMOS single-chip 8-bit microcontroller with on-chip EEPROM

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make chages at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

80C851/83C851

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

 Copyright Philips Electronics North America Corporation 1998

Date of release: 09-98

Document order number: 9397 750 04368

 

1998 Jul 03
