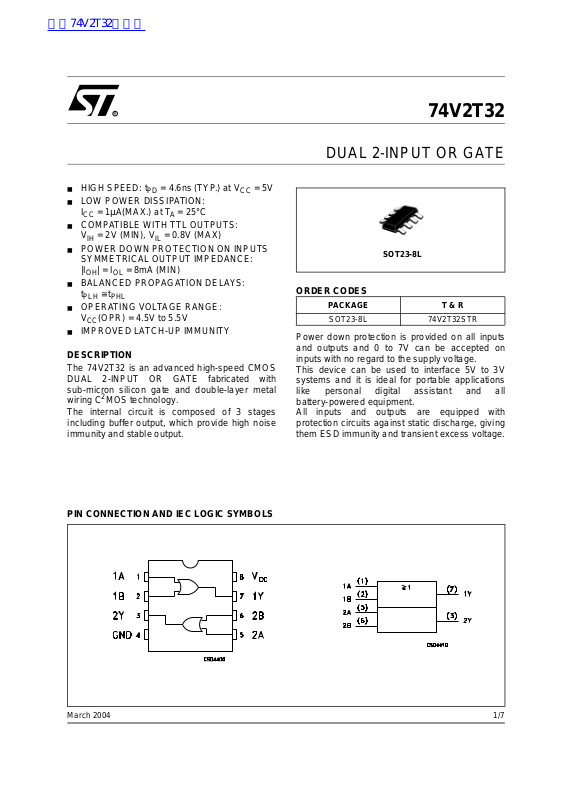

74V2T32

DUAL 2-INPUT OR GATE

■ HIGH SPEED:t

■ LOW POWER DISSIPATION:

I

=1µA(MAX.) at TA=25°C

CC

■ COMPATIBLE WITH TTL OUTPUTS:

V

=2V(MIN),VIL=0.8V(MAX)

IH

■ POWER DOWN PROTECTION ON INPUTS

= 4.6ns (TYP.) at VCC=5V

PD

SYMMETRICAL OUTPUT IMPEDANCE:
|I

|=IOL=8mA(MIN)

OH

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PLH

PHL

■ OPERATING VOLTAGE RANGE:

(OPR) = 4.5V to 5.5V

V

CC

■ IMPROVED LATCH-UP IMMUNITY

DESCRIPTION

The 74V2T32 is an advanced high-speed CMOS
DUAL 2-INPUT OR GATE fabricated with
sub-micron silicon gate and double-layer metal
wiring C

2

MOS technology.

The internal circuit is composed of 3 stages
including buffer ou tput, which provide high noise
immunity and stable output.

SOT23-8L

ORDER CODES

PACKAGE T & R

SOT23-8L 74V2T32STR

Power down protection is provided on all inputs
and outpu ts and 0 t o 7V can be accepted on
inputs with no regard to the supply voltage.
This device can be used to interface 5V to 3V
systems and it is ideal for port able applications
like personal digital assistant and all
battery-powered equipment.
All inputs and outputs are equipped with
protection circuits against static discharge, givi ng
them ESD immunity and transient e xcess voltage.

PIN CO NNE CTION AND IEC LOGIC SYMBOLS

1/7March 2004

74V2T32

INPUT EQUIVALENT CIRCUIT PIN DES CRIPTION

PIN N° SYMBOL NAME QND FUNCTION

1, 5 1A, 2A Data Input
2, 6 1B, 2B Data Input
7, 3 1Y, 2Y Data Output

4 GND Ground (0V)
8

TRUTH TABLE

nA nB nY

LLL

LHH
HLH
HHH

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

V

V

I

I

OK

I

I

or I

CC

T

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is
not implied

Supply Voltage

CC

DC Input Voltage

I

DC Output Voltage -0.5 to VCC+0.5

O

DC Input Diode Current

IK

DC Output Diode Current
DC Output Current

O

DC VCCor Ground Current

GND

Storage Temperature

stg

Lead Temperature (10 sec)

L

V

CC

Positive Supply Voltage

-0.5 to +7.0 V

-0.5 to +7.0 V

-20 mA

± 20 mA
± 25 mA
± 50 mA

-65 to +150 °C
300 °C

V

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V
V
T

dt/dv

1) VINfrom 0.8V to 2V

2/7

Supply Voltage

CC

Input Voltage

I

Output Voltage 0 to V

O

Operating Temperature

op

Input Rise and Fall Time (note 1) (V

=5.0± 0.5V)

CC

4.5 to 5.5 V
0to5.5 V

CC

-55 to 125 °C
0 to 20 ns/V

V

DC SPECIFICATIONS

Symbol Parameter

V

V

V

+I

I

High Level Input

IH

Voltage

V

Low Level Input

IL

Voltage
High Level Output

OH

Voltage
Low Level Output

OL

Voltage

I

Input Leakage

I

Current

I

Quiescent Supply

CC

Current
Additional Worst

CC

Case Supply
Current

Output Leakage

OPD

Current

Test Condition Value

T

= 25°C

V

CC

(V)

4.5to

A

Min. Typ. Max. Min. Max. Min. Max.

222V

5.5

4.5to

5.5

4.5

4.5

4.5

4.5

0to

5.5

5.5

IO=-50 µA 4.4 4.5 4.4 4.4 V

=-8 mA 3.94 3.8 3.7

I

O

IO=50 µA 0.0 0.1 0.1 0.1 V

I

=8 mA 0.36 0.44 0.55

O

VI=5.5VorGND

V

I=VCC

or GND

One Input at 3.4V,
other input at V

5.5

CC

or GND

=5.5V

0

V

OUT

74V2T32

-40 to 85°C -55 to 125°C

0.8 0.8 0.8 V

± 0.1 ± 1.0 ± 1.0 µA

11020µA

1.35 1.5 1.5 mA

0.5 5.0 5.0 µA

Unit

AC ELECTRICAL CHARACTERISTICS (Input t

r=tf

=3ns)

Test Condition Value

Symbol Parameter

t
t

(*) Voltage range is 5.0V± 0.5V

Propagation Delay

PLH

Time

PHL

T

V

CC

(V)

C

(pF)

L

A

Min. Typ. Max. Min. Max. Min. Max.

5.0 (*) 15 4.6 7.0 1.0 8.0 1.0 9.0

5.0 (*) 50 5.1 7.5 1.0 8.5 1.0 9.5

-40 to 85°C -55 to 125°C

Unit

ns

= 25°C

CAPACITANCE CHARACTERISTICS

Test Condition Value

= 25°C

Symbol Parameter

T

A

Min. Typ. Max. Min. Max. Min. Max.

C

C

Input Capacitance

IN

Power Dissipation

PD

Capacitance

410 10 10pF

12 pF

(note 1)

1) CPDis defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (Refer to Test Circuit). Average current can be obtained by the following equation. I

CC(opr)=CPDxVCCxfIN+ICC

-40 to 85°C -55 to 125°C

/2

Unit

3/7

74V2T32

DYNAMIC SWITCHING CHARACTERISTICS

Test Condition Value

T

Symbol Parameter

V

OLP

V

OLV

1) Number of output defined as "n". Measured with "n-1" outputs switching from HIGH to LOW or LOW to HIGH. The remaining outputs is
measured in the LOW state.

Dynamic Low Level Quiet Out­put (note 1)

(V)

V

CC

=50pF

C

5.0

L

V

=0V,VIH=3.3V

IL

TEST CIRCUIT

=25°C

A

Min. Max.

0.8

-0.8

Unit

V

CL= 15/50pF or equivalent (includes jig and probe capacitance)
R

T=ZOUT

of pulse generator (typically 50Ω)

WAVEFORM: PROPAGATION DELAY (f=1MHz; 50% duty cycle)

4/7

74V2T32

SOT23-8L MECHANICAL DATA

mm. mils

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 0.90 1.45 35.4 57.1

A1 0.00 0.15 0.0 5.9

A2 0.90 1.30 35.4 51.2

b 0.22 0.38 8.6 14.9

C 0.09 0.20 3.5 7.8

D 2.80 3.00 110.2 118.1

E 2.60 3.00 102.3 118.1

E1 1.50 1.75 59.0 68.8

e0.65 25.6

e1 1.95 76.7

L 0.35 0.55 13.7 21.6

5/7

74V2T32

Tape & Reel SOT23-xL MECHANICAL DATA

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 180 7.086
C 12.8 13.0 13.2 0.504 0.512 0.519
D 20.2 0.795
N 60 2.362

T 14.4 0.567
Ao 3.13 3.23 3.33 0.123 0.127 0.131
Bo 3.07 3.17 3.27 0.120 0.124 0.128
Ko 1.27 1.37 1.47 0.050 0.054 0.0.58
Po 3.9 4.0 4.1 0.153 0.157 0.161

P 3.9 4.0 4.1 0.153 0.157 0.161

mm. inch

6/7

74V2T32

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use of such inform ation nor fo r an y infring ement of p atents or o ther rights of third p arties which may r esult f rom
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.

The ST logo is a registered trademark of STMicroelectronics

All other names are the property of their respective owners

© 2004 STMicroelectronics - All Rights Reserved
