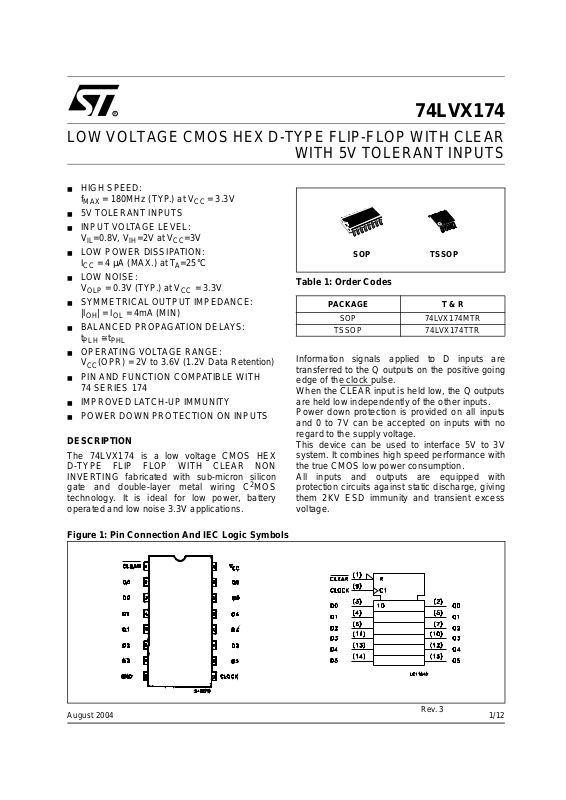

74LVX174

LOW VOLTAGE CMOS HEX D-TYPE FLIP-FLOP WITH CLEAR

WITH 5V TOLERANT INPUTS

■ HIGH SPEED:

f

= 180MHz (TYP.) at V

MAX

■ 5V TOLERANT INPUTS

■ INPUT VOLTAGE LEVEL:

V

=0.8V , VIH=2V at VCC=3V

IL

■ LOW POWER DISSIPATION:

I

= 4 µA (MAX.) at TA=25°C

CC

■ LOW NOISE:

V

= 0.3V (TYP.) at VCC = 3.3V

OLP

■ SYMMETRICAL OUTPUT IMPEDANCE:

| = IOL = 4mA (MIN)

|I

OH

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PLH

■ OPERATING VOLTAGE RAN GE:

V

CC

■ PIN AND FUNCTION COMPATIBLE WITH

PHL

(OPR) = 2V to 3.6V (1.2V Data Retention)

CC

= 3.3V

74 SERIES 174

■ IMPROVED LATCH-UP IMMUN ITY

■ POWER DOWN PROTECTION ON INPUTS

DESCRIPTION

The 74LVX174 is a low voltage CMOS HEX
D-TYPE FLIP FLOP WITH CLEAR NON
INVERTING fabricated with sub-micron silicon
gate and double-layer metal wiring C

2

MOS
technology. It is ideal for low power, battery
operated and low noise 3.3V applications.

TSSOPSOP

Table 1: Order Codes

PACKAGE T & R

SOP 74LVX174MTR

TSSOP 74LVX174TTR

Information signals applied to D inputs are
transferred to the Q o utputs on the positive going
edge of the clock pulse.
When the CLE AR

input is held low, the Q outputs
are held low independently of the other inputs.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage.
This device can be used to interface 5V to 3V
system. It combines high speed performance with
the true CMOS low power consumption.
All inputs and outputs are equipped with
protection circuits against static disc harge, giving
them 2KV ESD immunity and transient excess
voltage.

Figure 1: Pin Connection And IEC Logic Sym bols

Rev. 3

1/12August 2004

74LVX174

Figure 2: Input Equivalent Circuit Table 2: Pin Description

PIN N° SYMBOL NAME AND FUNCTION

Table 3: Truth Table

1CLEAR

2, 5, 7, 10,

12, 15

3, 4, 6, 11,

13, 14

9 CLOCK Clock Input (LOW-to-HIGH,

8 GND Ground (0V)

16 V

Q0 to Q5 Flip-Flop Outputs

D0 to D5 Data Inputs

CC

Asynchronous Maste r
Reset (Active LOW)

Edge Triggered)

Positive Supply Voltage

CLEAR

L X X L CLEAR

HL L
HH H
HX

X : Don’t Care

Figure 3: Logic Diagram

INPUTS OUTPUTS

DCLOCKQ

Q

n

FUNCTION

NO CHANGE

This logi c di agram has not be used to est i m ate propagation delays

2/12

74LVX174

Table 4: Absolute Maximum Ratings

Symbol Parameter Value Unit

V

V

V

I

I

OK

I

or I

I

CC

T

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.

Table 5: Recommended Operating Conditions

Symbol Parameter Value Unit

V

V
V
T

dt/dv

Supply Voltage

CC

DC Input Voltage

I

DC Output Voltage -0.5 to VCC + 0.5

O

DC Input Diode Current

IK

DC Output Diode Current
DC Output Current

O

DC VCC or Ground Current

GND

Storage Temperature

stg

Lead Temperature (10 sec)

L

Supply Voltage (note 1)

CC

Input Voltage

I

Output Voltage 0 to V

O

Operating Temperature

op

Input Rise and Fall Time (note 2) (V

= 3.3V)

CC

-0.5 to +7.0 V

-0.5 to +7.0 V

- 20 mA

± 20 mA
± 25 mA
± 50 mA

-65 to +150 °C
300 °C

2 to 3.6 V
0 to 5.5 V

CC

-55 to 125 °C
0 to 100 ns/V

V

V

1) Truth T abl e guarante ed: 1.2V to 3.6V

2) V

from 0.8V to 2.0V

IN

Table 6: DC Specifications

Symbol Parameter

V

V

V

High Level Input

IH

Voltage

V

Low Level Input

IL

Voltage

High Level Output

OH

Voltage

Low Level Output

OL

Voltage

Input Leakage

I

I

Current
Quiescent Supply

I

CC

Current

Test Condition Value

V

(V)

CC

T

A

Min. Typ. Max. Min. Max. Min. Max.

-40 to 85°C -55 to 125°C

= 25°C

2.0 1.5 1.5 1.5

3.6 2.4 2.4 2.4

2.0 0.5 0.5 0.5

3.6 0.8 0.8 0.8

2.0

3.0

2.0

3.0

3.6

3.6

IO=-50 µA
I

=-50 µA

O

=-4 mA

I

O

=50 µA

I

O

=50 µA

I

O

I

=4 mA

O

= 5V or GND

V

I

= VCC or GND

V

I

1.9 2.0 1.9 1.9

2.9 3.0 2.9 2.9

2.58 2.48 2.4

0.0 0.1 0.1 0.1

0.0 0.1 0.1 0.1

0.36 0.44 0.55

± 0.1 ± 1 ± 1 µA

44040µA

Unit

V3.0 2.0 2.0 2.0

V3.0 0.8 0.8 0.8

V3.0

V3.0

3/12

74LVX174

Table 7: Dynamic Switching Characteristics

Test Condition Value

= 25°C

Symbol Parameter

V

CC

(V)

V
V

V

V

1) Worst case package.

2) Max number of outp ut s defined as (n). Data inp ut s are driven 0V to 3.3V, (n-1) outputs switc hi ng and one out put at GND.

3) Max number of data inputs (n) switching. (n-1) switching 0V to 3.3V. Inputs under test switching: 3.3V to threshold (V
(V

IHD

Dynamic Low Voltage

OLP

Quiet Output (note 1, 2)

OLV

Dynamic High Voltage

IHD

Input (note 1, 3)
Dynamic Low Voltage

ILD

Input (note 1, 3)

), f=1MHz.

3.3

3.3 2

= 50 pF

C

L

3.3 0.8

T

A

Min. Typ. Max. Min. Max. Min. Max.

0.3 0.8

-0.8 -0.3

Table 8: AC Electrical Characteristics (Input tr = tf = 3ns)

Test Condition Value

= 25°C

Symbol Parameter

t

PLH tPHL

t

PLH tPHL

t

Propagation Delay
Time CLOCK to Q

Propagation Delay
Time CLEAR

CLEAR pulse

WL

Width, HIGH

t

CLOCK pulse

W

Width

t

Setup Time Q to

S

CLOCK HIGH or
LOW

Hold Time Q to

t

h

CLOCK HIGH or
LOW

t

REM

f

t

OSLH

t

OSHL

Recovery Time
CLEAR

Maximum Clock

MAX

Frequency

Output To Output
Skew Time (note1,

2)

to Q

to Q

C

V

CC

(V)

L

(pF)

2.7 15 7.6 14.5 1.0 17.5 1.0 18.5

2.7 50 10.1 18.0 1.0 21.0 1.0 22.0

(*)

3.3

3.3

15 5.9 9.3 1.0 11.0 1.0 12.0

(*)

50 8.4 12.8 1.0 14.5 1.0 15.5

2.7 15 7.9 15.0 1.0 18.5 1.0 19.5

2.7 50 10.4 18.5 1.0 22.0 1.0 23.0

(*)

3.3

3.3

15 6.2 9.7 1.0 11.5 1.0 12.5

(*)

50 8.7 13.2 1.0 15.0 1.0 16.0

2.7 6.5 7.5 7.5

(*)

3.3

2.7 6.5 7.5 7.5

(*)

3.3

2.7 7.5 8.5 8.5

(*)

3.3

2.7 0.0 0.0 0.0

(*)

3.3

2.7 4.5 4.5

(*)

3.3

2.7 15 65 130 55

2.7 50 45 60 40

(*)

3.3

3.3

15 115 180 95

(*)

50 65 95 55

2.7 50 0.5 1.0 1.5 1.5

(*)

3.3

50

T

A

Min. Typ. Max. Min. Max. Min. Max.

5.0 5.0 5.0

5.0 5.0 5.0

5.0 6.0 6.0

0.0 0.0 0.0

3.0 3.0

0.5 1.0 1.5 1.5

-40 to 85°C -55 to 125°C

ILD

-40 to 85°C -55 to 125°C

Unit

V

), 0V to thresho l d

Unit

ns

ns

ns

ns

ns

ns

ns

MHz

ns

1) Skew is defined as the absolute value of the difference between the actual propagation delay for any two outputs of the same device switch­ing in the sa m e di rection, ei ther HIGH or LOW

2) Param eter guaranteed by design (*) Voltage range is 3.3V ±

0.3V

4/12

74LVX174

Table 9: Capacitive Characteristics

Test Condition Value

= 25°C

Symbol Parameter

C

C

Input Capacitance

IN

Power Dissipation

PD

Capacitance

V

CC

(V)

3.3 5 10 10 pF

= 10MHz

3.3

f

IN

T

A

Min. Typ. Max. Min. Max. Min. Max.

23 pF

(note 1)

1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. I

Figure 4: Test Circuit

-40 to 85°C -55 to 125°C

= CPD x VCC x f

CC(opr)

+ ICC/n (per c ircuit )

IN

Unit

CL =15/50pF or equivalent (i ncludes jig an d probe capac i tance)
R

= Z

of pulse generator (typically 50Ω)

T

OUT

Figure 5: Waveform - Propagation Delays (f=1MHz; 50% duty cycle)

5/12

74LVX174

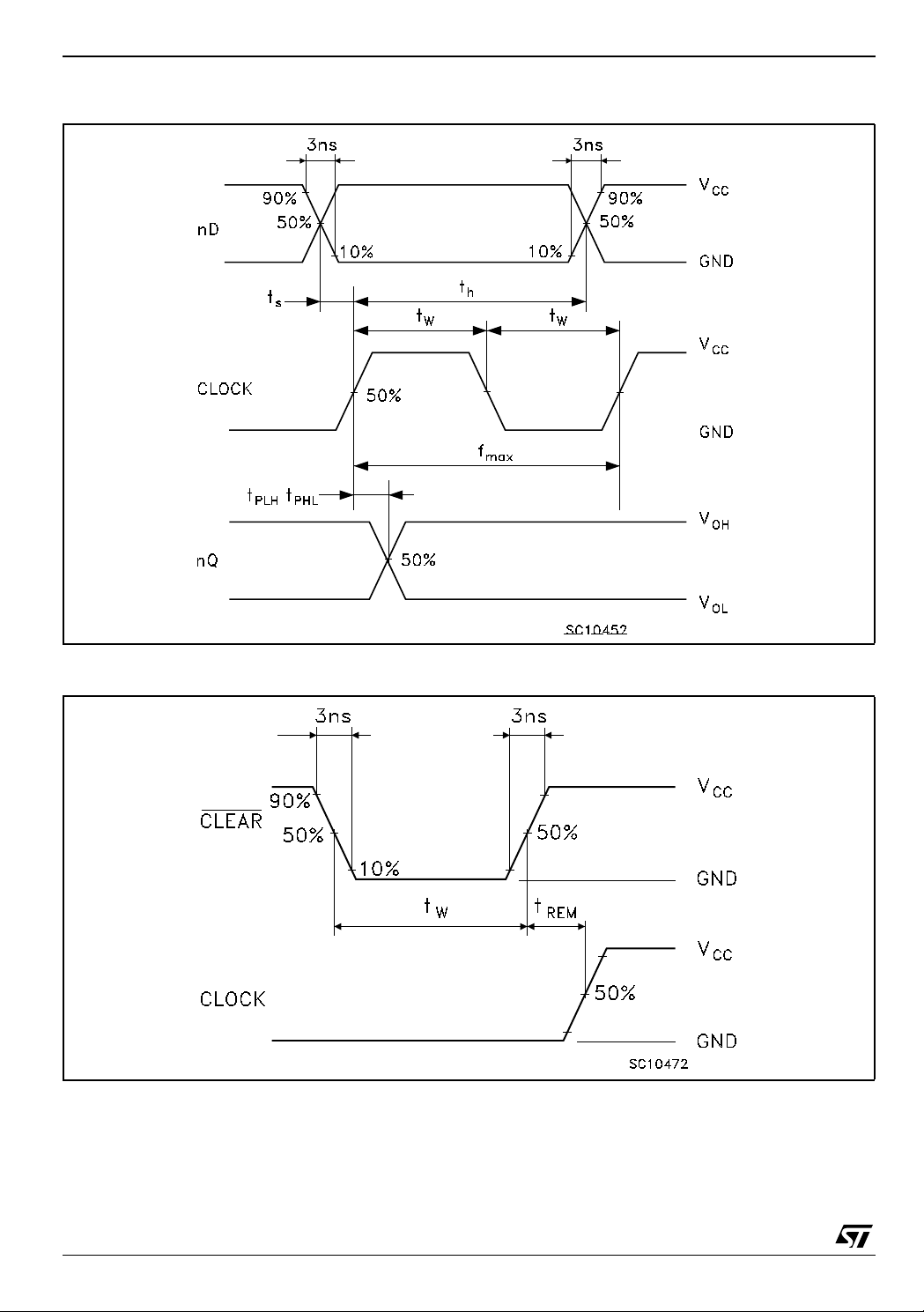

Figure 6: Waveform - Propagation Delays, Setup And Hold Times (f=1MHz; 50% duty cycle)

Figure 7: Waveform - Recovery Time, Minimum Pulse Width (f=1MHz; 50% duty cycle)

6/12

SO-16 MECHANICAL DATA

74LVX174

DIM.

A 1.75 0.068
a1 0.1 0.25 0.004 0.010
a2 1.64 0.063

b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010

C 0.5 0.019
c1 45° (typ.)

D 9.8 10 0.385 0.393

E 5.8 6.2 0.228 0.244

e 1.27 0.050
e3 8.89 0.350

F 3.8 4.0 0.149 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.019 0.050

M 0.62 0.024

S8° (max.)

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

0016020D

7/12

74LVX174

TSSOP16 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 1.2 0.047

A1 0.05 0.15 0.002 0.004 0.006

A2 0.8 1 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.012

c 0.09 0.20 0.004 0.0079

D 4.9 5 5.1 0.193 0.197 0.201

E 6.2 6.4 6.6 0.244 0.252 0.260

E1 4.3 4.4 4.48 0.169 0.173 0.176

e 0.65 BSC 0.0256 BSC

K0˚ 8˚0˚ 8˚

L 0.45 0.60 0.75 0.018 0.024 0.030

A2

A

A1

b

e

c

K

L

E

D

E1

PIN 1 IDENTIFICATION

8/12

1

0080338D

74LVX174

Tape & Reel SO-16 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992

C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362

T 22.4 0.882
Ao 6.45 6.65 0.254 0.262
Bo 10.3 10.5 0.406 0.414
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161

P 7.9 8.1 0.311 0.319

9/12

74LVX174

Tape & Reel TSSOP16 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992

C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362

T 22.4 0.882
Ao 6.7 6.9 0.264 0.272
Bo 5.3 5.5 0.209 0.217
Ko 1.6 1.8 0.063 0.071
Po 3.9 4.1 0.153 0.161

P 7.9 8.1 0.311 0.319

10/12

Table 10: Revision History

Date Revision Description of Change s

27-Aug-2004 3 Ordering Codes Revision - pag. 1.
