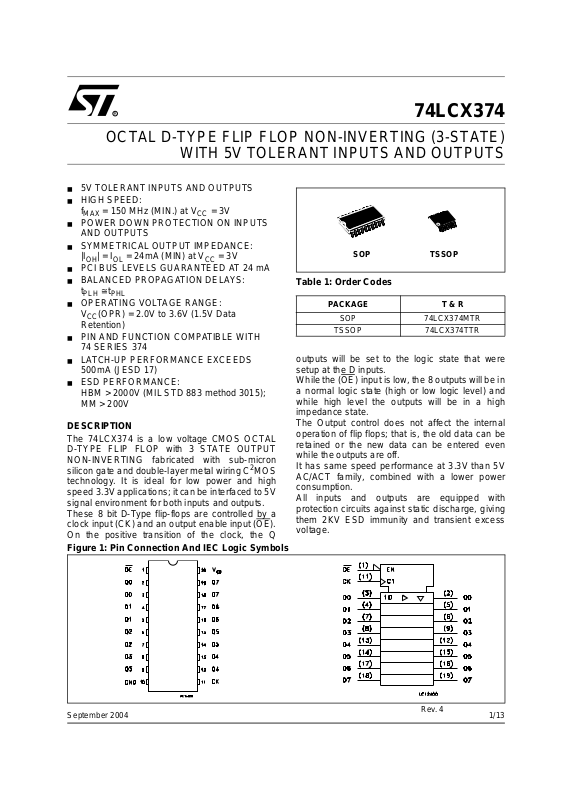

74LCX374

OCTAL D-TYPE FLIP FLOP NON-INVERTING (3-STATE)

WITH 5V TOLERANT INPUTS AND OUTPUTS

■ 5V TOLERANT INPUTS AND OUTPUTS

■ HIGH SPEED:

f

= 150 MHz (MIN.) at VCC = 3V

MAX

■ POWER DOWN PROTECTION ON INPUTS

AND OUTPUTS

■ SYMMETRICAL OUTPUT IMPEDANCE:

|I

| = IOL = 24mA (MIN) at VCC = 3V

OH

■ PCI BUS LEVELS GUARANTEED AT 24 mA

■ BALANCED PROPAGATION DELAYS:

t

≅ t

PLH

■ OPERATING VOLTAGE RANGE:

V

CC

PHL

(OPR) = 2.0V to 3.6V (1.5V Data

Retention)

■ PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 374

■ LA TCH-UP PERFORMANCE EXCEEDS

500mA (JESD 17)

■ ESD PERFORMANCE:

HBM > 2000V (MIL STD 883 method 3015); MM > 200V

DESCRIPTION

The 74LCX374 is a low voltage CMOS OCTAL D-TYPE FLIP FLOP with 3 STATE OUTPUT NON-INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C

2

MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs. These 8 bit D-Type flip-flops are controlled by a clock input (CK) and an output enable input (OE

).

On the positive transition of the clock, the Q

Figure 1: Pin C onnection And I EC Logic Symbol s

TSSOPSOP

Table 1: Order Codes

PACKAGE T & R

SOP 74LCX374MTR

TSSOP 74LCX374TTR

outputs will be set to the logic state that were setup at the D inputs. While the (OE

) input is low, the 8 outputs will be in a normal logic state (high or low logic level) and while high level the outputs will be in a high impedance state. The Output control does not affect the internal operation of flip flops; that is, the old data can be retained or the new data can be entered even while the outputs are off. It has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption. All inputs and outputs are equipped with protection circuits against static disc harge, giving them 2KV ESD immunity and transient excess voltage.

Rev. 4

1/13September 2004

74LCX374

Figure 2: Input An d Output Equival e n t Ci rcui t

Table 2: Pin Description Table 3: Truth Table

PIN N° SYMBOL NAME AND FUNCTION

1OE3 State Output Enable

2, 5, 6, 9, 12,

15, 16, 19

3, 4, 7, 8, 13,

14, 17, 18

1 1 CK Clock Input (LOW to HIGH,

10 GND Ground (0V) 20 V

Q0 to Q7 3-State Outputs

D0 to D7 Data Inputs

CC

Input (Active LOW)

edge triggered)

Positive Supply Voltage

Figure 3: Logic Diagram

INPUT OUTPUT

OE

HXX Z

L X NO CHANGE LLL LHH

X : Don’t Care Z : High Impedance

CK D Q

This logi c di agram has not be used to estim ate propaga tion delays

2/13

74LCX374

Table 4: Absolute Maximum Ratings

Symbol Parameter Value Unit

V

V V V

I

OK

I

CC

I

GND

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied

absolute maximum rating must be observed

1) I

O

< GND

2) V

O

Table 5: Recommended Operating Conditions

Supply Voltage

CC

DC Input Voltage

I

DC Output Voltage (OFF State)

O

DC Output Voltage (High or Low State) (note 1) -0.5 to VCC + 0.5

O

DC Input Diode Current

IK

DC Output Diode Current (note 2) DC Output Current

O

DC Supply Current per Supply Pin DC Ground Current per Supply Pin Storage Temperature

stg

Lead Temperature (10 sec)

L

-0.5 to +7.0 V

-0.5 to +7.0 V V

- 50 mA

± 50 mA ± 100 mA ± 100 mA

-65 to +150 °C 300 °C

Symbol Parameter Value Unit

I I

V

V V V

OH OH

T

Supply Voltage (note 1)

CC

Input Voltage

I

Output Voltage (OFF State)

O

Output Voltage (High or Low State) 0 to V

O

, I

High or Low Level Output Current (VCC = 3.0 to 3.6V)

OL

, I

High or Low Level Output Current (VCC = 2.7V)

OL

Operating Temperature

op

2.0 to 3.6 V 0 to 5.5 V 0 to 5.5 V

CC

± 24 mA ± 12 mA

-55 to 125 °C

dt/dv Input Rise and Fall Time (note 2) 0 to 10 ns/V

1) Truth T abl e guarante ed: 1.5V to 3.6V from 0.8V to 2V at VCC = 3.0V

2) V

IN

V

3/13

74LCX374

Table 6: DC Specifications

Test Condition Value

Symbol Parameter

V

I

OZ

High Level Input

IH

Voltage Low Level Input

IL

Voltage High Level Output

OH

Voltage

Low Level Output

OL

Voltage

Input Leakage

I

Current Power Off Leakage

off

Current High Impedance

Output Leakage Current

I

CC

∆I

Quiescent Supply Current

ICC incr. per Input

CC

V

CC

(V)

2.7 to 3.6

2.7

3.0

2.7 to 3.6

2.7

3.0

2.7 to 3.6

0

2.7 to 3.6

-40 to 85 °C -55 to 125 °C

Min. Max. Min. Max.

2.0 2.0 V

0.8 0.8 V

IO=-100 µAVCC-0.2 VCC-0.2

I

=-12 mA

O

=-18 mA

I

O

=-24 mA

I

O

IO=100 µA

I

=12 mA

O

I

=16 mA

O

=24 mA

I

O

= 0 to 5.5V

V

I

or VO = 5.5V

V

I

= VIH or V

V

I

VO = 0 to V

VI = VCC or GND

V

or VO= 3.6 to 5.5V

I

VIH = VCC - 0.6V

IL

CC

2.2 2.2

2.4 2.4

2.2 2.2

0.2 0.2

0.4 0.4

0.55 0.55 ± 5 ± 5 µA

10 10 µA

± 5 ± 5 µA

10 10

± 10 ± 10

500 500 µA

Unit

V

µA

Table 7: Dynamic Switching Characteristics

Test Condition Value

= 25 °C

Symbol Parameter

V

CC

(V)

V

OLP

V

OLV

1) Number of outputs defined as "n". Measured wi t h "n-1" output s switching from HIGH to LO W or LOW to HIGH. The remaining output is measur ed i n the LOW state.

Dynamic Low Level Quiet Output (note 1)

3.3

= 50pF

C

L

V

= 0V, VIH = 3.3V

IL

T

A

Min. Typ. Max.

0.8

-0.8

Unit

V

4/13

Table 8: AC Electrical Characteristics

Test Condition Value

74LCX374

Symbol Parameter

V

CC

(V)

t

PLH tPHL

t

PZL tPZH

t

PLZ tPHZ

t

f

MAX

t

OSLH

t

OSHL

1) Skew is defined as the absolute value of the difference between the actual propagation delay for any two outputs of the same device switching in the sa me directio n, either HIGH or LOW (t

2) Param eter guaran teed by design

Propagation Delay Time

Output Enable Time to HIGH and LOW level

Output Disable Time from HIGH to LOW level

Set-Up Time, HIGH

S

or LOW level (Dn to CK)

Hold Time, HIGH or

h

LOW level (Dn to CK)

CK Pulse Width,

W

HIGH Clock Pulse

Frequency Output To Output

Skew Time (note1,

2)

2.7

3.0 to 3.6 1.5 8.5 1.5 8.5

2.7

3.0 to 3.6 1.5 8.5 1.5 8.5

2.7

3.0 to 3.6 1.5 7.5 1.5 7.5

2.7

3.0 to 3.6 2.5 2.5

2.7

3.0 to 3.6 1.5 1.5

2.7

3.0 to 3.6 3.3 3.3

3.0 to 3.6 50 500 2.5 150 140 MHz

3.0 to 3.6 50 500 2.5 1.0 1.0 ns

OSLH

C

L

(pF)

50 500 2.5

= | t

PLHm

- t

R

(Ω)

PLHn

|, t

L

OSHL

t

s

(ns)

= t

= | t

-40 to 85 °C -55 to 125 °C

r

Min. Max. Min. Max.

1.5 9.5 1.5 9.5

1.5 8.5 1.5 8.5

2.5 2.5

1.5 1.5

3.3 3.3

- t

PHLn

|)

PHLm

Unit

ns

Table 4: Capacitive Characteristics

Test Condition Value

= 25 °C

Symbol Parameter

V

CC

(V)

C

OUT

C

1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without load. (R ef er to Test Circ ui t ). Average operating cu rrent can be ob tained by the foll owing equation. I flip-flop)

Input Capacitance

IN

Output Capacitance Power Dissipation Capacitance

PD

(note 1)

3.3

VIN = 0 to V VIN = 0 to V

3.3 fIN = 10MHz V

= 0 or V

IN

CC CC

CC

T

A

Min. Typ. Max.

6pF 12 pF 32

= CPD x VCC x fIN + ICC/8 (per

CC(opr)

Unit

pF

5/13

74LCX374

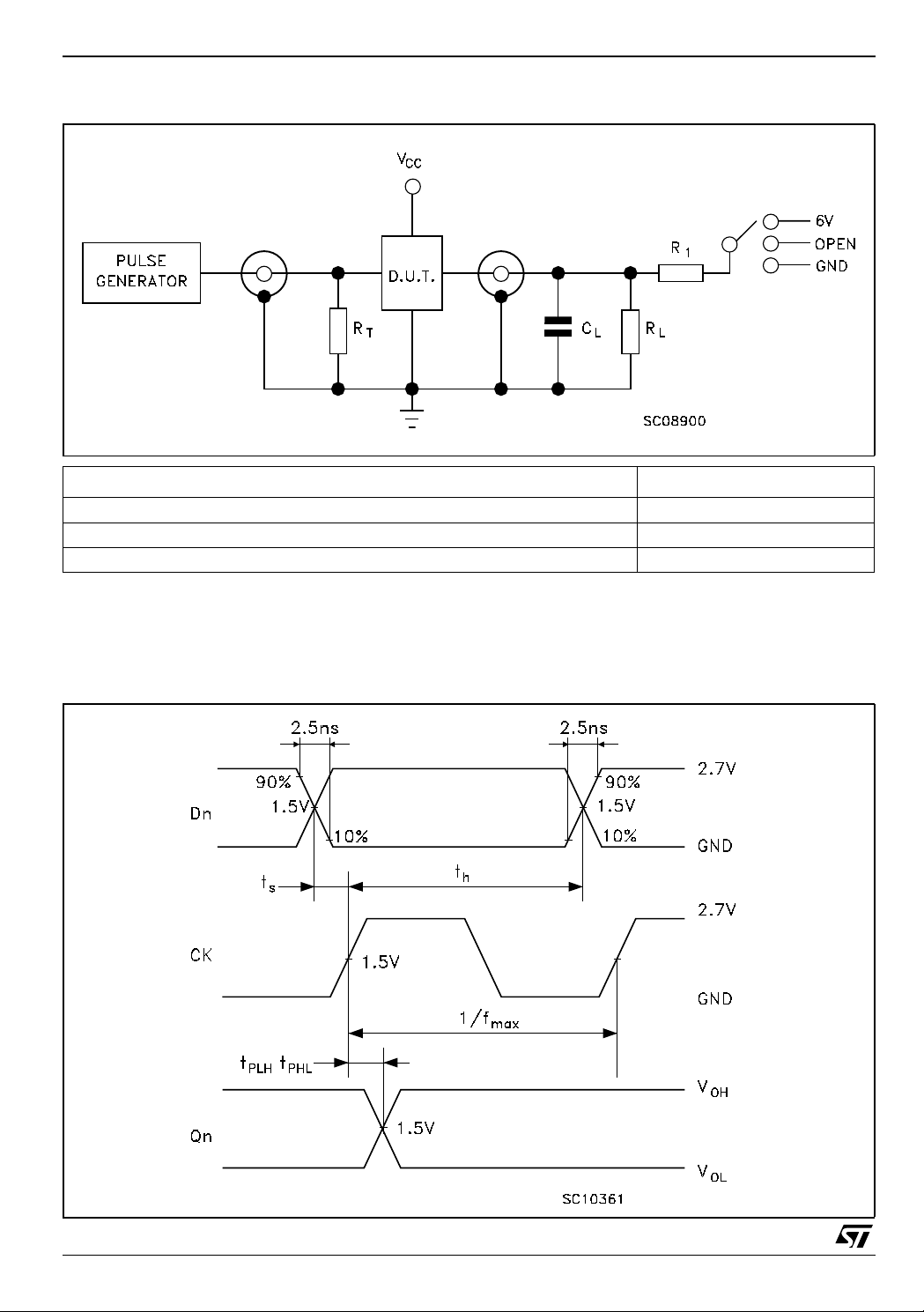

Figure 5: Test Circuit

t

, t

PLH

PHL

, t

t

PZL

PLZ

, t

t

PZH

PHZ

TEST SWITCH

Open

6V

GND

CL = 50 pF or equivalent (includes jig and probe capacitance)

= R1 = 500Ω or equivalent

R

L

R

= Z

of pulse generator (typically 50Ω)

T

OUT

Figure 6: Waveform - Propagation Delays, Setup And Hold Times, CK Maximum Frequency

(f=1MHz; 50% duty cycle)

6/13

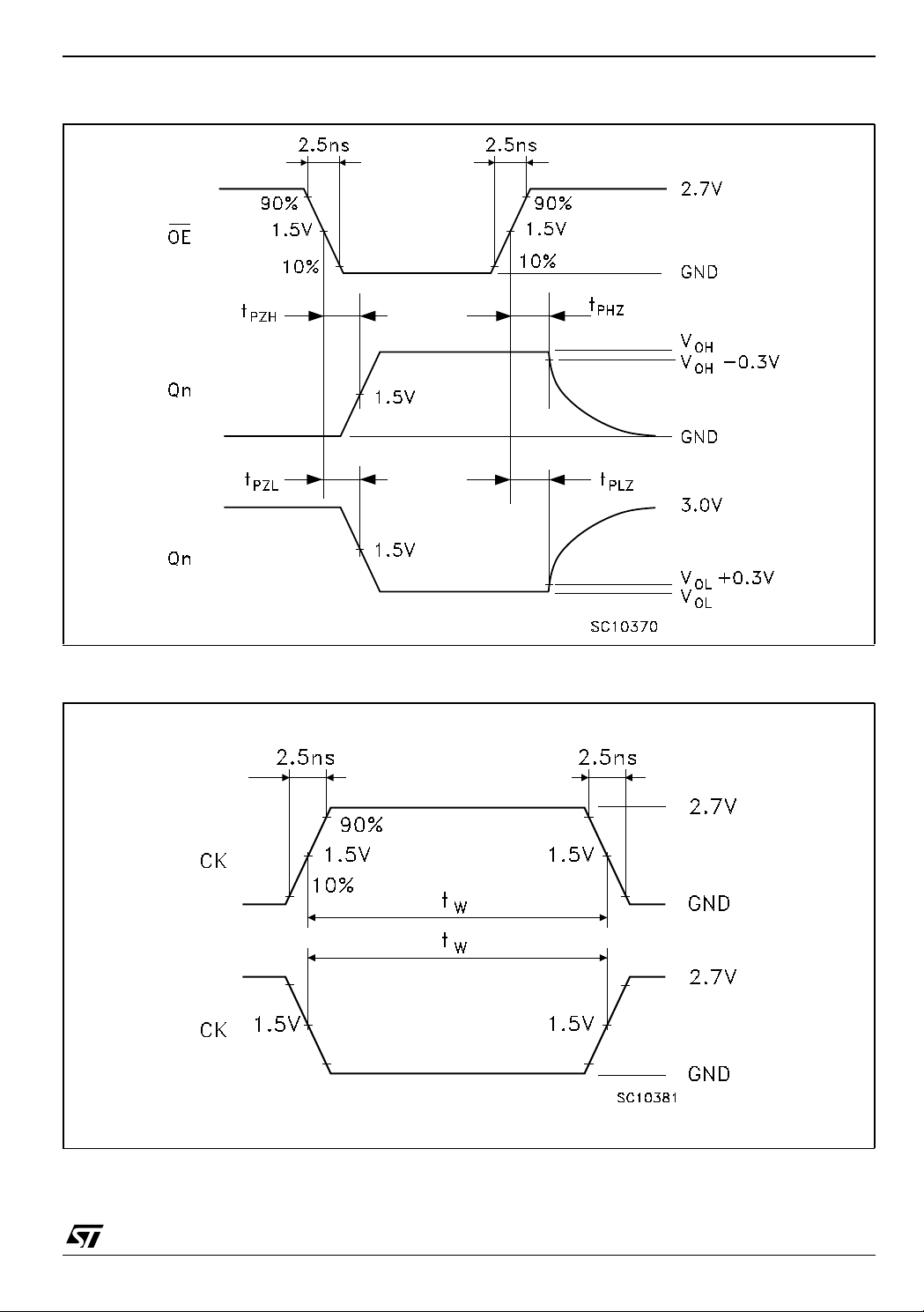

Figure 7: Waveform - Output Enable And Disable Times (f=1MHz; 50% duty cycle)

74LCX374

Figure 8: Waveform - Pulse Width (f=1M H z; 50% duty cycle)

7/13

74LCX374

SO-20 MECHANICAL DATA

DIM.

A 2.35 2.65 0.093 0.104

A1 0.1 0.30 0.004 0.012

B 0.33 0.51 0.013 0.020 C 0.23 0.32 0.009 0.013 D 12.60 13.00 0.496 0.512 E 7.4 7.6 0.291 0.299

e 1.27 0.050

H 10.00 10.65 0.394 0.419

h 0.25 0.75 0.010 0.030 L 0.4 1.27 0.016 0.050 k0° 8° 0° 8°

ddd 0.100 0.004

MIN. TYP MAX. MIN. TYP. M AX.

mm. inch

8/13

0016022D

74LCX374

TSSOP20 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 1.2 0.047

A1 0.05 0.15 0.002 0.004 0.006

A2 0.8 1 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.012

c 0.09 0.20 0.004 0.0079

D 6.4 6.5 6.6 0.252 0.256 0.260

E 6.2 6.4 6.6 0.244 0.252 0.260

E1 4.3 4.4 4.48 0.169 0.173 0.176

e 0.65 BSC 0.0256 BSC

K0˚ 8˚0˚ 8˚

L 0.45 0.60 0.75 0.018 0.024 0.030

A2

A

A1

b

e

K

c

L

E

D

E1

PIN 1 IDENTIFICATION

1

0087225C

9/13

74LCX374

Tape & Reel SO-20 MECHANICAL

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992 C 12.8 13.2 0.504 0.519 D 20.2 0.795 N 60 2.362

T 30.4 1.197 Ao 10.8 11 0.425 0.433 Bo 13.2 13.4 0.520 0.528 Ko 3.1 3.3 0.122 0.130 Po 3.9 4.1 0.153 0.161

P 11.9 12.1 0.468 0.476

DATA

10/13

74LCX374

Tape & Reel TSSOP20 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992 C 12.8 13.2 0.504 0.519 D 20.2 0.795 N 60 2.362

T 22.4 0.882 Ao 6.8 7 0.268 0.276 Bo 6.9 7.1 0.272 0.280 Ko 1.7 1.9 0.067 0.075 Po 3.9 4.1 0.153 0.161

P 11.9 12.1 0.468 0.476

11/13

74LCX374

Table 9: Revision History

Date Revision Description of Changes

15-Sep-2004 4 Ordering Codes Revision - pag. 1.

12/13
