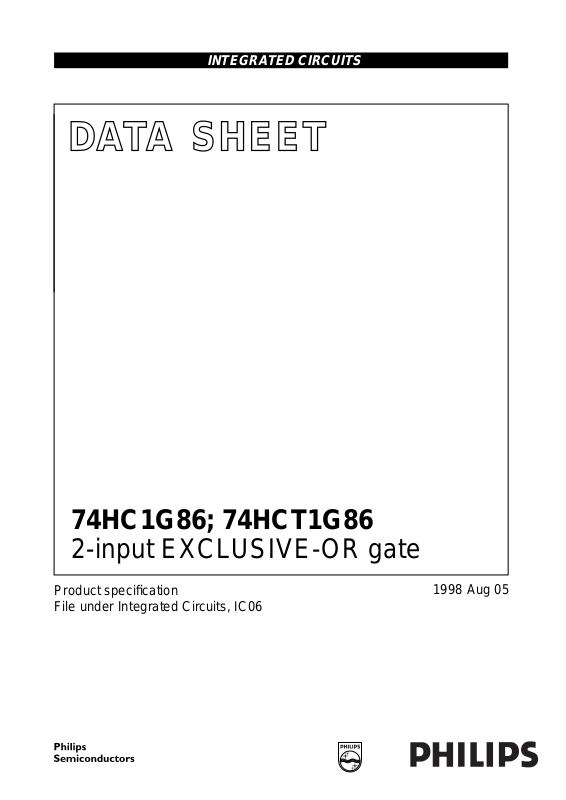

INTEGRATED CIRCUITS
DATA SH EET
74HC1G86; 74HCT1G86
2-input EXCLUSIVE-OR gate
Product specification File under Integrated Circuits, IC06
1998 Aug 05
Page 2
2-input EXCLUSIVE-OR gate

FEATURES

• Wide operating voltage range:
2.0 to 6.0 V
• Symmetrical output impedance
• High noise immunity
• Low power dissipation
• Balanced propagation delays
• Very small 5 pins package
• Output capability: standard.

DESCRIPTION

The 74HC1G/HCT1G86 is a high-speed Si-gate CMOS device.
The 74HC1G/HCT1G86 provides the 2-input EXCLUSIVE-OR function.
The standard output currents are compared to the 74HC/HCT86.

FUNCTION TABLE

See note 1.

QUICK REFERENCE DATA

GND = 0 V; T
Notes
1. C
1
⁄
2
2. For HC1G the condition is VI= GND to VCC;
=25°C; tr=tf=6.0 ns.
amb
SYMBOL PARAMETER CONDITIONS
/ t
t
PHL
PLH
C
I
C
PD
propagation delay inA, inB to outY
CL=15pF
VCC=5V input capacitance 1.5 1.5 pF power dissipation
notes 1 and 2 23 23 pF capacitance
is used to determine the dynamic power dissipation (PDin µW).
PD
PD=CPD× V
2
× fi+ ∑ (CL× V
CC
2
× fo) where:
CC
fi= input frequency in MHz; fo= output frequency in MHz; CL= output load capacitance in pF; VCC= supply voltage in V; ∑ (CL× V
2
× fo) = sum of outputs.
CC
For HCT1G the condition is VI= GND to VCC− 1.5 V.
74HC1G86;
74HCT1G86
TYP.
UNIT
HC1G HCT1G
910ns
INPUTS OUTPUT
inA inB outY
LL L
LH H HL H HH L
Note
1. H = HIGH voltage level; L = LOW voltage level.

PINNING

1 and 2 inB, inA data inputs
PIN SYMBOL DESCRIPTION
3 GND ground (0 V) 4 outY data output 5V
CC
DC supply voltage
1998 Aug 05 2
Page 3
2-input EXCLUSIVE-OR gate
74HC1G86;
74HCT1G86

ORDERING AND PACKAGE INFORMATION

OUTSIDE NORTH
AMERICA
74HC1G86GW 74HCT1G86GW 5 SC-88A plastic SOT353 TH
handbook, halfpage
inB inA
GND
TEMPERATURE
−40 to +125 °C
1 2
86
3
MNA037
RANGE
V
5
outY
4
PINS PACKAGE MATERIAL CODE MARKING
5 SC-88A plastic SOT353 HH
CC
PACKAGES
handbook, halfpage
inB
1
inA
2
outY
MNA038
4
handbook, halfpage
Fig.1 Pin configuration.
1 2
= 1
MNA039
Fig.3 IEC logic symbol.
Fig.2 Logic symbol.
handbook, halfpage
inB
4
inA
outY
MNA040
Fig.4 Logic diagram.
1998 Aug 05 3
Page 4
2-input EXCLUSIVE-OR gate
74HC1G86;
74HCT1G86

RECOMMENDED OPERATING CONDITIONS

SYMBOL PARAMETER
V
CC
V
I
V
O
T
amb
DC supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V input voltage 0 − V output voltage 0 − V operating ambient
temperature range
t
r,tf
input rise and fall times except for Schmitt-trigger inputs

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); voltages are referenced to GND (ground = 0 V).
SYMBOL P ARAMETER CONDITIONS MIN. MAX. UNIT
V
CC
±I
IK
±I
OK
±I
O
DC supply voltage −0.5 +7.0 V DC input diode current VI<−0.5 or VI> VCC+ 0.5 V; note 1 − 20 mA DC output diode current VO<−0.5 or VO> VCC+ 0.5 V; note 1 − 20 mA DC output source or sink current
standard outputs
±I
CC
DC VCC or GND current for types with standard outputs
T
stg
P
D
storage temperature range −65 +150 °C power dissipation per package for temperature range: −40 to +125 °C
5 pins plastic SC-88A above +55 °C derate linearly with
74HC1G 74HCT1G
UNIT CONDITIONS
MIN. TYP. MAX. MIN. TYP. MAX.
0 − V
CC
0 − V
CC
CC CC
V V
−40 +25 +125 −40 +25 +125 °C see DC and AC characteristics per device
−−1000 −−−ns VCC= 2.0 V
−−500 −−500 ns V
−−400 −−−ns V
CC CC
= 4.5 V = 6.0 V
−0.5 V < VO< VCC+ 0.5 V; note 1 − 12.5 mA
note 1 − 25 mA
− 200 mW
2.5 mW/K
Note
1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
1998 Aug 05 4
Page 5
2-input EXCLUSIVE-OR gate
DC CHARACTERISTICS FOR THE 74HC1G
Over recommended operating conditions; voltages are referenced to GND (ground = 0 V).
T
(°C)
amb
SYMBOL PARAMETER
V
IH
HIGH-level input voltage
V
IL
V
OH
LOW-level input voltage − 0.8 0.5 − 0.5 V 2.0
HIGH-level output voltage; all outputs
V
OH
HIGH-level output voltage; standard outputs
V
OL
LOW-level output voltage; all outputs
V
OL
LOW-level output voltage; standard outputs
I
I
I
CC
input leakage current −− 1.0 − 1.0 µA 6.0 VI=VCCor GND quiescent supply
current
−40 to +85 −40 to +125
MIN. TYP.
(1)
MAX. MIN. MAX.
1.5 1.2 − 1.5 − V 2.0
3.15 2.4 − 3.15 − V 4.5
4.2 3.2 − 4.2 − V 6.0
− 2.1 1.35 − 1.35 V 4.5
− 2.8 1.8 − 1.8 V 6.0
1.9 2.0 − 1.9 − V 2.0 VI=VIHor VIL;
4.4 4.5 − 4.4 − V 4.5
5.9 6.0 − 5.9 − V 6.0
4.13 4.32 − 3.7 − V 4.5 VI=VIHor VIL;
5.63 5.81 − 5.2 − V 6.0 V
− 0 0.1 − 0.1 V 2.0 VI=VIHor VIL;
− 0 0.1 − 0.1 V 4.5
− 0 0.1 − 0.1 V 6.0
− 0.15 0.33 − 0.4 V 4.5 VI=VIHor VIL;
− 0.16 0.33 − 0.4 V 6.0 V
−− 10 − 20 µA 6.0 VI=VCCor GND;
UNIT
74HC1G86;
74HCT1G86
TEST CONDITIONS
VCC(V) OTHER
−IO=20µA
−IO= 2.0 mA
or VIL;
I=VIH
−IO= 2.6 mA
IO=20µA
IO= 2.0 mA
or VIL;
I=VIH
IO= 2.6 mA
IO=0
Note
1. All typical values are measured at T
amb
=25°C.
1998 Aug 05 5
Page 6
2-input EXCLUSIVE-OR gate
DC CHARACTERISTICS FOR THE 74HCT1G
Over recommended operating conditions; voltages are referenced to GND (ground = 0 V).
T
(°C)
amb
SYMBOL PARAMETER
V
IH
HIGH-level input voltage
V
IL
LOW-level input voltage
V
OH
HIGH-level output voltage; all outputs
V
OH
HIGH-level output voltage; standard outputs
V
OL
LOW-level output voltage; all outputs
V
OL
LOW-level output voltage; standard outputs
I
I
I
CC
input leakage current −− 1.0 − 1.0 µA 5.5 VI=VCCor GND quiescent supply
current
∆I
CC
additional supply current per input
−40 to +85 −40 to +125
MIN. TYP.
(1)
MAX. MIN. MAX.
2.0 1.6 − 2.0 − V 4.5 to 5.5
− 1.2 0.8 − 0.8 V 4.5 to 5.5
4.4 4.5 − 4.4 − V 4.5 VI=VIHor VIL;
4.13 4.32 − 3.7 − V 4.5 VI=VIHor VIL;
− 0 0.1 − 0.1 V 4.5 VI=VIHor VIL;
− 0.15 0.33 − 0.4 V 4.5 VI=VIHor VIL;
−− 10.0 − 20.0 µA 5.5 VI=VCCor GND;
−− 500 − 850 µA 4.5 to 5.5 VI=VCC− 2.1 V;
UNIT
74HC1G86;
74HCT1G86
TEST CONDITIONS
VCC(V) OTHER
−IO=20µA
−IO= 2.0 mA
IO=20µA
IO= 2.0 mA
IO=0
IO=0
Note
1. All typical values are measured at T
amb
=25°C.
1998 Aug 05 6
Page 7
2-input EXCLUSIVE-OR gate
AC CHARACTERISTICS FOR 74HC1G86
GND = 0 V; t
SYMBOL PARAMETER
t
PHL/tPLH
Note
1. All typical values are measured at T
AC CHARACTERISTICS FOR 74HCT1G86
GND = 0 V; t
SYMBOL PARAMETER
t
PHL/tPLH
=6.0 ns; CL=50pF.
r=tf
propagation delay inA, inB to outY
=6.0 ns; CL=50pF.
r=tf
propagation delay inA, inB to outY
−40 to +85 −40 to +125
MIN. TYP.
− 22 115 − 135 ns 2.0 see Figs 5 and 6
− 11 23 − 27 ns 4.5
− 920−23 ns 6.0
amb
MIN. TYP.
− 13 23 − 27 ns 4.5 see Figs 5 and 6
T
(°C)
amb
(1)
MAX. MIN. MAX.
=25°C.
T
(°C)
amb
−40 to +85 −40 to +125
(1)
MAX. MIN. MAX.
74HC1G86;
74HCT1G86
TEST CONDITIONS
UNIT
VCC(V) WAVEFORMS
TEST CONDITIONS
UNIT
VCC(V) WAVEFORMS
Note
1. All typical values are measured at T
amb
=25°C.
1998 Aug 05 7
Page 8
2-input EXCLUSIVE-OR gate

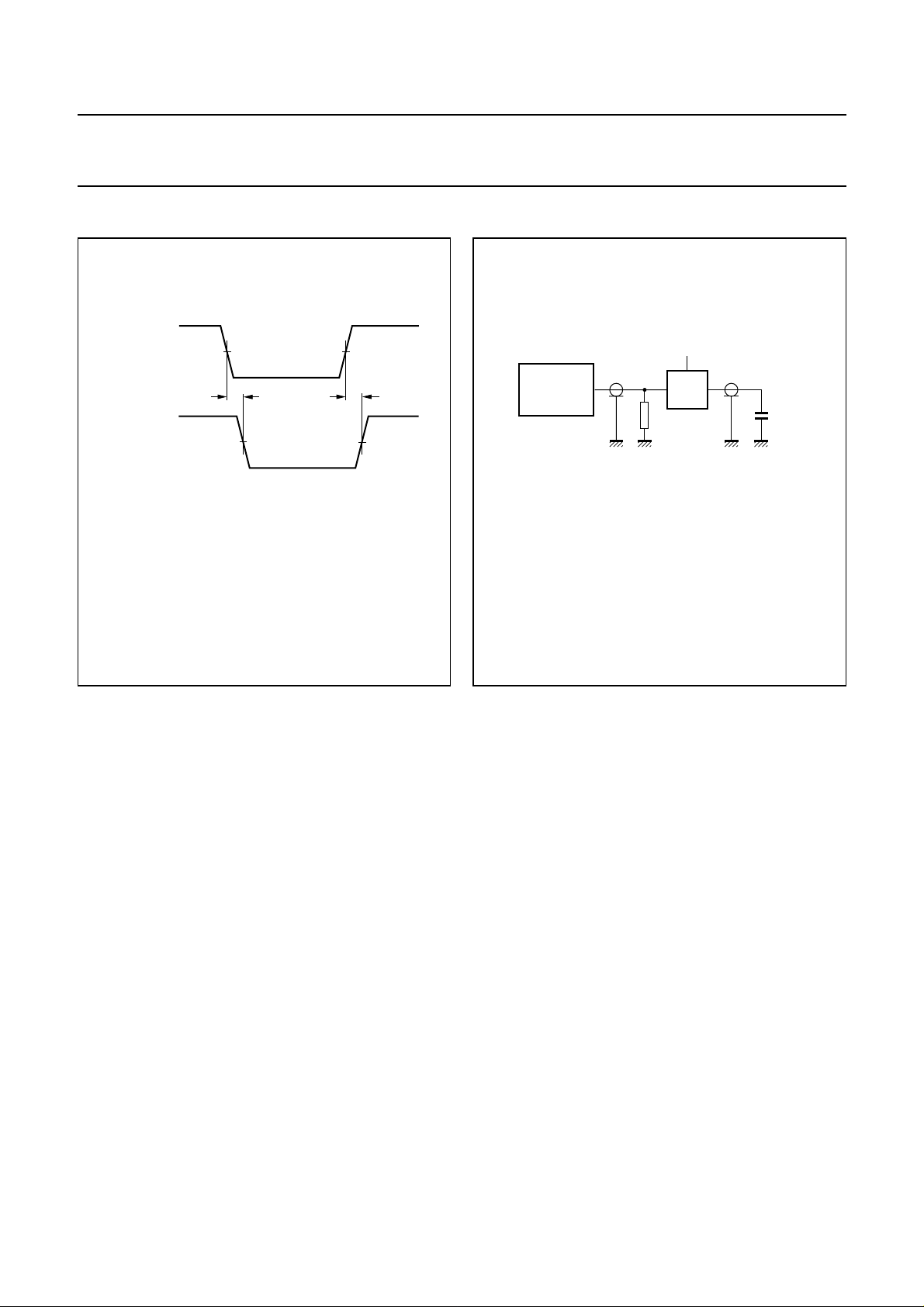

AC WAVEFORMS

handbook, halfpage
(1)
inA, inB INPUT
outY OUTPUT
(1) HC1G: VM=50%; VI= GNDto VCC;
HCT1G: V
= 1.3V; VI= GNDto 3.0V.
M
V
M
t
PHL
(1)
V
M
t
PLH
MNA041
74HC1G86;
74HCT1G86
handbook, halfpage
V
PULSE
GENERATOR
Definitions for test circuit: CL= load capacitance including jig and probe capacitance
(see “AC characteristics for 74HC1G86” and “AC characteristicsfor 74HCT1G86” for values).
= termination resistance should be equal to the output
R
T
impedance Z
of the pulse generator.
O
I
V
CC
V
D.U.T.
R
T
O
C
50 pF
L
MNA034
Fig.5 The input (inA, inB) to output (outY)
propagation delays.
Fig.6 Load circuitry for switching times.
1998 Aug 05 8
Page 9
2-input EXCLUSIVE-OR gate
74HC1G86;
74HCT1G86

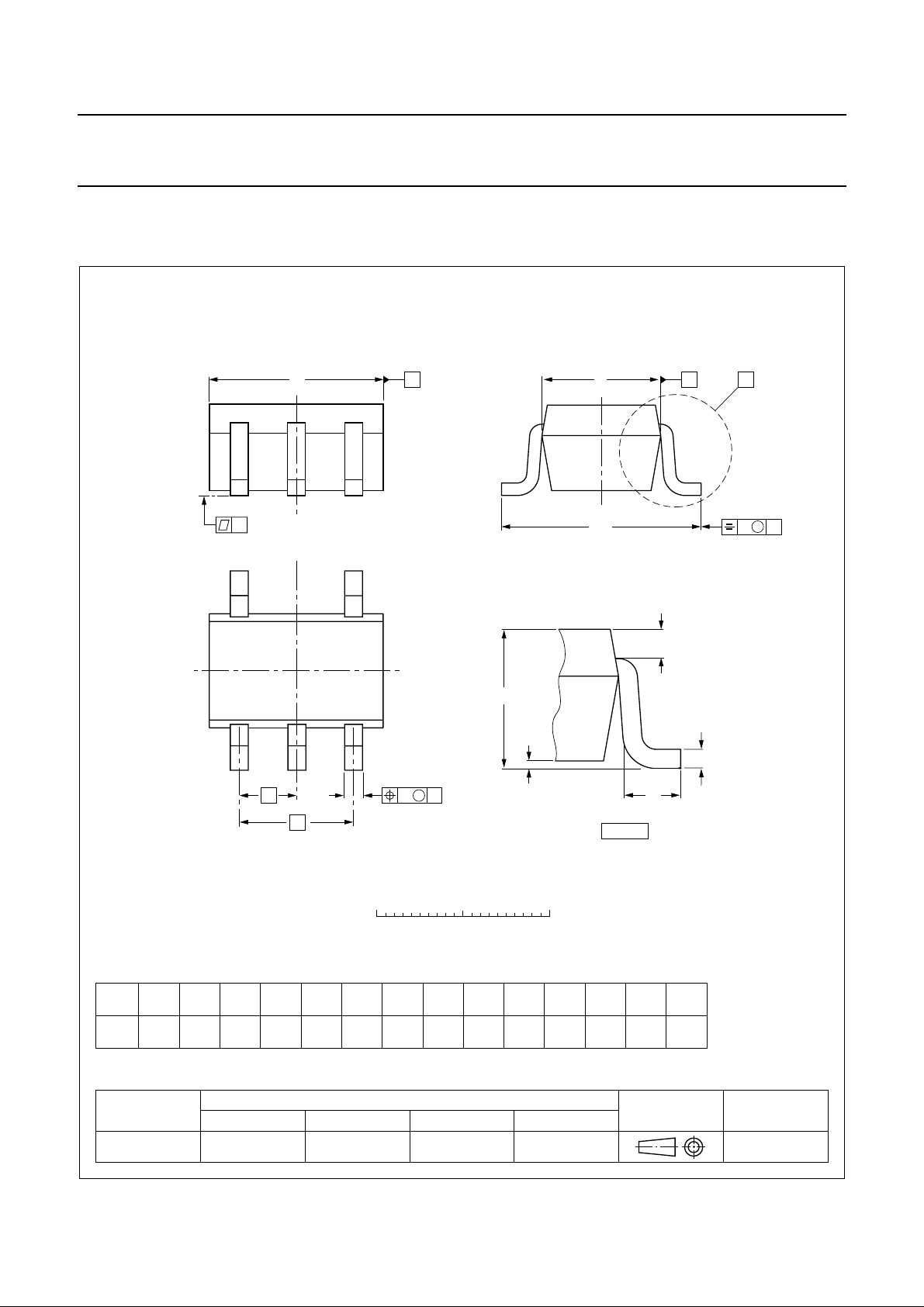

PACKAGE OUTLINE

Plastic surface mounted package; 5 leads SOT353
D
y
E
H
E
AB
45
X
v M
A
132
e
DIMENSIONS (mm are the original dimensions)
A
UNIT
mm
A
1.1
0.8
max
0.1
1
b
p
0.30
0.20
b
1
0.25
0.10
p
e
cD
2.2
1.8
A
wBM
0 1 2 mm
scale
E
1.35
1.15
(2)
1.3
e
0.65
H
E
1
2.2
2.0
e
A
L
0.45
0.15
1
detail X
Qywv
p
0.25
0.15
0.2 0.10.2
Q
L
p
c
OUTLINE VERSION

SOT353

IEC JEDEC EIAJ
REFERENCES
1998 Aug 05 9
EUROPEAN
PROJECTION
ISSUE DATE
97-02-28SC-88A
Page 10
2-input EXCLUSIVE-OR gate
SOLDERING Introduction
There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our
“Data Handbook IC26; Integrated Circuit Packages”
(order code 9398 652 90011).
Reflow soldering
Reflow soldering techniques are suitable for all SO packages.
Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.
Several techniques exist for reflowing; for example, thermal conduction by heated belt. Dwell times vary between 50 and 300 seconds depending on heating method. Typical reflow temperatures range from 215 to 250 °C.
Preheating is necessary to dry the paste and evaporate the binding agent. Preheating duration: 45 minutes at 45 °C.
74HC1G86;
74HCT1G86
Wave soldering
Wave soldering techniques can be used for all SO packages if the following conditions are observed:
• A double-wave (a turbulent wave with high upward pressure followed by a smooth laminar wave) soldering technique should be used.
• The longitudinal axis of the package footprint must be parallel to the solder flow.
• The package footprint must incorporate solder thieves at the downstream end.
During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.
Maximum permissible solder temperature is 260 °C, and maximum duration of package immersion in solder is 10 seconds, if cooled to less than 150 °C within 6 seconds. Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.
Repairing soldered joints
Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron (less than 24 V) applied to the flat part of the lead. Contact time must be limited to 10 seconds at up to 300 °C. When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320 °C.
1998 Aug 05 10
Page 11
2-input EXCLUSIVE-OR gate
74HC1G86;
74HCT1G86

DEFINITIONS

Data sheet status
Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
1998 Aug 05 11
Page 12
Philips Semiconductors – a worldwide company
Argentina: see South America Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466 Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. +43 160 1010,
Fax. +43 160 101 1210 Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Belgium: see The Netherlands Brazil: seeSouth America Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA, Tel. +359 2 689 211, Fax. +359 2 689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS, Tel. +1 800 234 7381
China/Hong Kong: 501 Hong Kong Industrial Technology Centre, 72 Tat Chee Avenue, Kowloon Tong, HONG KONG, Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America Czech Republic: see Austria Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 0044 Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580920 France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427 Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300 Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Hungary: seeAustria India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025, Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips Development Corporation, Semiconductors Division, Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510, Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14, Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053, TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3, 20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL, Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR, Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905, Tel. +9-5 800 234 7381
Middle East: see Italy Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg.VB,
Tel. +3140 2782785, Fax. +31 40 27 88399 New Zealand: 2 WagenerPlace, C.P.O. Box1041, AUCKLAND,
Tel. +649 8494160, Fax. +64 9 849 7811 Norway: Box 1, Manglerud0612, OSLO,
Tel. +4722 748000, Fax. +47 22 74 8341
Pakistan: see Singapore Philippines: Philips Semiconductors Philippines Inc.,
106 ValeroSt. SalcedoVillage, P.O. Box 2108 MCC, MAKATI, Metro MANILA, Tel.+63 2816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska10, PL 04-123WARSZAWA, Tel. +4822 6122831, Fax. +48 22 612 2327
Portugal: see Spain Romania: see Italy Russia: Philips Russia, Ul. Usatcheva35A, 119048 MOSCOW,
Tel. +7095 7556918, Fax. +7 095 755 6919 Singapore: Lorong 1, ToaPayoh, SINGAPORE 319762,
Tel. +65350 2538,Fax. +65 251 6500
Slovakia: see Austria Slovenia: see Italy South Africa: S.A. PHILIPS Pty Ltd., 195-215 MainRoad Martindale,
2092 JOHANNESBURG, P.O.Box 7430 Johannesburg2000, Tel. +2711 4705911, Fax. +27 11 470 5494
South America: Al. Vicente Pinzon,173, 6th floor, 04547-130 SÃOPAULO, SP, Brazil, Tel. +5511 8212333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007BARCELONA, Tel. +3493 3016312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485STOCKHOLM, Tel. +468 59852000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027ZÜRICH, Tel. +411 4882741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 6F, No. 96, ChienKuo N.Rd., Sec. 1, TAIPEI, Taiwan Tel. +8862 21342865, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd., 209/2 Sanpavuth-BangnaRoad Prakanong, BANGKOK10260, Tel. +662 7454090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640GÜLTEPE/ISTANBUL, Tel. +90212 2792770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 4 PatriceLumumba str., Building B, Floor7, 252042 KIEV, Tel.+380 44264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes, MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409, Tel. +1 800 234 7381
Uruguay: see South America Vietnam: see Singapore Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors, International Marketing & Sales Communications, Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1998 SCA60 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Internet: http://www.semiconductors.philips.com
Printed in The Netherlands 245106/00/01/pp12 Date of release: 1998 Aug 05 Document order number: 9397 750 03668
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
