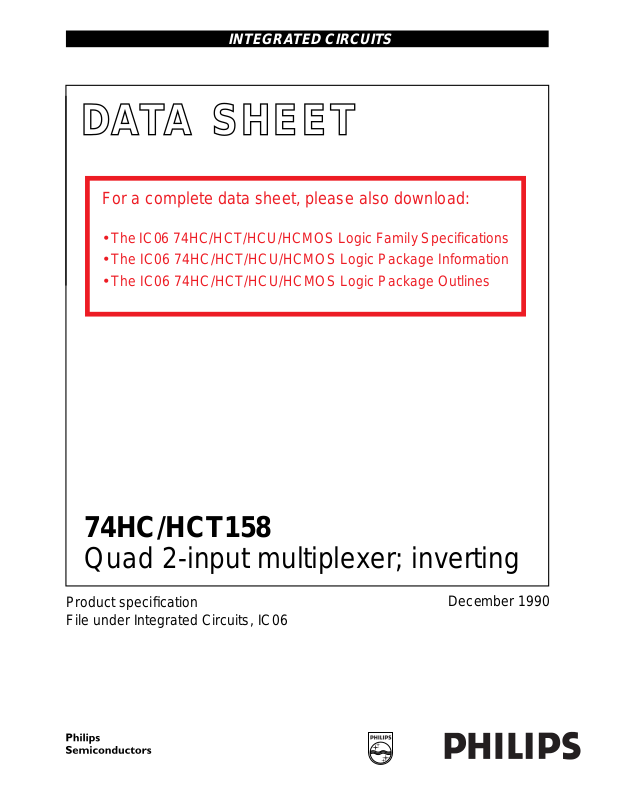

74HC/HCT158
Quad 2-input multiplexer; inverting
Product specification
File under Integrated Circuits, IC06
December 1990
Page 2
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
FEATURES
• Inverting data path
• Output capability: standard
• ICCcategory: MSI
Moving the data from two groups of registers to four
common output buses is a common use of the “158”. The
state of S determines the particular register from which the
data comes. It can also be used as a function generator.
The device is useful for implementing highly irregular logic
by generating any four of the 16 different functions of two
GENERAL DESCRIPTION
The 74HC/HCT158 are high-speed Si-gate CMOS devices
and are pin compatible with low power Schottky TTL
(LSTTL). They are specified in compliance with JEDEC
standard no. 7A.
The 74HC/HCT158 are quad 2-input multiplexers which
variables with one variable common.
The ”158” is the logic implementation of a 4-pole,
2-position switch, where the position of the switch is
determined by the logic levels applied to S.
The logic equations for the output are:
1Y = E.(1l1.S + 1l0.S)
select 4 bits of data from two sources and are controlled by
a common data select input (S). The four outputs present
the selected data in the inverted form. The enable input (
2Y = E.(2l1.S + 2l0.S)
E)
3Y = E.(3l1.S + 3l0.S)
is active LOW.
4Y = E.(4l1.S + 4l0.S)
When E is HIGH, all the outputs (1Y to 4Y) are forced
HIGH regardless of all other input conditions.
The “158” is identical to the “157” but has inverting outputs.
QUICK REFERENCE DATA
GND = 0 V; T
= 25 °C; tr= tf= 6 ns
amb
SYMBOL PARAMETER CONDITIONS
t
PHL
/ t
PLH
propagation delay CL= 15 pF; VCC= 5 V
nI
, nI1to nY 12 13 ns
0
E to nY1416ns
Y1416ns
S to n
C
I
C
PD
input capacitance 3.5 3.5 pF
power dissipation capacitance per multiplexer notes 1 and 2 40 40 pF
TYPICAL
UNIT
HC HCT
Notes
1. C
is used to determine the dynamic power dissipation (PDin µW):
PD
PD= CPD× V
2
× fi+∑(CL× V
CC
2
× fo) where:
CC
fi= input frequency in MHz
fo= output frequency in MHz
∑ (CL× V
2
× fo) = sum of outputs
CC
CL= output load capacitance in pF
VCC= supply voltage in V
2. For HC the condition is VI= GND to V
CC
For HCT the condition is VI= GND to VCC− 1.5 V
ORDERING INFORMATION
“74HC/HCT/HCU/HCMOS Logic Package Information”
See
December 1990 2
.
Page 3
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
PIN DESCRIPTION
PIN NO. SYMBOL NAME AND FUNCTION
1 S common data select input
2, 5, 11, 14 1I
3, 6, 10, 13 1I
4, 7, 9, 12 1
8 GND ground (0 V)
15
16 V
0
1
to 4I
to 4I
0
1
data inputs from source 0
data inputs from source 1
Y to 4Y multiplexer outputs
E enable input (active LOW)
CC
positive supply voltage

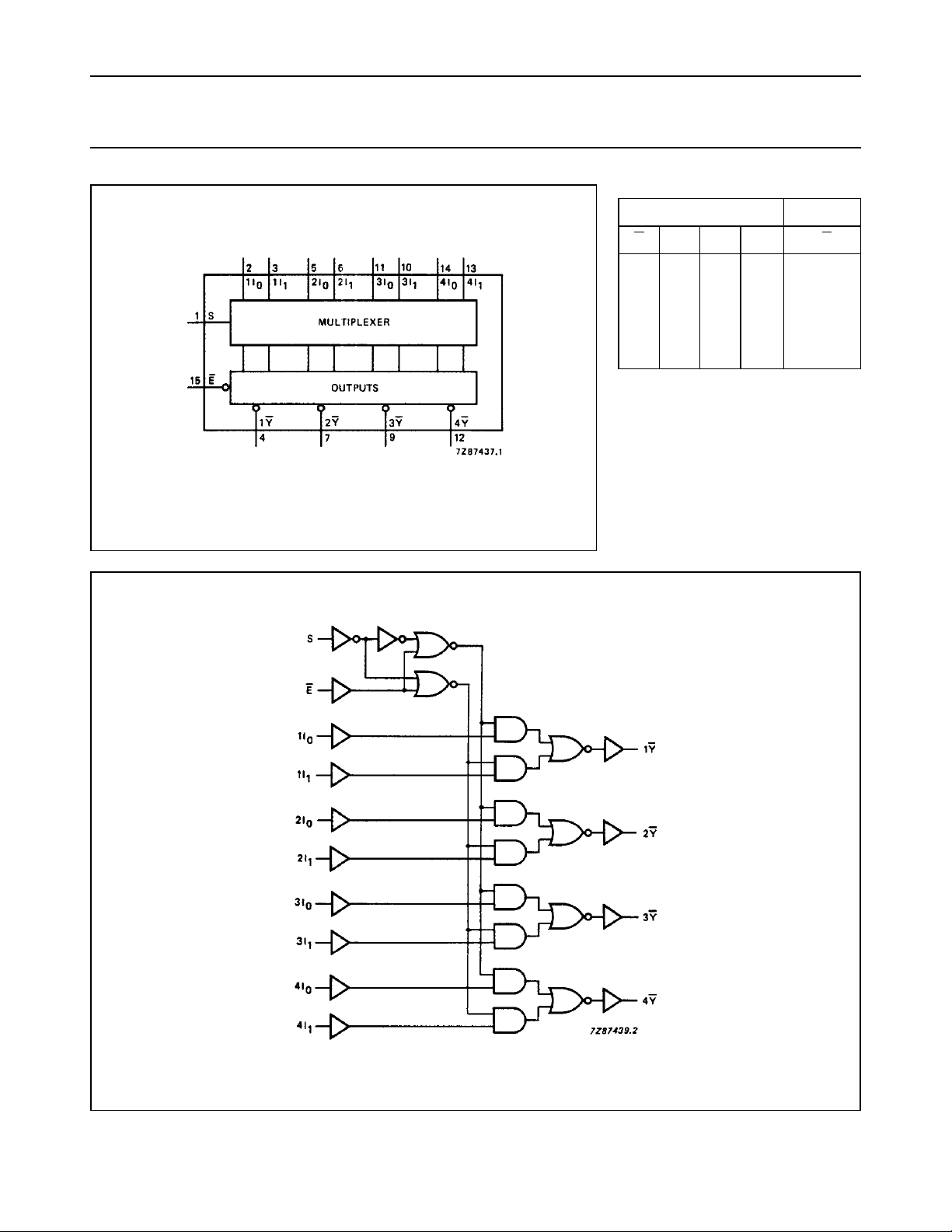

Fig.1 Pin configuration. Fig.2 Logic symbol. Fig.3 IEC logic symbol.
December 1990 3
Page 4
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
FUNCTION TABLE
INPUTS OUTPUT
Fig.4 Functional diagram.
ESnI0nI
HXXX H
LLLX H
LLHX L
LHXL H
LHXH L
Notes
1. H = HIGH voltage level
L = LOW voltage level
X = don’t care
1
nY
Fig.5 Logic diagram.
December 1990 4
Page 5
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
DC CHARACTERISTICS FOR 74HC
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
Output capability: standard
ICCcategory: MSI
AC CHARACTERISTICS FOR 74HC
GND = 0 V; t
= tf= 6 ns; CL= 50 pF
r
SYMBOL PARAMETER
min. typ. max. min. max. min. max.
t
PHL
/ t
propagation delay
PLH
nI0,nI1to nY
t
PHL
/ t
propagation delay
PLH
E to nY
t
PHL
/ t
propagation delay
PLH
S to nY
t
THL
/ t
output transition
TLH
time
(°C)
T
amb
74HC
+25 −40 to +85 −40 to +125
41
15
12
47
17
14
47
17
14
19
7
6
125
25
21
145
29
25
145
29
25
75
15
13
155
31
26
180
36
31
180
36
31
95
19
16
190
38
32
220
44
38
220
44
38
110
22
19
.
UNIT
ns 2.0
ns 2.0
ns 2.0
ns 2.0
TEST CONDITIONS
WAVEFORMS
V
CC
(V)
Fig.7
4.5
6.0
Fig.6
4.5
6.0
Fig.7
4.5
6.0
Figs 6 and 7
4.5
6.0
December 1990 5
Page 6
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
DC CHARACTERISTICS FOR 74HCT
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
.
Output capability: standard
ICCcategory: MSI
Note to HCT types
The value of additional quiescent supply current (∆I
) for a unit load of 1 is given in the family specifications. To
CC
determine ∆ICCper input, multiply this value by the unit load coefficient shown in the table below.
INPUT UNIT LOAD COEFFICIENT
nI
0
nI
1
0.40
0.40
S 2.80
E 0.60
AC CHARACTERISTICS FOR 74HCT
GND = 0 V; t
= tf= 6 ns; CL= 50 pF
r
T
amb
(°C)
74HCT
SYMBOL PARAMETER
UNIT
min. typ. max. min. max. min. max.
t
PHL
/ t
propagation delay
PLH
16 30 38 45 ns 4.5 Fig.7
nI0, nI1to nY
t
PHL
/ t
propagation delay
PLH
19 35 44 53 ns 4.5 Fig.6
E to nY
t
PHL
/ t
propagation delay
PLH
19 35 44 53 ns 4.5 Fig.7
S to nY
t
THL
/ t
output transition
TLH
7 15 19 22 ns 4.5 Figs 6 and 7
time
TEST CONDITIONS
V
CC
WAVEFORMS+25 −40 to +85 −40 to +125
(V)
December 1990 6
Page 7
Philips Semiconductors Product specification
Quad 2-input multiplexer; inverting 74HC/HCT158
AC WAVEFORMS
(1) HC : VM= 50%; VI= GND to VCC.
= 1.3 V; VI= GND to 3 V.
HCT: V
M

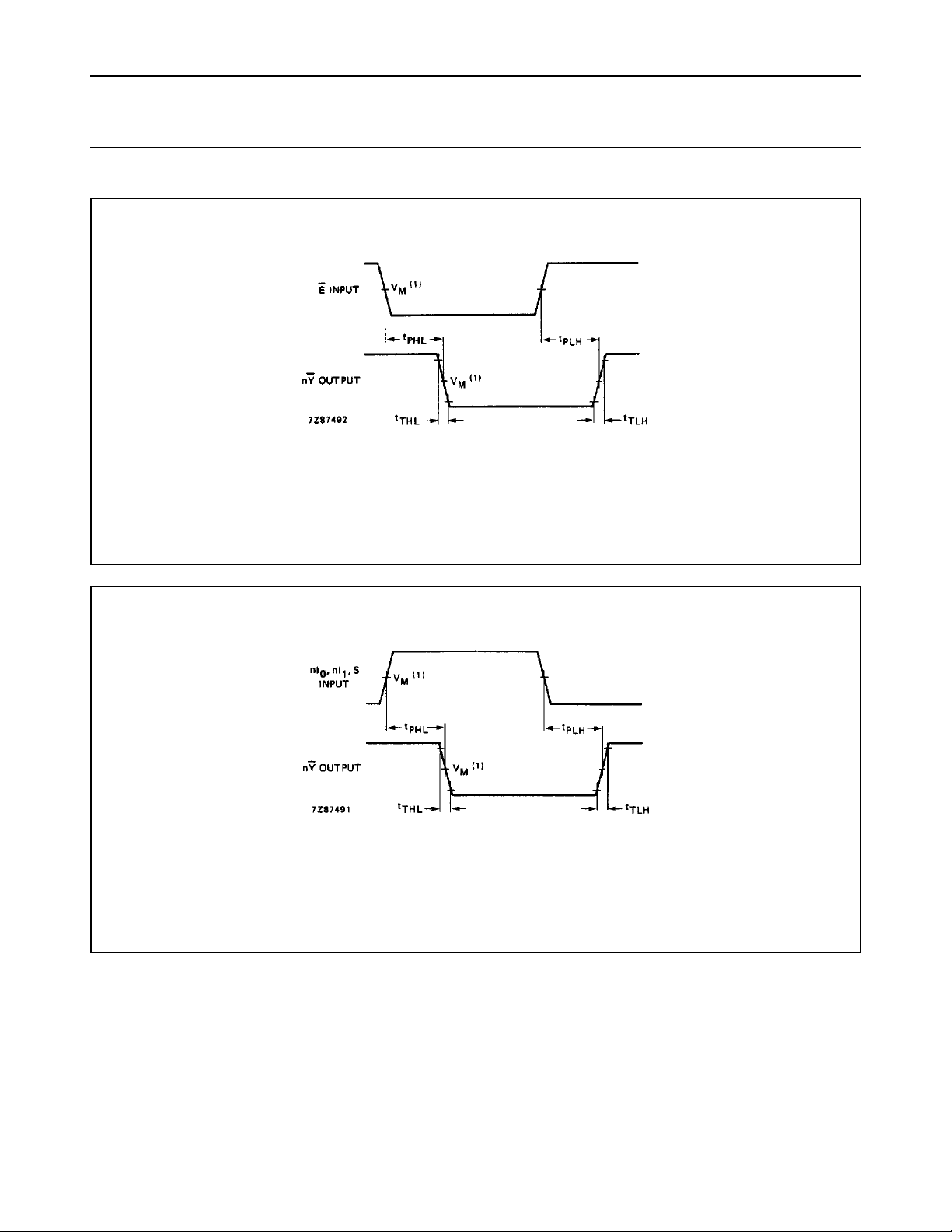

Fig.6 Waveforms showing the enable input (E) to output (nY) propagation delays and the output transition times.
(1) HC : VM= 50%; VI= GND to VCC.
= 1.3 V; VI= GND to 3 V.
HCT: V
M
Fig.7 Waveforms showing the data input (nI0, nI1) to output (nY) propagation delays and the output transition
times.
PACKAGE OUTLINES
See
“74HC/HCT/HCU/HCMOS Logic Package Outlines”
.
December 1990 7
