74HC/HCT11
Triple 3-input AND gate
Product specification
File under Integrated Circuits, IC06
December 1990
Page 2
Philips Semiconductors Product specification
Triple 3-input AND gate 74HC/HCT11
FEATURES
• Output capability: standard
• ICC category: SSI
GENERAL DESCRIPTION
The 74HC/HCT11 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL).
They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT11 provide the 3-input AND function.
QUICK REFERENCE DATA
GND = 0 V; T
= 25 °C; tr= tf= 6 ns
amb
SYMBOL PARAMETER CONDITIONS
t
PHL
C
C
I
PD
/ t
PLH
propagation delay nA, nB, nC to nY CL= 15 pF; VCC= 5 V 10 11 ns
input capacitance 3.5 3.5 pF
power dissipation capacitance per gate notes 1 and 2 18 20 pF
Notes
1. C
is used to determine the dynamic power dissipation (PDin µW):
PD
PD= CPD× V
2
× fi+ ∑ (CL× V
CC
2
× fo) where:
CC
fi= input frequency in MHz
fo= output frequency in MHz
CL= output load capacitance in pF
VCC= supply voltage in V
∑ (CL× V
2. For HC the condition is VI= GND to V
2
× fo) = sum of outputs
CC
CC
For HCT the condition is VI= GND to VCC− 1.5 V
ORDERING INFORMATION
“74HC/HCT/HCU/HCMOS Logic Package Information”
See
.
TYPICAL
UNIT
HC HCT
December 1990 2
Page 3
Philips Semiconductors Product specification
Triple 3-input AND gate 74HC/HCT11
PIN DESCRIPTION
PIN NO. SYMBOL NAME AND FUNCTION
1, 3, 9 1A to 3A data inputs
2, 4, 10 1B to 3B data inputs
7 GND ground (0 V)
12, 6, 8 1Y to 3Y data outputs
13, 5, 11 1C to 3C data inputs
14 V
CC
positive supply voltage

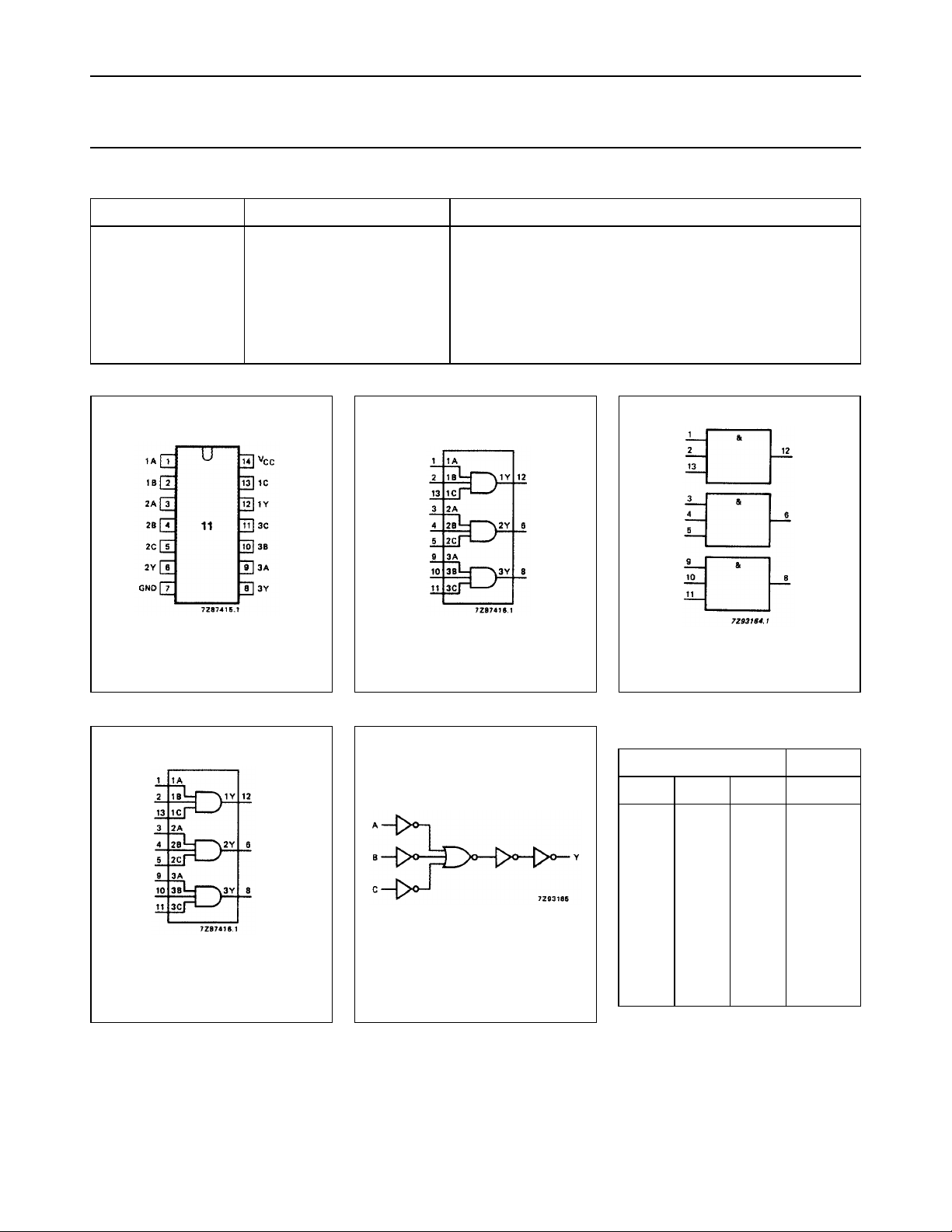

Fig.1 Pin configuration. Fig.2 Logic symbol. Fig.3 IEC logic symbol.
FUNCTION TABLE
INPUTS OUTPUT
nA nB nC nY
LLL L
LLH L
LHL L
LHH L
HLL L
HLH L
HHL L
Fig.4 Functional diagram. Fig.5 Logic diagram (one gate).
HHH H
Notes
1. H = HIGH voltage level
L = LOW voltage level
December 1990 3
Page 4
Philips Semiconductors Product specification
Triple 3-input AND gate 74HC/HCT11
DC CHARACTERISTICS FOR 74HC
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
Output capability: standard
ICCcategory: SSI
AC CHARACTERISTICS FOR 74HC
GND = 0 V; t
= tf= 6 ns; CL= 50 pF
r
SYMBOL PARAMETER
min. typ. max. min. max. min. max.
t
PHL
/ t
propagation delay
PLH
nA, nB, nC to nY
t
THL
/ t
output transition
TLH
times
.
T
amb
(°C)
TEST CONDITIONS
74HC
UNIT
V
(V)
CC
WAVEFORMS+25 −40 to +85 −40 to +125
32 100 125 150 ns 2.0 Fig.6
12 20 25 30 4.5
10 17 21 26 6.0
19 75 95 110 ns 2.0 Fig.6
7151922 4.5
6131619 6.0
December 1990 4
Page 5
Philips Semiconductors Product specification
Triple 3-input AND gate 74HC/HCT11
DC CHARACTERISTICS FOR 74HCT
For the DC characteristics see
“74HC/HCT/HCU/HCMOS Logic Family Specifications”
.
Output capability: standard
ICCcategory: SSI
Note to HCT types
The value of additional quiescent supply current (∆ICC) for a unit load of 1 is given in the family specifications.
‘To determine ∆I
per input, multiply this value by the unit load coefficient shown in the table below.
CC
INPUT UNIT LOAD COEFFICIENT
nA, nB, nC 1.00
AC CHARACTERISTICS FOR 74HCT
GND = 0 V; t
= tf= 6 ns; CL= 50 pF
r
T
amb
(°C)
TEST CONDITIONS
74HCT
SYMBOL PARAMETER
UNIT
V
(V)
CC
WAVEFORMS+25 −40 to +85 −40 to +125
min. typ. max. min. max. min. max.
t
PHL
/ t
propagation delay
PLH
16 24 30 36 ns 4.5 Fig.6
nA, nB, nC to nY
t
THL
/ t
output transition
TLH
7 15 19 22 ns 4.5 Fig.6
times
AC WAVEFORMS
(1) HC : VM= 50%; VI= GND to V
HCT: VM= 1.3 V; VI= GND to 3 V.
CC
Fig.6 Waveforms showing the input (nA, nB, nC) to output (nY) propagation delays and the output transition
times.
PACKAGE OUTLINES
“74HC/HCT/HCU/HCMOS Logic Package Outlines”
See
.
December 1990 5
