Philips Semiconductors

Product specification

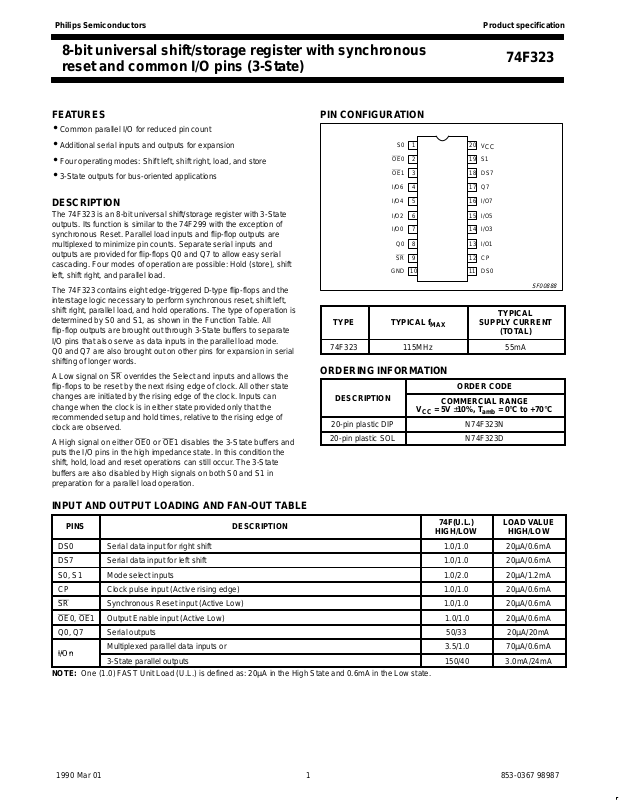

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1

1990 Mar 01 853-0367 98987

FEATURES

•Common parallel I/O for reduced pin count

•Additional serial inputs and outputs for expansion

•Four operating modes: Shift left, shift right, load, and store

•3-State outputs for bus-oriented applications

DESCRIPTION

The 74F323 is an 8-bit universal shift/storage register with 3-State outputs. Its function is similar to the 74F299 with the exception of synchronous Reset. Parallel load inputs and flip-flop outputs are multiplexed to minimize pin counts. Separate serial inputs and outputs are provided for flip-flops Q0 and Q7 to allow easy serial cascading. Four modes of operation are possible: Hold (store), shift left, shift right, and parallel load.

The 74F323 contains eight edge-triggered D-type flip-flops and the interstage logic necessary to perform synchronous reset, shift left, shift right, parallel load, and hold operations. The type of operation is determined by S0 and S1, as shown in the Function Table. All flip-flop outputs are brought out through 3-State buffers to separate I/O pins that also serve as data inputs in the parallel load mode. Q0 and Q7 are also brought out on other pins for expansion in serial shifting of longer words.

A Low signal on SR

overrides the Select and inputs and allows the flip-flops to be reset by the next rising edge of clock. All other state changes are initiated by the rising edge of the clock. Inputs can change when the clock is in either state provided only that the recommended setup and hold times, relative to the rising edge of clock are observed.

A High signal on either OE

0 or OE1 disables the 3-State buffers and puts the I/O pins in the high impedance state. In this condition the shift, hold, load and reset operations can still occur. The 3-State buffers are also disabled by High signals on both S0 and S1 in preparation for a parallel load operation.

PIN CONFIGURATION

20 19 18 17 16 15 14 13 12

10 11

9

8

7

6

5

4

3

2

1

V

CC

S1 DS7 Q7 I/O7 I/O5 I/O3 I/O1

DS0

S0

I/O6 I/O4 I/O2 I/O0

Q0

OE

0

OE

1

SR

GND

CP

SF00888

TYPE TYPICAL f

MAX

TYPICAL

SUPPLY CURRENT

(TOTAL)

74F323 115MHz 55mA

ORDERING INFORMATION

ORDER CODE

DESCRIPTION

COMMERCIAL RANGE

VCC = 5V ±10%, T

amb

= 0°C to +70°C

20-pin plastic DIP N74F323N

20-pin plastic SOL N74F323D

INPUT AND OUTPUT LOADING AND FAN-OUT TABLE

PINS DESCRIPTION

74F(U.L.)

HIGH/LOW

LOAD VALUE

HIGH/LOW

DS0 Serial data input for right shift 1.0/1.0 20µA/0.6mA DS7 Serial data input for left shift 1.0/1.0 20µA/0.6mA S0, S1 Mode select inputs 1.0/2.0 20µA/1.2mA CP Clock pulse input (Active rising edge) 1.0/1.0 20µA/0.6mA SR Synchronous Reset input (Active Low) 1.0/1.0 20µA/0.6mA OE0, OE1 Output Enable input (Active Low) 1.0/1.0 20µA/0.6mA Q0, Q7 Serial outputs 50/33 20µA/20mA

Multiplexed parallel data inputs or 3.5/1.0 70µA/0.6mA

I/On

3-State parallel outputs 150/40 3.0mA/24mA

NOTE: One (1.0) FAST Unit Load (U.L.) is defined as: 20µA in the High State and 0.6mA in the Low state.

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

2

LOGIC SYMBOL

11 18

7 13 6 14 5 15 4 16

1 19 12

9

2

3

Q0 Q7

DS0 DS7

I/O0 I/O2 I/O4 I/O6I/O1 I/O3 I/O5 I/O7

S0 S1 CP

OE0 OE1

SR

V

CC

= Pin 20

GND = Pin 10

8 17

SF00889

LOGIC SYMBOL (IEEE/IEC)

SF00890

&

3

EN13

C4/1→ /2←

9

4R

11

7

6

14

5

15

4

3

12

19

17

8

SRG8

1, 4D

2

1

0 3

M

0 1

3, 4D

5, 13

13

3, 4D

6, 13

3, 4D

12, 13

2, 4D

16

18

Z5

Z6Z6

Z12

FUNCTION TABLE

INPUTS

OEn SR S1 S0 CP

OPERATING MODE

L L X X ↑ Synchronous Reset; Q0 - Q7 = Low L H H H ↑ Parallel load; I/On → Qn L H L H ↑ Shift right; DS0 → Q0, Q0 → Q1, etc. L H H L ↑ Shift left; DS7 → Q7, Q7 → Q6, etc. L H L L X Hold

H X X X X Outputs disabled (3-state)

H = High voltage level L = Low voltage level X = Don’t care ↑ = Low-to-High clock transition

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

3

LOGIC DIAGRAM

Q

Q7

I/O7

S0

D

CP

Q

I/O6

D

CP

Q

I/O5

D

CP

Q

I/O4

D

CP

Q

I/O3

D

CP

Q

I/O2

D

CP

Q

I/O1

D

CP

Q

I/O0

D

CP

Q0

CP

DS0

S1

OE1

OE

0

DS7

SF00883

18

2 3

19

1

11

12

VCC = Pin 20 GND = Pin 10

17

16

4

15

5

14

6

13

7

8

SR

9

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

4

ABSOLUTE MAXIMUM RATINGS

(Operation beyond the limits set forth in this table may impair the useful life of the device. Unless otherwise noted these limits are over the operating free-air temperature range.)

SYMBOL

PARAMETER RATING UNIT

V

CC

Supply voltage –0.5 to +7.0 V

V

IN

Input voltage –0.5 to +7.0 V

I

IN

Input current –30 to +5 mA

V

OUT

Voltage applied to output in High output state –0.5 to +5.5 V

Q0, Q7 40 mA

I

OUT

Current applied to output in Low output state

I/On 48 mA

T

amb

Operating free-air temperature range 0 to +70 °C

T

stg

Storage temperature –65 to +150 °C

RECOMMENDED OPERATING CONDITIONS

SYMBOL PARAMETER LIMITS UNIT

MIN NOM MAX

V

CC

Supply voltage 4.5 5.0 5.5 V

V

IH

High-level input voltage 2.0 V

V

IL

Low-level input voltage 0.8 V

I

IK

Input clamp current –18 mA

Q0, Q7 –1 mA

IOHHigh-level output current

I/On –3 mA

Q0, Q7 20 mA

IOLLow-level output current

I/On 24 mA

T

amb

Operating free-air temperature range 0 70 °C

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

5

DC ELECTRICAL CHARACTERISTICS

(Over recommended operating free-air temperature range unless otherwise noted.)

LIMITS

SYMBOL

PARAMETER

TEST CONDITIONS

1

MIN TYP

2

MAX

UNIT

±10%V

CC

2.5 V

Q0, Q7

IOH = –1mA

±5%V

CC

2.7 3.4 V

VOHHigh-level output voltage

VIL = MAX,

V

IH

= MIN

±10%V

CC

2.5 V

I/On

VIH = MIN

IOH = –3mA

±5%V

CC

2.7 3.4 V

±10%V

CC

0.35 0.50 V

VOLLow-level output voltage

VIL = MAX,

VIH = MIN

IOL = MAX

±5%V

CC

0.35 0.50 V

V

IK

Input clamp voltage VCC = MIN, II = I

IK

–0.73 –1.2 V

Input current at

others VCC = MAX, VI = 7.0V 100 µA

I

Input current at maximum input voltage

I/On VCC = 5.5V, VI = 5.5V 1 mA

I

IH

High-level input current

except I/On

VCC = MAX, VI = 2.7V 20 µA

S0, S1

–1.2 mA

IILLow-level input current

others

VCC = MAX, VI = 0.5V

–0.6 mA

I

IH +

I

OZH

Off-state output current, High-level voltage applied

VCC = MAX, VO = 2.7V 70 µA

I

IL +

I

OZL

Off-state output current Low-level voltage applied

only

VCC = MAX, VO = 0.5V –0.6 mA

I

OS

Short-circuit output current

3

VCC = MAX –60 –150 mA

I

CCH

55 75 mA

I

CC

Supply current (total) I

CCL

65 90 mA

I

CCZ

CC

= MAX

55 85 mA

NOTES:

1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.

2. All typical values are at V

CC

= 5V, T

amb

=+ 25°C.

3. Not more than one output should be shorted at a time. For testing I

OS

, the use of high-speed test apparatus and/or sample-and-hold techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any sequence of parameter tests, I

OS

tests should be performed last.

VCC = MIN,

I/On

VCC = MAX

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

6

AC ELECTRICAL CHARACTERISTICS

LIMITS

T

amb

= +25°C T

amb

= 0°C to +70°C

SYMBOL

PARAMETER

TEST CONDITIONS

VCC = +5.0V VCC = +5.0V ± 10%

UNIT

CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω

MIN TYP MAX MIN MAX

I/O

70 100 70 MHz

f

MAX

Maximum clock frequency

Qn

Waveform 1

85 115 85 MHz

t

PLH

t

PHL

Propagation delay CP to Q0 or Q7

Waveform 1

4.0

3.5

6.0

8.5

3.5

4.5

9.5

ns ns

t

PLH

t

PHL

Propagation delay CP to I/On

Waveform 1

4.0

5.0

6.0

6.5

9.0

9.5

4.0

10.0

ns ns

t

PZH

t

PZL

Output Enable time Sn, OE to I/On

Waveform 3 Waveform 4

3.5

4.0

6.0

8.0

9.0

11.0

3.5

4.0

10.0

11.5

ns ns

t

PHZ

t

PLZ

Output Disable time Sn, OE

to I/On

Waveform 3 Waveform 4

2.5

1.5

5.0

3.0

7.5

5.5

2.5

1.5

8.0

6.5

ns ns

AC SETUP REQUIREMENTS

LIMITS

T

amb

= +25°C T

amb

= 0°C to +70°C

SYMBOL

PARAMETER

TEST CONDITIONS

VCC = +5.0V VCC = +5.0V ± 10%

UNIT

CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω

MIN TYP MAX MIN MAX

ts(H) t

s

(L)

Setup time, High or Low S0 or S1 to CP

Waveform 2

6.5

7.5

ns

th(H) t

h

(L)

Hold time, High or Low S0 or S1 to CP

Waveform 2

0 0

ns

ts(H) t

s

(L)

Setup time, High or Low I/O0, DS0 or DS7 to CP

Waveform 2

3.5

4.0

ns

th(H) th(L)

Hold time, High or Low I/O0, DS0 or DS7 to CP

Waveform 2

0 0

ns

ts(H) t

s

(L)

Setup time, High or Low SR

to CP

Waveform 2

7.0

8.5

ns

th(H) th(L)

Hold time, High or Low SR to CP

Waveform 2

0 0

ns

tw(H) t

w

(L)

CP Pulse width, High or Low Waveform 1

3.5

4.0

ns

Philips Semiconductors Product specification

74F323

8-bit universal shift/storage register with synchronous reset and common I/O pins (3-State)

1990 Mar 01

7

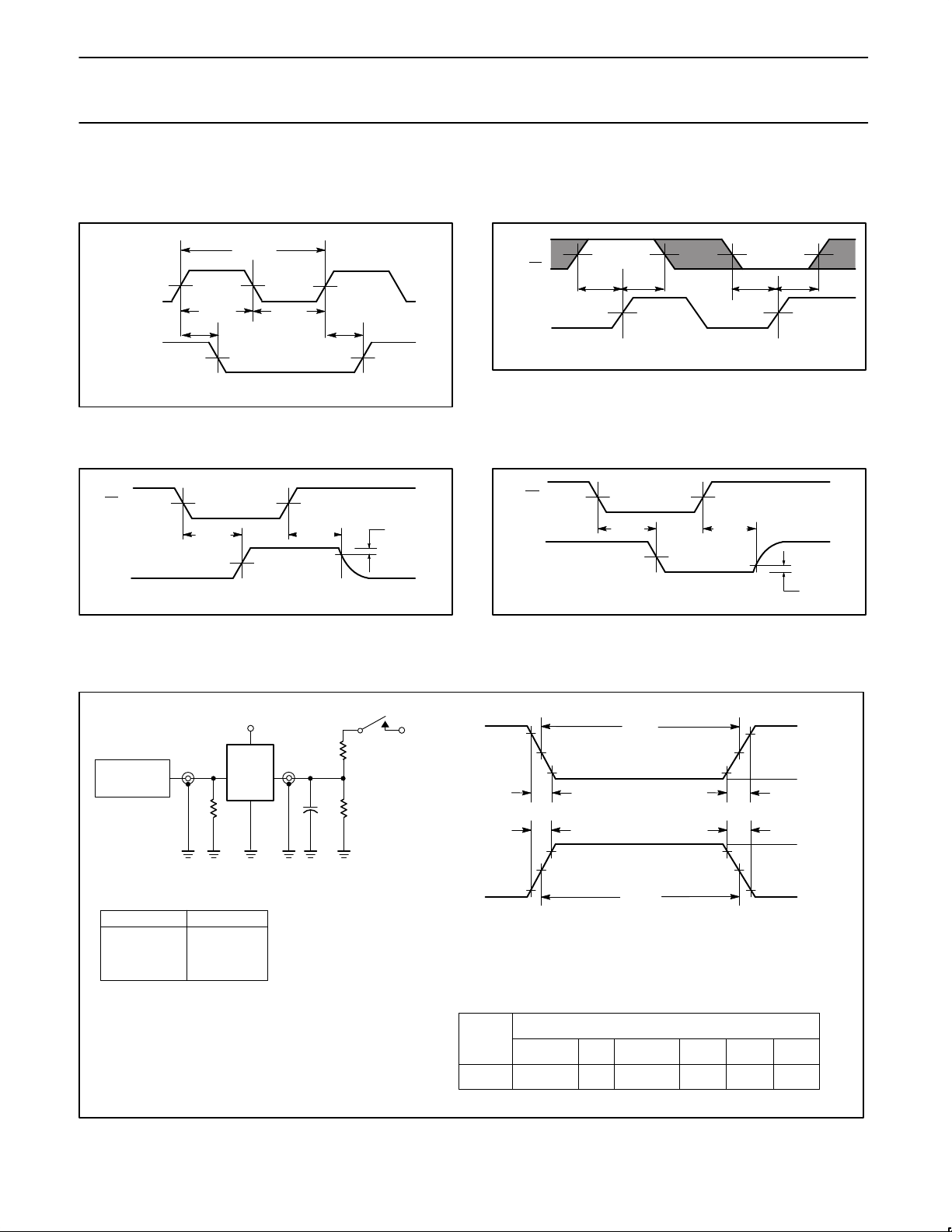

AC WAVEFORMS

For all waveforms, VM = 1.5V The shaded areas indicate when the input is permitted to change for predictable output performance.

t

PLH

t

PHL

V

M

V

M

V

M

V

M

1/f

MAX

tW(L)

CP

Q0, Q7, I/On

tW(H)

SF00884

Waveform 1. Propagation Delay, Clock Input to Output,

Clock Pulse Width, and Maximum Clock Frequency

VMV

M

VMV

M

V

M

V

M

S0, S1,

DS

L

, DSR,

I/On, SR

CP

SF00885

ts(H) th(H) th(L)ts(L)

V

M

V

M

V

M

t

PHZ

t

PZH

Sn, OEn

I/On

VOH -0.3V

0V

SF00886

V

M

V

M

V

M

t

PLZ

t

PZL

Sn, OEn

I/On

V

OL

+0.3V

SF00887

t

w

90%

V

M

10%

90%

V

M

10%

90%

V

M

10%

90%

V

M

10%

NEGATIVE PULSE

POSITIVE PULSE

t

w

AMP (V)

0V

t

THL (tf

)

INPUT PULSE REQUIREMENTS

rep. rate

t

w

t

TLH

t

THL

1MHz 500ns

2.5ns 2.5ns

Input Pulse Definition

V

CC

family

74F

D.U.T.

PULSE

GENERATOR

R

L

C

L

R

T

V

IN

V

OUT

Test Circuit for 3-State Outputs

DEFINITIONS:

R

L

= Load resistor;

see AC electrical characteristics for value.

CL= Load capacitance includes jig and probe capacitance;

see AC electrical characteristics for value.

R

T

= Termination resistance should be equal to Z

OUT

of

pulse generators.

t

THL (tf

)

t

TLH (tr

)

t

TLH (tr

)

AMP (V)

amplitude

3.0V 1.5V

V

M

R

L

7.0V

SF00777

TEST SWITCH

t

PLZ

closed

t

PZL

closed

All other open

SWITCH POSITION

Waveform 2. Data, Select and Reset Setup and Hold Times

Waveform 3. 3-State Output Enable Time to High Level

and Output Disable Time from High Level

TEST CIRCUIT AND WAVEFORM

Waveform 4. 3-State Output Enable Time to Low Level and

Output Disable Time from Low Level
