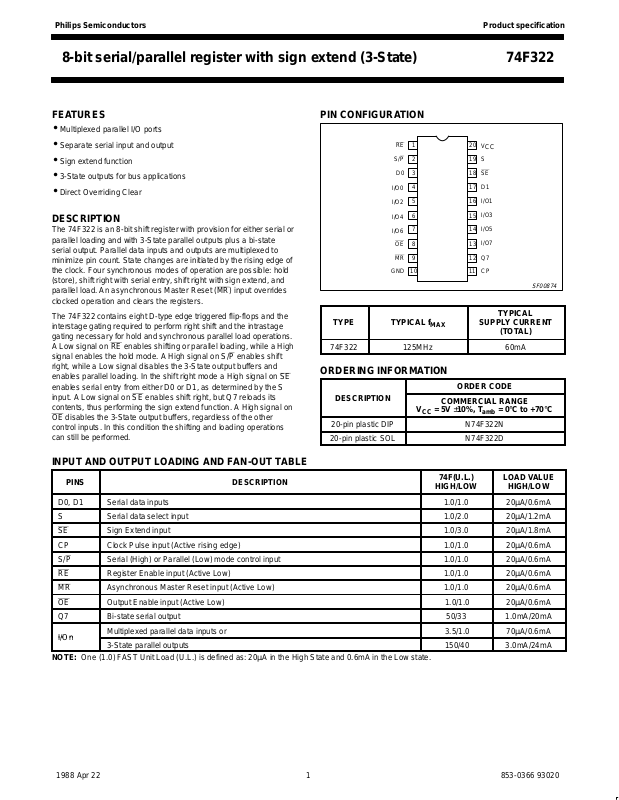

Datasheet 74f322 DATASHEETS (Philips)

Philips Semiconductors

Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1

1988 Apr 22 853-0366 93020

FEATURES

•Multiplexed parallel I/O ports

•Separate serial input and output

•Sign extend function

•3-State outputs for bus applications

•Direct Overriding Clear

DESCRIPTION

The 74F322 is an 8-bit shift register with provision for either serial or
parallel loading and with 3-State parallel outputs plus a bi-state
serial output. Parallel data inputs and outputs are multiplexed to
minimize pin count. State changes are initiated by the rising edge of
the clock. Four synchronous modes of operation are possible: hold
(store), shift right with serial entry, shift right with sign extend, and
parallel load. An asynchronous Master Reset (MR

) input overrides

clocked operation and clears the registers.
The 74F322 contains eight D-type edge triggered flip-flops and the

interstage gating required to perform right shift and the intrastage
gating necessary for hold and synchronous parallel load operations.
A Low signal on RE

enables shifting or parallel loading, while a High

signal enables the hold mode. A High signal on S/P

enables shift
right, while a Low signal disables the 3-State output buffers and
enables parallel loading. In the shift right mode a High signal on SE
enables serial entry from either D0 or D1, as determined by the S
input. A Low signal on SE

enables shift right, but Q7 reloads its
contents, thus performing the sign extend function. A High signal on
OE

disables the 3-State output buffers, regardless of the other
control inputs. In this condition the shifting and loading operations
can still be performed.

PIN CONFIGURATION

20
19
18
17
16
15
14
13
12

10 11

9

8

7

6

5

4

3

2

1

V

CC

S
SE
D1

I/O7

I/O5

I/O3

I/O1

CP

RE

I/O6

I/O4

I/O2

I/O0

OE

S/P

D0

MR

GND

Q7

SF00874

TYPE TYPICAL f

MAX

TYPICAL

SUPPLY CURRENT

(TOTAL)

74F322 125MHz 60mA

ORDERING INFORMATION

ORDER CODE

DESCRIPTION

COMMERCIAL RANGE

VCC = 5V ±10%, T

amb

= 0°C to +70°C

20-pin plastic DIP N74F322N

20-pin plastic SOL N74F322D

INPUT AND OUTPUT LOADING AND FAN-OUT TABLE

PINS DESCRIPTION

74F(U.L.)

HIGH/LOW

LOAD VALUE

HIGH/LOW

D0, D1 Serial data inputs 1.0/1.0 20µA/0.6mA
S Serial data select input 1.0/2.0 20µA/1.2mA
SE Sign Extend input 1.0/3.0 20µA/1.8mA
CP Clock Pulse input (Active rising edge) 1.0/1.0 20µA/0.6mA
S/P Serial (High) or Parallel (Low) mode control input 1.0/1.0 20µA/0.6mA
RE Register Enable input (Active Low) 1.0/1.0 20µA/0.6mA
MR Asynchronous Master Reset input (Active Low) 1.0/1.0 20µA/0.6mA
OE Output Enable input (Active Low) 1.0/1.0 20µA/0.6mA
Q7 Bi-state serial output 50/33 1.0mA/20mA

Multiplexed parallel data inputs or 3.5/1.0 70µA/0.6mA

I/On

3-State parallel outputs 150/40 3.0mA/24mA

NOTE: One (1.0) FAST Unit Load (U.L.) is defined as: 20µA in the High State and 0.6mA in the Low state.

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

2

LOGIC SYMBOL

3 17

4 16 5 15 6 14 7 13

19

1

2
18
11

8

Q7

D0 D1

I/O0 I/O2 I/O4 I/O6I/O1 I/O3 I/O5 I/O7

S
RE

S/P

CP
OE

SE

VCC = Pin 20
GND = Pin 10

12

SF00875

9

MR

LOGIC SYMBOL (IEEE/IEC)

SF00876

2EN15

C6/1 →

9

R

18

16

5

15

6

14

1

11

12

SRG8

G4

8

2

8, 4

, 1, 6D

19

2, 6D

12, 13

7

13

Z7

Z14

G3
3M1[SHIFT]

3M2[PAR LOAD]

2, 96D

8, 15

Z8

G5

8, 5

, 1, 6D
8, 4, 1, 6D
2, 6D

7, 15

4

3

17

FUNCTION TABLE

INPUTS INPUTS

OPERATING

MR RE S/P SE S OE* CP I/O0 I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7 Q7

OPERATING

MODE

L
L

H
X

X
H

X
X

X
X

L
L

X
X

L
L

L
L

L
L

L
L

L
L

L
L

L
L

L
L

LLClear

H L L X X X ↑ I0 I1 I2 I3 I4 I5 I6 I7 I7 Parallel load
H

H

L
L

H
H

H
H

L
H

L
L

↑↑D0D1O0O0O1O1O2O2O3O3O4O4O5O5O6O6O6O6Shift right

H L H L X L ↑ O0 O0 O1 O2 O3 O4 O5 O6 O6 Sign extend
H H X X X L X NC NC NC NC NC NC NC NC NC Hold
X

X

L

X

L
X

X
X

X
X

X

H

X

↑

Z
Z

Z
Z

Z
Z

Z
Z

Z
Z

Z
Z

Z
Z

ZZNCNC3-State

* = When the input is High, all I/O terminals are at the high impedance state, sequential operation or clearing of the register is not

affected.
H = High voltage level
L = Low voltage level
NC = No change
X = Don’t care
Z = High impedance “off” state
↑ = Low-to-High clock transition
I0–I7 = The level of the steady state input at the respective I/O terminal is loaded into the flip-flop while the flip-flop outputs (except Q7) are

isolated from the I/O terminal.
D0–D7 = The level of the steady state inputs to the serial multiplexer input.
O0–O7= The level of the respective Qn flip-flop prior to the last clock Low-to-High transition.

↑

= Not a Low-to-High clock transition

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

3

LOGIC DIAGRAM

R

Q

I/O0

D1

D

CP

MR

CP

S/P

RE

OE

SF00877

11

9

V

CC

= Pin 20

GND = Pin 10

Q

R

Q

I/O1

D

CP

Q

R

Q

I/O2

D

CP Q

R

Q

I/O3

D

CP

Q

R

Q

I/O4

D

CP

Q

R

Q

I/O5

D

CP

Q

R

Q

I/O6

D

CP

Q

R

Q

Q7

I/O7

D

CP

Q

S

D0

SE

8

1

2

17

19

3

18

4

16

5

15

6

14

7

12

13

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

4

ABSOLUTE MAXIMUM RATINGS

(Operation beyond the limits set forth in this table may impair the useful life of the device. Unless otherwise noted these limits are over the
operating free-air temperature range.)

SYMBOL

PARAMETER RATING UNIT

V

CC

Supply voltage –0.5 to +7.0 V

V

IN

Input voltage –0.5 to +7.0 V

I

IN

Input current –30 to +5 mA

V

OUT

Voltage applied to output in High output state –0.5 to +5.5 V

Q7 40 mA

I

OUT

Current applied to output in Low output state

I/On 48 mA

T

amb

Operating free-air temperature range 0 to +70 °C

T

stg

Storage temperature –65 to +150 °C

RECOMMENDED OPERATING CONDITIONS

SYMBOL PARAMETER LIMITS UNIT

MIN NOM MAX

V

CC

Supply voltage 4.5 5.0 5.5 V

V

IH

High-level input voltage 2.0 V

V

IL

Low-level input voltage 0.8 V

I

IK

Input clamp current –18 mA

Q7 –1 mA

IOHHigh-level output current

I/On –3 mA

Q7 20 mA

IOLLow-level output current

I/On 24 mA

T

amb

Operating free-air temperature range 0 70 °C

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

5

DC ELECTRICAL CHARACTERISTICS

(Over recommended operating free-air temperature range unless otherwise noted.)

LIMITS

SYMBOL

PARAMETER

TEST CONDITIONS

1

MIN TYP

2

MAX

UNIT

±10%V

CC

2.5 V

Q7

IOH = –1mA

±5%V

CC

2.7 3.4 V

VOHHigh-level output voltage

VIL = MAX,

V

IH

= MIN

±10%V

CC

2.4 V

I/On

VIH = MIN

IOH = –3mA

±5%V

CC

2.7 3.3 V

±10%V

CC

0.38 0.55 V

VOLLow-level output voltage

VIL = MAX,

VIH = MIN

IOL = MAX

±5%V

CC

0.35 0.50 V

V

IK

Input clamp voltage VCC = MIN, II = I

IK

–0.73 –1.2 V

I

I

Input current at

others VCC = MAX, VI = 7.0V 100 µA

Input current at
maximum input voltage

I/On VCC = MAX, VI = 5.5V 1 mA

I

IH

High-level input current VCC = MAX, VI = 2.7V 20 µA

SE

–1.8 mA

S

–1.2 mA

IL

others

CC

= MAX, VI = 0.5V

–0.6 mA

I

IH +

I

OZH

Off-state output current
High-level voltage applied

VCC = MAX, VI = 2.7V 70 µA

I

IL +

I

OZL

Off-state output current
Low-level voltage applied

VCC = MAX, VI = 0.5V –0.6 mA

I

OS

Short-circuit output current

3

VCC = MAX –60 –150 mA

I

CCH

50 75 mA

I

CC

Supply current (total) I

CCL

60 90 mA

I

CCZ

CC

= MAX

65 95 mA

NOTES:

1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.

2. All typical values are at V

CC

= 5V, T

amb

= 25°C.

3. Not more than one output should be shorted at a time. For testing I

OS

, the use of high-speed test apparatus and/or sample-and-hold
techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting
of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I

OS

tests should be performed last.

VCC = MIN,

VCC = MIN,

I

IL

Low-level input current

VCC = MAX, VI = 0.5V

VCC = MAX

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

6

AC ELECTRICAL CHARACTERISTICS

LIMITS

T

amb

= +25°C T

amb

= 0°C to +70°C

SYMBOL

PARAMETER

TEST CONDITIONS

VCC = +5.0V VCC = +5.0V ± 10%

UNIT

CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω

MIN TYP MAX MIN MAX

f

MAX

Maximum clock frequency Waveform 1 110 125 90 MHz

t

PLH

t

PHL

Propagation delay
CP to I/On

Waveform 1

4.0

4.5

6.0

7.0

9.0

9.5

4.0

4.5

10.0

10.0

ns
ns

t

PLH

t

PHL

Propagation delay
CP to Q7

Waveform 1

4.5

5.0

6.5

6.5

9.0

9.0

4.5

5.0

10.0

9.0

ns
ns

t

PHL

Propagation delay
MR

to I/On

Waveform 2 5.0 6.5 9.5 4.5 10.0 ns

t

PHL

Propagation delay
MR

to Q7

Waveform 2 5.0 6.5 9.5 4.5 10.0 ns

t

PZH

t

PZL

Output Enable time
OE

to I/On

Waveform 4
Waveform 5

3.0

5.5

5.0

7.5

8.0

10.5

3.0

5.0

9.0

11.0

ns
ns

t

PHZ

t

PLZ

Output Disable time
OE

to I/On

Waveform 4
Waveform 5

2.0

1.0

4.0

2.5

6.5

5.5

2.0

1.0

7.5

6.0

ns
ns

t

PZH

t

PZL

Output Disable time
S/P

to I/On

Waveform 4
Waveform 5

4.0

6.0

6.0

8.0

9.0

11.0

3.5

5.5

10.0

11.5

ns
ns

t

PHZ

t

PLZ

Output Disable time
S/P

to I/On

Waveform 4
Waveform 5

4.0

2.0

6.0

4.0

9.0

7.0

3.5

2.0

10.5

7.5

ns
ns

t

PZH

t

PZL

Output Disable time
RE

to I/On

Waveform 4
Waveform 5

8.0

9.0

9.5

11.0

12.5

14.0

7.0

8.0

14.0

16.0

ns
ns

t

PHZ

t

PLZ

Output Disable time
RE

to I/On

Waveform 4
Waveform 5

6.5

4.5

8.5

6.5

11.5

9.5

5.5

4.0

13.0

10.5

ns
ns

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

7

AC SETUP REQUIREMENTS

LIMITS

T

amb

= +25°C T

amb

= 0°C to +70°C

SYMBOL

PARAMETER

TEST CONDITIONS

VCC = +5.0V VCC = +5.0V ± 10%

UNIT

CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω

MIN TYP MAX MIN MAX

ts(H)
ts(L)

Setup time, High or Low
RE to CP

Waveform 3

8.0

12.5

9.5

14.0

ns
ns

th(H)
t

h

(L)

Hold time, High or Low
RE

to CP

Waveform 3

0
0

0
0

ns
ns

ts(H)
t

s

(L)

Setup time, High or Low
D0, D1 or I/On to CP

Waveform 3

4.0

4.5

6.0

5.0

ns
ns

th(H)
t

h

(L)

Hold time, High or Low
D0, D1 or I/On to CP

Waveform 3

0
0

0
0

ns
ns

ts(H)
t

s

(L)

Setup time, High or Low
SE

to CP

Waveform 3

5.5

5.0

7.0

5.5

ns
ns

th(H)
t

h

(L)

Hold time, High or Low
SE

to CP

Waveform 3

0
0

0
0

ns
ns

ts(H)
t

s

(L)

Setup time, High or Low
S/P

to CP

Waveform 3

10.5

9.5

11.0

10.5

ns
ns

ts(H)
t

s

(L)

Setup time, High or Low
S to CP

Waveform 3

4.0

8.5

4.5

9.5

ns
ns

th(H)
th(L)

Hold time, High or Low
S or S/P to CP

Waveform 3

0
0

0
0

ns
ns

tw(H)
t

w

(L)

CP Pulse width, High or Low Waveform 3

5.0

5.0

5.0

5.0

ns

tw(L) MR Pulse width, Low Waveform 3 5.0 5.0 ns
t

REC

Recovery time, MR to CP Waveform 2 4.0 4.5 ns

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

8

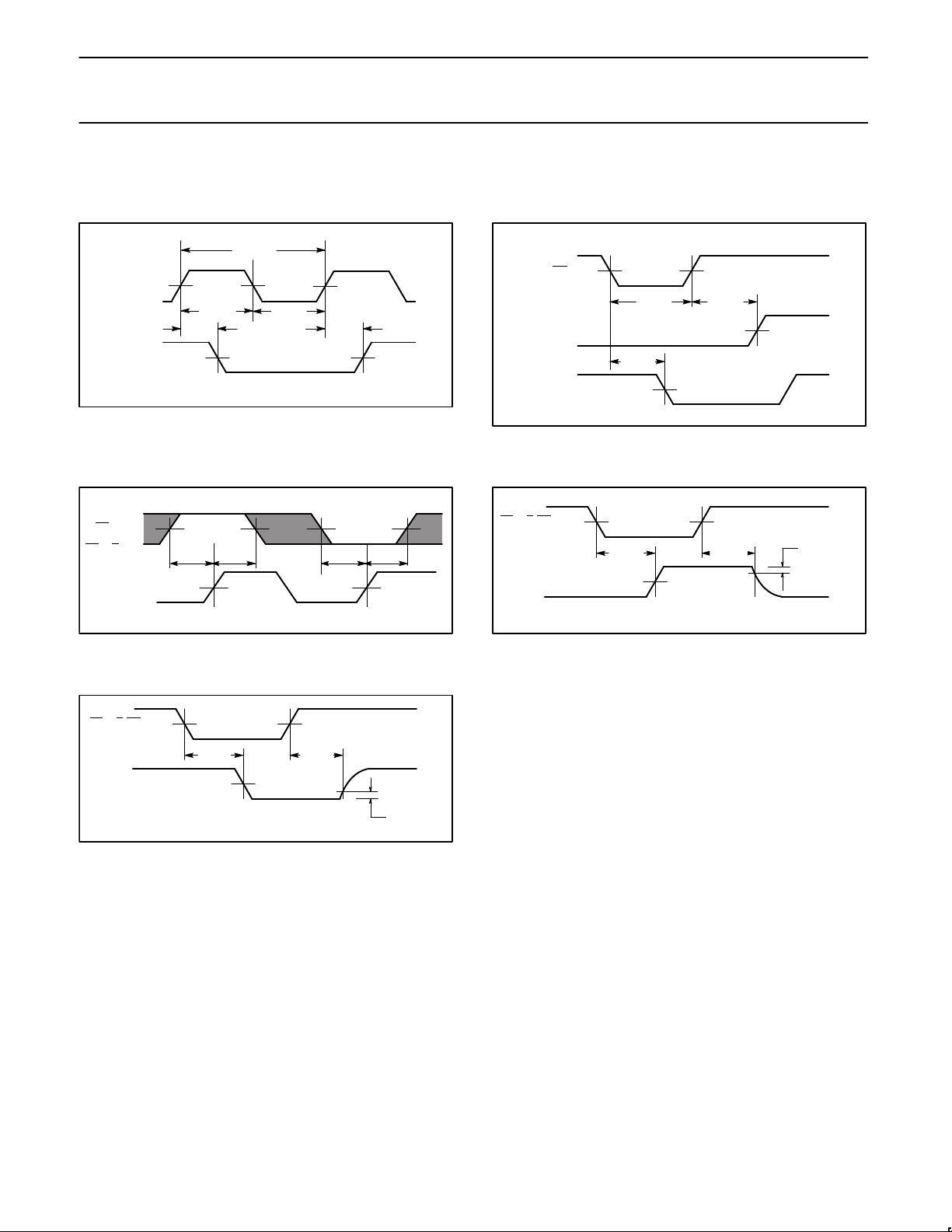

AC WAVEFORMS

For all waveforms, VM = 1.5V
The shaded areas indicate when the input is permitted to change for predictable output performance.

V

M

t

PLH

t

PHL

V

M

V

M

V

M

1/f

MAX

tW(L)

CP

Q7, I/On

tW(H)

SF00878

Waveform 1. Propagation Delay, Clock Input to Output,

Clock Pulse Width, and Maximum Clock Frequency

V

M

V

M

V

M

t

PHL

tW(L) t

REC

V

M

Q7, I/On

CP

MR

SF00879

VMV

M

VMV

M

ts(H) th(H) th(L)ts(L)

V

M

V

M

RE, D0,

D1, I/On,

SE

, S/P, S

CP

SF00880

V

M

V

M

V

M

t

PHZ

t

PZH

RE, S/P, OE

I/On

VOH -0.3V

0V

SF00881

V

M

V

M

V

M

t

PLZ

t

PZL

I/On

V

OL

+0.3V

SF00882

RE, S/P, OE

Waveform 3. Data Setup and Hold Times

Waveform 2. Master Reset Pulse Width, Master Reset to Output

Delay, and Master Reset to Clock Recovery Time

Waveform 4. 3-State Output Enable Time to High Level

and Output Disable Time from High Level

Waveform 5. 3-State Output Enable Time to Low Level and

Output Disable Time from Low Level

Philips Semiconductors Product specification

74F3228-bit serial/parallel register with sign extend (3-State)

1988 Apr 22

9

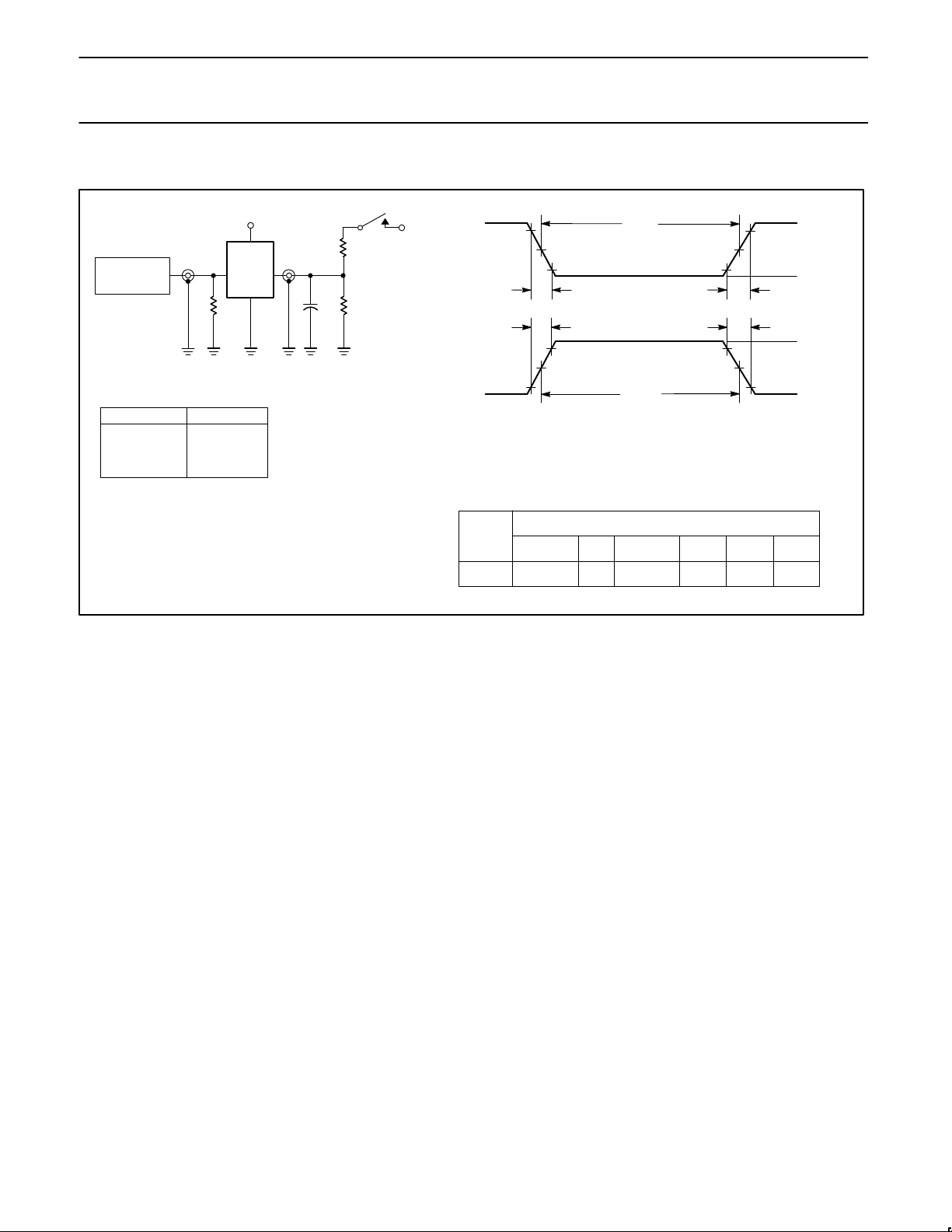

TEST CIRCUIT AND WAVEFORM

t

w

90%

V

M

10%

90%

V

M

10%

90%

V

M

10%

90%

V

M

10%

NEGATIVE
PULSE

POSITIVE
PULSE

t

w

AMP (V)

0V

0V

t

THL (tf

)

INPUT PULSE REQUIREMENTS

rep. rate

t

w

t

TLH

t

THL

1MHz 500ns

2.5ns 2.5ns

Input Pulse Definition

V

CC

family

74F

D.U.T.

PULSE

GENERATOR

R

L

C

L

R

T

V

IN

V

OUT

Test Circuit for 3-State Outputs

DEFINITIONS:

R

L

= Load resistor;

see AC electrical characteristics for value.

CL= Load capacitance includes jig and probe capacitance;

see AC electrical characteristics for value.

R

T

= Termination resistance should be equal to Z

OUT

of

pulse generators.

t

THL (tf

)

t

TLH (tr

)

t

TLH (tr

)

AMP (V)

amplitude

3.0V 1.5V

V

M

R

L

7.0V

SF00777

TEST SWITCH

t

PLZ

closed

t

PZL

closed

All other open

SWITCH POSITION
