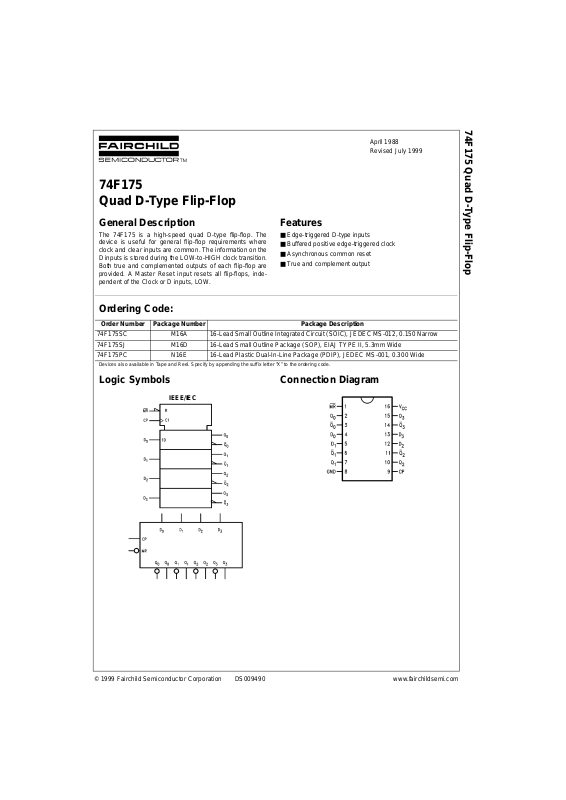

74F175 Quad D-Type Flip-Flop
74F175
Quad D-Type Flip-Flop
General Description
The 74F175 is a high-speed quad D-type flip-flop. The
device is useful for general flip-flop requirements where
clock and clear inputs are common. The information on the
D inputs is stored during the LOW-to-HIGH clock transition.
Both true and comp lemented outputs o f each flip-flop a re
provided. A Master Reset input resets all flip-flops, independent of the Clock or D inputs, LOW.
Features
■ Edge-triggered D-type inputs
■ Buffered positive edge-triggered clock
■ Asynchronous common reset
■ True and complement output
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.

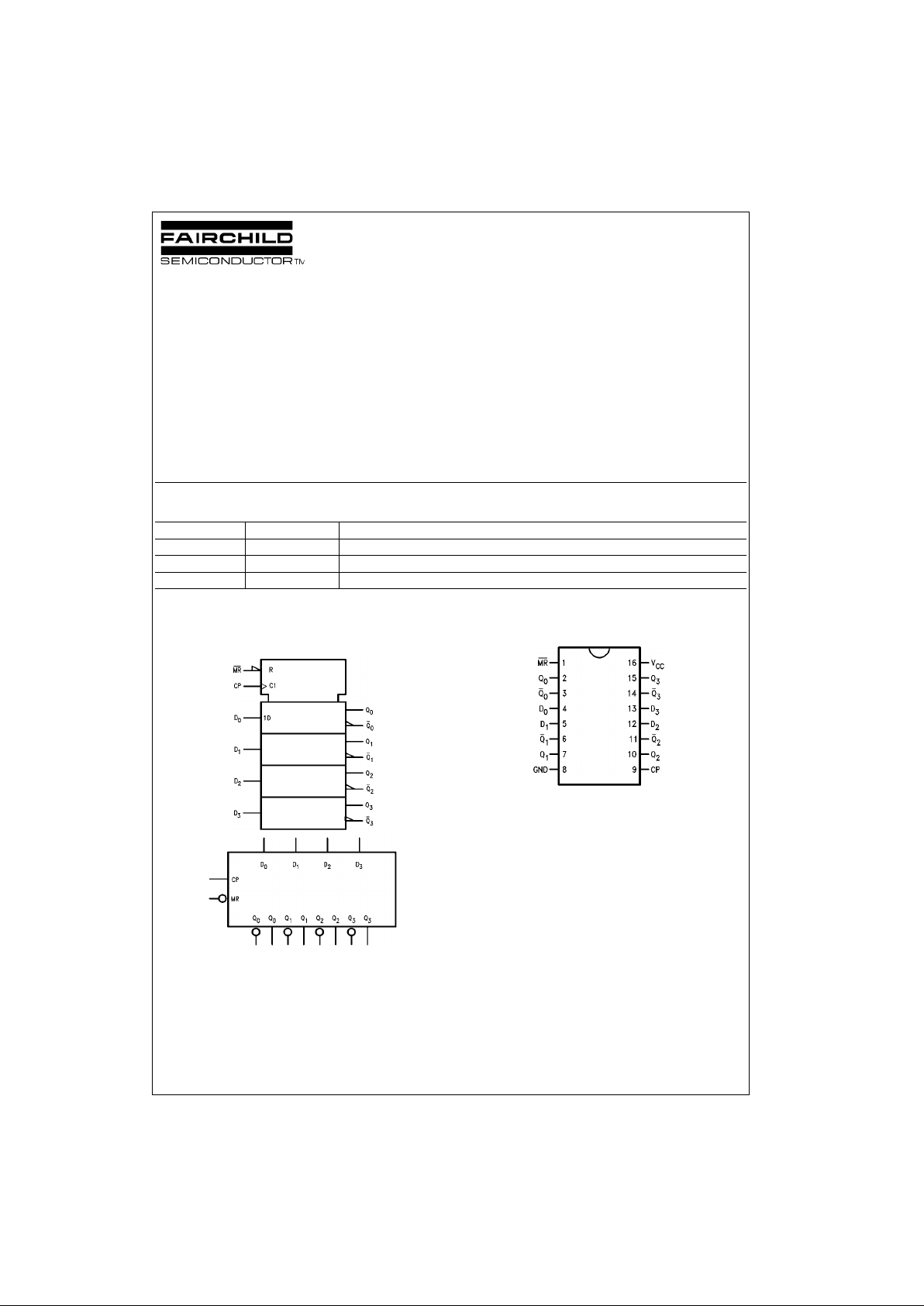

Logic Symbols
IEEE/IEC
Connection Diagram
Order Number Package Number Package Description
74F175SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
74F175SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74F175PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Page 2
www.fairchildsemi.com 2
74F175
Unit Loading/Fan Out
Functional Description
The 74F175 consists of four edge-triggered D-type flipflops with individual D inpu ts and Q and Q
outputs. The
Clock and Master Re set are common. The four f lip-flops
will store the state of their individual D inputs on the L OWto-HIGH clock (CP) transi tion, causing ind ividual Q and Q
outputs to follow. A LOW input on the Master Reset (MR)
will force all Q outputs LOW and Q
outputs HIGH independent of Clock or Data inputs. The 74 F175 is useful for general logic applications w here a comm on Master Res et and
Clock are acceptable.
Tr uth Table
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
= LOW-to-HIGH Clock Transition

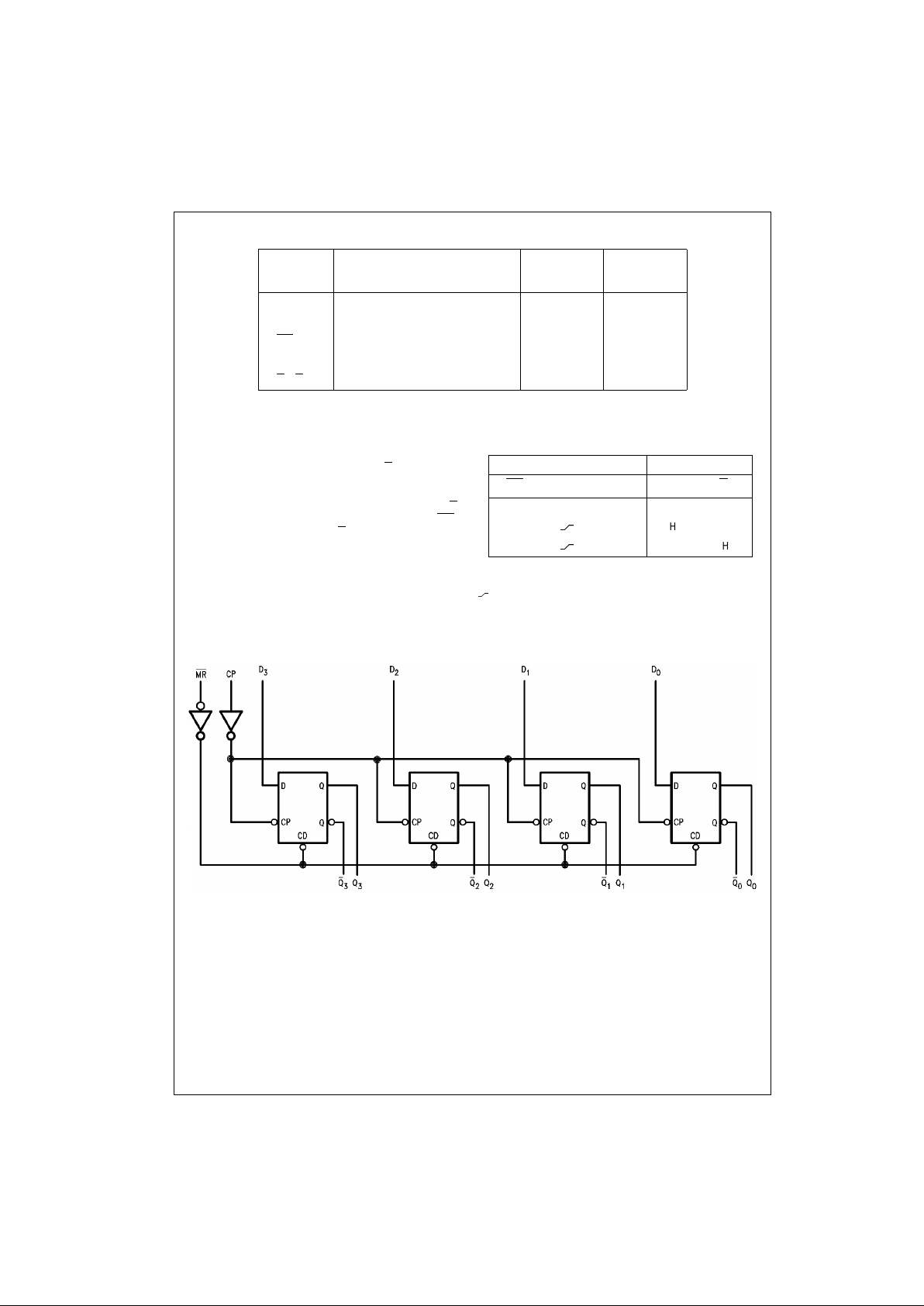

Logic Diagram
Please note that this diagram is provided o nly f or t he understanding of lo gic operations and should not be used to estimate propagation delays.
Pin Names Description
U.L.
Input I
IH/IIL
HIGH/LOW
Output I
OH/IOL
D0–D
3
Data Inputs 1.0/1.0 20 µA/−0.6 mA
CP Clock Pulse Input (Active Rising Edge) 1.0/1.0 20 µA/−0.6 mA
MR
Master Reset Input (Active LOW) 1.0/1.0 20 µA/−0.6 mA
Q
0–Q3
True Outputs 50/33.3 −1 mA/20 mA
Q
0–Q3
Complement Outputs 50/33.3 −1 mA/20 mA
Inputs Outputs
MR
CP D
n
Q
n
Q
n
LXXLH
H
HHL
H
LLH
Page 3
3 www.fairchildsemi.com
74F175
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: Absolute maximum ratings are values beyon d which the device
may be damaged or have its useful life impaired . Functional operation
under these condit ions is not implied.
Note 2: Either voltage limit or curren t limit is sufficient to protect in puts.
DC Electrical Characteristics
Storage Temperature −65°C to +150°C
Ambient Temperature under Bias −55°C to +125°C
Junction Temperature under Bias −55°C to +150°C
V
CC
Pin Potential to Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V
CC
= 0V)
Standard Output −0.5V to V
CC
3-STATE Output −0.5V to +5.5V
Current Applied to Output
in LOW State (Max) twice the rated I
OL
(mA)
Free Air Ambient Temperature 0°C to +70°C
Supply Voltage +4.5V to +5.5V
Symbol Parameter Min Typ Max Units
V
CC
Conditions
V
IH
Input HIGH Voltage 2.0 V Recognized as a HIGH Signal
V
IL
Input LOW Voltage 0.8 V Recognized as a LOW Signal
V
CD
Input Clamp Diode Voltage −1.2 V Min IIN = −18 mA
V
OH
Output HIGH 10% V
CC
2.5
VMin
IOH = −1 mA
Voltage 5% V
CC
2.7 IOH = −1 mA
V
OL
Output LOW 10% V
CC
0.5 V Min IOL = 20 mA
Voltage
I
IH
Input HIGH
5.0 µAMaxVIN = 2.7V
Current
I
BVI
Input HIGH Current
7.0 µAMaxVIN = 7.0V
Breakdown Test
I
CEX
Output HIGH
50 µAMaxV
OUT
= V
CC
Leakage Current
V
ID
Input Leakage
4.75 V 0.0
IID = 1.9 µA
Test All Other Pins Grounded
I
OD
Output Leakage
3.75 µA0.0
V
IOD
= 150 mV
Circuit Current All Other Pins Grounded
I
IL
Input LOW Current −0.6 mA Max VIN = 0.5V
I
OS
Output Short-Circuit Current −60 −150 mA Max V
OUT
= 0V
I
CC
Power Supply Current 22.5 34.0 mA Max CP =
Dn = MR = HIGH
Page 4
www.fairchildsemi.com 4
74F175
AC Electrical Characteristics
AC Operating Requirements
Symbol Parameter
TA = +25°CT
A
= −55°C to +125°CTA = 0°C to +70°C
Units
VCC = +5.0V VCC = +5.0V VCC = +5.0V
CL = 50 pF CL = 50 pF CL = 50 pF
Min Typ Max Min Max Min Max
f
MAX
Maximum Clock Frequency 100 140 80 100 MHz
t
PLH
Propagation Delay 4.0 5.0 6.5 3.5 8.5 4.0 7.5
ns
t
PHL
CP to Qn or Q
n
4.0 6.5 8.5 4.0 10.5 4.0 9.5
t
PHL
Propagation Delay
4.5 9.0 11.5 4.5 15.0 4.5 13.0 ns
MR to Q
n
t
PLH
Propagation Delay
4.0 6.5 8.0 4.0 10.0 4.0 9.0 ns
MR to Q
n
Symbol Parameter
TA = +25°CTA = −55°C to +125°CTA = 0°C to +70°C
UnitsVCC = +5.0V VCC = +5.0V VCC = +5.0V
Min Max Min Max Min Max
tS(H) Setup Time, HIGH or LOW 3.0 3.0 3.0
ns
tS(L) Dn to CP 3.0 3.0 3.0
tH(H) Hold Time, HIGH or LOW 1.0 1.0 1.0
tH(L) Dn to CP 1.0 2.0 1.0
tW(H) CP Pulse Width 4.0 4.0 4.0
ns
tW(L) HIGH or LOW 5.0 5.0 5.0
tW(L)
MR Pulse Width, LOW
5.0 5.0 5.0 ns
t
REC
Recovery Time, MR to CP
5.0 5.0 5.0 ns
Page 5
5 www.fairchildsemi.com
74F175
Physical Dimensions inches (millimeters) unless otherwise noted

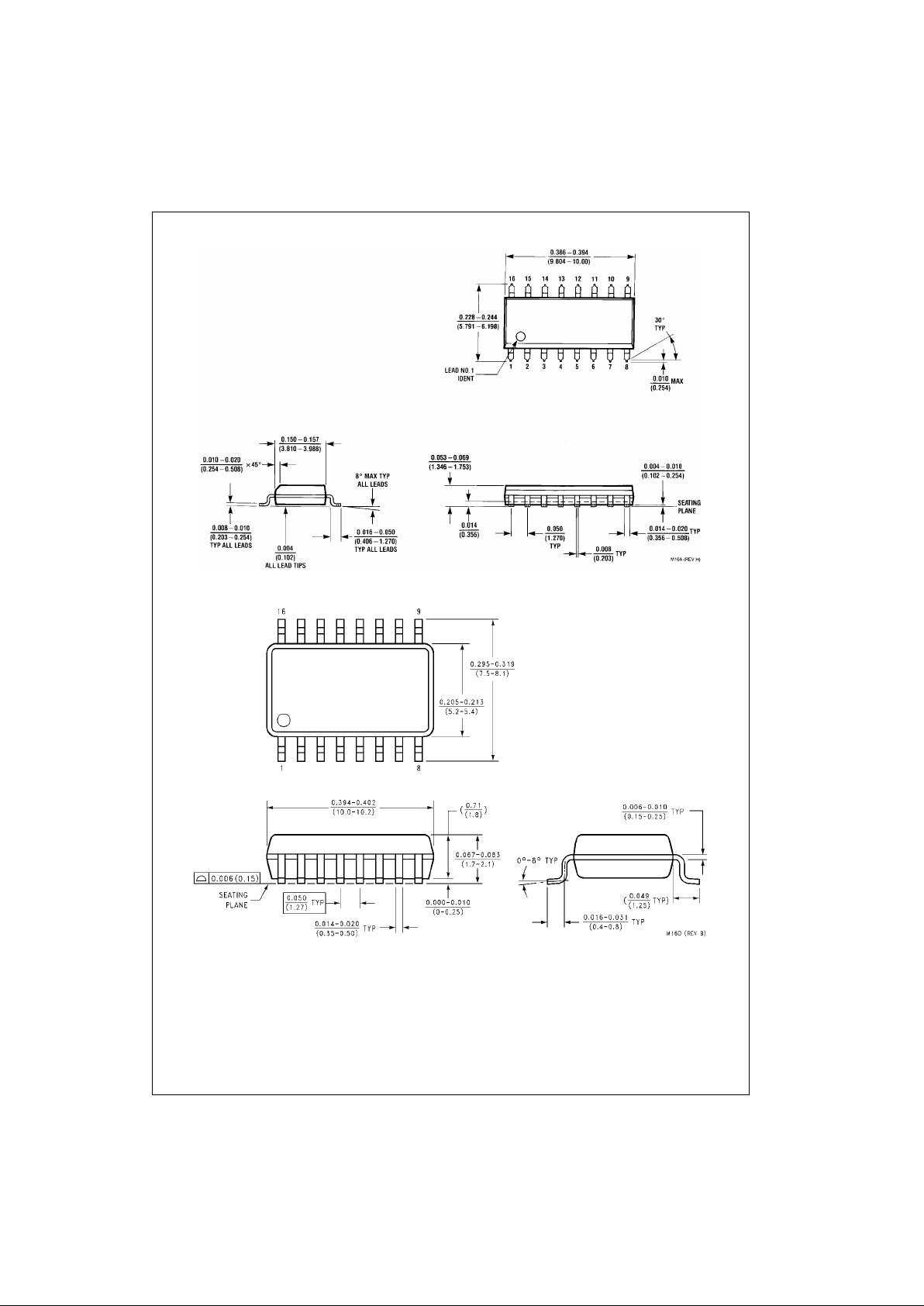

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M16A
16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M16D
Page 6
www.fairchildsemi.com 6
74F175 Quad D-Type Flip-Flop
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

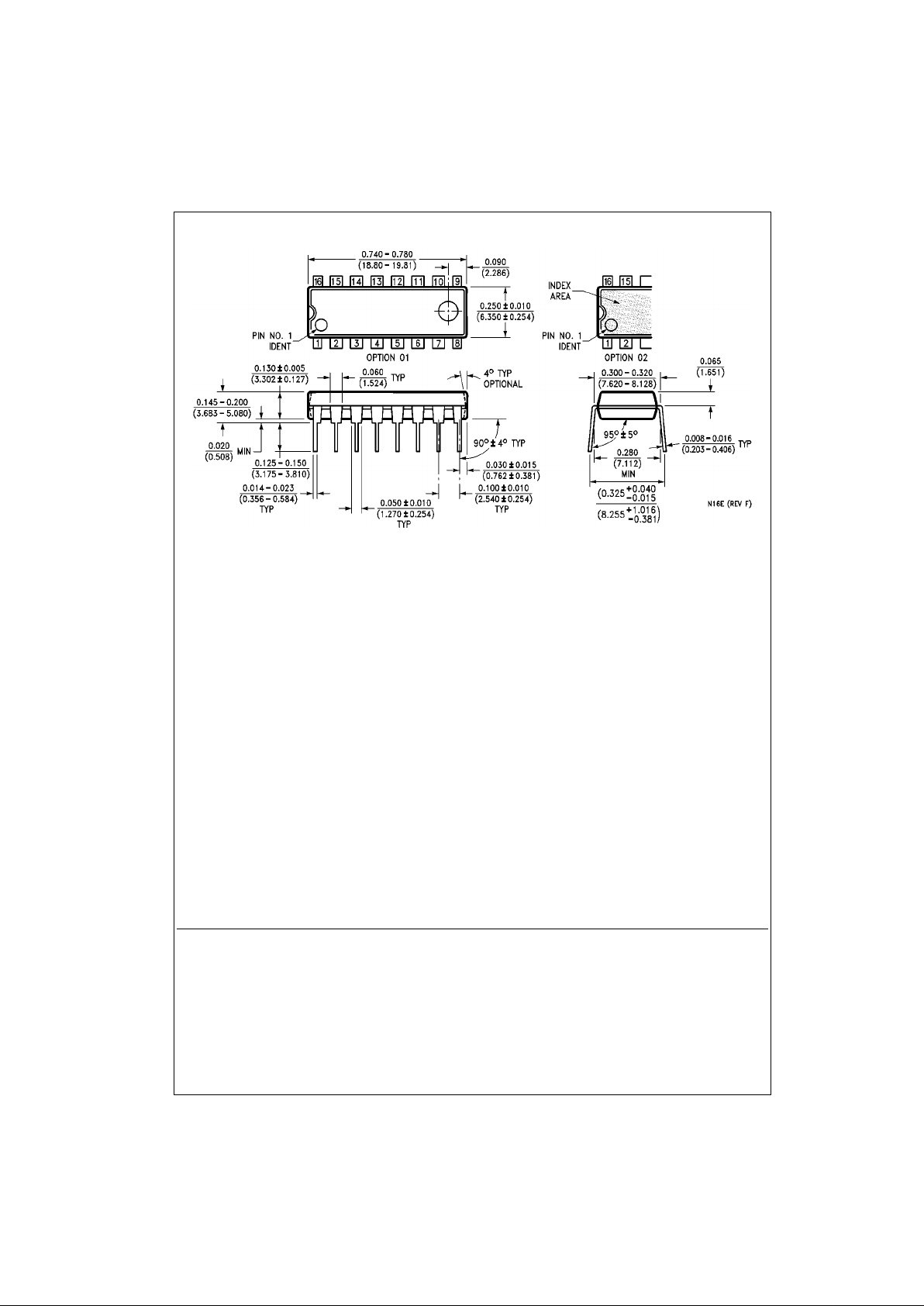

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
