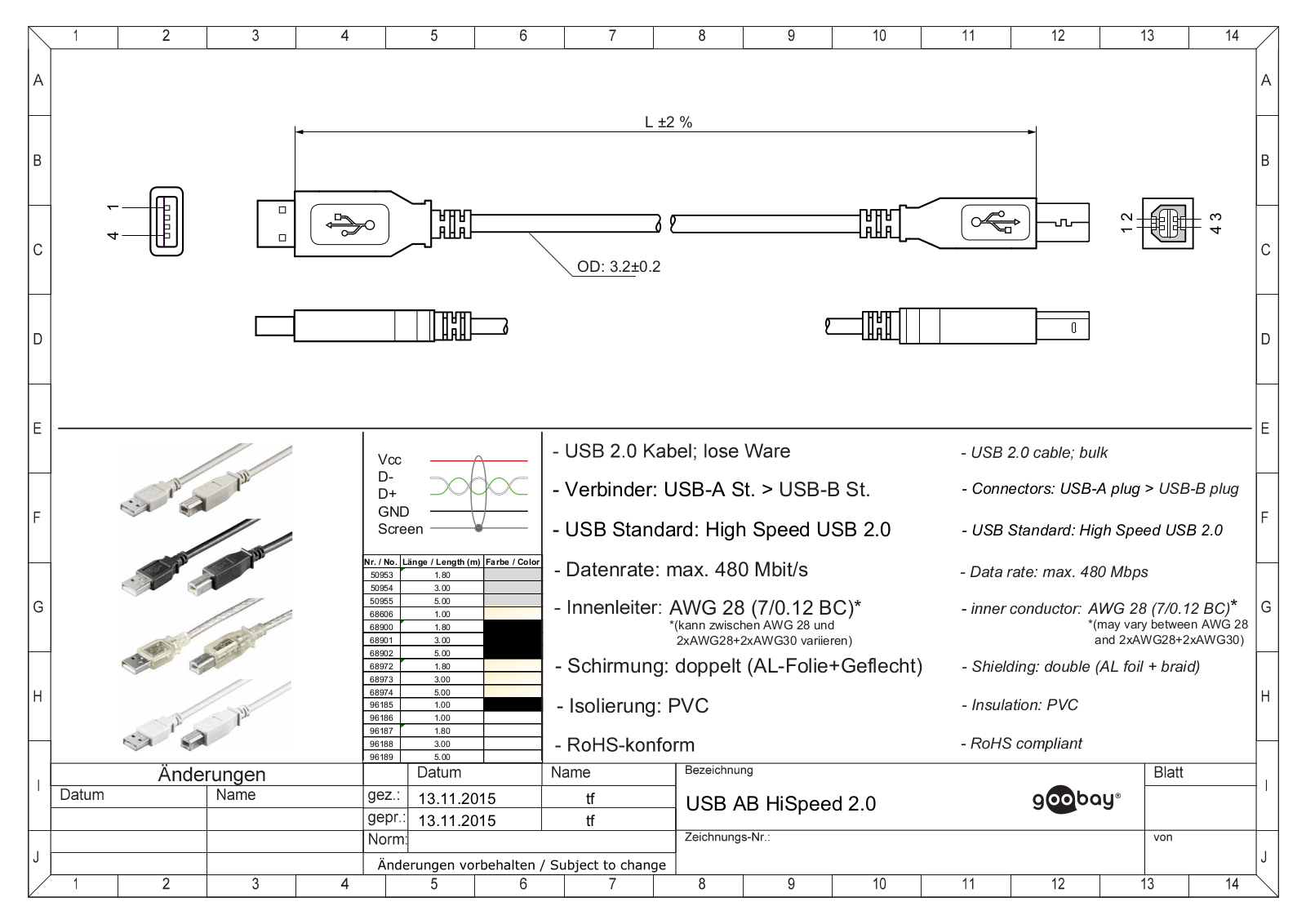

Datasheet 68900 Specification

L ±2 %

96189 5.00

14

1 2

4 3

OD: 3.2±0.2

Vcc
D­D+
GND
Screen

- Verbinder: USB-A St. > USB-B St.

- USB Standard: High Speed USB 2.0

- Connectors: USB-A plug > USB-B plug

- USB Standard: High Speed USB 2.0

Nr. / No. Länge / Le ngth (m) Farbe / Color

50953 1.80

50954 3.00

50955 5.00

68606 1.00

68900 1.80

68901 3.00

68902 5.00

68972 1.80

68973 3.00

68974 5.00

96185 1.00

96186 1.00

96187 1.80

96188 3.00

13.11.2015 tf

13.11.2015 tf

- Datenrate: max. 480 Mbit/s

AWG 28 (7/0.12 BC)*

*(kann zwischen AWG 28 und
2xAWG28+2xAWG30 variieren)

- Schirmung: doppelt (AL-Folie+Geflecht)

- Isolierung: PVC

USB AB HiSpeed 2.0

- Data rate: max. 480 Mbps

AWG 28 (7/0.12 BC)*

*(may vary between AWG 28
and 2xAWG28+2xAWG30)

- Shielding: double (AL foil + braid)

- Insulation: PVC
