OTi
Ours Technology Inc.

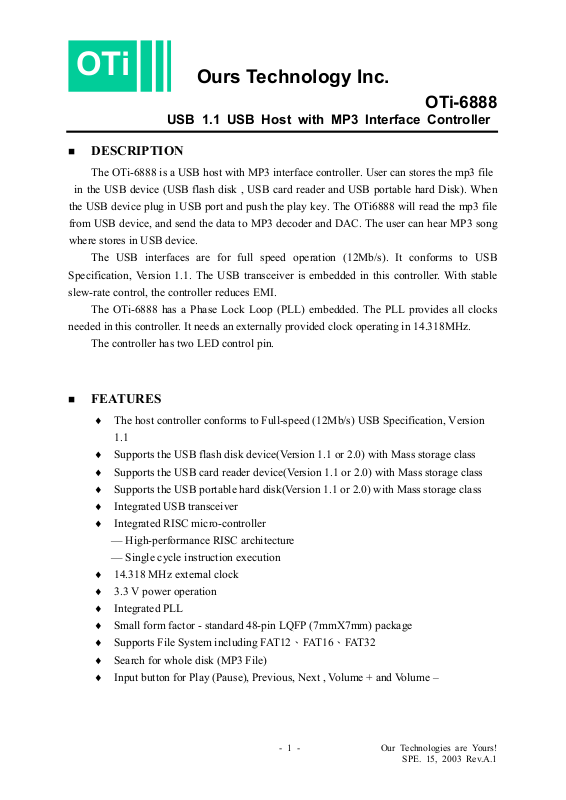

OTi-6888
USB 1.1 USB Host with MP3 Interface Controller
DESCRIPTION
The OTi-6888 is a USB host with MP3 interface controller. User can stores the mp3 file
the USB device plug in USB port and push the play key. The OTi6888 will read the mp3 file
from USB device, and send the data to MP3 decoder and DAC. The user can hear MP3 song
where stores in USB device.
The USB interfaces are for full speed operation (12Mb/s). It conforms to USB
Specification, Version 1.1. The USB transceiver is embedded in this controller. With stable
slew-rate control, the controller reduces EMI.
The OTi-6888 has a Phase Lock Loop (PLL) embedded. The PLL provides all clocks
needed in this controller. It needs an externally provided clock operating in 14.318MHz.
The controller has two LED control pin.
FEATURES
♦ The host controller conforms to Full-speed (12Mb/s) USB Specification, Version
1.1
♦
Supports the USB flash disk device(Version 1.1 or 2.0) with Mass storage class
♦
Supports the USB card reader device(Version 1.1 or 2.0) with Mass storage class
♦
Supports the USB portable hard disk(Version 1.1 or 2.0) with Mass storage class
♦ Integrated USB transceiver
♦ Integrated RISC micro-controller
— High-performance RISC architecture
— Single cycle instruction execution
♦ 14.318 MHz external clock
♦ 3.3 V power operation
♦ Integrated PLL
♦ Small form factor - standard 48-pin LQFP (7mmX7mm) package ♦ Supports File System including FAT12、FAT16、FAT32
♦ Search for whole disk (MP3 File)
♦ Input button for Play (Pause), Previous, Next , Volume + and Volume –
- 1 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 2
OTi
Ours Technology Inc.
USB 1.1 USB Host with MP3 Interface Controller
BLOCK DIAGARAM
14.318MHz
OTi-6888
Input
Button
PLL
RISC
Program
RAM
Clock Divider
UHC
Interrupt
LED
USB
Transceirver
I2V
Bit Stream
D+
D-
USB
device
DAC
MP3
decoder
LED1~2
- 2 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 3
OTi
Ours Technology Inc.
USB 1.1 USB Host with MP3 Interface Controller
PIN CONFIGUARTION
GPIOB[3]
ext_int5
47
48
OTi-6888
DMNS_IO
GPIOB[1]
46
gnd
45
DPLS_IO
REQ
SID
vdd
NC
40
41
42
43
44
SIC
NC
37
38
39
GPIOA[7]
GPIOA[6]
NC
NC
NC
NC
gnd
vdd
LED1_out
NC
GPIOA[5]
GPIOA[4]
1
2
3
4
5
6
7
8
9
10
11
12
15
14
13
NC
GPIOA[2]
GPIOA[3]
LQFP-48
17
16
NC
NC
22
21
20
19
18
NC
NC
NC
vdd
gnd
36
35
34
33
32
31
30
29
28
27
26
25
24
23
GPIOA[0]
GPIOA[1]
GPIOB[2]
NC
GPIOB[0]
sda
scl
NC
vdd
xtal2
xtal1
gnd
reset_b
NC
- 3 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 4
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller
ex_romdata[5]
ex_romdata[6]
GPIOA[7]
GPIOA[6]
gnd
vdd
LED1_out
GPIOA[5]
GPIOA[4]
ex_romaddr[12]
ex_romaddr[11]
ex_romaddr[10]
ex_romaddr[9]
gnd
vdd
ex_romaddr[8] 16
ex_romaddr[15]
ex_romaddr[14]
ex_romaddr[13] 64
63
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
17
host_dev_sel
gnd
60
61
62
GPIOB[1]
59
DMNS_IO
DPLS_IO
REQ
SID
gnd
58
vdd
53
54
55
56
57
LQFP-64
28
27
26
25
24
23
22
21
20
19
ex_romdata[6]
SIC
51
52
293031
ex_romdata[7]
txd1
49
50
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
ex_romaddr[0]48
ex_romaddr[1]
gnd
sda
scl
vdd
xtal2
xtal1
gnd
reset_b
mode0
ex_romdata[0]
ex_romdata[1]
ex_romaddr[2]
ex_romaddr[3]
rxdi1
ex_romdata[3]
vdd
ex_romaddr[6]
ex_romaddr[5]
ex_romaddr[4]32
gnd
ex_romaddr[7]
GPIOA[0]
GPIOA[1]
vdd
gnd
GPIOA[2]
GPIOA[3]
GPIOB[4]
GPIOB[6]
ex_romdata[2]
- 4 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 5
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller
PIN DESCRIPTION
OTi-6888 has two different kinds of package, 48-pin and 64-pin. OTi-6888 with 48-pin
package provides fundamental USB host function, however, it can provide external ROM
functions if you choose 64-pin package.
Note: OTi-6888 with 48-pin package does not external ROM function.
Pin No. Pin Name Attribute Description
1 GPIOA[7] I/O GPIO
2 GPIOA[6] I/O GPIO
3 NC NC
4 NC NC
5 NC NC
6 NC NC
7 gnd I gnd
8 vdd I vdd
9 LED1_out O Status indication
10 NC NC
11 GPIOA[5] I/O GPIO
12 GPIOA[4] I/O GPIO
13 GPIOA[3] I/O GPIO
14 GPIOA[2] I/O GPIO
15 NC NC
16 NC NC
17 NC NC
18 gnd I gnd
19 vdd I vdd
20 NC NC
21 NC NC
22 NC NC
23 GPIOA[1] I/O GPIO
24 GPIOA[0] I/O GPIO
25 NC O NC
26 reset_b I Power on reset input , low active
27 gnd I gnd
- 5 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 6
OTi
Ours Technology Inc.
USB 1.1 USB Host with MP3 Interface Controller
28 xtal1 I Crystal input
29 xtal2 O Crystal output
30 vdd I vdd
31 NC NC
32 scl O The clock pin for I2C
33 sda I/O The data pin for I2C
34 GPIOB[0] I/O GPIO
35 NC NC
36 GPIOB[2] I/O GPIO
37 NC NC
38 SIC O The clock pin for bit stream
39 REQ I The request pin for bit stream
OTi-6888
40 SID O The data pin for bit stream
41 NC O NC
42 vdd I vdd
43 DPLS_IO I/O USB D+
44 DMNS_IO I/O USB D-
45 gnd I gnd
46 GPIOB[1] I/O GPIO
47 ext_int5 I External interrupt input
48 GPIOB[3] I/O GPIO
Note : OTi-6888 with 64-pin package with External ROM functions.
Pin No. Pin Name Attribute Pad Name
1 ex_romdata[5] I ex_romdata_pad[5]
2 ex_romdata[4] I ex_romdata_pad[4]
3 GPIOA[7] I/O GPIOA_pad[7]
4 GPIOA[6] I/O GPIOA_pad[6]
5 gnd I gnd
6 vdd I vdd
7 LED1_out O LED1_out_pad
8 GPIOA[5] I/O GPIOA_pad[5]
9 GPIOA[4] I/O GPIOA_pad[4]
- 6 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 7
OTi
Ours Technology Inc.
USB 1.1 USB Host with MP3 Interface Controller
10 ex_romaddr[12] O ex_romaddr_pad[12]
11 ex_romaddr[11] O ex_romaddr_pad[11]
12 ex_romaddr[10] O ex_romaddr_pad[10]
13 ex_romaddr[9] O ex_romaddr_pad[9]
14 gnd I gnd
15 vdd I vdd
16 ex_romaddr[8] I ex_romaddr_pad[8]
17 ex_romdata[3] I ex_romdata_pad[3]
18 ex_romdata[2] I ex_romdata_pad[2]
19 GPIOB[6] I/O GPIOB_pad[6]
20 GPIOB[4] I/O GPIOB_pad[4]
21 GPIOA[3] I/O GPIOA_pad[3]
OTi-6888
22 GPIOA[2] I/O GPIOA_pad[2]
23 gnd I gnd
24 vdd I vdd
25 GPIOA[1] I/O GPIOA_pad[1]
26 GPIOA[0] I/O GPIOA_pad[0]
27 ex_romaddr[7] O ex_romaddr_pad[7]
28 gnd I gnd
29 vdd I vdd
30 ex_romaddr[6] O ex_romaddr_pad[6]
31 ex_romaddr[5] O ex_romaddr_pad[5]
32 ex_romaddr[4] O ex_romaddr_pad[4]
33 rxdi1 I rxd1i_pad
34 ex_romaddr[3] O ex_romaddr_pad[3]
35 ex_romaddr[2] O ex_romaddr_pad[2]
36 ex_romdata[1] O ex_romdata_pad[1]
37 ex_romdata[0] O ex_romdata_pad[0]
38 mode0 I mode0_pad
39 reset_b I reset_b_pad
40 gnd I gnd
41 xtal1 I xtal1_pad
42 xtal2 O xtal2_pad
- 7 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 8
OTi
Ours Technology Inc.
USB 1.1 USB Host with MP3 Interface Controller
43 vdd I vdd
44 scl O scl_pad
45 sda I/O sda_pad
46 gnd I gnd
47 ex_romaddr[1] O ex_romaddr_pad[1]
48 ex_romaddr[0] O ex_romaddr_pad[0]
49 txd1 O txd1_pad
50 ex_romdata[7] I ex_romdata_pad[7]
51 ex_romdata[6] I ex_romdata_pad[6]
52 SIC O SIC_pad
53 REQ I REQ_pad
54 SID O SID_pad
OTi-6888
55 vdd I vdd
56 DPLS_IO I/O DPLS_IO_pad
57 DMNS_IO I/O DMNS_IO_pad
58 gnd I gnd
59 GPIOB[1] I/O GPIOB_pad[1]
60 host_dev_sel I host_dev_sel_pad
61 gnd I gnd
62 ex_romaddr[15] O ex_romaddr_pad[15]
63 ex_romaddr[14] O ex_romaddr_pad[14]
64 ex_romaddr[13] O ex_romaddr_pad[13]
- 8 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 9
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller
D.C. CHARACTERS
DC Characteristics-1 (Ta=0 °C to +70 °C, Vcc = 3.3V ±10%)
Parameter Symbol MIN TYP MAX Unit
Power Supply VDD 3 3.3 3.6 V
Input Voltage VIH 0.9x VDD -- 5 V
VIL -0.3 -- 0.2 x VDD V
Output Voltage VOH VDD-0.4 -- -- V
VOL -- -- 0.4 V
Input leakage current ILK -1 -- 1 uA
Working Current IRW --
Operating Temperature Ta 0 70
Storage Temperature Ts -55 +
IO output current IOH -- 4 -- mA
IOL -- 4 -- mA
A.C. CHARACTERS
--
150
mA
°C
°C
Parameter Symbol MIN TYP MAX Unit
Input rising delay TPIlh 0.35(2PF) 0.4(4PF) 0.54(8PF) ns
Input falling delay TPIhl 0.46(2PF) 0.53(4PF) 0.64(8PF) ns
Output rising delay TPOlh 1.35(10PF) 1.97(30PF) 2.59(50pF) ns
Output falling delay TPOhl 1.61(10PF) 2.41(30PF) 3.21(50pF) ns
- 9 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
Page 10
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller

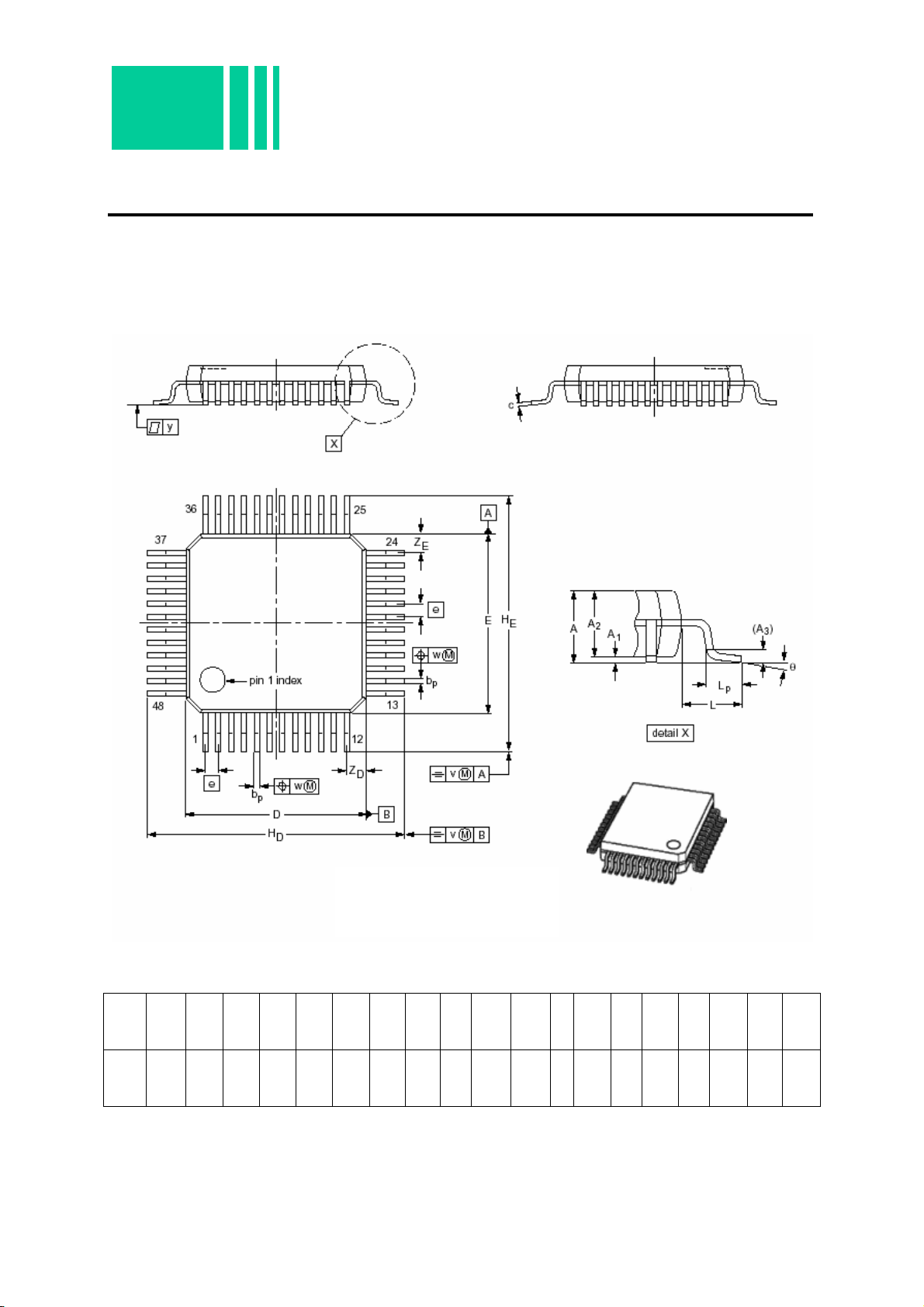

PACKAGE INFORMATION
LQFP-48 : plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm
DIMENSIONS (mm are the original dimensions)
UNIT
A
A1 A2 A3 bp c D
Max.
(1)
E
(1)
e HD HE L Lp v W y Z
(10)
D
Z
E
(1)
θ
mm 1.6 0.20
0.05
1.45
1.35
0.25 0.27
0.17
0.18
0.12
7.1
6.9
7.1
6.9
0.5 9.15
8.85
9.15
8.85
10.75
0.45
0.2 0.12 0.1 0.95
Note:
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
- 10 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
0.55
0.95
0.55
7°
0°
Page 11
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller

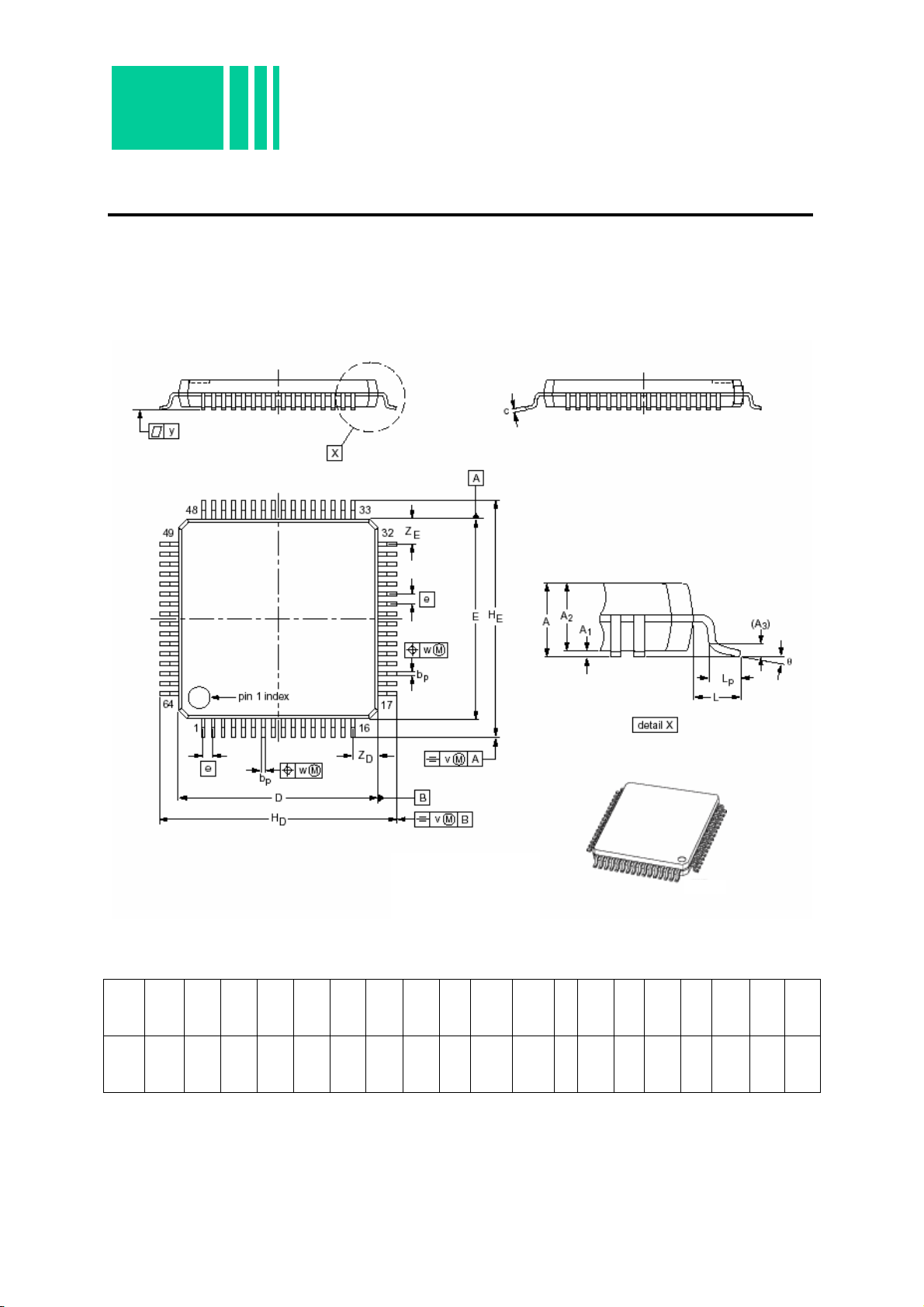

LQFP-64 : plastic low profile quad flat package; 64 leads; body 10 x 10 x 1.4 mm
DIMENSIONS (mm are the original dimensions)
UNIT
mm 1.6 0.20
A
A1 A2 A3 bp c D
Max.
0.05
1.45
1.35
0.25 0.27
0.17
0.18
0.12
(1)
E
10.1
9.9
(1)
e HD HE L Lp v W y Z
10.1
0.5 12.15
9.9
11. 85
12.15
11.85
10.75
0.45
0.2 0.12 0.1 1.45
Note:
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
- 11 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
D
1.05
(10)
Z
1.45
1.05
(1)
θ
E
7°
0°
Page 12
OTi
Ours Technology Inc.
OTi-6888
USB 1.1 USB Host with MP3 Interface Controller
Note:
OTI reserves the right to make any changes without further notice to any products
herein.
How to reach us:
OURS TECHNOLOGY INC.
1F, No. 85, Kung-Ming 6th Rd., Jubei City, Hsin-Chu Hsien, Taiwan, R.O.C.
TEL: +886-3-553-7511 FAX: +886-3-555-5804
- 12 - Our Technologies are Yours! SPE. 15, 2003 Rev.A.1
