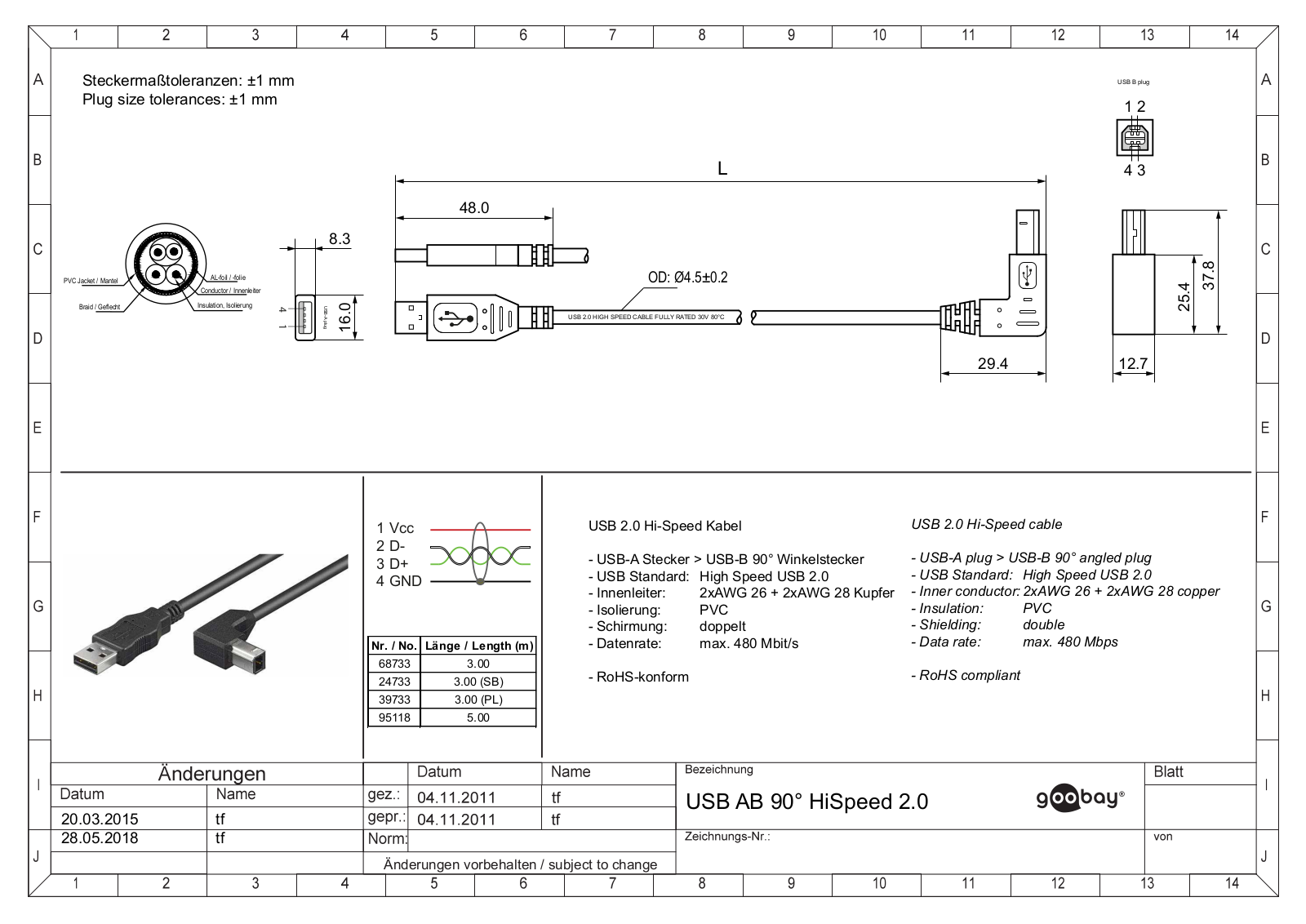

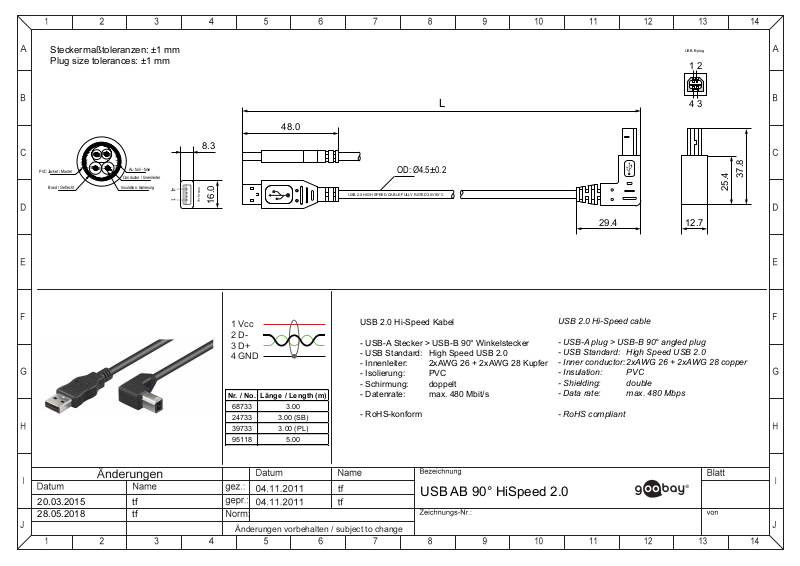

Page 1
Nr. / No. Länge / Length (m)
Steckermaßtoleranzen: ±1 mm
Plug size tolerances: ±1 mm
USB B plug
1 2
PVC Jacket / Mantel
Braid / Geflecht
AL-foil / -folie
Conductor / Innenleiter
Insulation, Isolierung
L
4 3
48.0
8.3
OD: Ø4.5±0.2
USB-A plug
4 1
USB 2.0 HIGH SPEED CABLE FULLY RATED 30V 80°C
37.8
25.4
16.0
1 Vcc
2 D3 D+
4 GND
68733 3.00
24733 3.00 (SB)
39733 3.00 (PL)
95118 5.00
USB 2.0 Hi-Speed Kabel
- USB-A Stecker > USB-B 90° Winkelstecker
- USB Standard: High Speed USB 2.0
- Innenleiter: 2xAWG 26 + 2xAWG 28 Kupfer
- Isolierung: PVC
- Schirmung: doppelt
- Datenrate: max. 480 Mbit/s
- RoHS-konform
29.4
USB 2.0 Hi-Speed cable
- USB-A plug > USB-B 90° angled plug
- USB Standard: High Speed USB 2.0
- Inner conductor: 2xAWG 26 + 2xAWG 28 copper
- Insulation: PVC
- Shielding: double
- Data rate: max. 480 Mbps
- RoHS compliant
12.7
20.03.2015 tf
28.05.2018 tf
USB AB 90° HiSpeed 2.0
Änderungen vorbehalten / subject to change
