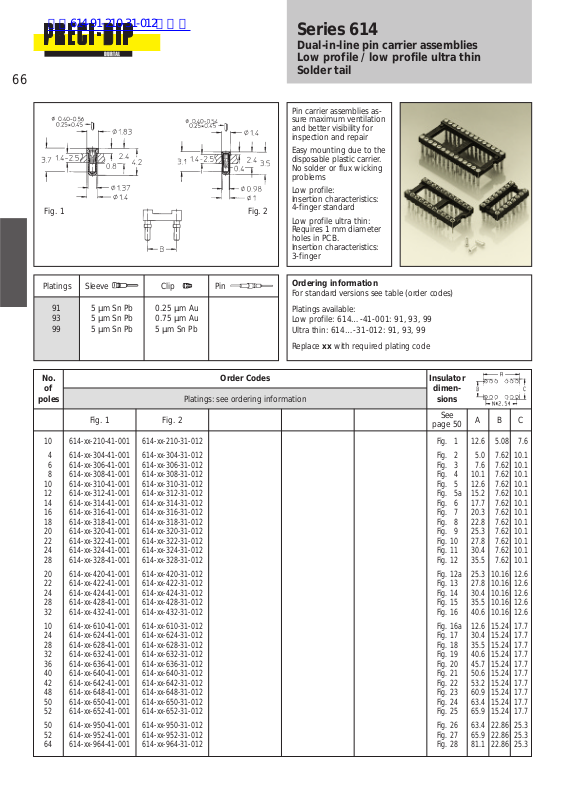

Datasheet 614 Datasheet (PRECI-DIP)

66

查询614-91-210-31-012供应商

Fig. 1 Fig. 2

Series 614

Dual-in-line pin carrier assemblies
Low profile / low profile ultra thin
Solder tail

Pin carrier assemblies as­sure maximum ventilation
and better visibility for
inspection and repair

Easy mounting due to the
disposable plastic carrier.
No solder or flux wicking
problems

Low profile:
Insertion characteristics:
4-finger standard

Low profile ultra thin:
Requires 1 mm diameter
holes in PCB.
Insertion characteristics:
3-finger

Platings Sleeve Clip Pin

91 5 µm Sn Pb 0.25 µm Au
93 5 µm Sn Pb 0.75 µm Au
99 5 µm Sn Pb 5 µm Sn Pb

No. Order Codes Insulator

of dimen-

poles Platings: see ordering information sions

Fig. 1 Fig. 2

10 614-xx-210-41-001 614-xx-210-31-012 Fig. 1 12.6 5.08 7.6

4 614-xx-304-41-001 614-xx-304-31-012 Fig. 2 5.0 7.62 10.1
6 614-xx-306-41-001 614-xx-306-31-012 Fig. 3 7.6 7.62 10.1

8 614-xx-308-41-001 614-xx-308-31-012 Fig. 4 10.1 7.62 10.1
10 614-xx-310-41-001 614-xx-310-31-012 Fig. 5 12.6 7.62 10.1
12 614-xx-312-41-001 614-xx-312-31-012 aFig. 5a 15.2 7.62 10.1
14 614-xx-314-41-001 614-xx-314-31-012 Fig. 6 17.7 7.62 10.1
16 614-xx-316-41-001 614-xx-316-31-012 Fig. 7 20.3 7.62 10.1
18 614-xx-318-41-001 614-xx-318-31-012 Fig. 8 22.8 7.62 10.1
20 614-xx-320-41-001 614-xx-320-31-012 Fig. 9 25.3 7.62 10.1
22 614-xx-322-41-001 614-xx-322-31-012 Fig. 10 27.8 7.62 10.1
24 614-xx-324-41-001 614-xx-324-31-012 Fig. 11 30.4 7.62 10.1
28 614-xx-328-41-001 614-xx-328-31-012 Fig. 12 35.5 7.62 10.1

20 614-xx-420-41-001 614-xx-420-31-012 aFig. 12a 25.3 10.16 12.6
22 614-xx-422-41-001 614-xx-422-31-012 Fig. 13 27.8 10.16 12.6
24 614-xx-424-41-001 614-xx-424-31-012 Fig. 14 30.4 10.16 12.6
28 614-xx-428-41-001 614-xx-428-31-012 Fig. 15 35.5 10.16 12.6
32 614-xx-432-41-001 614-xx-432-31-012 Fig. 16 40.6 10.16 12.6

10 614-xx-610-41-001 614-xx-610-31-012 aFig. 16a 12.6 15.24 17.7
24 614-xx-624-41-001 614-xx-624-31-012 Fig. 17 30.4 15.24 17.7
28 614-xx-628-41-001 614-xx-628-31-012 Fig. 18 35.5 15.24 17.7
32 614-xx-632-41-001 614-xx-632-31-012 Fig. 19 40.6 15.24 17.7
36 614-xx-636-41-001 614-xx-636-31-012 Fig. 20 45.7 15.24 17.7
40 614-xx-640-41-001 614-xx-640-31-012 Fig. 21 50.6 15.24 17.7
42 614-xx-642-41-001 614-xx-642-31-012 Fig. 22 53.2 15.24 17.7
48 614-xx-648-41-001 614-xx-648-31-012 Fig. 23 60.9 15.24 17.7
50 614-xx-650-41-001 614-xx-650-31-012 Fig. 24 63.4 15.24 17.7
52 614-xx-652-41-001 614-xx-652-31-012 Fig. 25 65.9 15.24 17.7

50 614-xx-950-41-001 614-xx-950-31-012 Fig. 26 63.4 22.86 25.3
52 614-xx-952-41-001 614-xx-952-31-012 Fig. 27 65.9 22.86 25.3
64 614-xx-964-41-001 614-xx-964-31-012 Fig. 28 81.1 22.86 25.3

Ordering information

For standard versions see table (order codes)
Platings available:

Low profile: 614…-41-001: 91, 93, 99
Ultra thin: 614…-31-012: 91, 93, 99

Replace xx with required plating code

See

page 50

ABC
