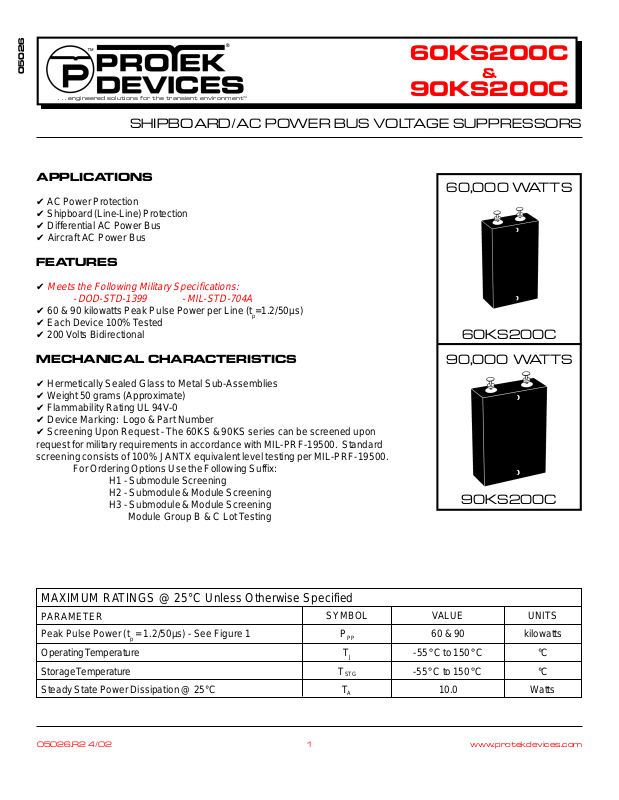

Page 1
05026
60KS200C
&
. . . engineered solutions for the transient environment™
SHIPBOARD/AC POWER BUS VOLTAGE SUPPRESSORS
APPLICATIONS
✔ A C P ower Protection
✔ Shipboard (Line-Line) Protection
✔ Differential A C P ow er Bus
✔ Aircraft AC Power Bus
FEATURES
✔
Meets the Following Military Specifications:
- DOD-STD-1399 - MIL-STD-704A
✔ 60 & 90 kilowatts P eak Pulse Power per Line (tp=1.2/50µs)
✔ Each Device 100% Tested
✔ 200 V olts Bidirectional
MECHANICAL CHARACTERISTICS
✔ Hermetically Sealed Glass to Metal Sub-Assemblies
✔ Weight 50 grams (Approximate)
✔ Flammability Rating UL 94V-0
✔ De vice Marking: Logo & P art Number
✔ Screening Upon Request - The 60KS & 90KS series can be screened upon
request for military requirements in accordance with MIL-PRF-19500. Standard
screening consists of 100% JANTX equivalent level testing per MIL-PRF-19500.
For Ordering Options Use the Following Suffix:
H1 - Submodule Screening
H2 - Submodule & Module Screening
H3 - Submodule & Module Screening
Module Group B & C Lot Testing
90KS200C
60,000 WATTS
60KS200C
90,000 WATTS
90KS200C
MAXIMUM RATINGS @ 25°C Unless Otherwise Specified
PARAMETER
Peak Pulse P o wer (tp = 1.2/50µs) - See Figure 1
Operating T emperature
Storage T emperature
Steady State Pow er Dissipation @ 25°C Watts10.0T
SYMBOL VALUE
P
T
T
STG
1 www.protekdevices.com05026.R2 4/02
UNITS
PP
J
A
60 & 90 kilowatts
-55°C to 150°C
-55°C to 150°C
°C
°C
Page 2
60KS200C
90KS200C
DEVICE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified
&
PART
NUMBER
60KS200C
90KS200C
RATED
STAND-OFF
VOLTAGE
V
WM
VOLTS
180
180
1,000
100
10
- Peak Pulse Power - kilowatts
PP
P
1
0.1 1 10 100 1,000 10,000
MINIMUM
BREAKDOWN
VOLTAGE
MAXIMUM
CLAMPING
VOLTAGE
(See Fig. 2)
@ 1mA
V
(BR)
VOLTS
200
200
PEAK PULSE POWER VS PULSE TIME
60kW 1.2/50µs
Waveform
FIGURE 1
t
- Pulse Duration - µs
d
@ I
PP
V
C
VOLTS
335
280
90kW 1.2/50µs
Waveform
MAXIMUM
LEAKAGE
CURRENT
@V
WM
I
D
µA
10
0.5
MAXIMUM
PEAK PULSE
CURRENT
(See Fig. 2)
I
PPM
AMPS
180
180
100
PP
50
- Peak Pulse Current - % of I
PP
I
0
05026.R2 4/02
FIGURE 2
PULSE WAVE FORM
PP
td = t
TEST
WA VEFORM
P ARAMETERS
tf = 1.2µs
td = 50µs
IPP/2
-t
e
t
f
Peak V alue I
0 1 2 3
t - Time - µs
POWER DERATING CURVE
FIGURE 3
100
80
60
40
% Of Rated Power
20
0
0 25 50 75 100 125 150
2 www.protekdevices.com
- Lead Temperature - °C
T
L
Peak Pulse Power
1.2/50µs
Average Power
Page 3
PACKAGE OUTLINE & DIMENSIONS
60KS200C
&
90KS200C
60KS200C PACKAGE OUTLINE
A
C
D
E
I
90KS200C PACKAGE OUTLINE
B
H
G
F
J
A
BC
DIM MIN MAX
A
B
C
D*
E
F*
G
H
I*
J
60KS200C
DIMENSIONS
MILLIMETERS
56.38
49.02
3.43
20.32
8.26
3.18 DIA
16.76
34.16
6.35
11.94
57.91
50.03
4.17
20.32
9.27
3.18 DIA
18.29
35.69
6.35
13.46
90KS200C
INCHES
MIN MAX
2.22
1.93
0.135
0.800
0.325
0.125 DIA
0.660
1.345
0.250
0.470
2.28
1.97
0.165
0.800
0.365
0.125 DIA
0.720
1.405
0.250
0.530
D
E
I
COPYRIGHT © ProTek Devices 2001
SPECIFICA TIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice (except JEDEC).
DESIGN CHANGES: ProT ek reserves the right to discontinue product lines without notice, and that the final judgement concerning selection and specifications is
the buyer’s and that in furnishing engineering and technical assistance, ProT ek assumes no responsibility with respect to the selection or specifications of such
products.
F
H
G
J
06033 Rev 0 - 4/02
3 www.protekdevices.com05026.R2 4/02
DIM MIN MAX
A
B
C
D
E
F
G
H
I
J
Note*: Dimensions are nominal.
DIMENSIONS
MILLIMETERS
-
47.75
6.10
24.89
-
4.90 DIA
22.66
45.34
6.48
-
INCHES
MIN MAX
63.50
48.77
6.60
25.91
10.16
5.21 DIA
23.06
46.10
7.49
13.97
ProT ek Devices
2929 South Fair Lane, T empe, AZ 85282
T el: 602-431-8101 F ax: 602-431-2288
E-Mail: sales@protekdevices.com
Web Site: www.protekdevices.com
-
1.880
0.240
0.980
-
0.193 DIA
0.892
1.785
0.255
-
0.205 DIA
2.50
1.920
0.260
1.020
0.400
0.908
1.815
0.295
0.550
