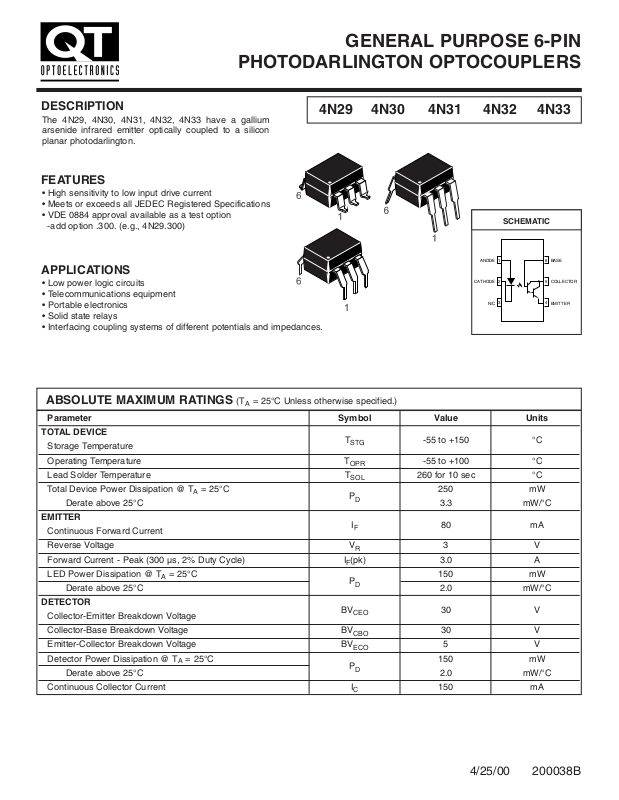

DESCRIPTION

The 4N29, 4N30, 4N31, 4N32, 4N33 have a gallium
arsenide infrared emitter optically coupled to a silicon
planar photodarlington.

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

4N29 4N30 4N31 4N32 4N33

APPLICATIONS

• Low power logic circuits

• Telecommunications equipment

• Portable electronics

• Solid state relays

• Interfacing coupling systems of different potentials and impedances.

Parameter Symbol Value Units

TOTAL DEVICE

T

STG

-55 to +150 °C

Storage Temperature

Operating Temperature T

OPR

-55 to +100 °C

Lead Solder Temperature T

SOL

260 for 10 sec °C

Total Device Power Dissipation @ TA= 25°C

P

D

250 mW

Derate above 25°C 3.3 mW/°C

EMITTER

I

F

80 mA

Continuous Forward Current

Reverse Voltage V

R

3V

Forward Current - Peak (300 µs, 2% Duty Cycle) IF(pk) 3.0 A

LED Power Dissipation @ TA= 25°C

P

D

150 mW

Derate above 25°C 2.0 mW/°C

DETECTOR

BV

CEO

30 V

Collector-Emitter Breakdown Voltage

Collector-Base Breakdown Voltage BV

CBO

30 V

Emitter-Collector Breakdown Voltage BV

ECO

5V

Detector Power Dissipation @ TA= 25°C

P

D

150 mW

Derate above 25°C 2.0 mW/°C

Continuous Collector Current I

C

150 mA

4/25/00 200038B

FEATURES

• High sensitivity to low input drive current

• Meets or exceeds all JEDEC Registered Specifications

• VDE 0884 approval available as a test option

-add option .300. (e.g., 4N29.300)

SCHEMATIC

ABSOLUTE MAXIMUM RATINGS

(TA= 25°C Unless otherwise specified.)

ANODE

CATHODE

1

2

3

N/C

BASE

6

COLLECTOR

5

4

EMITTER

4/25/00 200038B

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

Parameter Test Conditions Symbol Min Typ Max Unit

EMITTER

(I

F

= 10 mA) V

F

1.2 1.5 V

*Input Forward Voltage

*Reverse Leakage Current (VR= 3.0 V) I

R

0.001 100 µA

*Capacitance (VF= 0 V, f = 1.0 MHz) C 150 pF

DETECTOR

(I

C

= 100 µA, IB= 0) BV

CEO

30 60

V

*Collector-Emitter Breakdown Voltage

*Collector-Base Breakdown Voltage (IC= 100 µA, IE= 0) BV

CBO

30 100 V

*Emitter-Collector Breakdown Voltage (IE= 100 µA, IB= 0) BV

ECO

5.0 8 V

*Collector-Emitter Dark Current (VCE= 10 V, Base Open) I

CEO

1 100 nA

DC Current Gain (VCE= 5.0 V, IC= 500 µA) h

FE

5000

INDIVIDUAL COMPONENT CHARACTERISTICS

ELECTRICAL CHARACTERISTICS

(TA= 25°CUnless otherwise specified.)

DC Characteristic Test Conditions Symbol Min Typ Max Units

*Collector Output Current

(1,2)

(4N32, 4N33) 50 (500)

(4N29, 4N30) (I

F

= 10 mA, VCE= 10 V, IB = 0) IC (CTR) 10 (100) mA (%)

(4N31) 5 (50)

*Saturation Voltage

(2)

(4N29, 4N30, 4N32, 4N33)

(I

F

= 8.0 mA, IC= 2.0 mA) V

CE(sat)

1.0
V

(4N31) 1.2

TRANSFER CHARACTERISTICS

Characteristic Test Conditions Symbol Min Typ Max Units

Input-Output Isolation Voltage

(6)

(I

I-O

61 µA, Vrms, t = 1 min.) 5300 Vac(rms)

(4N29, 4N30, 4N31, 4N32, 4N33)

V

ISO

*(4N32) VDC 2500

V

*(4N33) VDC 1500

Isolation Resistance

(6)

(V

I-O

= 500 VDC) R

ISO

10

11

1

Isolation Capacitance

(6)

(V

I-O

= , f = 1 MHz) C

ISO

0.8 pf

ISOLATION CHARACTERISTICS

AC Characteristic Test Conditions Symbol Min Typ Max Units

Turn-on Time

(3)

(IF= 200 mA, IC= 50 mA, VCC= 10 V)

t

on

5.0

Turn-off Time

(3)

(4N32, 4N33)

(Fig.7) t

off

100 µs

(4N29, 4N30, 4N31) 40

Bandwidth

(4,5)

BW 30 KHz

TRANSFER CHARACTERISTICS

4N29 4N30 4N31 4N32 4N33

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

4/25/00 200038B

4N29 4N30 4N31 4N32 4N33

Fig. 1 Output Current vs. Input Current

TA = 0˚C, 25˚C

T

= 70˚C

A

T

= 100˚C

A

T

= -55˚C

1

NORMALIZED TO:

= 10 mA

CTR @ I

F

= 25˚C

T

A

= 5 V

V

CTR - CURRENT TRANSFER RATIO (NORMALIZED)

0.1

0.1 1 10 100

CE

A

IF - LED INPUT CURRENT (mA)

Fig. 3 Collector Current vs. Collector-Emitter Voltage

16

NORMALIZED TO:

= 1 mA

I

14

12

10

8

6

4

2

- COLLECTOR CURRENT (NORMALIZED)

C

I

0

F

V

= 5 V

CE

IF = 10 mA

IF = 5 mA

IF = 2 mA

IF = 1 mA

012345678910

VCE- COLLECTOR -EMITTER VOLTAGE (V)

Fig. 2 Current Transfer Ratio vs. Ambient Temperature

10

1

NORMALIZED TO:

= 10 mA

CTR @ I

F

T

= 25˚C

A

= 10 V

V

0.1

CTR - CURRENT TRANSFER RATIO (NORMALIZED)

-80 -60 -40 -20 0 20 40 60 80 100 120

CE

TA - AMBIENT TEMPERATURE (˚C)

Fig. 4 Dark Current vs. Ambient Temperature

10000

V

= 10 V

CE

1

0 20406080100

TA - AMBIENT TEMPERATURE (˚C)

- COLLECTOR-EMITTER DARK CURRENT (nA)

O
E
C

I

1000

100

10

0.1

0.01

Fig. 5 Turn-On Time vs. Input Current

1000

R

= 1 k1

L

V

= 10 V

100

R

= 100 1

L

10

R

= 10 1

- TIME (µs)

N
O

T

0.1

L

1

0.1 1 10 100

IF - LED INPUT CURRENT (mA)

CC

Fig. 6 Turn-Off Time vs. Input Current

1000

R

= 1 k1

L

100

- TIME (µs)

FF

R

= 100 1

O

T

L

10

R

= 10 1

L

V

= 10 V

1

0.1 1 10 100

CC

IF - LED INPUT CURRENT (mA)

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

4/25/00 200038B

4N29 4N30 4N31 4N32 4N33

INPUT

OUTPUT

INPUT

90%

Test Circuit Waveforms

PULSE WIDTH

VCC = 10 V

IC = 50 mA

I

F

= 200 mA

R

L

10%

t

r

t

on

t

f

t

off

OUTPUT PULSE

INPUT PULSE

<1 ms

Fig. 7 Switching Time Test Circuit and Waveforms

TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES

(25°C Free air temperature unless otherwise specified) (Cont.)

Notes
* Indicates JEDEC registered data.

1. The current transfer ratio(I

C/IF

) is the ratio of the detector collector current to the LED input current with VCE@ 10 V.

2. Pulse test: pulse width = 300µs, duty cycle 62.0% .

3. For test circuit setup and waveforms, refer to figure 7..

4. I

F

adjusted to IC= 2.0 mA and IC= 0.7 mA rms.

5. The frequency at which I

C

is 3dB down from the 1 KHz value.

6. For this test, LED pins 1 and 2 are common, and phototransistor pins 4,5 and 6 are common.

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

4/25/00 200038B

4N29 4N30 4N31 4N32 4N33

Lead Coplanarity : 0.004 (0.10) MAX

0.270 (6.86)

0.240 (6.10)

0.350 (8.89)

0.330 (8.38)

0.300 (7.62)
TYP

0.405 (10.30)
MAX

0.315 (8.00)
MIN

0.016 (0.40) MIN

2

5

PIN 1
ID.

0.016 (0.41)

0.008 (0.20)

0.100 (2.54)
TYP

0.022 (0.56)

0.016 (0.41)

0.070 (1.78)

0.045 (1.14)

0.200 (5.08)

0.165 (4.18)

4

3

0.020 (0.51)

MIN

1

6

0.100 (2.54)
TYP

0.020 (0.51)
MIN

0.350 (8.89)

0.330 (8.38)

0.270 (6.86)

0.240 (6.10)

PIN 1
ID.

0.022 (0.56)

0.016 (0.41)

0.070 (1.78)

0.045 (1.14)

0.200 (5.08)

0.115 (2.92)

0.300 (7.62)
TYP

0° to 15°

0.154 (3.90)

0.100 (2.54)

SEATING PLANE

0.016 (0.40)

0.008 (0.20)

SEATING PLANE

0.016 (0.40)

0.008 (0.20)

0.070 (1.78)

0.045 (1.14)

0.350 (8.89)

0.330 (8.38)

0.154 (3.90)

0.100 (2.54)

0.200 (5.08)

0.115 (2.92)

0.004 (0.10)
MIN

0.270 (6.86)

0.240 (6.10)

0.400 (10.16)
TYP

0° to 15°

0.022 (0.56)

0.016 (0.41)

0.100 (2.54) TYP

NOTE

All dimensions are in inches (millimeters)

Call QT Optoelectronics for more information or the phone number of your nearest distributor.

United States 800-533-6786 • France 33 [0] 1.45.18.78.78 • Germany 49 [0] 89/96.30.51 • United Kingdom 44 [0] 1296 394499 • Asia/Pacific 603-7248193

www.qtopto.com

0.070 (1.78)

0.060 (1.52)

0.030 (0.76)

0.100 (2.54)

0.295 (7.49)

0.415 (10.54)

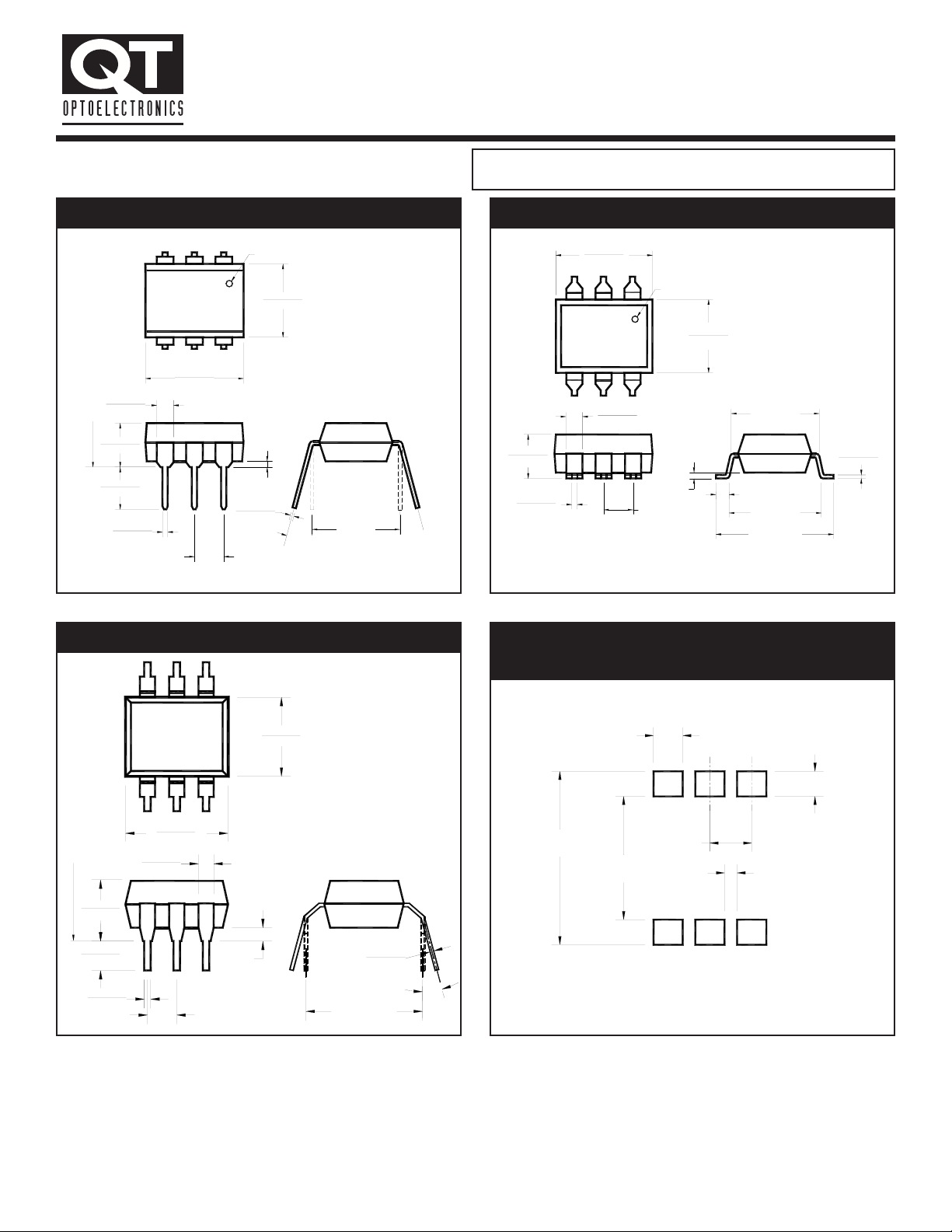

Package Dimensions (Surface Mount)Package Dimensions (Through Hole)

Package Dimensions (0.4”Lead Spacing) Recommended Pad Layout for

Surface Mount Leadform

GENERAL PURPOSE 6-PIN

PHOTODARLINGTON OPTOCOUPLERS

4/25/00 200038B

4N29 4N30 4N31 4N32 4N33

S .S Surface Mount Lead Bend

SD .SD Surface Mount; Tape and reel

W .W 0.4” Lead Spacing

300 .300 VDE 0884

300W .300W VDE 0884, 0.4” Lead Spacing

3S .3S VDE 0884, Surface Mount

3SD .3SD VDE 0884, Surface Mount, Tape & Reel

Option

Order Entry Identifier

Description

4.0 ± 0.1

Ø1.55 ± 0.05

User Direction of Feed

4.0 ± 0.1

1.75 ± 0.10

7.5 ± 0.1

16.0 ± 0.3

12.0 ± 0.1

0.30 ± 0.05

13.2 ± 0.2

4.85 ± 0.20

0.1 MAX

10.30 ± 0.20

9.55 ± 0.20

Ø1.6 ± 0.1

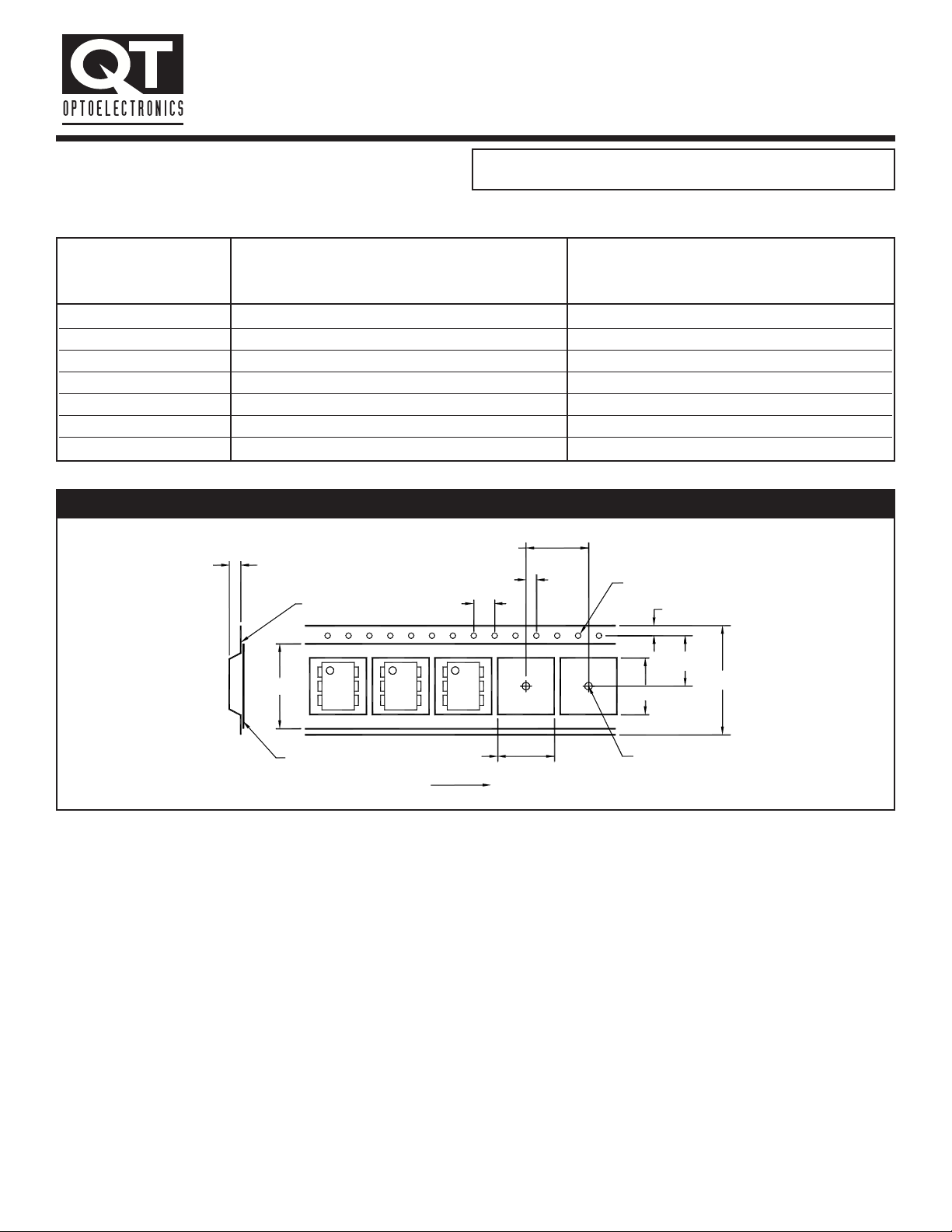

QT Carrier Tape Specifications (“D” Taping Orientation)

ORDERING INFORMATION

NOTE

All dimensions are in millimeters

Call QT Optoelectronics for more information or the phone number of your nearest distributor.

United States 800-533-6786 • France 33 [0] 1.45.18.78.78 • Germany 49 [0] 89/96.30.51 • United Kingdom 44 [0] 1296 394499 • Asia/Pacific 603-7248793
