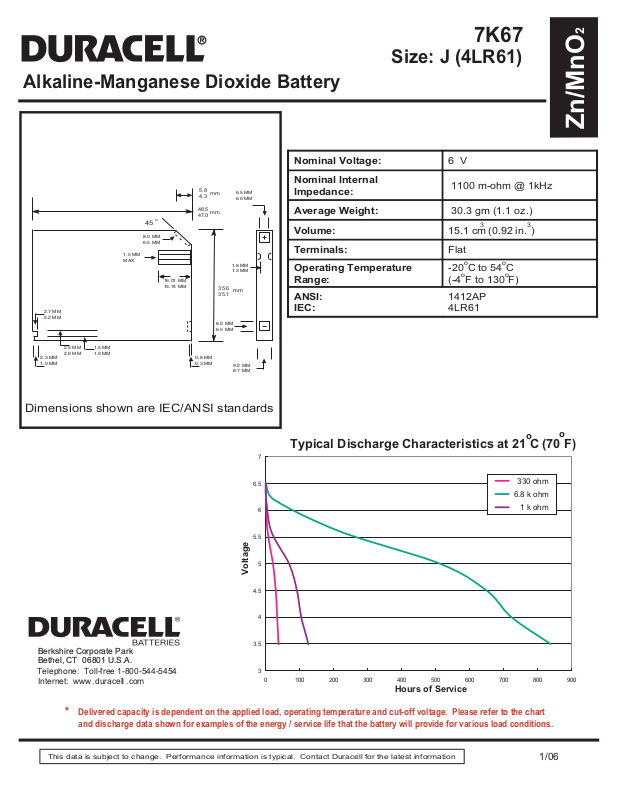

Page 1
Alkaline-Manganese Dioxide Battery
Nominal Voltage: 6 V
7K67
Size: J (4LR61)
Zn/MnO2
2.7 MM
2.2 MM
2.3 MM
1.0 MM
2.5 MM
2.0 MM
1.5 MM
1.0 MM
1.5 MM
MAX
45
8.0 MM
6.5 MM
o
16.01 MM
15.74 MM
5.8
4.3
48.5
47.0
0.8 MM
0.3 MM
mm
mm
35.6
35.1
8.0 MM
6.5 MM
6.5 MM
6.0 MM
1.8 MM
1.3 MM
mm
9.2 MM
8.7 MM
Dimensions shown are IEC/ANSI standards
Nominal Internal
Impedance:
1100 m-ohm @ 1kHz
Average Weight: 30.3 gm (1.1 oz.)
3
Volume: 15.1 cm
(0.92 in.3)
Terminals: Flat
o
Operating Temperature
Range:
ANSI:
IEC:
C to 54oC
-20
o
F to 130oF)
(-4
1412AP
4LR61
o
o
Typical Discharge Characteristics at 21 C (70 F)
7
6.5
6
5.5
5
Voltage
4.5
4
Berkshire Corporate ParkBerkshire Corporate Park
3.5
Bethel, CT 06801 U.S.A.Bethel, CT 06801 U.S.A.
Telephone: Toll-free 1-800-544-5454
Internet: www.duracell .com
Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the chart
**
3
0 100 200 300 400 500 600 700 800 900
and discharge data shown for examples of the energy / service life that the battery will provide for various load conditions.
This data is subject to change. Performance information is typical. Contact Duracell for the latest information
330 ohm
6.8 k ohm
1 k ohm
Hours of Service
1/06
