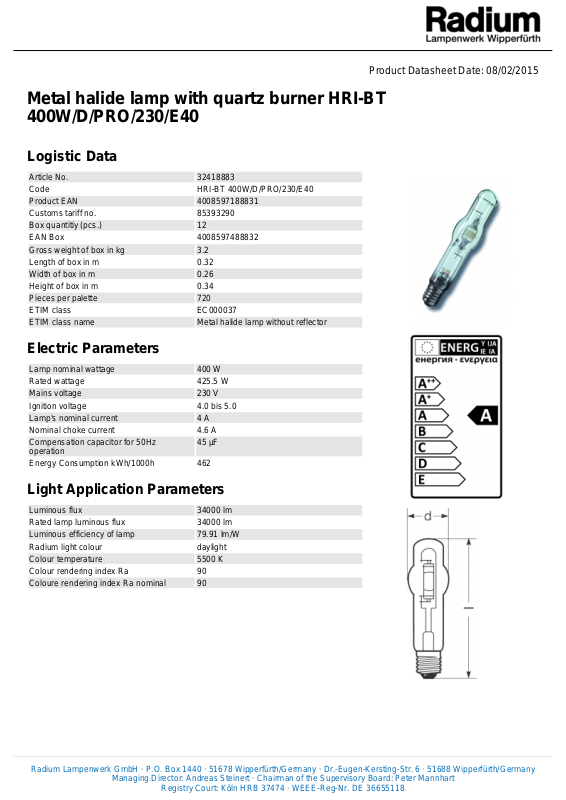

Page 1
Product Datasheet Date: 08/02/2015
Metal halide lamp with quartz burner HRI-BT
400W/D/PRO/230/E40
Logistic Data
Article No. 32418883
Code HRI-BT 400W/D/PRO/230/E40
Product EAN 4008597188831
Customs tariff no. 85393290
Box quantitiy (pcs.) 12
EAN Box 4008597488832
Gross weight of box in kg 3.2
Length of box in m 0.32
Width of box in m 0.26
Height of box in m 0.34
Pieces per palette 720
ETIM class EC000037
ETIM class name Metal halide lamp without reflector
Electric Parameters
Lamp nominal wattage 400 W
Rated wattage 425.5 W
Mains voltage 230 V
Ignition voltage 4.0 bis 5.0
Lamp's nominal current 4 A
Nominal choke current 4.6 A
Compensation capacitor for 50Hz
operation
Energy Consumption kWh/1000h 462
45 µF
Light Application Parameters
Luminous flux 34000 lm
Rated lamp luminous flux 34000 lm
Luminous efficiency of lamp 79.91 lm/W
Radium light colour daylight
Colour temperature 5500 K
Colour rendering index Ra 90
Coloure rendering index Ra nominal 90
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 2
Service Life
Mean service life 12000 h
Info about service life 12B50, 50Hz
Lamp survival factor at 2000h 0.99
Lamp survival factor at 4000h 0.98
Lamp survival factor at 6000h 0.95
Lamp survival factor at 8000h 0.90
Lamp survival factor at 12000h 0.80
Lamp survival factor at 16000h 0.50
Lumen maintenance at 2000h 0.83
Lumen maintenance at 4000h 0.76
Lumen maintenance at 6000h 0.70
Lumen maintenance at 8000h 0.65
Lumen maintenance at 12000h 0.55
Lumen maintenance at 16000h 0.50
Operation mode for LLMF/LSF 50 Hz
Specification
Diameter max. 62 mm
Length max. 285 mm
Overall length 285 mm
dimmable nein
Energylabel from 2013 A
Mercury content 59.0 mg
Base E40
Notes on Operation
Burning position h180
Miscellaneous
EU Directive TIM
ILCOS name MC-400/952-H-E40
LBS name HIT 250W/952 E40
Notes:
Metal halide lamp with quartz burner, tubular bulb for professional application
Please, refer to www.radium.de/recycling for notes on disposal of burned-out lamps as well as lamp breakage.
The field 'info about service life' contains the frame conditions according to standards based on which the specific service
life has been determined. So, for example, "12B50, 50Hz" means that the mean service life (B50) has been determined
with a 12h switching cycle at mains (frequency 50Hz), "3B50, HF" is based on a 3h switching cycle at electronic control
gear (high frequency).
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 3
Notes
Base
E40
IEC/EN 60061-1
sheet 7004-24-6
Spectrum
Natural daylight is a mixture of direct sunlight and the light of the sky. Therefore, its spectral composition
changes permanently due to the changing time of day. The standardised light classification D65 corresponds
to a daylight with a colour temperature of approximately 6500 K.
Every discharge lamp type has got an individual spectral power distribution according to its chemical filling.
From this result important properties light colour or colour rendering.
Should the spectral lines be very close together the lamp presumably has got a very good colour rendering
index, so, Ra might be near 100. Does the spectrum rather look like single lines or frayed out the colour
rendering of the lamp will probably be not as good.
If number and height of the spectral lines within the blue range (around 400 nm) prevails it might be a lamp
with a rather cold light colour like for example daylight. On the other hand, should the red (around 700 nm) or
the red and yellow (around 600 nm) range be dominant one can assume that the lamp will be a rather warm
light colour like WDL.
After the lamp start a metal hlide lamp needs about 2-4 minutes time to reach its full luminous flux, all colours
in the spectrum are within the discharge arc then.
Visible region from 380 to 780 nm; height of graph corresponding with relative spectral emission (400mW/klm)
per 10nm.
HRI.../D daylight(D 65)
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 4
Special features
General notes
The technical design data in accordance with DIN and IEC. The producer does not take any responsibility for
damage to persons or property in case of unsuitable operation or handling of the product. Operating data and
dimensions are valid within the usual tolerances. Related lamp types (different bases, mains voltages) may be
available on request. Sale and delivery are effected in accordance with the Radium Terms of Delivery and
Payment valid on the day of conclusion of contract. Packing units offer economical advantages to the purchase
and logistic department. Please match your quantity volume accordingly. For orders of a minimum quantity
(clefts) with a lamp model the amount lower than the volume of each packaging unit, we will invoice 10 %
additional charge per lamp type. Technical changes and terms of delivery are reserved. Manipulation of any
kind to packaging or product is not permissible as this will violate Radium brand rights. Furthermore, technical
properties of the product can change to its disadvantage or even destruction. Therefore, Radium cannot be
responsible for consequential damages.
® = Registered trademark
Subject to change without notice. Errors and omissions excepted.
Please, dump as special waste, no ordinary household
waste!
All technical data without guarantee.
