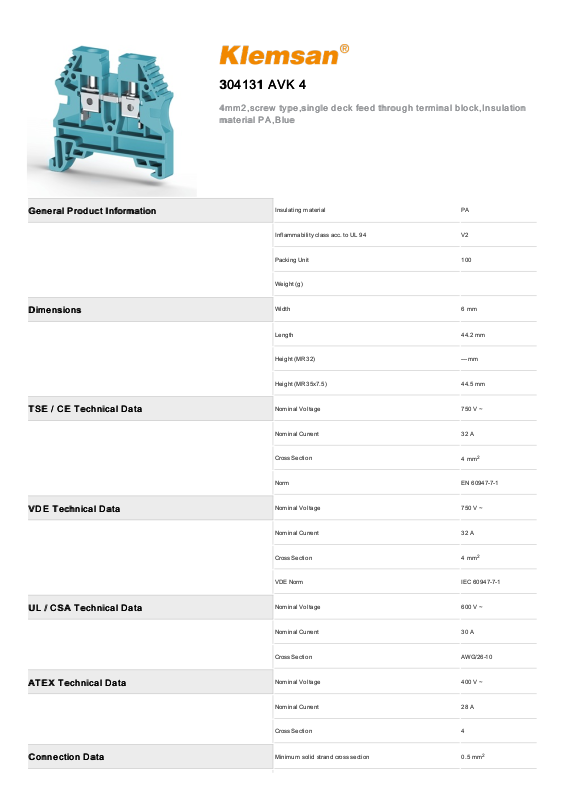

304131 AVK 4304131 AVK 4
4mm2 ,scre w type,single deck feed through terminal blo c k ,Insulation4mm2 ,scre w type,single deck feed through terminal blo c k ,Insulation
ma terial PA ,Bluema terial PA ,Blue
Ge n e ral P roduct I n forma tio nGe n e ral P roduct I n forma tio n
Insulating material PA
Inflammability class acc. to UL 94 V2
Packing Unit 100
Weight (g)
Dimen sionsDimen sions
Width 6 mm
Length 44.2 mm
Height (MR 32) --- mm
Height (MR 35x7.5) 44.5 mm
TSE / CE Technica l D ataTSE / CE Technica l D ata
Nominal Vol tage 750 V ~
Nominal Current 32 A
Cross Section
4 mm
2
Norm EN 60947-7-1
VDE Technica l D ataVDE Technica l D ata
Nominal Vol tage 750 V ~
Nominal Current 32 A
Cross Section
4 mm
2
VDE Norm IEC 60947-7-1
UL / CSA Technica l D ataUL / CSA Technica l D ata
Nominal Vol tage 600 V ~
Nominal Current 30 A
Cross Section AWG/26-10
ATEX Technica l D ataATEX Technica l D ata
Nominal Vol tage 400 V ~
Nominal Current 28 A
Cross Section 4
Connection DataCo n n e c tio n D a ta
Minimum sol id strand cross section
0.5 mm
2
Page 2
Maximum solid Strand cross section
6 mm
2
Minimum fi ne Strand cross section
1.5 mm
2
Maximum fine strand cross section
4 mm
2
AWG Conductor Range 26-10
Connection Type screw/vidalı
Insulation Strippi ng l ength 10 mm
Tightening torque 0.5 Nm
Alçak Gerilim direktiflerine uygunluk belgesi - VDE Certificate
Türk Standartlarına Uygunluk Belgesi - TSE Certificate
Ukrayna Uygunluk Sertifikası - Ukrayna Uygunluk Sertifikası
Avrupa standartlarına uygunluk belgesi - CE Certificate
UL Sertifikası - UL Certificate
CSA - CE Certificate
Norveç onaylı denizcilik sektöründe kullanılabilirlik belgesi - DNV Certificate
Rusya Onaylı Denizcilik Sertifikası - Rusya Denizcilik Certificate
LAPEM - RETIE Sertifikası - LAPEM - Retie Certificate
LAPEM - RETIE Sertifikası - LAPEM - Retie Certificate
OrderOrder
InfoInfo
304130 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Grey
304131 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue
304132 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Green
304133 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Yellow
304134 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Red
304139 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Beige
304135 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Black
304136 4mm2,screw type,single deck feed through terminal block,Insulation material PA,White
Page 3
© 2022 Klemsan A.Ş.
www.klemsan.com
304137 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Orange
304138 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Brown
