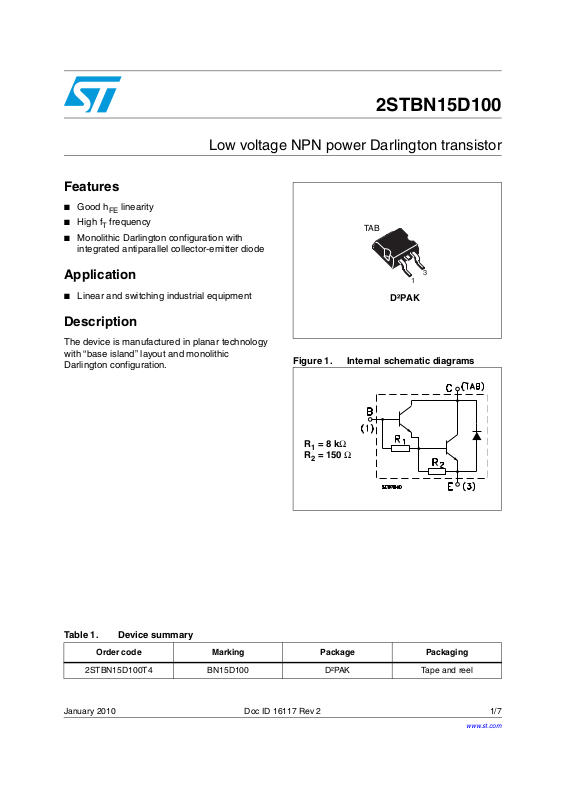

Page 1
Features
2STBN15D100
Low voltage NPN power Darlington transistor
■ Good h
■ High f
■ Monolithic Darlington configuration with
linearity
FE
frequency
T
integrated antiparallel collector-emitter diode
Application
■ Linear and switching industrial equipment
Description
The device is manufactured in planar technology
with “base island” layout and monolithic
Darlington configuration.
TA B
3
1
D²PAK
Figure 1. Internal schematic diagrams
R1 = 8 kΩ
= 150 Ω
R
2
Table 1. Device summary
Order code Marking Package Packaging
2STBN15D100T4 BN15D100 D²PAK Tape and reel
January 2010 Doc ID 16117 Rev 2 1/7
www.st.com
7
Page 2
Electrical ratings 2STBN15D100
1 Electrical ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
V
P
T
Collector-base voltage (IE = 0) 100 V
CBO
Collector-emitter voltage (IB = 0) 100 V
CEO
Emitter-base voltage (IC = 0) 5 V
EBO
I
Collector current 12 A
C
Collector peak current 15 A
I
CM
Base current 0.2 A
I
B
Total dissipation at T
TOT
Storage temperature -65 to 150 °C
STG
T
Max. operating junction temperature 150 °C
J
= 25 °C 70 W
case
Table 3. Thermal data
Symbol Parameter Value Unit
R
Thermal resistance junction-case max. 1.8 °C/W
thJC
2/7 Doc ID 16117 Rev 2
Page 3
2STBN15D100 Electrical characteristics
2 Electrical characteristics
T
= 25 °C; unless otherwise specified.
case
Table 4. Electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
CBO
I
CEO
I
EBO
V
CEO(sus)
V
CE(sat)
V
BE(on)
h
FE
V
Collector cut-off current
(IE = 0)
Collector cut-off current
(IB = 0)
Emitter cut-off current
(IC = 0)
Collector-emitter
(1)
sustaining voltage (IB = 0)
Collector-emitter
(1)
saturation voltage
(1)
Base-emitter on voltage IC = 3 A _ V
(1)
DC current gain IC = 3 A V
Diode forward voltage IF = 3 A - 2.5 V
F
V
= 100 V - 100 µA
CB
V
= 50 V - 100 µA
CE
V
= 5 V 0.12 - 2 mA
EB
= 100 mA 100 - V
I
C
= 0.5 A IB = 1 mA
I
C
IC = 4 A _ IB = 4 mA
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %.
1.5
-
1.3VV
= 3 V - 2.5 V
CE
= 3 V 750 -
CE
Doc ID 16117 Rev 2 3/7
Page 4
Package mechanical data 2STBN15D100
3 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
4/7 Doc ID 16117 Rev 2
Page 5
2STBN15D100 Package mechanical data
D²PAK (TO-263) mechanical data
Dim
Min Typ Max Min Typ Max
mm inch
A 4.40 4.60 0.173 0.181
A1 0.03 0.23 0.001 0.009
b 0.70 0.93 0.027 0.037
b2 1.14 1.70 0.045 0.067
c 0.45 0.60 0.017 0.024
c2 1.23 1.360.048 0.053
D 8.95 9.350.352 0.368
D1 7.50 0.295
E 10 10.40 0.394 0.409
E1 8.50 0.334
e 2.54 0.1
e1 4.88 5.28 0.192 0.208
H15 15.85 0.590 0.624
J1 2.49 2.69 0.099 0.106
L 2.29 2.79 0.090 0.110
L1 1.27 1.40 0.05 0.055
L2 1.30 1.75 0.051 0.069
R 0.4 0.016
V2 0° 8°0° 8°
0079457_M
Doc ID 16117 Rev 2 5/7
Page 6
Revision history 2STBN15D100
4 Revision history
Table 5. Document revision history
Date Revision Changes
01-Sep-2009 1 First release.
19-Jan-2010 2 Modified Table 1 on page 1.
6/7 Doc ID 16117 Rev 2
