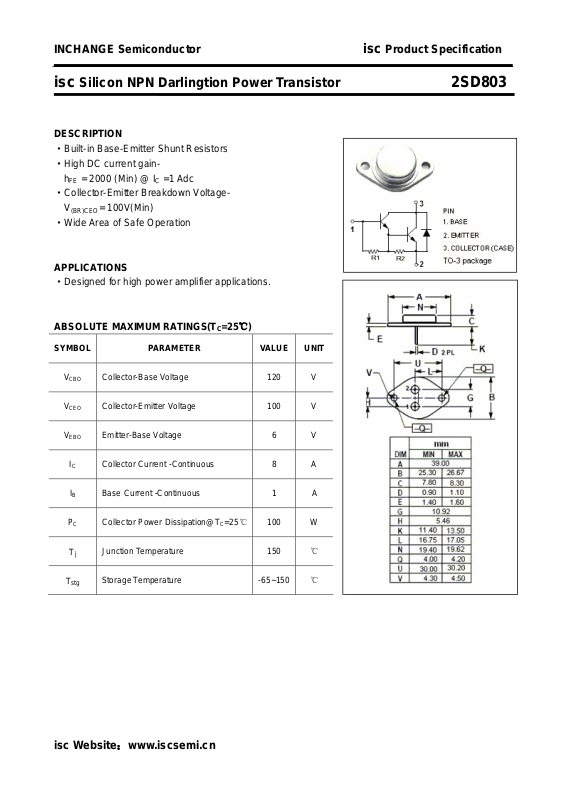

Page 1
INCHANGE Semiconductor isc Product Specification
isc Silicon NPN Darlingtion Power Transistor 2SD803
DESCRIPTION
·Built-in Base-Emitter Shunt Resistors
·High DC current gain-
h
= 2000 (Min) @ IC =1 Adc
FE
·Collector-Emitter Breakdown VoltageV
·Wide Area of Safe Operation
APPLICATIONS
·Designed for high power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(TC=25℃)
SYMBOL PARAMETER VALUE UNIT
(BR)CEO
= 100V(Min)
V
V
V
P
T
CBO
CEO
EBO
I
C
I
B
T
stg
Collector-Base Voltage 120 V
Collector-Emitter Voltage 100 V
Emitter-Base Voltage 6 V
Collector Current -Continuous 8 A
B Base Current -Continuous 1 A
Collector Power Dissipation@TC=25℃
C
Junction Temperature 150
j
Storage Temperature -65~150
100 W
℃
℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
isc Silicon NPN Darlingtion Power Transistor 2SD803
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN MAX UNIT
V
(BR)CEO
V
CE
I
CBO
I
EBO
h
FE-1
h
FE-2
(sat)
Collector-Emitter Breakdown Voltage IC= 50mA ; IB= 0 100 V
Collector-Emitter Saturation Voltage IC= 3A; IB= 30mA B 1.5 V
Collector Cutoff current VCB= 120V; IE=0 100
μA
Emitter Cut-off current VEB= 6V; IC= 0 10 mA
DC Current Gain IC= 1A ; VCE= 4V 2000
DC Current Gain IC= 40A ; VCE= 4V 7
isc Website：www.iscsemi.cn
2
