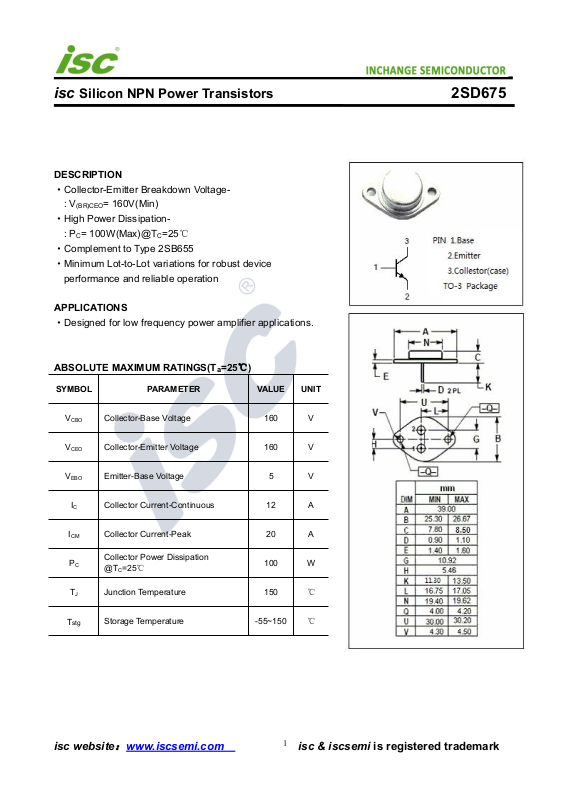

Page 1
1
isc
SYMBOL
PARAMETER
VALUE
UNIT
V
CBO
Collector-Base Voltage
160
V
V
CEO
Collector-Emitter Voltage
160
V
V
EBO
Emitter-Base Voltage
5
V
I
C
Collector Current-Continuous
12
A
ICMCollector Current-Peak
20
A
P
C
Collector Power Dissipation
@TC=25℃
100
W
T
J
Junction Temperature
150
℃
T
stg
Storage Temperature
-55~150
℃
Silicon NPN Power Transistors
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V
(BR)CEO
= 160V(Min)
·High Power Dissipation-
: PC= 100W(Max)@TC=25℃
·Complement to Type 2SB655
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for low frequency power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
2SD675
isc website：www.iscsemi.com isc & iscsemi is registered trademark
Page 2
2
isc
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX
UNIT
V
(BR)CEO
Collector-Emitter Breakdown Voltage
IC= 10mA; RBE= ∞
160
V
V
(BR)EBO
Emitter-Base Breakdown Voltage
IE= 1mA; IC= 0
5
V
V
CE(sat)
Collector-Emitter Saturation Voltage
IC= 6A; IB= 0.6A
2.5
V
V
BE
(on)
Base-Emitter On Voltage
IC= 1A; VCE= 5V
1.5
V
I
CBO
Collector Cutoff Current
VCB= 140V; IE= 0
1
mA
h
FE-1
DC Current Gain
IC= 1A; VCE= 5V
60
200
h
FE-2
DC Current Gain
IC= 6A; VCE= 5V
20
B
C
60-120
100-200
Silicon NPN Power Transistors
ELECTRICAL CHARACTERISTICS
Tj=25℃ unless otherwise specified
2SD675
h
NOTICE
Classifications
FE-1
：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in equipment
which could have applications in hazardous environments, aerospace industry, or medical
field. Please contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website：www.iscsemi.com isc & iscsemi is registered trademark
