Page 1

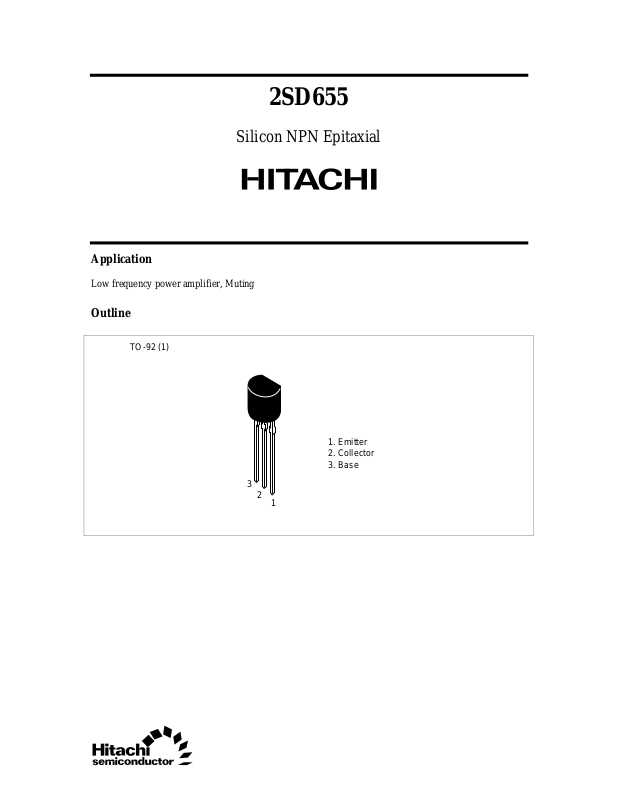

Silicon NPN Epitaxial
Application
Low frequency power amplifier, Muting
Outline
TO-92 (1)
2SD655
1. Emitter
2. Collector
3. Base
3
2
1
Page 2
2SD655
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current I
Collector peak current i
Collector power dissipation P
CBO
CEO
EBO
C
C(peak)
C
Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test conditions
Collector to base breakdown
V
(BR)CBO
voltage
Collector to emitter breakdown
V
(BR)CEO
voltage
Emitter to base breakdown
V
(BR)EBO
voltage
Collector cutoff current I
Base to emitter voltage V
Collector to emitter saturation
V
CBO
BE
CE(sat)
voltage
DC current transfer ratio hFE*
Gain bandwidth product f
T
Notes: 1. The 2SD655 is grouped by hFE as follows.
2. Pulse test
DEF
250 to 500 400 to 800 600 to 1200
30 — — V IC = 10 µA, IE = 0
15 — — V IC = 1 mA, RBE = ∞
5——VI
— — 1.0 µAV
— — 1.0 V V
— 0.15 0.5 V IC = 500 mA, IB = 50 mA*
1
250 — 1200 V
— 250 — MHz V
30 V
15 V
5V
0.7 A
1.0 A
500 mW
= 10 µA, IC = 0
E
= 20 V, IE = 0
CB
= 1 V, IC = 150 mA
CE
= 1 V, IC = 150 mA*
CE
= 1 V, IC = 150 mA
CE
2
2
2
Page 3
2SD655
Maximum Collector Dissipation Curve
600
400
200
Collector Power Dissipation Pc (mW)
0 50 100 150
Ambient Temperature Ta (°C)
Typical Transfer Characteristics
1,000
300
(mA)
C
100
VCE = 1 V
Typical Output Characteristics
50
40
(mA)
C
30
20
10
Collector Current I
0
Collector to Emitter Voltage V
10,000
FE
3,000
1,000
0.04
0.035
0.03
0.025
0.02
0.015
0.01
0.005 mA
IB = 0
CE
DC Current Transfer Ratio vs.
Collector Current
VCE = 1 V
Pulse
108642
(V)
30
10
Collector Current I
3
1
0 0.2 0.4 0.6 0.8 1.0
Base to Emitter Voltage VBE (V)
300
100
30
DC Current Transfer Ratio h
10
1 3 10 30 100 300 1,000
Collector Current I
(mA)
C
3
Page 4
2SD655
Collector to Emitter Saturation Voltage vs.
Collector Current
3.0
IC = 10 I
1.0
B
0.3
(V)
0.1
(sat)
CE
V
0.03
0.01
Collector to Emitter Saturation Voltage
0.003
3 10 30 100 300 1,000 3,000
Collector Current I
50
(pF)
ob
20
3,000
1,000
(MHz)
T
Gain Bandwidth Product f
(mA)
C
Collector Output Capacitance vs.
Collector to Base Voltage
Gain Bandwidth Product vs.
Collector Current
VCE = 1 V
300
100
30
10
3
0.3 1.0 3 10 30 100 300
Collector Current I
(mA)
C
f = 1 MHz
= 0
I
E
10
5
2
Collector Output Capacitance C
1
12 51020 50
Collector to Base Voltage VCB (V)
4
Page 5
Unit: mm
0.60 Max
0.5 ± 0.1
4.8 ± 0.3
1.27
2.54
0.7
5.0 ± 0.2
2.3 Max
12.7 Min
3.8 ± 0.3
0.5
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
TO-92 (1)
Conforms
Conforms
0.25 g
Page 6
