Inchange Semiconductor Product Specification

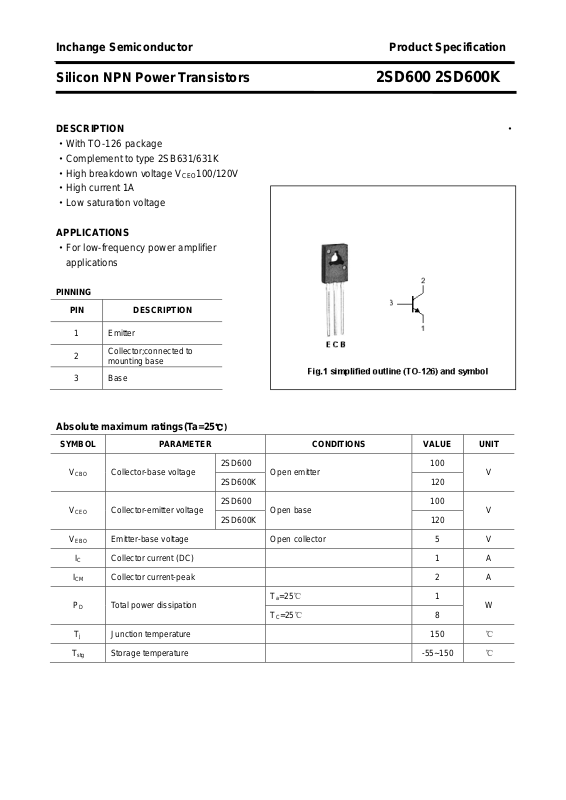

Silicon NPN Power Transistors 2SD600 2SD600K
DESCRIPTION ·
·With TO-126 package
·Complement to type 2SB631/631K
·High breakdown voltage V
·High current 1A
·Low saturation voltage
APPLICATIONS
·For low-frequency power amplifier
applications
PINNING
PIN DESCRIPTION
100/120V
CEO
1
2
3 Base
Emitter
Collector;connected to
mounting base
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
I
I
CM
P
C
D
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage Open collector 5 V
Collector current (DC) 1 A
Collector current-peak 2 A
Total power dissipation
℃)
2SD600 100
2SD600K
2SD600 100
2SD600K
Open emitter
120
Open base
120
Ta=25℃ 1
TC=25℃ 8
V
V
W
T
j
T
stg
Junction temperature 150 ℃
Storage temperature -55~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD600 2SD600K
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
h
FE-1
FE-2
f
T
Collector-emitter
breakdown voltage
Collector-base
breakdown voltage
2SD600 100
I
2SD600K
=1mA; RBE=∞
C
120
V
2SD600 100
=10μA ;IE=0
2SD600K
I
C
120
V
Emitter-base breakdown voltage IE=10μA ;IC=0 5 V
Collector-emitter saturation voltage IC=0.5A ;IB=50mA 0.4 V
Base-emitter saturation voltage IC=0.5A ;IB=50mA 1.2 V
Collector cut-off current VCB=50V; IE=0 1 μA
Emitter cut-off current VEB=4V; IC=0 1 μA
DC current gain IC=50mA ; VCE=5V 60 320
DC current gain IC=0.5A ; VCE=5V 20
Transition frequency IC=50mA ; VCE=10V 130 MHz
C
OB
Collector output capacitance f=1MHz ; VCB=10V 20 pF
Switching times
t
f
t
off
t
stg
Fall time 0.1 μs
Turn-off time 0.5 μs
Storage time
h
Classifications
FE-1
D E F
60-120 100-200 160-320
=500mA ; VCE=12V
I
C
=-IB2=50mA
I
B1
0.7 μs
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD600 2SD600K

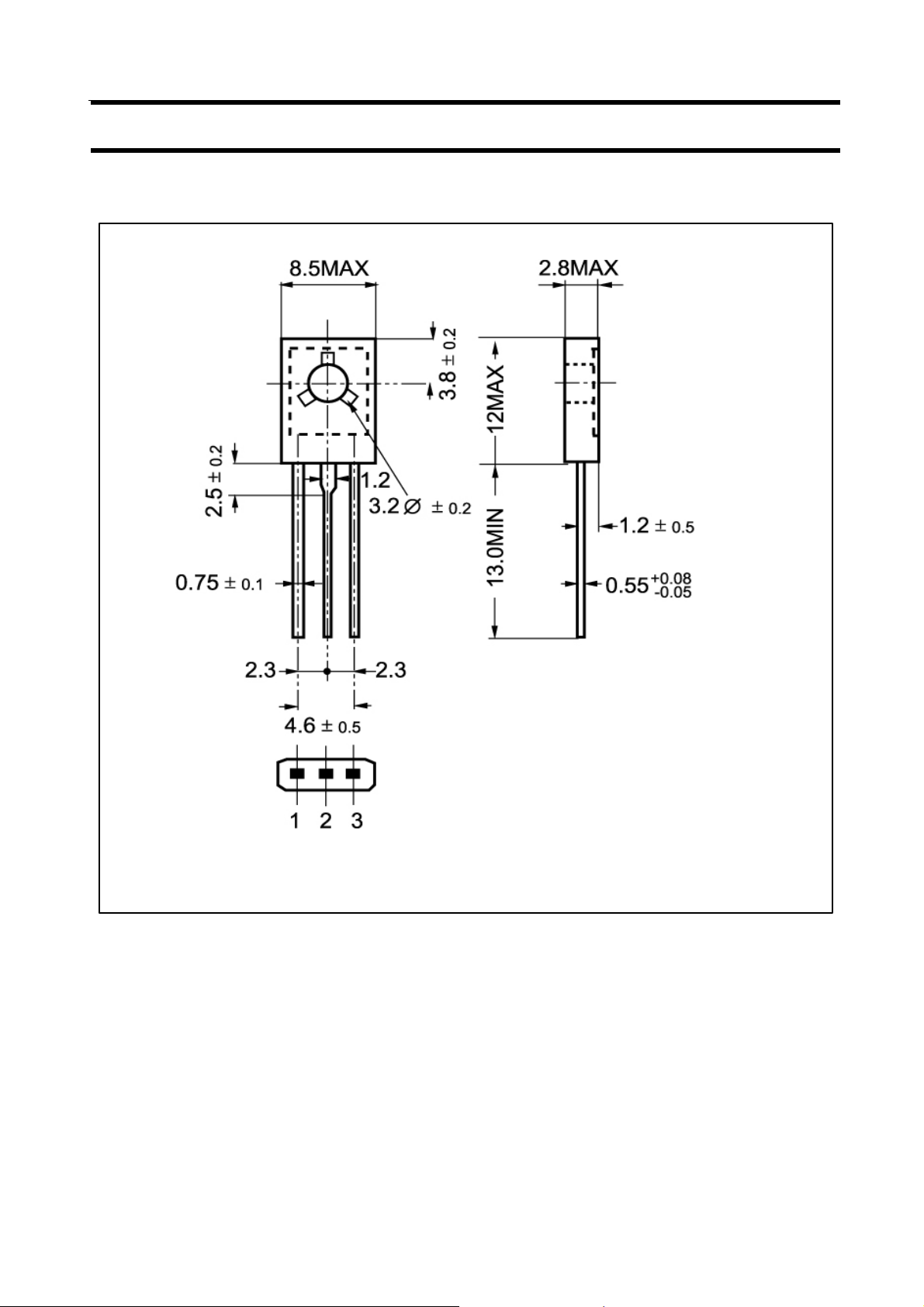

PACKAGE OUTLINE
Fig.2 Outline dimensions
3
Page 4
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD600 2SD600K
4
