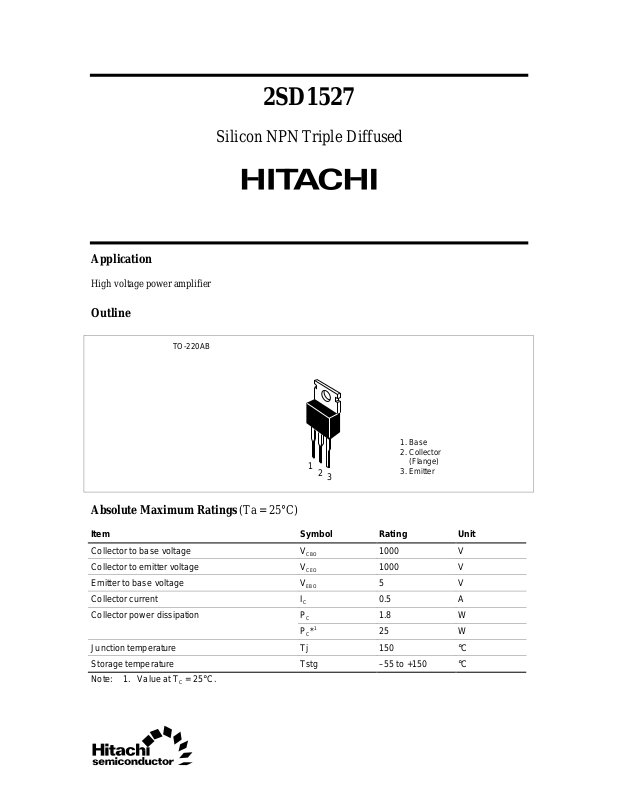

Datasheet 2SD1527 Datasheet (HIT)

Application

High voltage power amplifier

Outline

TO-220AB

2SD1527

Silicon NPN Triple Diffused

1. Base

2. Collector

1

2

3

(Flange)

3. Emitter

Absolute Maximum Ratings (Ta = 25°C)

Item Symbol Rating Unit

Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current I
Collector power dissipation P

Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C

Note: 1. Value at TC = 25°C.

C

PC*

CBO

CEO

EBO

C

1

1000 V
1000 V
5V

0.5 A

1.8 W
25 W

2SD1527

Electrical Characteristics (Ta = 25°C)

Item Symbol Min Typ Max Unit Test conditions

Collector to emitter breakdown

V

(BR)CEO

voltage
Emitter to base breakdown

V

(BR)EBO

voltage
Collector cutoff current I
DC current transfer ratio h

Base to emitter voltage V
Collector to emitter saturation

CBO

h

V

FE1

FE2

BE

CE (sat)

voltage
Gain bandwidth product f

T

Collector output capacitance Cob — 5 — pF VCB = 100 V, IE = 0, f = 1 MHz

1000 — — V IC = 1 mA, RBE = ∞

5——VI

= 1 mA, IC = 0

E

——10µAVCB = 800 V, IE = 0
10 — — VCE = 5 V, IC = 10 mA
10 — — VCE = 5 V, IC = 100 mA
— — 1.2 V VCE = 5 V, IC = 100 mA
——5VI

= 300 mA, IB = 60 mA

C

— 5 — MHz VCE = 20 V, IC = 50 mA

Maximum Collector Dissipation Curve

30

20

10

Collector power dissipation Pc (W)

0 50 100 150

Case temperature T

(°C)

C

Area of Safe Operation

1.0
(50 V, 0.5 A)

(A)

C

0.1

DC Operation

Collector current I

0.01
30 100 300 1,000 3,000

Collector to emitter voltage VCE (V)

P

C

= 25 W

(600 V, 0.042 A)

(1,000 V, 0.015 A)

TC = 25°C

2

Base to Emitter Saturation Voltage

vs. Collector Current

2

(V)

(sat)
BE

IC/IB = 10
Ta = 25°C
Pulse test

1

0

Base to emitter saturation voltage V

1 2 5 10 20 50 100 200 500

Collector current IC (mA)

DC Current Transfer Ratio

vs. Collector Current

100

2SD1527

TC = 25°C

FE

VCE = 10 V

30

VCE = 5 V

10

3

DC current transfer ratio h

1 2 5 10 20 50 100 200 500

Collector current I

(mA)

C

3

2SD1527

Gain Bandwidth Product

vs. Collector Current

50

VCE = 20 V
Pulse test

20

(MHz)

T

10

5

2

1.0

Gain bandwidth product f

0.5
1 3 10 30 100

Collector current I

(mA)

C

Collector to Emitter Saturation Voltage

vs. Collector Current

(V)

5

(sat)
CE

2

1.0

lC/lB = 10
Ta = 25°C
Pulse test

0.5

0.2

0.1

0.05

Collector to emitter saturation voltage V

12 510

20 50 100 200 500

Collector current I

(mA)

C

4

Collector Output Capacitance

vs. Collector to Base Voltage

100

(pF)

50

ob

20

10

5

2

Collector output capacitance C

1

2 5 10 20 50 100 200

Collector to base voltage V

f = 1 MHz

= 0

I

E

(V)

CB

2SD1527

5

11.5 MAX

Unit: mm

2.79 ± 0.218.5 ± 0.57.8 ± 0.5

1.27

2.54 ± 0.5

10.16 ± 0.2

9.5

8.0

φ 3.6

-0.08

1.5 MAX

0.76 ± 0.1

2.54 ± 0.5

+0.2

6.4

–0.1

+0.1

4.44 ± 0.2

1.26 ± 0.15

2.7 MAX

14.0 ± 0.5 15.0 ± 0.3

0.5 ± 0.1

Hitachi Code
JEDEC
EIAJ
Weight

(reference value)

TO-220AB
Conforms
Conforms

1.8 g
