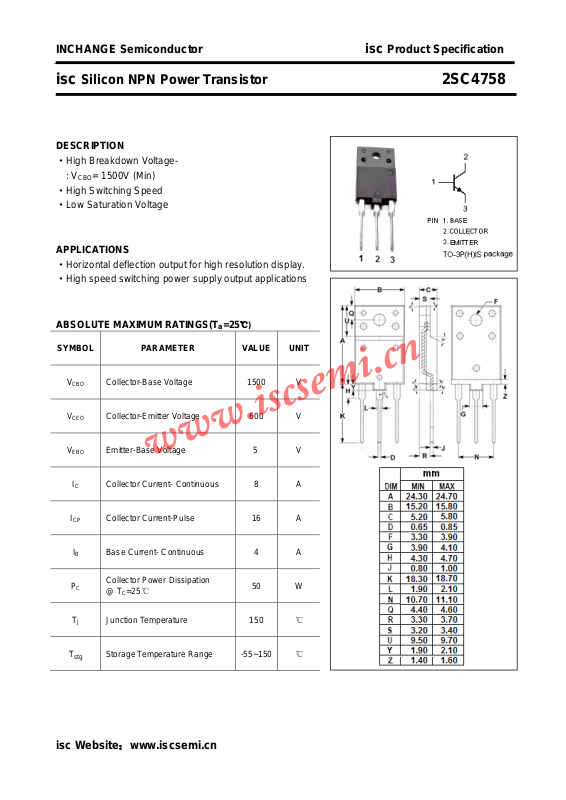

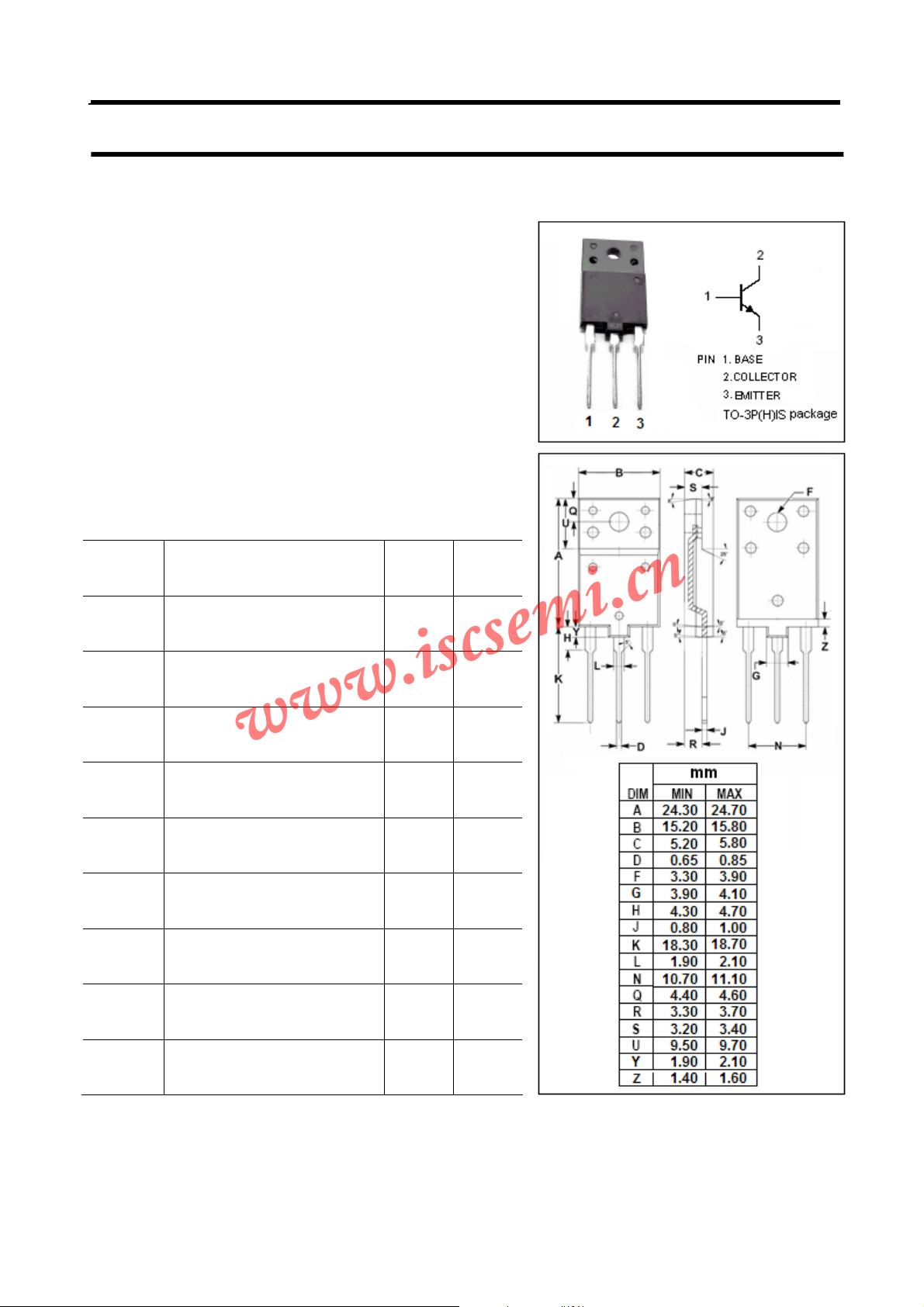

Page 1
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SC4758
DESCRIPTION
·High Breakdown Voltage : V
= 1500V (Min)
CBO
·High Switching Speed
·Low Saturation Voltage
APPLICATIONS
·Horizontal deflection output for high resolution display.
·High speed switching power supply output applications
ABSOLUTE MAXIMUM RATINGS(T
=25℃)
a
SYMBOL PARAMETER VALUE UNIT
V
V
V
I
P
CBO
CEO
EBO
I
C
CP
I
B
C
T
J
Collector-Base Voltage 1500 V
Collector-Emitter Voltage 600 V
Emitter-Base Voltage 5 V
Collector Current- Continuous 8 A
Collector Current-Pulse 16 A
B Base Current- Continuous 4 A
Collector Power Dissipation
=25℃
@ T
C
Junction Temperature 150
50 W
℃
T
stg
Storage Temperature Range -55~150
℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SC4758
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CE
(sat)
V
BE
(sat)
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
C
OB
Collector-Emitter Breakdown Voltage IC= 5mA ; IB= 0 600 V
Collector-Emitter Saturation Voltage IC= 6A; IB= 1.5A B 5.0 V
Base-Emitter Saturation Voltage IC= 6A; IB= 1.5A B 1.5 V
Collector Cutoff Current VCB= 1500V ; IE= 0 1.0 mA
Emitter Cutoff Current VEB= 5V ; IC= 0 10 μA
DC Current Gain IC= 1A ; VCE= 5V 8
DC Current Gain IC= 6A ; VCE= 5V 4 8
Current-Gain—Bandwidth Product IC= 0.1A ; VCE= 10V 1 3 MHz
Output Capacitance
I
=0 ; VCB=10V;f
E
=1.0MHz
test
175 pF
Switching times, Resistive load
t
stg
t
f
Storage Time 2.5 μs
IC= 6A , IB1= 1.2A ; IB2= -2.4A
=32Ω
R
L
Fall Time
0.2 μs
isc Website：www.iscsemi.cn
2

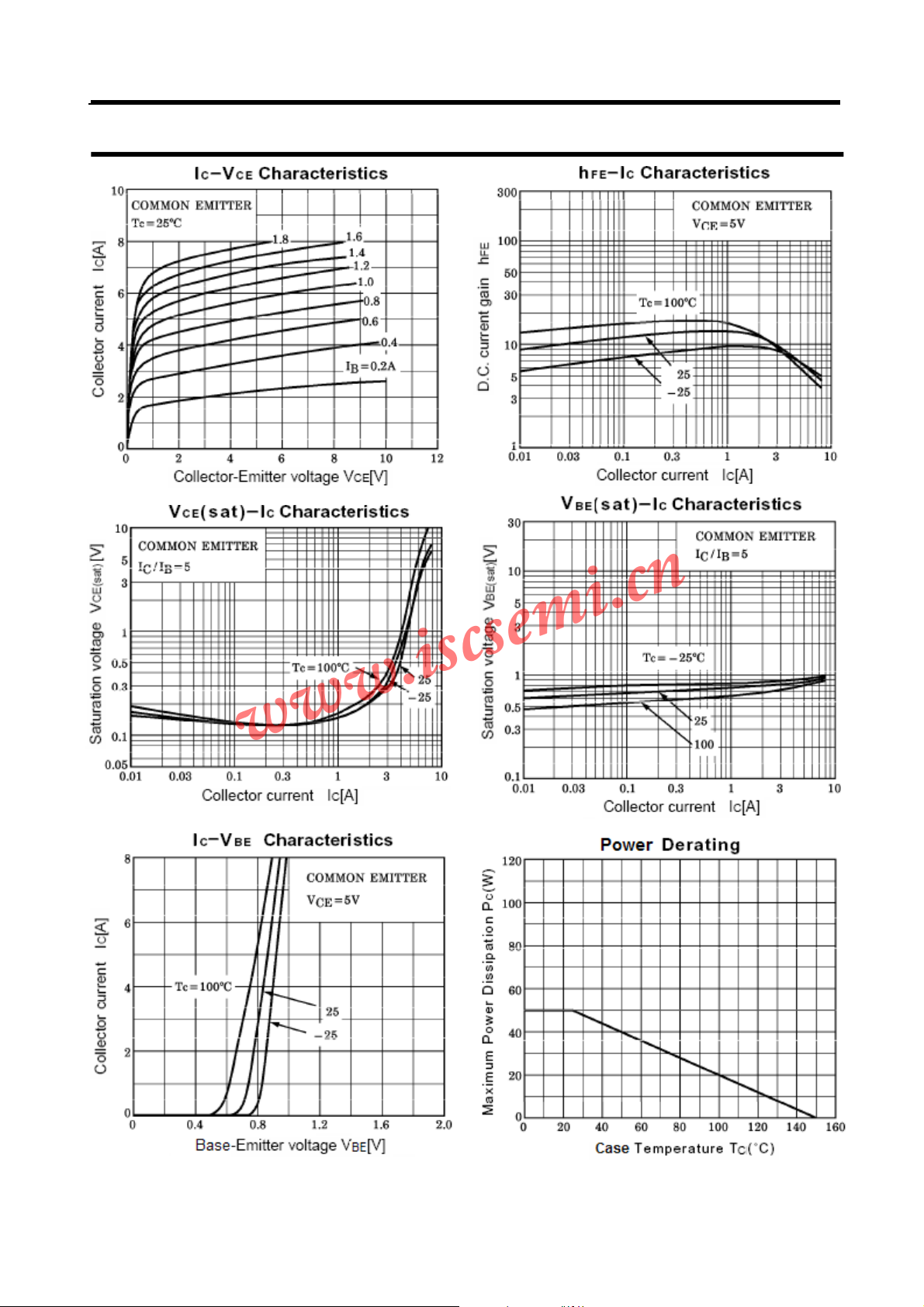

Page 3
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SC4758
isc Website：www.iscsemi.cn

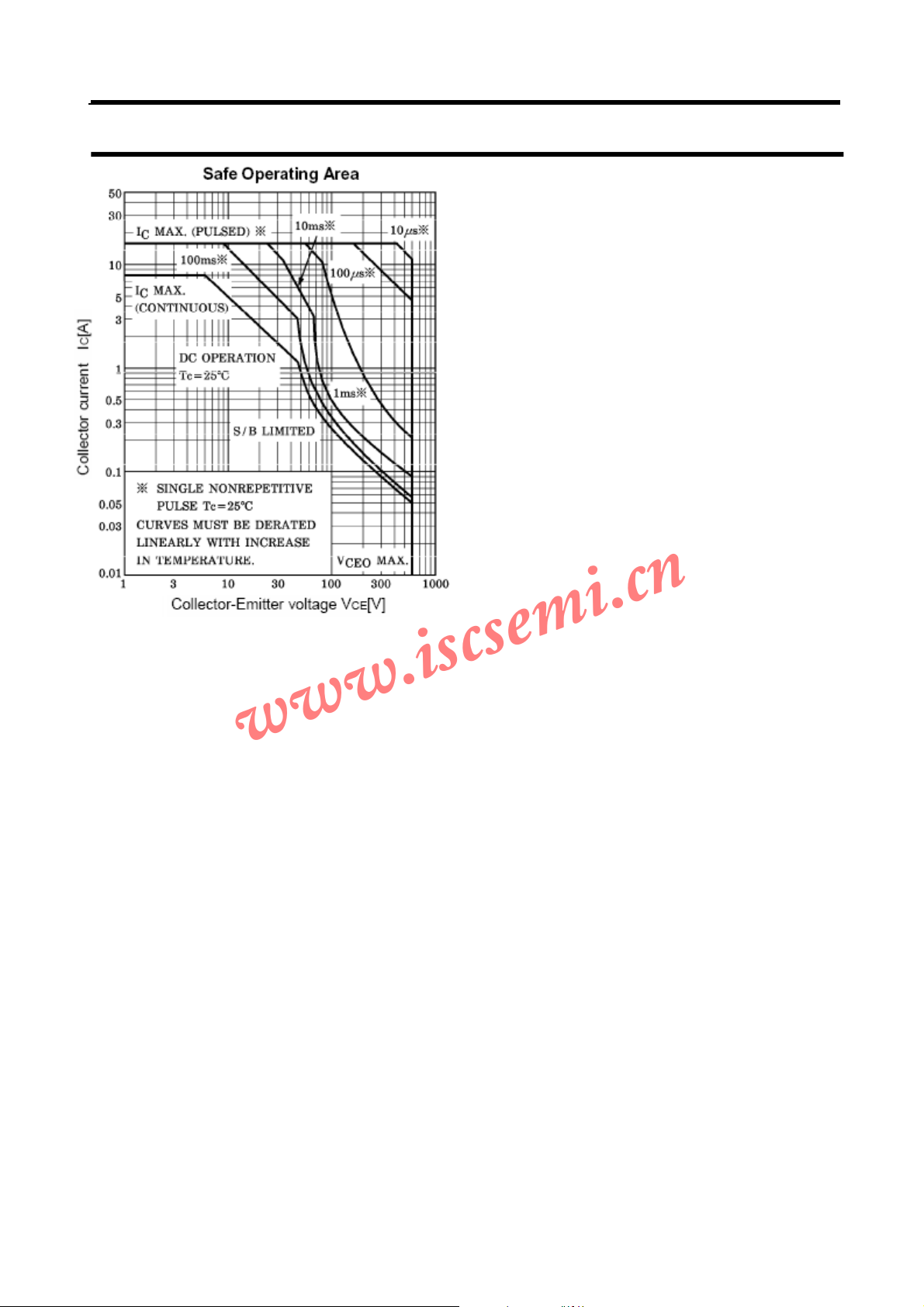

Page 4
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SC4758
isc Website：www.iscsemi.cn
4
