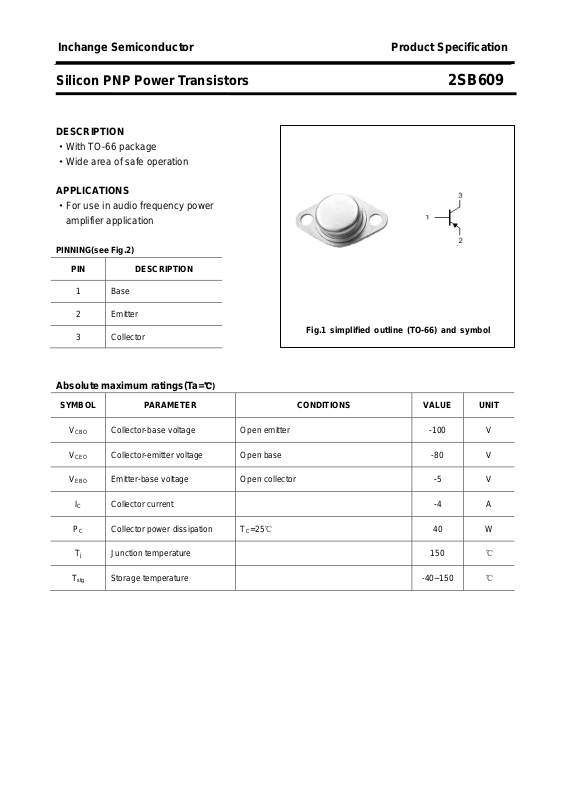

Page 1
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SB609
DESCRIPTION
·With TO-66 package
·Wide area of safe operation
APPLICATIONS
·For use in audio frequency power
amplifier application
PINNING(see Fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base

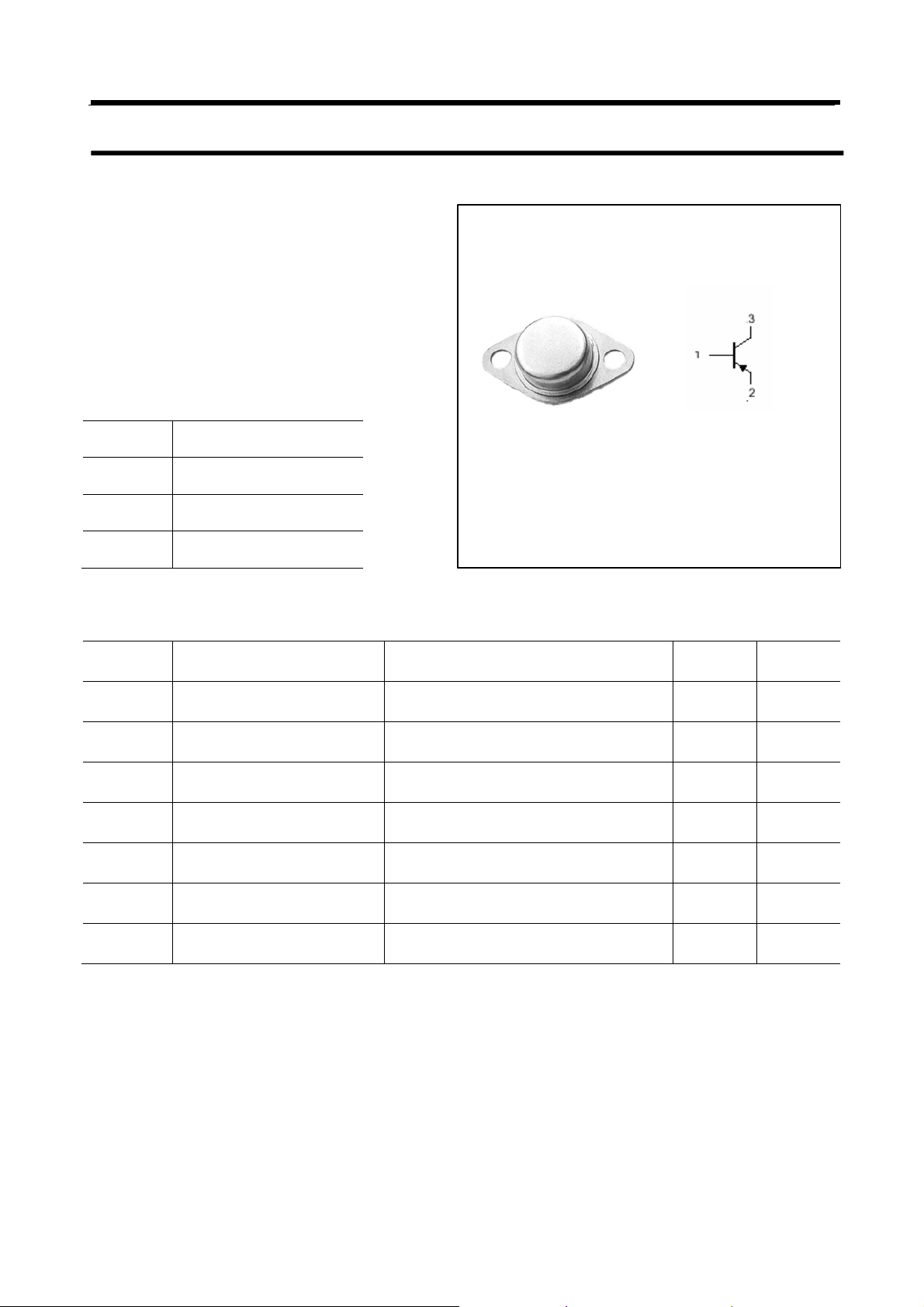

Fig.1 simplified outline (TO-66) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
V
V
P
CBO
CEO
EBO
I
C
C
T
j
Collector-base voltage Open emitter -100 V
Collector-emitter voltage Open base -80 V
Emitter-base voltage Open collector -5 V
Collector current -4 A
Collector power dissipation TC=25℃ 40 W
Junction temperature 150 ℃
T
stg
Storage temperature -40~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SB609
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE
Collector-emitter breakdown voltage IC=-10mA ;IB=0 -80 V
Collector-base breakdown voltage IC=-1mA ;IE=0 -100 V
Emitter-base breakdown voltage IE=-1mA ;IC=0 -5 V
Collector-emitter saturation voltage IC=-2A; IB=-0.2A -1.0 V
Base-emitter on voltage IC=-0.5A ; VCE=-4V -1.5 V
Collector cut-off current VCB=-80V; IE=0 -0.1 mA
Emitter cut-off current VEB=-4V; IC=0 -0.1 mA
DC current gain IC=-0.5A ; VCE=-4V 60 320
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SB609
PACKAGE OUTLINE
Fig.2 outline dimensions
3
