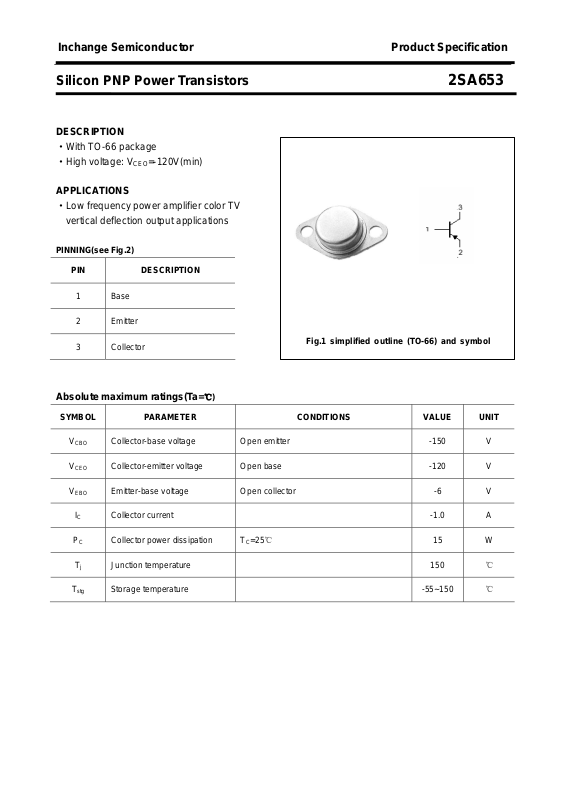

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA653
DESCRIPTION
·With TO-66 package
·High voltage: V
APPLICATIONS
·Low frequency power amplifier color TV
vertical deflection output applications
PINNING(see Fig.2)
PIN DESCRIPTION
=-120V(min)
CEO
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-66) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
V
V
P
CBO
CEO
EBO
I
C
C
T
j
Collector-base voltage Open emitter -150 V
Collector-emitter voltage Open base -120 V
Emitter-base voltage Open collector -6 V
Collector current -1.0 A
Collector power dissipation TC=25℃ 15 W
Junction temperature 150 ℃
T
stg
Storage temperature -55~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA653
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
Collector-emitter breakdown voltage IC=-10mA ;IB=0 -120 V
Collector-base breakdown voltage IC=-1mA ;IE=0 -150 V
Collector-emitter saturation voltage IC=-0.5A; IB=-50mA -1.5 V
Base-emitter saturation voltage IC=-0.5A; IB=-50mA -2.0 V
Collector cut-off current VCB=-150V; IE=0 -10
Emitter cut-off current VEB=-5V; IC=0 -10
μA
μA
DC current gain IC=-0.2A ; VCE=-5V 40
Transition frequency IC=-0.1A ; VCE=-10V 15 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA653
PACKAGE OUTLINE
Fig.2 outline dimensions
3
