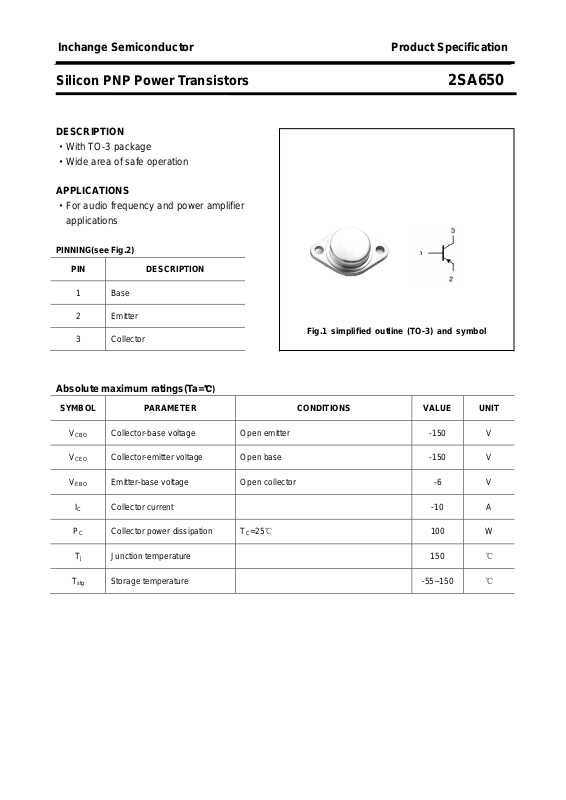

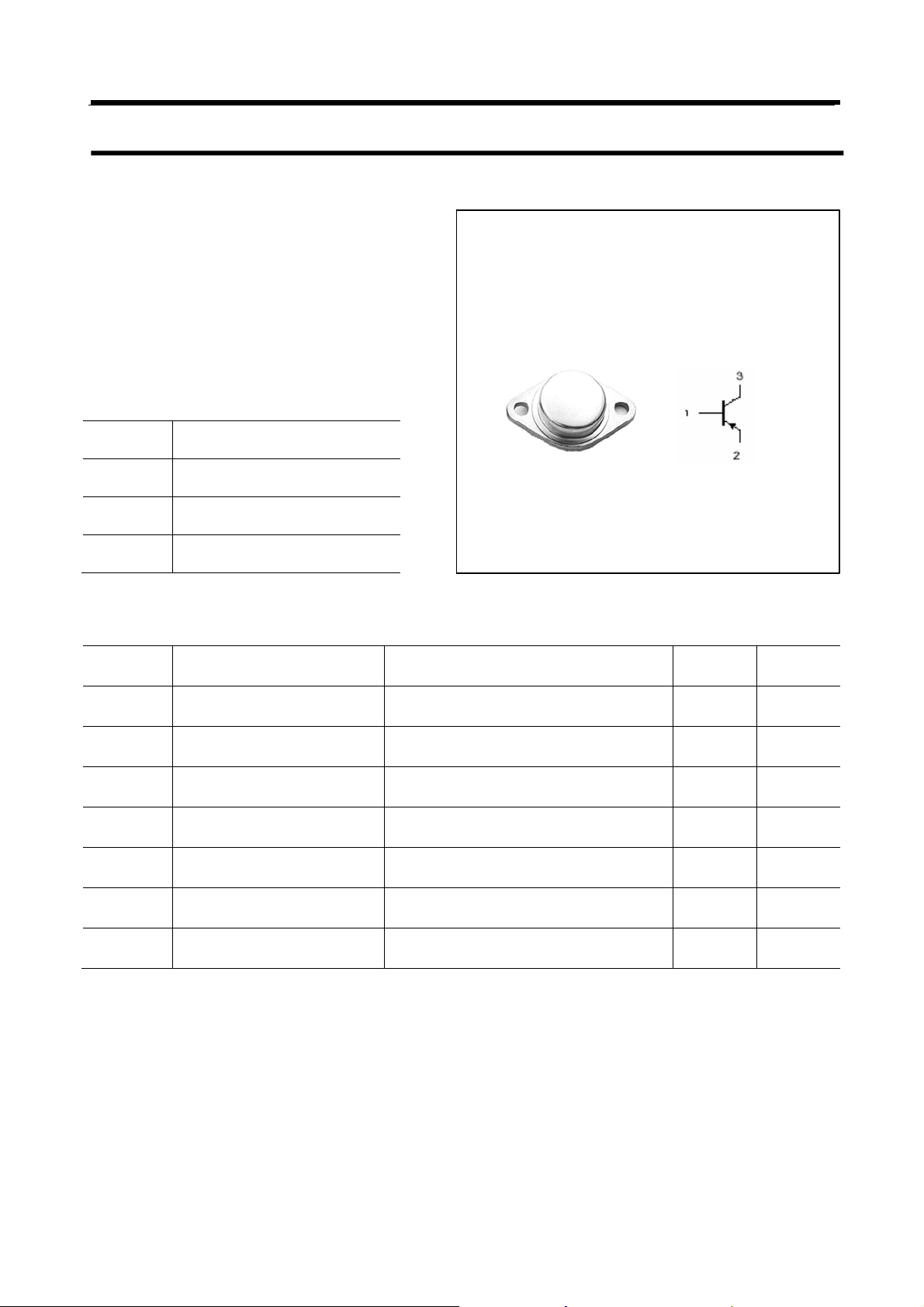

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA650
DESCRIPTION
·With TO-3 package
·Wide area of safe operation
APPLICATIONS
·For audio frequency and power amplifier
applications
PINNING(see Fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-3) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
V
V
P
CBO
CEO
EBO
I
C
C
T
j
Collector-base voltage Open emitter -150 V
Collector-emitter voltage Open base -150 V
Emitter-base voltage Open collector -6 V
Collector current -10 A
Collector power dissipation TC=25℃ 100 W
Junction temperature 150 ℃
T
stg
Storage temperature -55~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA650
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
C
OB
Collector-emitter breakdown voltage IC=-25mA ;IB=0 -150 V
Collector-base breakdown voltage IC=-1mA ;IE=0 -150 V
Emitter-base breakdown voltage IE=-1mA ;IC=0 -6 V
Collector-emitter saturation voltage IC=-5A; IB=-0.5A -2.0 V
Base-emitter saturation voltage IC=-5A; IB=-0.5A -2.5 V
Collector cut-off current VCB=-150V; IE=0 -0.1 mA
Emitter cut-off current VEB=-6V; IC=0 -0.1 mA
DC current gain IC=-2A ; VCE=-5V 30 150
Collector output capacitance IE=0; VCB=-10V;f=1MHz 500 pF
f
T
Transition frequency IC=-1A ; VCE=-5V 10 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA650
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
