Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA627
DESCRIPTION
·With TO-3 package
·Wide area of safe operation
·Large current capability
APPLICATIONS
·Power amplifier applications
PINNING(see Fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base

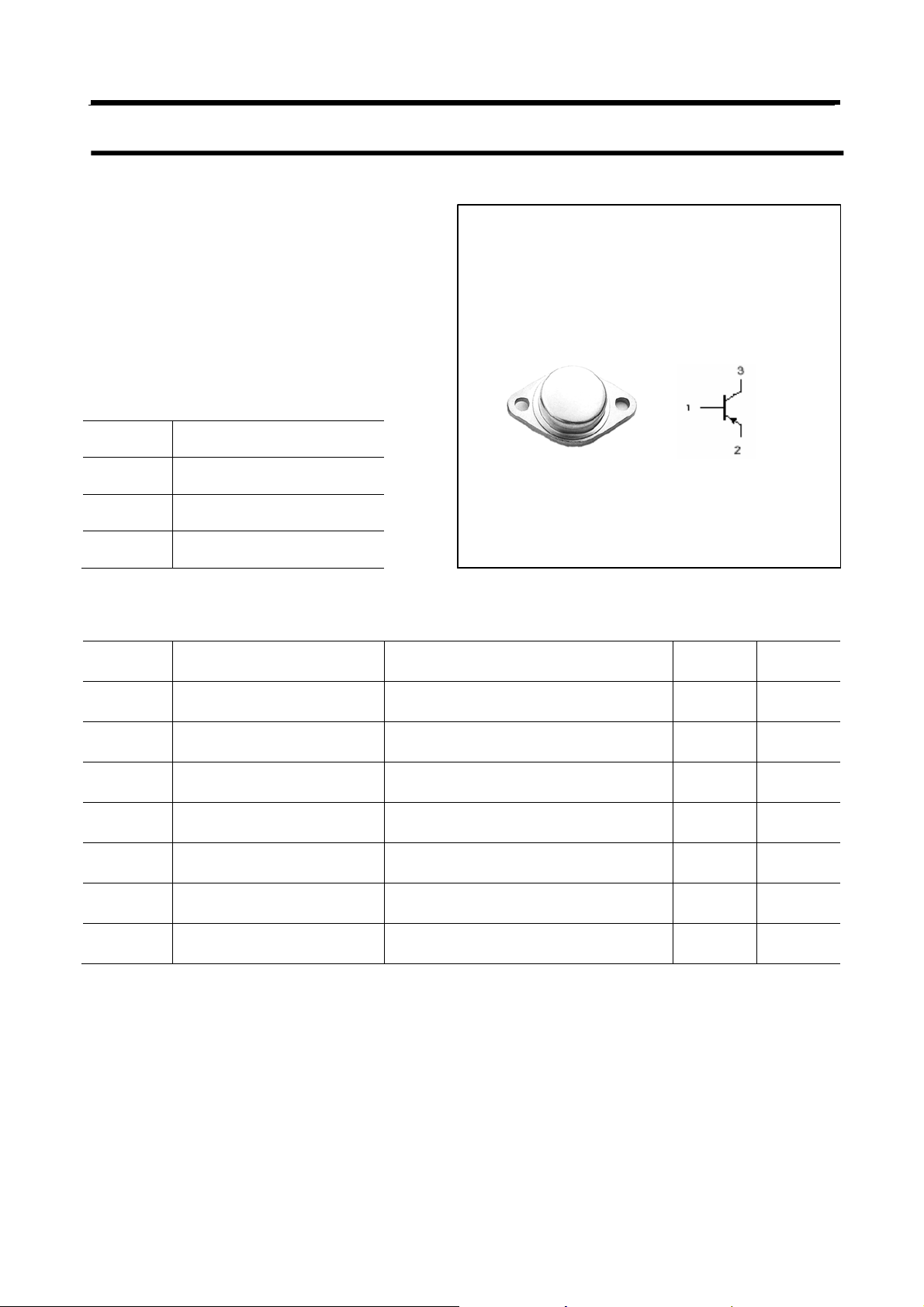

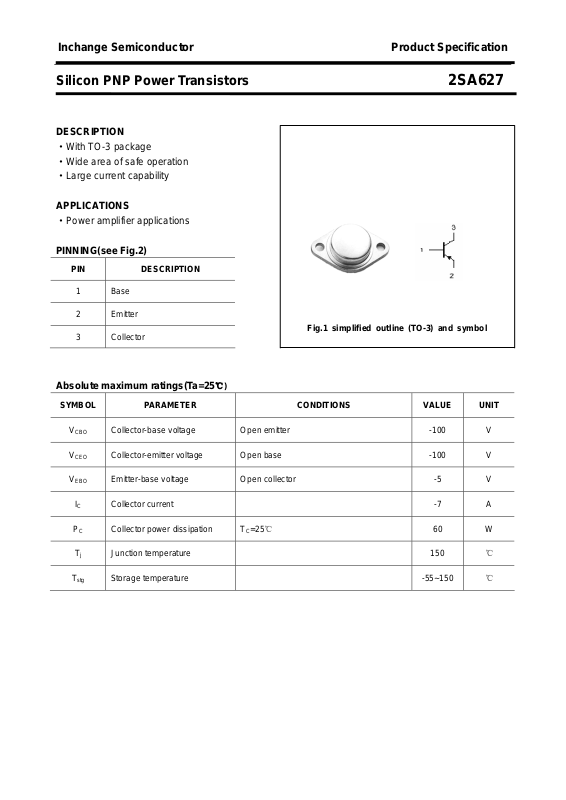

Fig.1 simplified outline (TO-3) and symbol
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
V
V
P
CBO
CEO
EBO
I
C
C
T
j
Collector-base voltage Open emitter -100 V
Collector-emitter voltage Open base -100 V
Emitter-base voltage Open collector -5 V
Collector current -7 A
Collector power dissipation TC=25℃ 60 W
Junction temperature 150 ℃
T
stg
Storage temperature -55~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA627
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CE
V
BE
I
CBO
I
EBO
h
(sat)
(sat)
FE
f
T
Collector-emitter breakdown voltage IC=-10mA ; IB=0 B -100 V
Collector-base breakdown voltage IC=-1mA ;IE=0 -100 V
Emitter-base breakdown voltage IE=-1mA ;IC=0 -5 V
Collector-emitter saturation voltage IC=-5A; IB=-0.5A -2.0 V
Base-emitter saturation voltage IC=-5A; IB=-0.5A -2.5 V
Collector cut-off current VCB=-100V; IE=0 -0.1 mA
Emitter cut-off current VEB=-5V; IC=0 -0.1 mA
DC current gain IC=-2A ; VCE=-5V 30 120
Transition frequency IC=-0.5A ; VCE=-10V 15 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA627
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
