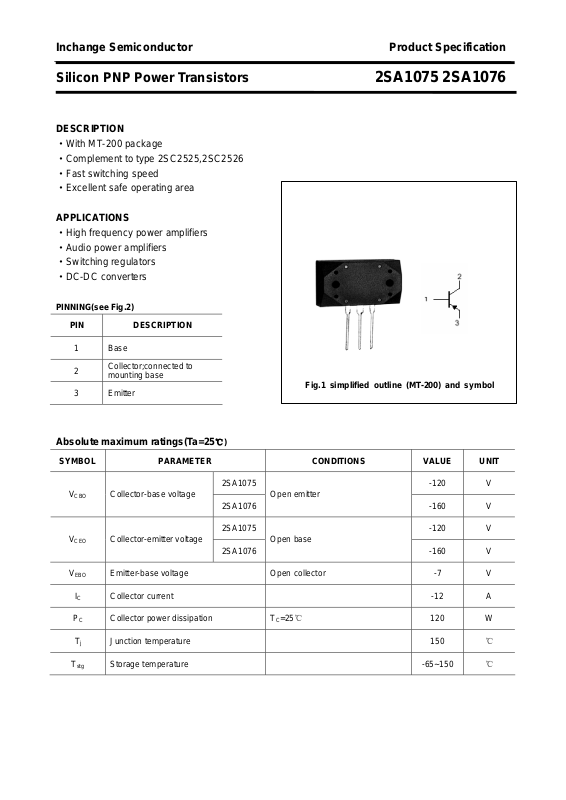

Page 1
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1075 2SA1076
DESCRIPTION
·With MT-200 package
·Complement to type 2SC2525,2SC2526
·Fast switching speed
·Excellent safe operating area
APPLICATIONS
·High frequency power amplifiers
·Audio power amplifiers
·Switching regulators
·DC-DC converters
PINNING(see Fig.2)
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (MT-200) and symbol
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
2SA1075 -120 V
V
V
V
CBO
CEO
EBO
I
C
Collector-base voltage
2SA1076
2SA1075 -120 V
Collector-emitter voltage
2SA1076
Emitter-base voltage Open collector -7 V
Collector current -12 A
Open emitter
-160 V
Open base
-160 V
T
P
C
T
j
T
stg
Collector power dissipation
Junction temperature 150
Storage temperature -65~150
=25℃
C
120 W
℃
℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1075 2SA1076
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
V
I
CBO
I
CEO
I
EBO
CEsat
BE
Collector-emitter
breakdown voltage
Collector-base
breakdown voltage
Emitter-base breakdown voltage
2SA1075 -120
I
=-1mA ;RBE=∞
C
2SA1076
-160
2SA1075 -120
=-50μA; IE=0
I
C
2SA1076
I
=-50μA; IC=0
E
-160
-7 V
V
V
Collector-emitter saturation voltage IC=-5A;IB=-0.5A -1.8 V
Base-emitter voltage IC=-5A;VCE=-5V -1.7 V
2SA1075 VCB=-120V; IE=0
Collector cut-off current
2SA1076 V
=-160V; IE=0
CB
-50
μA
2SA1075 VCE=-120V; IB=0
Collector cut-off current
2SA1076 V
=-160V; IB=0
CE
Emitter cut-off current VEB=-7V; IC=0 -50
-1 mA
μA
h
h
C
FE-1
FE-2
ob
f
T
DC current gain IC=-1A ; VCE=-5V 60 200
DC current gain IC=-7A ; VCE=-5V 40
Output capacitance IE=0 ; VCB=-10V 300 pF
Transition frequency IC=-1A ; VCE=-10V 60 MHz
Switching times
t
r
t
s
t
f
Rise time 0.15
Storage time 0.50
Fall time
I
=-7.5A;RL=4Ω
C
=-IB2=-0.75A
I
B1
0.11
μs
μs
μs
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1075 2SA1076
PACKAGE OUTLINE

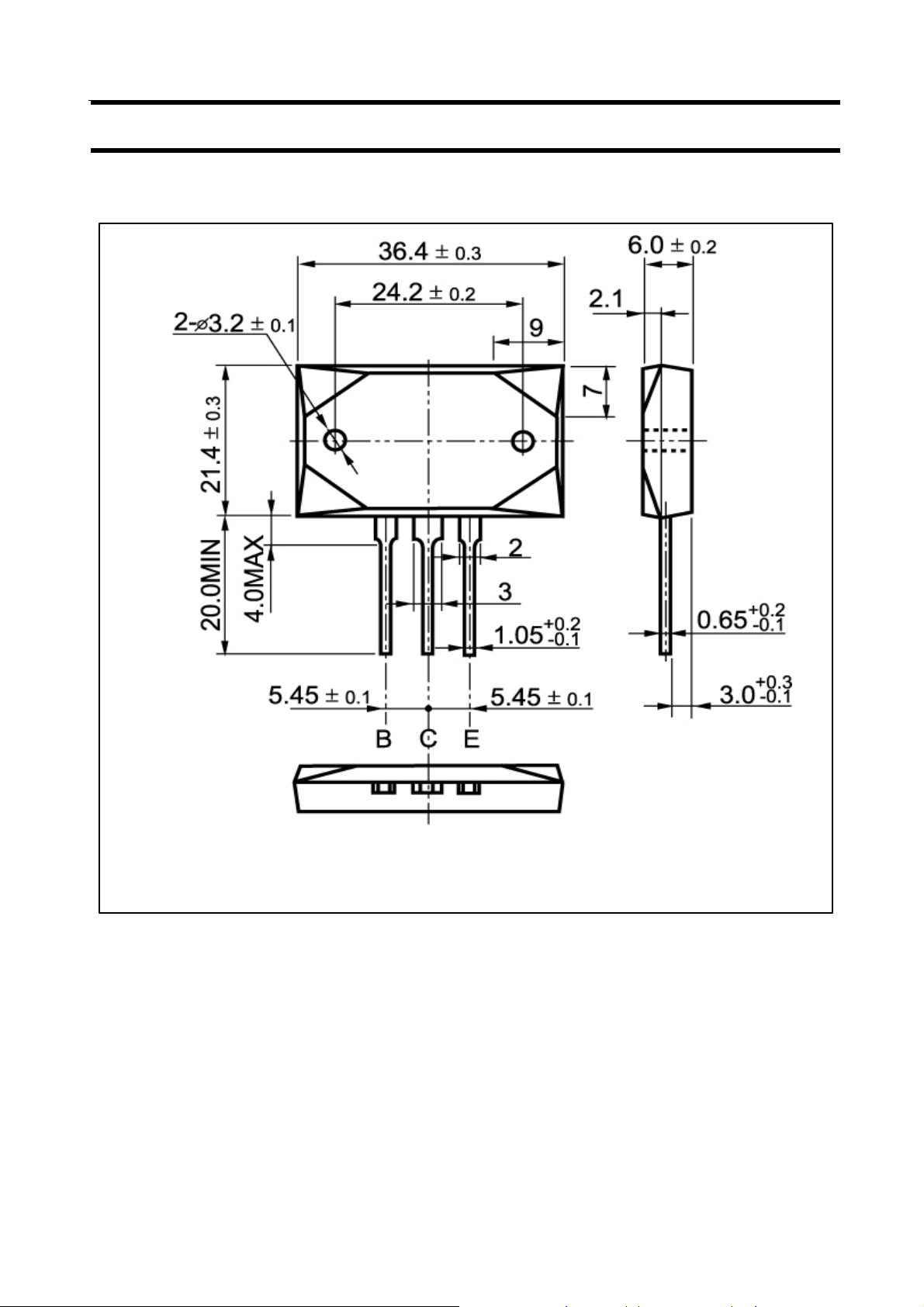

Fig.2 outline dimensions
3
