2PC4617M series
NPN general purpose transistors
Product data sheet 2003 Jul 15
Page 2
NXP Semiconductors Product data sheet
NPN general purpose transistors 2PC4617M series
FEATURES
• Leadless ultra small plastic package
mm × 0.6 mm × 0.5 mm)
(1
• Board space 1.3 × 0.9 mm
• Power dissipation comparable to SOT23.
APPLICATIONS
• General purpose small signal DC applications
• Low and medium frequency AC applications
• Mobile communications, digital (still) cameras, PDAs,
PCMCIA cards.
DESCRIPTION
NPN general purpose transistor in a SOT883 leadless ultra
small plastic package.
complement: 2PA1776M series.
PNP
MARKING
T YPE NUMBER MARKING CODE
2PC4617QM D7
2PC4617RM D8
2PC4617SM D9
QUICK REFERENCE DATA
SYMBOL PARAMETER MAX. UNIT
V
I
I
CEO
C
CM
collector-emitter voltage 50 V
collector current (DC) 100 mA
peak collector current 200 mA
PINNING
PIN DESCRIPTION
1 base
2 emitter
3 collector
handbook, halfpage
2
1
Bottom view
3
1
MAM475
3
2

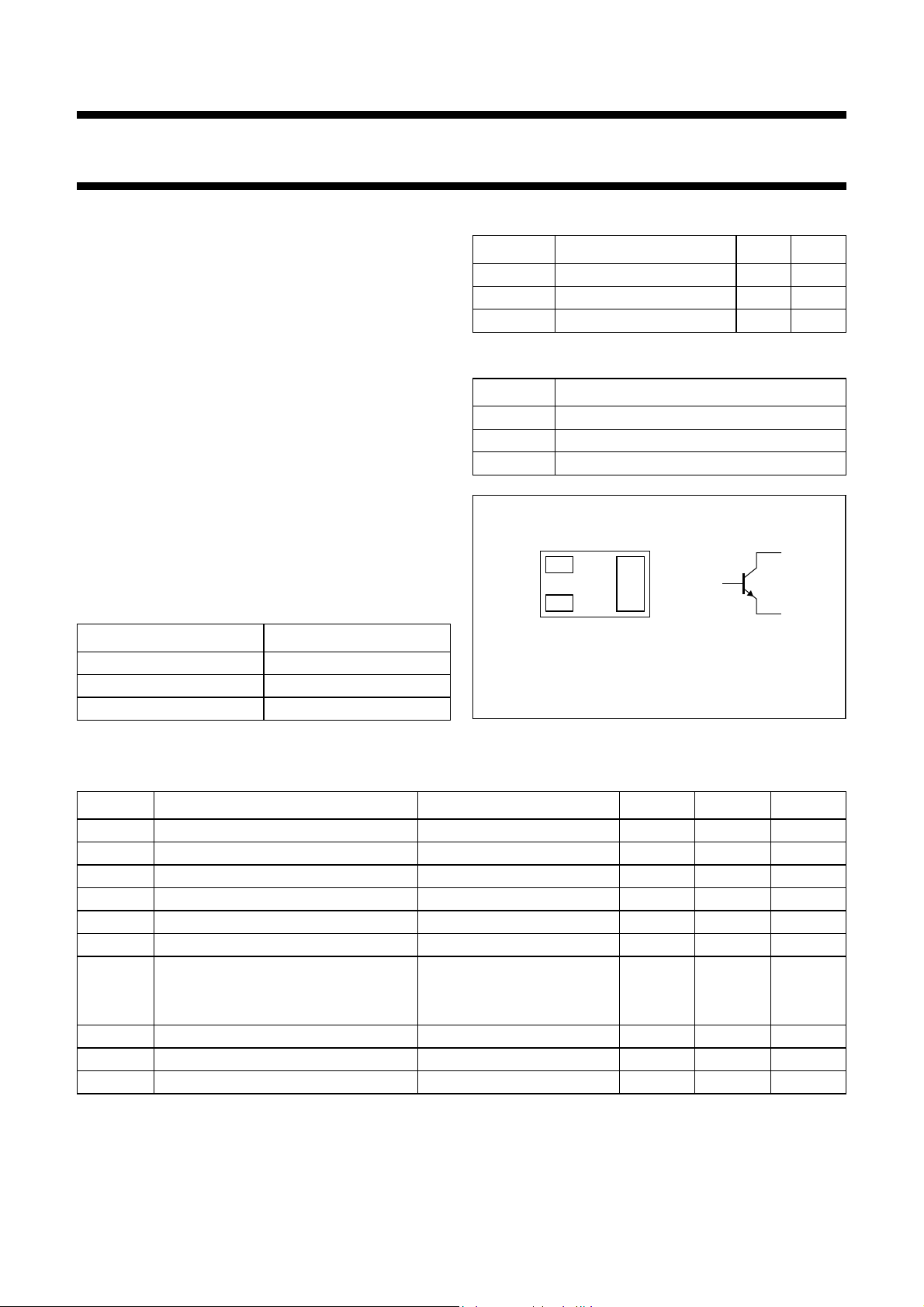

Fig.1 Simplified outline (SOT883) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
V
V
I
I
I
P
CBO
CEO
EBO
C
CM
BM
tot
collector-base voltage open emitter − 50 V
collector-emitter voltage open base − 50 V
emitter-base voltage open collector − 5 V
collector current (DC) − 100 mA
peak collector current − 200 mA
peak base current − 200 mA
total power dissipation T
amb
≤ 25 °C
note 1 − 250 mW
note 2 − 430 mW
T
stg
T
j
T
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C
Notes
1. Refer to SOT883 standard mounting conditions (footprint), FR4 with 60 μm copper strip line.
2. Device mounted on a FR4 printed-circuit board, sin gle- sid ed copper, mounting pad for collector 1 cm2.
2003 Jul 15 2
Page 3
NXP Semiconductors Product data sheet
NPN general purpose transistors 2PC4617M series
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-a
Notes
1. Refer to SOT883 standard mounting conditions (footprint), FR4 with 60 μm copper strip line.
2. Device mounted on a FR4 printed-circuit board, sin gle- sid ed copper, mounting pad for collector 1 cm2.
CHARACTERISTICS
T
= 25 °C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
CBO
I
EBO
h
FE
V
CEsat
C
c
f
T
thermal resistance from junction to ambient in free air
note 1 500 K/W
note 2 290 K/W
collector-base cut-off curren t VCB = 30 V; IE = 0 − 100 nA
VCB = 30 V; IE = 0; Tj = 150 °C − 5 μA
emitter-base cut-off current VEB = 4 V; IC = 0 − 100 nA
DC current gain VCE = 6 V; IC = 1 mA
2PC4617QM 120 270
2PC4617RM 180 390
2PC4617SM 270 560
collector-emitter saturation voltage IC = 50 mA; IB = 5 mA; note 1 − 200 mV
collector capacitance IE = ie = 0; VCB = 12 V; f = 1 MHz − 1.5 pF
transition frequency VCE = 12 V; IC = 2 mA;
f
= 100 MHz
100 − MHz
Note
1. Pulse test: tp ≤ 300 μs; δ ≤ 0.02.
2003 Jul 15 3
Page 4
NXP Semiconductors Product data sheet
L
3
NPN general purpose transistors 2PC4617M series

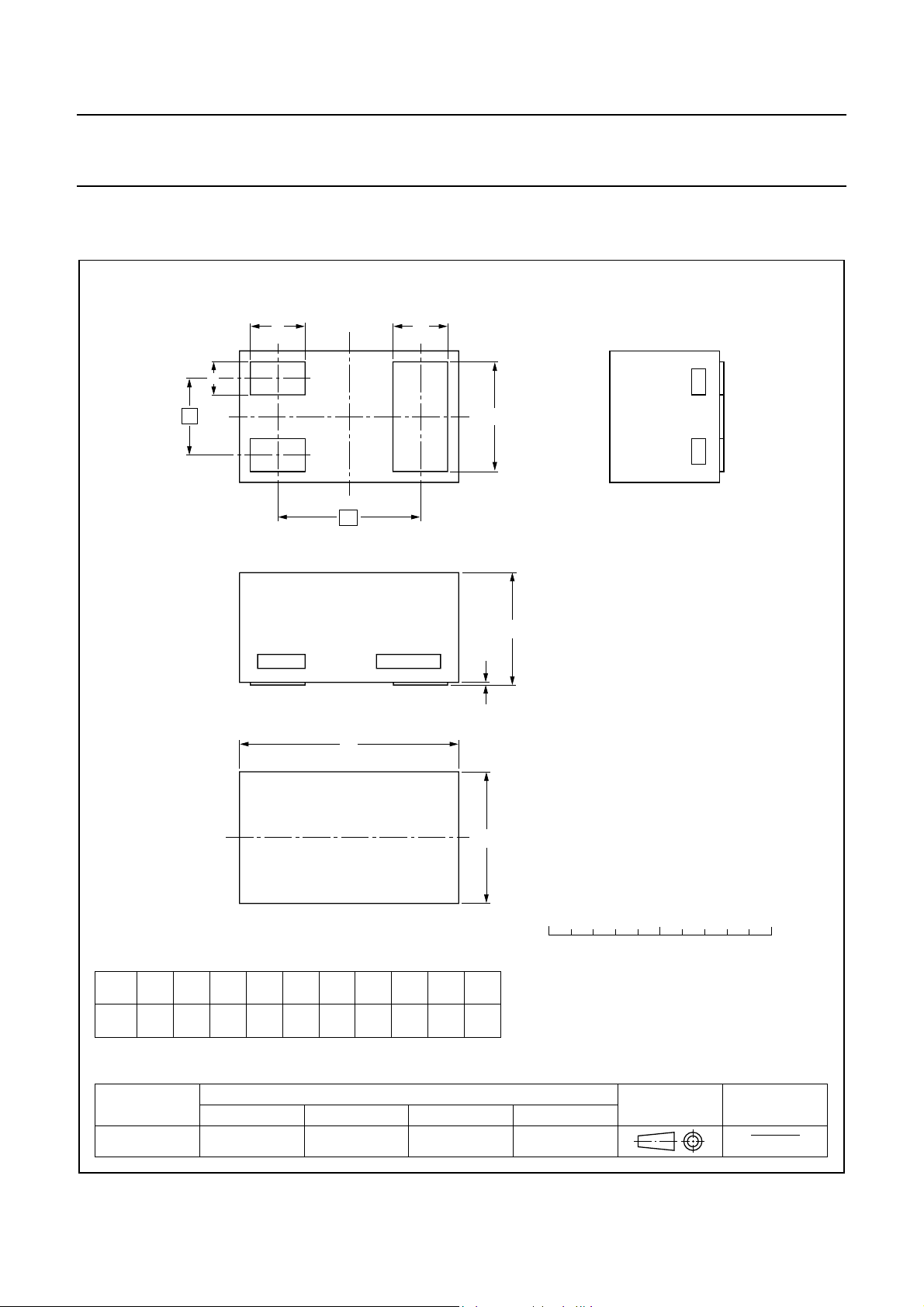

PACKAGE OUTLINE
eadless ultra small plastic package; 3 solder lands; body 1.0 x 0.6 x 0.5 mm SOT88
L
2
b
e
1
e
1
E
L
1
3
b
1
A
A
1
D
0 0.5 1 mm
scale
DIMENSIONS (mm are the original dimensions)
A
(1)
max.
0.03
1
bb
0.20
0.12
IEC JEDEC JEITA
1
0.55
0.47
DE
0.62
0.55
eLL
1.02
0.35 0.65
0.95
REFERENCES
e
1
0.30
0.22
0.30
0.22
1
EUROPEAN
PROJECTION
ISSUE DATE
03-02-05
03-04-03
A
UNIT
0.50
mm
0.46
Note
1. Including plating thickness
OUTLINE
VERSION
SOT883 SC-101
2003 Jul 15 4
Page 5
NXP Semiconductors Product data sheet
NPN general purpose transistors 2PC4617M series
DATA SHEET STATUS
DOCUMENT
STATUS
Objective data sheet Development This document contains data from the objective specification for product
Preliminary data sheet Qualification This document contains data from the preliminary specification.
Product data sheet Production This document contains the product specification.
Notes
1. Please consult the most recently issued document before initiating or comple ting a design.
2. The product status of device(s) desc ribed in this document may have changed since this document was published
and may differ in case of multiple devices. The latest product status information is available on the Internet at
http://www.nxp.com.
URL
DISCLAIMERS
General ⎯ Information in this document is believed to be
accurate and reliable. However, NXP Semiconductors
does not give any representations or warranties,
expressed or implied, as to the accuracy or completeness
of such information and shall have no liability for the
consequences of use of such information.
Right to make changes ⎯ NXP Semiconductors
reserves the right to make changes to information
published in this document, including without limitation
specifications and product descriptions, at any time and
without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
Suitability for use ⎯ NXP Semiconductors products are
not designed, authorized or warranted to be su itable for
use in medical, military, aircraft, space or life support
equipment, nor in applications where failure or malfunction
of an NXP Semiconductors product can reasonably be
expected to result in personal injury, death or severe
property or environmental damage. NXP Semiconductors
accepts no liability for inclusion and/or use of NXP
Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at
the customer’s own risk.
Applications ⎯ Applications that are described herein for
any of these products are for illustrative purposes only.
NXP Semiconductors makes no representation or
warranty that such applications will be suitable for the
specified use without further testing or modificati on .
(1)
PRODUCT
STATUS
(2)
DEFINITION
development.
above those given in the Characteristics sections of this
document is not implied. Exposure to limiting values for
extended periods may affect device reliability.
Terms and conditions of sale ⎯ NXP Semiconductors
products are sold subject to the general terms and
conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those
pertaining to warranty, intellectual property rights
infringement and limitation of liability, unless explicitly
otherwise agreed to in writing by NXP Semiconductors. In
case of any inconsistency or conflict between information
in this document and such terms and conditions, the latter
will prevail.
No offer to sell or license ⎯ Nothing in this document
may be interpreted or construed as an offer to sell products
that is open for acceptance or the grant, conveya nce or
implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Export control ⎯ This document as well as the item(s)
described herein may be subject to export control
regulations. Export might require a prior authorization from
national authorities.
Quick reference data ⎯ The Quick reference data is an
extract of the product data given in the Limiting values and
Characteristics sections of this document, and as such is
not complete, exhaustive or legally binding.
Limiting values ⎯ Stress above one or more limiting
values (as defined in the Absolute Maximum Ratings
System of IEC
the device. Limiting values are stress ratings only an d
operation of the device at these or any other conditions
2003 Jul 15 5
60134) may cause permanent damage to
