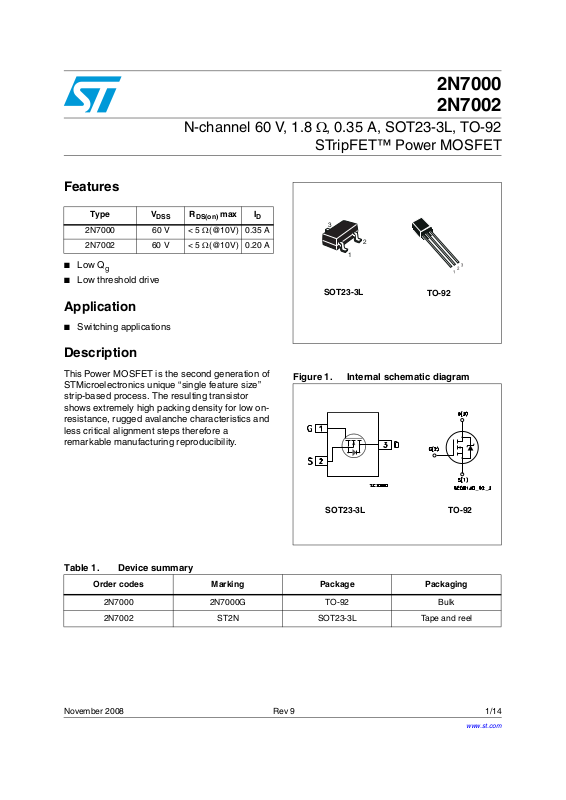

Datasheet 2n7000,2n7002 Datasheet

N-channel 60 V, 1.8 Ω, 0.35 A, SOT23-3L, TO-92

Features

Type V

2N7000 60 V < 5 Ω(@10V) 0.35 A

2N7002 60 V < 5 Ω(@10V) 0.20 A

■ Low Q

■

g

Low threshold drive

DSS

Application

■ Switching applications

Description

R

DS(on)

max I

2N7000
2N7002

STripFET™ Power MOSFET

D

3

1

SOT23-3L

2

TO-92

This Power MOSFET is the second generation of
STMicroelectronics unique “single feature size”
strip-based process. The resulting transistor
shows extremely high packing density for low on­resistance, rugged avalanche characteristics and
less critical alignment steps therefore a
remarkable manufacturing reproducibility.

Table 1. Device summary

Order codes Marking Package Packaging

2N7000 2N7000G TO-92 Bulk

2N7002 ST2N SOT23-3L Tape and reel

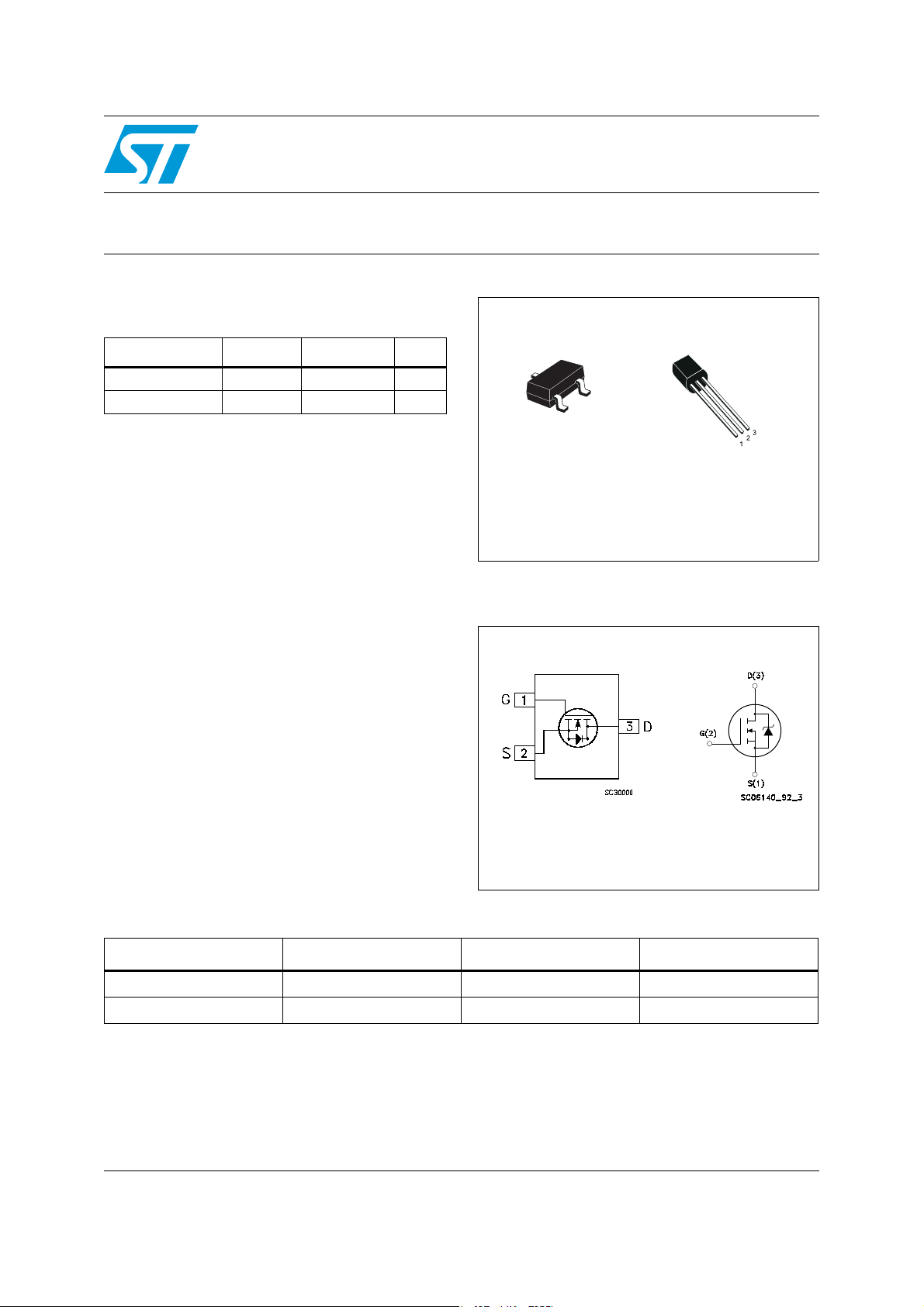

Figure 1. Internal schematic diagram

SOT23-3L TO-92

November 2008 Rev 9 1/14

www.st.com

14

Contents 2N7000, 2N7002

Contents

1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2/14

2N7000, 2N7002 Electrical ratings

1 Electrical ratings

Table 2. Absolute maximum ratings

Value

Symbol Parameter

TO-92 SOT23-3L

Unit

V

V

DGR

V

I

I

DM

P

TOT

1. Pulse width limited by safe operating area

DS

GS

D

Drain-source voltage (VGS = 0) 60 V

Drain-gate voltage (RGS = 20 kΩ)60V

Gate- source voltage ± 18 V

Drain current (continuous) at TC = 25 °C 0.35 0.20 A

(1)

Drain current (pulsed) 1.4 1 A

Total dissipation at TC = 25 °C 1 0.35 W

Table 3. Thermal data

Value

Symbol Parameter

TO-92 SOT23-3L

Rthj-amb Thermal resistance junction-ambient max 125 357.1

stg

Operating junction temperature

J

Storage temperature

- 55 to 150 °C

T

T

1. When mounted on 1inch² FR-4, 2 Oz copper board.

(1)

Unit

°C/W

3/14

Electrical characteristics 2N7000, 2N7002

2 Electrical characteristics

(T

= 25 °C unless otherwise specified)

CASE

Table 4. On/off states

Symbol Parameter Test conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

V

GS(th)

R

DS(on)

Drain-source
breakdown voltage

Zero gate voltage
drain current (V

GS

Gate-body leakage
current (V

DS

= 0)

= 0)

ID = 250 µA, VGS =0 60 V

V

= max rating

DS

VDS = max rating,

= 125 °C

T

C

1

10

VGS = ± 18 V ±100 nA

Gate threshold voltage VDS = VGS, ID = 250 µA 1 2.1 3 V

Static drain-source on
resistance

= 10 V, ID = 0.5 A

V

GS

= 4.5 V, ID = 0.5 A

V

GS

1.8
2

5

5.3

Table 5. Dynamic

Symbol Parameter Test conditions Min. Typ. Max. Unit

Forward

(1)

g

fs

transconductance

V

= 10 V , ID= 0.5 A 0.6 S

DS

µA
µA

Ω

Ω

C

C

C

t

d(on)

t

d(off)

Q
Q
Q

1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5%.

Input capacitance

iss

Output capacitance

oss

Reverse transfer

rss

capacitance

Turn-on delay time

t

Rise time

r

Turn-off delay time

t

Fall time

f

Total gate charge

g

Gate-source charge

gs

Gate-drain charge

gd

= 25 V, f = 1 MHz,

V

DS

VGS = 0

= 30 V, ID = 0.5 A

V

DD

=4.7 Ω VGS = 4.5 V

R

G

(see Figure 16)

VDD = 30 V, ID = 1 A,

= 5 V

V

GS

(see Figure 17)

43
20

6

5

15

7
8

1.4

0.8

0.5

pF
pF
pF

ns
ns
ns
ns

2nC

nC
nC

4/14

2N7000, 2N7002 Electrical characteristics

Table 6. Source drain diode

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

SD

I

SDM

V

SD

t

Q

I

RRM

1. Pulse width limited by safe operating area.

2. Pulsed: Pulse duration = 300 µs, duty cycle 1.5%

Source-drain current
Source-drain current

(1)

(pulsed)

(2)

Forward on voltage ISD = 1 A, VGS = 0 1.2 V

Reverse recovery time

rr

Reverse recovery charge

rr

Reverse recovery current

ISD = 1 A, di/dt = 100 A/µs,
VDD = 20 V, Tj = 150 °C
(see Figure 18)

32
25

1.6

0.35

1.40AA

ns

nC

A

5/14

Electrical characteristics 2N7000, 2N7002

2.1 Electrical characteristics (curves)

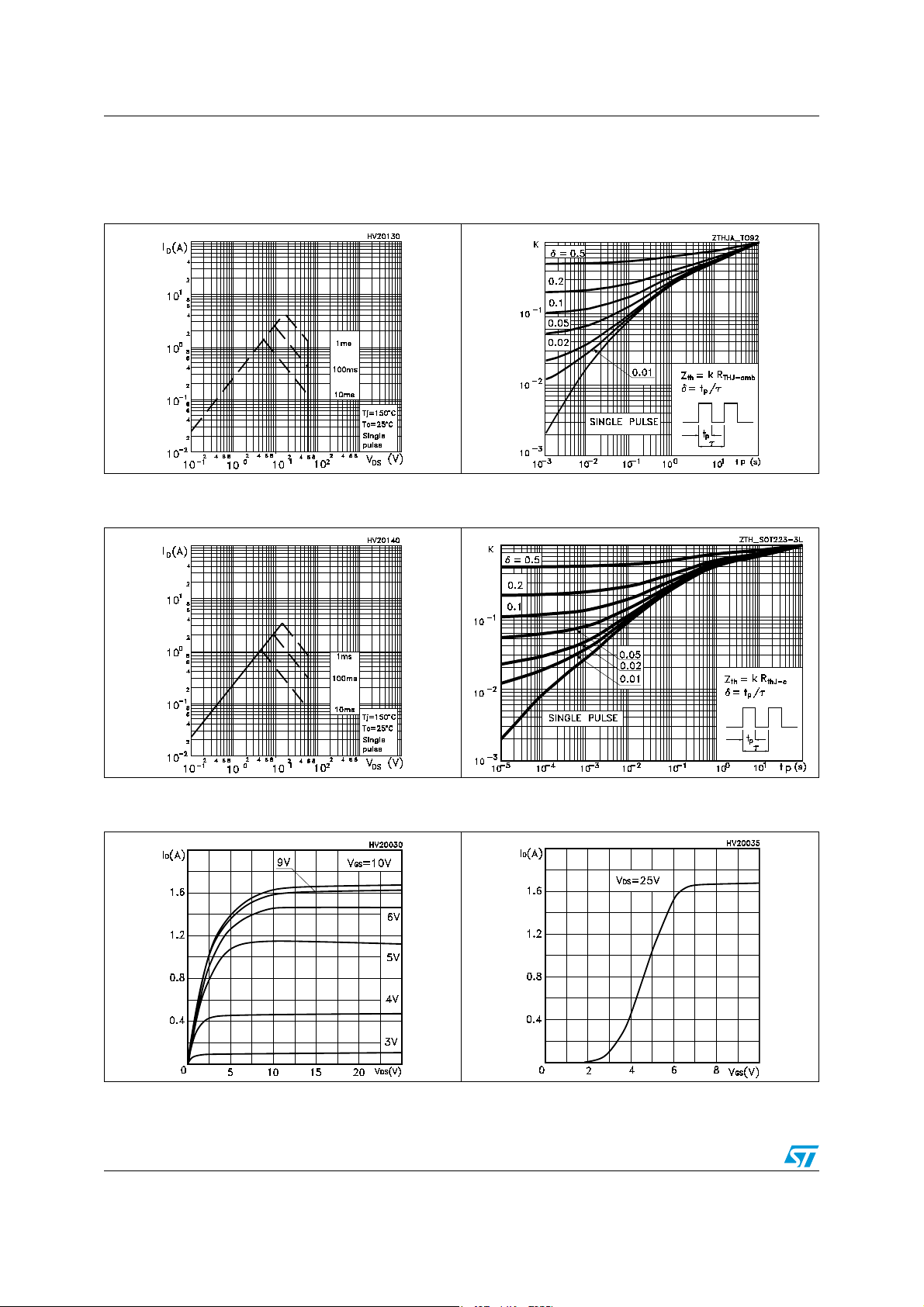

Figure 2. Safe operating area for TO-92 Figure 3. Thermal impedance for TO-92

Figure 4. Safe operating area for SOT23-3L Figure 5. Thermal impedance for SOT23-3L

Figure 6. Output characteristics Figure 7. Transfer characteristics

6/14

2N7000, 2N7002 Electrical characteristics

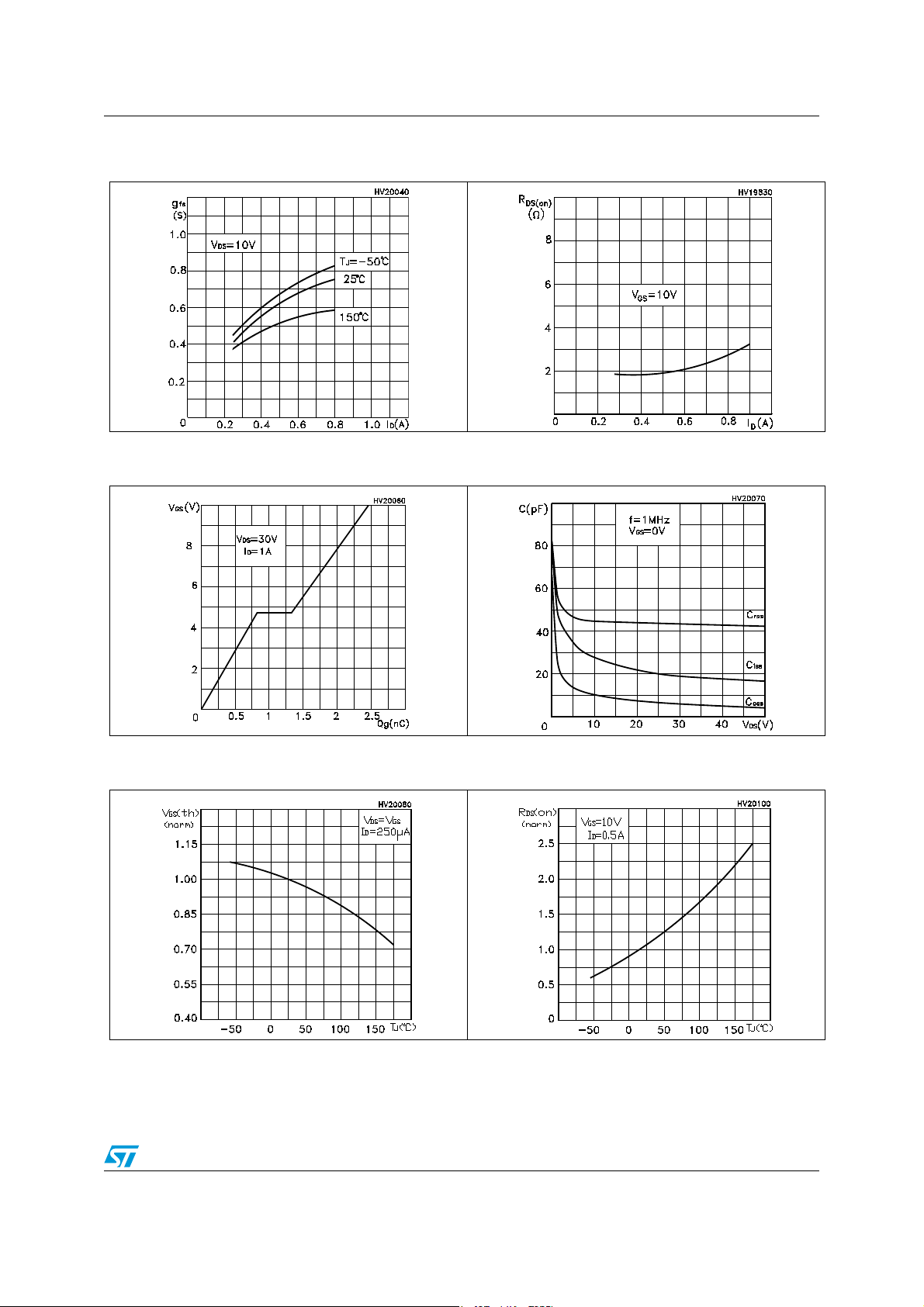

Figure 8. Transconductance Figure 9. Static drain-source on resistance

Figure 10. Gate charge vs gate-source voltage Figure 11. Capacitance variations

Figure 12. Normalized gate threshold voltage

vs temperature

Figure 13. Normalized on resistance vs

temperature

7/14

Electrical characteristics 2N7000, 2N7002

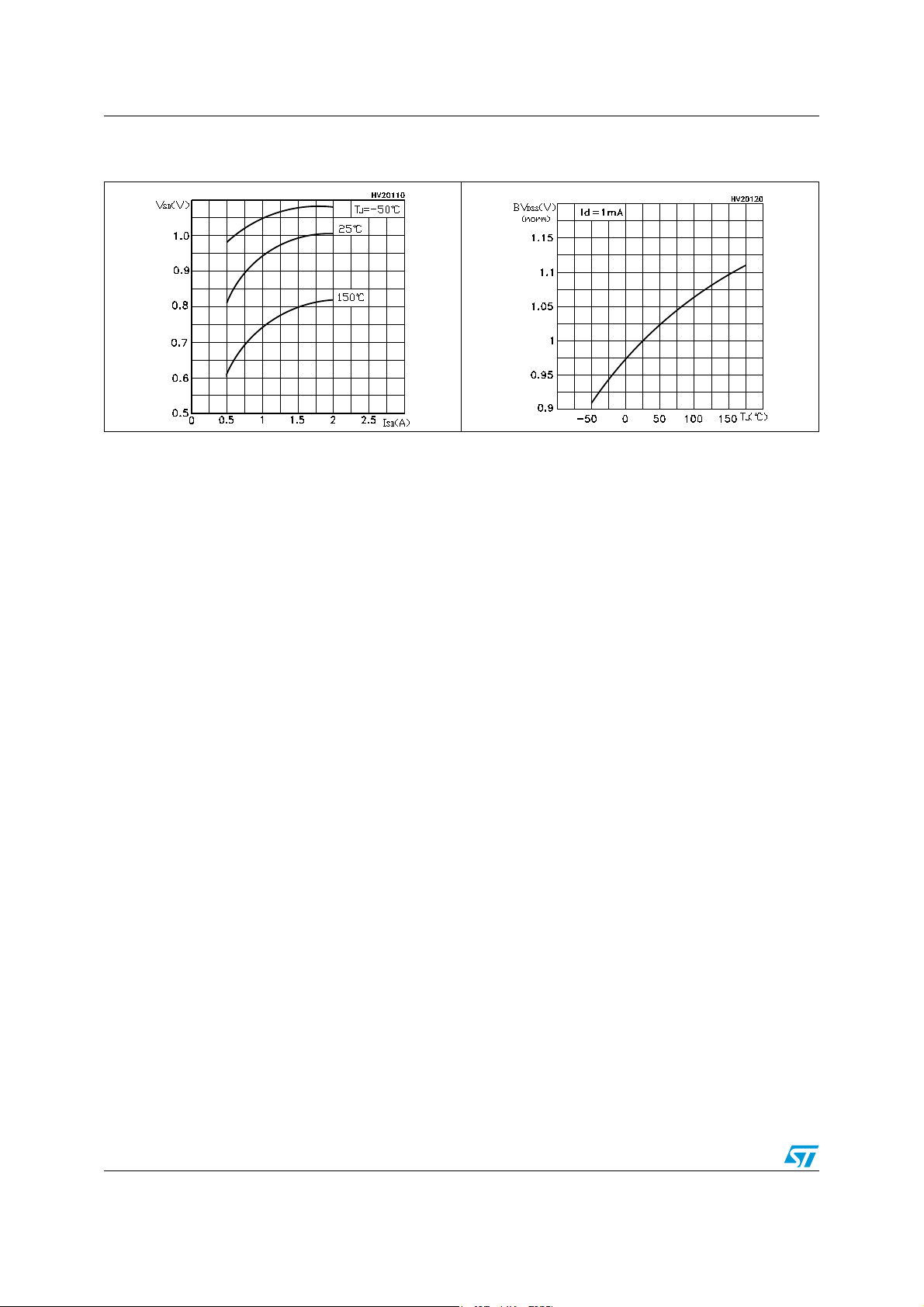

Figure 14. Source-drain diode forward

characteristics

Figure 15. Normalized B

vs temperature

VDSS

8/14

2N7000, 2N7002 Test circuits

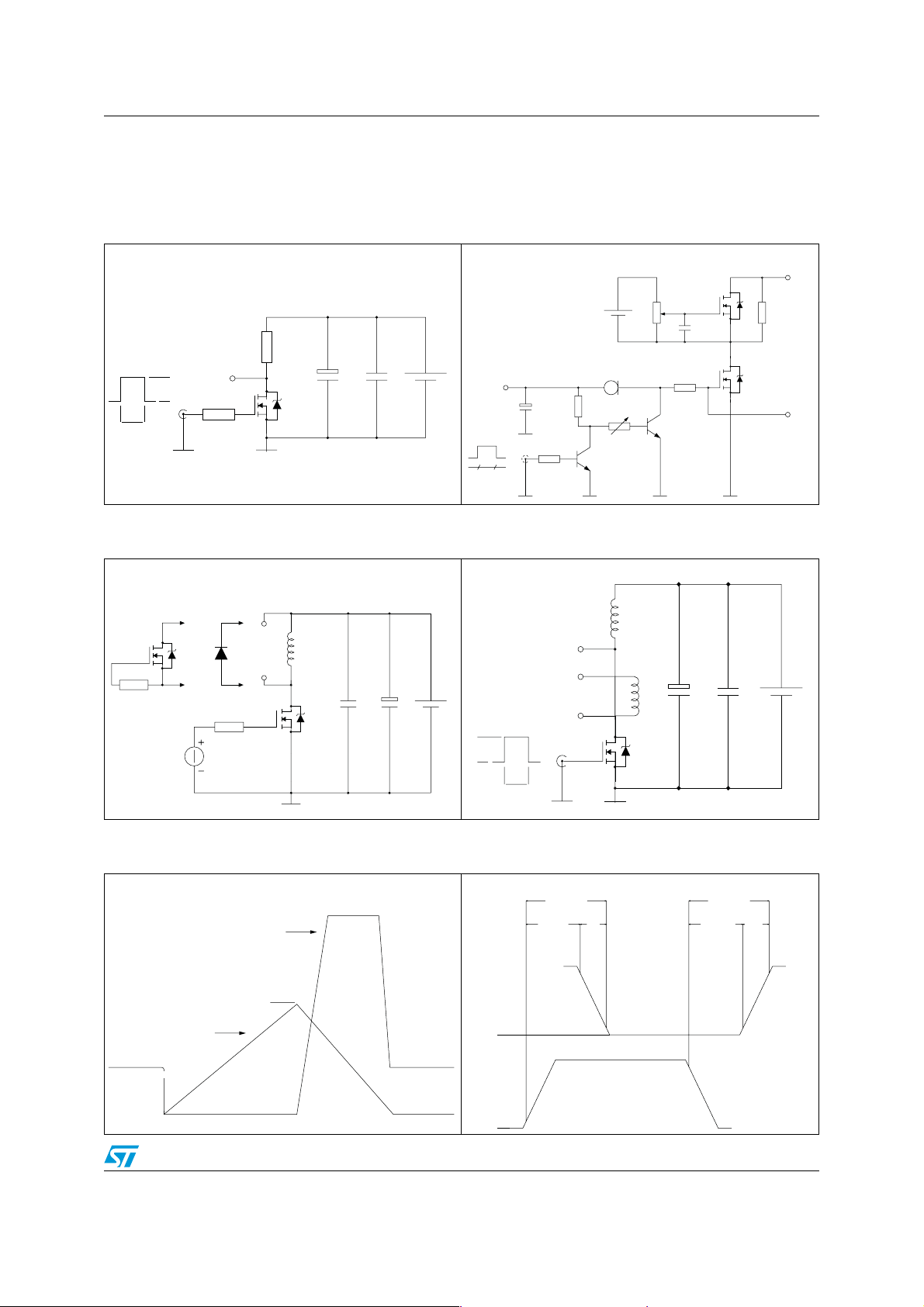

3 Test circuits

Figure 16. Switching times test circuit for

resistive load

3.3

µF

AM01468v1

PW

VGS

VD

RG

RL

D.U.T.

2200

µF

Figure 18. Test circuit for inductive load

switching and diode recovery times

A

D

G

D.U. T.

S

25

Ω

B

R

FAST
DIODE

G

A

A

L=100µH

3.3

B

B

D

G

S

1000

µF

µF

Figure 17. Gate charge test circuit

12V

2200
µF

IG=CONST

2.7kΩ

V

DD

V

i=20V=VGMAX

47kΩ

PW

1kΩ

47kΩ

100Ω

Figure 19. Unclamped Inductive load test

circuit

L

VD

V

DD

ID

Vi

D.U. T.

2200

µF

100nF

D.U.T.

3.3
µF

VDD

1kΩ

V

G

AM01469v1

VDD

Pw

AM01470v1

Figure 20. Unclamped inductive waveform Figure 21. Switching time waveform

VDD

tdon

ton

90%

tr

10%

VDS

V(BR)DSS

VD

IDM

ID

0

VDD

GS

V

10%

AM01472v1

0

toff

tdoff

90%

AM01471v1

tf

90%

10%

AM01473v1

9/14

Package mechanical data 2N7000, 2N7002

4 Package mechanical data

In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com

10/14

2N7000, 2N7002 Package mechanical data

Table 7. TO-92 mechanical data

mm

Dim.

Min. Typ. Max.

A 4.32 4.95

b 0.36 0.51

D 4.45 4.95

E 3.30 3.94

e 2.41 2.67

e1 1.14 1.40

L 12.70 15.49

R 2.16 2.41

S1 0.92 1.52

W 0.41 0.56

V5°

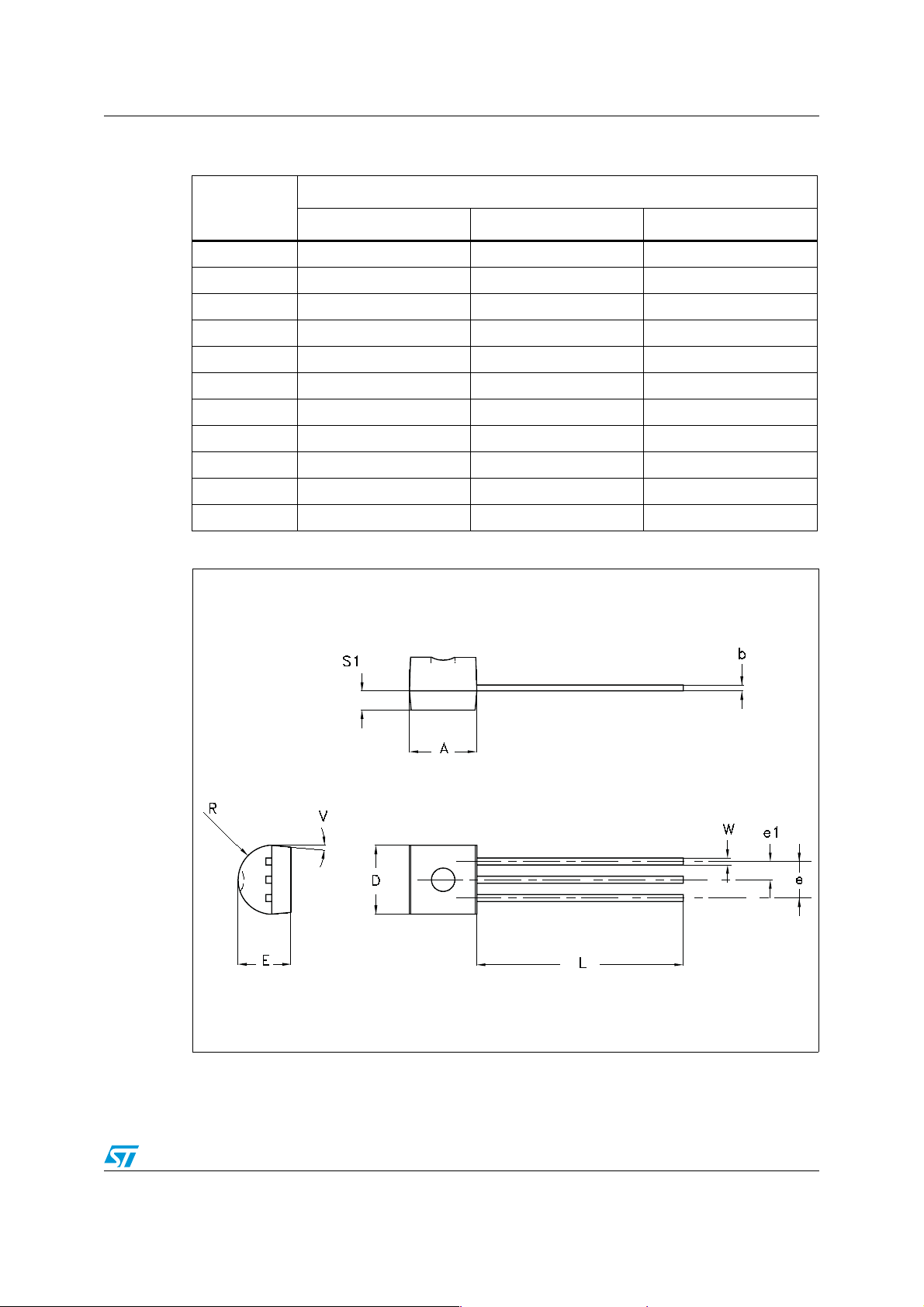

Figure 22. TO-92 drawing

0102782 D

11/14

Package mechanical data 2N7000, 2N7002

Table 8. SOT23-3L mechanical data

mm

Dim.

Min. Typ. Max.

A 1.25

A1 0 0.15

A2 1.00 1.20

A3 0.60 0.70

D 2.826 3.026

E 2.60 3.00

E1 1.526 1.726

e0.95

e1 1.90

L 0.35 0.60

L1 0.59

L2 0.25

R0.05

R1 0.05 0.20

K3° 7°

K1 6° 10°

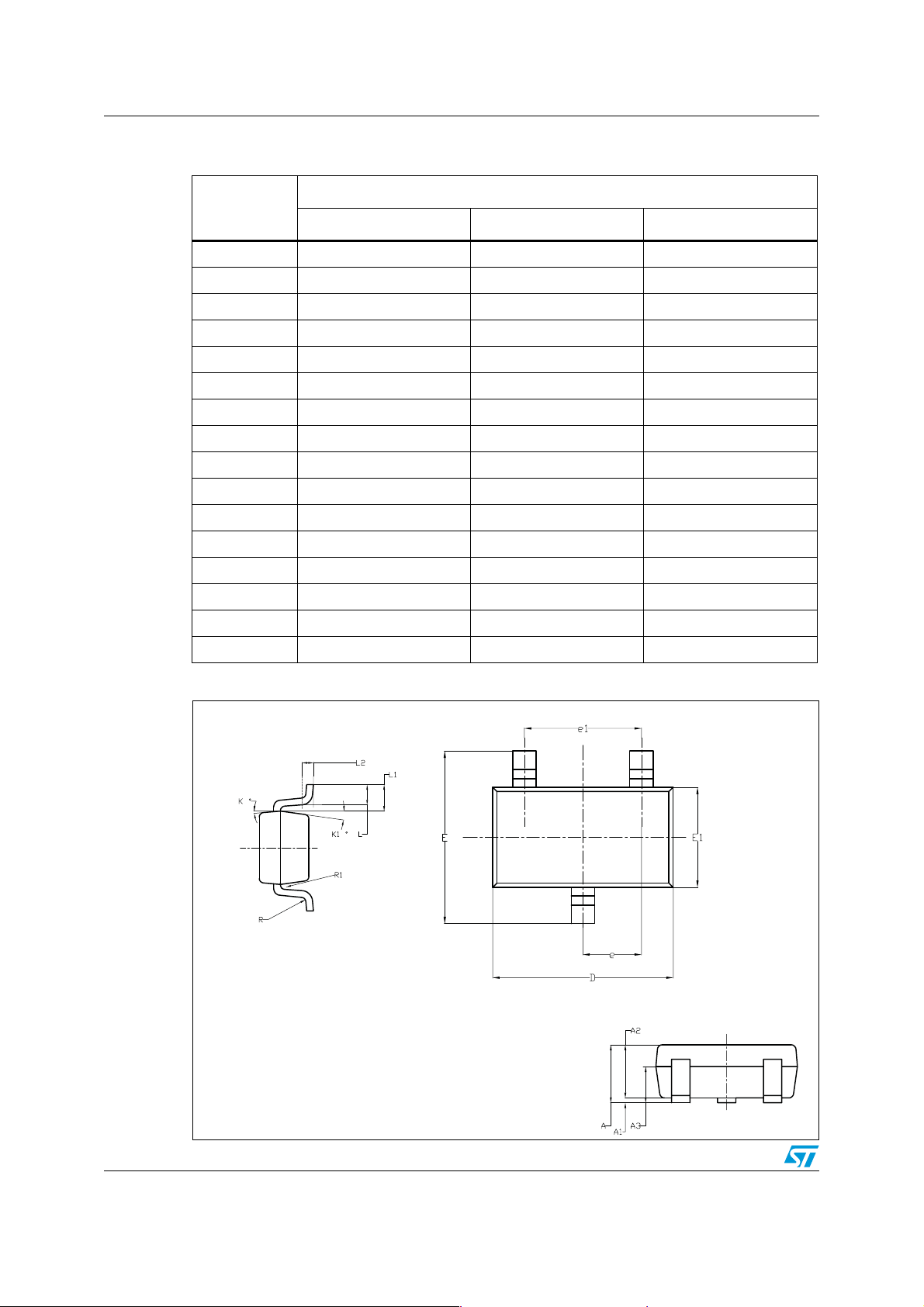

Figure 23. SOT23-3L drawing

Top view

Bottom view

8162275_Rev_A

12/14

2N7000, 2N7002 Revision history

5 Revision history

Table 9. Document revision history

Date Revision Changes

09-Oct-2004 1 First document

22-Jun-2004 2 Complete document

06-Apr-2005 3 New typ and max value inserted for Vgs(th)

19-Apr-2005 4 The document has been reformatted

26-Apr-2005 5 New Pin configuration for TO-92

28-Apr-2005 6 Pin configuration change again

19-Jun-2006 7 New template, no content change

03-Sep-2007 8 Corrected marking on first page

– Updated Table 7: TO-92 mechanical data and

04-Nov-2008 9

Figure 22: TO-92 drawing.

– Updated Table 8: SOT23-3L mechanical data and

Figure 23: SOT23-3L drawing.

13/14
