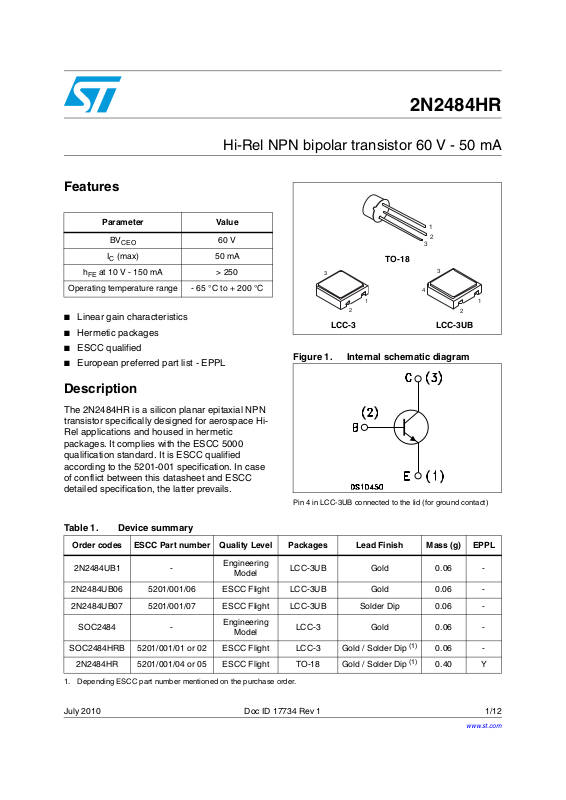

Hi-Rel NPN bipolar transistor 60 V - 50 mA
Features
Parameter Value
BV
CEO
(max) 50 mA
I
C
h
at 10 V - 150 mA > 250
FE
Operating temperature range - 65 °C to + 200 °C
■ Linear gain characteristics
■ Hermetic packages
■ ESCC qualified
■ European preferred part list - EPPL
60 V
2N2484HR
1
2
3
TO-18
3
1
2
LCC-3
Figure 1. Internal schematic diagram
3
4
2
LCC-3UB
1
Description
The 2N2484HR is a silicon planar epitaxial NPN
transistor specifically designed for aerospace HiRel applications and housed in hermetic
packages. It complies with the ESCC 5000
qualification standard. It is ESCC qualified
according to the 5201-001 specification. In case
of conflict between this datasheet and ESCC
detailed specification, the latter prevails.
Pin 4 in LCC-3UB connected to the lid (for ground contact)
Table 1. Device summary
Order codes ESCC Part number Quality Level Packages Lead Finish Mass (g) EPPL
2N2484UB1 -
2N2484UB06 5201/001/06 ESCC Flight LCC-3UB Gold 0.06 -
2N2484UB07 5201/001/07 ESCC Flight LCC-3UB Solder Dip 0.06 -
SOC2484 -
SOC2484HRB 5201/001/01 or 02 ESCC Flight LCC-3 Gold / Solder Dip
2N2484HR 5201/001/04 or 05 ESCC Flight TO-18 Gold / Solder Dip
1. Depending ESCC part number mentioned on the purchase order.
Engineering
Model
Engineering
Model
LCC-3UB Gold 0.06 -
LCC-3 Gold 0.06 -
(1)
(1)
0.06 -
0.40 Y
July 2010 Doc ID 17734 Rev 1 1/12
www.st.com
12
Page 2
Electrical ratings 2N2484HR
1 Electrical ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
V
P
CBO
CEO
EBO
I
TOT
Collector-base voltage (IE = 0) 60 V
Collector-emitter voltage (IB = 0) 60 V
Emitter-base voltage (IC = 0) 6 V
Collector current 50 mA
C
Total dissipation at T
2N2484HR
2N2484UB1 / SOC2484HRB
2N2484UB1 / SOC2484HRB
amb
≤ 25 °C
(1)
0.36
0.36
0.73
Total dissipation at Tc ≤ 25 °C
for 2N2484HR
T
STG
T
1. When mounted on a 15 x 15 x 0.6 mm ceramic substrate.
Storage temperature - 65 to 200 °C
Max. operating junction temperature 200 °C
J
1.2
Table 3. Thermal data for through-hole package
Symbol Parameter TO-18 Unit
R
R
thJC
thJA
Thermal resistance junction-case __ max 146 °C/W
Thermal resistance junction-ambient __ max 486 °C/W
W
W
W
W
Table 4. Thermal data for SMD package
Symbol Parameter LCC-3 / LCC-3UB Unit
R
thJA
1. When mounted on a 15 x 15 x 0.6 mm ceramic substrate.
2/12 Doc ID 17734 Rev 1
Thermal resistance junction-ambient __ max 486
(1)
Thermal resistance junction-ambient
max 239
°C/W
Page 3
2N2484HR Electrical characteristics
2 Electrical characteristics
T
= 25 °C unless otherwise specified.
case
Table 5. Electrical characteristics
Symbol Parameter Test conditions
(1)
Min. Typ. Max. Unit
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
CBO
V
CE(SAT)
h
FE
(2)
Collector-base
breakdown voltage
Collector-emitter
(2)
breakdown voltage
Emitter-base breakdown
voltage
Collector-base cut-off
current
Emitter-base cut-off
current
Collector-emitter
(2)
saturation voltage
DC forward current
transfer ratio
High frequency current
Gain 1
h
fe
High frequency current
Gain 2
C
obo
C
ibo
h
FE
h
ie
h
oc
h
re
N
FW
Output capacitance
Input capacitance
Small signal current gain
Small signal input
impedance
Small signal output
impedance
Small signal reverse
voltage transfer ratio
Wide-Band noise
I
= 10 µA 60 - V
C
= 10 mA 60 - V
I
C
= 10 µA 6 - V
I
E
V
= 45 V - 10 nA
CB
V
= 5 V - 10 nA
EB
= 1 mA IB = 0.1 mA - 0.35 V
I
C
IC = 1 µA V
= 10 µA V
I
C
= 100 µA V
I
C
IC = 1 mA V
= 10 mA V
I
C
= 5 V IC = 50 µA
V
CE
f = 5 MHz
= 5 V IC = 500 µA
V
CE
f = 30 MHz
V
= 5 V IE = 0
CB
f = 1 MHz
V
= 0.5 V IC = 0
EB
f = 1 MHz
I
= 1 mA V
C
f = 1 kHz
= 1 mA V
I
C
f = 1 kHz
= 1 mA V
I
C
f = 1 kHz
= 1 mA V
I
C
f = 1 kHz
V
= 5 V IC = 10 µA
CE
= 10 kΩ
R
S
CE
CE
CE
CE
CE
CE
CE
CE
CE
= 5 V
= 5 V
= 5 V
= 5 V
= 5 V
= 5 V
= 5 V
= 5 V
= 5 V
30
100
175
250
500
-
550
650
800
3-
2-
-6pF
-6pF
150 - 900
3.5 - 24 kΩ
-40µmho
- 800 10
-3dB
-6
Doc ID 17734 Rev 1 3/12
Page 4
Electrical characteristics 2N2484HR
Table 5. Electrical characteristics
Symbol Parameter Test conditions
V
= 5 V IC = 10 µA
CE
NF
N1
= 10 kΩ f = 100 Hz
R
S
Power BW = 200 Hz
V
= 5 V IC = 10 µA
CE
N2
Spot noise figure
= 10 kΩ f = 1 kHz
R
S
Power BW = 20 Hz
V
= 5 V IC = 10 µA
CE
NF
N3
RS = 10 kΩ f = 10 kHz
Power BW = 2 Hz
1. Measurement performed on a sample basis, LTPD 7 or less.
2. Pulse measurement: Pulse width ≤ 300 µs, duty cycle ≤ 1.0 %
(1)
Min. Typ. Max. Unit
-3
-10
dBNF
-2
Table 6. Electrical characteristics at high and low temperatures
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
CBO
h
FE2
Collector-base cut-off
current
DC forward current
transfer ratio
V
= 45 V T
CB
= 10 µA V
I
C
T
= - 55 °C
amb
= 150 °C - 10 µA
amb
= 5 V
CE
20 -
4/12 Doc ID 17734 Rev 1
Page 5
2N2484HR Test circuit

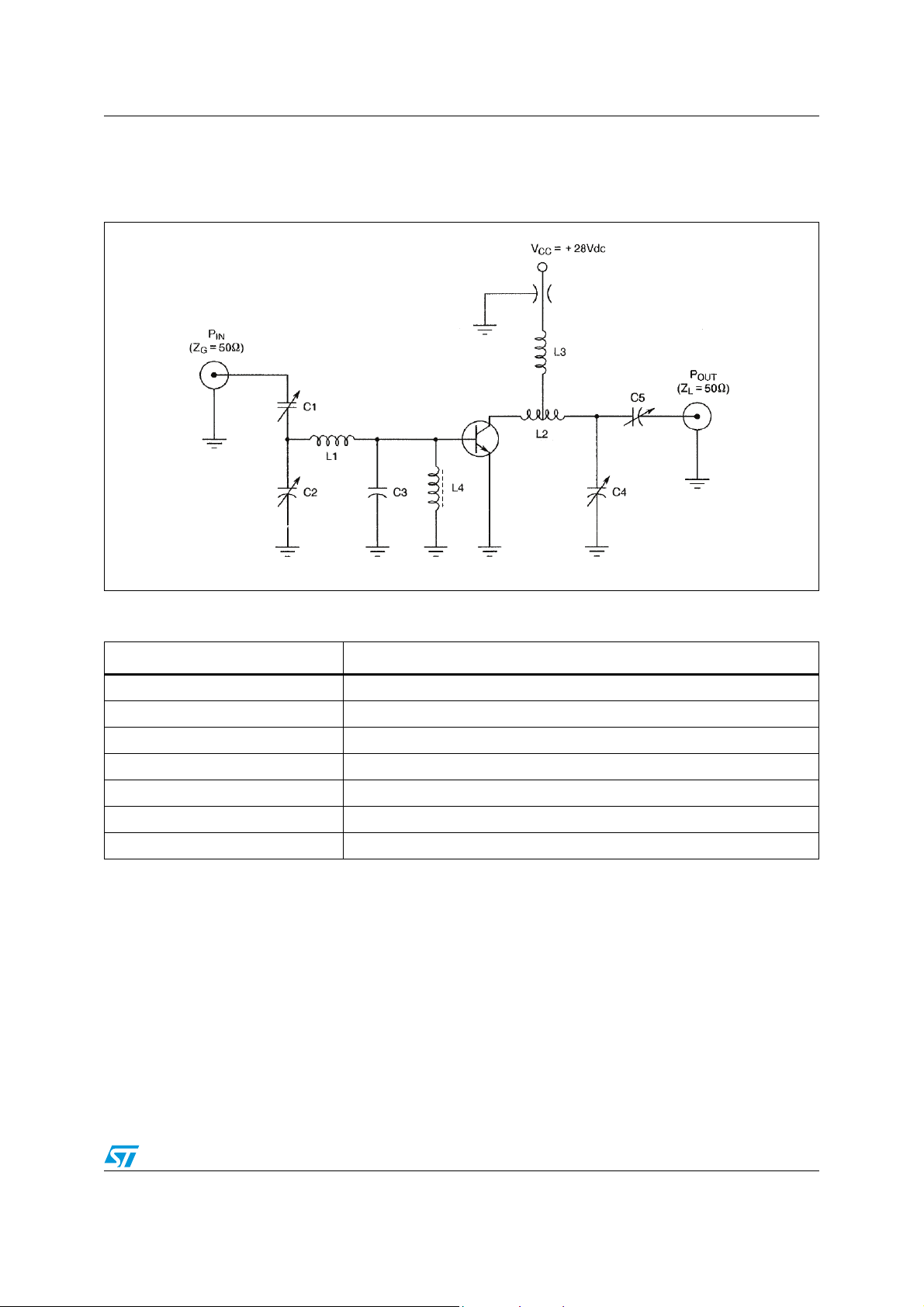

3 Test circuit
Figure 2. Circuit for electrical measurements
Table 7. List of components
Component Description
C1, C2, C5 3.0 - 35 pF
(1)
C3
C4 0.4 - 7.0 pF
L1 Straight piece n° 16 bare tin wire, 5/8 inch long
L2 3 turns n° 16 wire, 1/4 inch ID, 5/16 inch long
L3 1 turn n° 18 wire, 1/4 inch ID, 1/4 inch long
L4 Ferrite rf choke, Z = 450 Ω
1. For optimum performance, C3 should be mounted as close as possible to the base lead.
24 pF
AM07818v1
Doc ID 17734 Rev 1 5/12
Page 6
Package mechanical data 2N2484HR

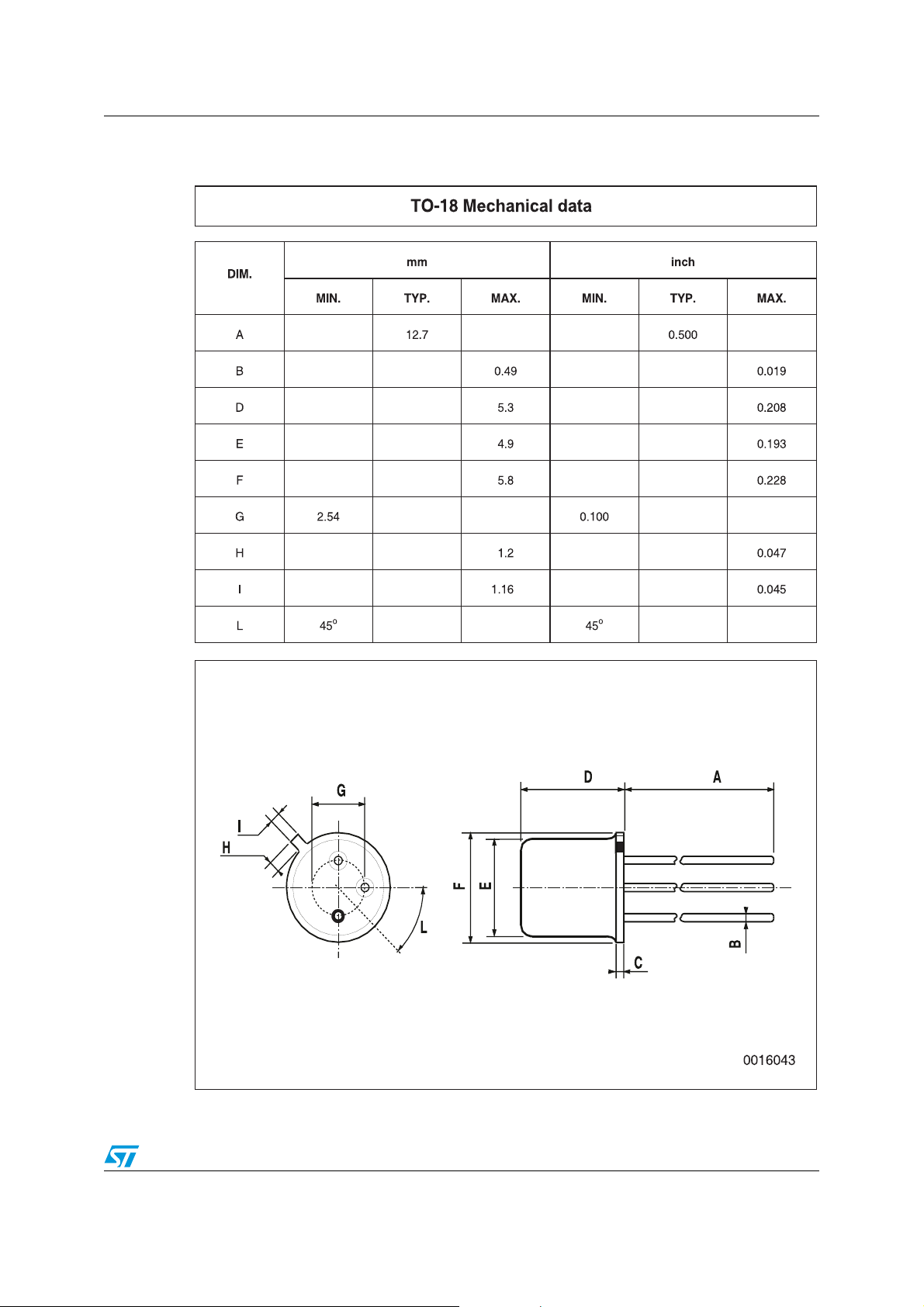

4 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
6/12 Doc ID 17734 Rev 1
Page 7
2N2484HR Package mechanical data

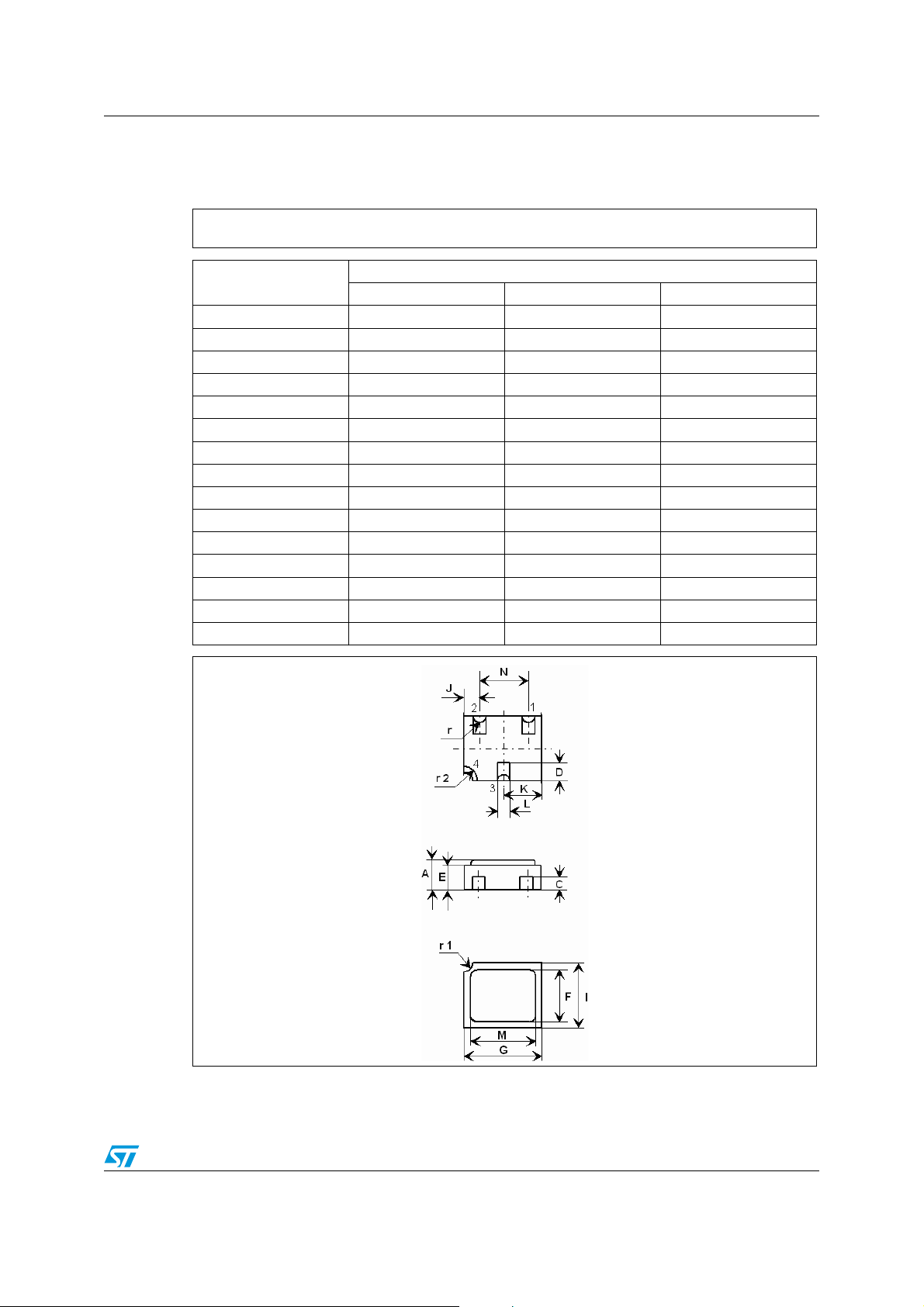

LCC-3UB mechanical data
Dim.
Min. Typ. Max.
mm.
A1.16 1.42
C 0.46 0.51 0.56
D 0.56 0.76 0.96
E0.92 1.02 1.12
F1.952.03 2.11
G2.92 3.05 3.18
I 2.41 2.54 2.67
J 0.42 0.57 0.72
K1.37 1.52 1.67
L 0.41 0.51 0.61
M 2.46 2.54 2.62
N1.811.91 2.01
r0.20
r1 0.30
r2 0.56
8206487
Doc ID 17734 Rev 1 7/12
Page 8
Package mechanical data 2N2484HR

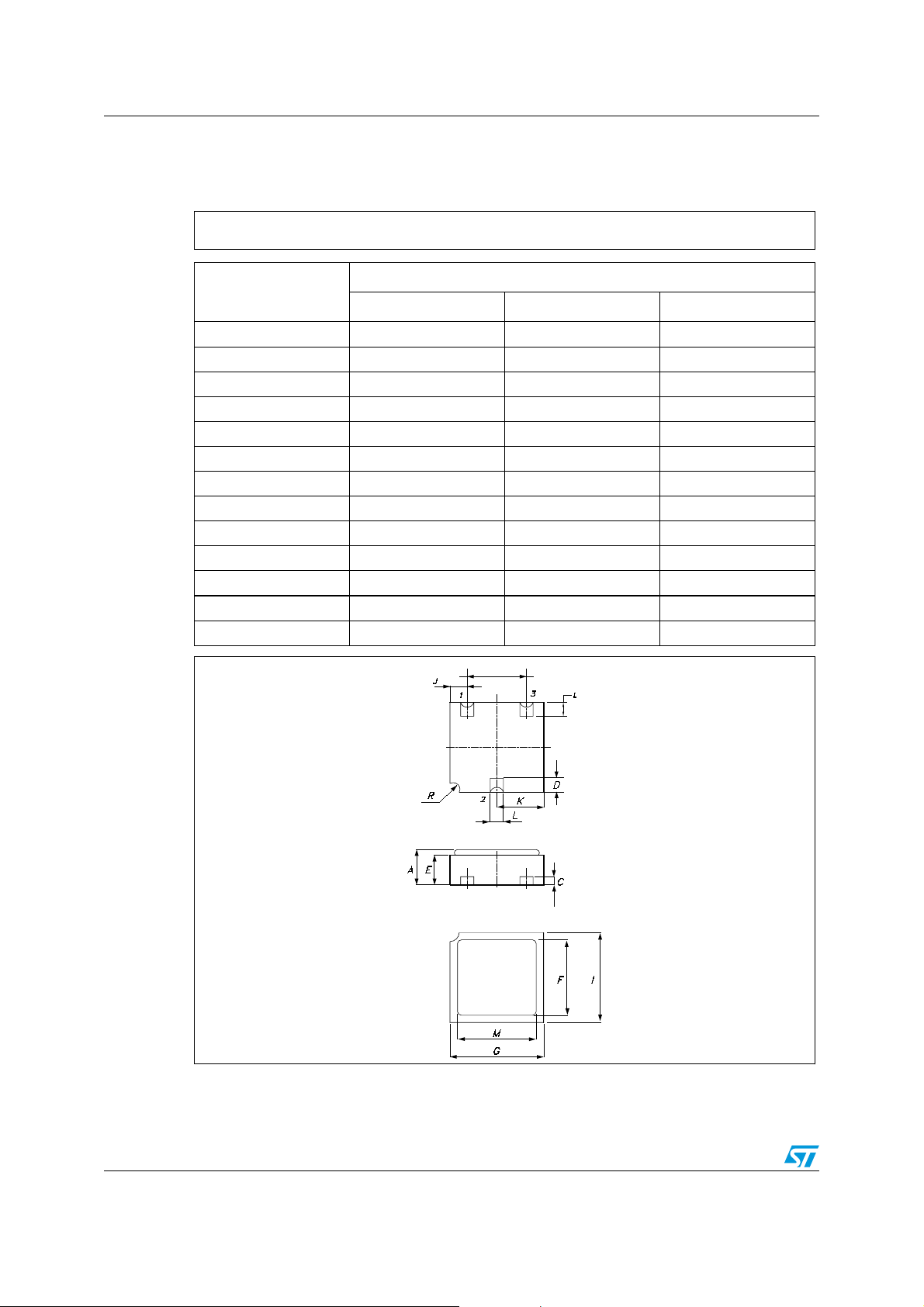

LCC-3 mechanical data
Dim.
mm.
Min. Typ. Max.
A 1.16 1.42
C 0.45 0.50 0.56
D0.600.760.91
E0.911.011.12
F1.952.03 2.11
G2.92 3.05 3.17
I 2.41 2.54 2.66
J 0.42 0.57 0.72
K1.371.521.67
L 0.40 0.50 0.60
M 2.46 2.54 2.62
N1.801.902.00
R0.30
N
8/12 Doc ID 17734 Rev 1
0041211
Page 9
2N2484HR Package mechanical data
Doc ID 17734 Rev 1 9/12
Page 10
Order codes 2N2484HR
5 Order codes
Table 8. Order codes
Order codes
ESCC Part
number
Packages Lead Finish Marking EPPL Packing
2N2484UB1 - LCC-3UB Gold 2N2484UB1 - Waffle pack
2N2484UB06 5201/001/06 LCC-3UB Gold 520100106 - Waffle pack
2N2484UB07 5201/001/07 LCC-3UB Solder Dip 520100107 - Waffle pack
SOC2484 - LCC-3 Gold SOC2484 - Waffle pack
(1)
SOC2484HRB 5201/001/01 or 02 LCC-3 Gold or Solder Dip
2N2484HR 5201/001/04 or 05 TO-18 Gold or Solder Dip
520100101 or 02 - Waffle pack
(1)
520100104 or 05 Y Strip pack
1. Depending ESCC part number mentioned on the purchase order.
Contact ST sales office for information about the specific conditions for:
– Products in die form
– Tape & reel packing
10/12 Doc ID 17734 Rev 1
Page 11
2N2484HR Revision history
6 Revision history
Table 9. Document revision history
Date Revision Changes
09-Jul-2010 1 Initial release
Doc ID 17734 Rev 1 11/12
Page 12
2N2484HR
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
12/12 Doc ID 17734 Rev 1
