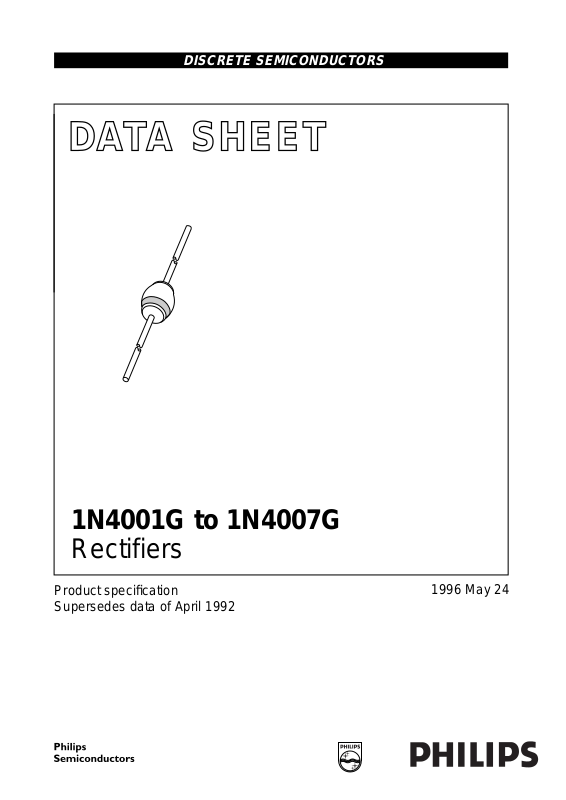

DISCRETE SEMICONDUCTORS
DATA SH EET
handbook, 2 columns
1N4001G to 1N4007G
Rectifiers
Product specification Supersedes data of April 1992
1996 May 24
Page 2
Philips Semiconductors Product specification
Rectifiers 1N4001G to 1N4007G

FEATURES

• Glass passivated
• High maximum operating

DESCRIPTION

Rugged glass package, using a high temperature alloyed construction.
This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
temperature
• Low leakage current
• Excellent stability
• Available in ammo-pack.
ka
2/3 page (Datasheet)
MAM047
Fig.1 Simplified outline (SOD57) and symbol.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
RRM
repetitive peak reverse voltage
1N4001G − 50 V 1N4002G − 100 V 1N4003G − 200 V 1N4004G − 400 V 1N4005G − 600 V 1N4006G − 800 V 1N4007G − 1000 V
V
R
continuous reverse voltage
1N4001G − 50 V 1N4002G − 100 V 1N4003G − 200 V 1N4004G − 400 V 1N4005G − 600 V 1N4006G − 800 V 1N4007G − 1000 V
I
F(AV)
I
F
I
FRM
I
FSM
T
stg
T
j
average forward current averaged over any 20 ms
period; T
=75°C; see Fig.2
amb
averaged over any 20 ms
continuous forward current
period; T T
=75°C; see Fig.2
amb
= 100 °C; see Fig.2
amb
repetitive peak forward current − 10 A non-repetitive peak forward current half sinewave; 60 Hz − 30 A storage temperature −65 +175 °C
junction temperature −65 +175 °C
− 1.00 A
− 0.75 A
− 1.00 A
1996 May 24 2
Page 3
Philips Semiconductors Product specification
Rectifiers 1N4001G to 1N4007G

ELECTRICAL CHARACTERISTICS

T
=25°C; unless otherwise specified.
j
SYMBOL PARAMETER CONDITIONS MAX. UNIT
V
F
V
F(AV)
I
R
I
R(AV)

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-tp
R
th j-a
Note
1. Device mounted on epoxy-glass printed-circuit board, 1.5 mm thick; thickness of copper ≥40 µm, see Fig.4. For more information please refer to the
forward voltage full-cycle average forward voltage I
I
= 1 A; see Fig.3
F F(AV)
reverse current VR=V
V
R=VRmax
full-cycle average reverse current VR=V
= 1 A 0.8 V
Rmax
; T
= 100 °C50µA
amb
; T
RRMmax
=75°C30µA
amb
1.1 V
10 µA
thermal resistance from junction to tie-point lead length = 10 mm 46 K/W thermal resistance from junction to ambient note 1 100 K/W
“General Part of associated Handbook”
.
1996 May 24 3
Page 4
Philips Semiconductors Product specification
Rectifiers 1N4001G to 1N4007G

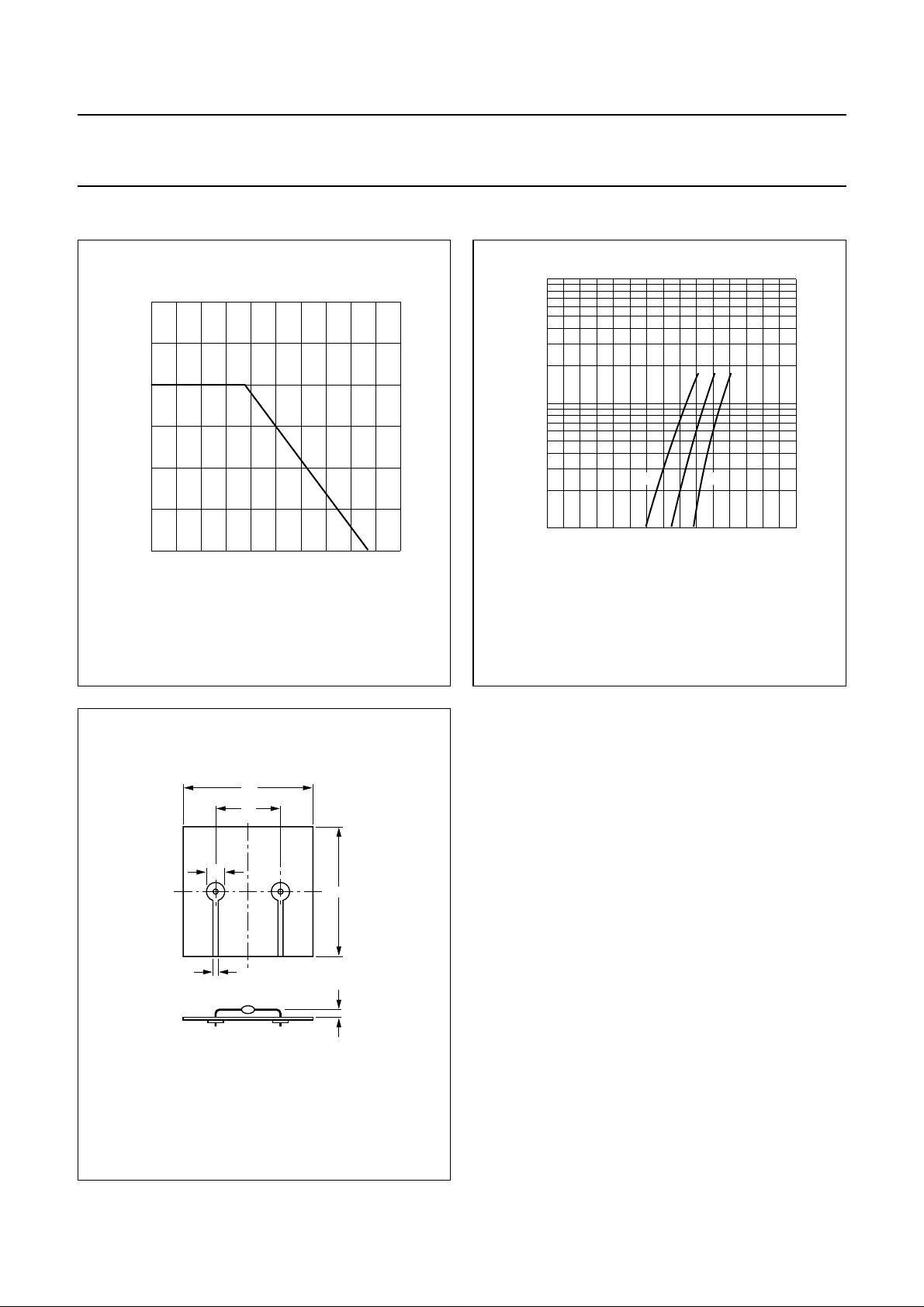

GRAPHICAL DATA

1.5
handbook, halfpage
I
F
(A)
1
0.5
0
0 200
100
T
amb
MBH386
(°C)
Fig.2 Maximum forward current as a function of
ambient temperature.
10
handbook, halfpage
I
F
(A)
1
−1
10
(1) T (2) T (3) T
amb amb amb
= 100°C. = 20°C. = −50°C.
(2)(1) (3)
1
MBH385
VF (V)
Fig.3 Forward current as a function of forward
voltage; typical values.
1.50 0.5
handbook, halfpage
Dimensions in mm.
50 25
7
50
2
3
MGA200
Fig.4 Device mounted on a printed-circuit board.
1996 May 24 4
Page 5
Philips Semiconductors Product specification
Rectifiers 1N4001G to 1N4007G

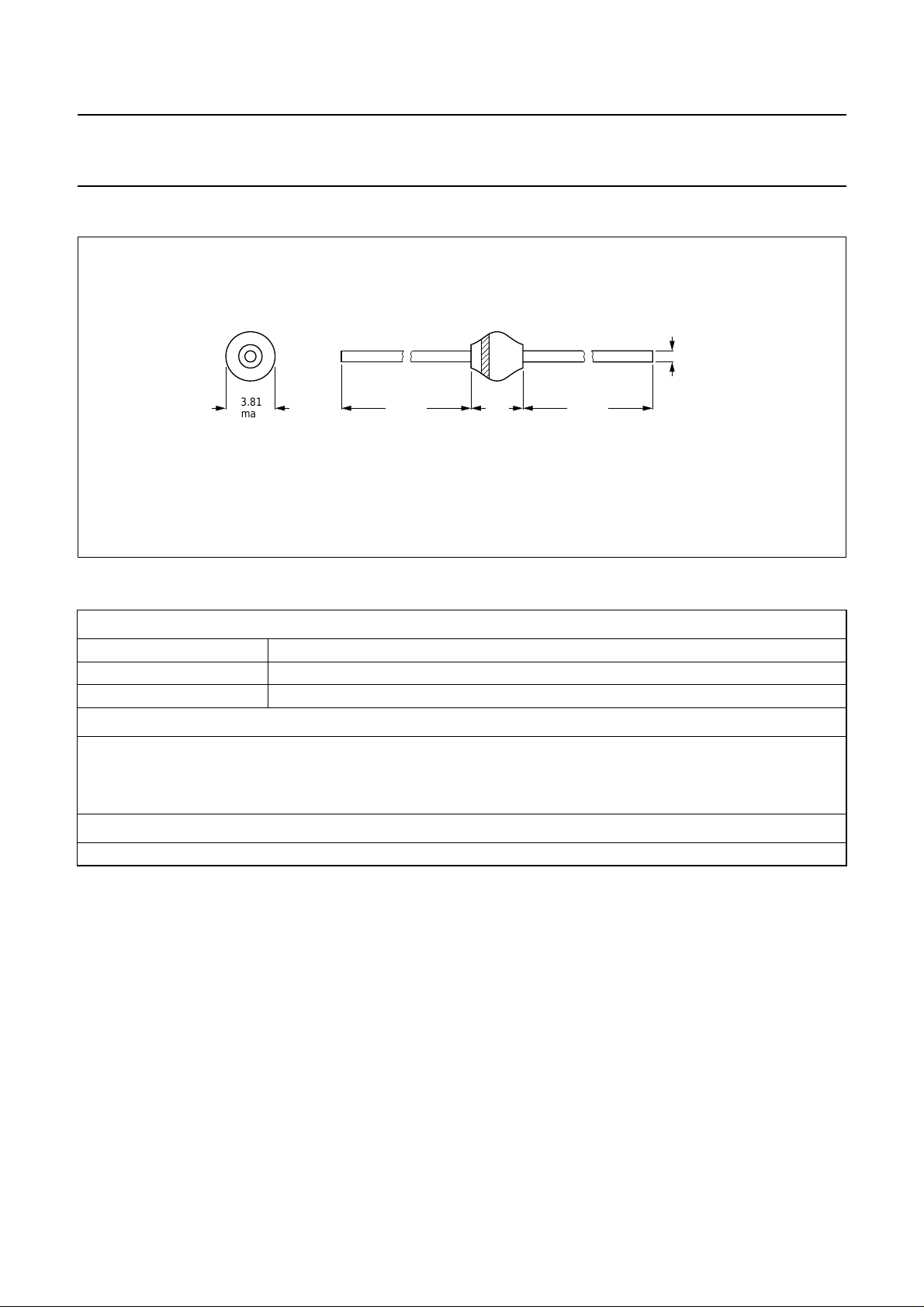

PACKAGE OUTLINE

handbook, full pagewidth
Dimensions in mm.
3.81 max
ka
4.57 max
28 min28 min
0.81 max
MBC880
Fig.5 SOD57.

DEFINITIONS

Data sheet status
Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
1996 May 24 5
