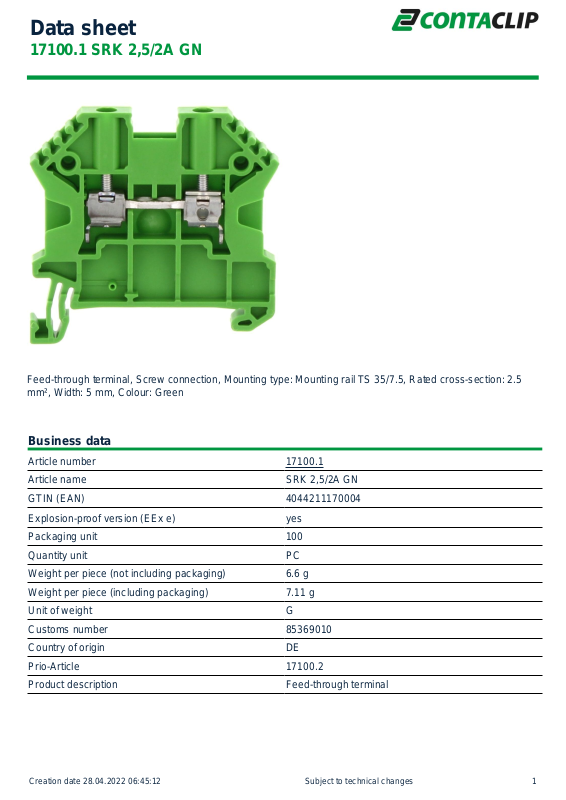

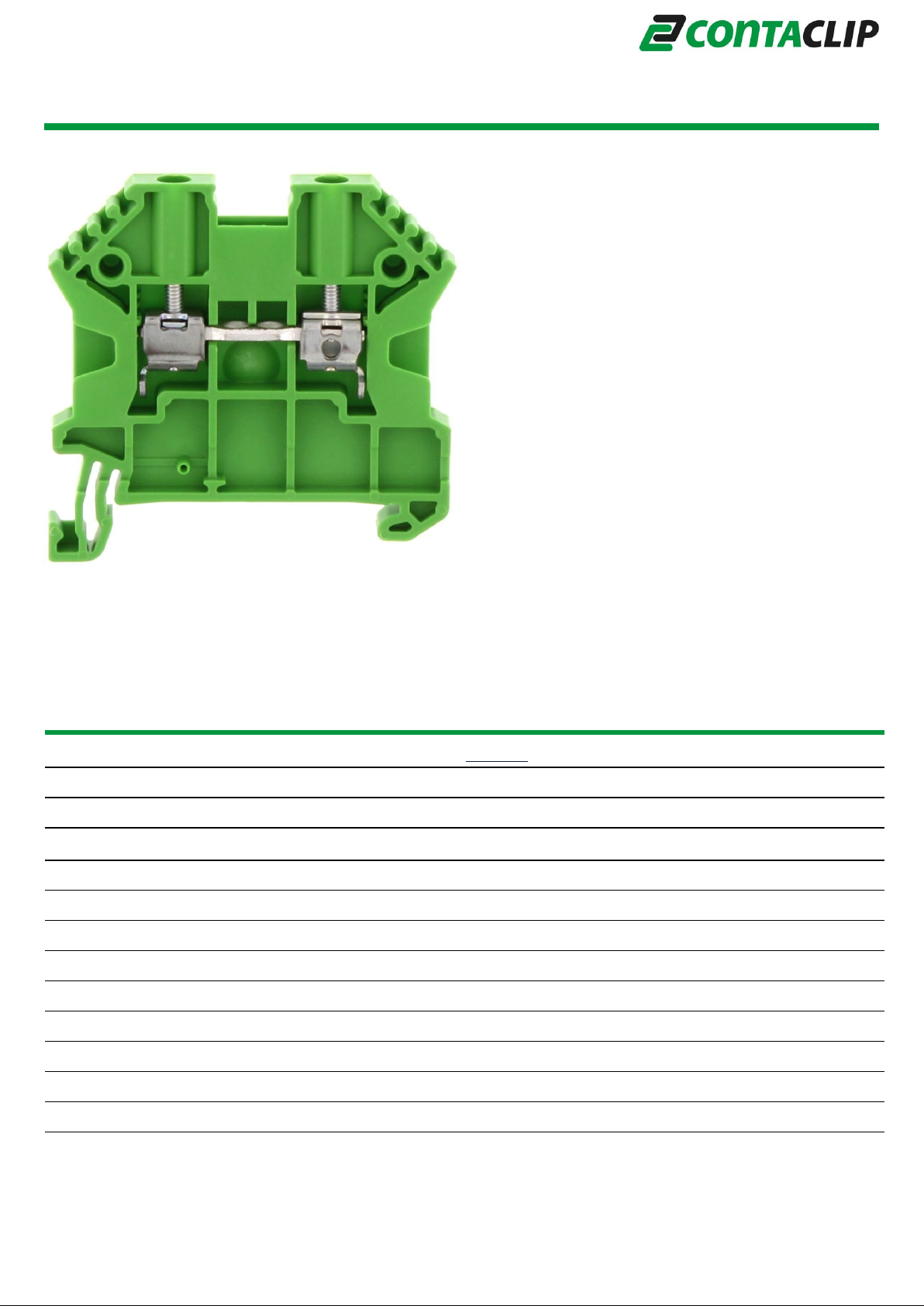

Page 1
Data sheet
17100.1 SRK 2,5/2A GN
Feed-through terminal, Screw connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 2.5
mm², Width: 5 mm, Colour: Green
Business data
Article number 17100.1
Article name SRK 2,5/2A GN
GTIN (EAN) 4044211170004
Explosion-proof version (EEx e) yes
Packaging unit 100
Quantity unit PC
Weight per piece (not including packaging) 6.6 g
Weight per piece (including packaging) 7.11 g
Unit of weight G
Customs number 85369010
Country of origin DE
Prio-Article 17100.2
Product description Feed-through terminal
Creation date 28.04.2022 06:45:12 Subject to technical changes 1
Page 2
Data sheet
17100.1 SRK 2,5/2A GN
Technical data
Connection data
Wire cross-section single-core (rigid) / stranded, AWG
max.
Wire cross-section single-core (rigid) / stranded, AWG
min.
Wire cross-section stranded, AWG max. 12
Wire cross-section stranded, AWG min. 30
Wire cross-section stranded with wire-end ferrules,
AWG max.
Wire cross-section stranded with wire-end ferrules,
AWG min.
Connection principle Screw connection
Connection position Lateral
Connections 2
Number of terminals per level 2
Number of levels 1
Wire cross-section single-core (rigid) / stranded, min. 0.2 mm²
Wire cross-section single core (rigid)/stranded, max. 4 mm²
12
30
14
30
Wire cross-section stranded, min. 0.2 mm²
Wire cross-section stranded, max. 4 mm²
Wire cross-section stranded with wire-end ferrules,
min.
Wire cross-section stranded with wire-end ferrules,
max.
Wire cross-section AWG, min. 30
Wire cross-section AWG, max. 12
Stripping length 10 mm
Screw head Slotted
Screw threading M 2,5
Tightening torque, min. 0.4 Nm
Tightening torque, max. 0.8 Nm
Dimensions
Length 48 mm
Width 5 mm
0.2 mm²
2.5 mm²
Height TS 35/7.5 47 mm
Creation date 28.04.2022 06:45:12 Subject to technical changes 2
Page 3
Data sheet
17100.1 SRK 2,5/2A GN
Technical data
Ratings
Rated voltage 1000 V
Rated current 24 A
Current load, max. 32 A
Rated cross-section 2.5 mm²
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Maximum power dissipation for nominal condition 0.77 W
Materials
Insulation housing Polyamide 6.6, Polyamide 6.6
Flammability class UL 94 V-0
Working temperature, min. -40 °C
Working temperature, max. 120 °C
Further technical data
Insulation housing Polyamide 6.6
Flammability class UL 94 V-0
Working temperature, min. -40 °C
Working temperature, max. 120 °C
Mounting type Mounting rail TS 35/7,5
Gauge plug acc. to EN 60 947-1 A3
Number of cross-connection channels 2
End plate required
Number of test pick-off options 1
Maximum power dissipation for nominal condition 0.77 W
Environmental Product Compliance
REACH Conform yes
REACH Reference date 2022-01-17
REACH Candidate Substance Note No
RoHS Conform yes
Creation date 28.04.2022 06:45:12 Subject to technical changes 3
Page 4
Data sheet
17100.1 SRK 2,5/2A GN
Approvals
German Lloyd approval
DNV GL Certificate number TAE00002JG
DNV GL Location Classes Temperature: B, Humidity: B, Vibration: A
DNV GL approval granted 1
DNV GL rated cross-section 2.5 mm²
DNV GL rated current 32 A
DNV GL rated impulse voltage 8 kV
DNV GL rated voltage 1000 V
DNV GL test standard IEC 60947-7-1:2009
GL approval IEC 60947-7-1:2009
GL approval granted yes
GL rated voltage 1000 V
GL rated current 32 A
GL rated cross-section 2.5 mm²
GL rated impulse voltage 8 kV
GL environmental category C
Standards and regulations
ATEX certification number DEKRA 12ATEX0039 U
EAC approval TR ZU 004/2011
EAC approval granted yes
IECEx certification number IECEx DEK 12.0006U
CSA approval
CSA approval C22.2 No 158
CSA approval granted yes
CSA Usegroup C: rated voltage 600 V
CSA Usegroup C: rated current 25 A
CSA wire cross-section AWG, min. 30
CSA wire cross-section AWG, max. 12
CSA torque, max. 0.8 Nm
CSA torque, min. 0.6 Nm
Creation date 28.04.2022 06:45:12 Subject to technical changes 4
Page 5
Data sheet
17100.1 SRK 2,5/2A GN
Approvals
CSAus approval
CSAus approval UL 1059
CSAus approval granted yes
CSAus Usegroup C: rated voltage 600 V
CSAus Usegroup C: rated current 25 A
CSAus wire cross-section AWG, min. 30
CSAus wire cross-section AWG, max. 12
CSAus torque, min. 0.6 Nm
CSAus torque, max. 0.8 Nm
cUL Recognized
cUL approval C22.2 No 158
cUL Usegroup B: rated voltage 600 V
cUL Usegroup B: rated current 25 A
cUL Usegroup C: rated voltage 600 V
cUL Usegroup C: rated current 25 A
cUL wire cross-section single-core (rigid) AWG, min. 30
cUL wire cross-section single-core (rigid) AWG, max. 12
cUL wire cross-section stranded AWG, min. 30
cUL wire cross-section stranded AWG, max. 12
cUL torque, min. 0.6 Nm
cUL torque, max. 0.8 Nm
cUL wire material Cu
cUL Recognized 1
KEMA KEUR approval
KEMA KEUR approval EN 60947-7-1:2009
KEMA KEUR approval granted yes
KEMA rated voltage 1000 V
KEMA rated current 32 A
KEMA rated impulse voltage 8 kV
KEMA wire cross-section single core (rigid), min. 0.5 mm²
KEMA wire cross-section single-core (rigid), max. 4 mm²
KEMA wire cross-section stranded, min. 0.5 mm²
KEMA wire cross-section stranded, max. 4 mm²
KEMA torque, min. 0.6 Nm
KEMA torque, max. 0.8 Nm
Creation date 28.04.2022 06:45:12 Subject to technical changes 5
Page 6
Data sheet
17100.1 SRK 2,5/2A GN
Approvals
UL Recognized
UL approval UL 1059
UL Usegroup B: rated voltage 600 V
UL Usegroup B: rated current 25 A
UL Usegroup C: rated voltage 600 V
UL Usegroup C: rated current 25 A
UL wire cross-section single-core (rigid) AWG, min. 30
UL wire cross-section single-core (rigid) AWG, max. 12
UL wire cross-section stranded AWG, min. 30
UL wire cross-section stranded AWG, max. 12
UL torque, min. 5.3 Lb In.
UL torque, max. 7.1 Lb In.
UL wire material Cu
UL factory wiring 1
UL field wiring 1
UL Recognized 1
Creation date 28.04.2022 06:45:12 Subject to technical changes 6
Page 7
Data sheet
17100.1 SRK 2,5/2A GN

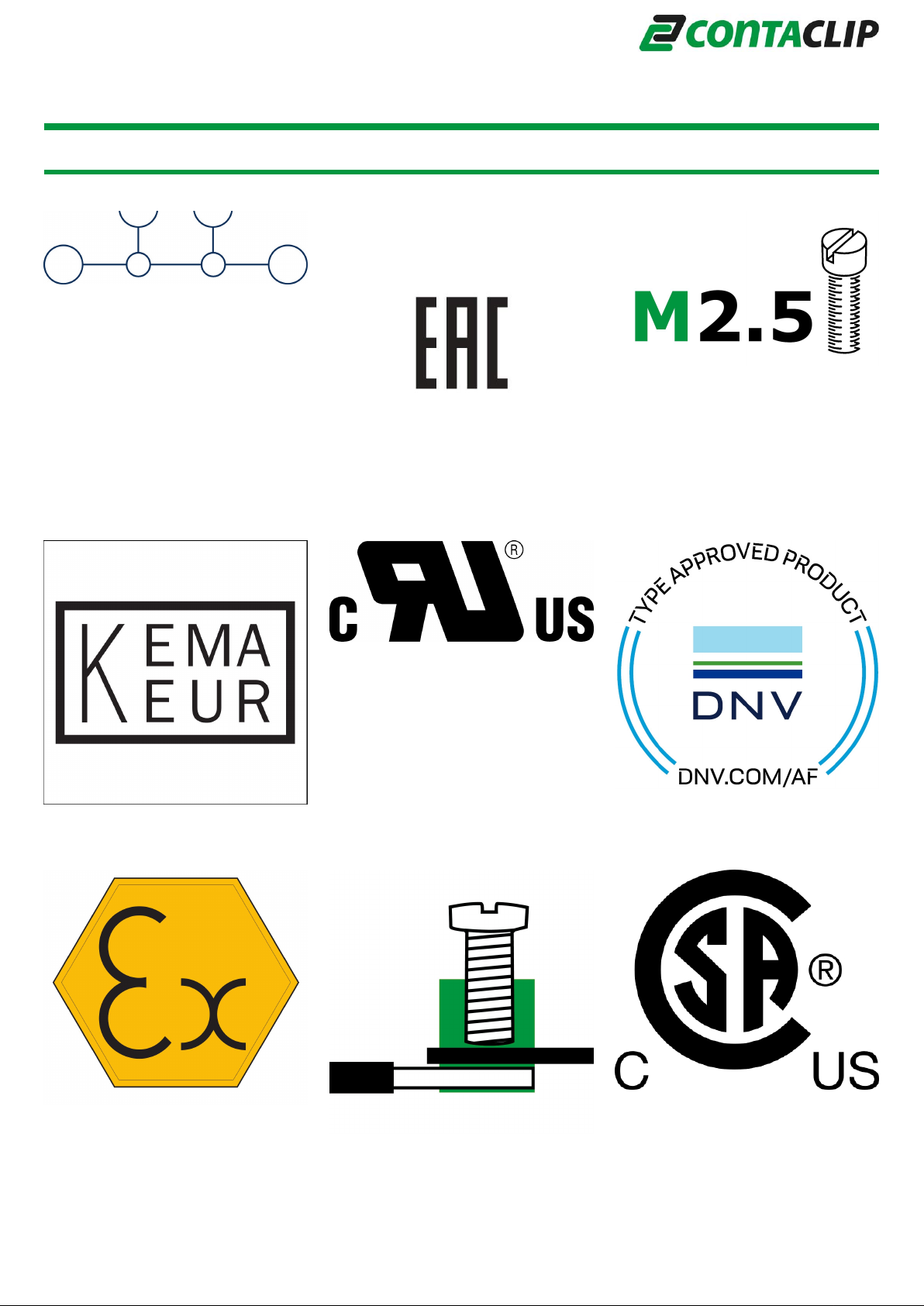

Media
Creation date 28.04.2022 06:45:12 Subject to technical changes 7
