Datasheet 131 Datasheet

Page 1
131

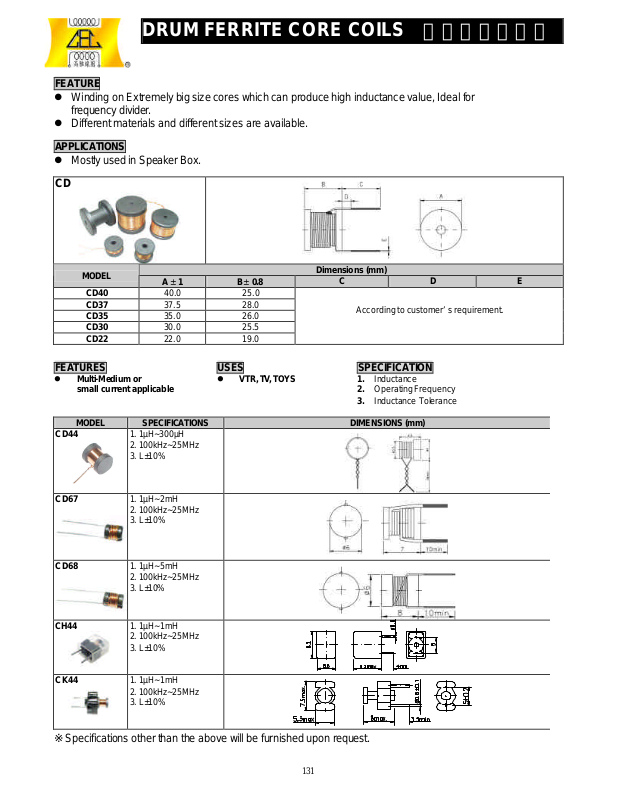

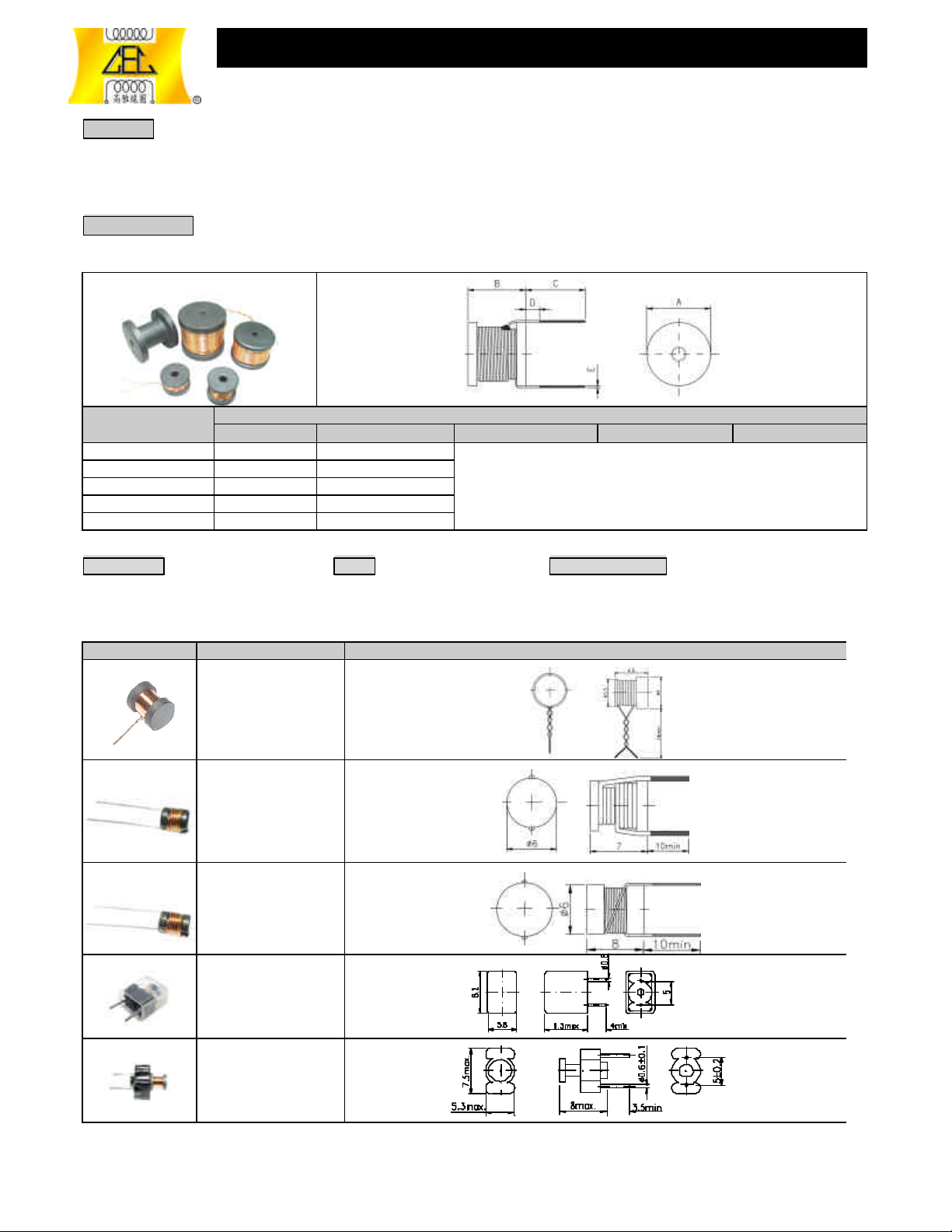

DRUM FERRITE CORE COILS

工字形磁芯線圈
FEATURES
l Winding on Extremely big size cores which can produce high inductance value, Ideal for
frequency divider.
l Different materials and different sizes are available.
APPLICATIONS
l Mostly used in Speaker Box.
CD
MODEL
CD40 40.0 25.0 CD37 37.5 28.0 CD35 35.0 26.0 CD30 30.0 25.5 CD22 22.0 19.0
A ± 1 B± 0.8
Dimensions (mm)
C D E
According to customer’s requirement.
FEATURES USES SPECIFICATION
l Multi -Medium or
small current applicable
MODEL SPECIFICATIONS DIMENSIONS (mm)
CD44
CD67
1. 1µH~300µH
2. 100kHz~25MHz
3. L±10%
1. 1µH~2mH
2. 100kHz~25MHz
3. L±10%
l VT R, TV, TOYS 1. Inductance
2. Operating Frequency
3. Inductance Tolerance
CD68
CH44
CK44
1. 1µH~5mH
2. 100kHz~25MHz
3. L± 10%
1. 1µH~1mH
2. 100kHz~25MHz
3. L±10%
1. 1µH~1mH
2. 100kHz~25MHz
3. L±10%
※Specifications other than the above will be furnished upon request.
Page 2
132

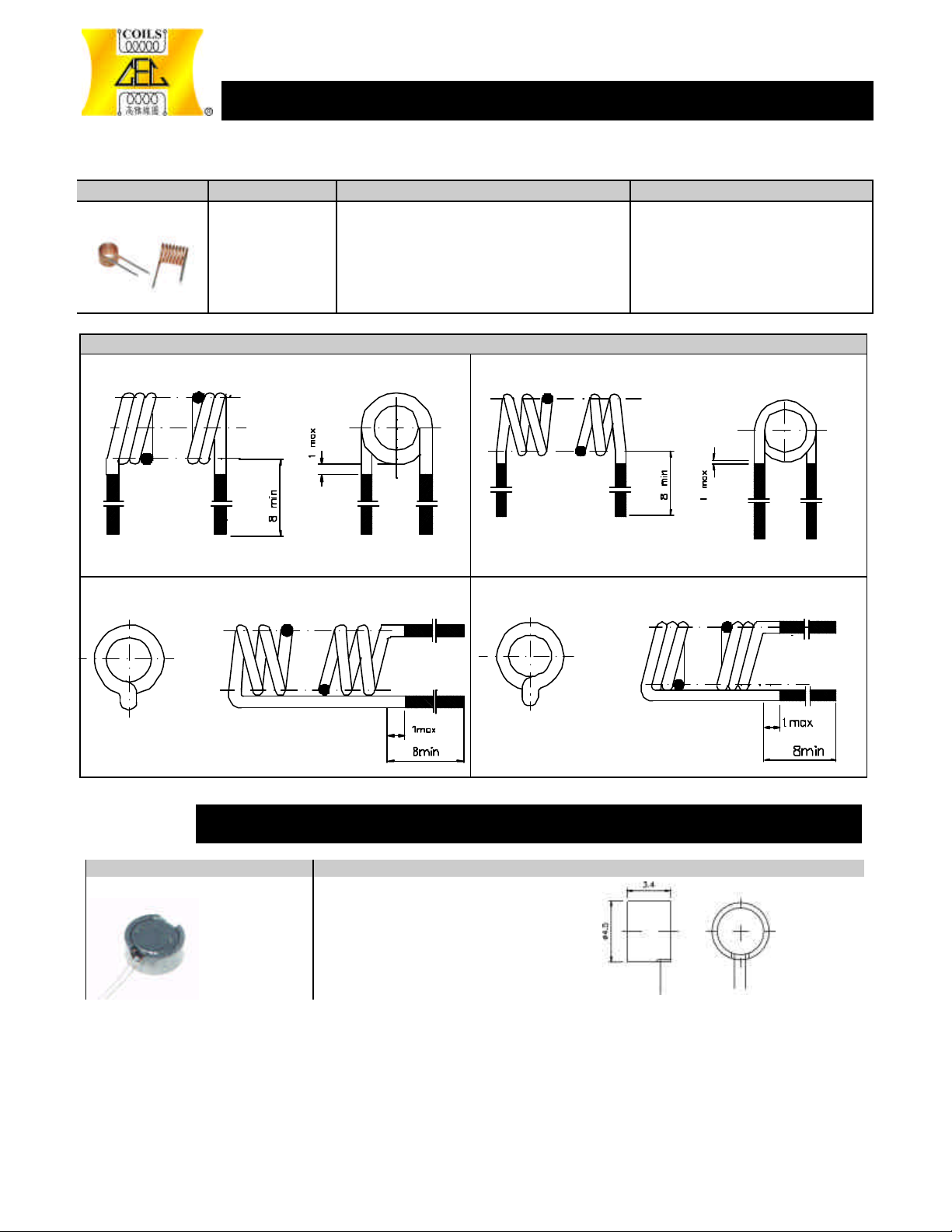

SPRING COILS

MODEL
CS
Horizontal, Anti-Clockwise, Close Wound FM Coil
Vertical, Clockwise, Space wound FM Coil
APPLICATIONS
FM Radio, Communication products.
Vertical pins out or horizontal pins out. Clockwise or Anti-clockwise. Close wound/Space wound.
Dimensions (mm)
彈簧線圈
FEATURES SPECIFICATIONS
Operating frequency :
10MHz~500MHz Wire type : 2UEW 0.3-1mm Colour : Gold/Red
Green/Silver
Horizontal, Clockwise, Space Wound FM Coil
Vertical, Anti-Clockwise, Close Wound FM Coil

ALARM COILS

MODEL APPLICATIONS FEATURES DIMENSIONS (mm)
ID42
※Specifications other than the above will be furnished upon request.
Quartz watches
Quartz clocks
Inductance :20mH max. Unloaded Q: 60min.
報警線圈
Page 3
133

THREAD CORE COILS

帶有縲紋磁芯線圈
Specifications
1.Inductance
2.Operating Frequency
3.Unloaded Qu
MODEL APPLICATIONS FEATURES DIMENSIONS (mm)
CT
R.F.
Radio
Communication
l Different sizes l 2 kinds of screw
cores : Aluminum / Ferrite
l Small screw core with
Vertical / Horizontal
10MHz
~
pins out
Q:50~150
12±2
6
9
SPECIFICATION TABLE
MODEL
CT35 0.1~0.5µH Q:50~90 3.2 5 CT38 0.1~2.0µH Q:45~130 3.6 8 CT46 0.1~1.0µH Q:40~120 4 6 5.0±2 CT69
1 2 3 A B C D E
0.1~2.5µH
SPECIFICATIONS DIMENSIONS (mm)
200MHz

BALUN COILS

平衡及不平衡阻抗變換線圈
FEATURES
l Different sizes with or without base. l Balun coils with small type 4.5mm in height. l It is designed to improve the transmission efficiency and capable of wave soldering.
APPLICATIONS
l Car radio, T.V., Computer
MODEL DIMENSIONS (mm)
RDXX
4.0±2
4.5±2
7.0±2
STD 0.4 STD 0.4 STD 0.4 STD 0.4
RDXX
RBXX
※Specifications other than the above will be furnished upon request.
Page 4
134

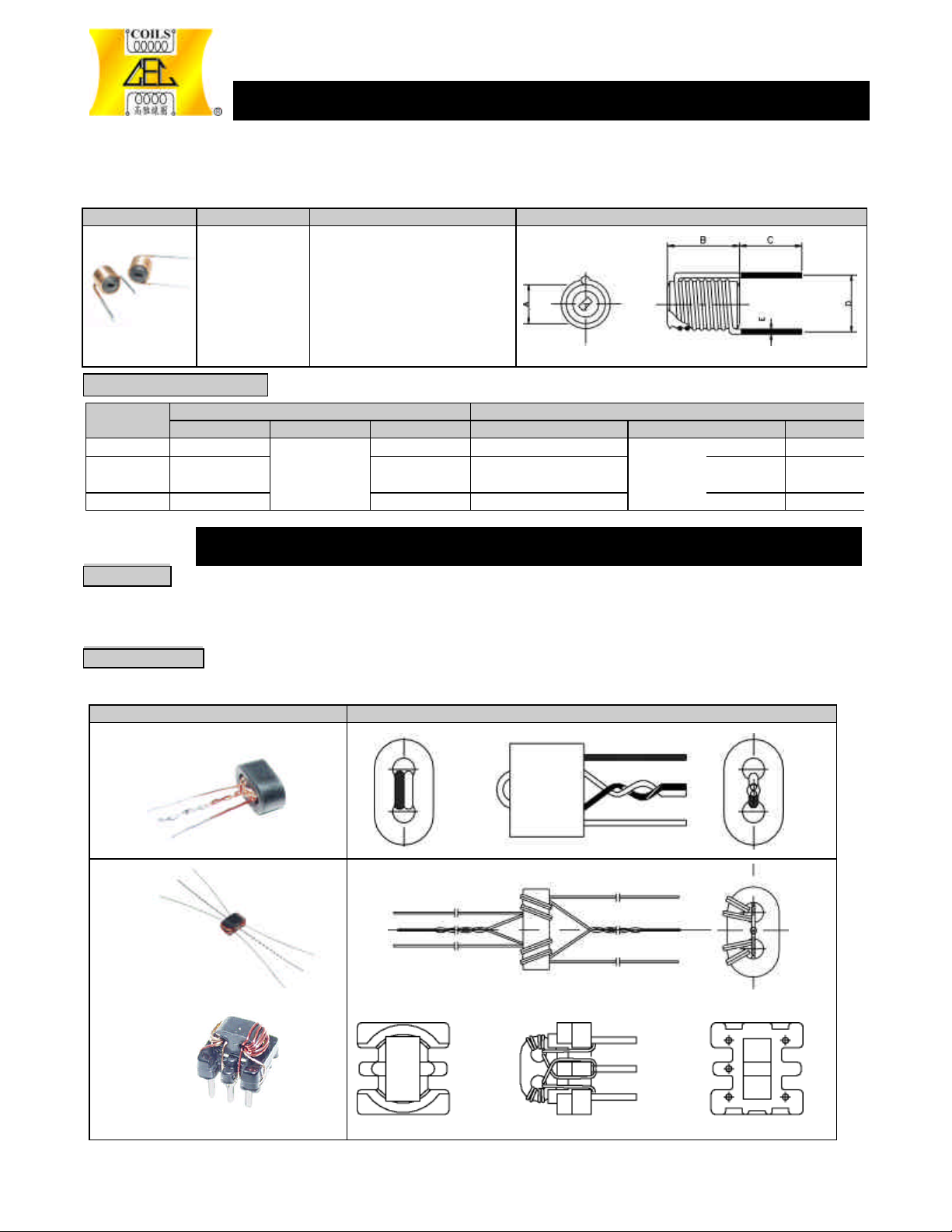

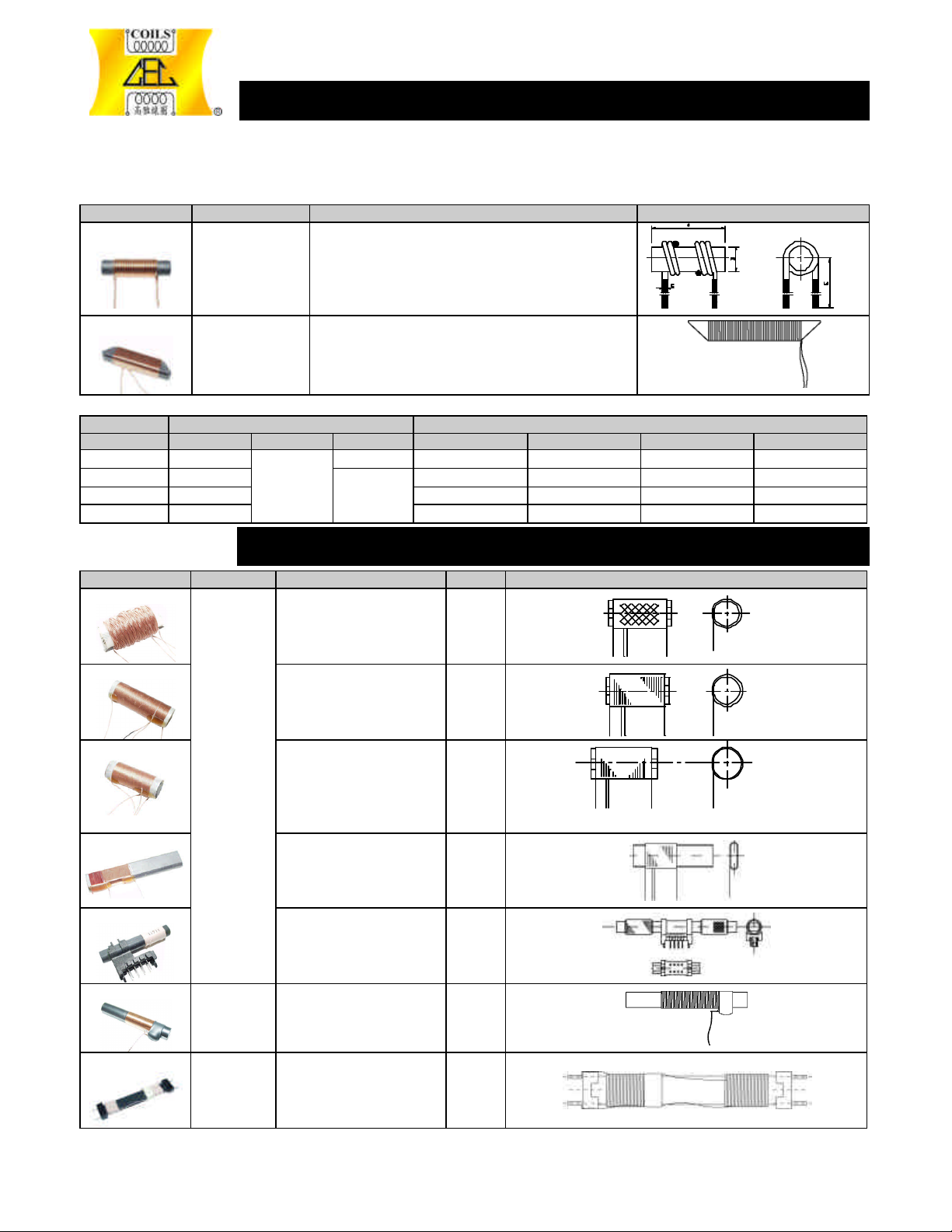

FERRITE BAR COILS

棒狀磁芯線圈
Specifications
1.Inductance
2.Operating Frequency
3.Rated Current
MODEL APPLICATIONS FEATURES DIMENSIONS (mm)
CR
AROC
MODEL SPECIFICATIONS DIMENSION (mm)
NO. 1 2 3 A C D E
CR3A 0.5~3uH 3A max. CR6K 5~60uH CR6U 10~160uH CR8P 10~80uH
MODEL USES FEATURES SPEC. DIMENSIONS (mm)
AN
AN
AR
Power supply, Car radio, T.V. recorder
Match with external capacitor

ANTENNA COILS

AM Radio
l Different sizes. l Small ferrite bar with vertical/horizontal
pins out;
l Coated with UL tube/ Varnish.
l
Different sizes.
l Small ferrite bar with self-bonding
wire coil.
120MHz
~
25MHz
10A max.
Honeycomb winding with silk copper wire.
Progressive winding with silk copper wire or enameled copper wire.
Antenna coil with Round ferrite bar & holder & 2 winding methods.
10±1 20±1 30±1 25±1
LW
MW
LW&MW
0.5~1.0
0.5~1.0
0.5~1.0
0.5~1.0
3±0.3 6±0.5 6±0.5 8±0.5
天線線圈
AP
Bar Holder+ Ant.
ARWC
AP38
Radio
Frequency
clock
Card radio
and
Headphone
radio
Antenna coil with Rectangle ferrite bar, paper holder & 2 windings. Self -bonding coils with Round ferrite bar & holder & 2 windings.
Round ferrite bar with a capacitor.
This bar antenna is mountable to PCBs by soldering it in a reflow furnace.
MW
LW&MW
MW
MW&SW
MW
※ Specifications other than the above will be furnished upon request.
STD 20 STD 20 STD 20 STD 20
Page 5
135

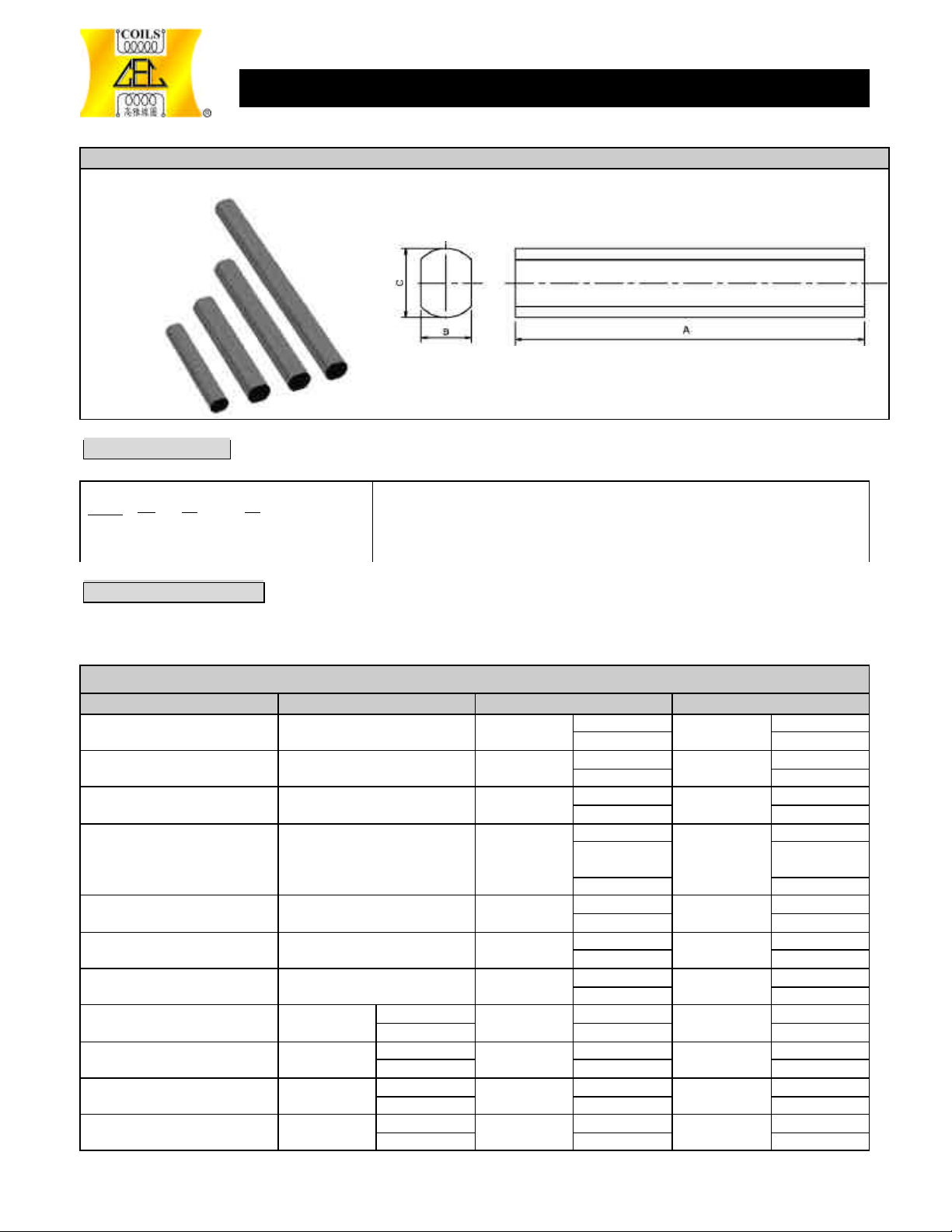

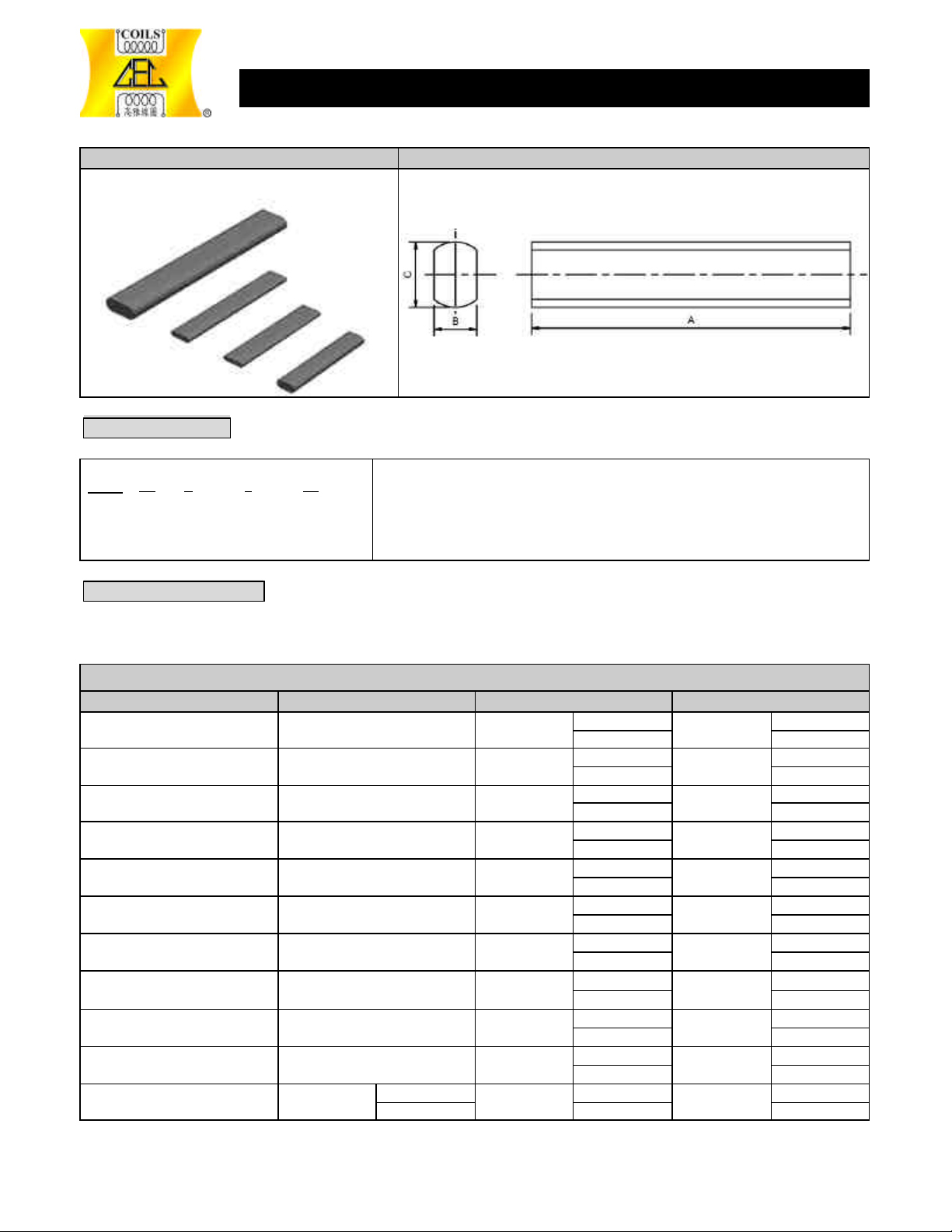

ANTENNA BAR

Model Dimensions (mm)
AR
ORDERING CODE
CA2G
SUITABLE MATERIALS
CA2G MCCF CFF02A
AR 10 x 80
A B C
D
A : Material B : Model C : Outside Diameter C D : Length A
磁棒
Specification of Antenna bar of AR
MODEL A B C
AR8x50 50.0±1.0 7.0 AR8x60 60.0±1.5 7.0
AR8x80 80.0±1.5 7.0 AR8x100 100.0±3.0 7.0 AR10x55 55.0±1.0 9.0 AR10x60 60.0±1.0 9.0 AR10x70 70.0±1.0 9.0 AR10x80 80.0±1.5 9.0 AR10x90 90.0
AR10x100 100.0 AR10x120 120.0 AR10x140 140.0
※ Specifications other than the above will be furnished upon request.
+1.5 +0 +0
-2.0
+2.0 +0 +0
-2. 0
+2.5 +0 +0
-2.5
+2.5 +0 +0
-2.5
9.0
9.0
9.0
9.0
+0 +0
-0.4 +0 +0
-0.4 +0 +0.3
-0.4 +0 +0
-0.4 +0 +0
-0.5 +0 +0
-0.5 +0 +0
-0.5 +0 +0
-0.5
-0.5
-0.5
-0.5
-0.5
8.0
8.0
8.0
8.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
-0.5
-0.5
-0.5
-0.5
-0.6
-0.6
-0.6
-0.6
-0.6
-0.6
-0.6
-0.6
Page 6
136
ANTENNA BAR
Model Dimensions (mm)
AP
ORDERING CODE
CA2G
SUITABLE MATERIALS
CA2G MCCF CF F02A
AP 2 x 8 x 45
A B C
D
E
A : Material B : Model C : Outside Diameter C D : Width B E : Length A
磁棒
Specification of Antenna bar of AR
MODEL A B C
AP1.7x8x40 40.0±1.0 1.7 AP2x8x45 45.0±1.0 2.0
AP2x8x50 50.0±1.0 2.0 AP3x7x36 36.00±1.0 3.0 AP3x8x30 30.0±0.8 3.0
AP3x8x50 50.0±1.0 3.0 AP4x4.5x45 45.0±1.0 4.0 AP4x8x40 40.0±1.5 4.0 AP5x8x45 55.0±1.0 5.0 AP5x13x55 55.0±1.0 5.0 AP5x13x80 80.0
※ Specifications other than the above will be furnished upon request.
+0 +0 +0
-2.0
5.0
+0 +0
-0.3 +0 +0
-0.3 +0 +0
-0.3 +0 +0
-0.2 +0 +0
-0.2 +0 +0
-0.2 +0 +0
-0.3 +0 +0
-0.3 +0 +0
-0.3 +0 +0
-0.3
-0.3
8.0
8.0
8.0
7.0
8.0
8.0
4.5
8.0
8.0
13.0
13.0
-0.5
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.5
-0.5
