LP3 LABEL PRINTER
110149-006
User Guide
TABLE OF CONTENTS
Label Printer Views........................................ 1
Front View................................................... 1
Back View ................................................... 1
Right Side View............................................ 2
Left Side View.............................................. 2
Setting Up Your Printer ................................. 3
Unpacking Your Printer................................. 3
Installing Batteries ....................................... 3
Removing Batteries ..................................4
Charging the Batteries..............................5
Determining the Batteries' Condition.............. 6
Loading Printable Media ............................... 7
Using the Label Presenter........................... 10
Printing a Self-Test..................................... 12
Connecting the Printer................................ 12
Installing a Data Cable ........................... 12
Bluetooth and/or 802.11
Configuring the Printer ............................... 14
Using the Control Panel............................... 15
Audio Indicators......................................... 15
Battery Status LED ................................... 16
Power Button/LED ................................... 17
Media Function Button/LED ..................... 17
Radio Button/LED ................................... 18
Maintenance and Troubleshooting ............. 19
Maintenance Guidelines.............................. 19
Preventative Maintenance........................... 19
Troubleshooting......................................... 20
Help Desk.................................................. 20
Supplies........................................................ 21
For more information .................................. 21
b
Parameters ..... 14
LP 3 LABEL PRINTER USER'S GUIDE
Printhead cover
(arrow) buttons
Control panel
Printhead cover
Handle strap
Data port
Figure 1
Figure 2
Label presenter
Roller
Label Printer Views
Front View
Back View
1
Right Side View
Media ring
Media cavity
Security cover/
802.11X slot/
Bluetooth slot
Figure 3
Power port
Battery 2 cavity
Battery 1 cavity
Figure 4
Left Side View
L
ABEL PRINTER VIEWS
2
LP 3 LABEL PRINTER USER'S GUIDE
Figure 6
Figure 5
Setting Up Your Printer
Use the following information to set up your printer:
• Unpacking Your Printer on page 3
• Installing Batteries on page 3
• Loading Printable Media on page 7
• Printing a Self-Test on page 12
• Connecting the Printer on page 12
• Configuring the Printer on page 14
In addition to the steps outlined in each section, additional
information may be included if it applies to, or expands upon,
the step being discussed.
Unpacking Your Printer
Before using the printer, remove all packaging material and
inspect the printer for possible shipping damage.
If the printer has been damaged:
• Contact the shipping company and file a damage report.
• Contact Datamax-O’Neil.
• Keep all shipping materials.
Installing Batteries
1. Remove any packaging material (if applicable).
2. Lift the silver battery tab and pull on the red tab to remove
the battery from the battery well (Figure 5).
3. Remove and discard the two red, battery isolator labels
(Figure 6).
3
S
Figure 7
Figure 8
Silver battery tab
Figure 9
ETTING UP YOUR PRINTER
4. Position the battery with its contacts facing up. The
battery contacts should face toward the back of the battery
cavity (Figure 7).
5. Insert the battery into the battery cavity. The printer beeps
one time when the first battery is installed.
Do not force the battery into the battery cavity. When
inserted properly, the battery easily slides into place and
the silver battery tab “locks” the battery (Figure 8). If the
battery does not easily slide into place, re-align the battery
based on step 2 above.
6. Repeat steps 1 to 5 to install the additional battery. Both
batteries must be installed for your printer to operate
properly
.
7. Charge the batteries (batteries are shipped uncharged). For
more information, see
Charging the Batteries on page 5
Removing Batteries
1. Lift the silver battery tab (Figure 9). If the battery does not
completely eject, slightly tilt the printer toward you to
remove the battery.
.
4
LP 3 LABEL PRINTER USER'S GUIDE
Power port
Figure 11
Figure 10
Charging the Batteries
If the batteries are low when the printer turns on, the battery
status LED displays red. For more information, see
Control Panel on page 15
. Perform the following procedure to
Using the
charge the batteries:
1. Verify both batteries are installed correctly.
2. Locate your AC adapter cable and verify the plug matches
the photo in Figure 10 (may or may not have tag attached).
3. Plug the AC adapter into the printer's power port
(Figure 11).
4. Plug the AC Adapter's power cord into an appropriate
power source.
5. Charge the batteries. The Battery Status LED turns red
while the batteries are charging and turns green when the
batteries are fully charged. One complete charge takes
4 to 5 hours.
5
S
Battery 1
Battery 2
Figure 12
ETTING UP YOUR PRINTER
Determining the Batteries' Condition
The battery status LED displays the batteries' condition. When
the battery status LED is solid red, the batteries must be
charged; when solid orange, the batteries are at low power;
when solid green, the batteries are charged.
The batteries'
voltage varies between 6.2 and 8.4 volts.
For information on battery error conditions, see
Control Panel on page 15
.
Caution: There is a risk of explosion if the battery is
replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Caution: The operating temperature of this portable
printer is 45° C. However, the operating temperature
when used with Datamax-O’Neil power supply part
number 220240-100 for charging the portable printer
is limited to 40 degrees C. Please charge the printer in
a suitable location that meets this temperature
requirement.
Caution: Please only use the Datamax-O’Neil part
number 220240-100 power supply with this product.
6
Using the
LP 3 LABEL PRINTER USER'S GUIDE
Figure 13
Figure 14
Loading Printable Media
Media Guidelines
Media width 1” to 3.125”
Roll capacity diameter 3.5”
Media types Linered label media, thermal paper
* Depending on the type of media used, you
may need to configure your printer. For more
information, see
page 14
.
Configuring the Printer on
Use the following procedure to load printable media:
1. Move the printer so that the front of the printer is facing
toward you.
2. While steadying the printer, push the two arrow buttons
toward each other while opening the printhead cover
(Figure 13).
3. Move the printer so that the left side of the printer is facing
toward you.
4. Remove the media ring from the spindle by pressing the
media ring's latches while pulling the media ring toward
you (Figure 14).
5. Load the media onto the spindle. When loaded correctly,
the media should form a figure “6” as shown in Figure 15.
7
S
Figure 15
Figure 16
Media “rib”
Figure 18
Figure 17
ETTING UP YOUR PRINTER
6. Push the media as far back as possible on the spindle so that
the edge of the media roll is aligned with the media “rib” of
the label presenter as shown in Figure 16.
The printer begins printing at the media rib's edge;
therefore, pushing the media back into the media cavity as
far as possible helps to ensure the correct start position of
the printhead.
7. Lay the media over the roller (Figure 17). If you are using
linered media or perforated media, extend at least one (1)
media label over the roller.
8. Slide the media guide as close as possible to the edge of the
label without touching the media. Do not pinch the media.
(Figure 18).
Note: To take up “slack” in the media, pull off or rewind the
media.
9. Re-attach the media ring onto the spindle and push it as far
back as possible (the media ring “clicks” into place) as
shown in Figure 19. The media ring must be attached to
prevent the media from coming off of the spindle.
8
LP 3 LABEL PRINTER USER'S GUIDE
Figure 19
Figure 20
Figure 21
10. Close the printer's printhead cover. The printer's printhead
cover “snaps” into place when completely closed.
11. Verify the media exits straight and the media is still aligned
with the second “rib” of the label presenter.
12. If are presenting media, proceed to
Presenter on page 10
.
Using the Label
13. Push the Media Function button one time to advance one
label (if the printer is configured to recognize the bottom Q
mark)(Figure 20).
Note: If the media advances more than one label, check your
printer's configuration.
14. Remove the first label by grasping the media's top corner
and pulling the paper up and away (Figure 21). Always tear
media by pulling it over the top of the printer's lid. Verify
the media tears between labels.
Warning: The tear bar and printhead cover's surface may be
hot and/or sharp. Use caution when handling the printhead
and tear bar.
9
S
Figure 22
Tear b a r
Figure 23
Figure 24
Label presenter
End of media
Figure 25
ETTING UP YOUR PRINTER

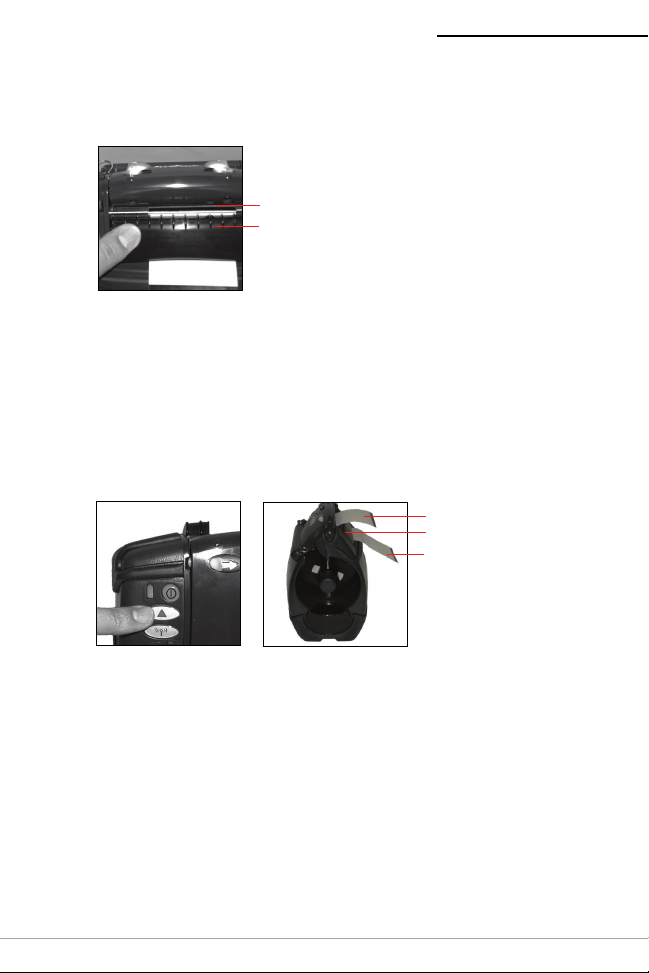

Using the Label Presenter
Use the following procedure to separate linered media using the
label presenter:
Note: You must configure your printer specifically to present
media. For more information, see
Configuring the Printer on
page 14.
1. Install the linered media using the procedure described in
Loading Printable Media on page 7
steps 1 through 11.
2. Press the Media Function button so that a few labels extend
beyond the tear bar (Figure 22). The edge of the tear bar
should be the top of form for the next label (Figure 23).
3. Move the printer so that the back of the printer is facing
toward you.
4. Remove the labels from the backing and discard.
5. Open the label presenter (Figure 24).
6. Route the media under the label presenter so that the end
of the media exits under the presenter and over the metal
bar (Figure 25).
10
LP 3 LABEL PRINTER USER'S GUIDE
Figure 26
Label presenter
Edge of media
Figure 28
Figure 27
Media backing
Label presenter
Media (presented)
7. Pull the slack from the media and close the label presenter
(Figure 26).
8. Press the Media Function button so that at least one label
presents (Figure 27). The printer separates the linered
media as shown in Figure 28 (side view). The media's
backing should separate from the adhesive (Figure 28)
If you print more than one label during a print job, the
printer waits for you to remove the label before presenting
the next label.
.
11
S
Figure 29
Data port
ETTING UP YOUR PRINTER
Printing a Self-Test
Note: When printing a self-test, use standard 3 inch receipt
media without Q-Marks to show all printed data.
1. Press and hold the power button for approximately three (3)
seconds until printing begins. For information on button
functions, see
Using the Control Panel on page 15
.
2. After printing begins, release the power button.
Connecting the Printer
The LP3 is designed to transmit and receive data from a host
terminal. The host terminal may be your computer, handheld, or
laptop. Communication can occur by using a data cable to
connect the printer and the host terminal.
Installing a Data Cable
1. Before connecting your printer to a host terminal, verify your
printer's settings. For more information, see
Test on page 12
.
Printing a Self-
2. Turn off the printer.
3. Insert the data cable's plug into your printer's data port
(Figure 29).
4. Connect the data cable to the host and/or device you are
using.
12
LP 3 LABEL PRINTER USER'S GUIDE
Figure 30
Data port
Removing a Data Cable
1. Tilt the printer on its side so that the printer's data port is
visible (Figure 30).
2. Using a pen or small screwdriver, lift the cable connector's
lever and remove the cable.
.
13
S
ETTING UP YOUR PRINTER
Bluetooth and/or 802.11b Parameters
Your printer is configured with default factory settings. To
determine your printer's radio configuration, print a self-test
(For more information, see
Printing a Self-Test on page 12
). If
you have multiple printers, configure them specifically for use in
your environment.
For proper system operation, set the following parameters on
your printer and host computer:
802.11b Parameters
•ESS ID
• IP Address (if not DHCP)
•DHCP
•Sub Net Mask
• WEP Encryption
•Port
•Network Type
Bluetooth Parameters
•Device Name
• Authentication
• Bondable
•Discoverable
• Connectable
•Encryption
For information on setting parameters, see
Printer on this page
. Contact your network administrator to
Configuring the
verify the proper radio settings for your environment.
Configuring the Printer
The printer has many configurable settings. To configure or
upgrade firmware, download the latest Windows configuration
program at www.datamax-oneil.com.
14
LP 3 LABEL PRINTER USER'S GUIDE
Media Function
Button/LED
Radio
Button/LED
Power Button/
LED
Battery Status
LED
Using the Control Panel
The tables on the following pages document the following:
• Audio Indicators on page 15
• Battery Status LED on page 16
• Power Button/LED on page 17
• Media Function Button/LED on page 17
• Radio Button/LED on page 18
Audio Indicators
Beep(s) Description Action
1 short Printer wakes up. None.
2 short Out of paper. Install paper.
3 short Low battery. Charge battery.
1 very short RF power is on.
Note:
This beep occurs when
you press the RF power button
and the RF power was off.
2 very short RF power is off.
Note:
This beep occurs when
you press the RF power button
and the RF power was on.
1 long Boot code is starting or
restarting.
8 short CRC error in firmware. Redownload firmware.
None.
None.
Redownload firmware.
15
Battery Status LED
Battery
Status LED
Red (solid):
The batteries
have less than
5% power.
Orange (solid):
The batteries
have less than
25% power.
Green (solid):
The batteries
are near, or at,
full capacity.
Red to orange
flash - fast
Orange flash slow
Orange flash fast
Description Action
• If A/C power is not plugged
in, the printer will soon turn
off.
• If A/C power is plugged in,
the LED flashes and
charging is in progress.
• If A/C power is not plugged
in, indicates the batteries
are low.
• If A/C power is plugged in,
the LED flashes and
charging is in progress.
• If A/C power is not plugged
in, batteries are well
charged.
• If A/C power is plugged in,
the LED is solid and
charging is complete.
Battery voltage is too high. Replace battery.
Charge has timed out. Restart battery charge
Internal code error. Remove batteries, then
U
SING THE CONTROL PANEL
• Charge batteries.
• None. Wait for the
charge LED to turn
green.
• Charge batteries.
• None. Wait for the
charge LED to turn
green.
None.
None.
(battery may be bad).
re-connect A/C power.
16
LP 3 LABEL PRINTER USER'S GUIDE
Orange, red, or
green flash fast
When the AC adapter is
plugged into the printer's
power port, the battery
None.
status LED flashes orange,
red, or green (depending on
the battery status LED color
that is initially displayed) to
indicate the AC adapter is
plugged in.
Power Button/LED
Power Button
Short press If printer is off, turns printer on; if printer is
on, turns printer off.
Long press (press and
hold for three to five
seconds)
Power LED
Green Power is awake.
Off Printer is asleep.
Media Function Button/LED
Media Function Button
Short press If printer is asleep, wakes up printer.
Media Function LED
Red flash Media is out; reload media.
Red flash - slow (if the
printer is configured
with the presenter ON)
Off Media is present.
Prints a self-test.
If printer is awake, feeds one (1) label.
Media is in the presenter.
17
U
SING THE CONTROL PANEL
Radio Button/LED
Radio Button
Short press Toggles radio power off and on.
Radio LED*
Blue flash - slow* RF power is on and printer is awake.
Blue flash - fast* RF power is on and printer is asleep.
Blue flash to solid red The printer is out of range of the access point
and/or infrastructure.
Blue flash to red flash The printer is not correctly configured for the
radio it recognizes.
Off RF power is off.
* If the signal quality option is on (default is off) and the printer
is awake, the amount of time the blue radio LED is on indicates
the signal strength. For example, if the blue LED is on 90% of
the time, the printer has a very strong signal; however, if the
blue LED is on only 10% of the time, the printer has a very
weak signal. When the signal quality option is turned on, the
blue radio LED indicates signal strength only; it does not
indicate whether the printer is awake or asleep as described in
the table above.
18
LP 3 LABEL PRINTER USER'S GUIDE
Maintenance and Troubleshooting
Maintenance Guidelines
• Keep the printer in a cool, dry place, away from direct
sunlight, high temperature, and moisture.
• Do not insert foreign objects into the printer.
• Do not operate the printer if it appears damaged.
• Do not operate the printer when your hands or body are
wet.
• Do not operate the printer near water.
• To reduce risk of electric shock, unplug the printer and
remove the batteries before cleaning.
Preventative Maintenance
Area Method Interval
Printhead/
roller
Tea r ba r Clean thoroughly with 70%
Exterior Use a soft cloth and mild cleanser
Use an approved cleaning card. After every ten (10)
rolls of media.
After every five (5)
isopropyl alcohol on a cotton
swab.
if necessary. Do not use abrasive
cleanser, chemicals or scrubbing
pads, which can mark your
printer's finish.
rolls of media.
As needed.
19
M
AINTENANCE AND TROUBLESHOOTING
Troubleshooting
Symptom(s) Action
Printer does not print • Verify the printer is turned on.
• Recharge or replace the battery.
• Verify the battery is properly installed.
• Check your cable connections. (if
applicable)
• Check your radio card connections. If
module is installed incorrectly, or
configured incorrectly, data will not be
transmitted from your host terminal to
the printer.
Media/paper jam • Open the printhead and reinstall
media.
• Verify the media is properly installed.
For more information, see
Printable Media on page 7
• Clean the printhead and the media
cavity.
Reduced battery capacity • Recharge or replace battery.
Media does not feed • Verify the printhead is closed and
latched.
• Verify the label sensors are not
blocked.
Printer does not stop at Q
Mark and/or, printer prints
continuously
• Check your printer's configuration.
Verify the configuration matches the
type of media it is printing on.
Loading
.
Help Desk
If you need additional assistance, please contact DatamaxO’Neil at (949) 458-0500. Please have the following information
ready:
• Model number
• Serial number
20
LP 3 LABEL PRINTER USER'S GUIDE
Supplies
Media Supplies
Datamax-O’Neil offers many certified grades of paper for use
in the printer. Our certified supplies are guaranteed compatible
— this important qualification means that rigorous
performance and image life testing have been performed.
Quality supplies are key to obtaining optimal image quality and
print performance. Quality supplies are also the key to
extending the life of the printer. Datamax-O’Neil strongly
recommends using Datamax-O’Neil Certified Supplies only.
For more information, contact Datamax-O’Neil at (949) 458-
6400.
Maintenance Supplies
We recommend that you follow a regular maintenance
schedule using our cleaning card. Datamax-O’Neil cleaning
cards are designed to effectively remove dirt and other
contaminants from the thermal printhead, rollers, and paper
path...resulting in a clean, crisp image output — every time.
Our cleaning kits remove any adhesive residue in addition to
dirt and other contaminants.
For more information, contact Datamax-O’Neil at (949) 458-
6400.
General Supplies
• Use only supplies certified by the Original Equipment
Manufacturer (OEM). For OEM supplies, please contact
Datamax-O’Neil at (949) 458-0500.
For more information
• For more information about using the printer, contact
Datamax-O’Neil at (949) 458-0500, or visit www.datamaxoneil.com.
21
LP 3 LABEL PRINTER USER'S GUIDE
Agency Approvals
FCC Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, it may cause harmful interference to radio
communications. However there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Applicable Directive
• 89/336/EEC, 73/23/EEC
Applicable Standards
• EN55022 (1998)
• EN55024 (1998)
• EN60950 (1992)
22
LP 3 LABEL PRINTER USER'S GUIDE
23
LP 3 LABEL PRINTER USER'S GUIDE
Copyright
This manual and any examples contained herein are provided “as
is” and are subject to change without notice. Datamax-O’Neil
makes no warranty of any kind with regard to this manual,
including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. DatamaxO’Neil shall not be liable for any errors or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this manual or the examples
herein. This guide is copyrighted. All rights are reserved. This
guide may not, in whole or in part, be reproduced, translated,
stored in a retrieval system or transmitted in any form or by any
means, electronic, mechanical, photographic, or otherwise,
without the prior written consent of Datamax-O’Neil.
24
COPYRIGHT © 2010, DATAMAX-O’NEIL
Loading...
