MagellanTM 1000i
On-Counter Presentation Omnidirectional Bar Code Reader
Product Reference Guide
Datalogic Scanning, Inc.
959 Terry Street
Eugene, Oregon 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described
therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”). Owners of Datalogic products are hereby
granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal
business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any reproductions of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.datalogic.com) or
provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or
other Datalogic publications, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however,
Datalogic reserves the right to change any specification at any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and
the E.U. All other brand and product names referred to herein may be trademarks of their respective owners.
Magellan is a registered trademark of Datalogic Scanning, Inc. in many countries, including the U.S.A.
This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447 • 4709369 •
4749879 • 4786798 • 4792666 • 4794240 • 4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 • 4866257 • 4868836 • 4879456 •
4939355 • 4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 • 5001406 • 5015831 • 5019697 • 5019698 • 5086879 • 5115120 •
5144118 • 5146463 • 5179270 • 5198649 • 5200597 • 5202784 • 5208449 • 5210397 • 5212371 • 5212372 • 5214270 • 5229590 • 5231293 •
5232185 • 5233169 • 5235168 • 5237161 • 5237162 • 5239165 • 5247161 • 5256864 • 5258604 • 5258699 • 5260554 • 5274219 • 5296689 •
5298728 • 5311000 • 5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 • 5382783 • 5386105 • 5389917 • 5410108 • 5420410 •
5422472 • 5426507 • 5438187 • 5440110 • 5440111 • 5446271 • 5446749 • 5448050 • 5463211 • 5475206 • 5475207 • 5479011 • 5481098 •
5491328 • 5493108 • 5504350 • 5508505 • 5512740 • 5541397 • 5552593 • 5557095 • 5563402 • 5565668 • 5576531 • 5581707 • 5594231 •
5594441 • 5598070 • 5602376 • 5608201 • 5608399 • 5612529 • 5629510 • 5635699 • 5641958 • 5646391 • 5661435 • 5664231 • 5666045 •
5671374 • 5675138 • 5682028 • 5686716 • 5696370 • 5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 • 5770847 •
5786581 • 5786585 • 5787103 • 5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 •
5837983 • 5837988 • 5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 • 5945670 •
5959284 • 5962838 • 5979769 • 6000619 • 6006991 • 6012639 • 6016135 • 6024284 • 6041374 • 6042012 • 6045044 • 6047889 • 6047894 •
6056198 • 6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 • 6129282 • 6134039 • 6142376 • 6152368 • 6152372 •
6155488 • 6166375 • 6169614 • 6173894 • 6176429 • 6188500 • 6189784 • 6213397 • 6223986 • 6230975 • 6230976 • 6244510 • 6259545 •
6260763 • 6266175 • 6273336 • 6276605 • 6279829 • 6290134 • 6290135 • 6293467 • 6303927 • 6311895 • 6318634 • 6328216 • 6332576 •
6332577 • 6343741 • 6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6857567 • 6974084 • 6991169 • 7051940 • 7170414 • 7172123 •
7201322 • 7204422 • 7215493 • 7224540 • 7234641 • 7243850 • 7374092 • 7407096 • 601 26 118.6 • AU703547 • D312631 • D313590 •
D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 • D350735 • D351149 • D351150 • D352936 • D352937 • D352938
• D352939 • D358588 • D361565 • D372234 • D374630 • D374869 • D375493 • D376357 • D377345 • D377346 • D377347 • D377348 •
D388075 • D446524 • EP0256296 • EP0260155 • EP0260156 • EP0295936 • EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 •
EP0531645 • EP0663643 • EP0698251 • EP01330772 • GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 •
GB2308678 • GB2319103 • GB2333163 • GB2343079 • GB2344486 • GB2345568 • GB2354340 • ISR107546 • ISR118507 • ISR118508 •
JP1962823 • JP1971216 • JP2513442 • JP2732459 • JP2829331 • JP2953593 • JP2964278 • MEX185552 • MEX187245 • RE37166 • RE40.071 •
Other Patents Pending
Table of Contents
About This Manual ............................................................................................................... 1-1
Manual Conventions ....................................................................................................... 1-1
Connecting the Scanner ....................................................................................................... 1-2
Programming ..................................................................................................................... 1-3
Using the Programming Barcodes .................................................................................... 1-3
Resetting the Standard Product Defaults ................................................................................ 1-3
LED and Beeper Indicators ................................................................................................... 1-4
Error Codes ........................................................................................................................ 1-5
Double Read Timeout .......................................................................................................... 2-1
Label Gone Timeout ............................................................................................................ 2-3
Productivity Index Reporting (PIR) ........................................................................................ 2-3
Sleep Mode ........................................................................................................................ 2-4
LED and Beeper Indicators ................................................................................................... 2-6
Power On Alert .............................................................................................................. 2-6
Good Read: When to Indicate .......................................................................................... 2-7
Good Read Beep Control ................................................................................................. 2-8
Good Read Beep Frequency ............................................................................................ 2-8
Good Read Beep Length ................................................................................................. 2-9
Good Read Beep Volume ...............................................................................................2-10
Scanning Features .............................................................................................................2-11
Targeted Scanning Mode ............................................................................ 2-11
Target Mode Active Time ...............................................................................................2-11
Target Mode Linger Time ...............................................................................................2-12
Wake Up Intensity ........................................................................................................2-13
Interface Selection .............................................................................................................. 3-3
Interface Features ............................................................................................................... 3-7
Obey/Ignore Host Commands ....................................................................... 3-7
Host Transmission Buffers ............................................................................ 3-8
RS-232 Interface Features .............................................................................................. 3-9
Hardware Flow Control .............................................................................. 3-11
Intercharacter Delay ................................................................................. 3-12
Software Flow Control ............................................................................... 3-13
Host Echo ................................................................................................ 3-14
Host Echo Quiet Interval ............................................................................ 3-15
Signal Voltage: Normal/TTL ........................................................................ 3-16
RS-232 Invert .......................................................................................... 3-17
Beep on ASCII BEL .................................................................................... 3-17
Beep on Not on File ................................................................................... 3-18
ACK NAK Options ...................................................................................... 3-19
ACK Character .......................................................................................... 3-20
NAK Character .......................................................................................... 3-20
Retry on ACK NAK Timeout ........................................................................ 3-21
ACK NAK Timeout Value ............................................................................. 3-21
ACK NAK Retry Count ................................................................................ 3-22
ACK NAK Error Handling ................................................................................................3-23
Transmission Failure Indication ................................................................... 3-24
USB-OEM Interface Features ..........................................................................................3-24
USB-OEM Device usage ............................................................................. 3-24
IBM ............................................................................................................................3-25
IBM Transmit Labels in Code 39 Format ....................................................... 3-25
Wand Emulation ...........................................................................................................3-26
Supported Symbologies ............................................................................. 3-26
Wand Emulation Barcode Format ................................................................ 3-26
Bar/Space Polarity .................................................................................... 3-27
Product Reference Guide
i-i
Wand Idle State ........................................................................................ 3-27
Signal Speed ............................................................................................ 3-28
Transmit Trailing Noise .............................................................................. 3-28
Transmit Leading Noise ............................................................................. 3-29
Symbology Conversion .............................................................................. 3-29
Keyboard Wedge .......................................................................................................... 3-30
USB Keyboard ............................................................................................................. 3-30
Caps Lock State ........................................................................................ 3-32
Data Editing Overview ..........................................................................................................4-1
Please Keep In Mind... ....................................................................................................4-1
Global Prefix/Suffix ..............................................................................................................4-2
AIM ID ...............................................................................................................................4-4
Label ID .............................................................................................................................4-5
Case Conversion ................................................................................................................4-12
Character Conversion ......................................................................................................... 4-13
UPC-A ................................................................................................................................ 5-1
Disable/Enable UPC-A .....................................................................................................5-1
Check Digit Transmission ................................................................................................5-2
Expand UPC-A to EAN-13 ................................................................................................5-2
Number System Transmission ..........................................................................................5-3
UPC-A Minimum Reads ...................................................................................................5-3
UPC-A In-store Minimum Reads .......................................................................................5-4
UPC-E ................................................................................................................................5-5
Disable/Enable UPC-E .....................................................................................................5-5
Check Digit Transmission ................................................................................................5-5
Number System Digit .....................................................................................................5-6
Expand to UPC-E to UPC-A ..............................................................................................5-6
Expand UPC-E to EAN13 .................................................................................................5-7
Minimum Reads .............................................................................................................5-7
GTIN ............................................................................................................................5-8
Expand UPC/EAN to GTIN ................................................................................................5-8
EAN-13 ..............................................................................................................................5-9
Disable/Enable EAN-13 ...................................................................................................5-9
Check Digit Transmission ................................................................................................5-9
EAN-13 Flag 1 Character ............................................................................................... 5-10
ISBN .......................................................................................................................... 5-10
Minimum Reads ........................................................................................................... 5-11
EAN-8 .............................................................................................................................. 5-12
Disable/Enable EAN-8 ................................................................................................... 5-12
Check Digit Transmission .............................................................................................. 5-12
Minimum Reads ........................................................................................................... 5-13
Enable EAN Two-Label ........................................................................................................ 5-14
Add-ons ........................................................................................................................... 5-15
GS1 DataBar Omnidirectional / Stacked Omnidirectional ......................................................... 5-17
Disable/Enable GS1 DataBar Omnidirectional ................................................................... 5-17
UCC/EAN 128 Emulation ............................................................................................... 5-17
Minimum Reads ........................................................................................................... 5-18
GS1 DataBar Expanded / Expanded Stacked ......................................................................... 5-19
Disable/Enable GS1 DataBar Expanded ........................................................................... 5-19
GS1-128 Emulation ...................................................................................................... 5-19
Length Control ............................................................................................................. 5-20
GS1 DataBar Expanded Length 1, Length 2 Programming Instructions ................................ 5-21
Minimum Reads ........................................................................................................... 5-22
Coupon Read Control .................................................................................................... 5-23
GS1 DataBar Limited ......................................................................................................... 5-24
Disable/Enable GS1 DataBar Limited .............................................................................. 5-24
GS1-128 Emulation ...................................................................................................... 5-24
Minimum Reads ........................................................................................................... 5-25
Code 39 ........................................................................................................................... 5-26
Disable/Enable Code 39 ................................................................................................ 5-26
Check Character Calculation .......................................................................................... 5-26
Check Character Transmit ............................................................................................. 5-27
i-ii Magellan® 1000i
Start/Stop Characters ...................................................................................................5-27
Code 39 Full ASCII .......................................................................................................5-28
Length Control .............................................................................................................5-29
Code 39 Length 1, Length 2 Programming Instructions ......................................................5-30
Quiet Zones .................................................................................................................5-30
Code 39 Stitching .........................................................................................................5-31
Minimum Reads ............................................................................................................5-31
Pharmacode 39 ..................................................................................................................5-32
Disable/Enable Pharmacode 39 .......................................................................................5-32
Start/Stop Characters ...................................................................................................5-32
Check Character Transmit ..............................................................................................5-33
Code 128 ..........................................................................................................................5-34
Disable/Enable Code 128 ...............................................................................................5-34
Disable/Enable EAN 128 ................................................................................................5-34
Transmit Function Characters .........................................................................................5-35
Length Control .............................................................................................................5-36
Code 128 Length 1, Length 2 Programming Instructions ....................................................5-37
Code 128 Conversion to Code 39 ....................................................................................5-37
Code 128 Stitching .......................................................................................................5-38
Minimum Reads ............................................................................................................5-38
Interleaved 2 of 5 ..............................................................................................................5-39
Disable/Enable Interleaved 2 of 5 ...................................................................................5-39
Check Digit Calculation ..................................................................................................5-39
Check Digit Transmit .....................................................................................................5-40
Length Control .............................................................................................................5-41
Interleaved 2 of 5 Length 1, Length 2 Programming Instructions .........................................5-42
Interleaved 2 of 5 Stitching ............................................................................................5-43
Minimum Reads ............................................................................................................5-44
Codabar ............................................................................................................................5-45
Disable/Enable Codabar .................................................................................................5-45
Check Character Verification ..........................................................................................5-45
Check Character Transmit ..............................................................................................5-46
Length Control .............................................................................................................5-47
Codabar Length 1, Length 2 Programming Instructions ......................................................5-48
Quiet Zones ............................................................................................. 5-48
Start/Stop Character Type .............................................................................................5-49
Start/Stop Character Transmission ..................................................................................5-49
Start/Stop Character Match ...........................................................................................5-50
Codabar Stitching .........................................................................................................5-50
Minimum Reads ............................................................................................................5-51
Code 93 ............................................................................................................................5-52
Disable/Enable Code 93 .................................................................................................5-52
Length Control .............................................................................................................5-53
Code 93 Length 1, Length 2 Programming Instructions ......................................................5-54
Code 93 Stitching .........................................................................................................5-55
Minimum Reads ............................................................................................................5-55
MSI/Plessey ......................................................................................................................5-56
Disable/Enable MSI/Plessey ...........................................................................................5-56
Check Digit Verification .................................................................................................5-56
Check Digit Transmit .....................................................................................................5-57
Number of Check Characters ..........................................................................................5-57
Length Control .............................................................................................................5-58
MSI/Plessey Length 1, Length 2 Programming Instructions .................................................5-59
MSI/Plessey Stitching ....................................................................................................5-60
Minimum Reads ............................................................................................................5-61
Standard 2 of 5 .................................................................................................................5-62
Disable/Enable Standard 2 of 5 ......................................................................................5-62
Check Digit Verification .................................................................................................5-62
Check Digit Transmit .....................................................................................................5-63
Length Control .............................................................................................................5-64
Standard 2 of 5 Length 1, Length 2 Programming Instructions ............................................5-65
Standard 2 of 5 Stitching ...............................................................................................5-66
Product Reference Guide
i-iii
Minimum Reads ........................................................................................................... 5-67
2D Symbologies ..................................................................................................................6-2
PDF 417 .......................................................................................................................6-2
Disable/Enable PDF 417 ............................................................................... 6-2
Length Control ........................................................................................... 6-3
PDF 417 Length 1, Length 2 Programming Instructions .................................... 6-4
Minimum Reads .......................................................................................... 6-5
Datamatrix ....................................................................................................................6-6
Disable/Enable Datamatrix ........................................................................... 6-6
Length Control ........................................................................................... 6-7
Datamatrix Length 1, Length 2 Programming Instructions ................................ 6-8
Minimum Reads .......................................................................................... 6-9
Image Capture ..................................................................................................................6-10
How to Capture an Image ............................................................................................. 6-10
Captured Image Format ................................................................................................ 6-10
Optical and Read Performance Parameters ..............................................................................A-1
Scanner Dimensions ............................................................................................................A-1
Physical Properties ...............................................................................................................A-2
Electrical Parameters ...........................................................................................................A-2
Environmental Parameters ....................................................................................................A-2
Other Parameters ................................................................................................................A-2
Standard Cable Pinouts (Primary Interface Cables) ...................................................................B-1
RS-232 .........................................................................................................................B-1
IBM Port 5B/9B/17 .........................................................................................................B-1
USB-OEM ......................................................................................................................B-2
USB, USB Keyboard & USB COM ......................................................................................B-2
Wand Emulation ............................................................................................................B-2
Keyboard Wedge ............................................................................................................B-2
Defaults by Symbology ........................................................................................................ D-1
Interface Default Exceptions ................................................................................................ D-2
IBM Interfaces .............................................................................................................. D-2
RS-232 Wincor/Nixdorf .................................................................................................. D-3
Wand Emulation ........................................................................................................... D-4
Keyboards .................................................................................................................... D-4
Keyboard Model Cross Reference ...........................................................................................E-1
Accepting RS-232 Commands ............................................................................................... F-1
i-iv Magellan® 1000i
The Magellan
easily handled items and handheld scanning for bulkier items. Its aggressive imaging performance and intuitive operation reduces user training and speeds checkout for better customer
service.
About This Manual
This manual presents advanced user information which includes connection, programming,
product and cable specifications, and other useful references. For additional information, such
as installation, maintenance, troubleshooting and warranty information, see the Quick Reference Guide (QRG). Copies of other publications for this product are downloadable free of
charge from the website listed on the back cover of this manual.
On leaving the factory, units are programmed for the most common terminal and communications settings. If you need to change these settings, custom programming can be accomplished
by scanning the barcodes in this guide.
Chapter 1
Getting Started
®
1000i Omni-Directional Imaging Scanner offers hands-free scanning for small,
Bold text and a yellow-highlighted background indicates the most common default setting for a
feature/option.
Manual Conventions
The symbols listed below are used in this manual to notify the reader of key issues or procedures
that must be observed when using the scanner:
CAUTION
Notes contain information necessary for properly diagnosing, repairing and operating the
scanner.
NOTE
The CAUTION symbol advises you of actions
that could damage equipment or property.
Product Reference Guide
1-1
Getting Started
I/F Cable
Connect
Here
A/C Adapter
(if needed)
For 220-230 VAC
adapters, the
cord must be
facing down as
shown in the
illustration. If
installed upwards,
it will pose an
undue strain on the
socket outlet.
To Host/Terminal
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
Connecting the Scanner
The scanner kit you ordered to match your interface should provide a compatible cable for your
installation. Use the appropriate instructions below to connect the scanner to the terminal, PC
or other host device.
Upon completing the connection via the appropriate interface instructions below, proceed to
the
Interface Related Features section of this manual and scan the barcode to select the correct
interface type.
RS-232 Serial Connection —
to the terminal/PC serial port via the RS-232 cable as shown in
Turn off power to the terminal/PC and connect the scanner
Figure 1. If the terminal will not
support POT (Power Off the Terminal) to supply scanner power, use the approved power supply
(AC Adapter). Plug the AC Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter plug into a standard power outlet.
Figure 1
USB Connection —
USB cable for the interface type you ordered. Reference
. RS-232 Serial or USB Connection using A/C Adapter
Connect the scanner to a USB port on the terminal/PC using the correct
Figure 1 and Figure 2.
USB installations may require a power connection via
NOTE
an approved A/C Adapter as shown in
example, this would be the case if the scanner is connected along with a number of other devices to a nonpowered USB hub.
Figure 1. For
Figure 2. Other Connection Types
1-2 Magellan® 1000i
Programming
Standard Product Default Settings
Wand Emulation Connection —
minal/PC using the correct cable for the interface type you ordered. Reference
IBM Connection —
Connect the scanner to the IBM port on the terminal/PC using the cor-
rect IBM cable. Reference
Keyboard Wedge Connection —
The Keyboard Wedge cable has a ‘Y’ connection from the scanner. Connect the female to the
male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.
Reference
Figure 2.
Programming
The scanner is typically factory-configured with a set of default features standard to the interface
type you ordered. After scanning the interface barcode from the
tion, you can select other options and customize your scanner through use of the instructions
and programming barcodes available in that section and also the
chapters of this manual.
Using the Programming Barcodes

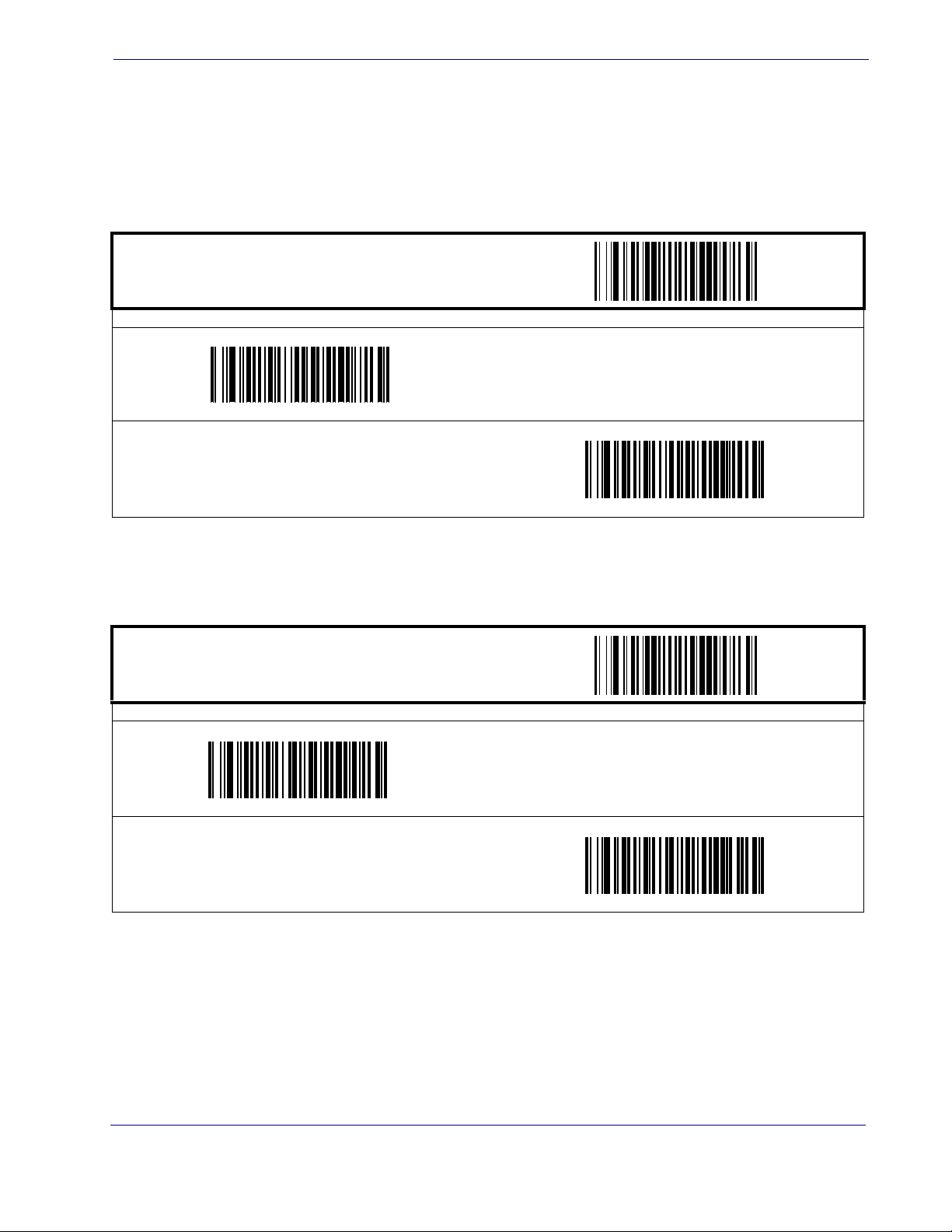

This manual contains feature descriptions and barcodes which allow you to reconfigure your
scanner. Some programming barcode labels, like the label below for resetting defaults, require
only the scan of that single label to enact the change. Most of the programming labels in this
manual, however, require the scanner to be placed in Programming Mode prior to scanning
them. Scan a START/END barcode once to enterProgramming Mode. Once the scanner is in
Programming Mode, you can scan a number of parameter settings before scanning the START/
END barcode a second time, which will then accept your changes, exit Programming Mode and
return the scanner to normal operation.
Connect the scanner to the appropriated port on the ter-
Figure 2.
Figure 2.
Before connection, turn off power to the terminal/PC.
Interface Related Features sec-
Data Editing and Symbologies
Resetting the Standard Product Defaults
If you are unsure of what programming options are in your scanner, or you’ve changed some
options and want the factory settings restored, scan the Standard Product Default Settings bar-
code below. This will copy the factory configuration for the currently active interface to the current configuration.
The programming section lists the factory default settings for each of the menu commands for
the standard RS-232 interface in
tings for the other interfaces can be found in
Product Reference Guide
BOLD text on the following pages. Exceptions to default set-
Appendix D, Default Settings.
1-3
Getting Started
LED and Beeper Indicators
The scanner’s beeper sounds and its green LED illuminates to indicate various functions
or errors on the scanner. The tables below list these indications. One exception to the
behaviors listed in the tables is that the scanner’s functions are programmable, and may
or may not be turned on. For example, certain indications, such as the power-up beep
can be disabled using programming barcode labels.
Green LED Indications
LED
INDICATION
Power-on
indication
Good Read
Indication
Scanner Ready Constant dim green The scanner is ready for operation.
Sleep Mode
Host Disable
Diagnostics
BEEPER FUNCTIONS
BEEPER
INDICATION
Bright green flash
Bright green flash Indicates a barcode has been read and decoded.
Constant green flash
(100mS on, 1900mS off)
Constant green flash at 1 Hz
(100mS on, 900mS off)
Var i e s (see "Error Codes" on
page 1-5 for more information)
INDICATION COMMENT
Indicates the scanner has finished all its power up tests and is
now ready for ooperation.
The scanner is in Sleep Mode. To wake the scanner up, move
an object in front of its window or press the button atop the
unit.
The scanner is disabled due to receiving a disble command
from the POS terminal.
The LED can provide diagnostic feedback if the scanner discovers a problem during SelfTest.
INDICATION COMMENT
The Power-On LED indication is a configurable feature which
Power On Beep Single beep
Good Read
Indication
Diagnostics
Programming
Mode
Indications
1-4 Magellan® 1000i
Single beep
Var i e s (see "Error Codes" on
page 1-5 for more information)
Varies (see the Product Reference
Guide for more information about
scanner programming)
can be enabled or disabled. When enabled, this beep Indicates the scanner has finished all its power up tests and is
now ready for operation.
The good read beep indication is configurable. Options
include: Enable/disable, frequency, duration and volume. See
the Product Reference Guide (PRG) for more information.
The Beeper can provide diagnostic feedback if the scanner
discovers a problem during SelfTest.
The Beeper will sound as programming barcode labels are
scanned, indicating progress during scanner configuration.
Error Codes
Error Codes
Upon startup, if the scanner flashes its indicator LED or sounds an unexpected series of beep
tones (other than normal power-up indications), this means the scanner has not passed its auto-
1
matic Selftest and has entered FRU
isolation mode. If the scanner is reset or the trigger is
pulled, the sequence will be repeated. The following table describes the LED flashes/beep codes
associated with an error found.
NUMBER OF
LED FLASHES/
ERROR CORRECTIVE ACTION
BEEPS
1 Configuration
2Interface PCB
6 Main PCB
10 Button Error
12 Imager Module
Contact Helpdesk for assistance
13
14
Software ID
Failure
CPLD/Code
Mismatch
1. Field Replaceable Unit (FRU)
Product Reference Guide
1-5
Getting Started
NOTES
1-6 Magellan® 1000i
Double Read Timeout
The Double Read Timeout feature sets a time limit that determines how much time must pass
before reading the same label again (e.g. two identical items in succession).
0.1 Second
Chapter 2
General Features
START / END
PROGRAMMING BARCODES
0.3 Second
0.5 Second
0.2 Second
0.4 Second
DEFAULT
0.6 Second
Product Reference Guide
2-1
General Features
Double Read Timeout — cont.
PROGRAMMING BARCODES
0.7 Second
0.9 Second
START / END
0.8 Second
1 Second
2-2
Magellan® 1000i
Label Gone Timeout
Label Gone Timeout
This feature sets the time after the last label segment is seen before the scanner prepares for a
new label.
START / END
PROGRAMMING BARCODES
Sets the label gone timeout duration using hex values from 000 to 255 in increments of ten milliseconds (10ms or 0.01 seconds). To
configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set Label Gone Tim-
eout,” followed by the three digits (zero padded) from the Alphanumeric table in
desired time value. Exit programming mode by scanning the “START/END” barcode again.
DEFAULT SETTING FOR THIS FEATURE: 320 milliseconds (032)
Appendix C, Alpha-Numeric Pad representing the
Set Label Gone Timeout
Productivity Index Reporting (PIR)
When PIR is enabled, label quality data is appended to decoded data before being presented to
the POS. The PIR feature allows the scanner to provide information to an external computer,
indicating how easy the label was to read.
This value-added feature is a factory-programmed
option. Contact your dealer for information about
upgrading your system to include this advanced
NOTE
Disable
DEFAULT
capability.
PROGRAMMING BARCODES
START / END
Enable
Product Reference Guide
2-3
General Features
Sleep Mode
This feature specifies the amount of time with no barcode reads before the scanner enters sleep mode.
START / END
PROGRAMMING BARCODES
15 Seconds
30 Seconds
1 Minute
3 Minutes
5 Minutes
2 Minutes
4 Minutes
2-4
Magellan® 1000i
Sleep Mode — cont.
START / END
7 Minutes
Sleep Mode
PROGRAMMING BARCODES
6 Minutes
8 Minutes
9 Minutes
12 Minutes
30 Minutes
10 Minutes
DEFAULT
15 Minutes
1 Hour
Product Reference Guide
2-5
General Features
LED and Beeper Indicators
Power On Alert
Disables or enables the indication (a single beep) that the scanner has finished all its power up
tests and is now ready for operation.
Disable
START / END
PROGRAMMING BARCODES
Enable
DEFAULT
2-6
Magellan® 1000i
Good Read: When to Indicate
This feature specifies when the scanner will provide indication (beep and/or flash its green LED)
upon successfully reading a barcode. Choices are:
• Good Read = Indicate after decode
• Good Read = Indicate after transmit
• Good Read = Indicate after CTS goes inactive, then active
This option (Indicate after CTS goes inactive, then
active), which uses CTS, is only valid for RS-232 interfaces.
NOTE
LED and Beeper Indicators
START / END
PROGRAMMING BARCODES
After Decode
DEFAULT
After CTS goes inactive, then active
After Transmit
Product Reference Guide
2-7
General Features
Good Read Beep Control
This feature enables/disables the scanner’s ability to beep upon a successful decode of a barcode.
Disable
START / END
PROGRAMMING BARCODES
Enable
DEFAULT
Good Read Beep Frequency
Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable
from the list below. (Controls the beeper’s pitch/tone.)
Low
High
START / END
PROGRAMMING BARCODES
Medium
DEFAULT
2-8
Magellan® 1000i
Good Read Beep Length
Specifies the duration of a good read beep.
60msec
100msec
LED and Beeper Indicators
START / END
PROGRAMMING BARCODES
80msec
DEFAULT
140msec
180msec
120msec
160msec
200msec
Product Reference Guide
2-9
General Features
Good Read Beep Volume
Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume
levels.
Low
High
DEFAULT
START / END
PROGRAMMING BARCODES
Medium
2-10
Magellan® 1000i
Scanning Features
Targeted Scanning Mode
Upon pressing the button, the scanner will project an aiming pattern to assist in centering over
the barcode. Scanning then takes place as soon as the button is released.
Configuration options for Targeted Scanning Mode are:
• Target Mode Active Time
NOTE
When add-ons are enabled and a barcode is being
read while in Targeted Mode, position the pointer
at or near the end of the base label to ensure the
scanner will read both the base and add-on label.
Targeted Scanning Mode will read barcodes in any
orientation.
The scanner will return to full pattern Omni-directional Mode after
elapsed.
Target Mode Active Time has
Scanning Features
•Target Mode Linger Time
Target Mode Active Time
Specifies the time duration the scanner attempts to decode labels while in the targeted mode of
operation.
Extra Short Duration
Medium Duration
DEFAULT
START / END
PROGRAMMING BARCODES
Short Duration
Long Duration
Product Reference Guide
2-11
General Features
Target Mode Linger Time
Specifies the time duration the scanner remains in the targeted mode of operation after reading
a barcode before reverting to Omni-directional Mode.
START / END
Medium Duration
DEFAULT
PROGRAMMING BARCODES
Short Duration
Long Duration
2-12
Magellan® 1000i
Wake Up Intensity
This feature indicates the percentage of ambient light change which will trigger the scanner to
wake up from Sleep Mode. Lower settings provide greater sensitivity. The seelectable range for
this setting is 5% to 15%.
Scanning Features
START / END
PROGRAMMING BARCODES
5%
6%
7%
9%
11%
8%
10%
DEFAULT
12%
Product Reference Guide
2-13
General Features
Wake Up Intensity — cont.
PROGRAMMING BARCODES
13%
15%
START / END
14%
2-14
Magellan® 1000i
Chapter 3
Interface Related Features
At the time of this writing, the Scanner supports the interfaces listed in Ta b le 3 - 1. Select the
desired interface type from the table, then reference the page number given for the customizable
features section associated with each interface. See
Wedge interface type (A through Y as listed).
Table 3-1. Interfaces Supported
RS-232 Page Keyboard Wedge Page
RS-232 Standard
RS-232 Wincor-Nixdorf
IBM
IBM 4683 Port 5B
IBM 4683 Port 9B
IBM 4683 Port 17
USB
USB-OEM
USB Keyboard
USB COM
Wand Emulation
Wand Emulation 3-26
Keyboard Wedge 3-30
Keyboard Wedge A
Keyboard Wedge B
Keyboard Wedge C
Keyboard Wedge D
Keyboard Wedge E
Keyboard Wedge F
Keyboard Wedge G
a. Consult Ta bl e for more information regarding keyboard interface types.
a
a
a
a
a
a
a
3-9
3-9
3-24
3-24
3-24
3-24
3-24
3-36
3-30
3-30
3-30
3-30
3-30
3-30
3-30
Ta bl e 3 - 2 for a description of each Keyboard
Keyboard Wedge H
Keyboard Wedge I
Keyboard Wedge J
Keyboard Wedge K
Keyboard Wedge L
Keyboard Wedge M
Keyboard Wedge N
Keyboard Wedge N
Keyboard Wedge O
Keyboard Wedge P
Keyboard Wedge Q
Keyboard Wedge R
Keyboard Wedge S
Keyboard Wedge T
Keyboard Wedge U
Keyboard Wedge V
Keyboard Wedge W
Keyboard Wedge X
Keyboard Wedge Y
a
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
a
3-30
Product Reference Guide
The correct interface cable is included for the scanner
interface type you ordered.
NOTE
3-1
Interface Related Features
Table 3-2. Keyboard Wedge Interface Reference
I/F Type PCs Supported
A PC/XT w/Alternate Key Encoding
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key
B
Encoding
C PS/2 25 and 30 w/Alternate Key Encoding
D PC/XT w/Standard Key Encoding
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key
E
Encoding
F PS/2 25 and 30 w/Standard Key Encoding
G IBM 3xxx w/122 keyboard
H IBM 3xxx w/102 keyboard
I PS/55 5530T w/104 keyboard
J NEC 9801
K WYSE 30/30+ WY-30 Keyboard 83 Keys
WYSE 60/85/99 GT/150/160/285 Style IBM Enhanced PC, 520/520ES
L
Style IBM Enhanced PC FR
WYSE 55/65/65 ES/120/185/325 Style IBM Enhanced PC
WYSE 60/85/99 GT/150/160/285 ANSI Keyboard 105 Keys, 520/520 ES
M
ANSI Keyboard 105 Keys
WYSE 55/65/65 ES/120/185/325 ANSI Keyboard 105 Keys
WYSE 60/85/99 GT/150/160/285 ASCII Kbd, 520/520 ES ASCII Kbd
N
WYSE 55/65/65 ES/120/185/325 ASCII Keyboard
WYSE 60/85/99 GT/150/160/285 ANSI W285 Keyboard 105 Keys, 520/
O
520 ES ANSI W285 Keyboard 105 Keys
WYSE 55/65/65 ES/120/185/325 ANSI W285 Keyboard 105 Keys
P WYSE WINTERM 3320 SE
IBM 3153
Q
IBM 316X, 3179/3180/319X/3270
R IBM 3151/3152-010, 347X/348X
S DIGITAL VT 220/320/330/340/350/382
T DIGITAL VT420
U DIGITAL VT 510/520 IBM ANSI Style Keyboard
V DIGITAL VT 510/520 IBM PC Style Keyboard
W SUN SPARC 5/10
X SUN 420/440, ITX
Y WYSE 370/355 Style Enhanced IBM PC
Reference
pings
Appendix E, Keyboard Function Key Map-
for more information about keyboards.
NOTE
3-2 Magellan® 1000i
Interface Selection
START / END
RS-232 Wincor-Nixdorf
Interface Selection
PROGRAMMING BARCODES
RS-232 Standard
IBM 4683 Port 5B
IBM 4683 Port 9B
USB-OEM
Wand Emulation
IBM 4683 Port 17
USB Keyboard
USB COM
Product Reference Guide
3-3
Interface Related Features
Interface Selection — cont.
START / END
PROGRAMMING BARCODES
Keyboard Wedge A
Keyboard Wedge C
Keyboard Wedge B
Keyboard Wedge E
Keyboard Wedge G
Keyboard Wedge I
Keyboard Wedge D
Keyboard Wedge F
\
Keyboard Wedge H
Keyboard Wedge J
3-4 Magellan® 1000i
Interface Selection — cont.
PROGRAMMING BARCODES
Keyboard Wedge K
Keyboard Wedge M
Interface Selection
START / END
Keyboard Wedge L
Keyboard Wedge O
Keyboard Wedge Q
Keyboard Wedge S
Keyboard Wedge N
Keyboard Wedge P
Keyboard Wedge R
Product Reference Guide
3-5
Interface Related Features
Interface Selection — cont.
PROGRAMMING BARCODES
Keyboard Wedge T
Keyboard Wedge V
START / END
Keyboard Wedge U
Keyboard Wedge X
Keyboard Wedge W
Keyboard Wedge Y
3-6 Magellan® 1000i
Interface Features
Obey/Ignore Host Commands
When set to ignore host commands, the scanner will ignore all host commands except for the
minimum set necessary to keep the interface active and transmit labels For normal operation of
the interface, select Obey Host Commands.
START / END
Interface Features
PROGRAMMING BARCODES
Obey Host Commands
DEFAULT
Ignore Host Commands
Product Reference Guide
3-7
Interface Related Features
Interface Features — cont.
Host Transmission Buffers
Specifies the number of host transmission(s) that may be buffered. By buffering data from a barcode, the scanner can continue to read a new barcode while the old one is being transmitted to
the host. Selecting BUFFERS = 1 means that the first barcode must be transmitted before a new
one can be read. A selection of BUFFERS = 2 means that a new barcode can be read while data
from the first barcode is transmitted.
When a DISABLE SCANNER command is received from the host, the scanner will continue to
transmit all data that is buffered.
START / END
PROGRAMMING BARCODES
Host Transmission Buffers = 1
Host Transmission Buffers = 2
DEFAULT
3-8 Magellan® 1000i
RS-232 Interface Features
START / END
2400 Baud
9600 Baud
DEFAULT
Interface Features
PROGRAMMING BARCODES
1200 Baud
4800 Baud
38400 Baud
115200 Baud
19200 Baud
57600 Baud
Product Reference Guide
3-9
Interface Related Features
RS-232 Interface Features — cont.
START / END
PROGRAMMING BARCODES
8 Data Bits
DEFAULT
7 Data Bits
1 Stop Bit
DEFAULT
2 Stop Bits
Parity = Even
Parity = None
DEFAULT
Parity = Odd
3-10 Magellan® 1000i
RS-232 Interface Features — cont.
Hardware Flow Control
Interface Features
Disable Hardware Control—
The scanner transmits to the host regardless of any activity on
the CTS line.
Enable CTS Flow Control—
Enable CTS Scan Control—
The CTS signal controls transmission of data to the host.
The CTS line must be active for the scanner to read and transmit data. While the CTS line is inactive, the scanner remains in a host-disabled state; following
a successful label transmission, the CTS signal must transition to inactive and then to active to
enable scanning for the next label.
START / END
PROGRAMMING BARCODES
Disable Hardware Control
DEFAULT
Enable CTS Flow Control
Enable CTS Scan Control
Product Reference Guide
3-11
Interface Related Features
RS-232 Interface Features — cont.
Intercharacter Delay
This delay is inserted after each data character transmitted. If the transmission speed is too high,
the system may not be able to receive all characters. You may need to adjust the delay to make
the system work properly.
START / END
PROGRAMMING BARCODES
Interchar Delay = 10 msec
Inter-Char Delay = No Delay
DEFAULT
Interchar Delay = 30 msec
Interchar Delay = 50 msec
Interchar Delay = 70 msec
Interchar Delay = 20 msec
Interchar Delay = 40 msec
Interchar Delay = 60 msec
3-12 Magellan® 1000i
Intercharacter Delay — cont.
START / END
PROGRAMMING BARCODES
Interchar Delay = 80 msec
Interchar Delay = 90 msec
Software Flow Control
Disables/Enables software control using XON/XOFF characters.
START / END
Interface Features
Enable Software Flow Control
PROGRAMMING BARCODES
Disable Software Flow Control
DEFAULT
Product Reference Guide
3-13
Interface Related Features
RS-232 Interface Features — cont.
Host Echo
When enabled, this feature passes all data through the scanner to the host as it comes in. This
feature is used for applications where “daisy chaining” of RS-232 devices onto the same cable is
necessary. If, for example, one of the devices in the chain is a terminal where someone is entering
data while another person is simultaneously scanning a barcode requiring transmission to the
host, the scanner will wait for the RS-232 channel to be quiet for a specified period of time (set
RS-232 Host Echo Quiet Interval). The scanner can be set to observe this delay before sending its
via
data in order to avoid RS-232 transmission conflicts.
START / END
PROGRAMMING BARCODES
Disable Host Echo
DEFAULT
Enable Host Echo
3-14 Magellan® 1000i
RS-232 Interface Features — cont.
Host Echo Quiet Interval
This setting specifies the time interval of RS-232 channel inactivity which must transpire before
the scanner will break the host echo loop to transmit the barcode data that has just been scanned
to the host.
START / END
PROGRAMMING BARCODES
Host Echo Quiet Interval = 10msec
DEFAULT
Interface Features
Host Echo Quiet Interval = 0msec
Host Echo Quiet Interval = 30msec
Host Echo Quiet Interval = 50msec
Host Echo Quiet Interval = 70msec
Host Echo Quiet Interval = 20msec
Host Echo Quiet Interval = 40msec
Host Echo Quiet Interval = 60msec
Product Reference Guide
3-15
Interface Related Features
Host Echo Quiet Interval — cont.
Host Echo Quiet Interval = 90msec
START / END
PROGRAMMING BARCODES
Host Echo Quiet Interval = 80msec
Host Echo Quiet Interval = 100msec
Signal Voltage: Normal/TTL
Specifies whether the RS-232 interface provides TTL levels on the output pins TxD and RTS.
START / END
PROGRAMMING BARCODES
Signal Voltage: Normal RS-232
DEFAULT
Signal Voltage: TTL
3-16 Magellan® 1000i
RS-232 Invert
Enables/disables inversion of RS-232 TXD and RXD signals.
START / END
PROGRAMMING BARCODES
Disable RS-232 Invert
Enable RS-232 Invert
Interface Features
DEFAULT
Beep on ASCII BEL
Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL
(07 hex).
START / END
PROGRAMMING BARCODES
Enable Beep on ASCII BEL
DEFAULT
Disable Beep on ASCII BEL
Product Reference Guide
3-17
Interface Related Features
Beep on Not on File
Select for the host to beep (or not) when a not-on-file (host command) condition is detected by
the host.
Enable Beep on Not On File
START / END
PROGRAMMING BARCODES
Disable Beep on Not On File
DEFAULT
3-18 Magellan® 1000i
Interface Features
ACK NAK Options
This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol.
When configured, the scanner and/or host sends an “ACK” when it receives data properly, and
sends “NAK” when the data is in error. Selections for this option are:
•Disable
• Enable for label transmission — the scanner expects an ACK/NAK response from the host
when a label is sent
• Enable for host-command acknowledge — the scanner will respond with ACK/NAK
when the host sends a command
• Enable for label transmission and host-command acknowledge
START / END
PROGRAMMING BARCODES
Enable ACK NAK for Transmission
Enable ACK NAK for transmission and host command
Disable ACK NAK
DEFAULT
Enable ACK NAK for host command acknowledge
Product Reference Guide
3-19
Interface Related Features
RS-232 Interface Features — cont. — cont.
ACK Character
START / END
PROGRAMMING BARCODES
Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then
the “Set ACK Character,” followed by the digits from the Alphanumeric table in
desired character. Exit programming mode by again scanning the “START/END” barcode above.
DEFAULT SETTING FOR THIS FEATURE: 006
Appendix C, Alpha-Numeric Pad representing your
Set ACK Character
NAK Character
START / END
PROGRAMMING BARCODES
Sets the NAK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then
the “Set NAK Character,” followed by the digits from the Alphanumeric table in
desired character. Exit programming mode by again scanning the “START/END” barcode above.
DEFAULT SETTING FOR THIS FEATURE: 021
Appendix C, Alpha-Numeric Pad representing your
Set NAK Character
3-20 Magellan® 1000i
RS-232 Interface Features — cont.
Retry on ACK NAK Timeout
Enables/disables retry after the configurable ACK NAK Timeout Value (set in the following feature) has expired.
START / END
PROGRAMMING BARCODES
Enable Retry on ACK NAK Timeout
DEFAULT
Interface Features
Disable Retry on ACK NAK Timeout
ACK NAK Timeout Value
START / END
PROGRAMMING BARCODES
This item specifies the time the scanner will wait for an ACK character from the host following a label transmission.
000 = Infinite timeout
001 - 075 = Timeout in 200-millisecond increments
To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set ACK NAK
Timeout Value,” followed by the three digits (zero padded) from the Alphanumeric table in
senting your desired value. Exit programming mode by again scanning the “START/END” barcode above.
DEFAULT SETTING FOR THIS FEATURE: 001 (200 msec)
Appendix C, Alpha-Numeric Pad repre-
Set ACK NAK Timeout Value
Product Reference Guide
3-21
Interface Related Features
RS-232 Interface Features — cont.
ACK NAK Retry Count
START / END
PROGRAMMING BARCODES
This feature sets the number of times for the scanner to retry a label transmission under a retry condition.
000 = No retry
001 - 254 = Retry for the specified number of times
255 = Retry forever
To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set ACK NAK
Retry Count,” followed by the three digits (zero padded) from the Alphanumeric table in
senting your desired retry count. Exit programming mode by again scanning the “START/END” barcode above
DEFAULT SETTING FOR THIS FEATURE: 003
Appendix C, Alpha-Numeric Pad repre-
Set ACK NAK Timeout Value
3-22 Magellan® 1000i
RS-232 Interface Features — cont.
ACK NAK Error Handling
This item specifies the method the scanner will use to handle errors detected while waiting to
receive the ACK character from the host. Errors include unrecognized host commands and communication errors such as parity or framing errors. Choices are:
00 = Ignore errors detected (recommended setting)
01 = Process error as valid ACK character (risk of lost label data)
02 = Process error as valid NAK character (risk of duplicate label data)
START / END
PROGRAMMING BARCODES
Interface Features
Ignore Errors Detected
DEFAULT
Process error as valid ACK character
Process error as valid NAK character
Product Reference Guide
3-23
Interface Related Features
RS-232 Interface Features — cont.
Transmission Failure Indication
Enables/disables bad-label indication upon transmission failure.
START / END
PROGRAMMING BARCODES
Enable Transmission Error Indication
DEFAULT
Disable Transmission Error Indication
USB-OEM Interface Features
USB-OEM Device usage
The USB-OEM protocol allows for the scanner to be identified as one of two different types of
barcode scanners. Depending on what other scanners you may already have connected to a
USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Options are:
• Table Top Scanner
• Handheld Scanner
START / END
Configure as Handheld Scanner
PROGRAMMING BARCODES
Configure as Table Top Scanner
DEFAULT
3-24 Magellan® 1000i
IBM
Interface Features
IBM Transmit Labels in Code 39 Format
This feature enables/disables scanner's ability to set a symbology identifier for a specified label to
Code 39 before transmitting that label data to an IBM host. This applies to: Code 128,
Codabar and Code 93 for USB-OEM; Code 128, Codabar and Code 93 for IBM Port 5B; and
Codabar and Code 93 for IBM Port 9B.
START / END
PROGRAMMING BARCODES
Disable Convert to Code 39
DEFAULT
Enable Convert to Code 39
Product Reference Guide
3-25
Interface Related Features
Wand Emulation
Supported Symbologies
The Wand Emulation interface will transmit barcode data as a wand device would. This interface will transmit the following barcode symbologies:
•UPC/EAN
• UPC/EAN with addons
•Code 39
• Full ASCII Code 39
• Interleaved 2 of 5
•Codabar
•Code 128
Pharmacode 39 is transmitted as Code 39. All other barcode symbology types read by the scanner will be transmitted as Code 128.
Wand Emulation Barcode Format
The following format settings are required for the wand emulation interface. These settings have
been pre-configured at the factory for Wand Emulation scanners.
• UPC-A barcodes must include all 12 digits.
• UPC-E barcodes must contain 8 digits, including a system digit, 6 data digits, and the
check digit.
• EAN-13 barcodes must have all 13 digits.
• EAN-8 barcodes must include all 8 digits.
• Code 39, Code 39 Full ASCII, and Pharmacode 39 barcodes must NOT contain start /
stop characters.
• Codabar barcodes must include the start / stop characters, presented in the ABCD format.
• Interleaved 2 of 5 barcodes must have an even number of digits.
3-26 Magellan® 1000i
Wand Emulation — cont.
Bar/Space Polarity
Low/High — Black will be transmitted as a low voltage level (0 to +0.7V) and space as high
level (+2.4 to +5.25V).
High/Low — Black will be transmitted as a high voltage level (+2.4 to +5.25V) and space as
low level (0 to +0.7V).
START / END
Interface Features
PROGRAMMING BARCODES
Bar/Space = Low/High
Bar/Space = High/Low
DEFAULT
Wand Idle State
This feature specifies the level of the wand output signal when idle. TTL logic levels:
High voltage level (+2.4 to +5.25V)
Low voltage level (0 to +0.7V).
START / END
PROGRAMMING BARCODES
Wand Idle State = Low
DEFAULT
Wand Idle State = High
Product Reference Guide
3-27
Interface Related Features
Wand Emulation — cont.
Signal Speed
The speed of the transmission can be set. This selects the width of the minimum narrow bar.
330 microseconds
660 microseconds
START / END
Signal Speed = 660mS
DEFAULT
PROGRAMMING BARCODES
Signal Speed = 330mS
Transmit Trailing Noise
The transmission of noise pulses after the label may be enabled or disabled.
START / END
PROGRAMMING BARCODES
Disable Trailing Noise
Enable Trailing Noise
DEFAULT
3-28 Magellan® 1000i
Wand Emulation — cont.
Transmit Leading Noise
The transmission of noise pulses before the barcode may be enabled or disabled.
START / END
Enable Leading Noise
DEFAULT
Interface Features
PROGRAMMING BARCODES
Disable Leading Noise
Symbology Conversion
Wand Emulation can convert all barcodes to a single symbology. Choices are:
No Conversion
Convert to Code 39
Convert to Code 128
START / END
PROGRAMMING BARCODES
No Symbology Conversion
DEFAULT
Convert to C39
Convert to C128
Product Reference Guide
3-29
Interface Related Features
Keyboard Wedge
and
USB Keyboard
As a keyboard interface, the scanner supports most popular PCs and IBM terminals. The installation of the wedge is a fairly simple process that doesn’t require any changes of software or hardware.
Keyboard Layout
The Keyboard Layout option supports many countries. For details about Keyboard Layout,
please refer to your operating system manual.
All of the options in this section apply to the Keyboard Wedge, however, only some apply to USB Keyboard.
NOTE
START / END
PROGRAMMING BARCODES
Belgium
Denmark
Germany
USA
DEFAULT
Britain
France
3-30 Magellan® 1000i
Keyboard Wedge — cont.
START / END
Norway
Interface Features
PROGRAMMING BARCODES
Italy
Portugal
Spain
Switzerland
Hungary
Sweden
Japan 106 Key
Czech
Product Reference Guide
3-31
Interface Related Features
Keyboard Wedge — cont.
START / END
Romania
Poland
PROGRAMMING BARCODES
Slovakia
Croatia
Caps Lock State
Specifies the format in which the scanner sends character data.
START / END
PROGRAMMING BARCODES
Disable Caps Lock
Caps Lock “ON”
Shift Lock “ON”
DEFAULT
3-32 Magellan® 1000i
Keyboard Wedge — cont.
Power-On Simulation
This feature does not apply to the USB Keyboard
interface.
NOTE
All PCs check the keyboard status during the power-on Selftest. It is recommended that you
enable this function if you are working without a keyboard installation. It simulates keyboard
timing and passes the keyboard status to the PC during power-on.
START / END
Interface Features
PROGRAMMING BARCODES
Disable Power-on Simulation
DEFAULT
Enable Power-on Simulation
Product Reference Guide
3-33
Interface Related Features
Control Characters
Specifies how the scanner transmits ASCII control characters to the host. Choices are:
• Disable Control Characters
• Enable transmission of control characters to host
• Send characters between 00H and 1FH according to a special function-key mapping
table. (This is used to send keys that are not in the normal ASCII set; a unique set is provided for each available scancode set. Reference
.)
pings
START / END
PROGRAMMING BARCODES
Appendix E, Keyboard Function Key Map-
Disable Control Characters
DEFAULT
Enable Transmission of Control Characters
Enable Function Key Mapping
3-34 Magellan® 1000i
Interface Features
Keyboard Wedge — cont.
Wedge Quiet Interval
This feature does not apply to the USB Keyboard
interface.
NOTE
Quiet Interval is the amount of time to look for keyboard activity before the scanner breaks the
keyboard connection in order to transmit data to the host.
START / END
PROGRAMMING BARCODES
Selectable from 000 (no interval) to 255 in 10 msec increments. To configure this feature, scan the “START/END” barcode above to
place the unit in Programming Mode, then the
the Alphanumeric table in
scanning the “START/END” barcode above.
Appendix C, Alpha-Numeric Pad representing your desired length. Exit programming mode by again
Set Wedge Quiet Interval barcode followed by the three digits (zero padded) from
DEFAULT SETTING FOR THIS FEATURE:
010 (100 msec)
Set Wedge Quiet Interval
Product Reference Guide
3-35
Interface Related Features
Keyboard Wedge — cont.
Intercharacter Delay
This feature does not apply to the USB Keyboard interface.
NOTE
START / END
PROGRAMMING BARCODES
One-half of the delay specified below is inserted between scancodes within each character. If the transmission speed is too high, the
system may not be able to receive all characters. You may need to adjust the delay to make the system work properly. Selectable
from 000 to 255 in 10msec increments.
To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set Intercharacter
Delay,” followed by the three digits (zero padded) from the Alphanumeric table in
your desired length. Exit programming mode by again scanning the “START/END” barcode above/
DEFAULT SETTING FOR THIS FEATURE:
000 (No Delay)
Appendix C, Alpha-Numeric Pad representing
USB COM Interface Set-up
This interface uses the Microsoft Windows USB COM driver. Before plugging your reader into
the host PC, please ensure you have already copied the DLS_EUG_CDC_ACM.inf file provided by Datalogic to your PC and the reader’s interface is set to USB COM.
1. When you first plug the reader into the PC, Windows will bring up the “Found New
Hardware Wizard.” Select “Install from a list” and click on “Next.”
2. Click on “Include this location in the search” and enter the path where the file
DLS_EUG_CDC_ACM.inf file is stored. Click on “Next.”
3. If a message appears that says the software has not passed Windows logo testing, press
“Continue” anyway.
4. Click on “Finish.”
Once the install is complete, reboot the PC.
Set Intercharacter Delay
3-36 Magellan® 1000i
Data Editing Overview
It is not recommended to use these features with IBM
or Wand Emulation interfaces.
CAUTION
When a barcode is scanned, additional information can be sent to the host computer along with
the barcode data. This combination of barcode data and supplementary user-defined data is
called a “message string.” The features in this chapter can be used to build specific user-defined
data into a message string.
There are several types of selectable data characters that can be sent before and after scanned
data. You can specify if they should be sent with all symbologies, or only with specific symbologies.
Figure 4-1 shows the available elements you can add to a message string:
Chapter 4
Data Editing
Figure 4-1. Breakdown of a Message String
Please Keep In Mind...
• Modifying a message string is not a mandatory requirement. Data editing is sophisticated
feature allowing highly customizable output for advanced users. Factory default settings
for data editing is typically set to NONE.
• A prefix or suffix may be applied (reference the
across all symbologies (set via the Global features in this chapter).
• You can add any character from the
this manual as a prefix, suffix or Label ID.
Label ID Transmission:
Enable this option to
transmit the Label ID you
configure for the scanned
Prefix SuffixAIM IDLabel ID Label IDBar Code Data
symbology.
AIM ID: This function is used to identify and display the
common label identifier for its symbology. When enabled,
this ID code will be transmitted before the scanned bar
code data.
00 - 20 Characters (ASCII)
ASCII Chart (from 00-FF) on the inside back cover of
OR...
Symbologies chapter for these settings)
• Enter prefixes and suffixes in the order in which you want them to appear on the output.
Product Reference Guide
4-1
Data Editing
Global Prefix/Suffix
Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/
or as a suffix (in a position following the barcode data) as indicated in
Figure 4-2. Prefix and Suffix Positions
Example: Setting a Prefix
In this example, we’ll set a prefix for all symbologies.
1. Determine which ASCII character(s) are to be added to scanned barcode data. In this
example, we’ll add a dollar sign (‘$’) as a prefix.
Figure 4-2.
OR...
Prefix SuffixAIM IDLabel ID Label IDBar Code Data
00 - 20 Characters (ASCII)
AND
OR
2. Scan the START barcode.
3. Scan the SET PREFIX barcode.
4. Reference the
ASCII Chart on the inside back cover of this manual, to find the hex value
assigned to the desired character. The corresponding hex number for the ‘$’ character is
24. To enter this selection code, scan the ‘2’ and ‘4’ barcodes from
Numeric Pad
.
Appendix C, Alpha-
5. Scan the END barcode to exit Programming Mode.
If less than the expected string of 20 characters are
selected, scan the END barcode twice to accept the
selections and exit Programming Mode.
NOTE
6. The resulting message string would appear as follows:
Scanned barcode data:12345
Resulting message string output: $12345
4-2 Magellan® 1000i
Global Prefix/Suffix
Global Prefix/Suffix — cont.
START / END
PROGRAMMING BARCODES
Sets up to 20 characters each from the set of ASCII characters or any hex value from 0 to FF. To configure this feature, scan the
“START/END” barcode above to place the unit in Programming Mode, then the “Set Prefix” or “Set Suffix,” followed by the digits from
the Alphanumeric table in
"Example: Setting a Prefix", for more information. Exit programming mode by scanning the “START/END” barcode again (scan
“START/END” twice if less than 20 characters have been selected).
Appendix C, Alpha-Numeric Pad representing your desired character(s). Reference the section,
DEFAULT SETTING PREFIX: 00 (None)
DEFAULT SETTING SUFFIX: 0D (CR)
Set Prefix
Set Suffix
Product Reference Guide
4-3
Data Editing
Prefix SuffixLabel ID Label IDBar Code DataAIM ID
AIM ID
AIM (Automatic Identification Manufacturers) label identifiers are assigned from a globally
standardized list — as opposed to custom label ID characters you select yourself — and can be
included with scanned barcode data. AIM label identifiers consist of three characters as follows:
• A close brace character (ASCII ‘]’), followed by...
• A code character (see the table below), followed by...
• A modifier character (the modifier character is symbol dependent)
SYMBOLOGY CHAR SYMBOLOGY CHAR
UPC/EAN E Code 128/EAN 128 C
Code 39 A MSI/Plessey M
Codabar F
Interleaved 2 of 5 I Standard 2 of 5 S
Code 93
a. ISBN (X with a 0 modifier character)
Figure 4-3. AIM ID
START / END
G ISBN
RSS (GS1 Omnidirectional,
GS1 Expanded)
e
a
X
4-4 Magellan® 1000i
PROGRAMMING BARCODES
Disable AIM ID
DEFAULT
Enable AIM ID
Label ID
Label ID
A Label ID is a customizable code of up to two ASCII characters (00-FF), used to identify a barcode (symbology) type. See
Appendix D, Default Settings, for a listing for common symbologies. It
can be appended previous to or following the transmitted barcode data depending upon how
this option is enabled. This feature provides options for configuring custom Label IDs individually per symbology. If you wish to program the scanner to always include an industry standard
label identifier for ALL symbology types, see the previous feature,
AIM ID.
To configure a Label ID:
1. Scan the START barcode.
2. Select Label ID position as either BEFORE or AFTER by scanning the appropriate barcode.
3. Scan a barcode to select the symbology for which you wish to configure a custom Label
ID.
4. Determine the desired character(s) (you may choose either one or two) which will represent the Label ID for the selected symbology. Next, turn to the
ASCII Chart on the inside
back cover of this manual and find the equivalent hex digits associated with your choice of
Label ID. For example, if you wish to select an equal sign (=) as a Label ID, the chart indicates its associated hex characters as 3D.
5. Turn to
Appendix C, Alpha-Numeric Pad and scan the barcodes representing the hex charac-
ters determined in the previous step. For the example given, the characters ‘3’ and ‘D’
would be scanned.
6. Scan the END barcode to exit programming mode.
Figure 4-4. Label ID Position Options
Prefix SuffixLabel ID Label IDBar Code DataAim ID
OR
Product Reference Guide
4-5
Data Editing
Label ID — cont.
START / END
Label ID Position: Before Barcode Data
DEFAULT
PROGRAMMING BARCODES
Label ID Transmission: Disable
Label ID Position: After Barcode Data
Set UPC-A Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
Set UPC-A w/P5 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
Set UPC-E Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
Set UPC-A w/P2 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
Set UPC-A w/C128 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: E (45 hex)
4-6 Magellan® 1000i
Label ID — cont.
START / END
DEFAULT SETTING FOR THIS FEATURE: E (45 hex)
Set UPC-E w/P5 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: E (45 hex)
Label ID
PROGRAMMING BARCODES
Set UPC-E w/P2 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: E (45 hex)
Set UPC-E w/C128 Addon Label ID Character(s)
Set EAN-8 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex)
Set EAN-8 w/P5 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex)
Set EAN-13 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex)
Set EAN-8 w/P2 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex)
Set EAN-8 w/C128 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: F (46 hex)
Product Reference Guide
4-7
Data Editing
Label ID — cont.
START / END
DEFAULT SETTING FOR THIS FEATURE: F (46 hex)
Set EAN-13 w/P5 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: F (46 hex)
PROGRAMMING BARCODES
Set EAN-13 w/P2 Addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: F (46 hex)
Set EAN-13 w/C128 Addon Label ID Character(s)
Set ISBN Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: IA (4941 hex)
Set GTIN Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: G2 (4732 hex)
Set GTIN w/P5 addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: I (49 hex)
Set IATA Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: G (47 hex)
Set GTIN w/P2 addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: G5 (4735 hex)
4-8 Magellan® 1000i
Label ID — cont.
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: G8 (4738 hex)
Set GS1 Omnidirectional Label ID Character(s)
Label ID
Set GTIN w/C128 addon Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: R4 (5234 hex)
Set GS1 Expanded Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: RX (5258 hex)
Set Code GS1 DataBar Limited Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: * (2A hex)
Set Pharmacode 39 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: # (23 hex)
DEFAULT SETTING FOR THIS FEATURE: * (524C0000 hex)
Set Code 39 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
Set Code 128 Label ID Character(s)
Set I 2 of 5 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: i (69 hex)
Product Reference Guide
4-9
Data Editing
4-10 Magellan® 1000i
Label ID — cont.
START / END
DEFAULT SETTING FOR THIS FEATURE: % (25 hex)
Set Code 93 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: @ (40 hex)
Label ID
PROGRAMMING BARCODES
Set Codabar Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: & (26 hex)
Set Code 11 Label ID Character(s)
Set MSI/Plessey Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: s (73 hex)
Set EAN UCC Composite Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: P (0x5000)
Set Datamatrix Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: @ (40 hex)
Set Std 2 of 5 Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: 0
Set PDF 417 Label ID Character(s)
a
DEFAULT SETTING FOR THIS FEATURE: Dm (0x446D)
a.
Default setting exceptions for PDF 417 Label ID are as follows: Default for RS-232 WN is ‘Q’ (0x5100). Default for USB-HIDPOS is ‘P ‘ (0x5020), or ‘P-Space’.
Product Reference Guide
4-11
Data Editing
Case Conversion
This feature can convert scanned barcode data to either all lower case (a through z) or all upper
case (A through Z) characters.
START / END
Case conversion affects ONLY scanned barcode data,
and does not affect Label ID, Prefix, Suffix, or other
appended data.
NOTE
PROGRAMMING BARCODES
Disable
DEFAULT
Convert to Upper Case
Convert to Lower Case
4-12 Magellan® 1000i
Character Conversion
Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs
represented in hexadecimal ASCII values. The first character in the pair is the character that
will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
For example, if you have the character conversion configuration item set to the following:
41423132FFFFFFFF
The first pair is 4142 or AB (41 hex is an ASCII capital A, 42 hex is an ASCII capital B) and
the second pair is 3132 or 12 (31 hex is an ASCII 1, 32 is an ASCII 2). The other two pairs
are FFFF and FFFF.
With the label, AG15TA81, it would look as follows after the character conversion:
BG25TB82.
The A characters were converted to the B character and the 1 characters were converted to the
numeral 2 character. Nothing is done with the last two character pairs, since they are all FF.
To set Character Conversion:
1. Scan the START/END barcode.
Character Conversion
2. Scan the Character Conversion barcode.
3. Determine the desired string. Up to sixteen positions can be determined as in the above
example. Next, turn to the
ASCII Chart on the inside back cover of this manual and find
the equivalent hex digits needed to fulfill the string.
4. Turn to
Appendix C, Alpha-Numeric Pad and scan the barcodes representing the hex charac-
ters determined in the previous step.
5. Scan the START/END barcode to exit Programming Mode.
If less than the expected string of 16 characters are
selected, scan the START/END barcode twice to accept
the selections and exit Programming Mode.
NOTE
START / END
PROGRAMMING BARCODES
Character Conversion
DEFAULT SETTING FOR THIS FEATURE:
FFFFFFFFFFFFFFFF hex (no conversion)
Product Reference Guide
4-13
Data Editing
4-14 Magellan® 1000i
Chapter 5
Symbologies
The scanner supports the following symbologies (barcode types). Options for each symbology
are included in this chapter.
• UPC-A • Pharmacode 39
• UPC-E • Code 128
• EAN-13 • Interleaved 2 of 5
• EAN-8 • Codabar
• GS1 DataBar Omnidirectional /
Stacked Omnidirectional
• GS1 DataBar Expanded /
Expanded Stacked
• GS1 DataBar Limited • Standard 2 of 5
• Code 39
• Code 93
• MSI/Plessey
Factory Defaults—
this section. Reference
UPC-A
Disable/Enable UPC-A
When disabled, the scanner will not read UPC-A barcodes.
START / END
Enable UPC-A
DEFAULT
for the standard RS-232 interface are indicated in bold text throughout
Appendix D, Default Settings for default exceptions for your interface.
PROGRAMMING BARCODES
Disable UPC-A
Product Reference Guide
5-1
Symbologies
UPC-A — continued
Check Digit Transmission
Enable this option to transmit the check digit along with UPC-A barcode data.
START / END
Send Check Digit
DEFAULT
PROGRAMMING BARCODES
Don’t Send Check Digit
Expand UPC-A to EAN-13
Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13.
START / END
Expand to EAN-13
PROGRAMMING BARCODES
Don’t Expand to EAN-13
DEFAULT
5-2 Magellan® 1000i
UPC-A — continued
Number System Transmission
This feature enables/disables transmission of UPC-A System Number.
START / END
Enable Number System Transmission
DEFAULT
UPC-A
PROGRAMMING BARCODES
Disable Number System Transmission
UPC-A Minimum Reads
This feature specifies the minimum number of consecutive times a UPC-A label must be
decoded before it is accepted as good read.
START / END
Minimum = 2 Reads
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 3 Reads
Minimum = 4 Reads
Product Reference Guide
5-3
Symbologies
UPC-A — continued
UPC-A In-store Minimum Reads
This feature specifies the minimum number of consecutive times an in-store printed label must
be decoded before it is accepted as good read.
START / END
Minimum = 2 Reads
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 4 Reads
Minimum = 3 Reads
5-4 Magellan® 1000i
UPC-E
The following options apply to the UPC-E symbology.
Disable/Enable UPC-E
When disabled, the scanner will not read UPC-E barcodes.
START / END
Enable UPC-E
DEFAULT
UPC-E
PROGRAMMING BARCODES
Disable UPC-E
Check Digit Transmission
Enable this option to transmit the check digit along with UPC-E barcode data.
START / END
Send Check Digit
DEFAULT
PROGRAMMING BARCODES
Don’t Send Check Digit
Product Reference Guide
5-5
Symbologies
UPC-E — continued
Number System Digit
The Number System Digit (NSD) which is always a zero (0) in the leading position can be
optionally included (or not) with scanned barcode data.
START / END
Include Number System Digit
PROGRAMMING BARCODES
Exclude Number System Digit
DEFAULT
Expand to UPC-E to UPC-A
Enables/disables expansion of UPC-E labels to UPC-A. Selecting this feature also changes the
symbology ID to match those required for UPC-A.
START / END
Expand UPC-E to UPC-A
PROGRAMMING BARCODES
Don’t Expand UPC-E to UPC-A
DEFAULT
5-6 Magellan® 1000i
UPC-E — continued
Expand UPC-E to EAN13
Enables/disables expansion of UPC-E labels to EAN-13. Selecting this feature also changes the
symbology ID to match those required for EAN-13.
START / END
Expand UPC-E to EAN-13
UPC-E
PROGRAMMING BARCODES
Don’t Expand UPC-E to EAN-13
DEFAULT
Minimum Reads
This feature specifies the minimum number of consecutive times a UPC-E label must be
decoded before it is accepted as good read.
Minimum = 2 Reads
START / END
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 3 Reads
Minimum = 4 Reads
Product Reference Guide
5-7
Symbologies
GTIN
The following options apply to the GTIN label data format.
Expand UPC/EAN to GTIN
When this feature is enabled, the scanner will translate UPC/EAN labels to the 14 digit GTIN
format.
START / END
Expand to GTIN
PROGRAMMING BARCODES
Don’t Expand to GTIN
DEFAULT
5-8 Magellan® 1000i
EAN-13
The following options apply to the EAN-13 symbology.
Disable/Enable EAN-13
When disabled, the scanner will not read EAN-13 barcodes.
START / END
Enable EAN-13
DEFAULT
EAN-13
PROGRAMMING BARCODES
Disable EAN-13
Check Digit Transmission
Enable this option to transmit the check digit along with EAN-13 barcode data.
START / END
Send Check Digit
DEFAULT
PROGRAMMING BARCODES
Don’t Send Check Digit
Product Reference Guide
5-9
Symbologies
EAN-13 — continued
EAN-13 Flag 1 Character
Enables/disables transmission of an EAN/JAN13 Flag1 character.
START / END
Transmit EAN-13 Flag 1 Char
DEFAULT
PROGRAMMING BARCODES
Don’t Transmit EAN-13 Flag 1 Char
ISBN
When enabled, this feature truncates the leading three digits from labels that contain ISBN
(International Standard Book Number) and appends an ISBN check character to the end of the
label. These codes are used for books and magazines. Labels with ISBN codes start with "978".
Example:
Barcode data: “9789572222720”
Output: “9572222724”
START / END
PROGRAMMING BARCODES
Disable ISBN
DEFAULT
Enable ISBN
5-10 Magellan® 1000i
EAN-13 — continued
Minimum Reads
This feature specifies the minimum number of consecutive times an EAN-13 label must be
decoded before it is accepted as good read.
START / END
Minimum = 2 Reads
EAN-13
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 4 Reads
Minimum = 3 Reads
Product Reference Guide
5-11
Symbologies
EAN-8
The following options apply to the EAN-8 symbology.
Disable/Enable EAN-8
When disabled, the scanner will not read EAN-8 barcodes.
START / END
Enable EAN-8
DEFAULT
PROGRAMMING BARCODES
Disable EAN-8
Check Digit Transmission
Enable this option to transmit the check Digit along with EAN-8 barcode data.
START / END
Send Check Digit
DEFAULT
PROGRAMMING BARCODES
Don’t Send Check Digit
5-12 Magellan® 1000i
EAN-8 — continued
EAN-8
Expand EAN-8 to EAN-13—
this feature also changes the symbology ID to match those required for EAN-13.
Minimum Reads
This feature specifies the minimum number of consecutive times an EAN-8 label must be
decoded before it is accepted as good read.
Expands EAN-8 data to the EAN-13 data format. Selecting
START / END
PROGRAMMING BARCODES
Don’t Expand to EAN-13
DEFAULT
Expand to EAN-13
START / END
Minimum = 2 Reads
Minimum = 4 Reads
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 3 Reads
Product Reference Guide
5-13
Symbologies
Enable EAN Two-Label
Enables/disables the ability of the scanner to decode EAN two-label pairs.
START / END
Enable EAN Two-Label
PROGRAMMING BARCODES
Disable EAN Two-Label
5-14 Magellan® 1000i
Add-ons
Add-ons
Add-ons (or supplemental characters) are commonly added to the end of UPC/EAN barcodes.
The scanner will read the add-ons if they are enabled and in the field of view. Three add-on
types are supported: 2-digit, 5-digit and Code 128 add-ons. Supported options are:
None—
still read the main portion of the barcode.
2 Digits—
5 Digits—
Code 128 Add-on—
label.
This option directs the scanner to ignore add-on portion of a UPC/EAN barcode but
The scanner will optionally read 2-digit add-ons with the UPC/EAN label.
The scanner will optionally read 5-digit add-ons with the UPC/EAN label.
The scanner will optionally read Code 128 add-ons with the UPC/EAN
Contact Customer Support for
advanced programming of optional
NOTE
and conditional add-ons.
Product Reference Guide
5-15
Symbologies
Add-ons — continued
START / END
Enable Optional 2-Digit Add-ons
PROGRAMMING BARCODES
Disable Optional 2-Digit Add-ons
DEFAULT
Disable Optional 5-Digit Add-ons
DEFAULT
Enable Optional 5-Digit Add-ons
Enable Optional Code 128 Add-ons
Disable Optional Code 128 Add-ons
DEFAULT
5-16 Magellan® 1000i
GS1 DataBar Omnidirectional / Stacked Omnidirectional
GS1 DataBar Omnidirectional / Stacked Omnidirectional
The following options apply to the GS1 DataBar Omnidirectional symbology.
Disable/Enable GS1 DataBar Omnidirectional
When this feature is disabled, the scanner will not read GS1 DataBar Omnidirectional barcodes.
START / END
PROGRAMMING BARCODES
Disable GS1 DataBar Omnidirectional
DEFAULT
Enable GS1 DataBar Omnidirectional
UCC/EAN 128 Emulation
When enabled, GS1 DataBar Omnidirectional barcodes will be translated to the UCC/EAN
128 label data format.
START / END
Enable UCC/EAN 128 Emulation
PROGRAMMING BARCODES
Disable UCC/EAN 128 Emulation
DEFAULT
Product Reference Guide
5-17
Symbologies
GS1 DataBar Omnidirectional / Stacked Omnidirectional —
continued
Minimum Reads
This feature specifies the minimum number of consecutive times an GS1 DataBar Omnidirectional label must be decoded before it is accepted as good read.
START / END
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 2 Reads
Minimum = 4 Reads
Minimum = 3 Reads
5-18 Magellan® 1000i
GS1 DataBar Expanded / Expanded Stacked
The following options apply to the GS1 DataBar Expanded symbology.
Disable/Enable GS1 DataBar Expanded
When this feature is disabled, the scanner will not read GS1 DataBar Expanded barcodes.
START / END
PROGRAMMING BARCODES
Enable GS1 DataBar Expanded
GS1 DataBar Expanded / Expanded Stacked
Disable GS1 DataBar Expanded
DEFAULT
GS1-128 Emulation
When enabled, GS1 DataBar Expanded barcodes will be translated to the GS1-128 label data
format.
START / END
Enable GS1-128 Emulation
PROGRAMMING BARCODES
Disable GS1-128 Emulation
DEFAULT
Product Reference Guide
5-19
Symbologies
GS1 DataBar Expanded / Expanded Stacked — continued
Length Control
Fixed Length Decoding—
When fixed length decoding is enabled, the scanner will decode a
barcode if the label length matches one of the configurable fixed lengths.
Variable Length Decoding—
When variable length decoding is enabled, the scanner will
decode a barcode if the label length falls in the range of the configurable minimum and maximum length.
Configuring Fixed Length Decoding:
1. Scan the START/END barcode.
2. Scan the Fixed Length Decoding barcode.
3. Scan the START/END barcode.
4. Set Length 1 to the first fixed length by following the
Length 2 Programming Instructions
below.
GS1 DataBar Expanded Length 1,
5. Set Length 2 to the second fixed length (or to ‘000’ if there is only one fixed length) by
following the
GS1 DataBar Expanded Length 1, Length 2 Programming Instructions below.
Configuring Variable Length Decoding:
1. Scan the START/END barcode.
2. Scan the Variable Length Decoding barcode.
3. Scan the START/END barcode.
4. Set Length 1 to the first variable length by following the
Length 2 Programming Instructions
below.
5. Set Length 2 to the second variable length by following the
1, Length 2 Programming Instructions below.
START / END
PROGRAMMING BARCODES
Variable Length Decoding
Fixed Length Decoding
GS1 DataBar Expanded Length 1,
GS1 DataBar Expanded Length
DEFAULT
5-20 Magellan® 1000i
GS1 DataBar Expanded / Expanded Stacked
GS1 DataBar Expanded / Expanded Stacked — continued
GS1 DataBar Expanded Length 1, Length 2 Programming Instructions
1. Scan the START/END barcode.
2. Scan either the Set Length 1 or Set Length 2 barcode.
3. Turn to
Appendix C, Alpha-Numeric Pad and scan the three digits (zero padded) represent-
ing the length in decimal notation.
For GS1 DataBar Expanded barcodes, only the
data characters are included in the length calculations.
NOTE
4. Scan the START/END barcode.
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: 008
Set Length 2
Set Length 1
DEFAULT SETTING FOR THIS FEATURE: 014
Product Reference Guide
5-21
Symbologies
GS1 DataBar Expanded / Expanded Stacked — continued
Minimum Reads
This feature specifies the minimum number of consecutive times an GS1 DataBar Expanded
label must be decoded before it is accepted as good read.
START / END
PROGRAMMING BARCODES
Minimum = 1 Read
DEFAULT
Minimum = 2 Reads
Minimum = 4 Reads
Minimum = 3 Reads
5-22 Magellan® 1000i
GS1 DataBar Expanded / Expanded Stacked
GS1 DataBar Expanded / Expanded Stacked — continued
Coupon Read Control
This feature controls coupon reading.
START / END
PROGRAMMING BARCODES
Disable coupon filtering
Enable UPCA coupon decoding
Disable GS1 DataBar coupon decoding
DEFAULT
Enable GS1 DataBar coupon decoding
Disable UPCA coupon decoding
Product Reference Guide
5-23
Symbologies
GS1 DataBar Limited
The following options apply to the GS1 DataBar Limited symbology.
Disable/Enable GS1 DataBar Limited
When this feature is disabled, the scanner will not read GS1 DataBar Limited barcodes.
START / END
PROGRAMMING BARCODES
Enable GS1 DataBar Limited
Disable GS1 DataBar Limited
DEFAULT
GS1-128 Emulation
When enabled, GS1 DataBar Limited barcodes will be translated to the GS1-128 label data format.
START / END
Enable GS1-128 Emulation
PROGRAMMING BARCODES
Disable GS1-128 Emulation
DEFAULT
5-24 Magellan® 1000i
