PDU13F
Doc #97001 DATA DELAY DEVICES, INC. 1
1/10/97 3 Mt. Prospect Ave. Clifton, NJ 07013
3-BIT PROGRAMMABLE
DELAY LINE
(SERIES PDU13F)
FEATURES PACKAGES
• Digitally programmable in 8 delay steps
• Monotonic delay-versus-address variation
• Two separate outputs: inverting & non-inverting
• Precise and stable delays
• Input & outputs fully TTL interfaced & buffered
• 10 T2L fan-out capability
• Fits standard 14-pin DIP socket
• Auto-insertable
FUNCTIONAL DESCRIPTION
The PDU13F-series device is a 3-bit digitally programmable delay line.
The delay, TDA, from the input pin (IN) to the output pins (OUT, OUT/)
depends on the address code (A2-A0) according to the following formula:
TDA = TD0 + T
INC
* A
where A is the address code, T
INC
is the incremental delay of the device,
and TD0 is the inherent delay of the device. The incremental delay is
specified by the dash number of the device and can range from 0.5ns
through 50ns, inclusively. The enable pin (EN/) is held LOW during
normal operation. When this signal is brought HIGH, OUT and OUT/ are forced into LOW and HIGH
states, respectively. The address is not latched and must remain asserted during normal operation.
SERIES SPECIFICATIONS
• Total programmed delay tolerance: 5% or 1ns,
whichever is greater
• Inherent delay (TD0): 6ns typical (OUT)
5.5ns typical (OUT/)
• Setup time and propagation delay:
Address to input setup (T
AIS
): 6ns
Disable to output delay (T
DISO
): 6ns typ. (OUT)
• Operating temperature: 0° to 70° C
• Temperature coefficient: 100PPM/°C (excludes TD0)
• Supply voltage VCC: 5VDC ± 5%
• Supply current: I
CCH
= 45ma
I
CCL
= 20ma
• Minimum pulse width: 20% of total delay
1997 Data Delay Devices
data
delay
devices, inc.
3
PDU13F-xxMC3
Military Gull-Wing
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
IN
N/C
N/C
N/C
OUT
OUT/
EN/
GND
VCC
N/C
N/C
N/C
N/C
A0
A1
A2
14
13
12
11
10
9
8
1
2
3
4
5
6
7
IN
N/C
N/C
OUT
OUT/
EN/
GND
VCC
N/C
N/C
N/C
A0
A1
A2
PDU13F-xx DIP
PDU13F-xxA2 Gull-Wing
PDU13F-xxB2 J-Lead
PDU13F-xxM Military DIP
PIN DESCRIPTIONS
IN Delay Line Input
OUT Non-inverted Output
OUT/ Inverted Output
A2 Address Bit 2
A1 Address Bit 1
A0 Address Bit 0
EN/ Output Enable
VCC +5 Volts
GND Ground
DASH NUMBER SPECIFICATIONS
Part
Number
Incremental Delay
Per Step (ns)
Total Delay
Change (ns)
PDU13F-.5
.5 ± .3 3.5 ± 1.0
PDU13F-1
1 ± .4 7 ± 1.0
PDU13F-2
2 ± .4 14 ± 1.0
PDU13F-3
3 ± .5 21 ± 1.1
PDU13F-5
5 ± .6 35 ± 1.8
PDU13F-10
10 ± 1.0 70 ± 3.5
PDU13F-15
15 ± 1.3 105 ± 5.3
PDU13F-20
20 ± 1.5 140 ± 7.0
PDU13F-40
40 ± 2.0 280 ± 14.0
PDU13F-50
50 ± 2.5 350 ± 17.5
NOTE: Any dash number between .5 and 50 not
shown is also available.
PDU13F
Doc #97001 DATA DELAY DEVICES, INC. 2
1/10/97 Tel: 973-773-2299 Fax: 973-773-9672 http://www.datadelay.com
APPLICATION NOTES
ADDRESS UPDATE
The PDU13F is a memory device. As such,
special precautions must be taken when
changing the delay address in order to prevent
spurious output signals. The timing restrictions
are shown in Figure 1.
After the last signal edge to be delayed has
appeared on the OUT pin, a minimum time,
T
OAX
, is required before the address lines can
change. This time is given by the following
relation:
T
OAX
= max { (Ai - A
i-1
) * T
INC
, 0 }
where A
i-1
and Ai are the old and new address
codes, respectively. Violation of this constraint
may, depending on the history of the input signal,
cause spurious signals to appear on the OUT
pin. The possibility of spurious signals persists
until the required T
OAX
has elapsed.
A similar situation occurs when using the EN/
signal to disable the output while IN is active. In
this case, the unit must be held in the disabled
state until the device is able to “clear” itself. This
is achieved by holding the EN/ signal high and
the IN signal low for a time given by:
T
DISH
= Ai * T
INC
Violation of this constraint may, depending on
the history of the input signal, cause spurious
signals to appear on the OUT pin. The
possibility of spurious signals persists until the
required T
DISH
has elapsed.
INPUT RESTRICTIONS
There are three types of restrictions on input
pulse width and period listed in the AC
Characteristics table. The recommended
conditions are those for which the delay
tolerance specifications and monotonicity are
guaranteed. The suggested conditions are
those for which signals will propagate through the
unit without significant distortion. The absolute
conditions are those for which the unit will
produce some type of output for a given input.
When operating the unit between the
recommended and absolute conditions, the
delays may deviate from their values at low
frequency. However, these deviations will
remain constant from pulse to pulse if the input
pulse width and period remain fixed. In other
words, the delay of the unit exhibits frequency
and pulse width dependence when operated
beyond the recommended conditions. Please
consult the technical staff at Data Delay Devices
if your application has specific high-frequency
requirements.
Please note that the increment tolerances listed
represent a design goal. Although most delay
increments will fall within tolerance, they are not
guaranteed throughout the address range of the
unit. Monotonicity is, however, guaranteed over
all addresses.
T
DISO
T
OAX
T
AENS
T
ENIS
PW
IN
TD
A
PW
OUT
T
DISH
A2-A0
EN/
IN
OUT
OUT/
Figure 1: Timing Diagram
A
i-1
A
i
T
SKEW
T
AIS
PDU13F
Doc #97001 DATA DELAY DEVICES, INC. 3
1/10/97 3 Mt. Prospect Ave. Clifton, NJ 07013
DEVICE SPECIFICATIONS
TABLE 1: AC CHARACTERISTICS
PARAMETER SYMBOL MIN TYP UNITS
Total Programmable Delay TD
T
7 T
INC
Inherent Delay TD
0
6.0 ns
Output Skew T
SKEW
1.5 ns
Disable to Output Low Delay T
DISO
6.0 ns
Address to Enable Setup Time T
AENS
2.0 ns
Address to Input Setup Time T
AIS
6.0 ns
Enable to Input Setup Time T
ENIS
6.0 ns
Output to Address Change T
OAX
See Text
Disable Hold Time T
DISH
See Text
Absolute PER
IN
20 % of TD
T
Input Period Suggested PER
IN
50 % of TD
T
Recommended PER
IN
200 % of TD
T
Absolute PW
IN
10 % of TD
T
Input Pulse Width Suggested PW
IN
25 % of TD
T
Recommended PW
IN
100 % of TD
T
TABLE 2: ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL MIN MAX UNITS NOTES
DC Supply Voltage V
CC
-0.3 7.0 V
Input Pin Voltage V
IN
-0.3 VDD+0.3 V
Storage Temperature T
STRG
-55 150 C
Lead Temperature T
LEAD
300 C 10 sec
TABLE 3: DC ELECTRICAL CHARACTERISTICS
(0C to 70C, 4.75V to 5.25V)
PARAMETER SYMBOL MIN TYP MAX UNITS NOTES
High Level Output Voltage V
OH
2.5 3.4 V VCC = MIN, IOH = MAX
VIH = MIN, VIL = MAX
Low Level Output Voltage V
OL
0.35 0.5 V VCC = MIN, IOL = MAX
VIH = MIN, VIL = MAX
High Level Output Current I
OH
-1.0 mA
Low Level Output Current I
OL
20.0 mA
High Level Input Voltage V
IH
2.0 V
Low Level Input Voltage V
IL
0.8 V
Input Clamp Voltage V
IK
-1.2 V VCC = MIN, II = I
IK
Input Current at Maximum
Input Voltage
I
IHH
0.1 mA VCC = MAX, VI = 7.0V
High Level Input Current I
IH
20
µA
VCC = MAX, VI = 2.7V
Low Level Input Current I
IL
-0.6 mA VCC = MAX, VI = 0.5V
Short-circuit Output Current I
OS
-60 -150 mA VCC = MAX
Output High Fan-out 25 Unit
Output Low Fan-out 12.5 Load
PDU13F
Doc #97001 DATA DELAY DEVICES, INC. 4
1/10/97 Tel: 973-773-2299 Fax: 973-773-9672 http://www.datadelay.com
PACKAGE DIMENSIONS
.790 MAX.
1 2 3 4 5 6 7
8
.320
TYP.
.020 TYP.
.040
TYP.
.100
.110
.600
.350
MAX.
.270
TYP.
.050 TYP.
.110
TYP.
91011121314
Commercial J-Lead (PDU13F-xxB2)
.820 MAX.
1 2 3 4 5 6 7
814 13 12 11 10 9
.290
MAX.
.015 TYP.
.070 MAX.
.018
TYP.
.600±.010
6 Equal spaces
each .100±.010
Non-Accumulative
.280
MAX.
.350
MAX.
.010±.002
Lead Material:
Nickel-Iron alloy 42
TIN PLATE
Commercial DIP (PDU13F-xx)
.790 MAX.
.430
TYP.
.020 TYP.
.040
TYP.
.100
.090
.600
.300
MAX.
.270
TYP.
.010 TYP.
.050
TYP.
1 2 3 4 5 6 7
891011121314
Commercial Gull-Wing (PDU13F-xxA2)
.130
±
.030
.820 MAX.
1 2 3 4 5 6 7
814 13 12 11 10 9
.320
MAX.
.018 TYP.
.410
TYP.
.300
TYP.
.020 TYP.
.600 TYP.
.020
TYP.
.100
TYP.
Military DIP (PDU13F-xxM)
.880±.020
.882
±
.005
.020 TYP.
.040
TYP.
.100
.090
.700
.280
MAX.
.590
MAX.
.010±.002
.050
±
.010
.710
±
.005
.007
±
.005
1 2 3 4 5 6 7 8
910111213141516
Military Gull-Wing (PDU13F-xxMC3)
PDU13F
Doc #97001 DATA DELAY DEVICES, INC. 5
1/10/97 3 Mt. Prospect Ave. Clifton, NJ 07013

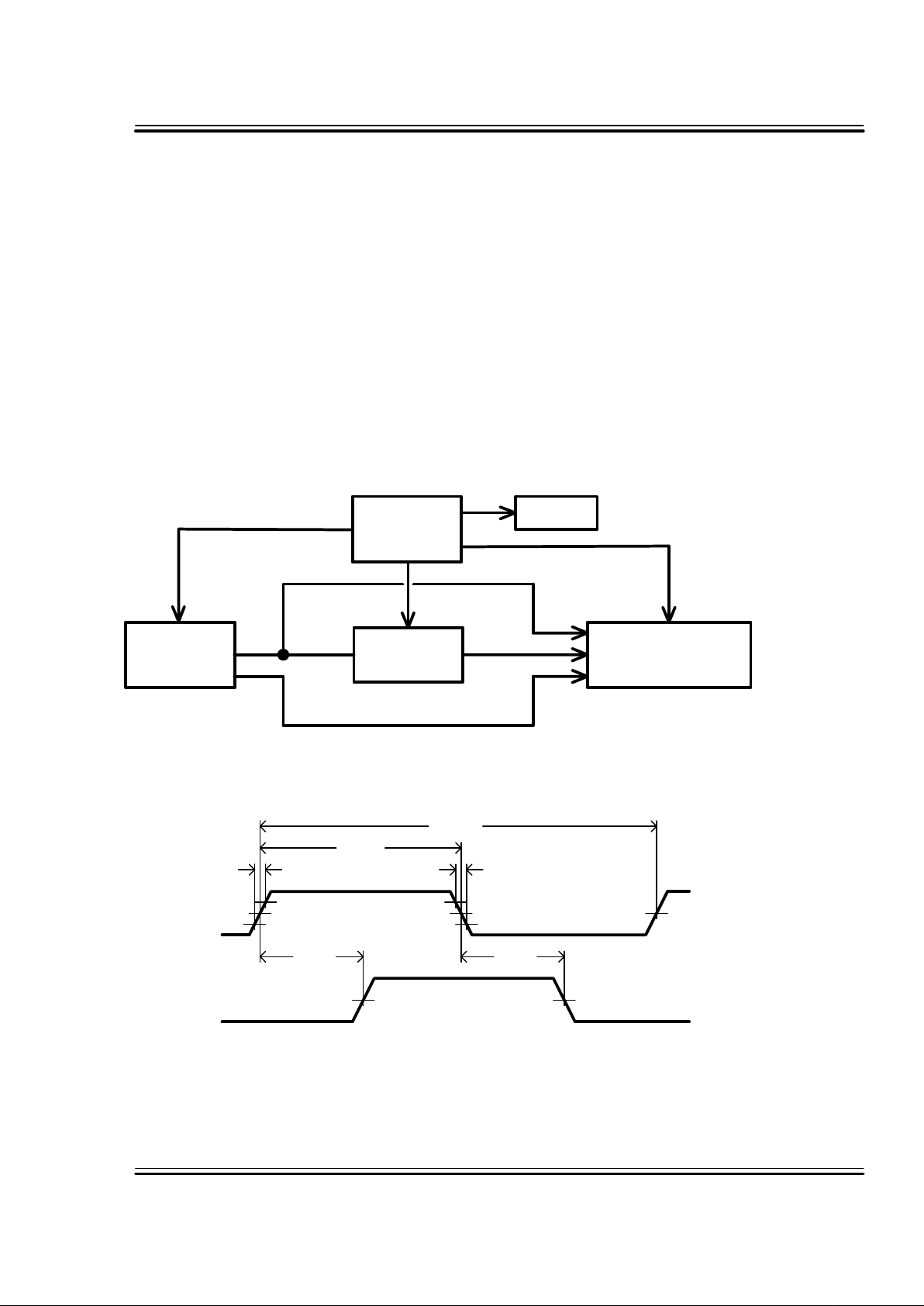

DELAY LINE AUTOMATED TESTING
TEST CONDITIONS
INPUT: OUTPUT:
Ambient Temperature: 25oC ± 3oC Load: 1 FAST-TTL Gate
Supply Voltage (Vcc): 5.0V ± 0.1V C
load
: 5pf ± 10%
Input Pulse: High = 3.0V ± 0.1V Threshold: 1.5V (Rising & Falling)
Low = 0.0V ± 0.1V
Source Impedance: 50Ω Max.
Rise/Fall Time: 3.0 ns Max. (measured
between 0.6V and 2.4V )
Pulse Width: PWIN = 1.5 x Total Delay
Period: PERIN = 4.5 x Total Delay
NOTE: The above conditions are for test only and do not in any way restrict the operation of the device.
OUT
OUT
TRIGINREF
TRIG
Test Setup
DEVICE UNDER
TEST (DUT)
TIME INTERVAL
COUNTER
PULSE
GENERATOR
COMPUTER
SYSTEM
PRINTER
IN
Timing Diagram For Testing
TD
AR
TD
AF
PER
IN
PW
IN
T
RISE
T
FALL
0.6V
0.6V
1.5V
1.5V
2.4V
2.4V
1.5V
1.5V
V
IH
V
IL
V
OH
V
OL
INPUT
SIGNAL
OUTPUT
SIGNAL
