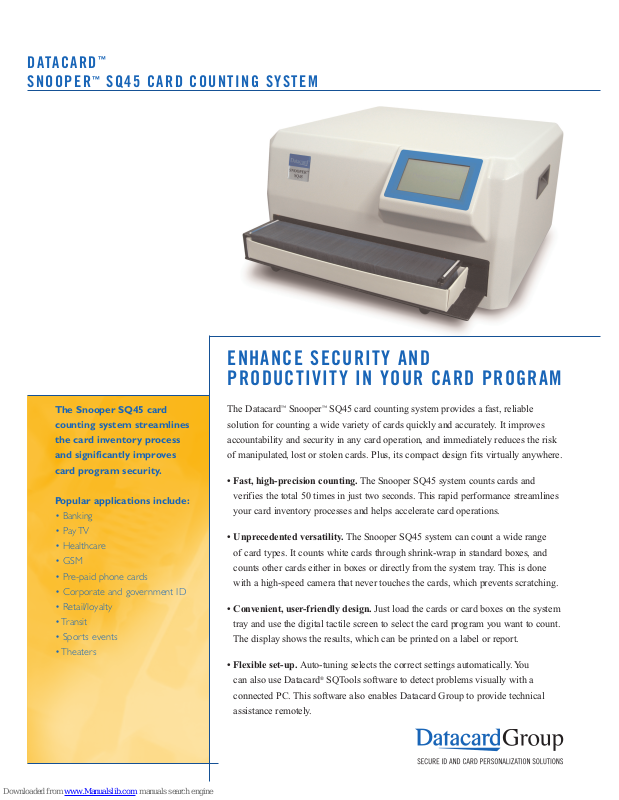

DataCard SNOOPER SQ45 Datasheet

ENHANCE SECURITY AND
PRODUCTIVITY IN YOUR CARD PROGRAM

The Snooper SQ45 card

counting system streamlines

the card inventory process

and significantly improves

card program security.

Popular applications include:

• Banking

• Pay TV

• Healthcare

• GSM

• Pre-paid phone cards

• Corporate and government ID

• Retail/loyalty

• Transit

• Sports events

• Theaters

The Datacard™Snooper™SQ45 card counting system provides a fast, reliable

solution for counting a wide variety of cards quickly and accurately. It improves

accountability and security in any card operation, and immediately reduces the risk

of manipulated, lost or stolen cards. Plus, its compact design fits virtually anywhere.

• Fast, high-precision counting. The Snooper SQ45 system counts cards and

verifies the total 50 times in just two seconds. This rapid performance streamlines

your card inventory processes and helps accelerate card operations.

• Unprecedented versatility. The Snooper SQ45 system can count a wide range

of card types. It counts white cards through shrink-wrap in standard boxes, and

counts other cards either in boxes or directly from the system tray. This is done

with a high-speed camera that never touches the cards, which prevents scratching.

• Convenient, user-friendly design. Just load the cards or card boxes on the system

tray and use the digital tactile screen to select the card program you want to count.

The display shows the results, which can be printed on a label or report.

• Flexible set-up. Auto-tuning selects the correct settings automatically. You

can also use Datacard®SQTools software to detect problems visually with a

connected PC. This software also enables Datacard Group to provide technical

assistance remotely.

DATACARD

™

SNOOPER™SQ45 CARD COUNTING SYSTEM

Standard features

Capacity

Stack of cards up to 17.52 in.
(445 mm) in length

Cards accepted

Blank
Printed
White core embossed
Flat clear
Magnetic stripe
Embedded
Tickets (>0.30 mm)
Lenticular
Black core
Shiny silver particle
Colored
Contact and contactless smart cards
GSM
Select non-ISO standard cards
Multi-layer cards
Thin cards (>0.30 mm)

Card materials supported

ABS
PVC
PET
PC
PETG
Polyester

Card thickness

ISO, >0.012 in. to 0.08 in.
(>0.30 mm to 2.0 mm)

Photographic technology

Camera counts cards
No moving parts touch cards

Counting speed

Counts 50 times in 2 seconds

11 standard menu settings

Pre-selection of desired count

Connectivity

Serial port for view and setup
Parallel port for printer

Power supply

100-240 VAC

Audio and visual error messages
Batch management
Tactile screen
SQTools software
Remote control

Specifications

Physical dimensions

23.6 in. L x 21.7 in.W x 11.0 in. H
(600 mm L x 550 mm W x
280 mm H)

Weight

94.6 lbs. (43.0 kg)

Electrical requirements

100-240 VAC, 50-60 Hz power
supply, 450 mA

Heat output

- Watt: 60

- BTU/hr: 205

Operating environment

66°F to 95°F (19°C to 35°C)

Noise level

<70 dB

Regulatory

Conforms to European Standards
for Security Works (Machine
Directive 98.37 and CEM Directive

89.336), UL (for U.S.) and VCCI
(for Japan)

Datacard and Snooper are trademarks,
registered trademarks or service marks of
DataCard Corporation in the United States
and/or other countries. Names and logos
on sample cards are fictitious. Any
similarity to actual names, trademarks or
tradenames is coincidental.

©2005 DataCard Corporation.
All rights reserved.

CS5-2001

11111 Bren Road West

Minnetonka, MN 55343-9015

[phone]

[phone] FAX

www.datacard.com

DATACARD

™

SNOOPER™SQ45
CARD COUNTING SYSTEM

Two valuable service options

Datacard Group offers two simple, cost-effective maintenance services for the Snooper SQ45 system.

On-site maintenance entitles you to all parts and labor for Snooper SQ45 system repairs, cleaning and

calibration at your facility. (To be eligible for on-site maintenance, your Snooper SQ45 system must

currently be under a service contract from Datacard Group.) Depot maintenance gives you the option

of shipping your Snooper SQ45 system to Datacard Group for repair, cleaning or calibration.

The Snooper SQ45 card counting system performs consistently in high-volume card
operations worldwide. It delivers the speed, accuracy and reliability you need to
achieve high productivity while maintaining security.
