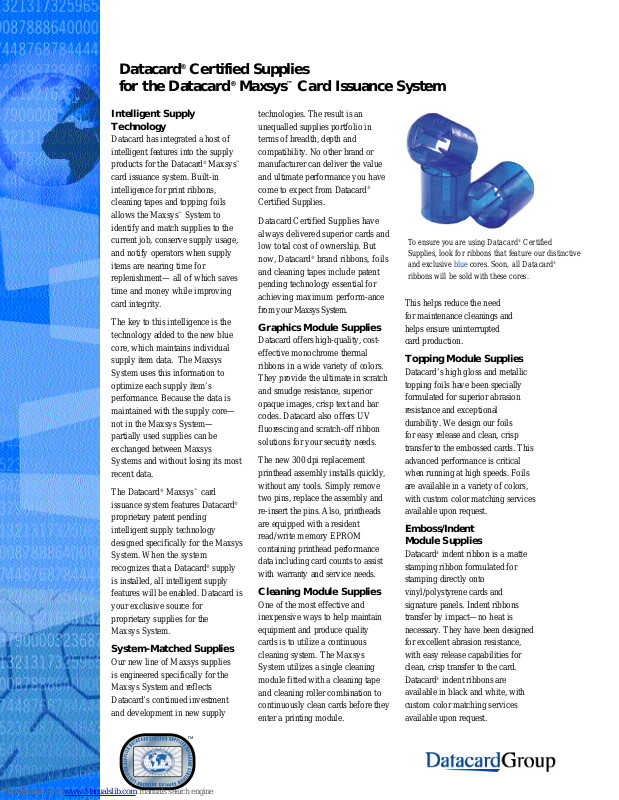

Datacard®Certified Supplies
®
for the Datacard
Maxsys™Card Issuance System
Intelligent Supply
Technology
Datacard has integrated a host of
intelligent features into the supply
products for the Datacard®Maxsys
™
card issuance system. Built-in
intelligence for print ribbons,
cleaning tapes and topping foils
allows the Maxsys™System to
identify and match supplies to the
current job, conserve supply usage,
and notify operators when supply
items are nearing time for
replenishment— all of which saves
time and money while improving
card integrity.
The key to this intelligence is the
technology added to the new blue
core, which maintains individual
supply item data. The Maxsys
System uses this information to
optimize each supply item’s
performance. Because the data is
maintained with the supply core—
not in the Maxsys System—
partially used supplies can be
exchanged between Maxsys
Systems and without losing its most
recent data.
The Datacard®Maxsys™card
issuance system features Datacard
®
proprietary patent pending
intelligent supply technology
designed specifically for the Maxsys
System.When the system
recognizes that a Datacard®supply
is installed, all intelligent supply
features will be enabled. Datacard is
your exclusive source for
proprietary supplies for the
Maxsys System.
System-Matched Supplies
Our new line of Maxsys supplies
is engineered specifically for the
Maxsys System and reflects
Datacard’s continued investment
and development in new supply
technologies. The result is an
unequalled supplies portfolio in
terms of breadth, depth and
compatibility. No other brand or
manufacturer can deliver the value
and ultimate performance you have
come to expect from Datacard
®
Certified Supplies.
Datacard Certified Supplies have
always delivered superior cards and
low total cost of ownership. But
now, Datacard®brand ribbons, foils
and cleaning tapes include patent
pending technology essentialfor
achieving maximum perform-ance
from your Maxsys System.
Graphics Module Supplies
Datacard offers high-quality, costeffective monochrome thermal
ribbons in a wide variety of colors.
They provide the ultimate in scratch
and smudge resistance, superior
opaque images, crisp text and bar
codes. Datacard also offers UV
fluorescing and scratch-off ribbon
solutions for your security needs.
The new 300 dpi replacement
printhead assembly installs quickly,
without any tools. Simply remove
two pins, replace the assembly and
re-insert the pins. Also, printheads
are equipped with a resident
read/write memory EPROM
containing printhead performance
data including card counts to assist
with warranty and service needs.
Cleaning Module Supplies
One of the most effective and
inexpensive ways to help maintain
equipment and produce quality
cards is to utilize a continuous
cleaning system. The Maxsys
System utilizes a single cleaning
module fitted with a cleaning tape
and cleaning roller combination to
continuously clean cards before they
enter a printing module.
To ensure you are using Datacard®Certified
Supplies, look for ribbons that feature our distinctive
and exclusive bluecores. Soon, all Datacard
ribbons will be sold with these cores.
®
This helps reduce the need
for maintenance cleanings and
helps ensure uninterrupted
card production.
Topping Module Supplies
Datacard’s high gloss and metallic
topping foils have been specially
formulated for superior abrasion
resistance and exceptional
durability. We design our foils
for easy release and clean, crisp
transfer to the embossed cards. This
advanced performance is critical
when running at high speeds. Foils
are available in a variety of colors,
with custom color matching services
available upon request.
Emboss/Indent
Module Supplies
Datacard®indent ribbon is a matte
stamping ribbon formulated for
stamping directly onto
vinyl/polystyrene cards and
signature panels. Indent ribbons
transfer by impact—no heat is
necessary. They have been designed
for excellent abrasion resistance,
with easy release capabilities for
clean, crisp transfer to the card.
Datacard®indent ribbons are
available in black and white, with
custom color matching services
available upon request.
Datacard®Certified Supplies for the Maxsys™Card Issuance System
Maxsys Supplies with intelligent supply technology will be released in phases. The first feature set is targeted
for release in late 2003 and includes:
Maxsys System
Feature
Personalization Speed
Ribbon Conservation
Maxsys™ Sytem
with Intelligent Supply Technology
Maximum system speed but with increased
Maxsys™ System without Intelligent Supply
Technology or with Third-Party Supplies
Maximum system speed
effective throughput by requiring fewer
operator confirmations
Ribbon Saver Plus:
Monochrome Ribbon: Includes Basic Ribbon Saver. System
can also recover the approximately 0.25 in. (6.4 mm) to
0.30 in. (7.6 mm) of unused ribbon that is unused between
printed cards, providing an 8 to 30% yield gain.
Basic Ribbon Saver:
Monochrome Ribbon: System can minimize
the advancement of the ribbon based on the
image’s horizontal size, but can not recover
unused ribbon between printed cards.
11111Bren Road West
Minnetonka, MN 55343-9015
+1 952 9331223
+1 952 931 0418 FAX
www.datacard.com
Cleaning Tape: System will effectively “re-use” the
cleaning tape within the module up to three
times (four uses total) before exhausting the roll.
Supply Validation
System Supply Settings
System automatically validates that the loaded
®
Datacard
supply matches the current job.
System detects Datacard supply installations and
automatically updates the system settings.
Ribbon Usage Monitoring
Type of Supply Item Number
Monochrome Ribbons
System notifies operator when a module is
out
of a supply via the GUI and system lights.
†
552916-001 Black 9,120
552916-002 Dark Blue 9,120
552916-003 White 8,160
552916-004 Red 9,120
552916-005 Process Blue 9,120
552916-006 Green 9,120
552916-007 Silver 8,160
552916-011 Gold 9,120
552916-013 Wavy Scratch-off 6,400
552916-017 UV Fluorescing, Blue 3,040
Cleaning Supplies
552933-001 Cleaning Tape 16,700
586658-002 Cleaning Rollers (2 required) N/A
Topping Foils
553335-001 Dark Blue 11,000
553335-002 Black 11,000
553335-003 Gold 15,000
553335-004 White 11,000
553335-005 Green 11,000
553335-006 Red 11,000
553335-013 Silver 15,000
Indent Ribbons
804091-101 Black, 650' 8,500
804091-201 Black, 750' 10,000
804091-103 White, 600' 8,000
Printhead
† Most supplies are available in Case Quantities. Check with your authorized Datacard Sales Representative.
†† Actual yields may vary due to number of initializations, user loading procedures, Ribbon Saver mode, card layout and other waste factors.
*SUPPLIES WARRANTY
DataCard warrants that for a period of twelve (12) months from the date of DataCard’s shipment, all DataCard®supplies shall conform to DataCard’s published specifications
for such supplies and be free from defect in material and workmanship. DataCard’s warranty is conditioned upon its customer’s storage and use of the DataCard®supplies in
accordance with DataCard’s published recommendations. EXCEPT FOR THIS LIMITED WARRANTY, DATACARD HEREBY DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS AND IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. DataCard’s sole obligation for breach of this warranty, and our customer’s exclusive remedy, shall be a credit or replacement of the quantity of the
DataCard®supplies that do not meet this warranty. In no event shall DataCard be liable for indirect, incidental, special or consequential damages, even if DataCard has been
advised of the possibility of such damages.
*PRINTHEAD WARRANTY
DataCard warrants that its replacement printheads shall be free from defect in material and workmanship for the period of time specified in DataCard’s published
specifications. The warranty period shall commence on the date of installation of the printhead. This limited warranty does not cover printhead failure that results from
accident, abuse, misuse, unauthorized modification or maintenance to the printhead, printer or software, or the use of non-DataCard supplied peripherals, supplies, or software.
EXCEPT FOR THIS LIMITED WARRANTY, DATACARD HEREBY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS AND IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DataCard's sole obligation for breach of this
warranty, and our customer's exclusive remedy, shall be a replacement of the defective printhead, or a refund of a pro-rated portion of the purchase price based on the
remaining term of the original warranty. A replacement printhead will carry the same warranty as a new printhead. DataCard reserves the right to inspect any printheads for
which warranty service is requested. In the event you believe a printhead is defective you should call your authorized DataCard®service provider for assistance. In no event
shall DataCard be liable for indirect, incidental, special or consequential damages, even if DataCard has been advised of the possibility of such damages.
553611-001 Monochrome printhead, 300 dpi N/A
Cleaning Tape: No ribbon conservation features.
System relies on the operator to load the
proper supply. No supply validation is performed.
Supply-related settings must be entered manually
into the print job’s data file.
low
System notifies operator when a module is
on or
out
of a supply (but not before) via the GUI and
system lights.
Description Yield
††
Datacard is a registered trademark and
service mark of DataCard Corporation.
Maxsys and Datacard’s distinctive
blue core are trademarks of DataCard
Corporation.
© 2003 DataCard Corporation.
All rights reserved.
Information subject to change
without notice.
Printed in U.S.A.
