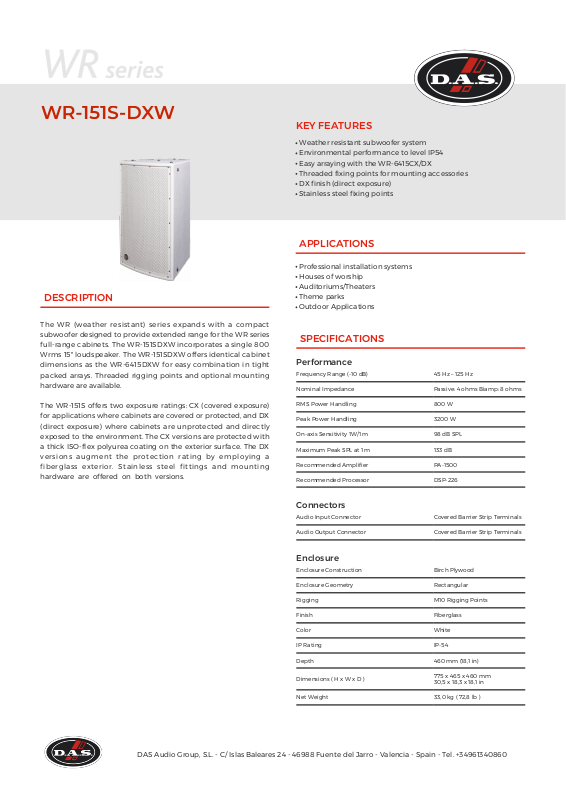

DAS WR-151S-DXW User Manual
DESCRIPTION
The WR (weather resistant) series expands with a compact
subwoofer designed to provide extended range for the WR series
full-range cabinets. The WR-151SDXW incorporates a single 800
Wrms 15″ loudspeaker. The WR-151SDXW offers identical cabinet
dimensions as the WR-6415DXW for easy combination in tight
packed arrays. Threaded rigging points and optional mounting
hardware are available.
The WR-151S offers two exposure ratings: CX (covered exposure)
for applications where cabinets are covered or protected, and DX
(direct exposure) where cabinets are unprotected and directly
exposed to the environment. The CX versions are protected with
a thick ISO-flex polyurea coating on the exterior surface. The DX
versions augment the protection rating by employing a
fiberglass exterior. Stainless steel fittings and mounting
hardware are offered on both versions.
KEY FEATURES
· Weather resistant subwoofer system
· Environmental performance to level IP54
· Easy arraying with the WR-6415CX/DX
· Threaded fixing points for mounting accessories
· DX finish (direct exposure)
· Stainless steel fixing points
APPLICATIONS
· Professional installation systems
· Houses of worship
· Auditoriums/Theaters
· Theme parks
· Outdoor Applications
SPECIFICATIONS
Performance
Frequency Range (-10 dB) 45 Hz – 125 Hz
Nominal Impedance Passive: 4 ohms Biamp: 8 ohms
RMS Power Handling 800 W
Peak Power Handling 3200 W
On-axis Sensitivity 1W/1 m 98 dB SPL
Maximum Peak SPL at 1 m 133 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish Fiberglass
Color White
IP Rating IP-54
Depth 460 mm (18,1 in)
Dimensions ( H x W x D )
Net Weight 33,0 kg ( 72,8 lb )
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. +34961340860
775 x 465 x 460 mm
30,5 x 18,3 x 18,1 in
Components
LF Driver 15SX
Shipping
Carton Dimensions ( H x W x D )
Shipping Weight 40,0 kg ( 88,0 lb )
870 x 550 x 530 mm
34,3 x 21,7 x 20,9 in
DIMENSIONS
ORDERING INFORMATION
Performance
Model Description P/N
System
WR-151S-DXW Passive Subwoofer 10428230
Replacement Parts
15SX Cone Transducer 10214340
GM-15LX Recone Kit 20208320
Accessories
ANL-2 Rigging Accessories 10101020
AX-SPG1 Installation & Stacking Acc. 10105050
AXC-AT Installation & Stacking Acc. 10104310
AXU-WR6415-W Installation & Stacking Acc. 10104690
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. +34961340860
