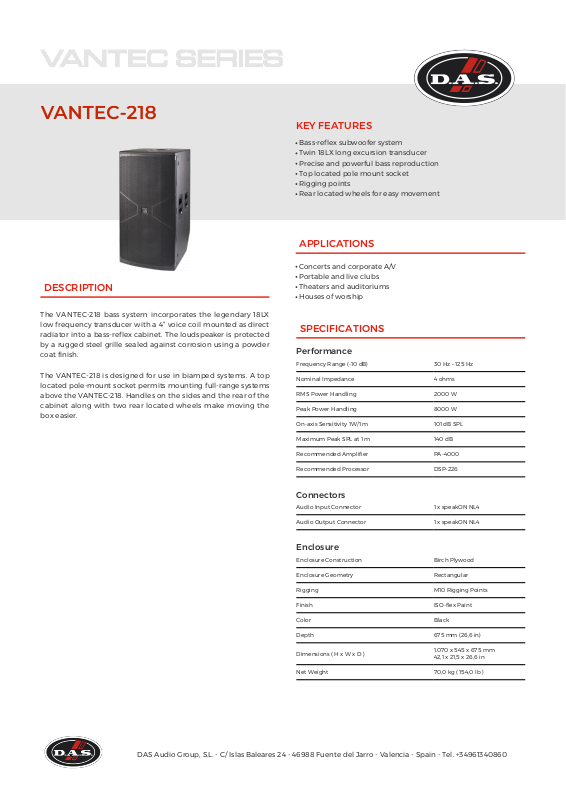

DAS VANTEC-218 Data Sheet

DESCRIPTION

The VANTEC-218 bass system incorporates the legendary 18LX
low frequency transducer with a 4” voice coil mounted as direct
radiator into a bass-reflex cabinet. The loudspeaker is protected
by a rugged steel grille sealed against corrosion using a powder
coat finish.

The VANTEC-218 is designed for use in biamped systems. A top
located pole-mount socket permits mounting full-range systems
above the VANTEC-218. Handles on the sides and the rear of the
cabinet along with two rear located wheels make moving the
box easier.

KEY FEATURES

· Bass-reflex subwoofer system

· Twin 18LX long excursion transducer

· Precise and powerful bass reproduction

· Top located pole mount socket

· Rigging points

· Rear located wheels for easy movement

APPLICATIONS

· Concerts and corporate A/V

· Portable and live clubs

· Theaters and auditoriums

· Houses of worship

SPECIFICATIONS

Performance

Frequency Range (-10 dB) 30 Hz – 125 Hz

Nominal Impedance 4 ohms

RMS Power Handling 2000 W

Peak Power Handling 8000 W

On-axis Sensitivity 1W/1 m 101 dB SPL

Maximum Peak SPL at 1 m 140 dB

Recommended Amplifier PA-4000

Recommended Processor DSP-226

Connectors

Audio Input Connector 1 x speakON NL4

Audio Output Connector 1 x speakON NL4

Enclosure

Enclosure Construction Birch Plywood

Enclosure Geometry Rectangular

Rigging M10 Rigging Points

Finish ISO-flex Paint

Color Black

Depth 675 mm (26,6 in)

Dimensions ( H x W x D )

Net Weight 70,0 kg ( 154,0 lb )

DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. [phone]

1.070 x 545 x 675 mm
42,1 x 21,5 x 26,6 in

Components

LF Driver 18LX

Shipping

Carton Dimensions ( H x W x D )

Shipping Weight 99,2 kg ( 218,7 lb )

1.180 x 730 x 610 mm
46,5 x 28,7 x 24,0 in

ORDERING INFORMATION

Performance

Model Description P/N

System

VANTEC-218 Passive Subwoofer 10431130

Replacement Parts

18LX Cone Transducer 10214270

GM-18LX Recone Kit 20208310

Accessories

ANL-2 Rigging Accessories 10101020

FUN-VT218 Transport Accessories 10103741

SPK4-1 Electronic Accessories 20502000

SPK4-10 Electronic Accessories 20502001

SPK4-20 Electronic Accessories 20502002

TRD-6 Installation & Stacking Acc. 10104470

TRD-7 Installation & Stacking Acc. 10104471

DIMENSIONS
