User's Manual
Installation
HQ Series
HQ-112.43 / HQ-112.64 / HQ-112.95
HQ-218 / HQ-212.64 / HQ-212.95
Antes de utilizar el equipo, lea la sección
“Precauciones de seguridad” de este manual.
Conserve este manual para futuras consultas.
Before operating the device, please read the
“Safety precautions” section of this manual.
Retain this manual for future reference.
CONTENTS
SAFETY PRECAUTIONS
WARRANTY
DECLARATION OF CONFORMITY
INTRODUCTION
CONFIGURATIONS

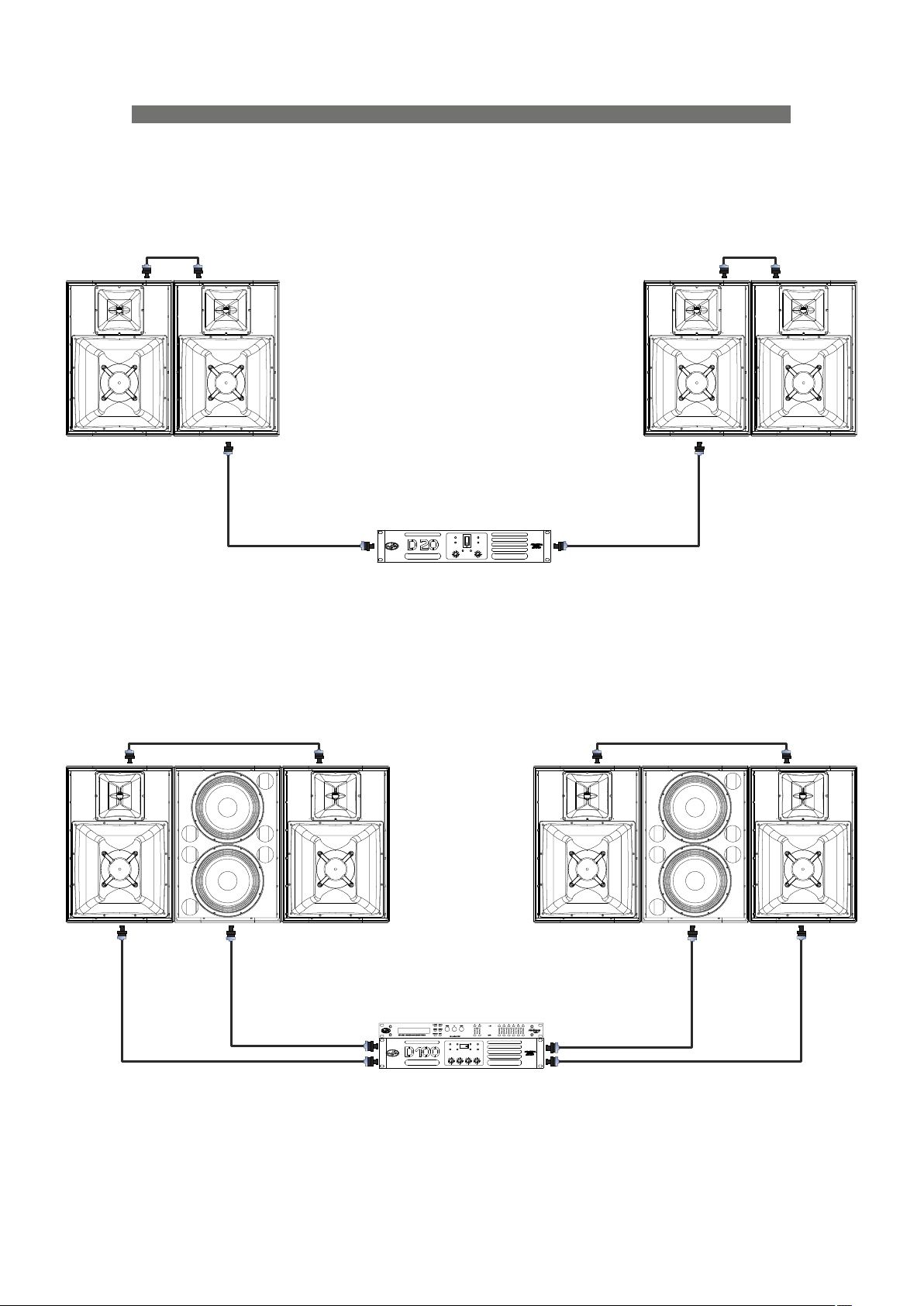

4x HQ-112.xx (horizontal array)
4x HQ-112.95 + 2x HQ-218 (horizontal array)
6x HQ-112.43 + 2x HQ-218 (vertical array)

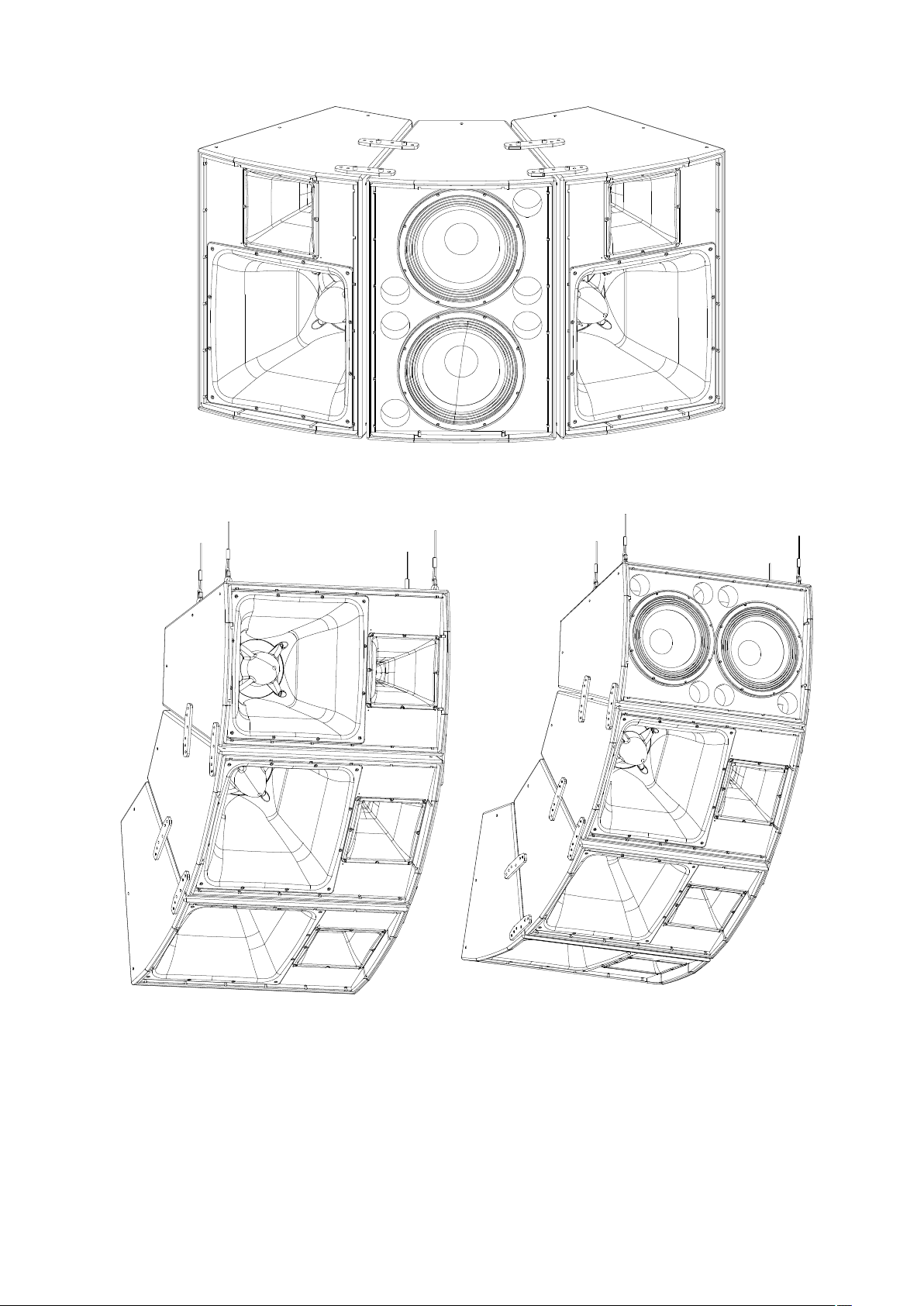

16x HQ-212.XX + 1x DX-100I
16x HQ-212.XX bi-amp + 1x DX-100I + 1x DX-80
SPECIFICATIONS

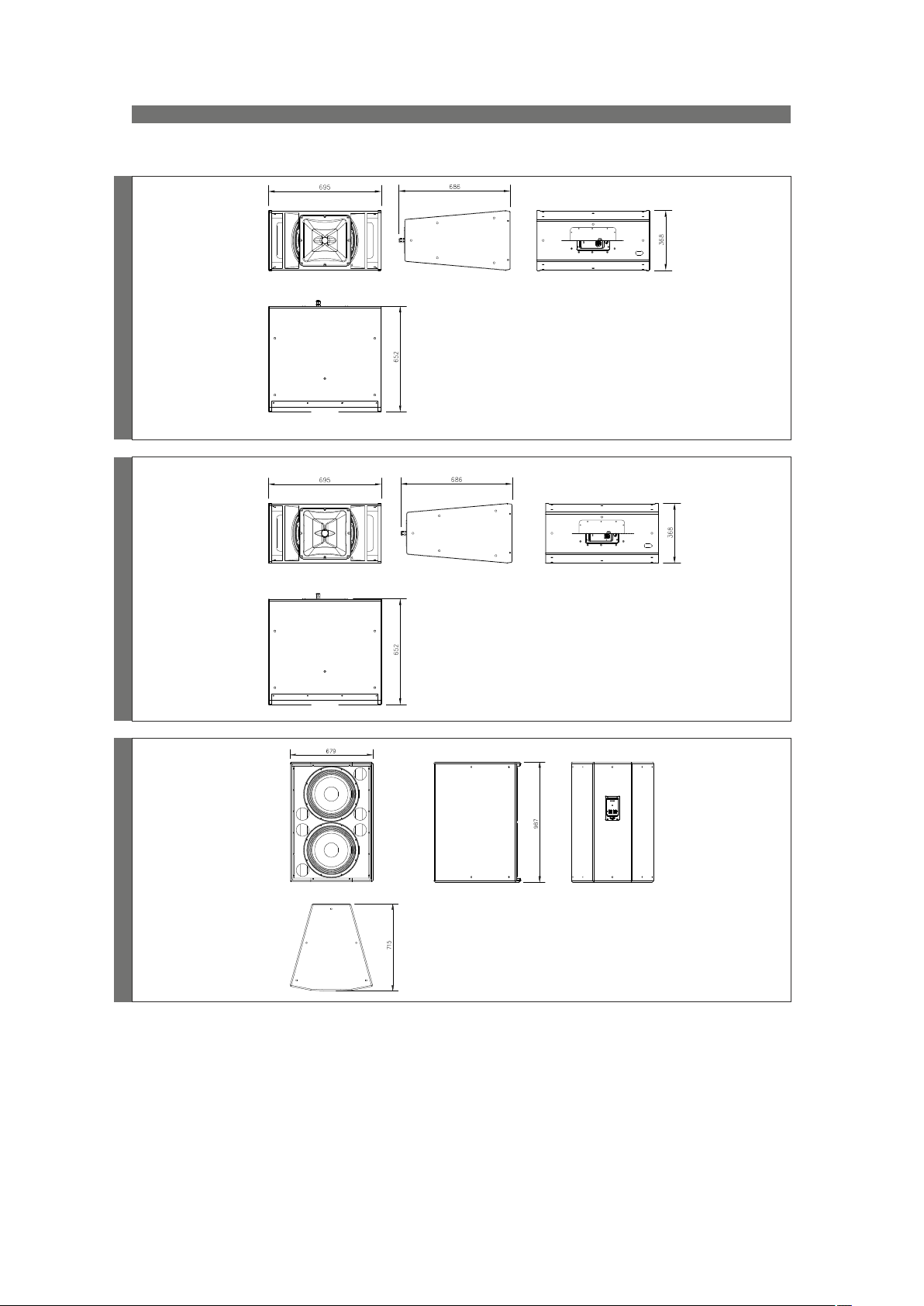

LINE DRAWINGS
INSTALLATION
ACCESSORIES
ANNEX: Table for cable selection
3
4
5
6 - 8
9 - 11
12
13 - 14
15 - 20
21 - 24
25
Manual del Usuario / HQ series / User’s Manual
HQ series
Cajas acústicas pasivas / Passive loudspeaker enclosures
Precauciones de Seguridad
Safety Precautions
Conserve y lea todas estas instrucciones.
Siga todas las advertencias.
El signo de exclamación dentro de un triángulo indica la
existencia de componentes internos cuyo reemplazo puede
afectar a la seguridad.
El doble cuadrado indica equipo de Clase II. The double square indicates Class II device.
Las especificaciones se encuentran en la etiqueta de la parte
posterior del producto.
El colgado del equipo sólo debe realizarse utilizando los herrajes
de colgado recomendados y por personal cualificado.
No exponga este equipo a la lluvia o humedad sin el protector
de lluvia recomendado. No use este aparato cerca del agua
(piscinas y fuentes, por ejemplo). No exponga el equipo a
salpicaduras sin el protector de lluvia recomendado, ni coloque
sobre él objetos que contengan líquidos, tales como vasos y
botellas.
Este símbolo indica que el presente producto no puede ser
tratado como residuo doméstico normal, sino que debe
entregarse en el correspondiente punto de recogida de equipos
eléctricos y electrónicos.
Equipo diseñado para funcionar entre 15ºC y 45ºC con una
humedad relativa máxima del 95%.
Keep these instructions.
Heed all warnings. Follow all instructions.
The exclamation point inside an equilateral triangle indicates the
existence of internal components whose substitution may affect
safety.
The specifications can be found on the rear label of the product.
The appliance should be flown only from the rigging points and
by qualified personnel.
Do not expose this device to rain or moisture without the rain
protector supplied. Do not use this apparatus near water (for
example, swimming pools and fountains). Do not place any
objects containing liquids, such as bottles or glasses, on the top
of the unit. Do not splash liquids on the unit without the rain
protector supplied.
This symbol on the product indicates that this product should
not be treated as household waste. Instead it shall be handed
over to the appicable collection point for the recycling of
electrical and electronic equipment.
Working temperature ranges from 15ºC to 45ºC with a relative
humidity of 95%.
El cableado exterior conectado al equipo requiere de su
instalación por una persona instruida.
El equipo cuenta con un terminal de entrada tipo regleta de
tornillo para facilitar la conexión.
No emplace altavoces en proximidad a equipos sensibles a
campos magnéticos, tales como monitores de televisión o
material magnético de almacenamiento de datos.
No existen partes ajustables por el usuario en el interior de este
equipo. Cualquier operación de mantenimiento o reparación
debe ser realizada por personal cualificado. Es necesario el
servicio técnico cuando el aparato se haya dañado de alguna
forma, tal como que haya caído líquido o algún objeto en el
interior del aparato, haya sido expuesto a lluvia o humedad, no
funcione correctamente o haya recibido un golpe.
Limpie con un paño seco. No use limpiadores con disolventes.
The outer wiring connected to the device requires installation by
an instructed person.
Device with terminal strip input to provide an easy connection.
Do not place loudspeakers in proximity to devices sensitive to
magnetic fields such as television monitors or data storage
magnetic material.
No user serviceable parts inside. Refer all servicing to qualified
service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
Clean only with a dry cloth. Do not use any solvent based
cleaners.
Manual del Usuario / HQ series / User’s Manual
3
GARANTÍA
Todos nuestros productos están garantizados por un periodo de 24
meses desde la fecha de compra.
Las garantías sólo serán válidas si son por un defecto de
fabricación y en ningún caso por un uso incorrecto del producto.
Las reparaciones en garantía pueden ser realizadas,
exclusivamente, por el fabricante o el servicio de asistencia técnica
autorizado.
Otros cargos como portes y seguros, son a cargo del comprador
en todos los casos.
Para solicitar reparación en garantía es imprescindible que el
producto no haya sido previamente manipulado e incluir una
fotocopia de la factura de compra.
WARRANTY
All our products are warrantied against any manufacturing defect
for a period of 2 years from date of purchase.
The warranty excludes damage from incorrect use of the product.
All warranty repairs must be exclusively undertaken by the factory
or any of its authorised service centers.
To claim a warranty repair, do not open or intend to repair the
product.
Return the damaged unit, at shippers risk and freight prepaid, to
the nearest service center with a copy of the purchase invoice.
4
Manual del Usuario / HQ series / User’s Manual
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
DAS Audio Group, S.L.
C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España
(Spain).
Declara que la serie HQ:
Declares that HQ series:
Cumple con los objetivos esenciales de las Directivas:
Abide by essential objectives relating Directives:
l De Baja Tensión / Low Voltage 2014/35/UE
l RoHS 2011/65/UE
l RAEE (WEEE) 2012/19/UE
Y es conforme a las siguientes Normas Armonizadas Europeas:
In accordance with Harmonized European Norms:
l EN 60065:2014.- Audio, video and similar electronic apparatus. Safety
requirements.
l EN 50581:2012.- Technical documentation for the assessment of
electrical and electronic products with respect to the restriction of
hazardous substances.
Manual del Usuario / HQ series / User’s Manual
5
INTRODUCTION
The DAS HQ series is designed for medium to large scale installations such arenas, stadiums, auditoriums
and theaters. The HQ models offer tightly controlled coverage patterns and high output capabilities being
usable individually, or in multiple unit arrays. The models are offered in FX paint finish. This finish is adequate
for applications where cabinets are covered or protected, and where cabinets are unprotected and directly
exposed to the environment. All versions are rated IP54.
Features
HQ-112.43
-Two-way system with 2 selectable operating
modes: passive system or Bi-amplified system.
-12” bass loudspeaker, 12HQ, 3" VCD.
-Compression driver with titanium diaphragm,
M-78N, 3" VCD.

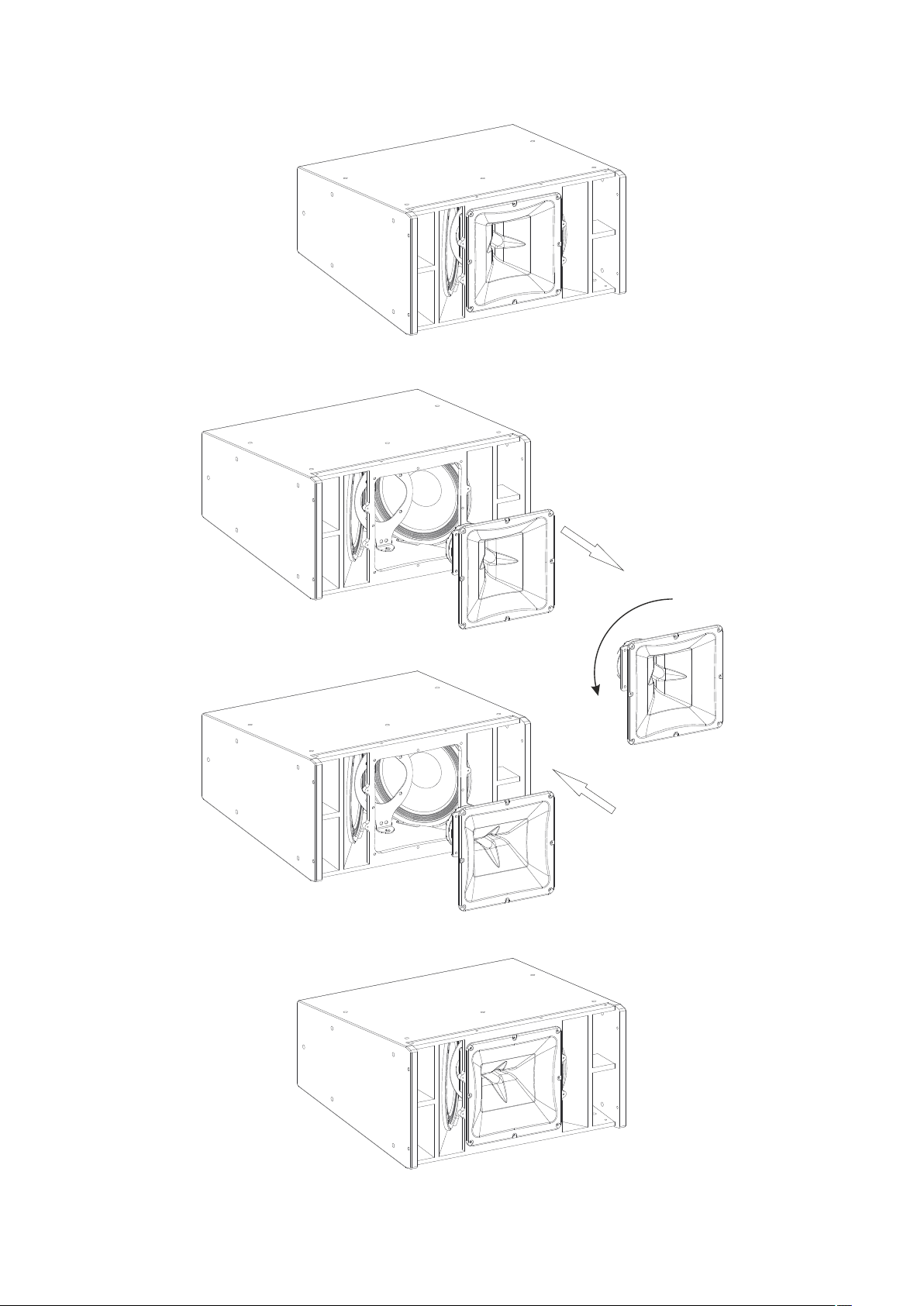

-Rotatable 40º x 30º horn design
-Trapezoid geometry enclosure
-Finish: FX covered and direct exposure
-20 built-in rigging points.
The HQ-112.43 is a two way configurable
system, bi-amplified or passive full-range, using a
subwoofer of 12", compression driver, M78N, with
exit of 1.5" and titanium diaphragm. To improve
the acoustic response, it is equipped with two
horns (one for medium frequencies and other for
high frequencies), and both are rotatable.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance
when used in direct exposure situations.
In the front, there is a perforated steel grill
which protects the components.
HQ-112.64
-Two-way system with 2 selectable operating
modes: passive system or Bi-amplified system.
-12” bass loudspeaker, 12HQ, 3" VCD.
-Compression driver with titanium diaphragm,
M-78N, 3" VCD.
-Rotatable 60º x 40º horn design
-Trapezoid geometry enclosure
-Finish: FX covered and direct exposure
-20 built-in rigging points.
The HQ-112.64 is a two way configurable
system, bi-amplified or passive full-range, using a
subwoofer of 12", compression driver, M78N, with
exit of 1.5" and titanium diaphragm. To improve
the acoustic response, it is equipped with two
horns (one for medium frequencies and other for
high frequencies), and both are rotatable.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance
when used in direct exposure situations.
In the front, there is a perforated steel grill
which protects the components.
6
Manual del Usuario / HQ series / User’s Manual
HQ-112.95
-Two-way system with 2 selectable operating
modes: passive system or Bi-amplified system.
-12” bass loudspeaker, 12HQ, 3" VCD.
-Compression driver with titanium diaphragm,
M-78N, 3" VCD.
-Rotatable 90º x 50º horn design
-Trapezoid geometry enclosure
-Finish: FX covered and direct exposure
-20 built-in rigging points.
The HQ-112.95 is a two way configurable
system, bi-amplified or passive full-range, using a
subwoofer of 12", compression driver, M78N, with
exit of 1.5" and titanium diaphragm. To improve
the acoustic response, it is equipped with two
horns (one for medium frequencies and other for
high frequencies), and both are rotatable.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance
when used in direct exposure situations.
In the front, there is a perforated steel grill
which protects the components.
HQ-218
-Bass-reflex subwoofer system.
-18" low frequency transducer, 18LX, 4" VCD.
-Precise and powerful bass reproduction.
-Trapezoid geometry enclosure
-Finish: FX covered and direct exposure
-20 built-in rigging points.
The HQ-218 is a subwoofer system that
incorporates a 18" low frequency transducer with
a 4" voice coil mounted as a direct radiator into a
bass-reflex cabinet.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance
when used in direct exposure situations.
The loudspeaker is protected by a perforated
steel grille, sealed against corrosion using a
powder coat finish.
Manual del Usuario / HQ series / User’s Manual
7
HQ-212.64
- Two-way long-throw system
- Horn loaded 2 X 12" low frequency loudspeaker,
12LQN4C, 3" VCD
- M-78N neodymium compression driver, 3" VCD
- Selectable passive/biamplified operating modes
- Tight 60º x 40º coverage angles
- Rotatable horns
- Stainless steel rigging kit
The DAS HQ-212.64 is designed for medium to
large scale installations such as arenas, auditoriums,
stadiums and theaters. The HQ models offer tightly
controlled coverage patterns and high output
capabilities being usable individually, or in multiple unit
arrays. The series enclosures incorporate cutting-edge
interior and exterior coatings for weather resistance
and extended durability in extreme environments.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance when
used in direct exposure situations.
In the front, there is a perforated steel grill which
protects the components.
HQ-212.95
- Two-way long-throw system
- Horn loaded 2 X 12" low frequency loudspeaker,
12LQN4C, 3" VCD
- M-78N neodymium compression driver, 3" VCD
- Selectable passive/biamplified operating modes
- Tight 90º x 50º coverage angles
- Rotatable horns
- Stainless steel rigging kit
The DAS HQ-212.95 is designed for medium to
large scale installations such as arenas,
auditoriums, stadiums and theaters. The HQ
models offer tightly controlled coverage patterns
and high output capabilities being usable
individually, or in multiple unit arrays. The series
enclosures incorporate cutting-edge interior and
exterior coatings for weather resistance and
extended durability in extreme environments.
The FX finish protects the cabinets outdoors
thanks to a fiberglass exterior and ISO-flex interior
protection augmenting their weather resistance when
used in direct exposure situations.
In the front, there is a perforated steel grill which
protects the components.
8
Manual del Usuario / HQ series / User’s Manual
CONFIGURATIONS
Next, you will see three examples. You will find more configurations on our website.
LINK LINK
HQ-112.XX HQ-112.XX HQ-112.XX HQ-112.XX
4x HQ-112.xx (horizontal array)
D20
LINK
HQ-112.95 HQ-112.95HQ-218
4x HQ-112.95 + 2x HQ-218 (horizontal array)
LINK
HQ-112.95 HQ-112.95HQ-218
DSP-2060A
D100
PRC (Power Reduction Control) for D-100:
PRC = 0 dB for HQ-218
PRC = -4 dB for HQ-112.xx
Manual del Usuario / HQ series / User’s Manual
9
CONFIGURATIONS (cont’d)
6x HQ-112.43 + 2x HQ-218 (vertical array)
HQ-112.43
HQ-112.43
HQ-112.43
HQ-218
DSP-2060A
LINK
D100
PRC (Power Reduction Control) for D-100:
PRC = 0 dB for HQ-218
LINK
PRC = -4 dB for HQ-112.xx
Nota: Para acoplamiento acústico óptimo el usuario
debe girar los difusores de MF y HF
como se explica en las figuras abajo.
Note: For optimal acoustic coupling the user must
rotate MF and HF horns as explained
in the images below.
HQ-218
HQ-112.43
LINKLINK
HQ-112.43
HQ-112.43
30º
40º
40º
90º
50º50º
30º
90º
50º50º
Factory horns settings for the HQ-112.43 Horns settings for vertical arrays
with HQ-112.43.
10
Manual del Usuario / HQ series / User’s Manual
40º
40º
30º
30º
CONFIGURATIONS (cont’d)
16x HQ-212.XX + 1x DX-100I
+-1 +-1 +-1 +-1
L R
PROTECTION
DX SERIES DSP
BRIDGE 1+2
PROCESSING POWER AMPLIFIER
BRIDGE 3+4
BACK NEXT
MENU
STBY
MUTE
1 2 3 4
ADJUST
L+4
L+4
L+4
CLIP
G.R.
REMOTE
LIM
LIM
LIM
1
0
6
6
6
2
6
AUX 1-4
IN A-D
BANK
DIGITAL IN
4
12
12
12
12
8
18
18
18
18
16
24
24
24
24
NETWORK AUDIO
A B C D
ENTER
QUIT
DX SERIES DSP
EDIT
PROCESSING POWER AMPLIFIER
16x HQ-212.XX bi-amp + 1x DX-100I + 1x DX-80
+-1 +-2 +-1 +-2+-1 +-2 +-1 +-2
L R
PROTECTION
DX SERIES DSP
BRIDGE 1+2
PROCESSING POWER AMPLIFIER
BRIDGE 3+4
BACK NEXT
MENU
STBY
MUTE
1
2 3 4
ADJUST
L+4
L+4
L+4
CLIP
G.R.
REMOTE
LIM
LIM
LIM
1
0
6
6
6
2
6
4
12
12
12
12
8
18
18
18
18
16
24
24
24
24
A B C D
QUIT
EDIT
AUX OU TPUTS
LINK LINKLINK
LIM LIM LIM LIM
3 3 3 3
6 6 6 6
12 12 12 12
18 18 18 18
24 24 24 24
-6 -6 -6 -6
-4 -4 -4 -4
-12 -12 -12 -12
-2 -2 -2 -2
-20 -20 -20 -20
- - - -
0dB 0dB 0dB 0dB
DX SERIES
DIGITAL IN
NETWORK AUDIO
ENTER
DX SERIES DSP
PROCESSING POWER AMPLIFIER
PROTECTION
BRIDGE 1+2
BRIDGE 3+4
STBY
POWER
ANALOGUE
NETWORK AUDIO
AUX 1-4
IN A-D
BANK
Manual del Usuario / HQ series / User’s Manual
11
SPECIFICATIONS
Model
RMS (Average) Power Handling
Peak Power Handling
Frequency Range (-10 dB)
Nominal Impedance
Crossover Modes
On-axis Sensitivity 1 W/ 1 m
Rated Maximum Peak SPL at 1 m
HF Horn Coverage Angles (-6dB)
Enclosure Material
Color / Finish
Rigging points
Transducers/Replacement Parts
Connectors
Dimensions (H x W x D)
Weight
Accessories
HQ-112.43 HQ-112.64 HQ-112.95
1
2
3
LF: 1 x 12HQ/ GM 12HQ
400W 400 W 400 W
1600W 1600W 1600W
80 Hz-18 kHz 80 Hz-18 kHz 80 Hz-18 kHz
8 ohms 8 ohms 8 ohms
Passive / Bi-amp Passive / Bi-amp Passive / Bi-amp
111 dB SPL 110 dB SPL 109 dB SPL
142 dB 141 dB 140 dB
40º x 30º Rotatable 60º x 40º Rotatable 90º x 50º Rotatable
Birch Plywood Birch Plywood Birch Plywood
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
HF: M-78N / GM-M75
Covered Barrier Strip
& 2x NL4 speakO N
100 x 69 x 71.5 cm
39.4 x 27.2 x 28.2 in
79 kg
174 lb
Stainless Steel kit for
M10 rigging points
ANL-2
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
LF: 1 x 12HQ/ GM 12HQ
HF: M-78N / GM-M75
Covered Barrier Strip
& 2x NL4 speakO N
100 x 69 x 60.5 cm
39.4 x 27.2 x 23.8 in
70 kg
154 lb
Stainless Steel kit for
M10 rigging points
ANL-2
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
LF: 1 x 12HQ/ GM 12HQ
HF: M-78N / GM-M75
Covered Barrier Strip
& 2x NL4 speakO N
100 x 69 x 60.5 cm
39.4 x 27.2 x 23.8 in
Stainless Steel kit for M10
154 lb
rigging points
ANL-2
70 kg
RMS (Average) Power Handling
Peak Power Handling
Frequency Range (-10 dB)
Model
Nominal Impedance
Crossover Modes
On-axis Sensitivity 1 W/ 1 m
Rated Maximum Peak SPL at 1 m
HF Horn Coverage Angles (-6dB)
Enclosure Material
Color / Finish
Rigging points
Transducers/Replacement Parts
Connectors
Dimensions (H x W x D)
Weight
Accessories
HQ-212.64 H Q-212.95 HQ-218
1
2
3
LF: 2 x 12LQ N4C/ GM-12L QN4C
800W 800 W 2000 W
3200W 3200W 8000 W
63 Hz-18 kHz 63 Hz-18 kHz 28 Hz – 125Hz
8 ohms 8 ohms 4 ohms
Passive / Bi-amp Passive / Bi-amp Passive
106 dB SPL 105 dB SPL 101 dB SPL
141 dB 140 dB 140 dB
60º x 40º Rotatable
Birch Plywood Birch Plywood Birch Plywood
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
HF: M-78N / GM-M75 HF: M-78N / GM-M75
Covered Barrier Strip
37 x 72.5 x 66 cm
14.6 x 28.6 x 26 in
39 kg
85.8 lb
Stainless Steel kit for
M10 rigging points
ANL-2
90º x 50º Rotatable -----
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
LF: 2 x 12LQ N4C/ GM-12L QN4C
Covered Barrier Strip
37 x 72.5 x 66 cm
14.6 x 28.6 x 26 in
39 kg
85.8 lb
Stainless Steel kit for
M10 rigging points
ANL-2
LF: 2 x 18LX/ GM 18LX
Stainless Steel kit for M10
Black or White (W) /
FX: Fiberglass
20 x M10 threaded
hardware
Covered Barrier Strip
& 2x NL4 speakO N
100 x 69 x 71.5 cm
39.4 x 27.2 x 28.2 in
rigging points
75 kg
165 lb
ANL-2
Notes: 1. Based on a 2 hour test continuously applying 6 dB crest factor pink noise.
2. In Bi-amp mode, with recommended active settings.
3. Maximum calculated Peak SPL based on sensitivity and RMS power handling.
DAS Audio Group S.L. continuously strives to enhance its products through investigation and development. All specifications are subject to
change without prior notice.
12
Manual del Usuario / HQ series / User’s Manual
LINE DRAWINGS
ALL DIMENSIONS IN MILLIME TERS
HQ-112.43HQ-112.64HQ-112.95
Manual del Usuario / HQ series / User’s Manual
13
LINE DRAWINGS
ALL DIMENSIONS IN MILLIME TERS
HQ-212.64HQ-212.95HQ-218
14
Manual del Usuario / HQ series / User’s Manual
INSTALLATION
Connectors
The DAS HQ series is designed to facilitate the connection for installations, so it has been provided with
two types of connectors: the NL4 type, standard for professional audio equipment (except HQ-212.xx), and
screw terminals, easier to use in most types of installations. These terminals are connected in parallel, so that
we can carry the amplified audio signal up to a device and we can forward it to the next box, very easily. The
polarity of the connectors and other important information for proper connection is indicated on the labels.
Switch to operating mode:
BI-AMPLIFIED - PASSIVE
Rotatable horns
The HQ-112.xx and HQ-212.xx models of the DAS HQ series have been provided with rotatable horns to
optimize the acoustic response of the unit group of installed systems. This will be necessary when we install
the equipment horizontally, as stated in the following figures:
30º
40º
90º
50º50º
40º
60º
90º
30º
40º
50º50º
40º
30º
90º
50º50º
60º
90º
40º
30º
40º
50º50º
Factory horns settings for the HQ-112.xx Horns settings for vertical arrays
with HQ-112.xx
Manual del Usuario / HQ series / User’s Manual
15
Example: HQ-212.95
90º HORIZONTAL
DISASSEMBLE
90º HORIZONTAL
After turn: 90º VERTICAL
TURN 90º
ASSEMBLE
16
90º VERTICAL
Manual del Usuario / HQ series / User’s Manual
Coverages
The DAS HQ series is designed with trapezoid enclosures to very easily achieve the desired coverages in
fixed installations. Here are some basic examples.
Vertical Array 70º coverage
VISTA LATERAL
SIDE VIEW
Vertical Array 110º coverage
VISTA LATERAL
SIDE VIEW
Manual del Usuario / HQ series / User’s Manual
17
Horizontal Array 150º coverage
VISTA SUPERIOR
TOP VIEW
Horizontal Array 60º coverage
VISTA SUPERIOR
TOP VIEW
Horizontal Array 100º coverage
VISTA SUPERIOR
TOP VIEW
18
Manual del Usuario / HQ series / User’s Manual
VISTA SUPERIOR
TOP VIEW
Horizontal
Array
360º coverage
The DAS HQ series, as seen in these examples, allows more combinations to achieve the desired
coverage in each installation. We have collected only the most indicative examples, given the infinite
possibilities. On our website, you can find the "gll" files for Ease Focus software, with which you can simulate
the acoustic performance of a given configuration of devices. For instance:
Manual del Usuario / HQ series / User’s Manual
19
Example: HQ-212.XX
HQ-212.64
35º
HQ-212.64
40º
HQ-212.95
20
Manual del Usuario / HQ series / User’s Manual
ACCESSORIES
To perform any operations related to flying the system, read the present document first, and act on the
warnings and advice given.
The goal is to allow the user to become familiar with the mechanical elements required to fly the acoustic
system, as well as the safety measures to be taken during set-up and teardown.
Only experienced installers with adequate knowledge of the equipment and local safety regulations
should fly speaker boxes.
It is the user's responsibility to ensure that the systems to be flown (including flying accessories) comply
with state and local regulations.
The working load limits in this manual are the results of tests by independent laboratories. It is the user's
responsibility to stay within safe limits. It is the user's responsibility to follow and comply with safety factors,
resistance values, periodical supervisions and warnings given in this manual.
Product improvement by means of research and development is on going at DAS Specifications are
subject to change without notice.
It is common practice to apply 5:1 safety factors for enclosures and static elements.
For slings and elements exposed to material fatigue due to friction and load variation the following ratios
must be met; 5:1 for steel cable slings, 4:1 for steel chain slings and 7:1 polyester slings.
Thus, an element with a breaking load limit of 1000 kg may be statically loaded with 200 kg (5:1 safety
factor) and dynamically loaded with 142 Kg (7:1 safety factor).
The load capacity, of each lift motor, should be correspond to a safety factor of 10:1.
When flying a system, the working load must be lower than the resistance of each individual flying point in
the enclosure, as well as each box.
Hanging hardware should be regularly inspected and suspect units replaced if in doubt.
This is important to avoid injury and absolutely no risks should be taken in this respect. It is highly
recommended that you implement an inspection and maintenance program on flying elements, including
reports to be filled out by the personnel that will carry out the inspections.
Local regulations may exist that, in case of accident, may require you to present evidence of inspection
reports and corrective actions after defects were found.
Absolutely no risks should be taken with regards to public safety.
When flying enclosures from ceiling support structures, extreme care should be taken to assure the load
bearing capabilities of the structures so that the installation is absolutely safe.
Do not fly enclosures from unsafe structures.
Consult a certified professional if needed.
All flying accessories that are not supplied by DAS Audio are the user's responsibility. Use at your own
risk.
ANL-2
Manual del Usuario / HQ series / User’s Manual
21
To hang the units, the Allen-head screws must be removed and replaced by M10 eyebolts on one side of
the enclosure. Each rigging point has a 200 kg (440 lb) working load limit.
Then choose the slings or chains of required load resistance and length, bearing in mind that the length
difference between the front and back slings or chains will determine the vertical orientation. Alternatively, the
back bottom eyebolt points can be used to provide vertical orientation.
The ANL-2 set is an optional set of four eyebolts and four carabiners. (Dimensions are in millimeters).
Each ANL-2 eyebolt has a rated working load of 200 kg. (440 lb). Each ANL-2 carabiner has a working
load of 330 kg (726 lb). If using other hardware, make sure it is rated to handle the required load.
When using eyebolts it is important to bear in mind that the rated working load is only true for a load
applied in the plane of the eye, and is significantly reduced for other angles. The drawing illustrates the
concept.
The table shows the variation of the working load as a function of the load angle. In the case of the ANL-2
eyebolt, this means that the 200 kg working load becomes 60 kg at 45 degrees. Do not use eyebolt flying if
the load angle is higher than 45 degrees.
Note: As always, when we handle heavy loads, we should wear appropriate clothing and
protective elements such as gloves, safety shoes, etc.
% Working
load
0 Degrees
100% 65% 30% 25%
30 Degrees 45 Degrees More than 45
Degrees
Next, you will see some examples, both horizontal and vertical array.
22
Horizontal array: 3x HQ-112.xx
Manual del Usuario / HQ series / User’s Manual
Horizontal array: 2x HQ-112.xx + 1x HQ-218
Vertical array: 3x HQ-112.xx Vertical array: 3x HQ-112.xx + 1x HQ-218
Manual del Usuario / HQ series / User’s Manual
23
Vertical array: 2x HQ-212.64 + 1x HQ-212.95
24
Manual del Usuario / HQ series / User’s Manual
ANNEX : Table for cable selection
This table shows the power loss in % and dB, for different cable lengths and sections shown. It is
recommended that the losses do not exceed 30% in any case (around 3dB). Although it is recommended
minimizing losses, the maximum acceptable losses are usually around 15% (approximately 1.4dB).
Manual del Usuario / HQ series / User’s Manual
25
www.dasaudio.com
UM_HQ_02_EN
DAS Audio Group, S.L.
C/. Islas Baleares, 24
46988 Fuente del Jarro
Valencia, SPAIN
Tel. +34 96 134 0860
DAS Audio of America, INC.
6900 NW 52th Street
Miami, FL. 33166 - U.S.A.
TOLL FREE: 1 888 DAS 4 USA
DAS Audio Asia PTE. LTD.
3 Temasek Avenue, Centennial
Tower #34-36
Singapore 039190
Tel. +65 6549 7760
DAS do Brasil LTDA.
Rua Dos Andradas, 382 SL
Santa Efigênia, São Paulo
Brasil. CEP: 01208-000
Tel. +551133330764
Loading...
